◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51606 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#162841) — 15 parça

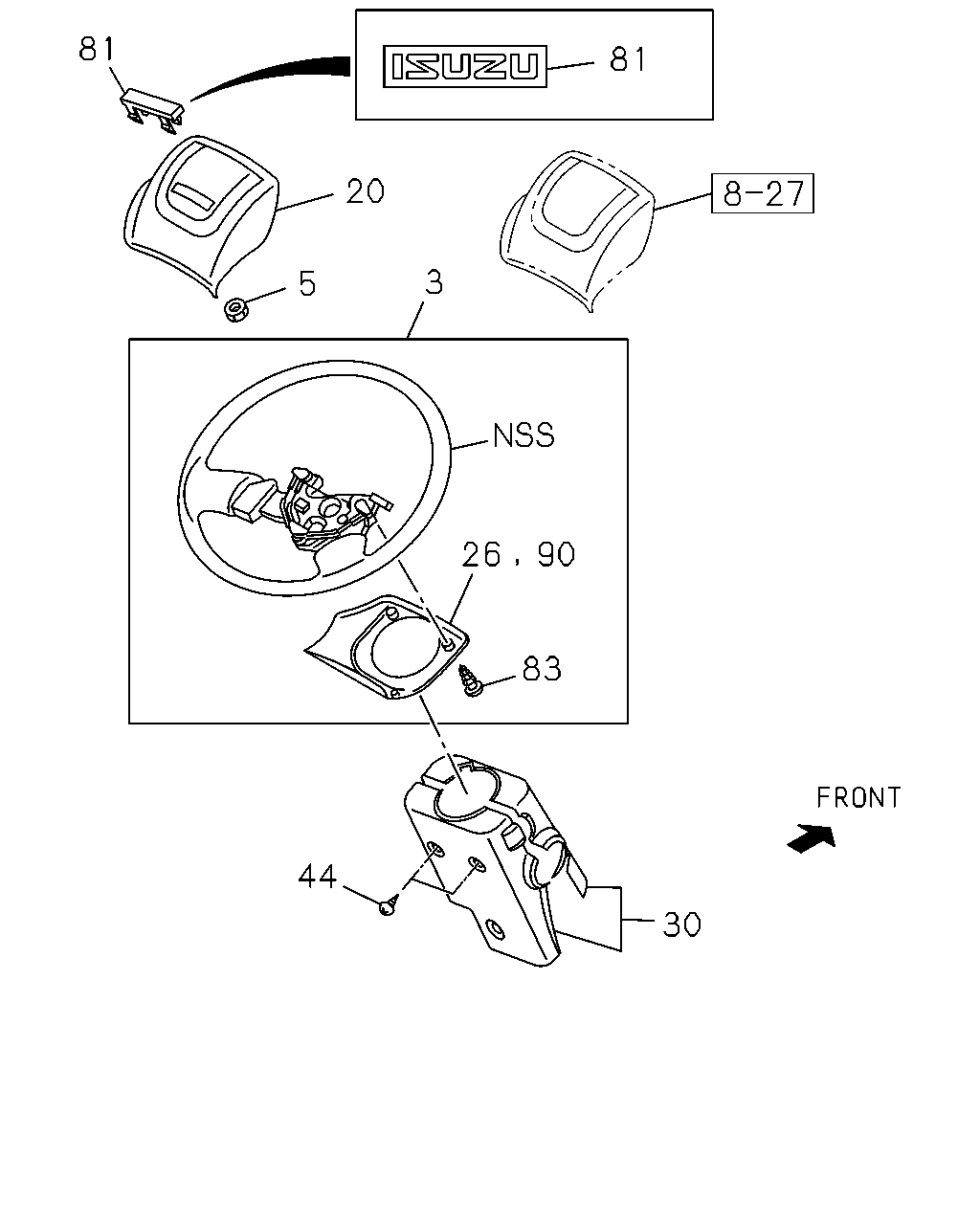

çizim 480060
81 81 20 5 3 26 90 83 44 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97428-464-5 01 1 1506- ● ● ● ● ● ●
3 06.513 WHEEL; STRG
4 WHEEL DISC BRAKE<JF9> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,NEW ZEALAND COUNT RY<CX6> DARK GRAY 		8-97466-361-0 01 1 1506- ● ● ● ● ● ●
3 06.513 WHEEL; STRG
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97465-649-2 01 1 1506- ● ● ● ● ● ●
3 06.513 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL DISC BRAKE<JF9> DARK GRAY 		8-97465-649-2 01 1 1506- ● ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1506- ● ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97465-647-0 01 1 1506- ● ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97465-650-0 01 1 1506- ● ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL DISC BRAKE<JF9> DARK GRAY 		8-97465-650-0 01 1 1506- ● ● ● ● ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97418-761-1 01 1 1506- ● ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1506- ● ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97465-648-0 01 1 1506- ● ● ● ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M4X10 TAPPING 		8-98319-680-0 03 1 1506- ● ● ● ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 09.242 M4X10 TAPPING 		0-71240-410-0 03 1 1506- ● ● ● ● ● ●
90 06.578 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97465-726-2 01 1 1506- ● ● ● ● ● ●
90 06.578 COVER ASM; STRG WHEEL,LWR
4 WHEEL DISC BRAKE<JF9> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,NEW ZEALAND COUNT RY<CX6> DARK GRAY 		8-97465-726-2 01 1 1506- ● ● ● ● ● ●
