Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#162840) — 185 parça

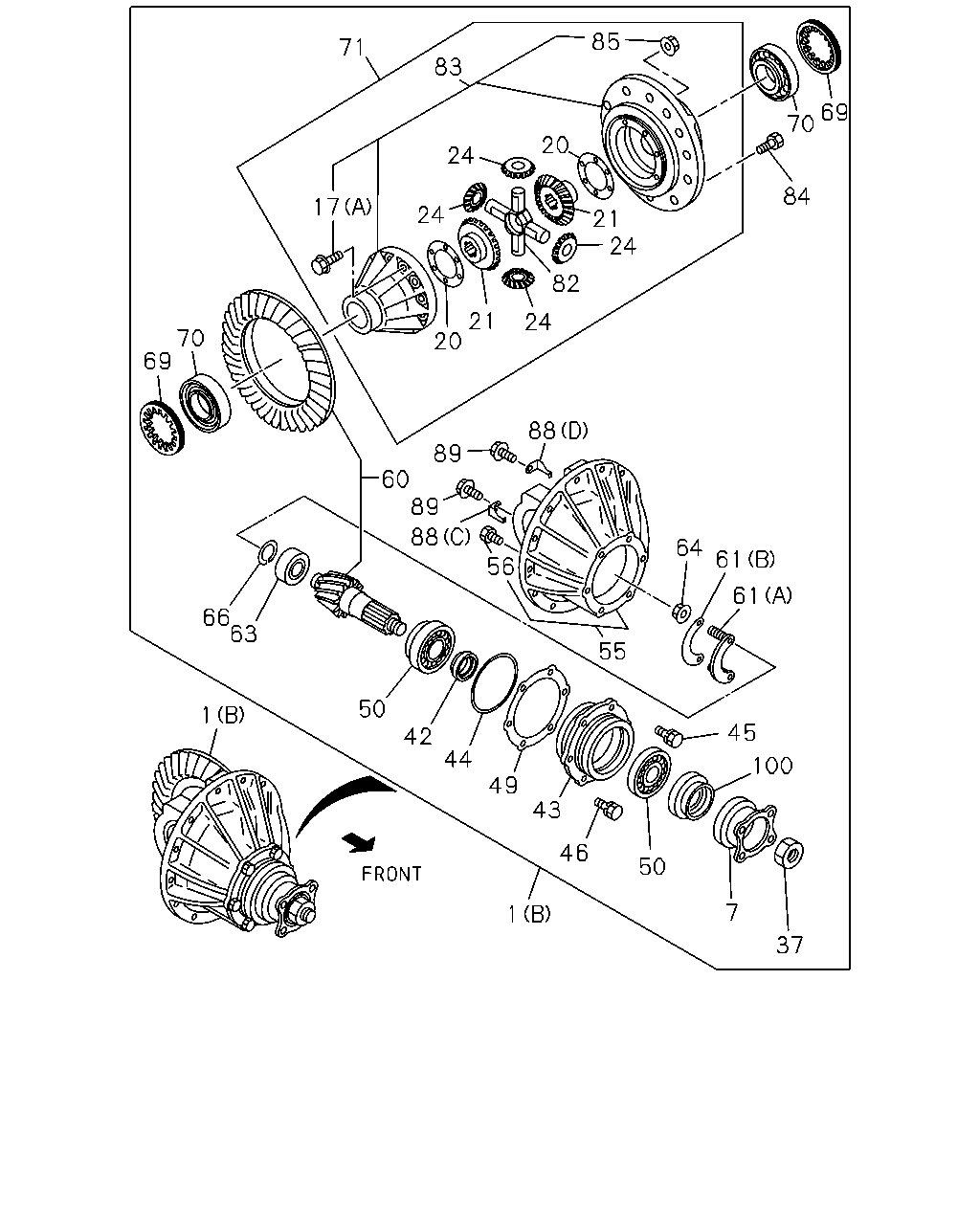

37 100 39 43 1 1 49 44 42 50 63 66 69 70 60 89 56 55 64 61 61 7 45 17 71 83 86 85 70 69 84 21 25 24 82 24 25 21 20 24 25 24 25 20 86 88 88 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) (B) 41/9	8-98015-137-0	01	1	1506-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) (B) 43/10	8-98015-136-0	01	1	1506-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) (A) 41/10	8-97388-700-0	01	1	1506-			●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) (A) 43/10	8-97388-701-0	01	1	1506-			●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) (A) 41/9	8-97388-702-0	01	1	1506-				●		●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	1506-	●	●
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	1506-			●	●	●	●
17	05.510 BOLT; DIFF CAGE SETTING (A) M10X75 FLANGE	8-97232-161-0	12	1	1506-	●	●
17	05.510 BOLT; DIFF CAGE SETTING (B) M12X90	8-98219-448-0	12	1	1506-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1506-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1506-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1506-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1506-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1506-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1506-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1506-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1506-			●	●	●	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-1	02	1	1506-	●	●
21	05.528 GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1506-			●	●	●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1506-	●	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1506-			●	●	●	●
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	1506-			●	●	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1506-	●	●
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	1506-			●	●	●	●
39	05.484 BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1506-			●	●	●	●
39	05.484 BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1506-			●	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1506-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	1506-			●	●	●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	1506-	●	●
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	1506-			●	●	●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	1506-	●	●
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	1506-			●	●	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1506-	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1506-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1506-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1506-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1506-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1506-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1506-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1506-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	1506-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	1506-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	1506-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	1506-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	1506-			●	●	●	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	1506-	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	1506-	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	1506-			●	●	●	●
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1506-			●	●	●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1506-	●	●
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	1506-			●	●	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1506-	●	●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1506-			●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1506-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-052-0	01	1	1506-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97061-846-0	01	1	1506-1510			●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-152-0	01	1	1511-			●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	1506-1510			●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-149-0	01	1	1511-			●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	1506-				●		●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1506-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1506-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	1506-			●	●	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	1506-			●	●	●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	1506-	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	1506-	●	●
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	1506-			●	●	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	1506-			●	●	●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-	●	●	●	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1506-	●	●
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	1506-			●	●	●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1506-	●	●
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	1506-			●	●	●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1506-	●	●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1506-			●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-181-1	01	1	1506-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-4	01	1	1506-			●	●	●	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	1506-	●	●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	1506-			●	●	●	●
83	05.510 CAGE ASM; DIFF	8-97319-398-1	01	1	1506-	●	●
83	05.510 CAGE ASM; DIFF	8-98219-705-0	01	1	1506-			●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1506-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	1506-			●	●	●	●
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	1506-	●	●
85	05.510 NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	1506-			●	●	●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1506-			●	●	●	●
88	05.506 PLATE; LK,ADJ NUT (C)	8-97027-281-0	AR	1	1506-	●	●
88	05.506 PLATE; LK,ADJ NUT (D)	8-97027-282-0	AR	1	1506-	●	●
88	05.506 PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	1506-			●	●	●	●
88	05.506 PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	1506-			●	●	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1506-			●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1506-	●	●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1506-			●	●	●	●

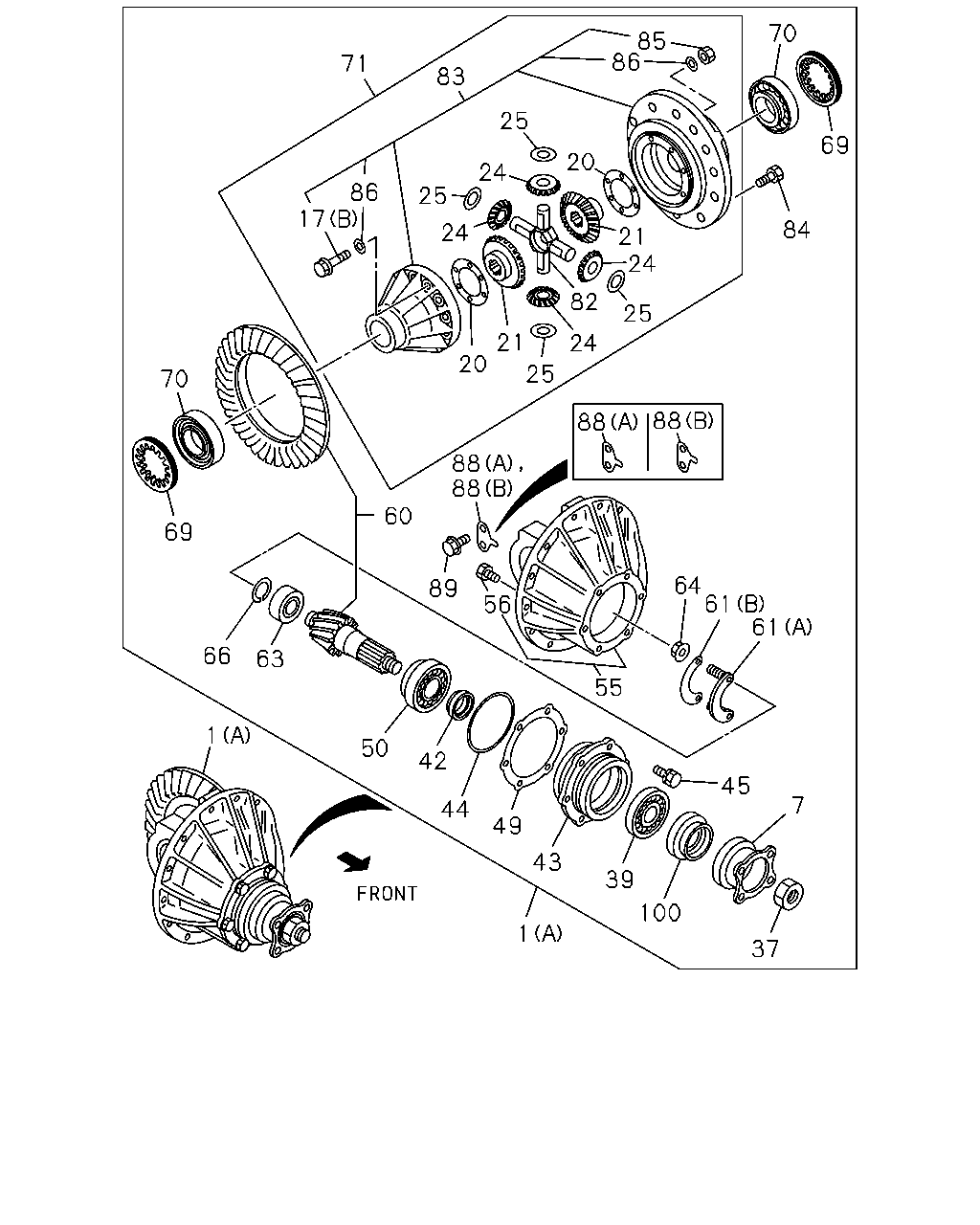

37 7 50 46 43 49 44 42 50 63 66 1 1 88 56 55 64 61 61 88 89 60 70 69 89 24 21 20 17 71 83 85 70 69 84 24 82 20 24 24 21 45 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) (B) 41/9	8-98015-137-0	01	1	1506-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) (B) 43/10	8-98015-136-0	01	1	1506-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) (A) 41/10	8-97388-700-0	01	1	1506-			●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) (A) 43/10	8-97388-701-0	01	1	1506-			●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) (A) 41/9	8-97388-702-0	01	1	1506-				●		●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	1506-	●	●
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	1506-			●	●	●	●
17	05.510 BOLT; DIFF CAGE SETTING (A) M10X75 FLANGE	8-97232-161-0	12	1	1506-	●	●
17	05.510 BOLT; DIFF CAGE SETTING (B) M12X90	8-98219-448-0	12	1	1506-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1506-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1506-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1506-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1506-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1506-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1506-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1506-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1506-			●	●	●	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-1	02	1	1506-	●	●
21	05.528 GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1506-			●	●	●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1506-	●	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1506-			●	●	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1506-	●	●
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	1506-			●	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1506-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	1506-			●	●	●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	1506-	●	●
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	1506-			●	●	●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	1506-	●	●
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	1506-			●	●	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1506-	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1506-			●	●	●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	1506-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1506-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1506-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1506-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1506-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1506-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1506-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	1506-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	1506-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	1506-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	1506-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	1506-			●	●	●	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	1506-	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	1506-	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	1506-			●	●	●	●
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1506-			●	●	●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1506-	●	●
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	1506-			●	●	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1506-	●	●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1506-			●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1506-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-052-0	01	1	1506-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97061-846-0	01	1	1506-1510			●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-152-0	01	1	1511-			●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	1506-1510			●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-149-0	01	1	1511-			●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	1506-				●		●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1506-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1506-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	1506-			●	●	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	1506-			●	●	●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	1506-	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	1506-	●	●
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	1506-			●	●	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	1506-			●	●	●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-	●	●	●	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1506-	●	●
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	1506-			●	●	●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1506-	●	●
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	1506-			●	●	●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1506-	●	●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1506-			●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-181-1	01	1	1506-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-4	01	1	1506-			●	●	●	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	1506-	●	●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	1506-			●	●	●	●
83	05.510 CAGE ASM; DIFF	8-97319-398-1	01	1	1506-	●	●
83	05.510 CAGE ASM; DIFF	8-98219-705-0	01	1	1506-			●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1506-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	1506-			●	●	●	●
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	1506-	●	●
85	05.510 NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	1506-			●	●	●	●
88	05.506 PLATE; LK,ADJ NUT (C)	8-97027-281-0	AR	1	1506-	●	●
88	05.506 PLATE; LK,ADJ NUT (D)	8-97027-282-0	AR	1	1506-	●	●
88	05.506 PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	1506-			●	●	●	●
88	05.506 PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	1506-			●	●	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1506-			●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1506-	●	●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1506-			●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
