4-11 — FRONT HUB AND DRUM OR ROTOR (#162838) — 36 parça

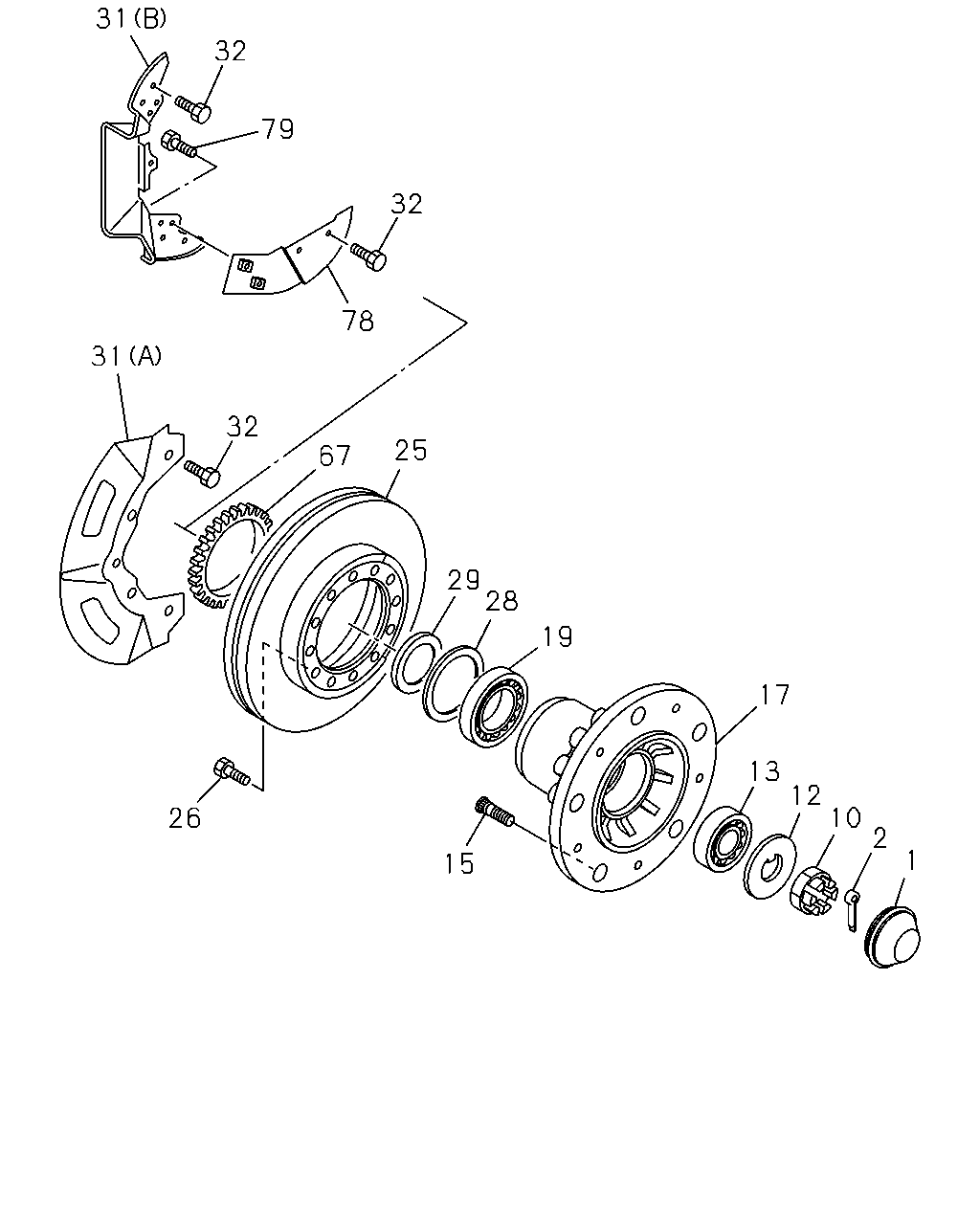

çizim 480258
31 32 32 79 78 25 67 32 31 29 26 28 19 15 17 13 12 10 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.330 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1506-1511 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98331-242-0 02 1 1512- ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 1506- ● ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 1506- ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
05.812 		8-98282-435-0 02 1 1506- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 1506- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 1506- ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 1506- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
F&R195/85R16(BS BRAND)16X5.5J-116.5 5 -WHL/NUT(CVU) M18X46 RH THREAD 		8-98028-532-1 05 1 1506- ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 1506- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
F&R195/85R16(BS BRAND)16X5.5J-116.5 5 -WHL/NUT(CVU) M18X46 LH THREAD 		8-98028-533-1 05 1 1506- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ) M20X53 RH THREAD 		8-97168-456-2 06 1 1506- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 RH THREAD 		8-97168-456-2 06 1 1506- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ) M20X53 LH THREAD 		8-97168-457-2 06 1 1506- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 LH THREAD 		8-97168-457-2 06 1 1506- ● ●
17 06.307 HUB; FRT AXLE 8-97035-160-0 02 1 1506- ● ●
17 06.307 HUB; FRT AXLE
F&R195/85R16(BS BRAND)16X5.5J-116.5 5 -WHL/NUT(CVU) 		8-97035-160-0 02 1 1506- ●
17 06.307 HUB; FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ) 		8-97168-460-0 02 1 1506- ● ●
17 06.307 HUB; FRT AXLE 8-97168-460-0 02 1 1506- ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1506- ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1506- ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97387-229-0 02 1 1506- ● ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97387-229-0 02 1 1506- ● ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-98248-895-0 02 1 1506- ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-98006-395-0 02 1 1506- ● ●
26 05.812 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 1506- ● ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 1506- ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 1506- ● ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
(A) 		8-98037-377-0 02 1 1506- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
(B) 		8-98152-300-0 01 1 1506- ● ●
31 04.665 COVER; DUST,FRT BRAKE
(B) 		8-98152-301-0 01 1 1506- ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
02.343 M8X12 FLANGE 		0-28050-812-0 08 1 1506- ● ● ● ● ● ●
67 05.811 ROTOR; SENSOR 8-97387-159-0 02 1 1506- ● ● ● ● ● ●
78 04.665 BRACKET; DUST COVER 8-97207-172-1 01 1 1506- ● ●
78 04.665 BRACKET; DUST COVER 8-97207-173-1 01 1 1506- ● ●
79 04.665 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
