◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51606 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#162835) — 1223 parça

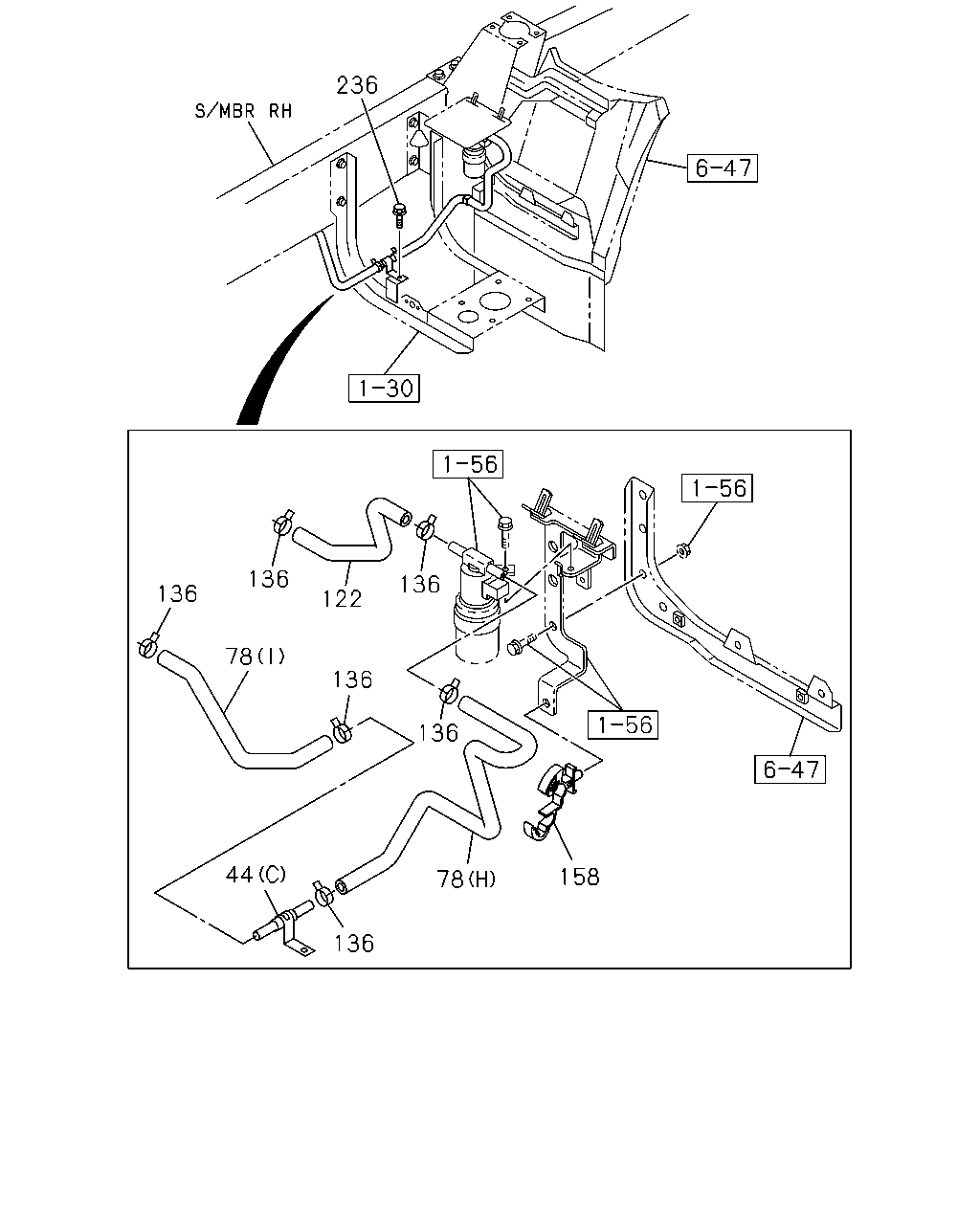

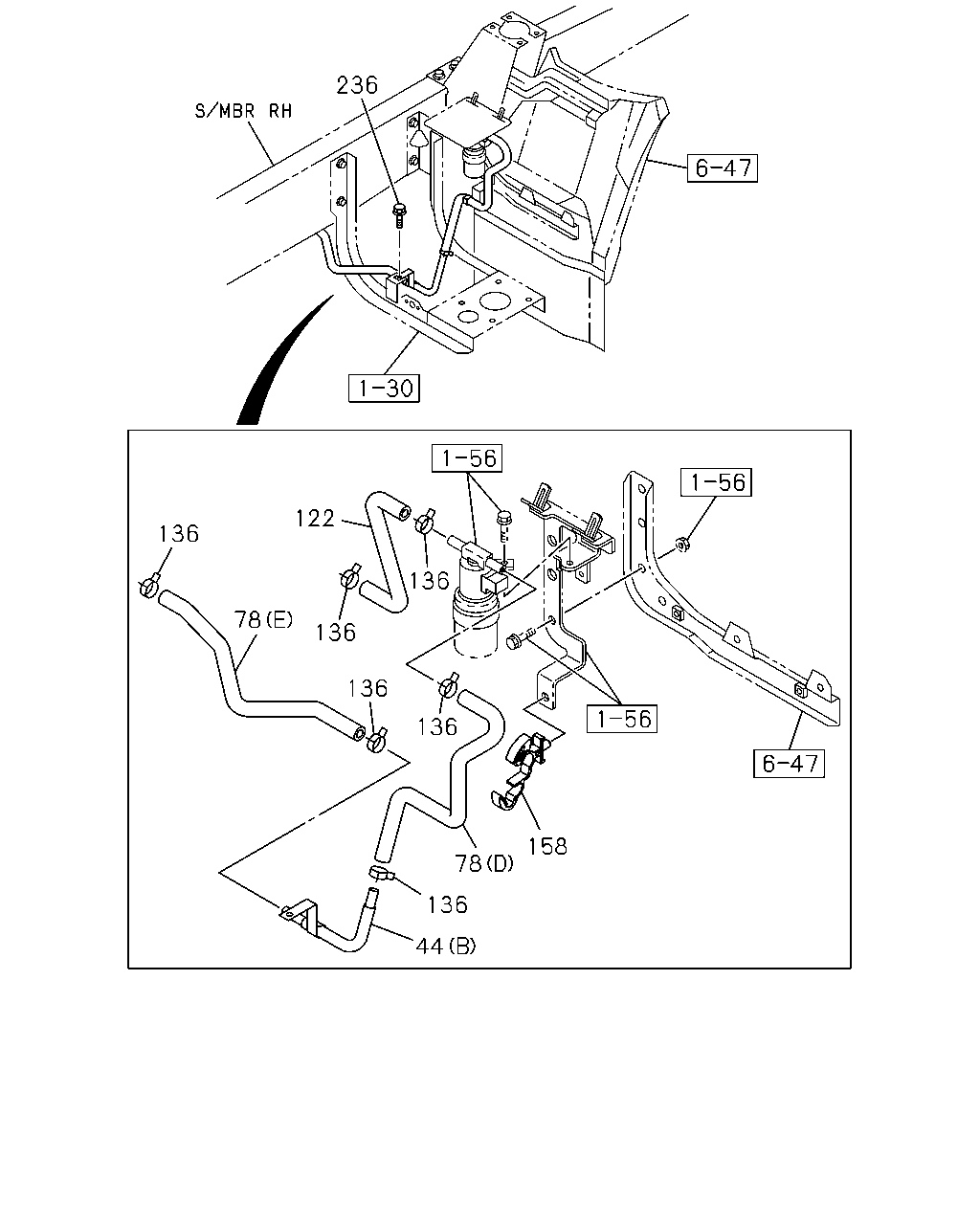

çizim 479673
236 136 136 122 136 136 78 44 78 158 136 136
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) (D) 		8-98089-666-0 01 1 1506- ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98063-777-0 01 1 1506- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) 		8-98040-807-1 01 1 1506- ● ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98040-807-1 01 1 1506- ● ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98034-281-1 01 1 1506- ● ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98040-634-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-98220-704-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(I) 		8-98106-711-0 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98171-288-0 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (B) 		8-97386-589-0 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98136-613-0 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (A) 		8-98080-833-1 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(I) 		8-97389-728-2 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 04.681 (F) 		8-98096-135-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-103-0 01 1 1506- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 1506- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-104-0 01 1 1506- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-97389-721-1 01 1 1506- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-105-0 01 1 1506- ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1506- ● ● ● ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 04 1 1506- ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 1506- ● ● ●
236 04.930 BOLT; PIPE
WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1506- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ● ●
236 04.930 BOLT; PIPE
WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506- ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1506- ● ●

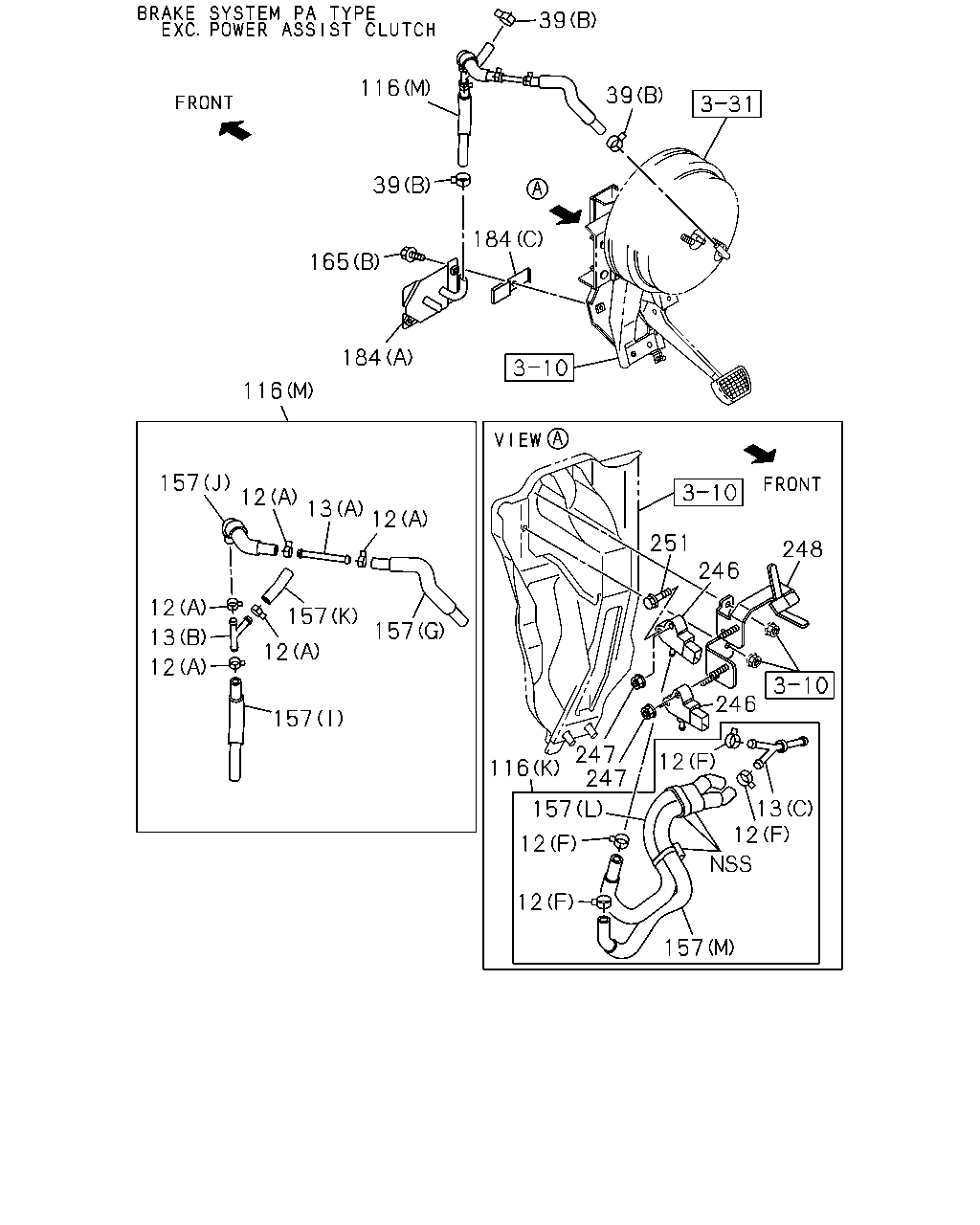

çizim 479823
39 39 184 116 39 165 184 116 157 12 13 12 12 12 13 157 157 12 157 248 251 246 246 12 247 247 116 157 12 12 13 12 157
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (F) ID=11 		8-94238-570-0 04 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 02 1 1506- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98035-106-0 02 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98048-075-0 01 1 1506- ● ● ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98260-486-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 03 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1506- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
(J) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (G) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98254-600-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (L) 		8-98242-679-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (M) 		8-98242-680-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1506- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98125-532-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (G) 		8-98125-849-1 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-97389-671-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98260-479-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98260-484-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98260-485-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1506- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1506- ● ● ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1506- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98255-535-0 01 1 1506- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98255-535-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98255-548-0 01 1 1506- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98255-548-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1506- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98255-539-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98255-541-0 01 1 1506- ● ● ● ●
246 01.150 SENSOR; VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98241-415-1 02 1 1506- ● ● ● ●
247 00.010 NUT; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 01.062 M6 FLANGE 		0-91180-106-0 03 1 1506- ● ● ● ●
248 06.672 BRACKET; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98241-416-1 01 1 1506- ● ● ● ●
251 04.930 BOLT; SENSOR
BRAKE SYSTEM PA TYPE(8BX) 00.206 M6X35 W/LK&PL WASHER 		0-50640-635-0 01 1 1506- ● ● ● ●

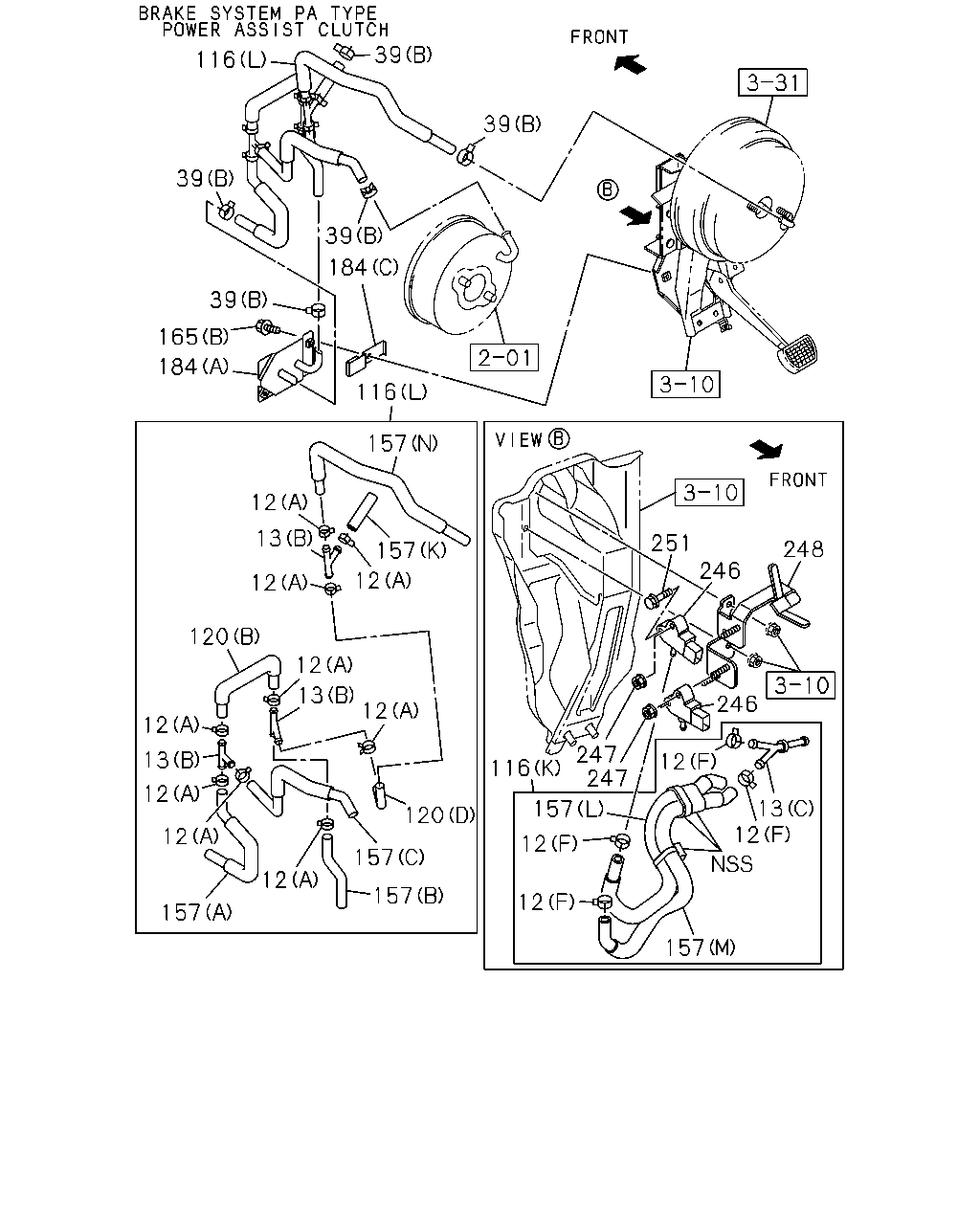

çizim 480215
116 39 39 39 39 39 184 165 184 116 157 12 13 12 157 12 120 12 13 12 13 12 12 12 120 157 157 12 157 248 251 246 246 12 247 247 116 157 12 12 13 12 157
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (F) ID=11 		8-94238-570-0 04 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 02 1 1506- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98035-106-0 02 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98048-075-0 01 1 1506- ● ● ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98260-486-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 03 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1506- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
(J) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (G) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98254-600-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (L) 		8-98242-679-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (M) 		8-98242-680-0 01 1 1506- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 1506- ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 1506- ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-696-2 01 1 1506- ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (D) 		8-98260-478-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1506- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98125-532-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (G) 		8-98125-849-1 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-97389-671-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98260-479-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98260-484-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98260-485-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1506- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1506- ● ● ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1506- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98255-535-0 01 1 1506- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98255-535-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98255-548-0 01 1 1506- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98255-548-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1506- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98255-539-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98255-541-0 01 1 1506- ● ● ● ●
246 01.150 SENSOR; VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98241-415-1 02 1 1506- ● ● ● ●
247 00.010 NUT; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 01.062 M6 FLANGE 		0-91180-106-0 03 1 1506- ● ● ● ●
248 06.672 BRACKET; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98241-416-1 01 1 1506- ● ● ● ●
251 04.930 BOLT; SENSOR
BRAKE SYSTEM PA TYPE(8BX) 00.206 M6X35 W/LK&PL WASHER 		0-50640-635-0 01 1 1506- ● ● ● ●

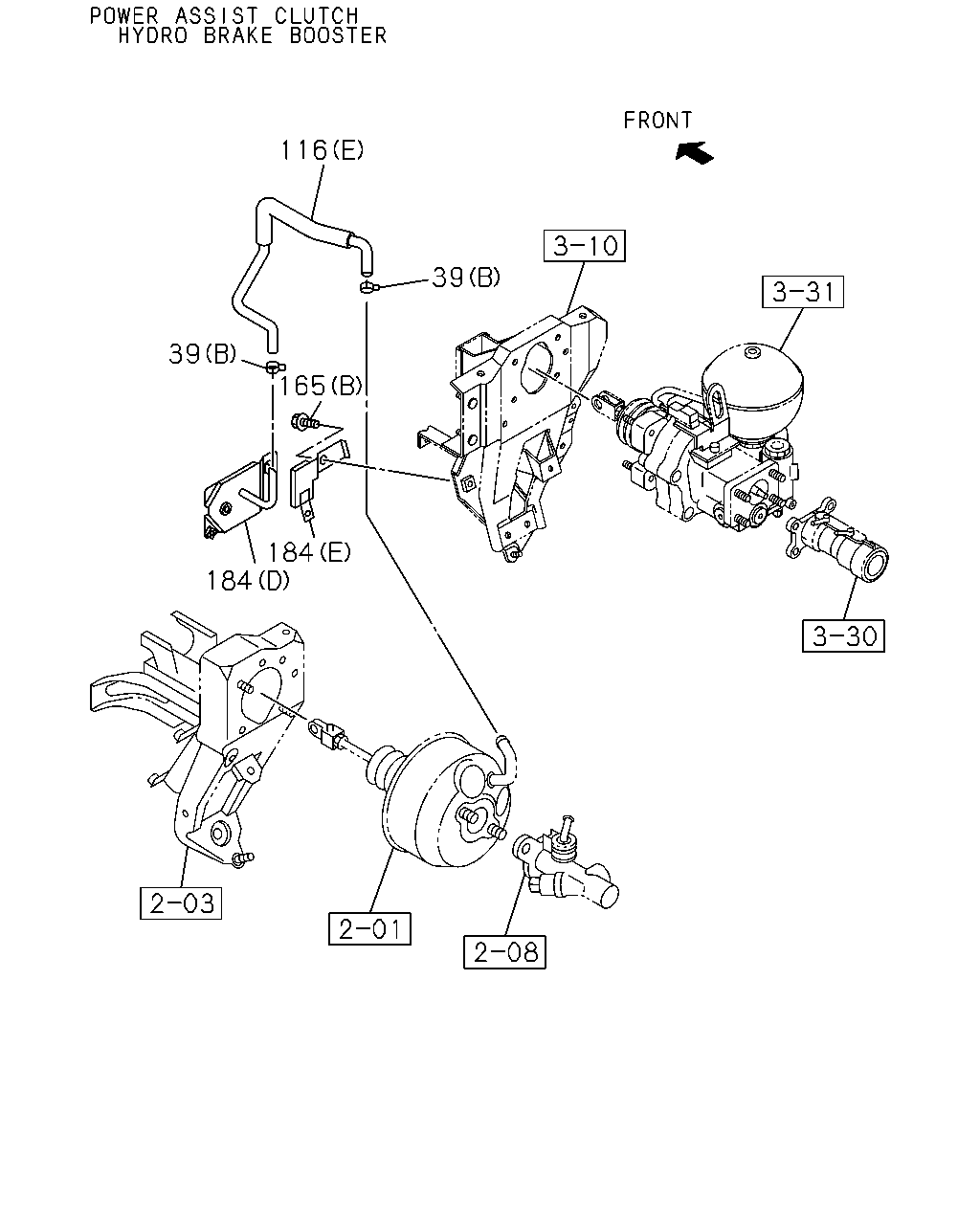

çizim 480256
116 39 165 184 184 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
(J) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (G) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98254-600-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (L) 		8-98242-679-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (M) 		8-98242-680-0 01 1 1506- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1506- ● ● ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1506- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98255-535-0 01 1 1506- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98255-535-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98255-548-0 01 1 1506- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98255-548-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1506- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98255-539-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98255-541-0 01 1 1506- ● ● ● ●

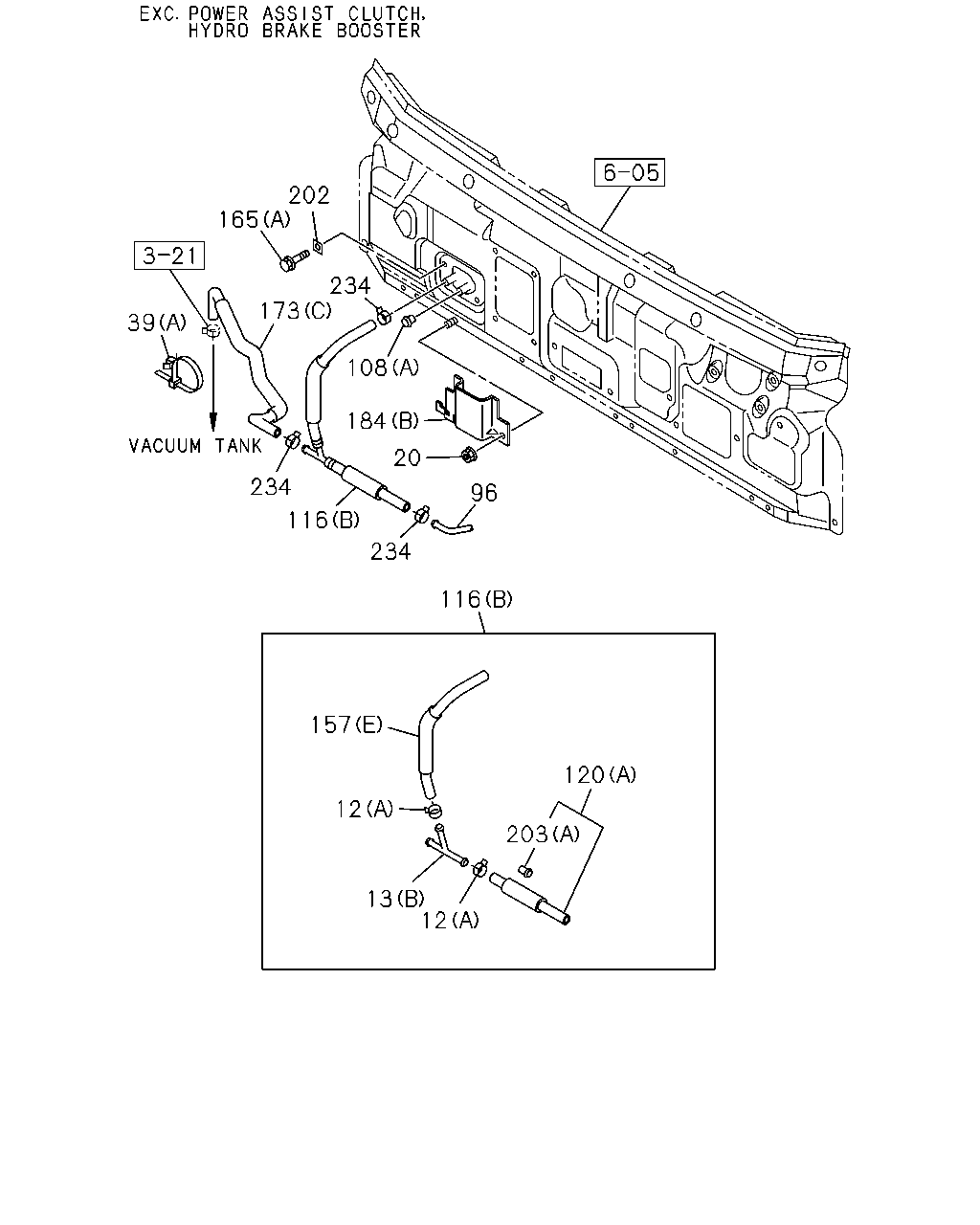

çizim 480289
202 165 39 173 234 108 184 20 96 234 116 234 116 157 12 13 120 203 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F

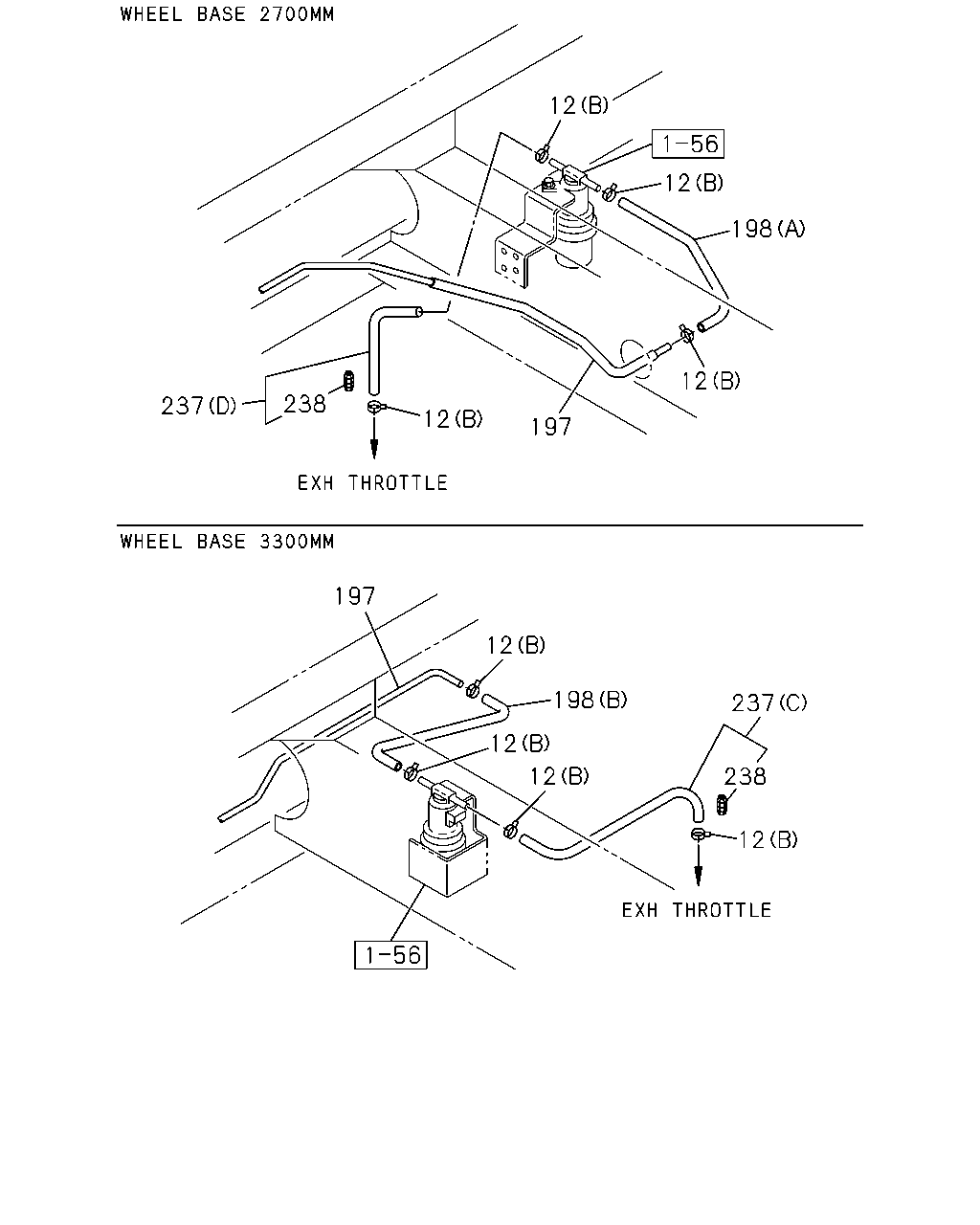

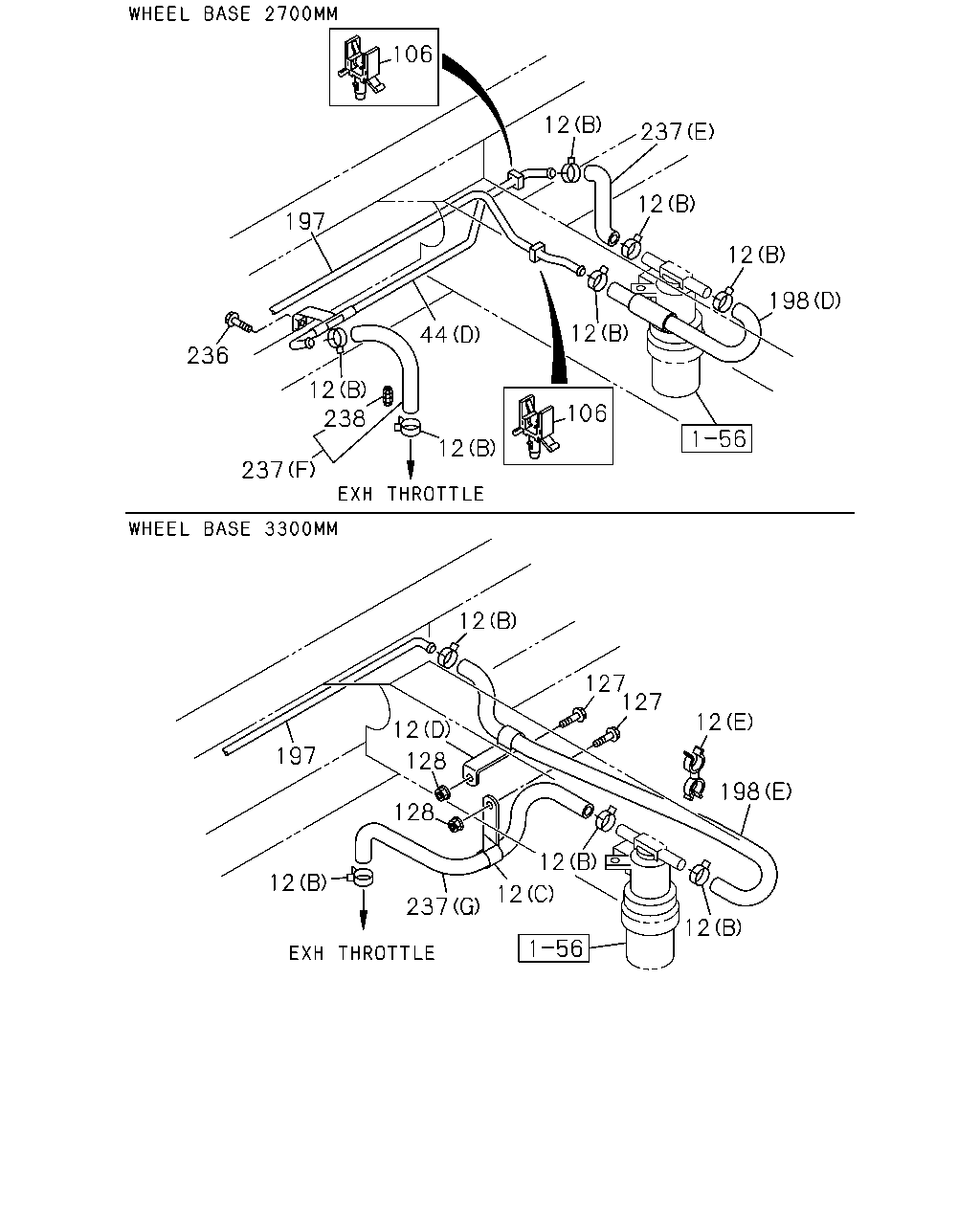

12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (F) ID=11 		8-94238-570-0 04 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 02 1 1506- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98035-106-0 02 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98048-075-0 01 1 1506- ● ● ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98260-486-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 03 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1506- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1506- ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 1506- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1506-1507 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1506-1507 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1506-1507 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1508- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1508- ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1508- ● ● ● ●

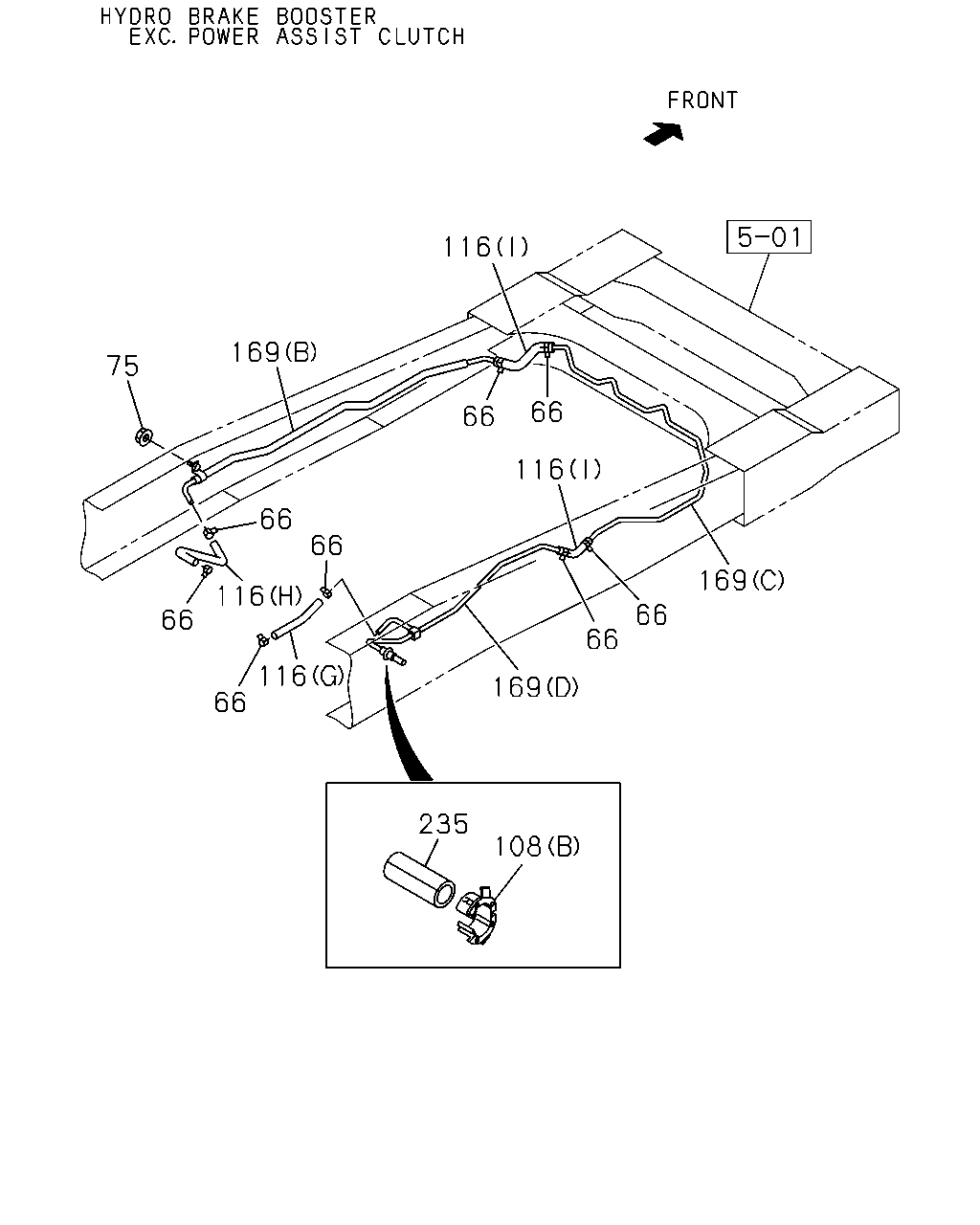

108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1506- ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(J) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (G) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98254-600-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (L) 		8-98242-679-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (M) 		8-98242-680-0 01 1 1506- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 1506- ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 1506- ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-696-2 01 1 1506- ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (D) 		8-98260-478-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1506- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98125-532-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (G) 		8-98125-849-1 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-97389-671-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98260-479-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98260-484-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98260-485-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1506- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1506- ● ● ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1506- ● ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98121-940-0 01 1 1506- ● ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98121-941-0 01 1 1506- ● ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98107-558-0 01 1 1506- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98255-535-0 01 1 1506- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98255-535-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98255-548-0 01 1 1506- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98255-548-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1506- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98255-539-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98255-541-0 01 1 1506- ● ● ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1506- ● ● ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94104-021-0 01 1 1506- ● ● ● ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1506- ● ●
203 04.690 VALVE; CHECK
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94386-540-0 01 1 1506- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-94386-540-0 01 1 1506- ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 04 1 1506- ● ● ● ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 1506- ● ● ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 1506- ● ● ● ●

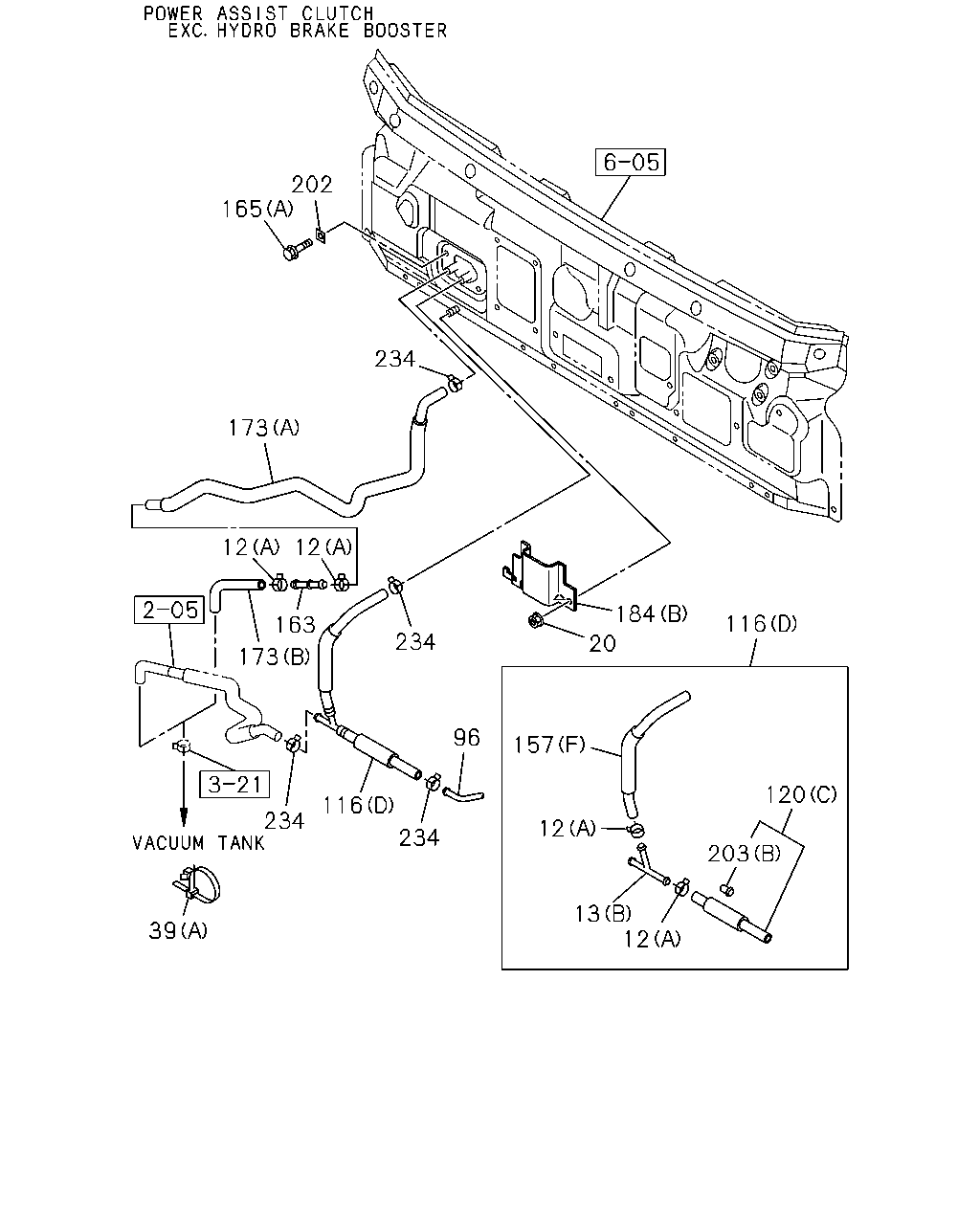

çizim 480304
202 165 234 173 184 116 20 157 96 12 120 203 13 12 234 116 234 39 173 234 163 12 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (F) ID=11 		8-94238-570-0 04 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 02 1 1506- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98035-106-0 02 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98048-075-0 01 1 1506- ● ● ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98260-486-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 03 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1506- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1506- ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 1506- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1506-1507 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1506-1507 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1506-1507 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1508- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1508- ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1508- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(J) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (G) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98254-600-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (L) 		8-98242-679-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (M) 		8-98242-680-0 01 1 1506- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 1506- ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 1506- ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-696-2 01 1 1506- ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (D) 		8-98260-478-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1506- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98125-532-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (G) 		8-98125-849-1 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-97389-671-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98260-479-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98260-484-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98260-485-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1506- ● ● ● ●
163 04.681 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.163 		8-97353-668-0 01 1 1506- ● ● ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1506- ● ● ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1506- ● ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98121-940-0 01 1 1506- ● ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98121-941-0 01 1 1506- ● ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98107-558-0 01 1 1506- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98255-535-0 01 1 1506- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98255-535-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98255-548-0 01 1 1506- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98255-548-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1506- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98255-539-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98255-541-0 01 1 1506- ● ● ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1506- ● ● ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94104-021-0 01 1 1506- ● ● ● ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1506- ● ●
203 04.690 VALVE; CHECK
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94386-540-0 01 1 1506- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-94386-540-0 01 1 1506- ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 04 1 1506- ● ● ● ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 1506- ● ● ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 1506- ● ● ● ●
çizim 480321
202 165 234 39 234 116 234 116 12 13 12 184 20 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (F) ID=11 		8-94238-570-0 04 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 02 1 1506- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98035-106-0 02 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98048-075-0 01 1 1506- ● ● ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98260-486-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 03 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1506- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1506- ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 1506- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1506-1507 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1506-1507 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1506-1507 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1508- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1508- ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1508- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(J) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (G) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98254-600-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (L) 		8-98242-679-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (M) 		8-98242-680-0 01 1 1506- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1506- ● ● ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1506- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98255-535-0 01 1 1506- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98255-535-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98255-548-0 01 1 1506- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98255-548-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1506- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98255-539-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98255-541-0 01 1 1506- ● ● ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1506- ● ● ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 04 1 1506- ● ● ● ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 1506- ● ● ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 1506- ● ● ● ●
çizim 480337
78 235 108 80 66 85 66 80 78 116 116 39 80 98 96 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 1506- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1506- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 08 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-98220-704-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(I) 		8-98106-711-0 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98171-288-0 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (B) 		8-97386-589-0 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98136-613-0 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (A) 		8-98080-833-1 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(I) 		8-97389-728-2 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 04.681 (F) 		8-98096-135-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-103-0 01 1 1506- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(F) 		8-98051-652-0 01 1 1506- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(D) 		8-98058-595-0 01 1 1506- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(E) 		8-98220-580-0 01 1 1506- ● ●
80 04.930 PIPE; VAC,ENG SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98097-788-0 01 1 1506- ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) 04.685 (A) 		8-97386-605-0 01 1 1506- ● ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98308-378-0 01 1 1506- ● ●
85 04.931 HOSE; VAC,ENG SIDE 8-97389-705-2 01 1 1506- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1506-1507 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1506-1507 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1506-1507 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1508- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1508- ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1508- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE 		0-28050-612-0 03 1 1506- ● ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1506- ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1506- ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(J) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (G) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98254-600-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (L) 		8-98242-679-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (M) 		8-98242-680-0 01 1 1506- ● ● ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1506- ● ● ● ● ● ●
çizim 480350
98 96 39 78 39 66 66 116 33 169 235 108 116 66 66 66 66 116 75 169 66 66 169 116
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 1506-1507 ● ●
33 04.930 CLIP; VAC PIPE
POWER ASSIST CLUTCH(S2T) ID=10 H=40 		8-94462-219-0 02 1 1506-1507 ● ● ● ●
33 04.930 CLIP; VAC PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 1506-1507 ● ● ● ●
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 1508- ● ●
33 04.930 CLIP; VAC PIPE
POWER ASSIST CLUTCH(S2T) ID=10 H=40 		8-94462-219-0 02 1 1508- ● ● ● ●
33 04.930 CLIP; VAC PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 1506- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1506- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 08 1 1506- ● ● ● ●
75 04.930 NUT; CLIP,VAC HOSE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-98220-704-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(I) 		8-98106-711-0 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98171-288-0 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (B) 		8-97386-589-0 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98136-613-0 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (A) 		8-98080-833-1 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(I) 		8-97389-728-2 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 04.681 (F) 		8-98096-135-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-103-0 01 1 1506- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1506-1507 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1506-1507 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1506-1507 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1508- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1508- ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1508- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE 		0-28050-612-0 03 1 1506- ● ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1506- ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1506- ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(J) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (G) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98254-600-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (L) 		8-98242-679-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (M) 		8-98242-680-0 01 1 1506- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (C) 		8-98041-053-4 01 1 1506- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 1506- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98041-054-3 01 1 1506- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98041-054-3 01 1 1506- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98154-771-1 01 1 1506- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98040-479-3 01 1 1506- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 1506- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98159-607-1 01 1 1506- ● ● ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1506- ● ● ● ● ● ●
çizim 480357
165 39 184 184 116 12 116 39 157 13 12 157
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (F) ID=11 		8-94238-570-0 04 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 02 1 1506- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98035-106-0 02 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98048-075-0 01 1 1506- ● ● ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98260-486-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 03 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1506- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
(J) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (G) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98254-600-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (L) 		8-98242-679-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (M) 		8-98242-680-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1506- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98125-532-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (G) 		8-98125-849-1 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-97389-671-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98260-479-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98260-484-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98260-485-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1506- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1506- ● ● ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1506- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98255-535-0 01 1 1506- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98255-535-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98255-548-0 01 1 1506- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98255-548-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1506- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98255-539-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98255-541-0 01 1 1506- ● ● ● ●
çizim 480361
116 66 66 116 169 66 66 169 235 108 116 66 66 66 66 75 169 116
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1506- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 08 1 1506- ● ● ● ●
75 04.930 NUT; CLIP,VAC HOSE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1506- ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(J) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (G) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98254-600-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (L) 		8-98242-679-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (M) 		8-98242-680-0 01 1 1506- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (C) 		8-98041-053-4 01 1 1506- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 1506- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98041-054-3 01 1 1506- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98041-054-3 01 1 1506- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98154-771-1 01 1 1506- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98040-479-3 01 1 1506- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 1506- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98159-607-1 01 1 1506- ● ● ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1506- ● ● ● ● ● ●
çizim 480374
106 197 44 12 106 12 12 237 12 198 12 236 237 12 238 12 127 127 12 198 12 12 12 237 12 197 128 12 128
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (F) ID=11 		8-94238-570-0 04 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1506- ● ● ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) (D) 		8-98089-666-0 01 1 1506- ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98063-777-0 01 1 1506- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) 		8-98040-807-1 01 1 1506- ● ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98040-807-1 01 1 1506- ● ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98034-281-1 01 1 1506- ● ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98040-634-0 01 1 1506- ● ●
106 04.930 CLIP; PIPE
WHEEL BASE 2700MM(27W) ID=10 H=40 		8-94462-219-0 01 1 1506- ●
127 04.930 BOLT; CLIP
WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1506- ●
127 04.930 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1506- ●
128 04.930 NUT; CLIP
WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506- ●
128 04.930 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) 		8-98034-371-1 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98083-557-0 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98083-557-0 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) 		8-98116-344-1 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98133-640-0 01 1 1506- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) 		8-98133-643-0 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98133-643-0 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 		8-98133-642-0 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98133-642-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) (D) 		8-97373-197-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) (E) 		8-98041-642-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
(E) 		8-98041-642-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) (A) 		8-98125-507-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 03.630 (B) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) 03.630 (C) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (C) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 03.630 (C) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (C) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ●
236 04.930 BOLT; PIPE
WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1506- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ● ●
236 04.930 BOLT; PIPE
WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506- ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1506- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) 03.630 (E) L=250 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) (F) 		8-98034-429-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (G) 		8-98171-279-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(G) 		8-98171-279-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) (D) 		8-98116-370-1 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (C) 		8-97378-772-0 01 1 1506- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-98040-785-1 01 1 1506- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(B) 		8-98040-785-1 01 1 1506- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4100MM(41W) (A) 		8-97378-771-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-97378-771-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) (A) 		8-98101-554-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-98101-554-0 01 1 1506- ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 2700MM(27W) 		8-97377-521-0 01 1 1506- ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 1506- ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 		8-97377-521-0 01 1 1506- ● ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 1506- ● ●
çizim 480375
12 12 12 198 197 12 238 237 197 12 198 12 12 237 238 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (F) ID=11 		8-94238-570-0 04 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1506- ● ● ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) 		8-98034-371-1 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98083-557-0 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98083-557-0 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) 		8-98116-344-1 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98133-640-0 01 1 1506- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) 		8-98133-643-0 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98133-643-0 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 		8-98133-642-0 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98133-642-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) (D) 		8-97373-197-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) (E) 		8-98041-642-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
(E) 		8-98041-642-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) (A) 		8-98125-507-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 03.630 (B) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) 03.630 (C) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (C) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 03.630 (C) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (C) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) 03.630 (E) L=250 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) (F) 		8-98034-429-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (G) 		8-98171-279-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(G) 		8-98171-279-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) (D) 		8-98116-370-1 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (C) 		8-97378-772-0 01 1 1506- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-98040-785-1 01 1 1506- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(B) 		8-98040-785-1 01 1 1506- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4100MM(41W) (A) 		8-97378-771-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-97378-771-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) (A) 		8-98101-554-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-98101-554-0 01 1 1506- ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 2700MM(27W) 		8-97377-521-0 01 1 1506- ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 1506- ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 		8-97377-521-0 01 1 1506- ● ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 1506- ● ●
çizim 480382
116 39 39 39 39 165 184 184 116 120 203 12 13 12 12 13 12 12 157 12 157 157 157
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (F) ID=11 		8-94238-570-0 04 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 02 1 1506- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98035-106-0 02 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98048-075-0 01 1 1506- ● ● ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98260-486-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 03 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1506- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98035-106-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
(J) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1506- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1506- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(I) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (G) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98254-600-1 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (L) 		8-98242-679-0 01 1 1506- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (M) 		8-98242-680-0 01 1 1506- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 1506- ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 1506- ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-696-2 01 1 1506- ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (D) 		8-98260-478-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1506- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98125-532-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (G) 		8-98125-849-1 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (H) 		8-97389-671-3 01 1 1506- ● ● ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98260-479-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98260-484-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98260-485-1 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1506- ● ● ● ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1506- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1506- ● ● ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1506- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98255-535-0 01 1 1506- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98255-535-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98255-548-0 01 1 1506- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98255-548-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1506- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98255-539-0 01 1 1506- ● ● ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98255-541-0 01 1 1506- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94104-021-0 01 1 1506- ● ● ● ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1506- ● ●
203 04.690 VALVE; CHECK
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94386-540-0 01 1 1506- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-94386-540-0 01 1 1506- ● ● ● ●
çizim 480384
12 197 198 12 12 237 12 44 12 12 228 238 237
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 1506- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 1506- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (F) ID=11 		8-94238-570-0 04 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1506- ● ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1506- ● ● ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) (D) 		8-98089-666-0 01 1 1506- ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98063-777-0 01 1 1506- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) 		8-98040-807-1 01 1 1506- ● ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98040-807-1 01 1 1506- ● ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98034-281-1 01 1 1506- ● ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98040-634-0 01 1 1506- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) 		8-98034-371-1 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98083-557-0 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98083-557-0 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) 		8-98116-344-1 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98133-640-0 01 1 1506- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) 		8-98133-643-0 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98133-643-0 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 		8-98133-642-0 01 1 1506- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98133-642-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) (D) 		8-97373-197-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) (E) 		8-98041-642-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
(E) 		8-98041-642-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) (A) 		8-98125-507-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 03.630 (B) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) 03.630 (C) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (C) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 03.630 (C) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (C) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ●
228 04.930 NUT; PIPE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ●
228 04.930 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ●
228 04.930 NUT; PIPE
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) 03.630 (E) L=250 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) (F) 		8-98034-429-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (G) 		8-98171-279-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(G) 		8-98171-279-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) (D) 		8-98116-370-1 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (C) 		8-97378-772-0 01 1 1506- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-98040-785-1 01 1 1506- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(B) 		8-98040-785-1 01 1 1506- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4100MM(41W) (A) 		8-97378-771-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-97378-771-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) (A) 		8-98101-554-0 01 1 1506- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-98101-554-0 01 1 1506- ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 2700MM(27W) 		8-97377-521-0 01 1 1506- ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 1506- ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 		8-97377-521-0 01 1 1506- ● ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 1506- ● ●
çizim 480385
236 122 136 78 136 136 136 158 78 136 44 136
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) (D) 		8-98089-666-0 01 1 1506- ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98063-777-0 01 1 1506- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) 		8-98040-807-1 01 1 1506- ● ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98040-807-1 01 1 1506- ● ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98034-281-1 01 1 1506- ● ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98040-634-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-98220-704-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(I) 		8-98106-711-0 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98171-288-0 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (B) 		8-97386-589-0 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98136-613-0 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (A) 		8-98080-833-1 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(I) 		8-97389-728-2 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 04.681 (F) 		8-98096-135-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-103-0 01 1 1506- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 1506- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-104-0 01 1 1506- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-97389-721-1 01 1 1506- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-105-0 01 1 1506- ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1506- ● ● ● ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 04 1 1506- ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 1506- ● ● ●
236 04.930 BOLT; PIPE
WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1506- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ● ●
236 04.930 BOLT; PIPE
WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506- ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1506- ● ●
çizim 480386
80 39 39 39 78 39 39 78 39 80 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-98220-704-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(I) 		8-98106-711-0 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98171-288-0 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (B) 		8-97386-589-0 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98136-613-0 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (A) 		8-98080-833-1 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(I) 		8-97389-728-2 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 04.681 (F) 		8-98096-135-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-103-0 01 1 1506- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(F) 		8-98051-652-0 01 1 1506- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(D) 		8-98058-595-0 01 1 1506- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(E) 		8-98220-580-0 01 1 1506- ● ●
80 04.930 PIPE; VAC,ENG SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98097-788-0 01 1 1506- ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) 04.685 (A) 		8-97386-605-0 01 1 1506- ● ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98308-378-0 01 1 1506- ● ●
çizim 480398
39 39 78 39 80 39 39 78 39 78 39 80 39 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1506-1507 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1508- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1506- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-98220-704-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(I) 		8-98106-711-0 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98171-288-0 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (B) 		8-97386-589-0 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98136-613-0 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (A) 		8-98080-833-1 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1506- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(I) 		8-97389-728-2 01 1 1506- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 04.681 (F) 		8-98096-135-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1506- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-103-0 01 1 1506- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(F) 		8-98051-652-0 01 1 1506- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(D) 		8-98058-595-0 01 1 1506- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(E) 		8-98220-580-0 01 1 1506- ● ●
80 04.930 PIPE; VAC,ENG SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98097-788-0 01 1 1506- ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) 04.685 (A) 		8-97386-605-0 01 1 1506- ● ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98308-378-0 01 1 1506- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
