◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51606 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#162833) — 86 parça

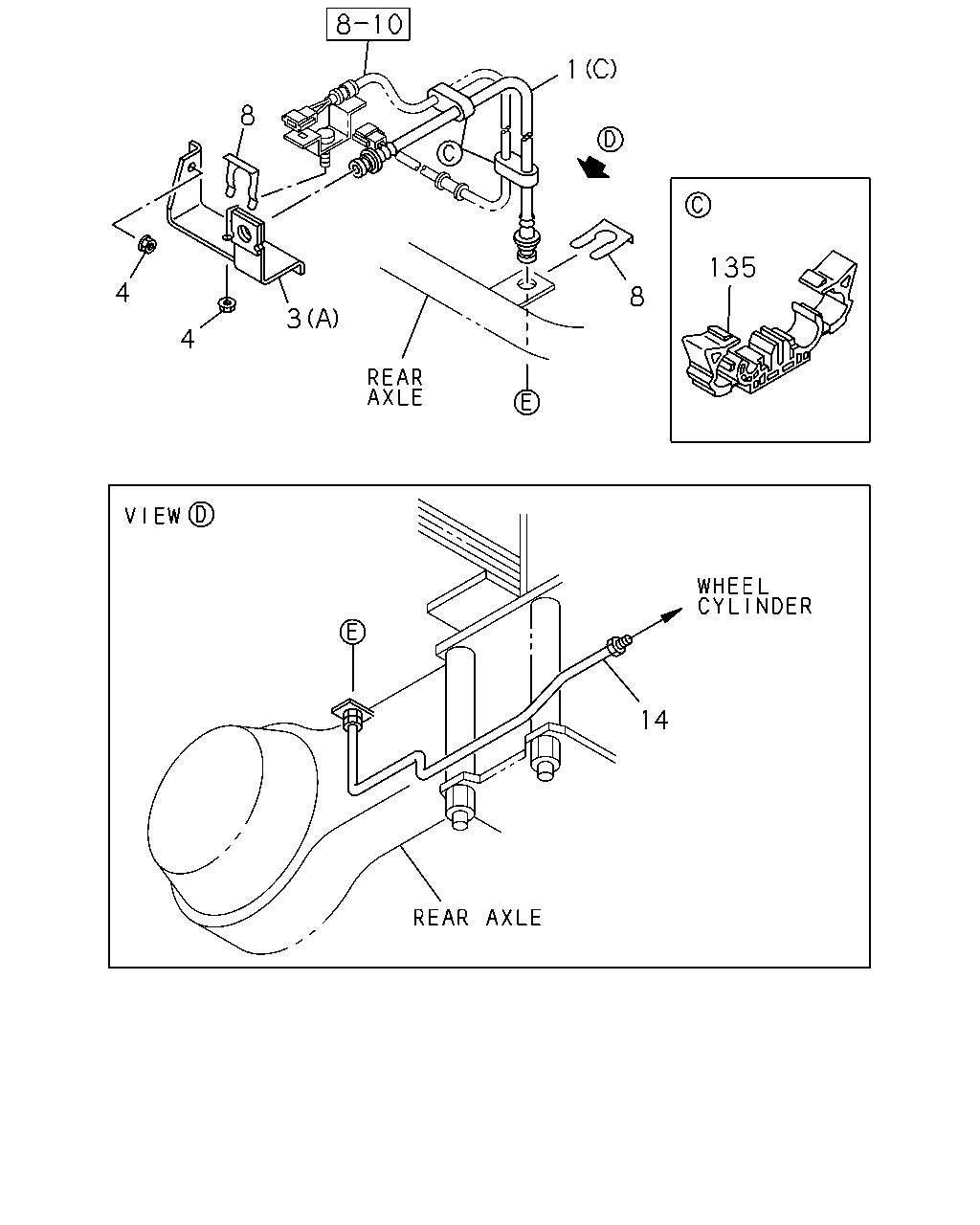

çizim 479399
8 4 4 3 1 8 135 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 1506-1507 ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 1508- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 1508- ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=345 		8-97230-284-1 01 1 1506-1507 ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=345 		8-97230-284-1 01 1 1508- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 1508- ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL DISC BRAKE<JF9> (C) 		8-98194-302-0 01 1 1506- ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL DISC BRAKE<JF9> (C) 		8-98194-303-0 01 1 1506- ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (C) 		8-97253-569-0 01 1 1506- ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (C) 		8-97253-570-0 01 1 1506- ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (E) 		8-98037-625-3 01 1 1506- ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (D) 		8-98037-626-3 01 1 1506- ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (B) 		8-97205-199-1 01 1 1506- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98117-514-1 01 1 1506- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 1506-1507 ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 02 1 1508- ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506- ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 02 1 1506- ● ●
8 04.686 CLIP; RR BRK
4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 02 1 1506- ● ● ● ● ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1506- ● ● ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL DISC BRAKE<JF9> 		8-98026-040-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL DISC BRAKE<JF9> 		8-98027-462-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98026-038-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98089-413-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL DISC BRAKE<JF9> 		8-98193-493-0 01 1 1506-1508 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL DISC BRAKE<JF9> 		8-98193-493-0 01 1 1509- ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL DISC BRAKE<JF9> 		8-98193-494-0 01 1 1506-1508 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL DISC BRAKE<JF9> 		8-98193-494-0 01 1 1509- ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-746-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-747-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-748-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-749-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98006-755-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98006-757-0 01 1 1506- ● ●
135 04.686 CLIP; FLEX HOSE
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97207-699-0 04 1 1506- ● ● ● ●

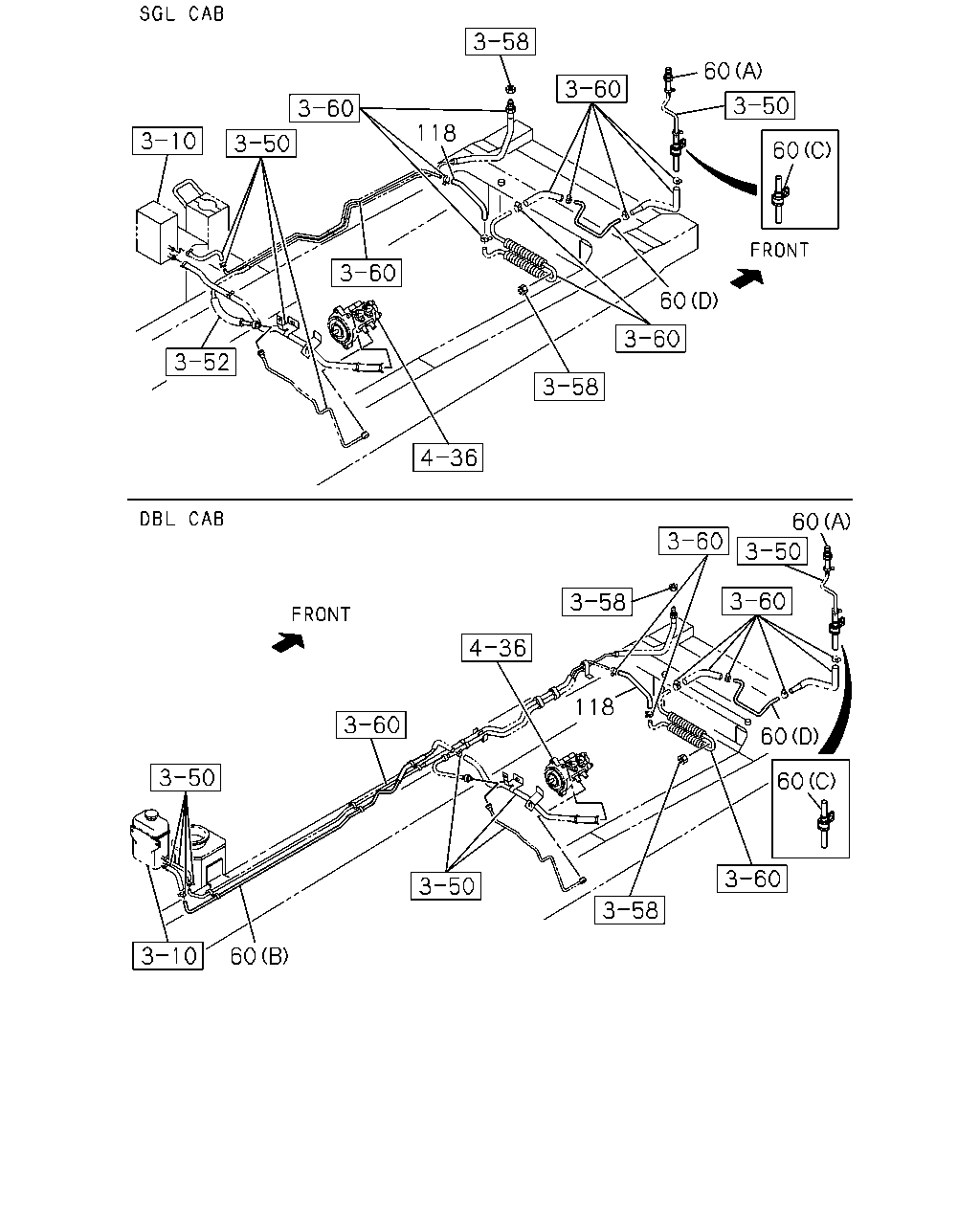

çizim 479415
118 60 60 60 60 60 60 60 118
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98041-326-1 01 1 1506- ● ● ● ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 1506- ● ● ● ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98088-313-1 01 1 1506- ● ● ● ●
60 04.685 PIPE ASM; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98308-377-0 01 1 1506- ● ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 		8-98158-200-0 01 1 1506- ● ● ● ●

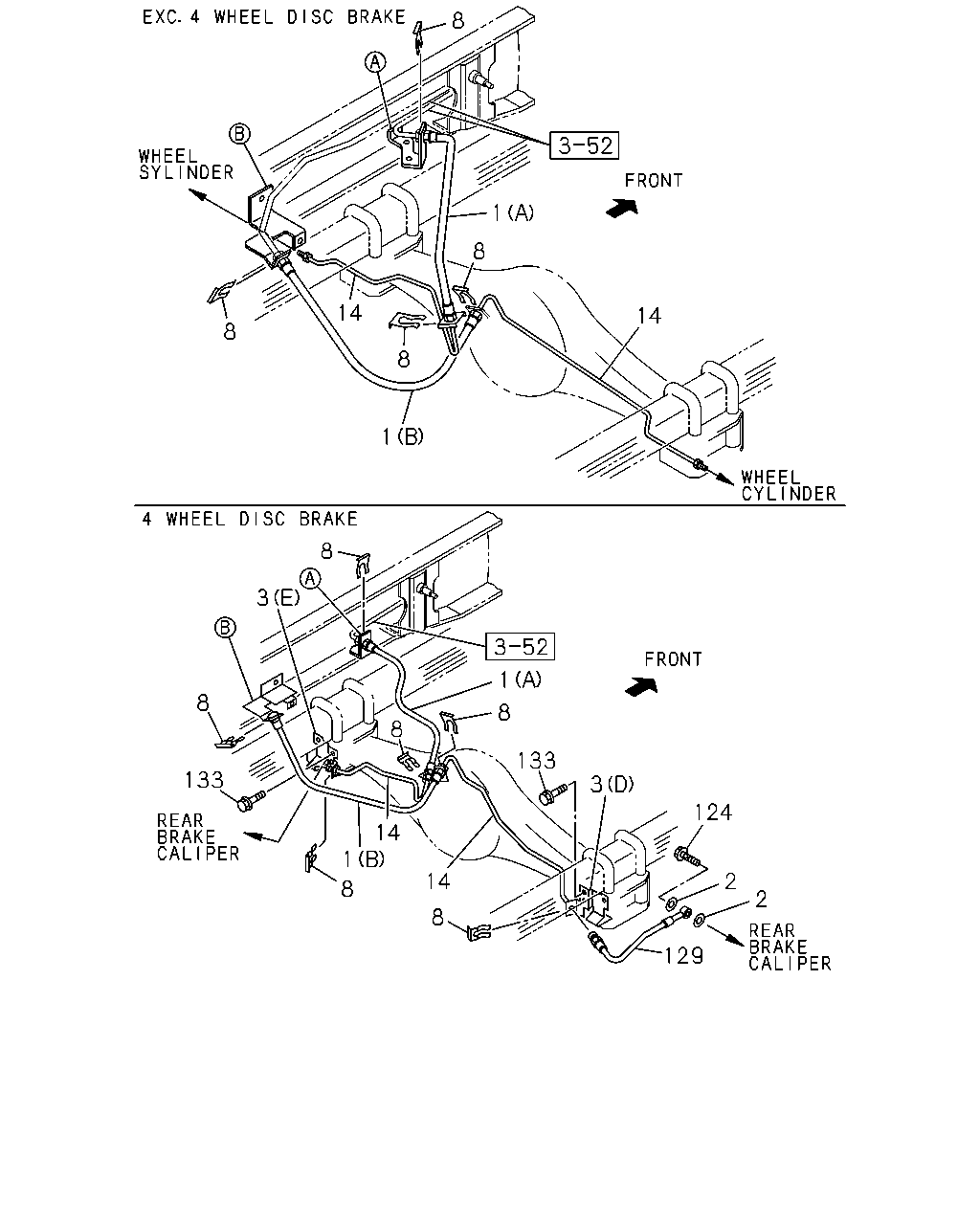

çizim 479644
8 8 14 8 8 1 1 14 8 3 8 133 8 14 1 8 8 8 133 14 1 3 124 2 2 129
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 1506-1507 ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 1508- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 1508- ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=345 		8-97230-284-1 01 1 1506-1507 ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=345 		8-97230-284-1 01 1 1508- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 1508- ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL DISC BRAKE<JF9> (C) 		8-98194-302-0 01 1 1506- ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL DISC BRAKE<JF9> (C) 		8-98194-303-0 01 1 1506- ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (C) 		8-97253-569-0 01 1 1506- ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (C) 		8-97253-570-0 01 1 1506- ● ● ● ●
2 04.686 GASKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1506-1508 ● ● ● ●
2 04.686 GASKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1509- ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (E) 		8-98037-625-3 01 1 1506- ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (D) 		8-98037-626-3 01 1 1506- ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (B) 		8-97205-199-1 01 1 1506- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98117-514-1 01 1 1506- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 1506-1507 ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 02 1 1508- ● ● ● ●
8 04.686 CLIP; RR BRK
4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 02 1 1506- ● ● ● ● ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1506- ● ● ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL DISC BRAKE<JF9> 		8-98026-040-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL DISC BRAKE<JF9> 		8-98027-462-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98026-038-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98089-413-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL DISC BRAKE<JF9> 		8-98193-493-0 01 1 1506-1508 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL DISC BRAKE<JF9> 		8-98193-493-0 01 1 1509- ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL DISC BRAKE<JF9> 		8-98193-494-0 01 1 1506-1508 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL DISC BRAKE<JF9> 		8-98193-494-0 01 1 1509- ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-746-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-747-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-748-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-749-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98006-755-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98006-757-0 01 1 1506- ● ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> 04.681 M10X22 		8-98014-005-0 02 1 1506-1508 ● ● ● ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> 04.681 M10X22 		8-98014-005-0 02 1 1509- ● ● ● ● ● ●
129 04.680 HOSE; FLEX,RR DISC
4 WHEEL DISC BRAKE<JF9> 		8-98037-757-2 02 1 1506-1508 ● ● ● ●
129 04.680 HOSE; FLEX,RR DISC
4 WHEEL DISC BRAKE<JF9> 		8-98037-757-2 02 1 1509- ● ● ● ● ● ●
133 04.685 BOLT; CLIP
4 WHEEL DISC BRAKE<JF9> 03.407 M8X10 FLANGE 		0-28050-810-0 04 1 1506- ● ● ● ● ● ●
çizim 479878
3 25 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (E) 		8-98037-625-3 01 1 1506- ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (D) 		8-98037-626-3 01 1 1506- ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (B) 		8-97205-199-1 01 1 1506- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98117-514-1 01 1 1506- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 1506-1507 ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 02 1 1508- ● ● ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 02 1 1506- ● ● ● ● ● ●
