Sayfa 3-52 - Isuzu EPC

3-52 — BRAKE PIPING; OIL,FRONT (#162832) — 65 parça

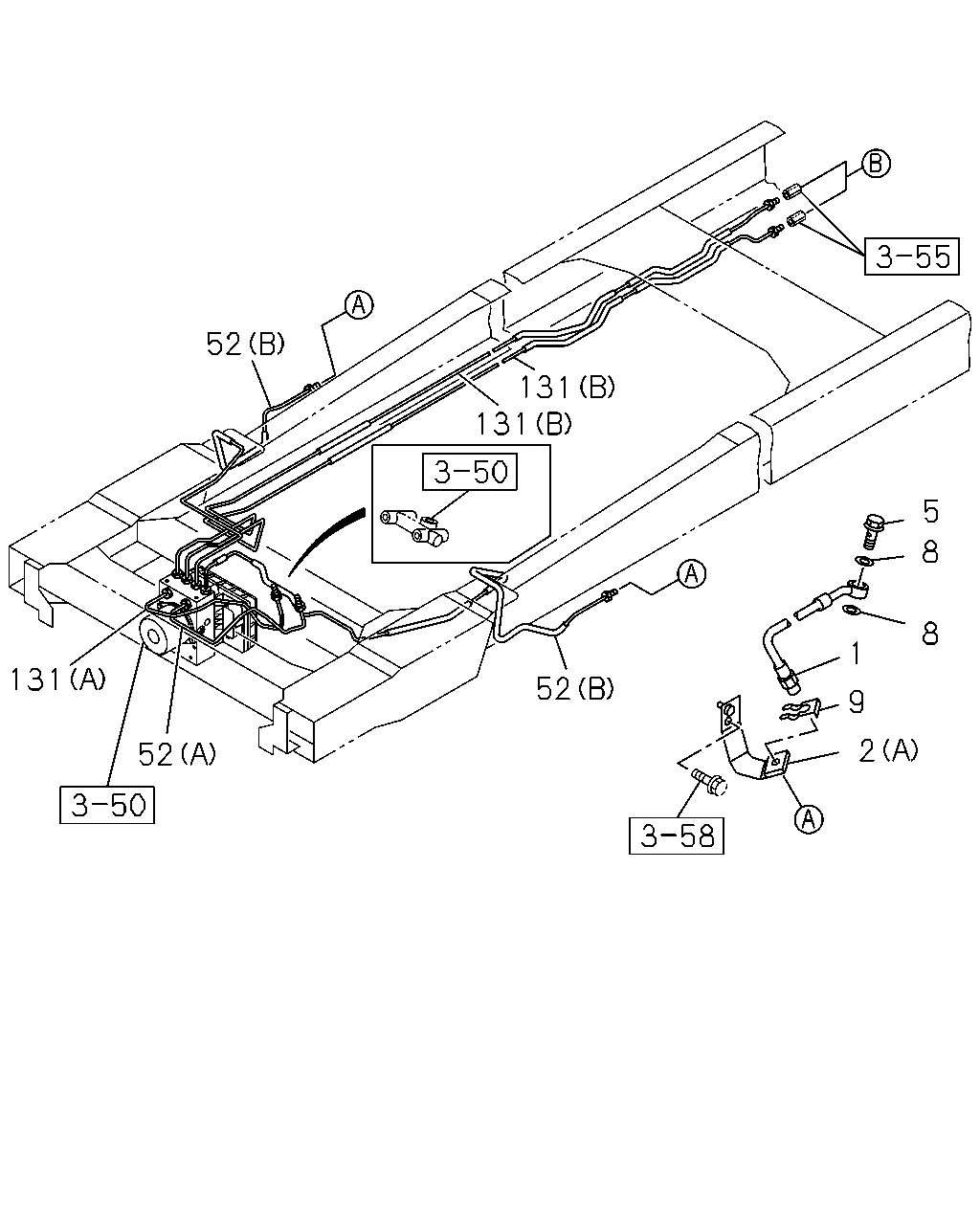

52 131 52 131 131 52 5 8 8 9 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.680 HOSE; FLEX,FRT BRK	8-97365-481-1	02	1	1506-	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK	8-97365-482-1	02	1	1506-					●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK HYDRO BRAKE BOOSTER(7QQ) (B)	8-98136-577-0	01	1	1506-		●		●	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-98047-527-1	01	1	1506-	●		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-98047-528-1	01	1	1506-	●		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-97365-776-3	01	1	1506-		●		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-97365-778-3	01	1	1506-		●		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-97365-777-3	01	1	1506-					●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-97365-779-3	01	1	1506-					●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-98014-005-0	02	1	1506-	●	●	●	●	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	1506-	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	1506-	●	●	●	●	●	●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT RH	8-98193-949-0	01	1	1506-	●		●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT LH	8-98193-951-0	01	1	1506-	●		●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT RH	8-98192-394-0	01	1	1506-		●		●	●	●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT LH	8-98210-359-0	01	1	1506-		●		●	●	●
52	04.685 PIPE; BRK HYDRO BRAKE BOOSTER(7QQ) (C)	8-98036-162-0	01	1	1506-		●		●	●	●
52	04.685 PIPE; BRK DISC BRAKE FRT<J52> (A) 4WAY TO HU,FRONT	8-98201-456-0	01	1	1506-	●	●	●	●	●	●
52	04.685 PIPE; BRK 4 WHEEL DISC BRAKE<JF9> (A) 4WAY TO HU,FRONT	8-98192-389-1	01	1	1506-	●	●	●	●	●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98110-923-2	01	1	1506-	●		●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98110-929-1	01	1	1506-	●		●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98192-392-0	01	1	1506-		●		●	●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98192-393-1	01	1	1506-		●		●	●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT DISC BRAKE FRT<J52> (A) 4WAY TO HU,REAR	8-98201-457-0	01	1	1506-	●	●	●	●	●	●
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL DISC BRAKE<JF9> (A) 4WAY TO HU,REAR	8-98192-390-0	01	1	1506-	●	●	●	●	●	●

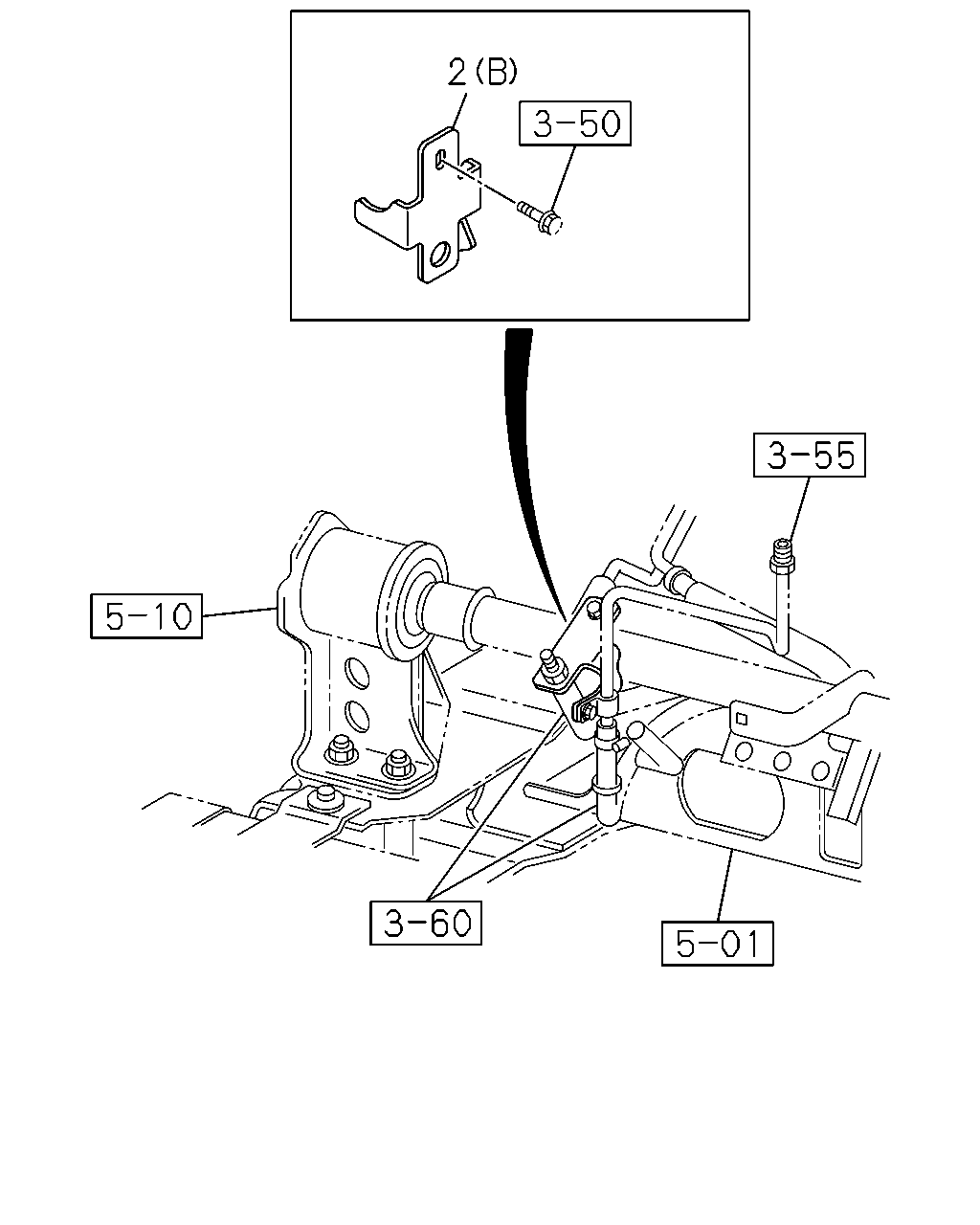

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	04.681 BRACKET; FLEX HOSE,FRT BRK HYDRO BRAKE BOOSTER(7QQ) (B)	8-98136-577-0	01	1	1506-		●		●	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-98047-527-1	01	1	1506-	●		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-98047-528-1	01	1	1506-	●		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-97365-776-3	01	1	1506-		●		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-97365-778-3	01	1	1506-		●		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-97365-777-3	01	1	1506-					●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK (A)	8-97365-779-3	01	1	1506-					●	●

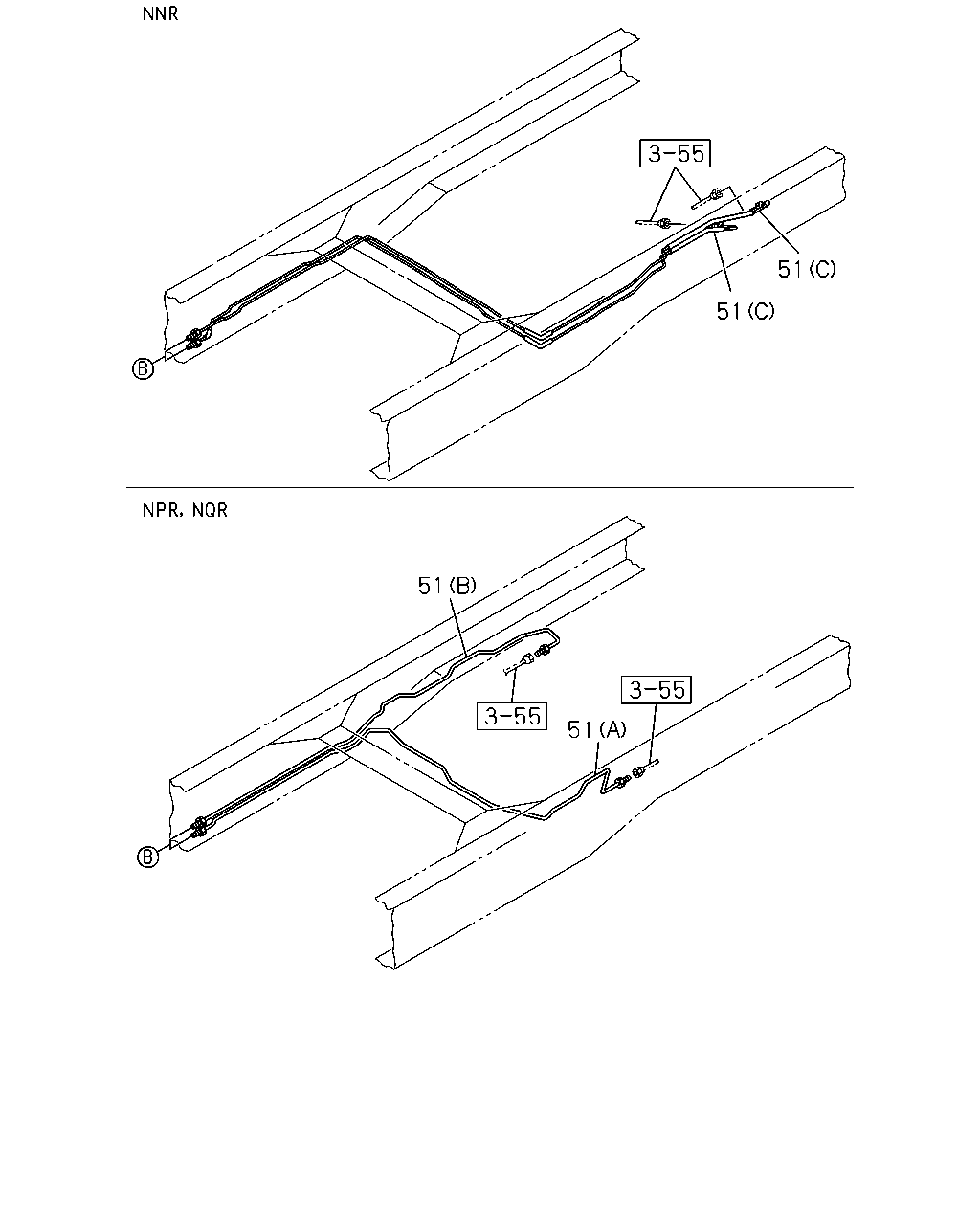

51 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
51	04.685 PIPE; BRK WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98206-779-0	01	1	1506-1506	●
51	04.685 PIPE; BRK WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-97389-519-1	01	1	1507-	●
51	04.685 PIPE; BRK WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98206-785-0	01	1	1506-1506	●
51	04.685 PIPE; BRK WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-97389-532-1	01	1	1506-	●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98206-783-0	01	1	1506-1506	●
51	04.685 PIPE; BRK (C) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98206-783-0	01	1	1506-1506			●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-97389-520-1	01	1	1507-	●
51	04.685 PIPE; BRK (C) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-97389-520-1	01	1	1507-			●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98206-786-0	01	1	1506-1506	●
51	04.685 PIPE; BRK (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98206-786-0	01	1	1506-1506			●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-97389-533-1	01	1	1506-	●
51	04.685 PIPE; BRK (C) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-97389-533-1	01	1	1506-			●
51	04.685 PIPE; BRK WHEEL BASE 2700MM(27W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-545-0	01	1	1506-		●
51	04.685 PIPE; BRK WHEEL BASE 2700MM(27W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98154-659-0	01	1	1506-		●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98041-055-0	01	1	1506-		●			●
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98154-660-1	01	1	1506-		●			●
51	04.685 PIPE; BRK WHEEL BASE 4100MM(41W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98041-057-0	01	1	1506-		●
51	04.685 PIPE; BRK (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98041-057-0	01	1	1506-				●
51	04.685 PIPE; BRK WHEEL BASE 4100MM(41W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98159-765-0	01	1	1506-		●
51	04.685 PIPE; BRK (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98159-765-0	01	1	1506-				●
51	04.685 PIPE; BRK WHEEL BASE 4400MM(44W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98047-143-0	01	1	1506-					●
51	04.685 PIPE; BRK (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98047-143-0	01	1	1506-						●
51	04.685 PIPE; BRK WHEEL BASE 4400MM(44W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98112-452-2	01	1	1506-					●
51	04.685 PIPE; BRK (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98112-452-2	01	1	1506-						●

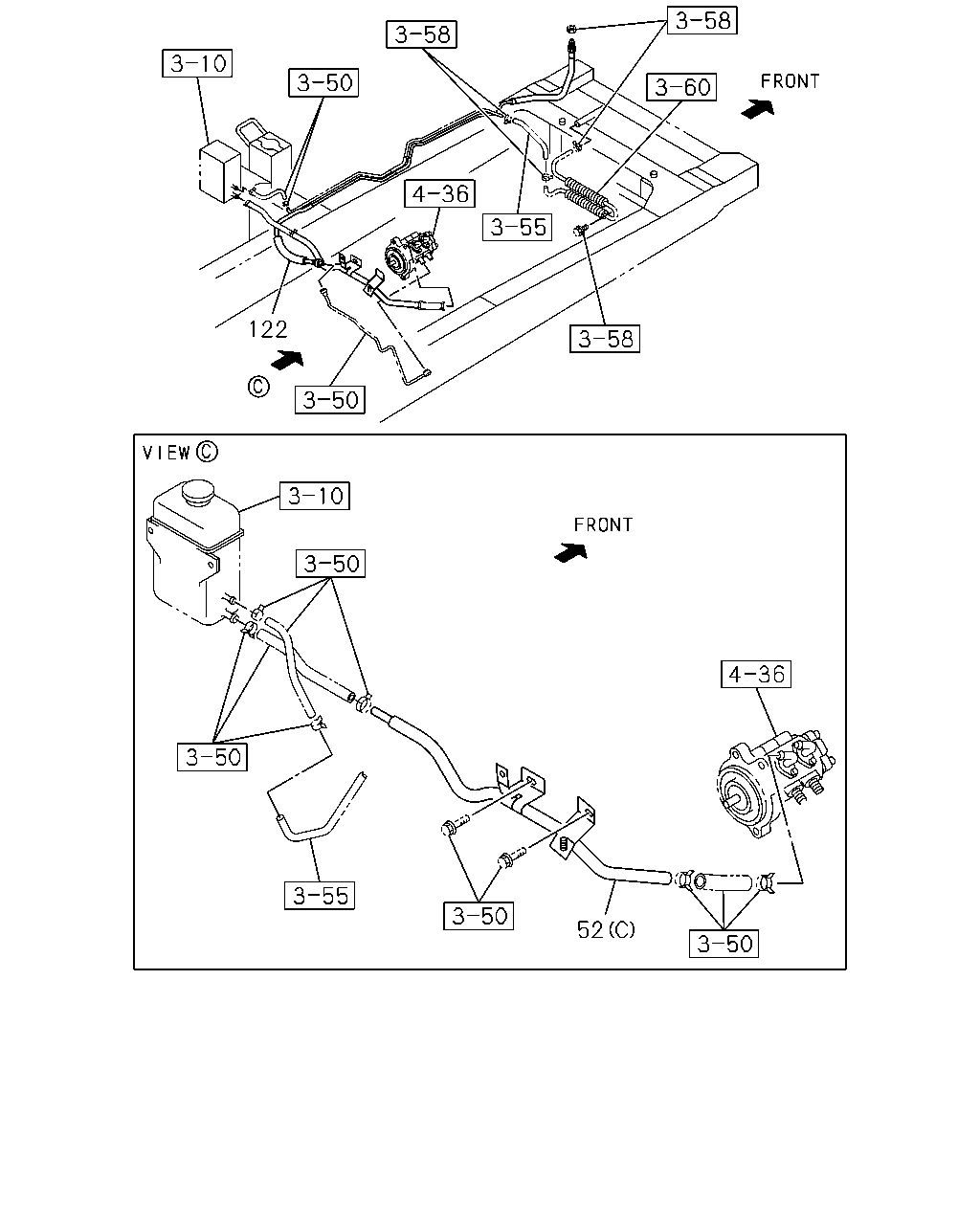

122 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT RH	8-98193-949-0	01	1	1506-	●		●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT LH	8-98193-951-0	01	1	1506-	●		●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT RH	8-98192-394-0	01	1	1506-		●		●	●	●
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT LH	8-98210-359-0	01	1	1506-		●		●	●	●
52	04.685 PIPE; BRK HYDRO BRAKE BOOSTER(7QQ) (C)	8-98036-162-0	01	1	1506-		●		●	●	●
52	04.685 PIPE; BRK DISC BRAKE FRT<J52> (A) 4WAY TO HU,FRONT	8-98201-456-0	01	1	1506-	●	●	●	●	●	●
52	04.685 PIPE; BRK 4 WHEEL DISC BRAKE<JF9> (A) 4WAY TO HU,FRONT	8-98192-389-1	01	1	1506-	●	●	●	●	●	●
122	04.685 PIPE ASM; BRK,2 WAY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) L=1839	8-98136-573-0	01	1	1506-		●			●
122	04.685 PIPE ASM; BRK,2 WAY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) L=1958	8-98136-574-0	01	1	1506-				●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
