◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51606 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#162831) — 161 parça

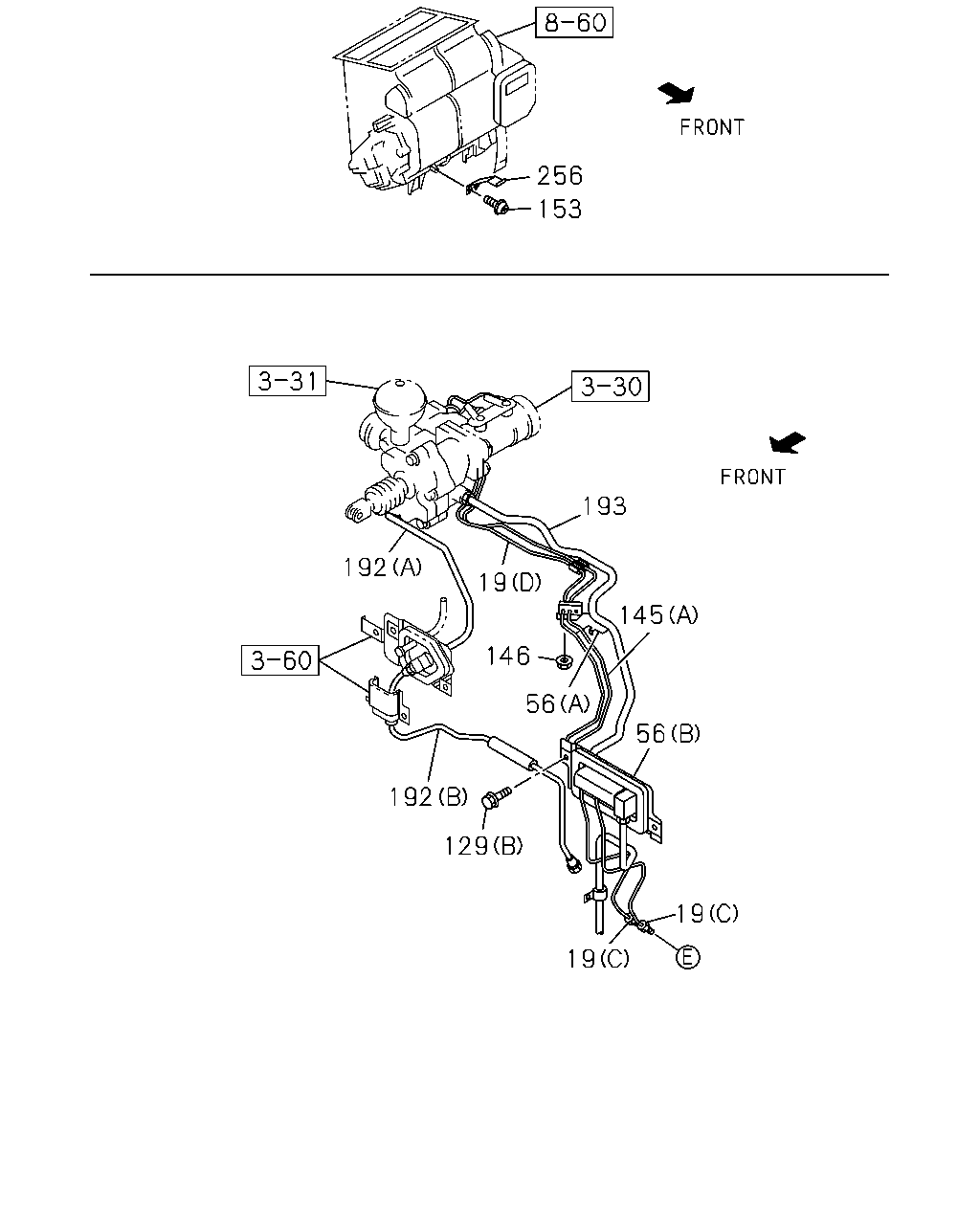

çizim 479490
256 153 193 192 12 145 56 146 56 19 19 129 192
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.690 VALVE ASM; HSA
H.S.A SYSTEM<6EP> 		8-98159-364-1 01 1 1506- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL DISC BRAKE<JF9> EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98220-478-1 01 1 1506-1507 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL DISC BRAKE<JF9> EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98220-478-1 01 1 1508- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL DISC BRAKE<JF9> (A) 		8-98206-790-2 02 1 1506- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HILL HOLD ASSIST<SLD> (A) 		8-98206-790-2 02 1 1506- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL DISC BRAKE<JF9> EXC. HILL HOLD ASSIST<SLD>,HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98206-790-2 02 1 1506- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98098-682-1 01 1 1506- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 1506- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRAKE SYSTEM PA TYPE(8BX) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98204-479-1 01 1 1506- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (B) L=1274 		8-98115-279-1 01 1 1506-1507 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ) (B) L=1274 		8-98115-279-1 01 1 1508- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 1506- ● ● ● ● ● ●
56 04.686 BRACKET; UNION,BRK
4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98207-245-0 01 1 1506- ● ● ● ● ● ●
56 04.686 BRACKET; UNION,BRK
4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98207-244-0 01 1 1506- ● ● ● ● ● ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98154-267-1 01 1 1506-1507 ● ● ● ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER DE LETE(8GJ) (B) 		8-98154-267-1 01 1 1508- ● ● ● ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98154-266-1 01 1 1506-1507 ● ● ● ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98154-266-1 01 1 1508- ● ● ● ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98098-679-0 01 1 1506- ● ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98154-265-1 01 1 1506- ● ● ● ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98154-264-1 01 1 1506- ● ● ● ● ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1506- ● ● ● ● ● ●
129 04.710 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1506- ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL DISC BRAKE<JF9> EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98220-477-1 01 1 1506-1507 ● ● ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL DISC BRAKE<JF9> EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98220-477-1 01 1 1508- ● ● ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98098-680-1 01 1 1506- ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
BRAKE SYSTEM PA TYPE(8BX) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98204-478-1 01 1 1506- ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. 4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (B) L=1371 		8-98115-269-1 01 1 1506-1507 ● ● ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. 4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ) (B) L=1371 		8-98115-269-1 01 1 1508- ● ● ● ● ● ●
146 04.685 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 00.777 M8 W/LK WASHER 		8-94279-050-0 01 1 1506- ● ● ● ●
153 04.730 SCREW; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1506- ● ● ● ● ● ●
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98127-262-0 01 1 1506- ● ● ● ●
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98193-137-0 01 1 1506- ● ● ● ●
193 04.685 PIPE; RETURN
HYDRO BRAKE BOOSTER(7QQ) 		8-98098-683-0 01 1 1506- ● ● ● ●
256 04.840 BRACKET; BRK PIPE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98163-521-0 01 1 1506- ● ● ● ● ● ●

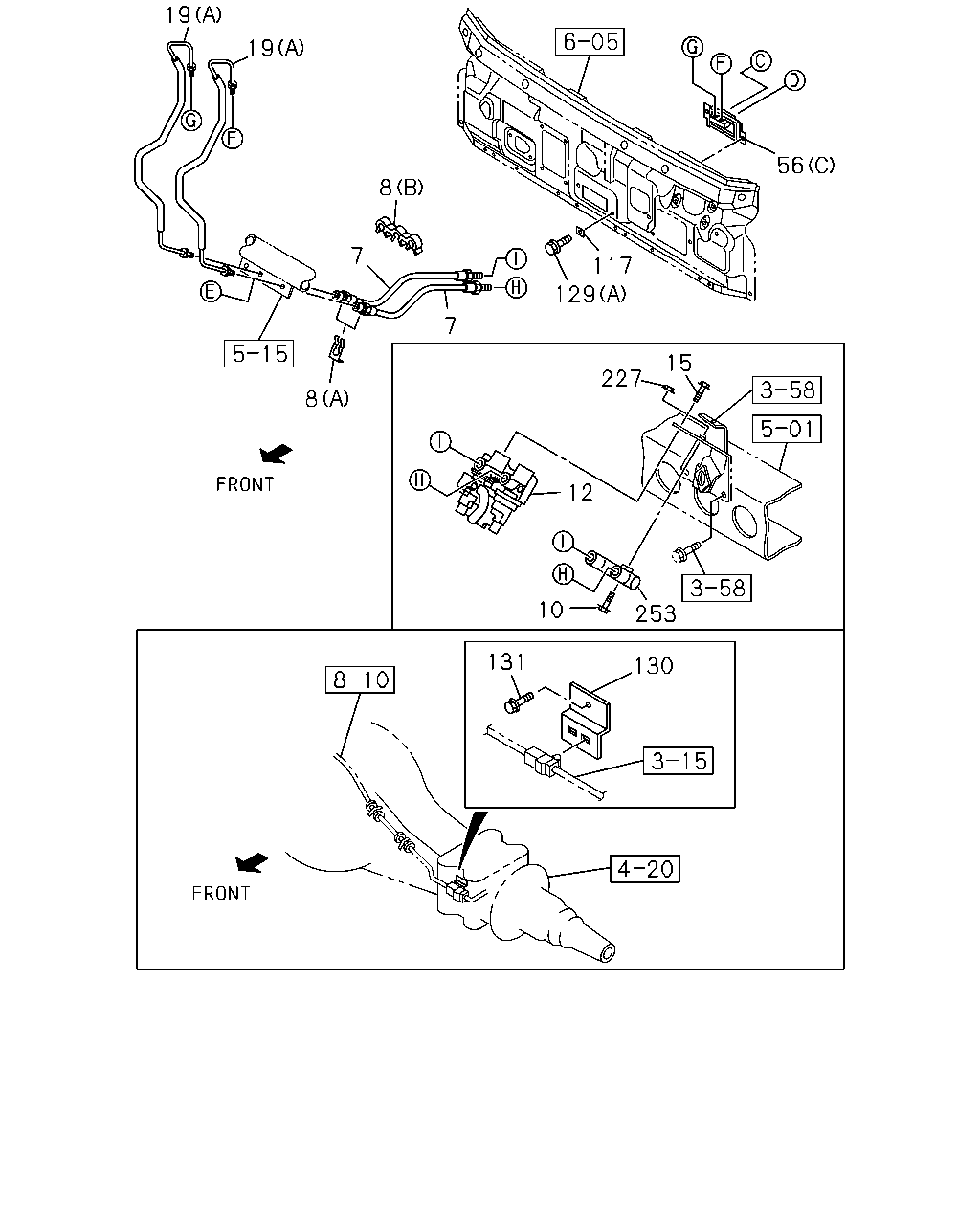

çizim 479558
19 19 8 7 8 7 129 117 56 227 15 12 10 253 130 131
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6> 		8-98191-785-0 02 1 1506- ● ● ● ● ● ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> 		8-98029-865-0 02 1 1506- ● ● ● ● ● ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98029-865-0 02 1 1506- ● ● ● ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B) 		8-97076-471-0 01 1 1506- ● ● ● ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1506- ● ● ● ● ● ●
10 04.686 BOLT; JOINT
EXC. H.S.A SYSTEM<6EP> 00.685 M6X40 FLANGE 		0-28650-640-0 01 1 1506- ● ● ● ● ● ●
12 04.690 VALVE ASM; HSA
H.S.A SYSTEM<6EP> 		8-98159-364-1 01 1 1506- ● ● ● ● ● ●
15 04.730 BOLT; HSA VALVE
H.S.A SYSTEM<6EP> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1506- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL DISC BRAKE<JF9> EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98220-478-1 01 1 1506-1507 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL DISC BRAKE<JF9> EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98220-478-1 01 1 1508- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL DISC BRAKE<JF9> (A) 		8-98206-790-2 02 1 1506- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HILL HOLD ASSIST<SLD> (A) 		8-98206-790-2 02 1 1506- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL DISC BRAKE<JF9> EXC. HILL HOLD ASSIST<SLD>,HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98206-790-2 02 1 1506- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98098-682-1 01 1 1506- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 1506- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRAKE SYSTEM PA TYPE(8BX) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98204-479-1 01 1 1506- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (B) L=1274 		8-98115-279-1 01 1 1506-1507 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ) (B) L=1274 		8-98115-279-1 01 1 1508- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 1506- ● ● ● ● ● ●
56 04.686 BRACKET; UNION,BRK
4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98207-245-0 01 1 1506- ● ● ● ● ● ●
56 04.686 BRACKET; UNION,BRK
4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98207-244-0 01 1 1506- ● ● ● ● ● ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98154-267-1 01 1 1506-1507 ● ● ● ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER DE LETE(8GJ) (B) 		8-98154-267-1 01 1 1508- ● ● ● ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98154-266-1 01 1 1506-1507 ● ● ● ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98154-266-1 01 1 1508- ● ● ● ●
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98098-679-0 01 1 1506- ● ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98154-265-1 01 1 1506- ● ● ● ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98154-264-1 01 1 1506- ● ● ● ● ● ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 1506- ● ● ● ● ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1506- ● ● ● ● ● ●
129 04.710 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1506- ● ● ● ●
130 04.686 BRACKET; SPEED SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97080-060-2 02 1 1506- ● ● ● ● ● ●
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1506- ● ● ● ● ● ●
227 04.685 NUT; JOINT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ● ● ● ●
227 04.685 NUT; JOINT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508- ● ●
227 04.685 NUT; JOINT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1508- ● ● ● ●
253 04.840 JOINT
DISC BRAKE FRT<J52> 		8-97038-940-1 01 1 1506-1511 ● ● ● ● ● ●
253 04.840 JOINT
DISC BRAKE FRT<J52> EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-97038-940-1 01 1 1512- ● ● ● ● ● ●
253 04.840 JOINT
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97038-940-1 01 1 1512- ● ● ●
253 04.840 JOINT
4 WHEEL DISC BRAKE<JF9> 		8-98192-436-0 01 1 1506- ● ● ● ● ● ●

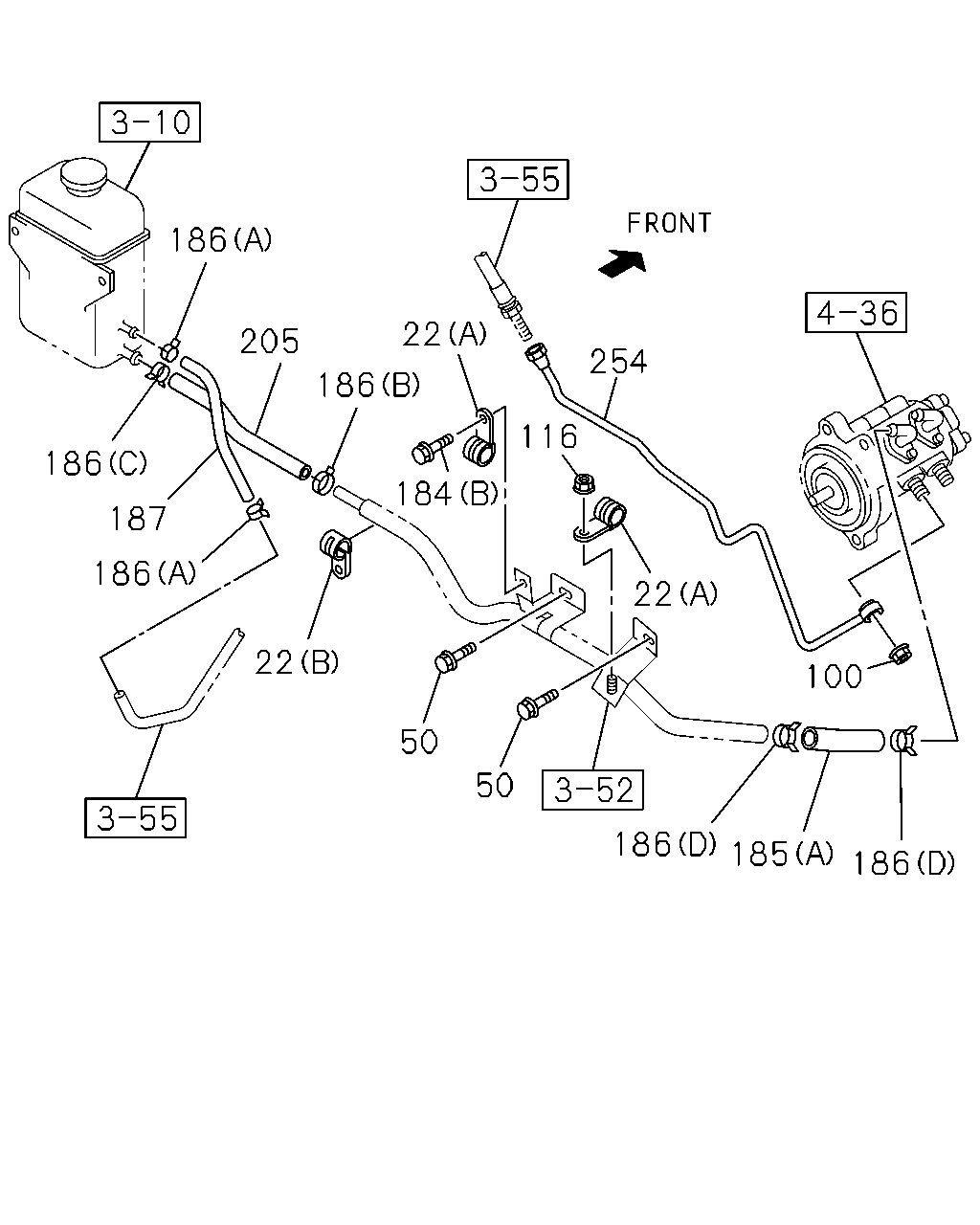

çizim 479576
186 205 186 186 22 186 22 184 50 50 116 254 22 186 185 100 186 187
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 04.685 CLIP
HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5 		8-98082-034-0 02 1 1506- ● ● ● ●
22 04.685 CLIP
HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21 		8-98082-035-0 01 1 1506- ● ● ● ●
50 04.710 BOLT; PIPE
HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1506- ● ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
HYDRO BRAKE BOOSTER(7QQ) 		8-97358-958-0 01 1 1506- ● ● ● ●
116 04.686 NUT
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ● ● ●
184 04.681 BOLT; CLIP
(A) M6X27 W/PL WASHER 		8-98131-461-0 03 1 1506- ● ● ● ● ● ●
184 04.681 BOLT; CLIP
HYDRO BRAKE BOOSTER(7QQ) 02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 1506- ● ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98085-720-0 01 1 1506- ● ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97330-513-0 01 1 1506- ● ● ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 03.278 (C) ID=22 		8-97359-141-0 01 1 1506- ● ● ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=16 		8-98008-098-0 02 1 1506- ● ● ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) (B) ID=21 		8-98150-355-0 01 1 1506- ● ● ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=21 		8-94242-034-0 02 1 1506- ● ● ● ●
187 04.681 HOSE; RUBBER,OIL TANK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000 		0-19809-300-0 01 1 1506- ● ●
187 04.681 HOSE; RUBBER,OIL TANK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 06.671 L=200 SERVICED BY L=3000 		0-19809-300-0 01 1 1506- ● ●
205 04.681 HOSE; TANK TO PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300 		0-09814-300-0 01 1 1506- ● ●
205 04.681 HOSE; TANK TO PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 06.670 L=200 SERVICED BY L=300 		0-09814-300-0 01 1 1506- ● ●
254 04.685 PIPE; BRAKE,2WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98036-161-0 01 1 1506- ● ●
254 04.685 PIPE; BRAKE,2WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98053-548-0 01 1 1506- ● ●

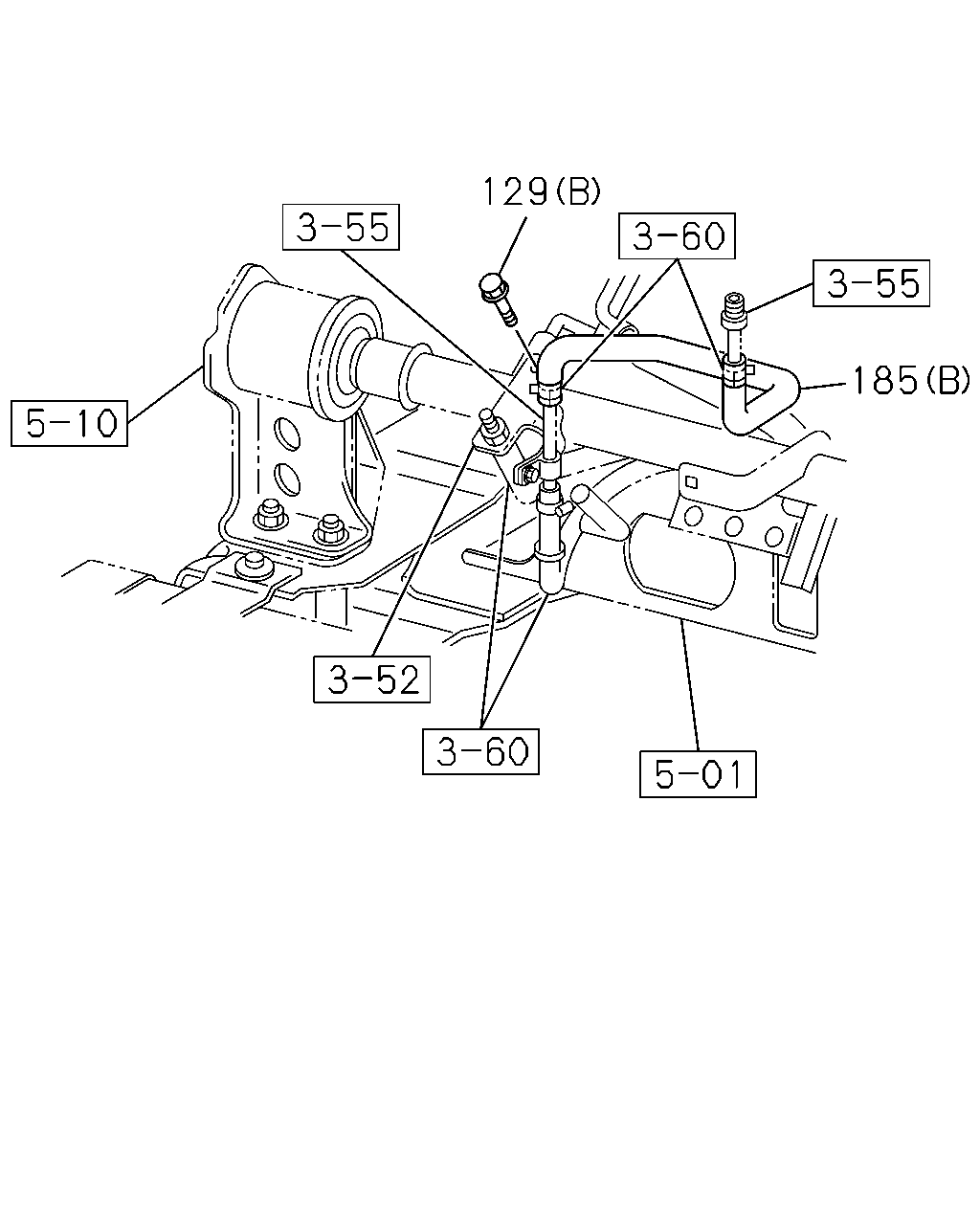

çizim 479736
129 185
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1506- ● ● ● ● ● ●
129 04.710 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1506- ● ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98085-720-0 01 1 1506- ● ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97330-513-0 01 1 1506- ● ● ● ●

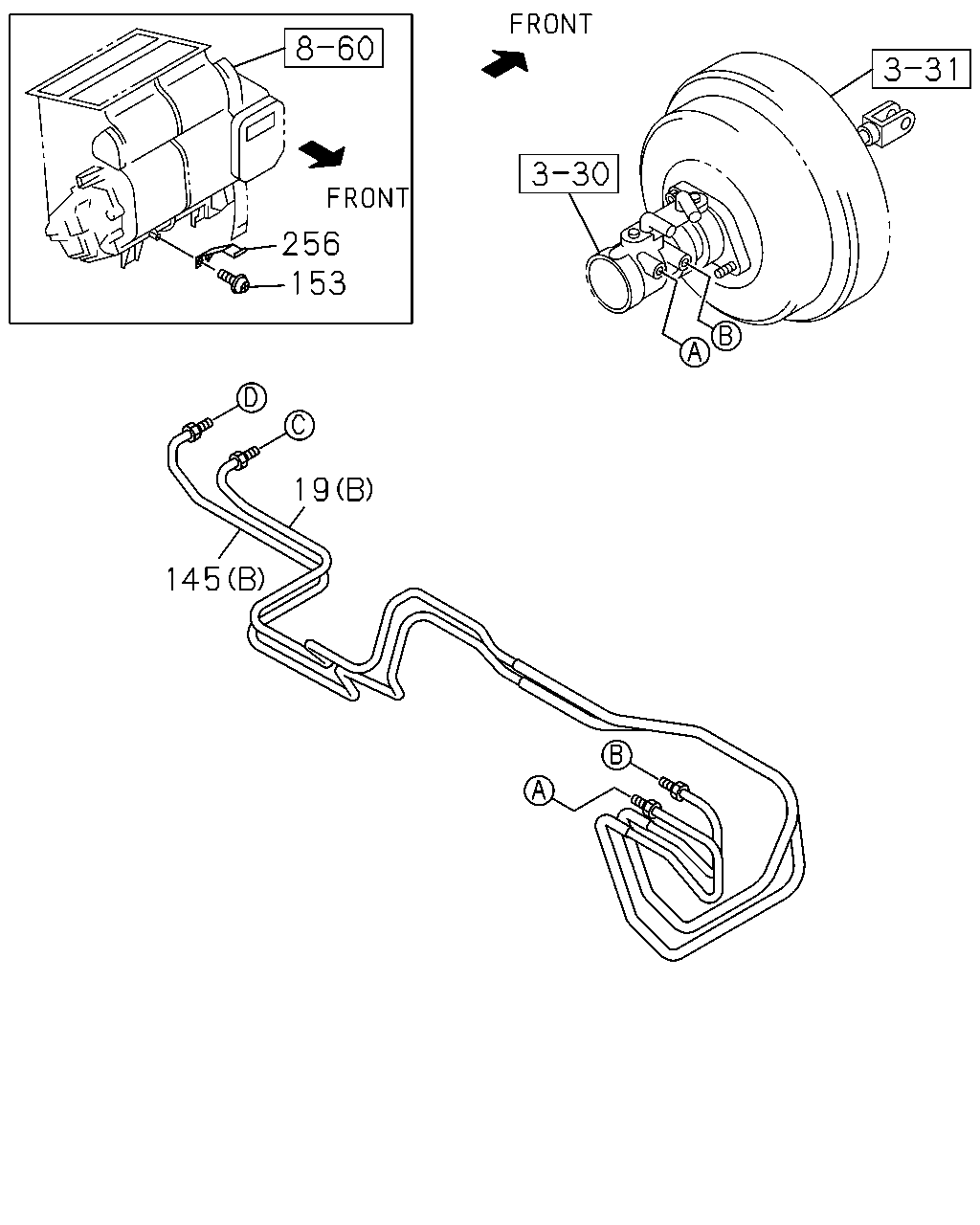

çizim 479952
256 153 145 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL DISC BRAKE<JF9> EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98220-478-1 01 1 1506-1507 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL DISC BRAKE<JF9> EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98220-478-1 01 1 1508- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL DISC BRAKE<JF9> (A) 		8-98206-790-2 02 1 1506- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HILL HOLD ASSIST<SLD> (A) 		8-98206-790-2 02 1 1506- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL DISC BRAKE<JF9> EXC. HILL HOLD ASSIST<SLD>,HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98206-790-2 02 1 1506- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98098-682-1 01 1 1506- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-501-2 02 1 1506- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRAKE SYSTEM PA TYPE(8BX) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98204-479-1 01 1 1506- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (B) L=1274 		8-98115-279-1 01 1 1506-1507 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ) (B) L=1274 		8-98115-279-1 01 1 1508- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-366-1 02 1 1506- ● ● ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL DISC BRAKE<JF9> EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98220-477-1 01 1 1506-1507 ● ● ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL DISC BRAKE<JF9> EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98220-477-1 01 1 1508- ● ● ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98098-680-1 01 1 1506- ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
BRAKE SYSTEM PA TYPE(8BX) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98204-478-1 01 1 1506- ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. 4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) (B) L=1371 		8-98115-269-1 01 1 1506-1507 ● ● ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. 4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ) (B) L=1371 		8-98115-269-1 01 1 1508- ● ● ● ● ● ●
153 04.730 SCREW; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1506- ● ● ● ● ● ●
256 04.840 BRACKET; BRK PIPE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98163-521-0 01 1 1506- ● ● ● ● ● ●
çizim 480103
89 103 72 179 197 72 184 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
72 04.686 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1506- ● ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) NEW ZEALAND COUNTRY<CX6> DISC BRAKE FRT<J52> 		8-98277-171-0 01 1 1506- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 4 WHEEL DISC BRAKE<JF9> HILL HOLD ASSIST<SLD> EXC. NEW ZEALAND COUNTRY<CX6> 		8-98305-854-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6>,HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98305-855-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
WHEEL BASE 3300MM(33W) 4 WHEEL DISC BRAKE<JF9> HILL HOLD ASSIST<SLD> EXC. NEW ZEALAND COUNTRY<CX6> 		8-98305-852-0 01 1 1506- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
WHEEL BASE 3300MM(33W) 4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6>,HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98305-853-0 01 1 1506- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ) NEW ZEALAND COUNTRY<CX6> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER(7QQ) 		8-98298-332-0 01 1 1506- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ) NEW ZEALAND COUNTRY<CX6> DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 		8-98298-333-0 01 1 1506- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ) NEW ZEALAND COUNTRY<CX6> HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98270-826-0 01 1 1506- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.5-6.0TON(RPU) HILL HOLD ASSIST<SLD> FRAME STRAIGHT TYPE<7KJ> EXC. NEW ZEALAND COUNTRY<CX6>,HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYP E(8BX) 		8-98305-850-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.5-6.0TON(RPU) FRAME STRAIGHT TYPE<7KJ> EXC. NEW ZEALAND COUNTRY<CX6>,HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP>,HYDR O BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 		8-98305-851-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.5-6.0TON(RPU) HILL HOLD ASSIST<SLD> FRAME STRAIGHT TYPE<7KJ> EXC. NEW ZEALAND COUNTRY<CX6>,HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYP E(8BX) 		8-98305-848-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.5-6.0TON(RPU) FRAME STRAIGHT TYPE<7KJ> EXC. NEW ZEALAND COUNTRY<CX6>,HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP>,HYDR O BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 		8-98305-849-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.5-7.0TON(RPW) HILL HOLD ASSIST<SLD> FRAME STRAIGHT TYPE<7KJ> EXC. NEW ZEALAND COUNTRY<CX6>,HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYP E(8BX) 		8-98305-846-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> EXC. NEW ZEALAND COUNTRY<CX6>,HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP>,HYDR O BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 		8-98305-847-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) HILL HOLD ASSIST<SLD> FRAME STRAIGHT TYPE<7KJ> EXC. NEW ZEALAND COUNTRY<CX6> 		8-98305-842-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. NEW ZEALAND COUNTRY<CX6>,HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98305-843-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.5-7.0TON(RPW) HILL HOLD ASSIST<SLD> EXC. NEW ZEALAND COUNTRY<CX6>,HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYP E(8BX) 		8-98305-844-0 01 1 1506- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.5-7.0TON(RPW) EXC. NEW ZEALAND COUNTRY<CX6>,HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP>,HYDR O BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 		8-98305-845-0 01 1 1506- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) BRAKE SYSTEM PA TYPE(8BX) 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) HILL HOLD ASSIST<SLD> EXC. NEW ZEALAND COUNTRY<CX6> 		8-98305-840-0 01 1 1506- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) BRAKE SYSTEM PA TYPE(8BX) 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) EXC. NEW ZEALAND COUNTRY<CX6>,HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98305-841-0 01 1 1506- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) NEW ZEALAND COUNTRY<CX6> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER(7QQ) 		8-98298-331-0 01 1 1506- ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) NEW ZEALAND COUNTRY<CX6> HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98299-647-0 01 1 1506- ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.5-7.0TON(RPW) HILL HOLD ASSIST<SLD> FRAME STRAIGHT TYPE<7KJ> EXC. NEW ZEALAND COUNTRY<CX6>,HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYP E(8BX) 		8-98314-458-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> EXC. NEW ZEALAND COUNTRY<CX6>,HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP>,HYDR O BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 		8-98314-459-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) HILL HOLD ASSIST<SLD> FRAME STRAIGHT TYPE<7KJ> EXC. NEW ZEALAND COUNTRY<CX6> 		8-98314-454-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. NEW ZEALAND COUNTRY<CX6>,HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98314-455-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.5-7.0TON(RPW) HILL HOLD ASSIST<SLD> EXC. NEW ZEALAND COUNTRY<CX6>,HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYP E(8BX) 		8-98314-456-0 01 1 1506- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.5-7.0TON(RPW) EXC. NEW ZEALAND COUNTRY<CX6>,HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP>,HYDR O BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 		8-98314-457-0 01 1 1506- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) BRAKE SYSTEM PA TYPE(8BX) 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) HILL HOLD ASSIST<SLD> EXC. NEW ZEALAND COUNTRY<CX6> 		8-98314-452-0 01 1 1506- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) BRAKE SYSTEM PA TYPE(8BX) 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) EXC. NEW ZEALAND COUNTRY<CX6>,HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98314-453-0 01 1 1506- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) 4 WHEEL DISC BRAKE<JF9> HILL HOLD ASSIST<SLD> EXC. NEW ZEALAND COUNTRY<CX6> 		8-98305-834-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) 4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6>,HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98305-835-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
WHEEL BASE 4400MM(44W) BRAKE SYSTEM PA TYPE(8BX) 4 WHEEL DISC BRAKE<JF9> HILL HOLD ASSIST<SLD> EXC. NEW ZEALAND COUNTRY<CX6> 		8-98305-832-0 01 1 1506- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
WHEEL BASE 4400MM(44W) BRAKE SYSTEM PA TYPE(8BX) 4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6>,HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98305-833-0 01 1 1506- ● ●
94 04.730 BRACKET; ABS CONT UNIT 8-98131-875-2 01 1 1506- ● ● ● ● ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506- ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506- ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ●
179 04.685 SPACER; BRKT 8-98130-134-0 03 1 1506- ● ● ● ● ● ●
184 04.681 BOLT; CLIP
(A) M6X27 W/PL WASHER 		8-98131-461-0 03 1 1506- ● ● ● ● ● ●
184 04.681 BOLT; CLIP
HYDRO BRAKE BOOSTER(7QQ) 02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 1506- ● ● ● ●
197 04.730 RUBBER; DAMPER 8-98130-133-0 03 1 1506- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
