3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#162830) — 32 parça
çizim 479623
1 17 16 24 15 12 11 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.901 MASTER VAC ASM; BRK 8-98234-822-0 01 1 1506- ● ●
1 04.901 MASTER VAC ASM; BRK
EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 		8-98234-822-0 01 1 1506- ● ●
1 04.901 MASTER VAC ASM; BRK
BRAKE SYSTEM PA TYPE(8BX) 		8-98241-864-0 01 1 1506- ● ● ● ●
11 04.906 FILTER; M/VAC 8-97205-576-0 01 1 1506- ● ●
11 04.906 FILTER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97205-576-0 01 1 1506- ● ●
11 04.906 FILTER; M/VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-97205-576-0 01 1 1506- ● ●
12 04.906 SILENCER; M/VAC 8-97205-577-0 01 1 1506- ● ●
12 04.906 SILENCER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97205-577-0 01 1 1506- ● ●
12 04.906 SILENCER; M/VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-97205-577-0 01 1 1506- ● ●
15 04.906 RETAINER; GUARD,M/VAC 8-94375-083-0 01 1 1506- ● ●
15 04.906 RETAINER; GUARD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-94375-083-0 01 1 1506- ● ●
15 04.906 RETAINER; GUARD,M/VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-94375-083-0 01 1 1506- ● ●
16 04.662 NUT; VLV ROD,M/VAC
M10 		1-52139-008-0 01 1 1506- ● ●
16 04.662 NUT; VLV ROD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) M10 		1-52139-008-0 01 1 1506- ● ●
16 04.662 NUT; VLV ROD,M/VAC
BRAKE SYSTEM PA TYPE(8BX) M10 		1-52139-008-0 01 1 1506- ● ●
17 04.662 CLEVIS; YOKE,M/VAC 8-97224-610-0 01 1 1506- ● ●
17 04.662 CLEVIS; YOKE,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97224-610-0 01 1 1506- ● ●
17 04.662 CLEVIS; YOKE,M/VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-97224-610-0 01 1 1506- ● ●
24 04.906 GUARD; VLV BODY,M/VAC 8-98184-421-0 01 1 1506- ● ●
24 04.906 GUARD; VLV BODY,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98184-421-0 01 1 1506- ● ●
24 04.906 GUARD; VLV BODY,M/VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98184-421-0 01 1 1506- ● ●
56 04.910 GASKET KIT; M/CYL TO SERVO UNIT
W/GREASE 		8-98184-424-0 01 1 1506- ● ●
56 04.910 GASKET KIT; M/CYL TO SERVO UNIT
EXC. HYDRO BRAKE BOOSTER(7QQ) W/GREASE 		8-98184-424-0 01 1 1506- ● ●
56 04.910 GASKET KIT; M/CYL TO SERVO UNIT
BRAKE SYSTEM PA TYPE(8BX) W/GREASE 		8-98184-424-0 01 1 1506- ● ●

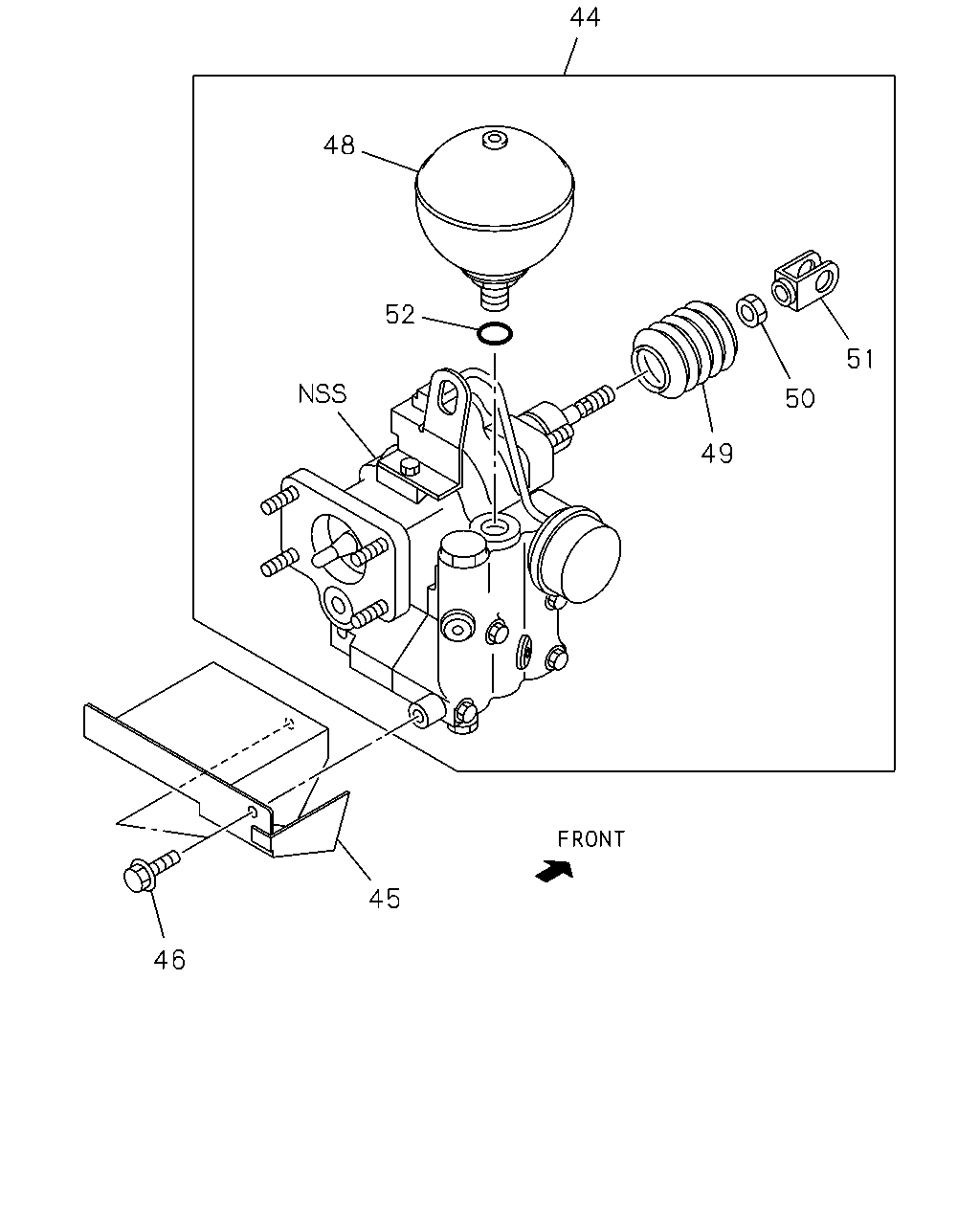

çizim 479642
44 48 52 49 50 51 45 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 04.901 BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER(7QQ) 		8-98031-414-0 01 1 1506- ● ● ● ●
45 04.901 PROTECTOR; HEAT
HYDRO BRAKE BOOSTER(7QQ) 		8-98031-415-1 01 1 1506- ● ● ● ●
46 04.901 BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER(7QQ) 03.671 M6X10 FLANGE 		0-28050-610-0 02 1 1506- ● ● ● ●
48 04.906 ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER(7QQ) 		8-98038-346-0 01 1 1506- ● ● ● ●
49 04.906 GUARD; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) 		8-97191-043-0 01 1 1506- ● ● ● ●
50 04.906 NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) 		8-98038-349-0 01 1 1506- ● ● ● ●
51 04.906 CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) 		8-98038-347-0 01 1 1506- ● ● ● ●
52 04.906 GASKET; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) 04.910 		8-97191-038-0 01 1 1506- ● ● ● ●
