◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11209 - LV434(RHD) EURO3/5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#16283) — 24 parça

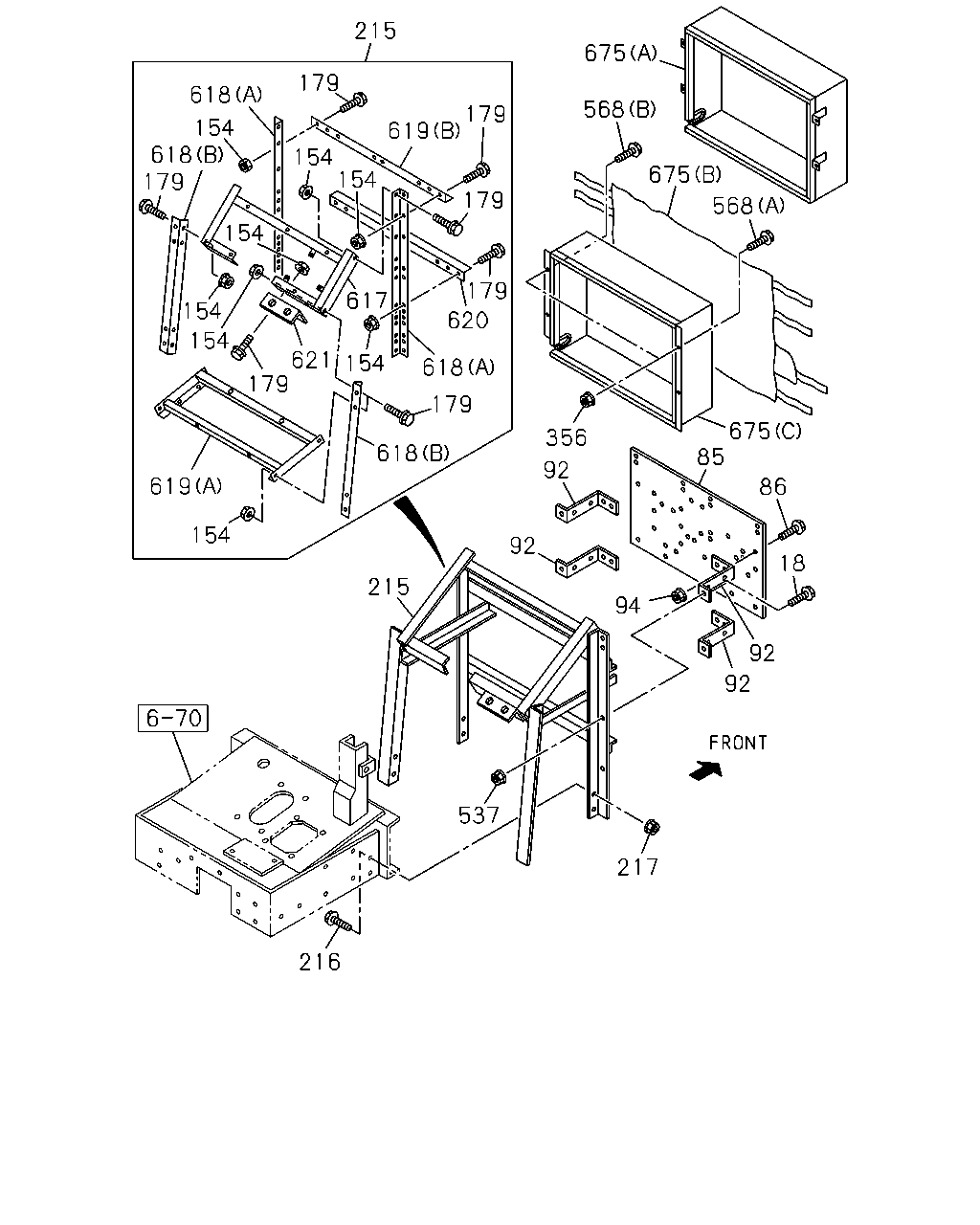

çizim 102327
215 675 179 618 568 179 619 154 618 179 154 154 675 179 568 154 179 617 154 154 620 154 621 179 618 179 675 85 356 618 92 619 86 154 92 18 215 94 92 92 537 217 216
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0907-
85 PANEL; ELEC 1-65600-732-1 01 1 0907-
86 BOLT; ELEC PNL
M8X25 FLANGE 		0-28650-825-0 04 1 0907-
92 BRACKET; ELEC PANEL 8-94300-644-3 04 1 0907-
94 NUT; PANEL BRKT
M8 FLANGE 		0-91180-108-0 04 1 0907-
154 NUT
M10 		0-91110-510-0 14 1 0907-
179 BOLT; STAY,INST PANEL
M10X20 FLANGE 		0-28051-020-0 14 1 0907-
215 BOARD ASM; DASH 1-65600-720-1 01 1 0907-
216 BOLT; DASH BOARD
M10X30 FLANGE 		0-28651-030-0 08 1 0907-
217 NUT; DASH BOARD
M10 FLANGE 		0-91180-210-0 08 1 0907-
356 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 0907-
537 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0907-
568 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0907-
568 BOLT; COVER
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0907-
617 STAY; DASH BOARD 1-65600-600-2 01 1 0907-
618 STAY; PEDAL BOARD
(A) 		1-65600-565-0 02 1 0907-
618 STAY; PEDAL BOARD
(B) 		1-65600-731-0 02 1 0907-
619 STAY; PEDAL BRKT
(B) 		1-65600-467-2 01 1 0907-
619 STAY; PEDAL BRKT
(A) 		1-65600-601-3 01 1 0907-
620 STAY; BACK MIRROR 1-65600-467-2 01 1 0907-
621 PEDAL; IDLING CONT 1-65600-730-1 01 1 0907-
675 COVER; ELEC PANEL
(A) 		1-85599-033-1 01 1 0907-0908
675 COVER; ELEC PANEL
(C) 		8-98147-340-0 01 1 0909-
675 COVER; ELEC PANEL
(B) 		8-97531-011-1 01 1 0907-
