51606 - NNR/NPR/NQR AUST/NZ EURO5
▶
3 - Brakes, Brake System
▶
3-30 - BRAKE MASTER CYLINDER
▶
3-30 — BRAKE MASTER CYLINDER
(#162829) — 20 parça
Tümü
A - NPR5SE
B - NPR5SN
C - NPR5WE
D - NPR5WN
E - NPR5SS
F - NPR5WS
◀
[330A] NO.2 (15 parça)
[330A] NO.1 (4 parça)
[330A] NO.3 (1 parça)
▶
1
77
79
87
78
33
82
76
81
57
57
79
80
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1

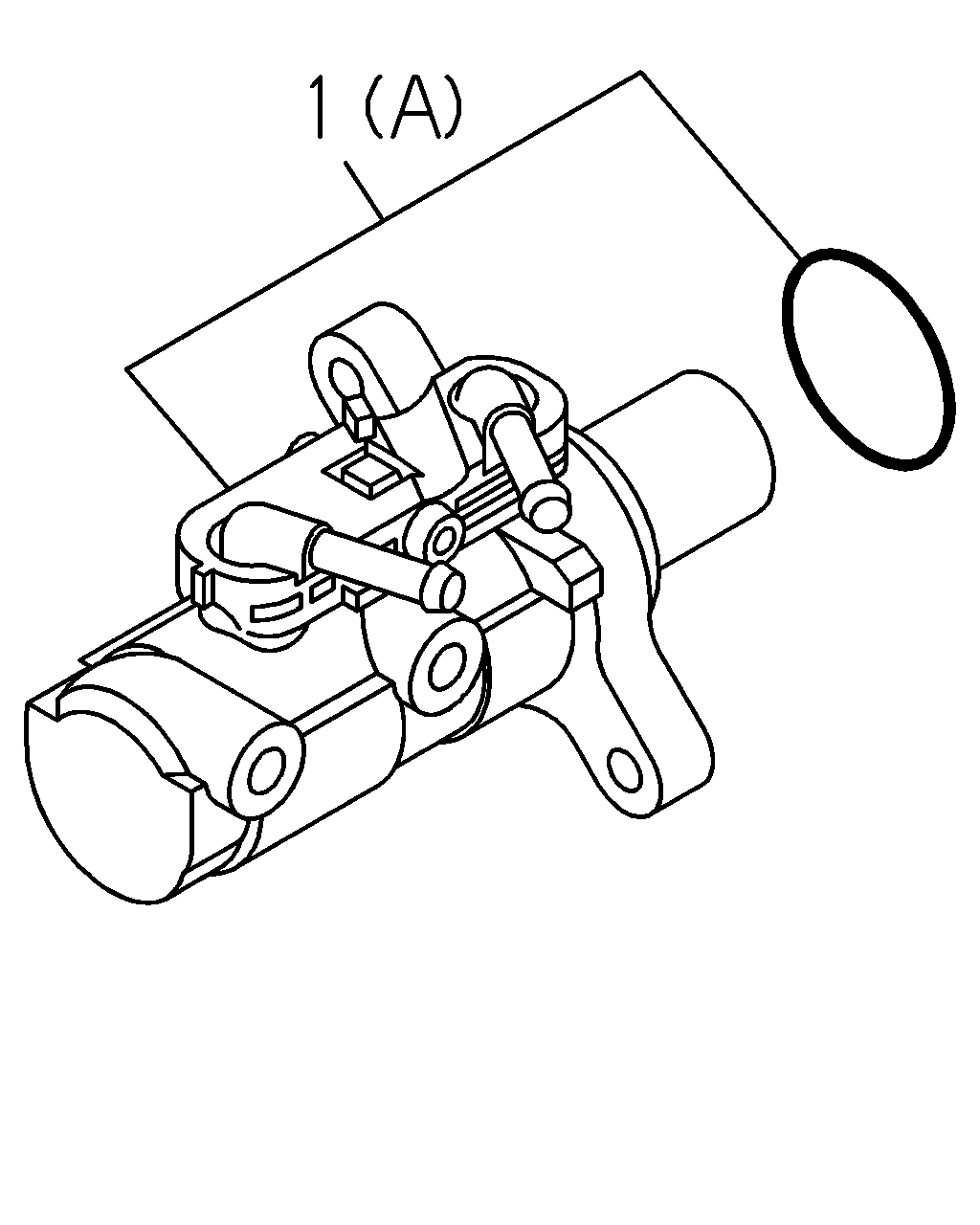

04.650 CYLINDER ASM; BRK MASTER
4 WHEEL DISC BRAKE<JF9> EXC. BRAKE SYSTEM PA TYPE(8BX) (A)
8-98206-645-2
01
1
1506-
●
●
●
●
1
04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)
8-98127-461-4
01
1
1506-
●
●
●
●
1

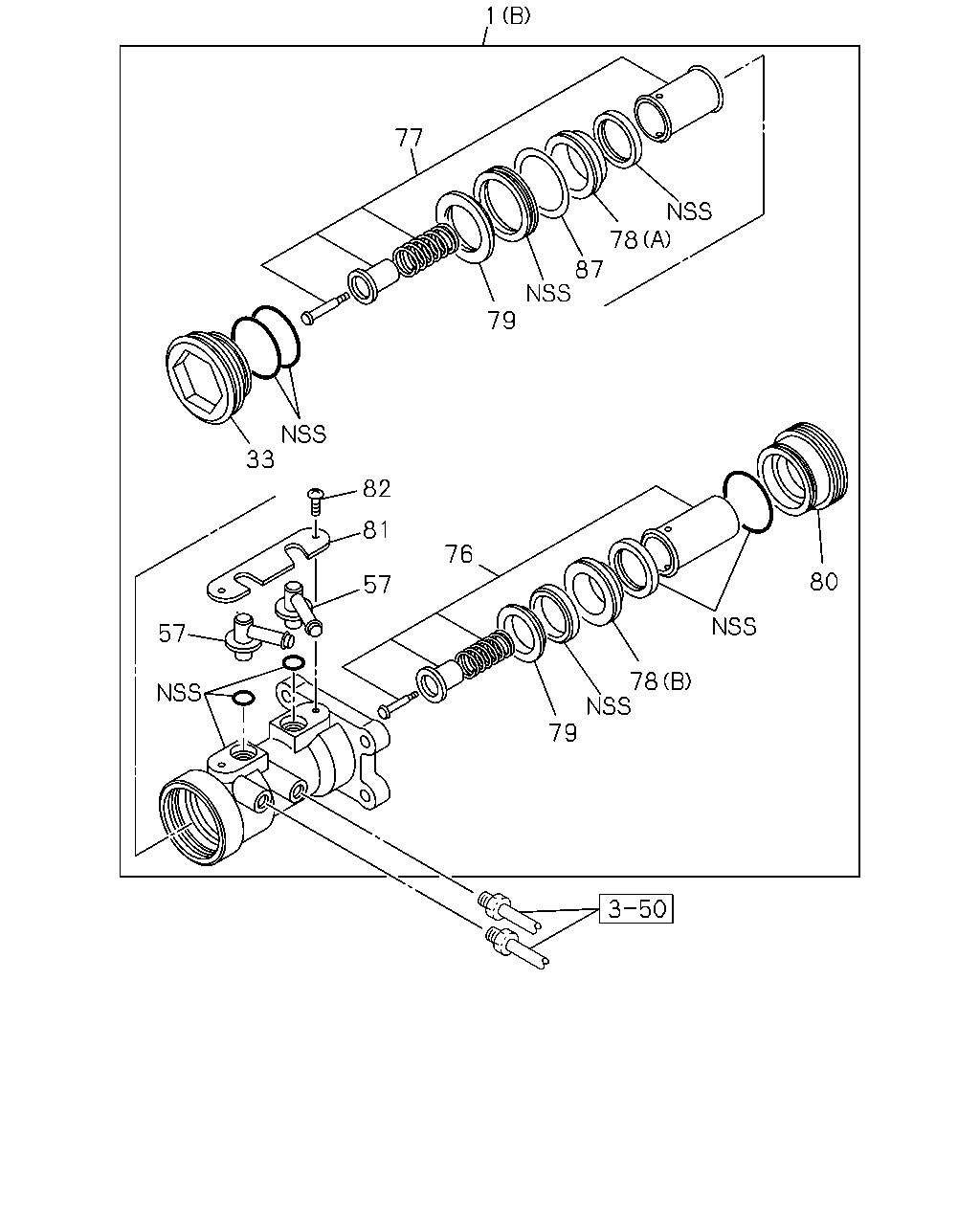

04.650 CYLINDER ASM; BRK MASTER
HYDRO BRAKE BOOSTER(7QQ) (B)
8-98032-618-0
01
1
1506-
●
●
●
●
1
04.650 CYLINDER ASM; BRK MASTER
4 WHEEL DISC BRAKE<JF9> BRAKE SYSTEM PA TYPE(8BX) (A)
8-98206-646-2
01
1
1506-
●
●
●
●
33
04.661 PLUG; END,M/CYL
HYDRO BRAKE BOOSTER(7QQ)
8-97186-699-0
01
1
1506-
●
●
●
●
57
04.651 NIPPLE; BRK M/CYL
HYDRO BRAKE BOOSTER(7QQ)
8-97130-441-0
02
1
1506-
●
●
●
●
76
04.653 PISTON ASM; PRIMARY
HYDRO BRAKE BOOSTER(7QQ)
8-97224-641-0
01
1
1506-
●
●
●
●
77
04.653 PISTON ASM; SECONDARY
HYDRO BRAKE BOOSTER(7QQ)
8-97224-640-0
01
1
1506-
●
●
●
●
78
04.651 BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER(7QQ) (A)
8-97170-695-0
01
1
1506-
●
●
●
●
78
04.651 BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER(7QQ) (B)
8-97207-685-0
01
1
1506-
●
●
●
●
79
04.651 SUPPORTER; CUP
HYDRO BRAKE BOOSTER(7QQ)
8-97170-698-0
02
1
1506-
●
●
●
●
80
04.651 COVER; MASTER CYL
HYDRO BRAKE BOOSTER(7QQ)
8-97170-692-0
01
1
1506-
●
●
●
●
81
04.651 HOLDER; NIPPLE
HYDRO BRAKE BOOSTER(7QQ)
8-97130-444-0
01
1
1506-
●
●
●
●
82
04.651 SCREW; HOLDER
HYDRO BRAKE BOOSTER(7QQ)
8-97130-446-0
02
1
1506-
●
●
●
●
87
04.662 SPACER; CUP
HYDRO BRAKE BOOSTER(7QQ)
8-97170-696-0
01
1
1506-
●
●
●
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
04.650 CYLINDER ASM; BRK MASTER
4 WHEEL DISC BRAKE<JF9> EXC. BRAKE SYSTEM PA TYPE(8BX) (A)
8-98206-645-2
01
1
1506-
●
●
●
●
1
04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)
8-98127-461-4
01
1
1506-
●
●
●
●
1
04.650 CYLINDER ASM; BRK MASTER
HYDRO BRAKE BOOSTER(7QQ) (B)
8-98032-618-0
01
1
1506-
●
●
●
●
1
04.650 CYLINDER ASM; BRK MASTER
4 WHEEL DISC BRAKE<JF9> BRAKE SYSTEM PA TYPE(8BX) (A)
8-98206-646-2
01
1
1506-
●
●
●
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
2

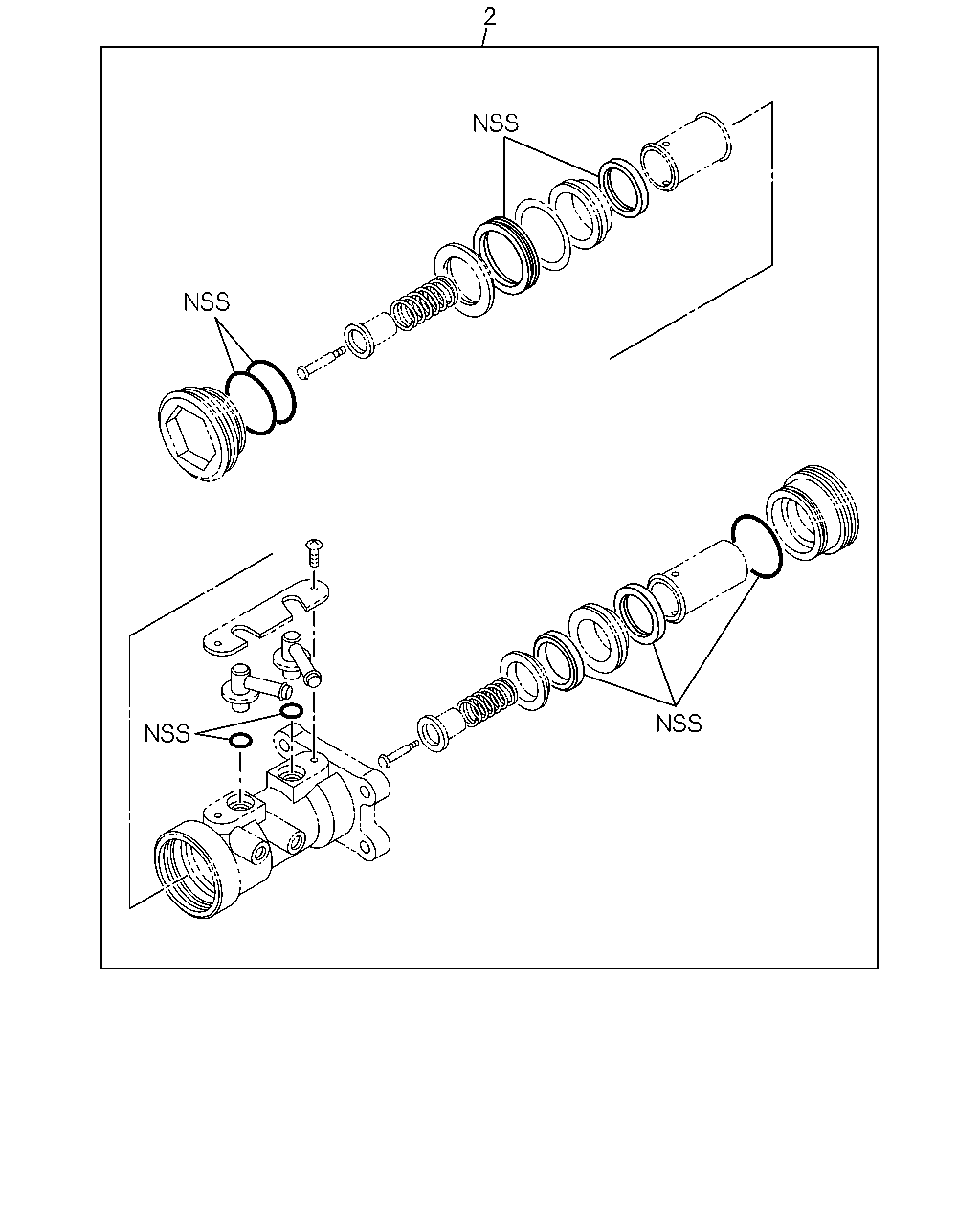

04.649 REPAIR KIT; BRK,M/CYL
HYDRO BRAKE BOOSTER(7QQ)
8-97254-775-0
01
1
1506-
●
●
●
●
