3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#162827) — 104 parça

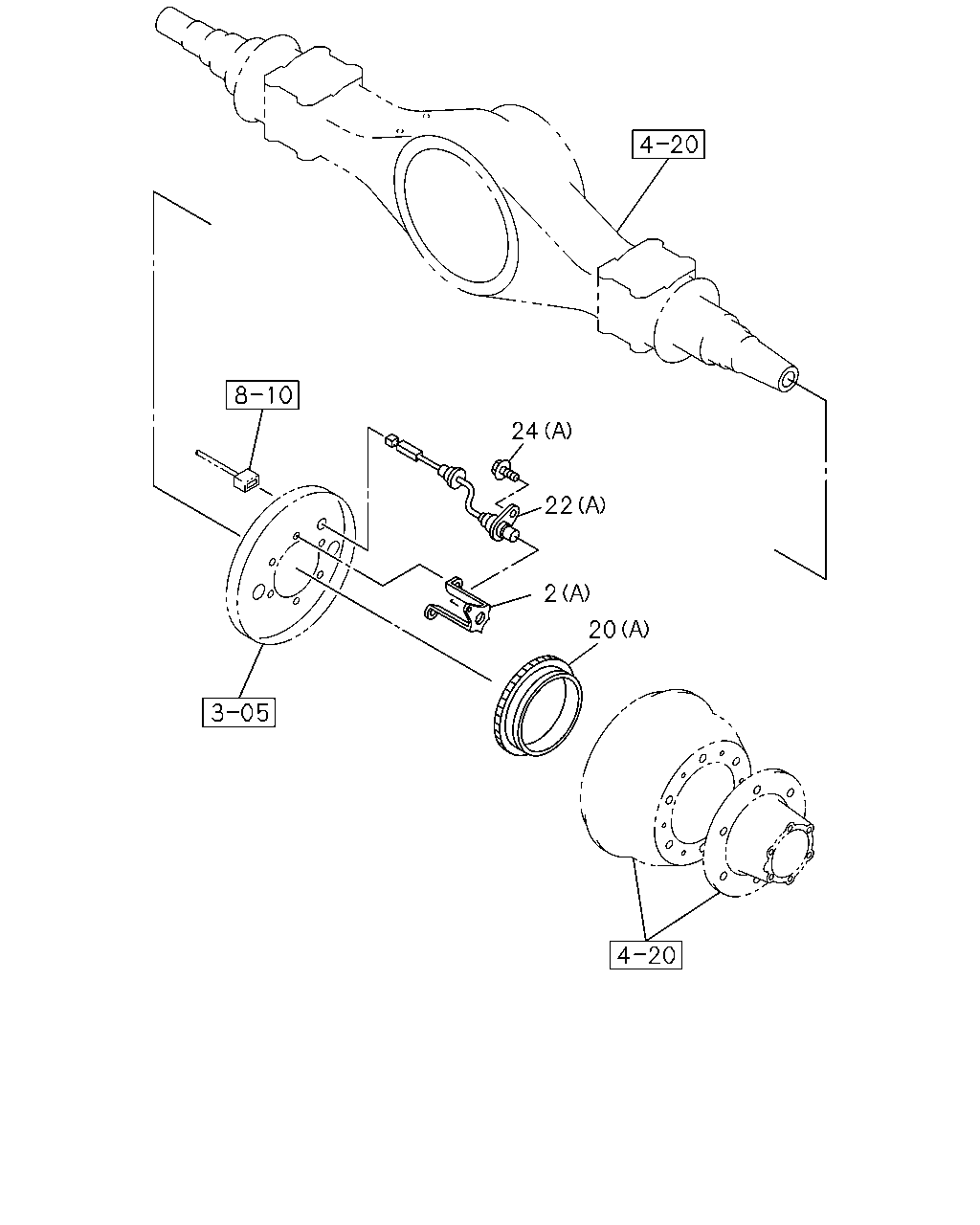

22 2 24 23 24 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	04.730 BRACKET; SENSOR 4 WHEEL DISC BRAKE<JF9> (B)	8-98045-222-0	02	1	1506-1508	●	●	●	●
2	04.730 BRACKET; SENSOR 4 WHEEL DISC BRAKE<JF9> (B)	8-98045-222-0	02	1	1509-	●	●	●	●	●	●
2	04.730 BRACKET; SENSOR EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98000-019-2	02	1	1506-	●		●
2	04.730 BRACKET; SENSOR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98000-019-2	02	1	1506-		●		●
2	04.730 BRACKET; SENSOR G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98002-440-1	02	1	1506-		●		●
2	04.730 BRACKET; SENSOR EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98002-441-1	02	1	1506-					●	●
20	04.710 ROTOR; SENSOR EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97234-459-3	02	1	1506-	●		●
20	04.710 ROTOR; SENSOR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97206-774-4	02	1	1506-		●		●
20	04.710 ROTOR; SENSOR G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97206-775-3	02	1	1506-		●		●
20	04.710 ROTOR; SENSOR (A)	8-97206-775-3	02	1	1506-					●	●
20	04.710 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9> 05.809 (B)	8-98187-136-0	02	1	1506-1512	●		●
20	04.710 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9> (B)	8-98312-785-0	02	1	1601-	●		●
20	04.710 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9> (B)	8-98207-952-0	02	1	1506-		●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9> (C)	8-98012-753-1	02	1	1506-1508	●	●	●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9> (C)	8-98012-753-1	02	1	1509-	●	●	●	●	●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98219-351-0	02	1	1506-	●		●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (A)	8-98219-354-0	02	1	1506-		●		●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98219-355-0	02	1	1506-					●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98220-126-0	01	1	1506-	●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98220-126-0	01	1	1506-		●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98220-127-0	01	1	1506-	●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98220-127-0	01	1	1506-		●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-98219-391-0	01	1	1506-1506		●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-391-0	01	1	1506-1506					●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-391-0	01	1	1507-	●	●	●	●	●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-98219-392-0	01	1	1506-1506		●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-392-0	01	1	1506-1506					●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-392-0	01	1	1507-	●	●	●	●	●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-393-0	01	1	1506-	●	●	●	●	●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-394-0	01	1	1506-	●	●	●	●	●	●
23	04.710 BOLT; BRKT 4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE	0-28050-812-0	04	1	1506-1508	●	●	●	●
23	04.710 BOLT; BRKT 4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE	0-28050-812-0	04	1	1509-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1506-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1506-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1506-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1506-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1506-1508	●	●	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1509-	●	●	●	●	●	●

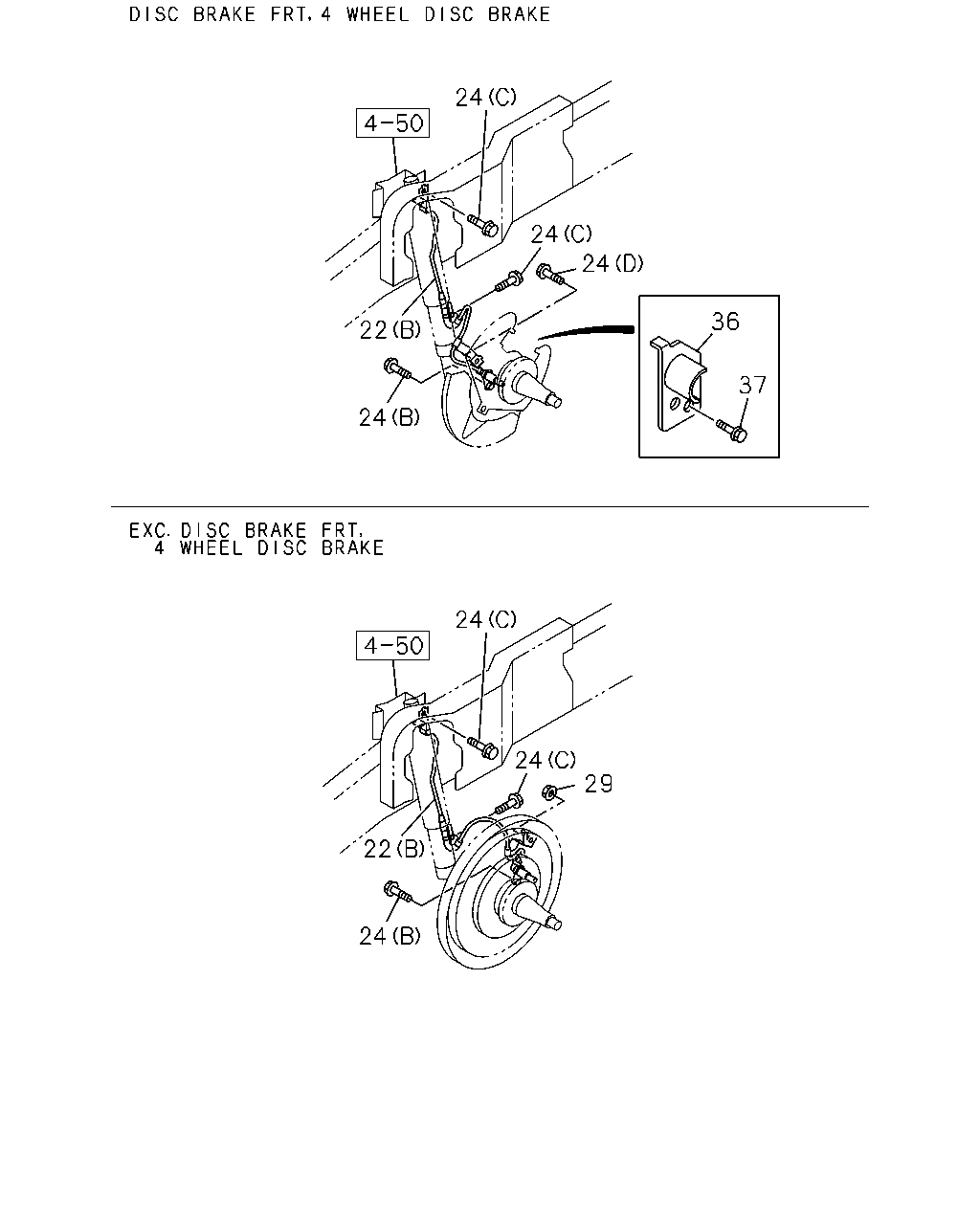

24 22 24 24 24 36 37 24 24 29 22 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9> (C)	8-98012-753-1	02	1	1506-1508	●	●	●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9> (C)	8-98012-753-1	02	1	1509-	●	●	●	●	●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98219-351-0	02	1	1506-	●		●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (A)	8-98219-354-0	02	1	1506-		●		●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98219-355-0	02	1	1506-					●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98220-126-0	01	1	1506-	●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98220-126-0	01	1	1506-		●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98220-127-0	01	1	1506-	●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98220-127-0	01	1	1506-		●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-98219-391-0	01	1	1506-1506		●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-391-0	01	1	1506-1506					●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-391-0	01	1	1507-	●	●	●	●	●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-98219-392-0	01	1	1506-1506		●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-392-0	01	1	1506-1506					●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-392-0	01	1	1507-	●	●	●	●	●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-393-0	01	1	1506-	●	●	●	●	●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-394-0	01	1	1506-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1506-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1506-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1506-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1506-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1506-1508	●	●	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1509-	●	●	●	●	●	●
29	04.730 NUT EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-	●	●	●	●	●	●
36	04.710 PROTECTOR; SENSOR 04.337	8-98188-198-0	01	1	1506-					●	●
36	04.710 PROTECTOR; SENSOR 04.337	8-98188-199-0	01	1	1506-					●	●
37	04.710 BOLT; PROTECTOR 03.671 M6X10 FLANGE	0-28050-610-0	02	1	1506-					●	●

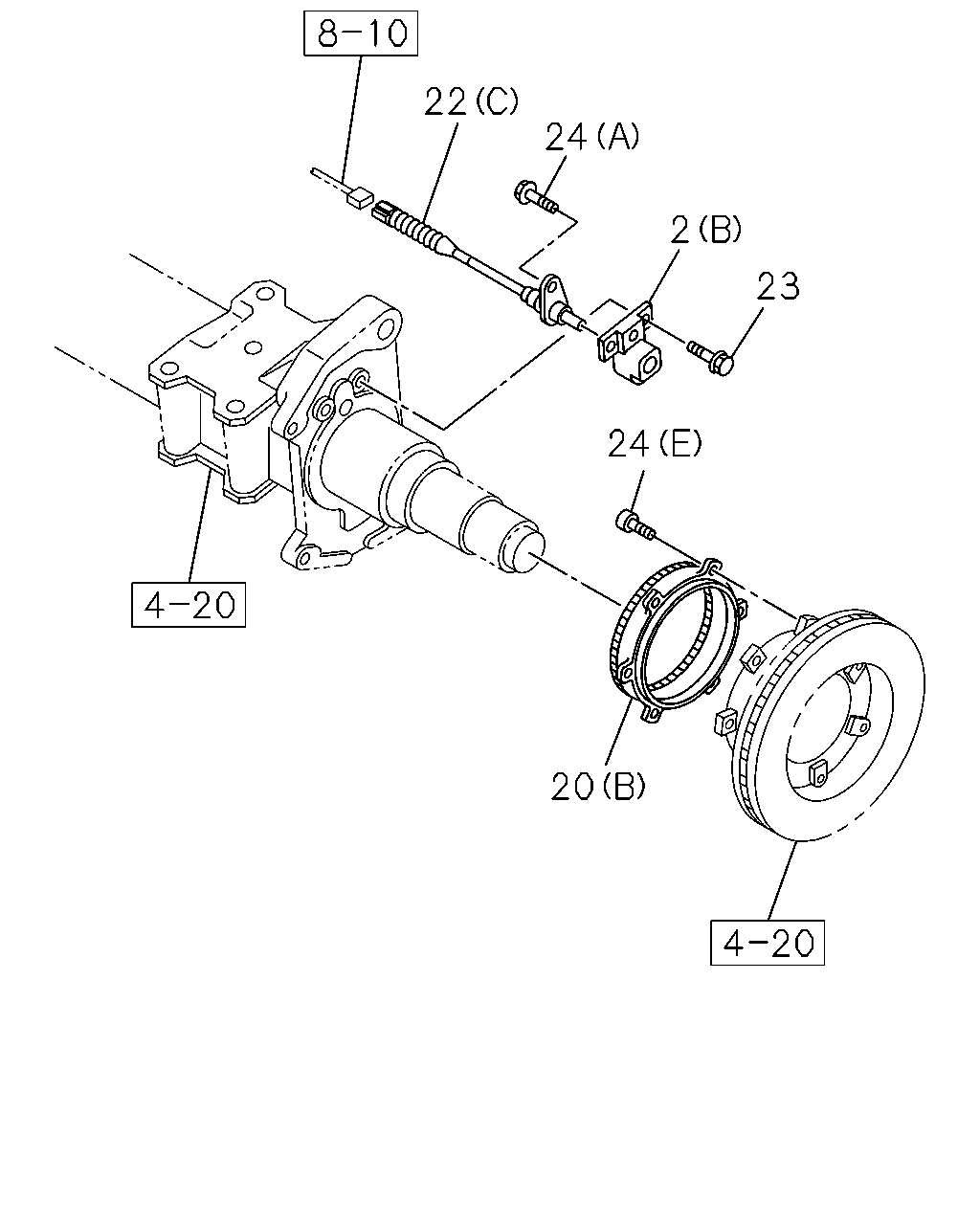

24 22 2 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	04.730 BRACKET; SENSOR 4 WHEEL DISC BRAKE<JF9> (B)	8-98045-222-0	02	1	1506-1508	●	●	●	●
2	04.730 BRACKET; SENSOR 4 WHEEL DISC BRAKE<JF9> (B)	8-98045-222-0	02	1	1509-	●	●	●	●	●	●
2	04.730 BRACKET; SENSOR EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98000-019-2	02	1	1506-	●		●
2	04.730 BRACKET; SENSOR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98000-019-2	02	1	1506-		●		●
2	04.730 BRACKET; SENSOR G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98002-440-1	02	1	1506-		●		●
2	04.730 BRACKET; SENSOR EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98002-441-1	02	1	1506-					●	●
20	04.710 ROTOR; SENSOR EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97234-459-3	02	1	1506-	●		●
20	04.710 ROTOR; SENSOR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97206-774-4	02	1	1506-		●		●
20	04.710 ROTOR; SENSOR G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97206-775-3	02	1	1506-		●		●
20	04.710 ROTOR; SENSOR (A)	8-97206-775-3	02	1	1506-					●	●
20	04.710 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9> 05.809 (B)	8-98187-136-0	02	1	1506-1512	●		●
20	04.710 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9> (B)	8-98312-785-0	02	1	1601-	●		●
20	04.710 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9> (B)	8-98207-952-0	02	1	1506-		●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9> (C)	8-98012-753-1	02	1	1506-1508	●	●	●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9> (C)	8-98012-753-1	02	1	1509-	●	●	●	●	●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98219-351-0	02	1	1506-	●		●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (A)	8-98219-354-0	02	1	1506-		●		●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98219-355-0	02	1	1506-					●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98220-126-0	01	1	1506-	●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98220-126-0	01	1	1506-		●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98220-127-0	01	1	1506-	●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98220-127-0	01	1	1506-		●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-98219-391-0	01	1	1506-1506		●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-391-0	01	1	1506-1506					●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-391-0	01	1	1507-	●	●	●	●	●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B)	8-98219-392-0	01	1	1506-1506		●		●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-392-0	01	1	1506-1506					●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-392-0	01	1	1507-	●	●	●	●	●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-393-0	01	1	1506-	●	●	●	●	●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B)	8-98219-394-0	01	1	1506-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1506-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1506-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1506-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1506-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●	●	●	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1506-1508	●	●	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1509-	●	●	●	●	●	●
