3-06 — REAR DISC BRAKE CALIPER (#162823) — 87 parça

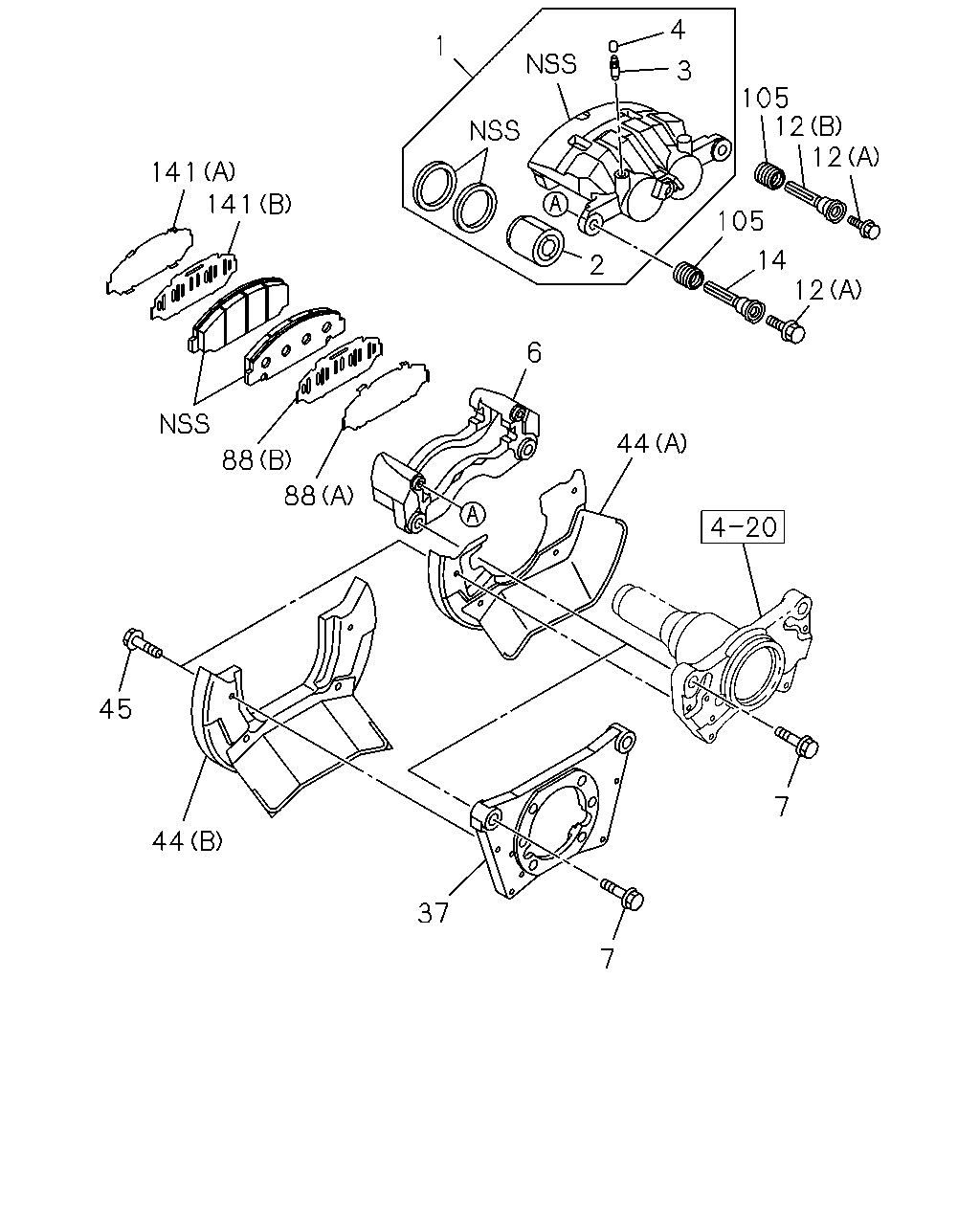

45 44 37 7 7 44 6 88 88 141 141 1 4 3 2 105 12 14 12 12 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.665 CALIPER; RR DISC BRK 4 WHEEL DISC BRAKE<JF9>	8-98335-063-0	01	1	1510-	●	●
1	04.665 CALIPER; RR DISC BRK 4 WHEEL DISC BRAKE<JF9>	8-98335-064-0	01	1	1510-	●	●
1	04.665 CALIPER; RR DISC BRK 4 WHEEL DISC BRAKE<JF9>	8-98303-471-0	01	1	1506-			●	●
1	04.665 CALIPER; RR DISC BRK 4 WHEEL DISC BRAKE<JF9>	8-98303-472-0	01	1	1506-			●	●
1	04.665 CALIPER; RR DISC BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 4 WHEEL DISC BRAKE<JF9>	8-98303-463-0	01	1	1506-					●	●
1	04.665 CALIPER; RR DISC BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 4 WHEEL DISC BRAKE<JF9>	8-98303-464-0	01	1	1506-					●	●
1	04.665 CALIPER; RR DISC BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>	8-98303-467-0	01	1	1506-					●	●
1	04.665 CALIPER; RR DISC BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>	8-98303-468-0	01	1	1506-					●	●
2	04.665 PISTON; CALIPER,RR 4 WHEEL DISC BRAKE<JF9>	8-98082-934-0	04	1	1506-			●	●
2	04.665 PISTON; CALIPER,RR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 4 WHEEL DISC BRAKE<JF9> 04.668	8-97365-269-0	04	1	1506-					●	●
2	04.665 PISTON; CALIPER,RR G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 04.668	8-97365-279-0	04	1	1506-1509					●	●
2	04.665 PISTON; CALIPER,RR G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 04.668	8-97365-279-0	04	1	1510-					●	●
2	04.665 PISTON; CALIPER,RR 4 WHEEL DISC BRAKE<JF9> 04.668	8-97365-279-0	04	1	1510-	●	●
3	04.665 SCREW; BLEEDER,CALIPER,RR 4 WHEEL DISC BRAKE<JF9> 04.666	8-98050-476-0	02	1	1506-1509			●	●	●	●
3	04.665 SCREW; BLEEDER,CALIPER,RR 4 WHEEL DISC BRAKE<JF9> 04.666	8-98050-476-0	02	1	1510-	●	●	●	●	●	●
4	04.665 CAP; BLEEDER SCREW,CALIPER,RR 4 WHEEL DISC BRAKE<JF9> 04.666	8-98050-479-0	02	1	1506-1509			●	●	●	●
4	04.665 CAP; BLEEDER SCREW,CALIPER,RR 4 WHEEL DISC BRAKE<JF9> 04.666	8-98050-479-0	02	1	1510-	●	●	●	●	●	●
6	04.665 BRACKET; SUPPORT,RR DISC BRK 4 WHEEL DISC BRAKE<JF9>	8-98335-067-0	02	1	1510-	●	●
6	04.665 BRACKET; SUPPORT,RR DISC BRK 4 WHEEL DISC BRAKE<JF9>	8-98082-935-0	02	1	1506-			●	●
6	04.665 BRACKET; SUPPORT,RR DISC BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 4 WHEEL DISC BRAKE<JF9>	8-98089-674-0	02	1	1506-					●	●
6	04.665 BRACKET; SUPPORT,RR DISC BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>	8-98240-313-0	02	1	1506-					●	●
7	04.665 BOLT; DISC BRK 4 WHEEL DISC BRAKE<JF9> 04.681 M16X48 FLANGE	8-98033-656-0	04	1	1506-1508			●	●	●	●
7	04.665 BOLT; DISC BRK 4 WHEEL DISC BRAKE<JF9> 04.681 M16X48 FLANGE	8-98033-656-0	04	1	1509-	●	●	●	●	●	●
12	04.665 PIN; RET,CALIPER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (A)	8-97365-264-0	04	1	1506-1509			●	●	●	●
12	04.665 PIN; RET,CALIPER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (A)	8-97365-264-0	04	1	1510-	●	●	●	●	●	●
12	04.665 PIN; RET,CALIPER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (B)	8-98047-532-0	02	1	1506-			●	●
12	04.665 PIN; RET,CALIPER,RR DISC BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 4 WHEEL DISC BRAKE<JF9> (B)	8-98248-005-0	02	1	1506-					●	●
12	04.665 PIN; RET,CALIPER,RR DISC BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (B)	8-98047-531-0	02	1	1506-1509					●	●
12	04.665 PIN; RET,CALIPER,RR DISC BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (B)	8-98047-531-0	02	1	1510-					●	●
12	04.665 PIN; RET,CALIPER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (B)	8-98047-531-0	02	1	1510-	●	●
14	04.665 PIN; GUIDE,CALIPER 4 WHEEL DISC BRAKE<JF9>	8-98047-530-0	02	1	1506-			●	●
14	04.665 PIN; GUIDE,CALIPER 4 WHEEL DISC BRAKE<JF9>	8-98047-529-0	02	1	1506-1509					●	●
14	04.665 PIN; GUIDE,CALIPER 4 WHEEL DISC BRAKE<JF9>	8-98047-529-0	02	1	1510-	●	●			●	●
37	04.665 PLATE; ANCHOR 4 WHEEL DISC BRAKE<JF9>	8-98296-300-0	01	1	1509-	●	●
37	04.665 PLATE; ANCHOR 4 WHEEL DISC BRAKE<JF9>	8-98296-301-0	01	1	1509-	●	●
44	04.665 COVER; DUST 4 WHEEL DISC BRAKE<JF9> (B)	8-98258-161-0	02	1	1509-	●	●
44	04.665 COVER; DUST 4 WHEEL DISC BRAKE<JF9> (A)	8-98191-950-0	01	1	1506-			●	●	●	●
44	04.665 COVER; DUST 4 WHEEL DISC BRAKE<JF9> (A)	8-98191-951-0	01	1	1506-			●	●	●	●
45	04.665 BOLT; DUST COVER SET 4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1506-1508			●	●	●	●
45	04.665 BOLT; DUST COVER SET 4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1509-	●	●	●	●	●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (B)	8-98335-093-0	02	1	1510-	●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (A)	8-98335-094-0	02	1	1510-	●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (A)	8-98092-330-0	02	1	1506-			●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (B)	8-98092-331-0	02	1	1506-			●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 4 WHEEL DISC BRAKE<JF9> (A)	8-97321-116-0	02	1	1506-					●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 4 WHEEL DISC BRAKE<JF9> (B)	8-97321-117-0	02	1	1506-					●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (A)	8-97368-924-0	02	1	1506-					●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (B)	8-97368-925-0	02	1	1506-					●	●
105	04.665 BOOT; PIN 4 WHEEL DISC BRAKE<JF9>	8-98120-354-0	04	1	1506-1509			●	●	●	●
105	04.665 BOOT; PIN 4 WHEEL DISC BRAKE<JF9>	8-98120-354-0	04	1	1510-	●	●	●	●	●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (B)	8-98335-093-0	02	1	1510-	●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (A)	8-98335-094-0	02	1	1510-	●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (A)	8-98092-330-0	02	1	1506-			●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (B)	8-98092-331-0	02	1	1506-			●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 4 WHEEL DISC BRAKE<JF9> (A)	8-97321-116-0	02	1	1506-					●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 4 WHEEL DISC BRAKE<JF9> (B)	8-97321-117-0	02	1	1506-					●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (A)	8-97368-924-0	02	1	1506-					●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (B)	8-97368-925-0	02	1	1506-					●	●

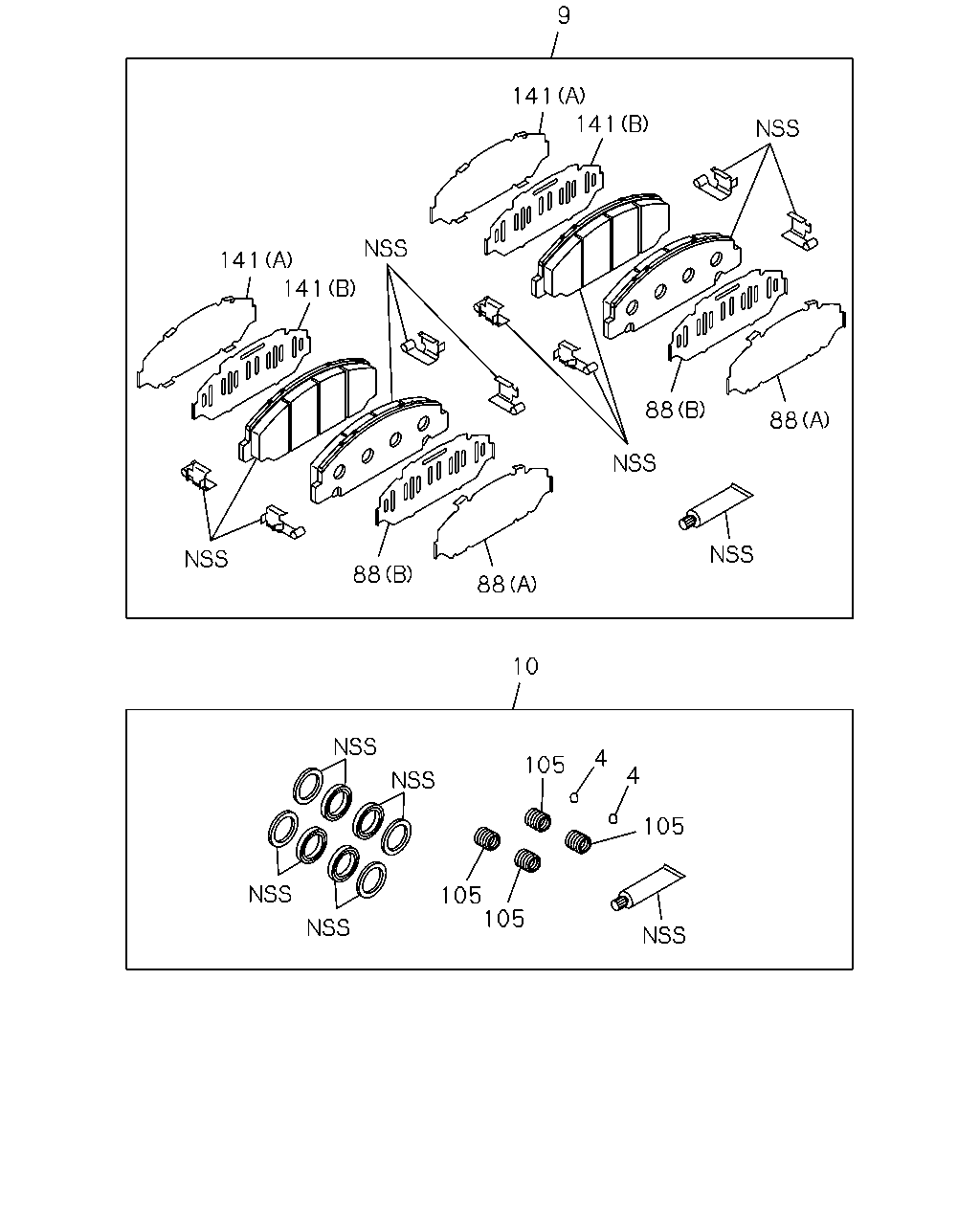

141 88 88 88 88 141 141 9 141 10 105 4 4 105 105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	04.665 CAP; BLEEDER SCREW,CALIPER,RR 4 WHEEL DISC BRAKE<JF9> 04.666	8-98050-479-0	02	1	1506-1509			●	●	●	●
4	04.665 CAP; BLEEDER SCREW,CALIPER,RR 4 WHEEL DISC BRAKE<JF9> 04.666	8-98050-479-0	02	1	1510-	●	●	●	●	●	●
9	04.667 PAD KIT; CALIPER,RR 4 WHEEL DISC BRAKE<JF9>	8-98335-084-0	01	1	1509-	●	●
9	04.667 PAD KIT; CALIPER,RR 4 WHEEL DISC BRAKE<JF9> 05.017	8-98216-921-0	01	1	1506-			●	●
9	04.667 PAD KIT; CALIPER,RR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 4 WHEEL DISC BRAKE<JF9> 05.017	8-98216-922-0	01	1	1506-					●	●
9	04.667 PAD KIT; CALIPER,RR G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 05.017	8-98244-794-0	01	1	1506-					●	●
10	04.665 REPAIR KIT; DISC BRK,RR 4 WHEEL DISC BRAKE<JF9>	8-98302-533-0	01	1	1506-			●	●
10	04.665 REPAIR KIT; DISC BRK,RR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 4 WHEEL DISC BRAKE<JF9> 04.667 W/GREASE	8-98302-531-0	01	1	1506-					●	●
10	04.665 REPAIR KIT; DISC BRK,RR G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 04.667 W/GREASE	8-98302-532-0	01	1	1506-1509					●	●
10	04.665 REPAIR KIT; DISC BRK,RR G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 04.667 W/GREASE	8-98302-532-0	01	1	1510-					●	●
10	04.665 REPAIR KIT; DISC BRK,RR 4 WHEEL DISC BRAKE<JF9> 04.667 W/GREASE	8-98302-532-0	01	1	1510-	●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (B)	8-98335-093-0	02	1	1510-	●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (A)	8-98335-094-0	02	1	1510-	●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (A)	8-98092-330-0	02	1	1506-			●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (B)	8-98092-331-0	02	1	1506-			●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 4 WHEEL DISC BRAKE<JF9> (A)	8-97321-116-0	02	1	1506-					●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 4 WHEEL DISC BRAKE<JF9> (B)	8-97321-117-0	02	1	1506-					●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (A)	8-97368-924-0	02	1	1506-					●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (B)	8-97368-925-0	02	1	1506-					●	●
105	04.665 BOOT; PIN 4 WHEEL DISC BRAKE<JF9>	8-98120-354-0	04	1	1506-1509			●	●	●	●
105	04.665 BOOT; PIN 4 WHEEL DISC BRAKE<JF9>	8-98120-354-0	04	1	1510-	●	●	●	●	●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (B)	8-98335-093-0	02	1	1510-	●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (A)	8-98335-094-0	02	1	1510-	●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (A)	8-98092-330-0	02	1	1506-			●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (B)	8-98092-331-0	02	1	1506-			●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 4 WHEEL DISC BRAKE<JF9> (A)	8-97321-116-0	02	1	1506-					●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 4 WHEEL DISC BRAKE<JF9> (B)	8-97321-117-0	02	1	1506-					●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (A)	8-97368-924-0	02	1	1506-					●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (B)	8-97368-925-0	02	1	1506-					●	●
