3-05 — REAR WHEEL BRAKE (#162822) — 228 parça

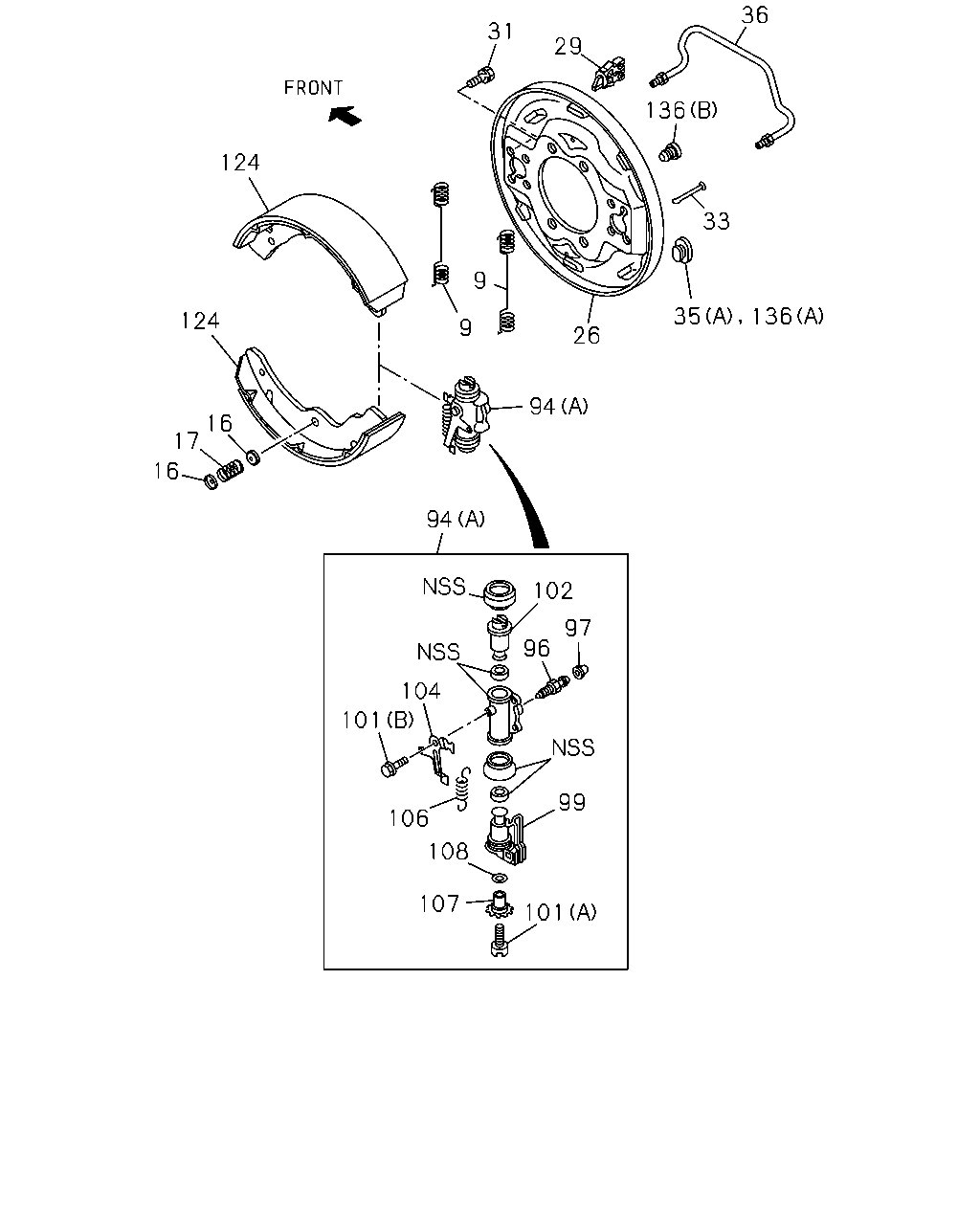

çizim 479444
124 124 16 17 16 9 9 26 35 136 33 136 29 36 31 94 102 97 96 104 101 106 108 107 101 99 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 05.026 SPRING; RETURN,BRK SHOE
EXC. 4 WHEEL DISC BRAKE<JF9> 		5-09583-118-0 04 1 1506- ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97022-087-0 04 1 1506- ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97122-869-0 04 1 1506- ● ●
9 05.026 SPRING; RETURN,BRK SHOE
EXC. 4 WHEEL DISC BRAKE<JF9> 		1-09583-346-0 04 1 1506- ● ●
16 05.043 CUP; SHOE HOLDING
EXC. 4 WHEEL DISC BRAKE<JF9> 		9-47165-096-0 08 1 1506- ● ● ● ●
17 04.043 SPRING; SHOE HOLD DOWN
EXC. 4 WHEEL DISC BRAKE<JF9> 05.043 		5-09580-101-1 04 1 1506- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97079-854-0 01 1 1506- ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97079-855-0 01 1 1506- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97192-080-0 01 1 1506- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97192-081-0 01 1 1506- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97207-157-0 01 1 1506- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97207-158-0 01 1 1506- ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97372-818-0 01 1 1506- ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97372-819-0 01 1 1506- ● ●
29 04.685 CLIP; PIPE,BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-94128-306-0 02 1 1506- ● ●
29 04.685 CLIP; PIPE,BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97022-086-0 02 1 1506- ● ●
29 04.685 CLIP; PIPE,BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		1-47143-008-0 02 1 1506- ● ●
31 04.665 BOLT; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		5-09030-016-1 16 1 1506- ● ●
31 04.665 BOLT; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97081-305-0 16 1 1506- ● ●
31 04.665 BOLT; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> M12 		1-47159-184-0 16 1 1506- ● ●
33 05.043 PIN; SHOE HOLD DOWN
EXC. 4 WHEEL DISC BRAKE<JF9> 		5-47162-001-0 04 1 1506- ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97022-089-0 04 1 1506- ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97122-870-0 04 1 1506- ● ●
35 05.002 GROMMET; CHECK HOLE
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-94171-287-0 02 1 1506- ● ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97017-507-0 02 1 1506- ● ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97017-507-0 06 1 1506- ● ●
35 05.002 GROMMET; CHECK HOLE
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		1-09333-033-0 04 1 1506- ● ●
35 05.002 GROMMET; CHECK HOLE
EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		9-09956-640-0 04 1 1506- ● ●
36 04.685 PIPE; OIL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-94154-916-0 02 1 1506- ● ●
36 04.685 PIPE; OIL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97192-215-0 02 1 1506- ● ●
36 04.685 PIPE; OIL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97372-826-0 02 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR 		8-97349-689-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR 		8-97349-690-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT 		8-97349-691-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT 		8-97349-692-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR 		8-97349-705-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR 		8-97349-706-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT 		8-97349-707-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT 		8-97349-708-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR 		8-97358-878-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR 		8-97358-879-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT 		8-97358-880-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT 		8-97358-881-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97372-820-0 01 1 1506-1510 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (B) FRONT 		8-98317-282-0 01 1 1511- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97372-821-0 01 1 1506-1510 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (B) FRONT 		8-98317-280-0 01 1 1511- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97372-822-0 01 1 1506-1510 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (B) REAR 		8-98317-281-0 01 1 1511- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97372-823-0 01 1 1506-1510 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (B) REAR 		8-98317-278-0 01 1 1511- ● ●
96 04.666 SCREW; BLEEDER,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98050-476-0 02 1 1506- ● ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98050-476-0 02 1 1506- ● ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98050-477-0 02 1 1506- ● ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-477-0 02 1 1506- ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98050-479-0 02 1 1506- ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 1506- ● ●
99 04.668 PISTON; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-727-0 02 1 1506- ● ●
99 04.668 PISTON; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-728-0 02 1 1506- ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-729-0 02 1 1506- ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-730-0 02 1 1506- ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-731-0 02 1 1506- ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-732-0 02 1 1506- ● ●
99 04.668 PISTON; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97372-831-0 02 1 1506- ● ●
99 04.668 PISTON; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97372-832-0 02 1 1506- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		8-97349-747-0 04 1 1506- ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> (A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 1506- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> (A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 1506- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97349-741-0 02 1 1506- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97349-742-0 02 1 1506- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97372-837-0 02 1 1506- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97372-838-0 02 1 1506- ● ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> D=25.4 		8-94128-531-1 04 1 1506- ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97078-045-0 04 1 1506- ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97332-043-0 04 1 1506- ● ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97372-833-0 04 1 1506- ● ●
104 05.103 LEVER; ADJ
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-743-0 02 1 1506- ● ● ● ●
104 05.103 LEVER; ADJ
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-744-0 02 1 1506- ● ● ● ●
104 05.103 LEVER; ADJ
EXC. 4 WHEEL DISC BRAKE<JF9> 		1-47619-133-0 02 1 1506- ● ●
104 05.103 LEVER; ADJ
EXC. 4 WHEEL DISC BRAKE<JF9> 		1-47619-134-0 02 1 1506- ● ●
106 05.107 SPRING; ADJ LEVER
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-745-0 04 1 1506- ● ● ● ●
106 05.107 SPRING; ADJ LEVER
EXC. 4 WHEEL DISC BRAKE<JF9> 04.665 		1-09583-345-0 04 1 1506- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-737-0 02 1 1506- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-739-0 02 1 1506- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-738-0 02 1 1506- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-740-0 02 1 1506- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 04.665 		8-97358-894-0 02 1 1506- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 04.665 		8-97358-895-0 02 1 1506- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97372-835-0 02 1 1506- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97372-836-0 02 1 1506- ● ●
108 05.110 WASHER; THRUST,GEAR ADJ
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97029-304-0 04 1 1506- ● ●
108 05.110 WASHER; THRUST,GEAR ADJ
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-736-0 04 1 1506- ● ●
108 05.110 WASHER; THRUST,GEAR ADJ
EXC. 4 WHEEL DISC BRAKE<JF9> 05.020 		1-47629-135-0 04 1 1506- ● ●
124 05.017 SHOE ASM; BRK,RR
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97287-778-0 04 1 1506- ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97201-061-0 04 1 1506- ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97188-455-0 04 1 1506- ● ●
124 05.017 SHOE ASM; BRK,RR
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97373-425-0 04 1 1506- ● ●
136 05.002 GROMMET
EXC. 4 WHEEL DISC BRAKE<JF9> 04.670 (B) 		1-47154-008-0 04 1 1506- ● ● ● ●
136 05.002 GROMMET
04.670 (B) 		1-47154-008-0 04 1 1506- ● ●
136 05.002 GROMMET
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-94171-287-0 04 1 1506- ● ●
136 05.002 GROMMET
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97017-507-0 04 1 1506- ● ●

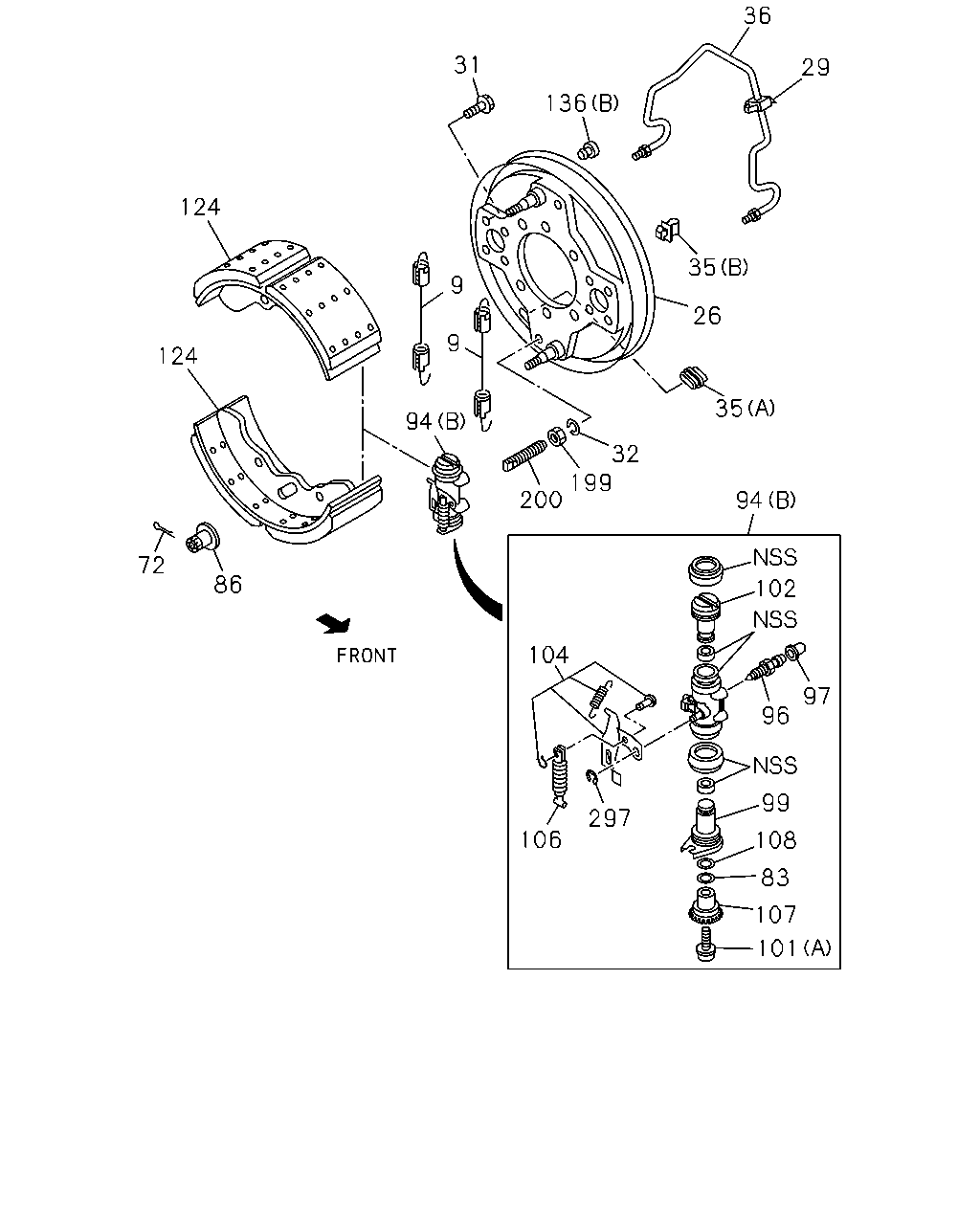

çizim 479484
72 124 124 86 31 136 36 29 35 26 9 9 94 200 32 199 94 35 104 106 297 102 97 96 99 108 83 107 101
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 05.026 SPRING; RETURN,BRK SHOE
EXC. 4 WHEEL DISC BRAKE<JF9> 		5-09583-118-0 04 1 1506- ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97022-087-0 04 1 1506- ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97122-869-0 04 1 1506- ● ●
9 05.026 SPRING; RETURN,BRK SHOE
EXC. 4 WHEEL DISC BRAKE<JF9> 		1-09583-346-0 04 1 1506- ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97079-854-0 01 1 1506- ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97079-855-0 01 1 1506- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97192-080-0 01 1 1506- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97192-081-0 01 1 1506- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97207-157-0 01 1 1506- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97207-158-0 01 1 1506- ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97372-818-0 01 1 1506- ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97372-819-0 01 1 1506- ● ●
29 04.685 CLIP; PIPE,BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-94128-306-0 02 1 1506- ● ●
29 04.685 CLIP; PIPE,BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97022-086-0 02 1 1506- ● ●
29 04.685 CLIP; PIPE,BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		1-47143-008-0 02 1 1506- ● ●
31 04.665 BOLT; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		5-09030-016-1 16 1 1506- ● ●
31 04.665 BOLT; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97081-305-0 16 1 1506- ● ●
31 04.665 BOLT; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> M12 		1-47159-184-0 16 1 1506- ● ●
32 05.056 WASHER; LK
EXC. 4 WHEEL DISC BRAKE<JF9> 03.634 ID=12.2 		0-91510-512-0 04 1 1506- ● ●
35 05.002 GROMMET; CHECK HOLE
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-94171-287-0 02 1 1506- ● ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97017-507-0 02 1 1506- ● ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97017-507-0 06 1 1506- ● ●
35 05.002 GROMMET; CHECK HOLE
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		1-09333-033-0 04 1 1506- ● ●
35 05.002 GROMMET; CHECK HOLE
EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		9-09956-640-0 04 1 1506- ● ●
36 04.685 PIPE; OIL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-94154-916-0 02 1 1506- ● ●
36 04.685 PIPE; OIL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97192-215-0 02 1 1506- ● ●
36 04.685 PIPE; OIL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97372-826-0 02 1 1506- ● ●
72 05.120 PIN; SPLIT
EXC. 4 WHEEL DISC BRAKE<JF9> 05.020 		9-09874-040-0 04 1 1506- ● ●
83 05.130 WASHER; PL
EXC. 4 WHEEL DISC BRAKE<JF9> 05.020 		1-47629-136-0 04 1 1506- ● ●
86 05.122 NUT; FLANGE
EXC. 4 WHEEL DISC BRAKE<JF9> 05.056 		1-09440-003-0 04 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR 		8-97349-689-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR 		8-97349-690-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT 		8-97349-691-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT 		8-97349-692-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR 		8-97349-705-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR 		8-97349-706-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT 		8-97349-707-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT 		8-97349-708-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR 		8-97358-878-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR 		8-97358-879-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT 		8-97358-880-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT 		8-97358-881-0 01 1 1506- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97372-820-0 01 1 1506-1510 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (B) FRONT 		8-98317-282-0 01 1 1511- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97372-821-0 01 1 1506-1510 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (B) FRONT 		8-98317-280-0 01 1 1511- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97372-822-0 01 1 1506-1510 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (B) REAR 		8-98317-281-0 01 1 1511- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97372-823-0 01 1 1506-1510 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (B) REAR 		8-98317-278-0 01 1 1511- ● ●
96 04.666 SCREW; BLEEDER,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98050-476-0 02 1 1506- ● ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98050-476-0 02 1 1506- ● ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98050-477-0 02 1 1506- ● ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-477-0 02 1 1506- ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98050-479-0 02 1 1506- ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 1506- ● ●
99 04.668 PISTON; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-727-0 02 1 1506- ● ●
99 04.668 PISTON; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-728-0 02 1 1506- ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-729-0 02 1 1506- ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-730-0 02 1 1506- ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-731-0 02 1 1506- ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-732-0 02 1 1506- ● ●
99 04.668 PISTON; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97372-831-0 02 1 1506- ● ●
99 04.668 PISTON; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97372-832-0 02 1 1506- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		8-97349-747-0 04 1 1506- ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> (A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 1506- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> (A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 1506- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97349-741-0 02 1 1506- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97349-742-0 02 1 1506- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97372-837-0 02 1 1506- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97372-838-0 02 1 1506- ● ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> D=25.4 		8-94128-531-1 04 1 1506- ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97078-045-0 04 1 1506- ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97332-043-0 04 1 1506- ● ●
102 04.668 PISTON; REAR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97372-833-0 04 1 1506- ● ●
104 05.103 LEVER; ADJ
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-743-0 02 1 1506- ● ● ● ●
104 05.103 LEVER; ADJ
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-744-0 02 1 1506- ● ● ● ●
104 05.103 LEVER; ADJ
EXC. 4 WHEEL DISC BRAKE<JF9> 		1-47619-133-0 02 1 1506- ● ●
104 05.103 LEVER; ADJ
EXC. 4 WHEEL DISC BRAKE<JF9> 		1-47619-134-0 02 1 1506- ● ●
106 05.107 SPRING; ADJ LEVER
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-745-0 04 1 1506- ● ● ● ●
106 05.107 SPRING; ADJ LEVER
EXC. 4 WHEEL DISC BRAKE<JF9> 04.665 		1-09583-345-0 04 1 1506- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-737-0 02 1 1506- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-739-0 02 1 1506- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-738-0 02 1 1506- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-740-0 02 1 1506- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 04.665 		8-97358-894-0 02 1 1506- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 04.665 		8-97358-895-0 02 1 1506- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97372-835-0 02 1 1506- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97372-836-0 02 1 1506- ● ●
108 05.110 WASHER; THRUST,GEAR ADJ
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97029-304-0 04 1 1506- ● ●
108 05.110 WASHER; THRUST,GEAR ADJ
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-736-0 04 1 1506- ● ●
108 05.110 WASHER; THRUST,GEAR ADJ
EXC. 4 WHEEL DISC BRAKE<JF9> 05.020 		1-47629-135-0 04 1 1506- ● ●
124 05.017 SHOE ASM; BRK,RR
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97287-778-0 04 1 1506- ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97201-061-0 04 1 1506- ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97188-455-0 04 1 1506- ● ●
124 05.017 SHOE ASM; BRK,RR
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97373-425-0 04 1 1506- ● ●
136 05.002 GROMMET
EXC. 4 WHEEL DISC BRAKE<JF9> 04.670 (B) 		1-47154-008-0 04 1 1506- ● ● ● ●
136 05.002 GROMMET
04.670 (B) 		1-47154-008-0 04 1 1506- ● ●
136 05.002 GROMMET
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-94171-287-0 04 1 1506- ● ●
136 05.002 GROMMET
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97017-507-0 04 1 1506- ● ●
199 05.056 NUT
EXC. 4 WHEEL DISC BRAKE<JF9> 		1-09400-100-0 04 1 1506- ● ●
200 05.056 BOLT
EXC. 4 WHEEL DISC BRAKE<JF9> 		1-47162-050-0 04 1 1506- ● ●
297 05.125 RING; SNAP
EXC. 4 WHEEL DISC BRAKE<JF9> 04.665 		1-47629-263-0 04 1 1506- ● ●

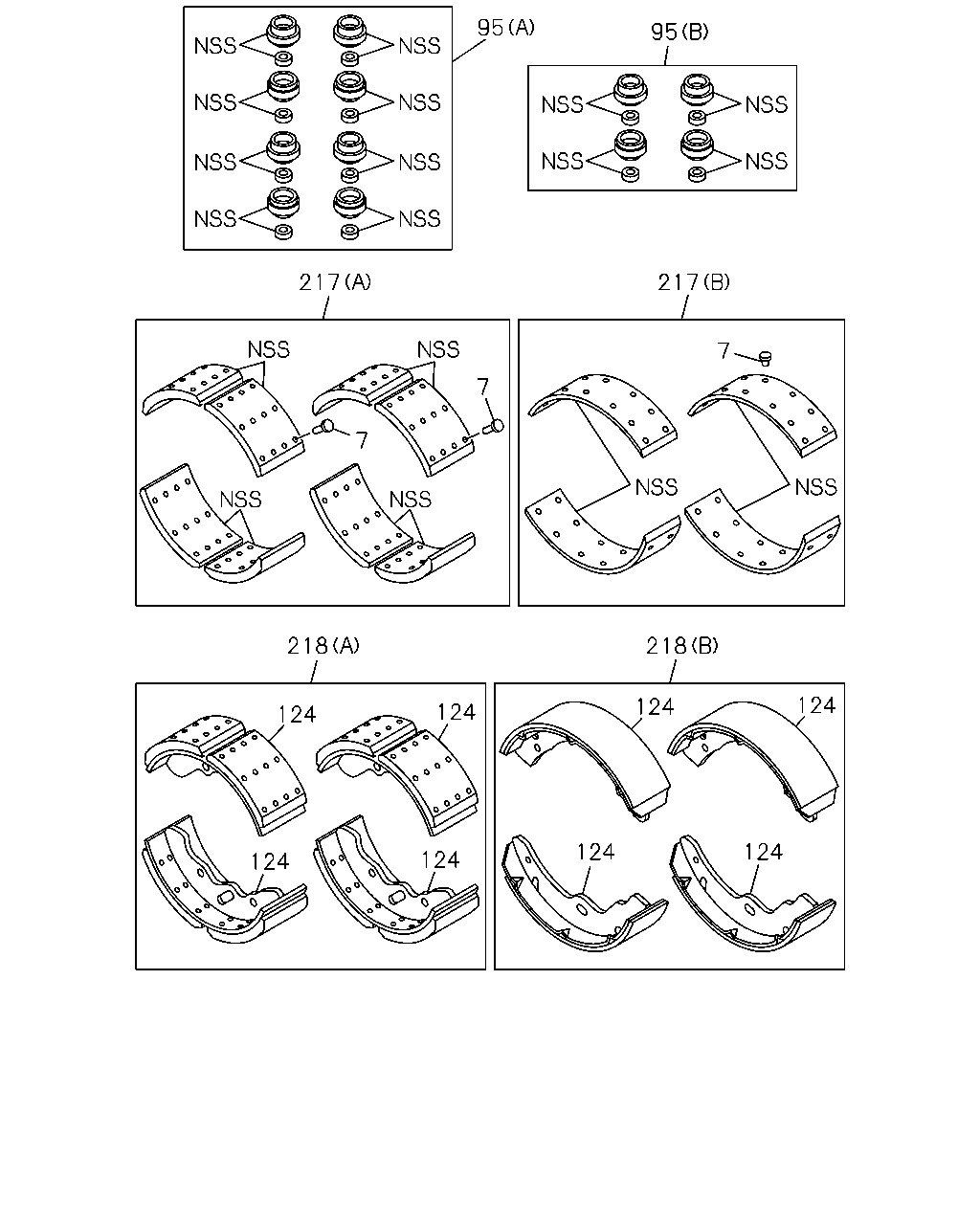

çizim 479877
95 217 95 217 7 7 7 218 124 124 124 124 124 124 124 124 218
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 05.019 RIVET; LINING,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		1-09732-029-0 40 1 1506- ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		1-09732-029-0 48 1 1506- ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		1-09732-029-0 64 1 1506- ● ●
7 05.019 RIVET; LINING,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		1-09732-029-0 96 1 1506- ● ●
95 04.665 CUP SET; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		5-87831-622-0 01 1 1506- ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		5-87832-070-0 01 1 1506- ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		5-87832-051-0 02 1 1506- ● ●
95 04.665 CUP SET; RR WHEEL CYL
(A) 		5-87832-131-0 01 1 1506-1507 ● ●
95 04.665 CUP SET; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		5-87832-359-0 01 1 1508- ● ●
124 05.017 SHOE ASM; BRK,RR
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97287-778-0 04 1 1506- ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97201-061-0 04 1 1506- ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97188-455-0 04 1 1506- ● ●
124 05.017 SHOE ASM; BRK,RR
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97373-425-0 04 1 1506- ● ●
217 05.018 LINING KIT; RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		5-87831-801-0 01 1 1506- ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		5-87831-774-0 01 1 1506- ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		5-87831-692-0 01 1 1506- ● ●
217 05.018 LINING KIT; RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		5-87832-134-0 01 1 1506- ● ●
217 05.018 LINING KIT; RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9> (B) BEST VALUE PARTS 		5-87610-121-0 01 1 1506- ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (B) BEST VALUE PARTS 		5-87610-120-0 01 1 1506- ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (B) BEST VALUE PARTS 		5-87610-119-0 01 1 1506- ● ●
218 05.017 SHOE KIT; BRK,RR
EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		5-87832-047-0 01 1 1506- ● ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		5-87831-775-0 01 1 1506- ● ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		5-87831-693-0 01 1 1506- ● ●
218 05.017 SHOE KIT; BRK,RR
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		5-87832-132-0 01 1 1506- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
