3-02 — FRONT DISC BRAKE CALIPER (#162821) — 39 parça

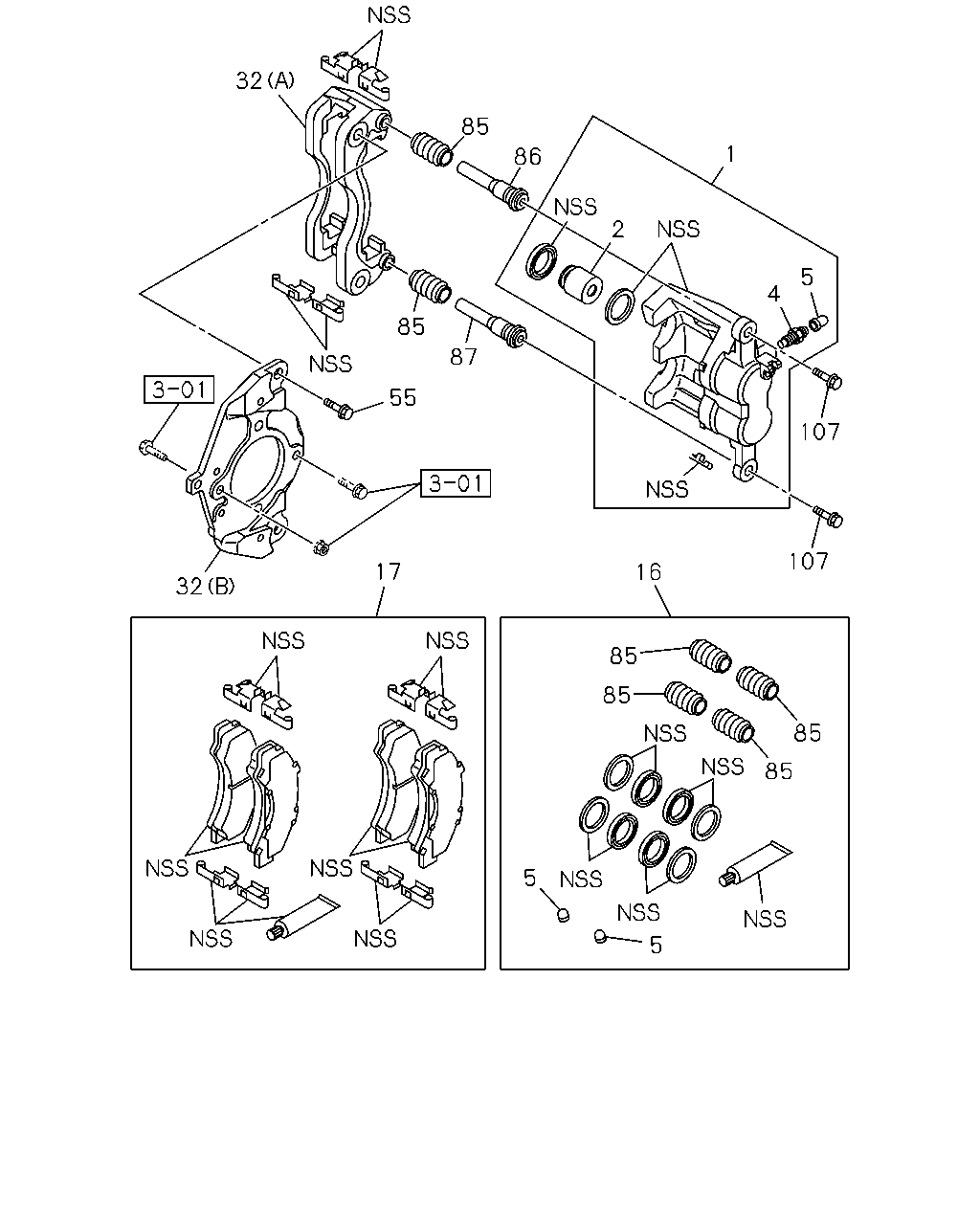

çizim 479397
32 85 1 2 86 85 55 87 107 107 4 5 16 85 85 85 85 5 5 17 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.665 CALIPER; FRT DISC BRK 8-98303-461-0 01 1 1506- ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-98303-461-0 01 1 1506- ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-462-0 01 1 1506- ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-98303-462-0 01 1 1506- ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-98303-465-0 01 1 1506- ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-98303-466-0 01 1 1506- ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-469-0 01 1 1506- ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-470-0 01 1 1506- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 1506- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97365-269-0 04 1 1506- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97365-279-0 04 1 1506- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-279-0 04 1 1506- ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1506- ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1506- ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98302-531-0 01 1 1506- ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) W/GREASE 		8-98302-531-0 01 1 1506- ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) W/GREASE 		8-98302-532-0 01 1 1506- ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98302-532-0 01 1 1506- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-98216-922-0 01 1 1506- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-98216-922-0 01 1 1506- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-98244-794-0 01 1 1506- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-97211-691-0 01 1 1506- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-726-0 01 1 1506- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-727-0 01 1 1506- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 1506- ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) 		8-97365-271-0 02 1 1506- ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) (A) 		8-97365-281-0 02 1 1506- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-284-0 02 1 1506- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98188-551-0 01 1 1506- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98188-552-0 01 1 1506- ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 1506- ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X40 FLANGE 		8-97359-817-0 04 1 1506- ● ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 1506- ● ● ● ● ● ●
86 04.665 PIN; GUIDE 8-98047-529-0 02 1 1506- ● ● ● ● ● ●
87 04.665 PIN; LOCK 8-98248-005-0 02 1 1506- ● ●
87 04.665 PIN; LOCK
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-98248-005-0 02 1 1506- ● ●
87 04.665 PIN; LOCK
G.V.W. 7.5-8.0TON(RPY) 		8-98047-531-0 02 1 1506- ● ●
87 04.665 PIN; LOCK 8-98047-531-0 02 1 1506- ● ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 1506- ● ● ● ● ● ●
