Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#162819) — 215 parça

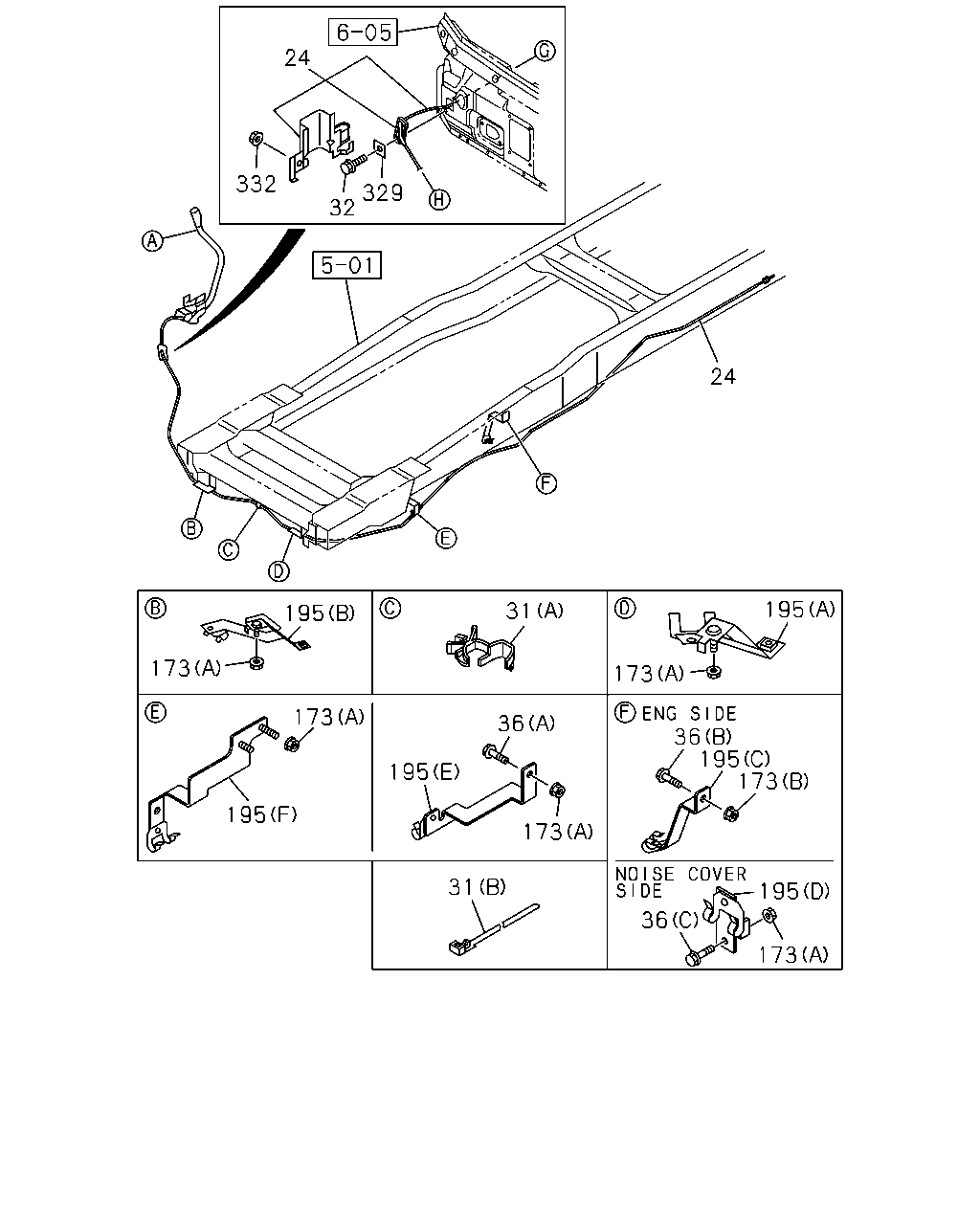

24 329 32 332 24 195 173 195 173 31 36 195 173 31 173 195 36 195 173 36 195 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	04.439 CABLE; PTO CONT . PTO T/M SIDE DIRECT PUMP(8KZ) EXC. FRAME STRAIGHT TYPE<7KJ> L=3532	8-98328-272-1	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98223-345-0	01	1	1506-1507		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3610	8-98223-345-0	01	1	1508-		●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3532	8-98223-344-0	01	1	1506-1507		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF),PTO T/M SIDE DIRECT PUMP(8KZ),SMOOTHER-EX(TYPE2) WITH P ARKING POSITION(8PR) L=3532	8-98223-344-0	01	1	1508-		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98223-357-0	01	1	1506-1507	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3904	8-98223-357-0	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98223-356-0	01	1	1506-1507	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3844	8-98223-356-0	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98223-300-1	01	1	1506-1507		●	●
24	04.439 CABLE; PTO CONT . FRAME STRAIGHT TYPE<7KJ> PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98328-268-1	01	1	1508-	●	●	●
31	04.439 CLIP; BAND,CABLE PTO T/M SIDE DIRECT PUMP(8KZ) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) L=300	1-09707-001-1	02	1	1508-	●	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (B) L=250	5-09707-030-1	01	1	1506-1507	●
31	04.439 CLIP; BAND,CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 02.559 (B) L=250	5-09707-030-1	01	1	1506-1507		●	●
31	04.439 CLIP; BAND,CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 02.559 (B) L=250	5-09707-030-1	01	1	1506-1507		●	●
31	04.439 CLIP; BAND,CABLE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 02.559 (B) L=250	5-09707-030-1	01	1	1506-1507		●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (B) L=250	5-09707-030-1	01	1	1508-	●	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) L=250	5-09707-030-1	01	1	1508-	●	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) ID=16	8-97040-812-0	01	1	1506-1507	●
31	04.439 CLIP; BAND,CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 02.559 (A) ID=16	8-97040-812-0	01	1	1506-1507		●	●
31	04.439 CLIP; BAND,CABLE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 02.559 (A) ID=16	8-97040-812-0	01	1	1506-1507		●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) ID=16	8-97040-812-0	01	1	1508-	●	●	●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) M6X16 FLANGE	0-28060-616-0	02	1	1506-1507	●
32	04.439 BOLT; CLIP,CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) M6X16 FLANGE	0-28060-616-0	02	1	1506-1507		●	●
32	04.439 BOLT; CLIP,CABLE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) M6X16 FLANGE	0-28060-616-0	02	1	1506-1507		●	●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) M6X16 FLANGE	0-28060-616-0	02	1	1508-	●	●	●
36	04.439 BOLT; PTO BRKT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1506-1507		●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1506-1507	●
36	04.439 BOLT; PTO BRKT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1506-1507		●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●	●
36	04.439 BOLT; PTO BRKT FRAME STRAIGHT TYPE<7KJ> PTO T/M SIDE DIRECT PUMP(8KZ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1506-	●
173	04.439 NUT; BRKT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-1507		●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507	●
173	04.439 NUT; BRKT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507		●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
173	04.439 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> PTO T/M SIDE DIRECT PUMP(8KZ) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (B)	8-98098-618-0	01	1	1506-1507	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) (B)	8-98098-618-0	01	1	1506-1507		●	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-98098-618-0	01	1	1506-1507		●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (B)	8-98098-618-0	01	1	1508-	●	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) (A)	8-98049-570-1	01	1	1506-1507		●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98049-570-1	01	1	1508-		●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) (C)	8-98101-144-0	01	1	1506-1507		●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98101-144-0	01	1	1508-	●	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) (F)	8-98101-145-0	01	1	1506-1507		●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98101-145-0	01	1	1508-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (E)	8-98102-494-0	01	1	1506-1507	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (E)	8-98102-494-0	01	1	1506-1507		●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (E)	8-98102-494-0	01	1	1508-	●	●	●
195	04.439 BRACKET; CONT CABLE FRAME STRAIGHT TYPE<7KJ> PTO T/M SIDE DIRECT PUMP(8KZ) (E)	8-98102-494-0	01	1	1508-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (A)	8-98102-495-1	01	1	1506-1507	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98102-495-1	01	1	1506-1507		●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98102-495-1	01	1	1508-	●	●	●
195	04.439 BRACKET; CONT CABLE FRAME STRAIGHT TYPE<7KJ> PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98102-495-1	01	1	1508-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98086-271-2	01	1	1506-	●
329	16.520 SEAL PTO MANUAL CONTROL(6WC) 08.845	8-97856-616-0	02	1	1506-1507	●
329	16.520 SEAL 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 08.845	8-97856-616-0	02	1	1506-1507		●	●
329	16.520 SEAL 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 08.845	8-97856-616-0	02	1	1506-1507		●	●
329	16.520 SEAL PTO MANUAL CONTROL(6WC) 08.845	8-97856-616-0	02	1	1508-	●	●	●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●

15 24 16 222 225 287 222 121 287 190 96 330 258 260 259 262 74 219 80 300 261 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98199-362-0	01	1	1506-1506	●	●	●
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98199-362-0	01	1	1507-	●	●	●
15	04.439 LEVER ASM; PTO CONT DUMP CONTROL LEVER<RC4>	8-98199-362-0	01	1	1507-	●	●	●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	1506-	●	●	●
24	04.439 CABLE; PTO CONT . PTO T/M SIDE DIRECT PUMP(8KZ) EXC. FRAME STRAIGHT TYPE<7KJ> L=3532	8-98328-272-1	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98223-345-0	01	1	1506-1507		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3610	8-98223-345-0	01	1	1508-		●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3532	8-98223-344-0	01	1	1506-1507		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF),PTO T/M SIDE DIRECT PUMP(8KZ),SMOOTHER-EX(TYPE2) WITH P ARKING POSITION(8PR) L=3532	8-98223-344-0	01	1	1508-		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98223-357-0	01	1	1506-1507	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3904	8-98223-357-0	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98223-356-0	01	1	1506-1507	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3844	8-98223-356-0	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98223-300-1	01	1	1506-1507		●	●
24	04.439 CABLE; PTO CONT . FRAME STRAIGHT TYPE<7KJ> PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98328-268-1	01	1	1508-	●	●	●
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	1506-1506	●	●	●
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98029-874-0	01	1	1507-	●	●	●
74	04.439 SPRING; RETURN,CONT LEVER DUMP CONTROL LEVER<RC4>	8-98029-874-0	01	1	1507-	●	●	●
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	1506-1506	●	●	●
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97122-741-0	01	1	1507-	●	●	●
80	04.439 COVER; CONT LEVER DUMP CONTROL LEVER<RC4>	8-97122-741-0	01	1	1507-	●	●	●
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	1506-	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 (A) ID=4	0-91805-504-0	01	1	1506-1506	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> 03.485 (A) ID=4	0-91805-504-0	01	1	1507-	●	●	●
121	04.439 RING; SNAP DUMP CONTROL LEVER<RC4> 03.485 (A) ID=4	0-91805-504-0	01	1	1507-	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) (B) ID=8	0-91805-508-0	01	1	1506-1507	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (B) ID=8	0-91805-508-0	01	1	1508-	●
190	04.439 BOSS; LEVER,PTO 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	1506-		●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1506-1506	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1507-	●	●	●
190	04.439 BOSS; LEVER,PTO DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1507-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (C)	0-82154-025-0	01	1	1506-1507	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (C)	0-82154-025-0	01	1	1508-	●
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	1506-1506	●	●	●
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97122-736-0	01	1	1507-	●	●	●
219	04.439 KNOB; LEVER DUMP CONTROL LEVER<RC4>	8-97122-736-0	01	1	1507-	●	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	1506-1506	●	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B) M8X60	0-10855-860-0	01	1	1507-	●	●	●
222	04.439 BOLT; LEVER DUMP CONTROL LEVER<RC4> (B) M8X60	0-10855-860-0	01	1	1507-	●	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1506-1506	●	●	●
222	04.439 BOLT; LEVER DUMP CONTROL LEVER<RC4> EXC. PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1507-	●	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1507-	●	●	●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98152-960-1	01	1	1506-1506	●	●	●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98152-960-1	01	1	1507-	●	●	●
225	04.439 BRACKET; CONT LEVER DUMP CONTROL LEVER<RC4>	8-98152-960-1	01	1	1507-	●	●	●
258	04.439 CABLE; DUMP CONT . PTO MANUAL CONTROL(6WC)	8-98029-877-1	01	1	1506-1506	●	●	●
258	04.439 CABLE; DUMP CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98029-877-1	01	1	1507-	●	●	●
258	04.439 CABLE; DUMP CONT . DUMP CONTROL LEVER<RC4>	8-98029-877-1	01	1	1507-	●	●	●
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	1506-1506	●	●	●
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97141-653-0	01	1	1507-	●	●	●
259	04.439 GRIP; CONT LEVER DUMP CONTROL LEVER<RC4>	8-97141-653-0	01	1	1507-	●	●	●
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98030-057-2	01	1	1506-1506	●	●	●
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98030-057-2	01	1	1507-	●	●	●
260	04.439 LEVER; DUMP CONT DUMP CONTROL LEVER<RC4>	8-98030-057-2	01	1	1507-	●	●	●
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-918-0	01	1	1506-1506	●	●	●
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98081-918-0	01	1	1507-	●	●	●
261	04.439 SWITCH; DUMP CONT DUMP CONTROL LEVER<RC4>	8-98081-918-0	01	1	1507-	●	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	1506-1506	●	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97129-397-0	01	1	1507-	●	●	●
262	04.439 RETAINER; SPRING DUMP CONTROL LEVER<RC4>	8-97129-397-0	01	1	1507-	●	●	●
264	04.439 PROTECTOR; EDGE PTO MANUAL CONTROL(6WC)	8-98211-652-0	01	1	1506-1506	●	●	●
264	04.439 PROTECTOR; EDGE PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98211-652-0	01	1	1507-	●	●	●
264	04.439 PROTECTOR; EDGE DUMP CONTROL LEVER<RC4>	8-98211-652-0	01	1	1507-	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 03.330 (A) M6	0-91110-506-0	01	1	1506-1506	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> 03.330 (A) M6	0-91110-506-0	01	1	1507-	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER DUMP CONTROL LEVER<RC4> 03.330 (A) M6	0-91110-506-0	01	1	1507-	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1506-1506	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1507-	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER DUMP CONTROL LEVER<RC4> 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1507-	●	●	●
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	1506-1506	●	●	●
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97122-740-0	01	1	1507-	●	●	●
300	04.439 CAP; KNOB DUMP CONTROL LEVER<RC4>	8-97122-740-0	01	1	1507-	●	●	●
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	1506-1506	●	●	●
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98049-802-0	01	1	1507-	●	●	●
330	04.439 COLOR; DUMP CONT DUMP CONTROL LEVER<RC4>	8-98049-802-0	01	1	1507-	●	●	●

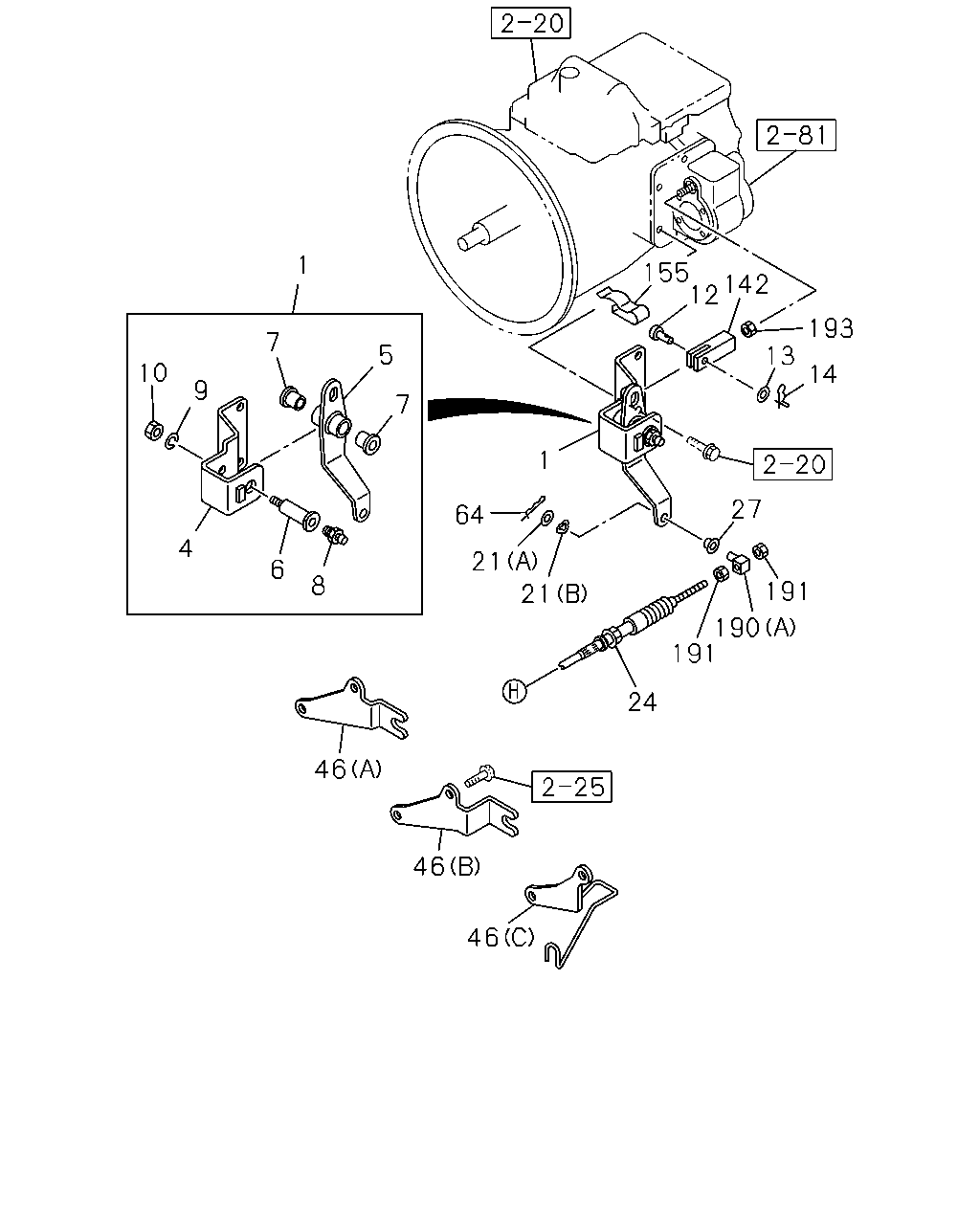

1 10 7 5 6 4 8 7 1 64 21 155 13 193 142 12 21 14 27 191 190 191 24 46 46 46 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98150-089-1	01	1	1506-		●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-099-1	01	1	1506-		●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-98032-718-0	01	1	1506-		●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-101-0	01	1	1506-		●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	1506-		●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1506-		●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	1506-		●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	1506-		●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	1506-		●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	1506-		●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	1506-		●	●
21	04.439 WASHER; PL,CONT LEVER 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	1506-		●	●
21	04.439 WASHER; PL,CONT LEVER 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1506-		●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 17.198 (C) ID=10.5	0-91610-510-0	01	1	1506-1507	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 17.198 (C) ID=10.5	0-91610-510-0	01	1	1508-	●
24	04.439 CABLE; PTO CONT . PTO T/M SIDE DIRECT PUMP(8KZ) EXC. FRAME STRAIGHT TYPE<7KJ> L=3532	8-98328-272-1	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98223-345-0	01	1	1506-1507		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3610	8-98223-345-0	01	1	1508-		●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3532	8-98223-344-0	01	1	1506-1507		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF),PTO T/M SIDE DIRECT PUMP(8KZ),SMOOTHER-EX(TYPE2) WITH P ARKING POSITION(8PR) L=3532	8-98223-344-0	01	1	1508-		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98223-357-0	01	1	1506-1507	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3904	8-98223-357-0	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98223-356-0	01	1	1506-1507	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3844	8-98223-356-0	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98223-300-1	01	1	1506-1507		●	●
24	04.439 CABLE; PTO CONT . FRAME STRAIGHT TYPE<7KJ> PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98328-268-1	01	1	1508-	●	●	●
27	04.439 BUSHING; LEVER,PTO 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 04.042	8-94367-367-0	01	1	1506-		●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98081-815-0	01	1	1506-		●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98032-829-2	01	1	1506-		●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-98133-150-0	01	1	1506-1507		●	●
46	04.439 BRACKET; PTO,TRANS SIDE FRAME STRAIGHT TYPE<7KJ> PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-98133-150-0	01	1	1508-	●	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	1506-		●	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-98031-691-0	01	1	1506-		●	●
155	04.439 CLIP; CABLE SGL CAB(NP*S) 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.240 T=5.5	5-09709-047-0	01	1	1506-		●
155	04.439 CLIP; CABLE DBL CAB(NP*W) 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.240 T=5.5	5-09709-047-0	01	1	1506-		●
155	04.439 CLIP; CABLE 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.240 T=5.5	5-09709-047-0	01	1	1506-			●
190	04.439 BOSS; LEVER,PTO 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	1506-		●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1506-1506	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1507-	●	●	●
190	04.439 BOSS; LEVER,PTO DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1507-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (C)	0-82154-025-0	01	1	1506-1507	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (C)	0-82154-025-0	01	1	1508-	●
191	04.439 NUT; BOSS 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	02	1	1506-		●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	1506-		●	●

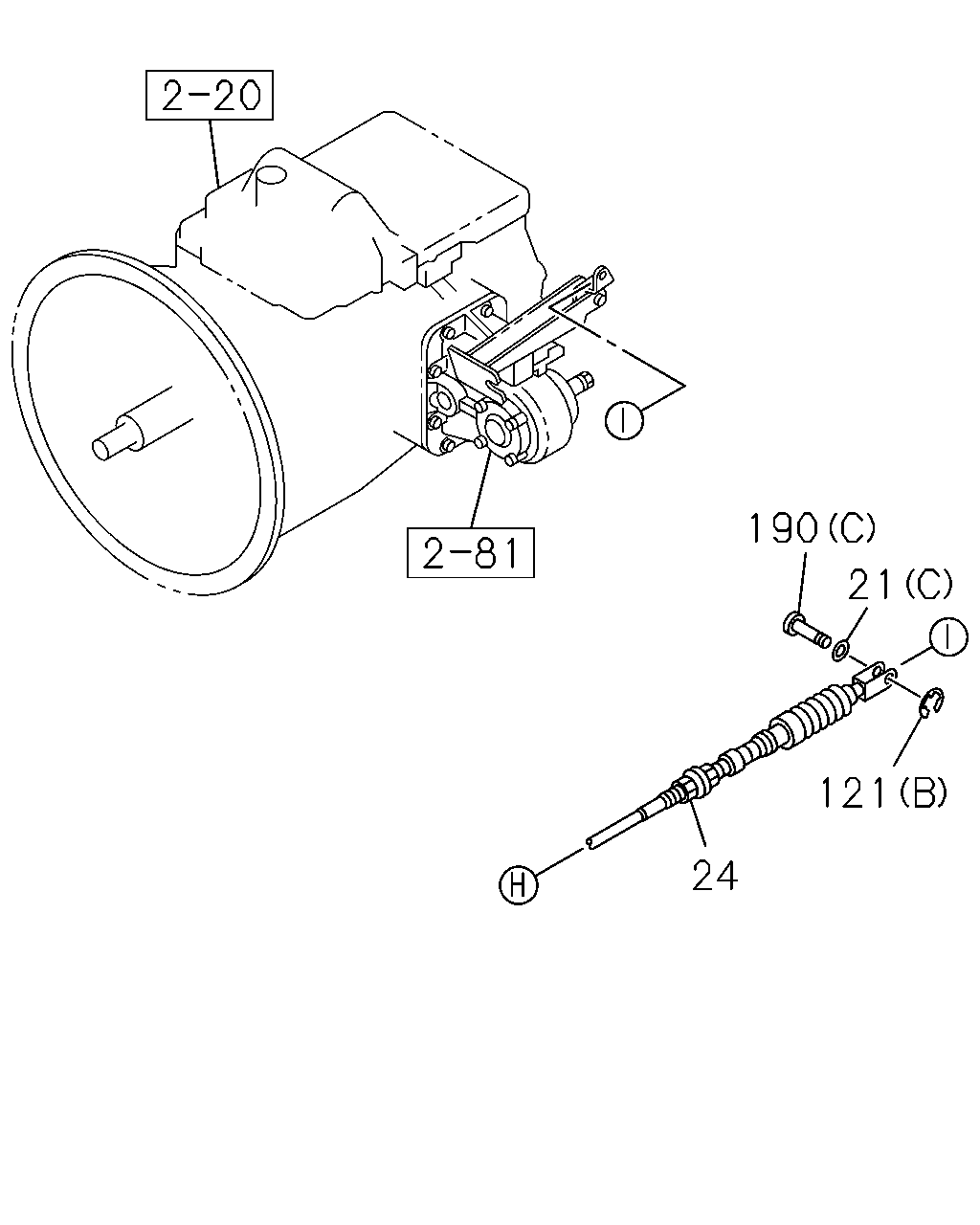

190 21 121 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	04.439 WASHER; PL,CONT LEVER 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	1506-		●	●
21	04.439 WASHER; PL,CONT LEVER 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1506-		●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 17.198 (C) ID=10.5	0-91610-510-0	01	1	1506-1507	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 17.198 (C) ID=10.5	0-91610-510-0	01	1	1508-	●
24	04.439 CABLE; PTO CONT . PTO T/M SIDE DIRECT PUMP(8KZ) EXC. FRAME STRAIGHT TYPE<7KJ> L=3532	8-98328-272-1	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98223-345-0	01	1	1506-1507		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3610	8-98223-345-0	01	1	1508-		●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3532	8-98223-344-0	01	1	1506-1507		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF),PTO T/M SIDE DIRECT PUMP(8KZ),SMOOTHER-EX(TYPE2) WITH P ARKING POSITION(8PR) L=3532	8-98223-344-0	01	1	1508-		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98223-357-0	01	1	1506-1507	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3904	8-98223-357-0	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98223-356-0	01	1	1506-1507	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3844	8-98223-356-0	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98223-300-1	01	1	1506-1507		●	●
24	04.439 CABLE; PTO CONT . FRAME STRAIGHT TYPE<7KJ> PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98328-268-1	01	1	1508-	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 (A) ID=4	0-91805-504-0	01	1	1506-1506	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> 03.485 (A) ID=4	0-91805-504-0	01	1	1507-	●	●	●
121	04.439 RING; SNAP DUMP CONTROL LEVER<RC4> 03.485 (A) ID=4	0-91805-504-0	01	1	1507-	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) (B) ID=8	0-91805-508-0	01	1	1506-1507	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (B) ID=8	0-91805-508-0	01	1	1508-	●
190	04.439 BOSS; LEVER,PTO 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	1506-		●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1506-1506	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1507-	●	●	●
190	04.439 BOSS; LEVER,PTO DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1507-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (C)	0-82154-025-0	01	1	1506-1507	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (C)	0-82154-025-0	01	1	1508-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
