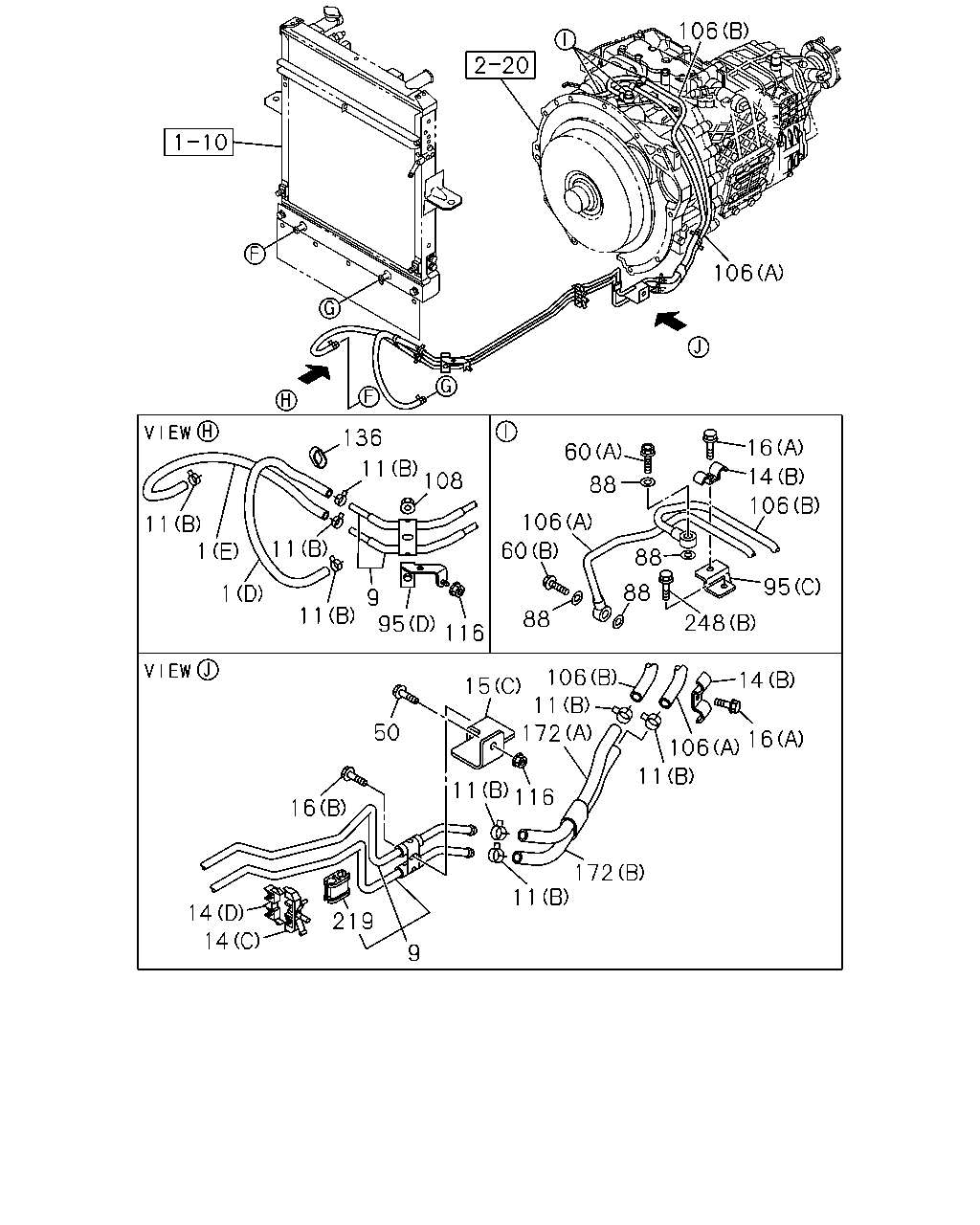

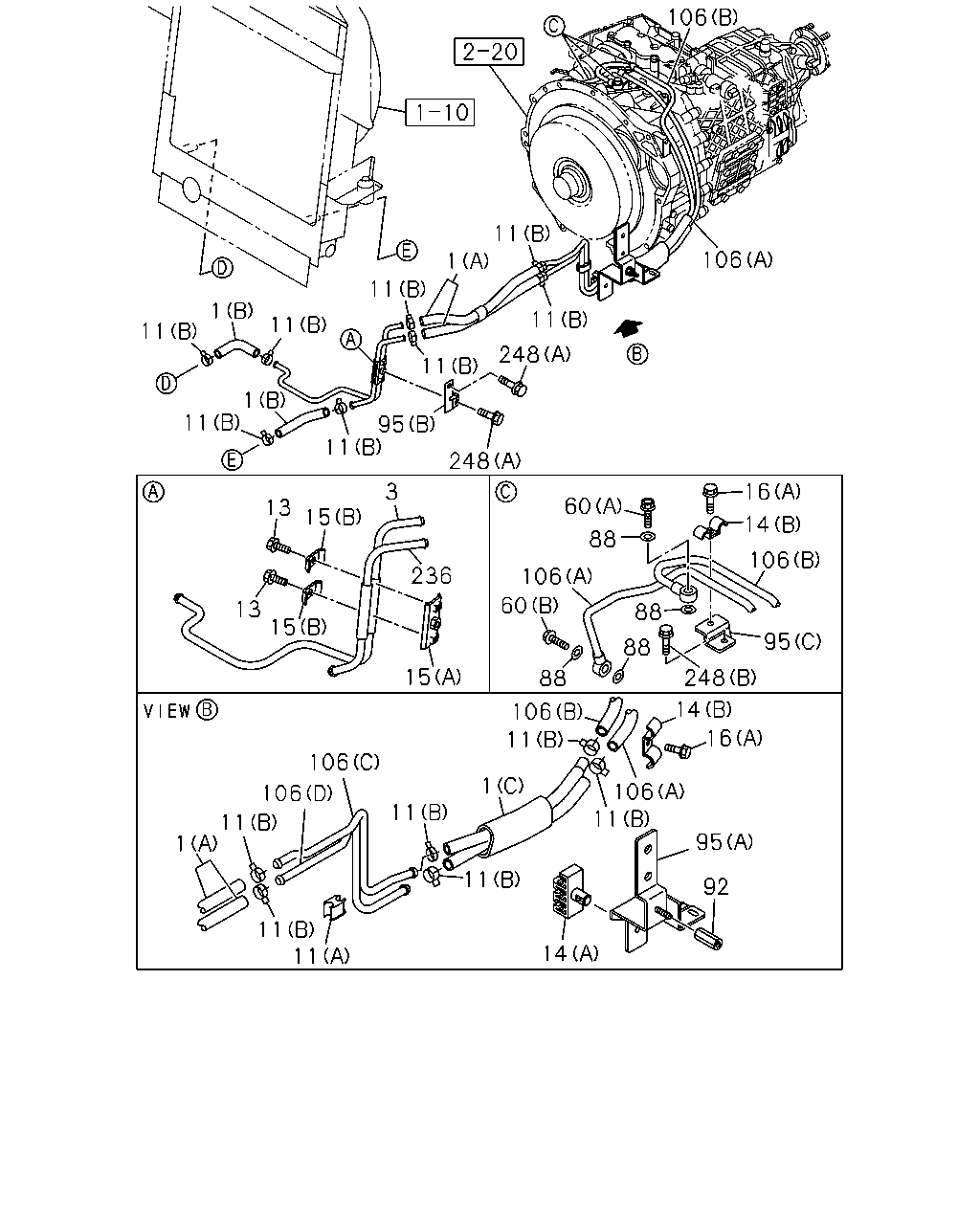

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51606 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-53 - TRANSMISSION OIL COOLER SYSTEM ▶

2-53 — TRANSMISSION OIL COOLER SYSTEM (#162817) — 96 parça

11 11 1 1 11 11 11 95 13 15 13 15 15 106 106 236 3 248 106 60 60 11 1 11 106 106 11 248 88 16 106 14 88 88 88 106 11 1 11 95 248 14 95 16 106 1 11 11 11 11 92 14 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.128 HOSE; ATF 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98086-370-0	01	1	1506-	●	●
1	04.128 HOSE; ATF 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98086-374-0	01	1	1506-	●	●
1	04.128 HOSE; ATF 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98086-380-0	02	1	1506-	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98041-422-2	01	1	1506-			●
1	04.128 HOSE; ATF 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98041-422-2	01	1	1506-	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98041-425-2	01	1	1506-			●
1	04.128 HOSE; ATF 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98041-425-2	01	1	1506-	●	●
3	04.128 PIPE; OIL,A/T TO OIL COOLER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98006-093-1	01	1	1506-	●	●
11	04.128 CLIP; PIPE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (A) ID=10X2 H=22	8-94252-455-2	01	1	1506-	●	●
11	04.128 CLIP; PIPE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	12	1	1506-	●	●
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	08	1	1506-			●
11	04.128 CLIP; PIPE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	08	1	1506-	●	●
13	04.128 BOLT; BRKT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) M6X25 W/LK WASHER	0-50540-625-0	02	1	1506-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1506-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1506-	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1506-			●
14	04.128 CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1506-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	1506-			●
14	04.128 CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	1506-	●	●
15	04.128 BRACKET; ATF PIPE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98035-763-0	01	1	1506-	●	●
15	04.128 BRACKET; ATF PIPE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-764-0	02	1	1506-	●	●
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98041-180-3	01	1	1506-			●
15	04.128 BRACKET; ATF PIPE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98041-180-3	01	1	1506-	●	●
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●	●	●
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1506-			●
16	04.128 BOLT; CLIP,ENG SIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1506-	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1506-	●	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	1506-	●	●	●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	1506-	●	●	●
92	04.128 NUT; CLIP 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.837 M10	8-98034-487-1	01	1	1506-	●	●
95	04.128 BRACKET; CLIP 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-762-0	01	1	1506-	●	●
95	04.128 BRACKET; CLIP 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98057-619-0	01	1	1506-	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97349-876-0	01	1	1506-	●	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98033-840-5	01	1	1506-			●
95	04.128 BRACKET; CLIP 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98033-840-5	01	1	1506-	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98135-505-0	01	1	1506-	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98135-506-0	01	1	1506-	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-638-0	01	1	1506-	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98094-577-0	01	1	1506-	●	●	●
236	04.128 PIPE; OIL,OIL COOLER TO A/T 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98006-094-1	01	1	1506-	●	●
248	04.128 BOLT; RETAINER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1506-	●	●	●

106 11 1 1 11 11 9 95 11 136 108 60 60 88 106 16 14 95 248 88 88 88 15 116 50 16 14 14 219 11 116 11 172 11 11 106 106 14 106 16 172 9 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.128 HOSE; ATF 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98086-370-0	01	1	1506-	●	●
1	04.128 HOSE; ATF 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98086-374-0	01	1	1506-	●	●
1	04.128 HOSE; ATF 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98086-380-0	02	1	1506-	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98041-422-2	01	1	1506-			●
1	04.128 HOSE; ATF 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98041-422-2	01	1	1506-	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98041-425-2	01	1	1506-			●
1	04.128 HOSE; ATF 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98041-425-2	01	1	1506-	●	●
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-455-0	01	1	1506-			●
9	04.128 PIPE; ATF,INL,A/T 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-455-0	01	1	1506-	●	●
11	04.128 CLIP; PIPE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (A) ID=10X2 H=22	8-94252-455-2	01	1	1506-	●	●
11	04.128 CLIP; PIPE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	12	1	1506-	●	●
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	08	1	1506-			●
11	04.128 CLIP; PIPE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	08	1	1506-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1506-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1506-	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1506-			●
14	04.128 CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1506-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	1506-			●
14	04.128 CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	1506-	●	●
15	04.128 BRACKET; ATF PIPE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98035-763-0	01	1	1506-	●	●
15	04.128 BRACKET; ATF PIPE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-764-0	02	1	1506-	●	●
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98041-180-3	01	1	1506-			●
15	04.128 BRACKET; ATF PIPE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98041-180-3	01	1	1506-	●	●
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●	●	●
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1506-			●
16	04.128 BOLT; CLIP,ENG SIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1506-	●	●
50	04.128 BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-			●
50	04.128 BOLT; CLIP 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1506-	●	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	1506-	●	●	●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	1506-	●	●	●
95	04.128 BRACKET; CLIP 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-762-0	01	1	1506-	●	●
95	04.128 BRACKET; CLIP 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98057-619-0	01	1	1506-	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97349-876-0	01	1	1506-	●	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98033-840-5	01	1	1506-			●
95	04.128 BRACKET; CLIP 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98033-840-5	01	1	1506-	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98135-505-0	01	1	1506-	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98135-506-0	01	1	1506-	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-638-0	01	1	1506-	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98094-577-0	01	1	1506-	●	●	●
108	04.128 NUT; PIPE CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-			●
108	04.128 NUT; PIPE CLIP 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●
116	04.128 NUT; BRKT,FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-			●
116	04.128 NUT; BRKT,FLEX HOSE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-	●	●
136	04.128 CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	01	1	1506-			●
136	04.128 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	01	1	1506-	●	●
172	04.128 HOSE; FLEX,ATF TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98135-562-0	01	1	1506-			●
172	04.128 HOSE; FLEX,ATF 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98135-562-0	01	1	1506-	●	●
172	04.128 HOSE; FLEX,ATF TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98135-563-0	01	1	1506-			●
172	04.128 HOSE; FLEX,ATF 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98135-563-0	01	1	1506-	●	●
219	04.128 CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	02	1	1506-			●
219	04.128 CLIP; ATF PIPE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	02	1	1506-	●	●
248	04.128 BOLT; RETAINER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1506-	●	●	●
