Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#162811) — 321 parça

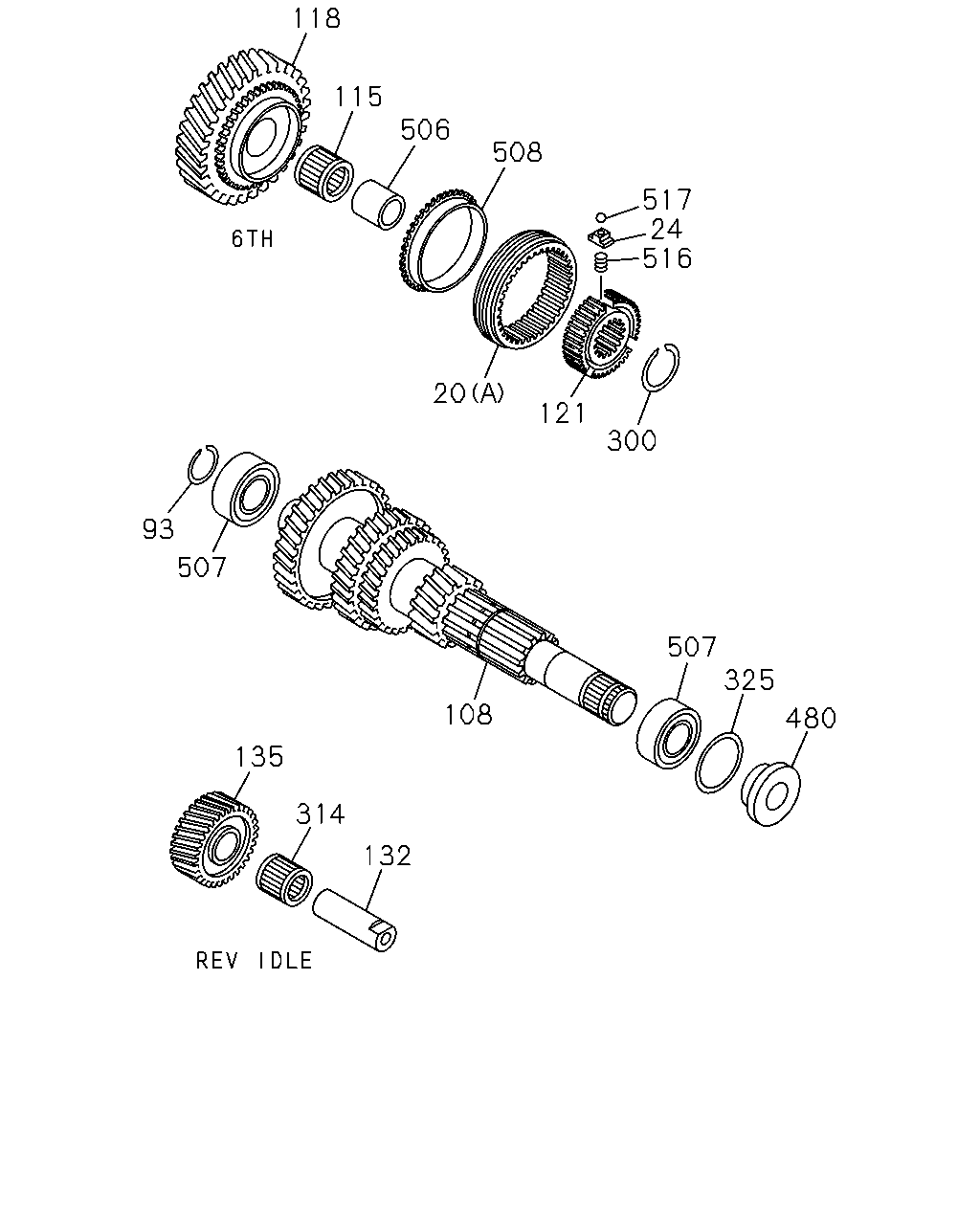

132 314 135 507 93 108 480 325 507 300 121 20 118 115 508 517 516 24 506

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	01	1	1506-	●
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	01	1	1506-	●
20	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1506-	●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	1506-	●	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	1506-		●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	09	1	1506-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1506-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1506-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1506-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1506-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1506-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1506-	●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	1506-		●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	1506-		●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-38-31-20	8-98256-126-0	01	1	1506-			●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-38-31-20	8-98256-127-0	01	1	1506-			●
108	04.428 SHAFT; COUNTER Z=46-38-29-21	8-98249-489-0	01	1	1506-	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1506-	●	●	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1506-	●	●	●
118	04.421 GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	1506-		●	●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	1506-	●
121	04.384 HUB; CLU,6TH	8-97241-301-2	01	1	1506-	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1506-	●	●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1506-		●	●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1506-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	1506-		●	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	1506-		●	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	1506-		●	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	1506-		●	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	1506-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	1506-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	1506-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	1506-	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1506-	●	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1506-	●
480	04.419 WASHER; THRUST,6TH	8-97253-123-1	01	1	1506-		●	●
480	04.419 WASHER; THRUST,6TH	8-97253-122-1	01	1	1506-	●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	1506-		●	●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1506-	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1506-		●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	1506-	●
508	04.383 RING; BLOCK,6TH 04.395 Z=45	8-97309-532-0	01	1	1506-		●	●
508	04.383 RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	1506-	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-803-1	03	1	1506-	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	1506-		●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	1506-		●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1506-	●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	1506-	●	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	1506-		●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1506-	●

132 314 135 268 511 507 93 408 108 507 325 480 510 300 529 408 408 115 118 508 506 423 528 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1506-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1506-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1506-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1506-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1506-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1506-	●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	1506-		●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	1506-		●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-38-31-20	8-98256-126-0	01	1	1506-			●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-38-31-20	8-98256-127-0	01	1	1506-			●
108	04.428 SHAFT; COUNTER Z=46-38-29-21	8-98249-489-0	01	1	1506-	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1506-	●	●	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1506-	●	●	●
118	04.421 GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	1506-		●	●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	1506-	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1506-	●	●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1506-		●	●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1506-	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	1506-		●	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	1506-		●	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	1506-		●	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	1506-		●	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	1506-		●	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	1506-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	1506-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	1506-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	1506-	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1506-	●	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1506-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1506-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1506-	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1506-		●	●
408	04.384 SPRING (A)	8-97366-040-1	04	1	1506-		●	●
423	04.384 SLEEVE & HUB ASM; 6TH	8-97367-022-0	01	1	1506-		●	●
480	04.419 WASHER; THRUST,6TH	8-97253-123-1	01	1	1506-		●	●
480	04.419 WASHER; THRUST,6TH	8-97253-122-1	01	1	1506-	●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	1506-		●	●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1506-	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1506-		●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	1506-	●
508	04.383 RING; BLOCK,6TH 04.395 Z=45	8-97309-532-0	01	1	1506-		●	●
508	04.383 RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	1506-	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1506-		●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1506-		●	●
527	04.384 INSERT; 6TH	8-94448-202-2	03	1	1506-		●	●
528	04.384 SLEEVE; 6TH 04.535 Z=45	8-94421-871-1	01	1	1506-		●	●
529	04.384 PLATE; STOPPER,6TH	8-97248-952-0	01	1	1506-		●	●

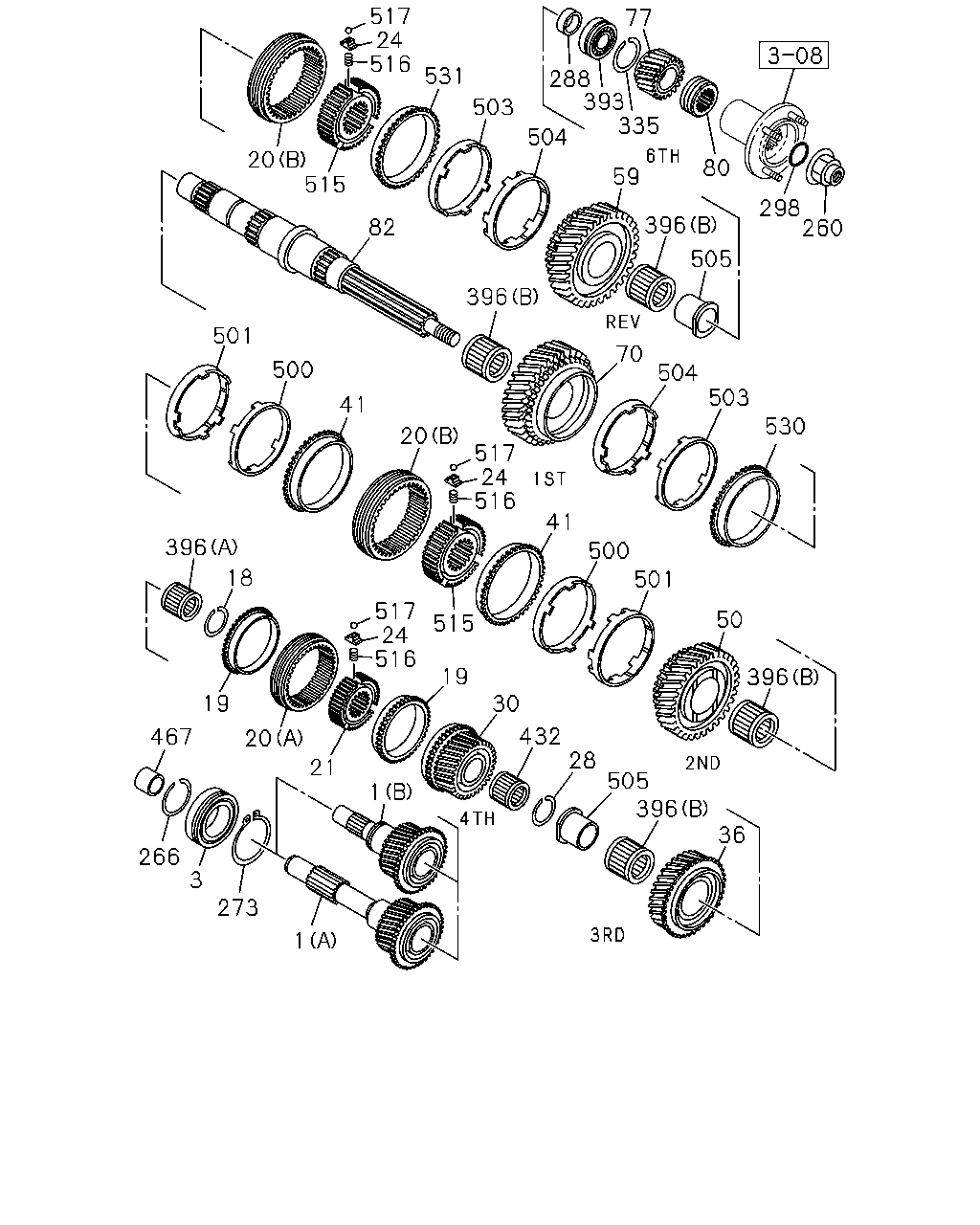

1 273 3 266 467 20 21 36 396 505 28 432 30 19 516 517 24 18 396 19 1 396 50 501 500 41 516 24 517 20 41 500 501 515 530 503 70 396 82 515 20 505 396 59 504 503 531 516 24 517 77 260 298 80 335 393 288 504

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	1506-		●	●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	1506-		●	●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25	8-97371-091-0	01	1	1506-	●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=25	8-97371-090-0	01	1	1506-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1506-		●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	1506-	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1506-		●	●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1506-	●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	1506-	●
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	01	1	1506-	●
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	01	1	1506-	●
20	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1506-	●
21	04.384 HUB; CLU,4TH & 5TH	8-97241-299-3	01	1	1506-	●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	1506-	●	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	1506-		●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	09	1	1506-	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1506-	●	●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	1506-		●
30	04.415 GEAR; 4TH,MAINSHAFT Z=29	8-98256-122-0	01	1	1506-			●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97252-628-0	01	1	1506-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1506-		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=35	8-98256-123-0	01	1	1506-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97252-630-1	01	1	1506-	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1506-		●	●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	1506-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1506-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	1506-	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1506-		●	●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	1506-	●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	1506-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	1506-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	1506-	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	1506-		●	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	1506-	●
80	04.343 GEAR; SPD DRIVE NPR(NP***N) Z=6	8-97327-118-0	01	1	1506-	●
80	04.343 GEAR; SPD DRIVE NQR(NP***S) FT&RR 225/70R19.5 19.5X6.00-127 WHITH DI SC(CRR),FT&RR 225/70R19.5 19.5X6.00-127 SILVER DISC(CYL) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=6	8-97327-118-0	01	1	1506-	●
80	04.343 GEAR; SPD DRIVE NQR(NP***S) F&R 225/70R19.5 19.5X6.00-127 WHITE HIGH WAY(AVU),F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) Z=4	8-97253-555-0	01	1	1506-	●
80	04.343 GEAR; SPD DRIVE NQR(NP***S) FT&RR 225/70R19.5 19.5X6.00-127 WHITH DI SC(CRR),FT&RR 225/70R19.5 19.5X6.00-127 SILVER DISC(CYL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=4	8-97253-555-0	01	1	1506-	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1506-		●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1506-		●	●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	1506-	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1506-	●	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	1506-		●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	1506-	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1506-		●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	1506-	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1506-		●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	1506-	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1506-		●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	1506-	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	1506-		●	●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	1506-	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1506-		●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	1506-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1506-	●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1506-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	1506-	●
432	04.419 BEARING; NEEDLE,4TH NSK	8-97253-111-0	01	1	1506-	●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	1506-	●	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1506-		●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	1506-	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1506-		●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	1506-	●
503	04.383 RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	1506-		●	●
503	04.383 RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-307-1	02	1	1506-	●
504	04.383 RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	1506-		●	●
504	04.383 RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-311-1	02	1	1506-	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1506-	●	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1506-		●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1506-		●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	1506-	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	1506-	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-803-1	03	1	1506-	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	1506-		●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	1506-		●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1506-	●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	1506-	●	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	1506-		●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1506-	●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	1506-		●	●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	1506-	●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	1506-		●	●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	1506-	●

1 273 3 266 467 1 505 408 525 396 524 18 36 396 28 526 30 525 408 323 120 501 41 500 82 120 396 50 501 500 41 515 516 24 517 530 503 504 70 396 515 120 260 298 396 59 504 503 531 516 24 517 288 335 393 77 342 169 80 505

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	1506-		●	●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	1506-		●	●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25	8-97371-091-0	01	1	1506-	●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=25	8-97371-090-0	01	1	1506-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1506-		●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	1506-	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1506-		●	●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1506-	●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	1506-	●	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	1506-		●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	09	1	1506-	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1506-	●	●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	1506-		●
30	04.415 GEAR; 4TH,MAINSHAFT Z=29	8-98256-122-0	01	1	1506-			●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97252-628-0	01	1	1506-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1506-		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=35	8-98256-123-0	01	1	1506-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97252-630-1	01	1	1506-	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1506-		●	●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	1506-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1506-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	1506-	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1506-		●	●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	1506-	●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	1506-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	1506-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	1506-	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	1506-		●	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	1506-	●
80	04.343 GEAR; SPD DRIVE NPR(NP***N) Z=6	8-97327-118-0	01	1	1506-	●
80	04.343 GEAR; SPD DRIVE NQR(NP***S) FT&RR 225/70R19.5 19.5X6.00-127 WHITH DI SC(CRR),FT&RR 225/70R19.5 19.5X6.00-127 SILVER DISC(CYL) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=6	8-97327-118-0	01	1	1506-	●
80	04.343 GEAR; SPD DRIVE NQR(NP***S) F&R 225/70R19.5 19.5X6.00-127 WHITE HIGH WAY(AVU),F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) Z=4	8-97253-555-0	01	1	1506-	●
80	04.343 GEAR; SPD DRIVE NQR(NP***S) FT&RR 225/70R19.5 19.5X6.00-127 WHITH DI SC(CRR),FT&RR 225/70R19.5 19.5X6.00-127 SILVER DISC(CYL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=4	8-97253-555-0	01	1	1506-	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1506-		●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1506-		●	●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	1506-	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1506-		●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1506-		●	●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	1506-		●	●
169	04.419 COLLAR; MAINSHAFT	8-97252-937-1	01	1	1506-		●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1506-	●	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	1506-		●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	1506-	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1506-		●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	1506-	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1506-		●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	1506-	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1506-		●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	1506-	●
323	04.384 INSERT	8-94448-202-2	03	1	1506-		●	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	1506-		●	●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	1506-	●
342	05.545 FLANGE; OUTPUT 4JJ1-TCS ENG(LFB)	8-98031-640-0	01	1	1506-		●	●
342	05.545 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ)	8-98031-862-0	01	1	1506-		●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1506-		●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	1506-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1506-	●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1506-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	1506-	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1506-		●	●
408	04.384 SPRING (A)	8-97366-040-1	04	1	1506-		●	●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	1506-	●	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1506-		●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	1506-	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1506-		●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	1506-	●
503	04.383 RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	1506-		●	●
503	04.383 RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-307-1	02	1	1506-	●
504	04.383 RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	1506-		●	●
504	04.383 RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-311-1	02	1	1506-	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1506-	●	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1506-		●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1506-		●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	1506-	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	1506-	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-803-1	03	1	1506-	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	1506-		●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	1506-		●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1506-	●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	1506-	●	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	1506-		●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1506-	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1506-		●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1506-		●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1506-		●	●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	1506-		●	●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	1506-	●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	1506-		●	●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	1506-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
