1-56 — EXHAUST BRAKE SYSTEM (#162801) — 112 parça

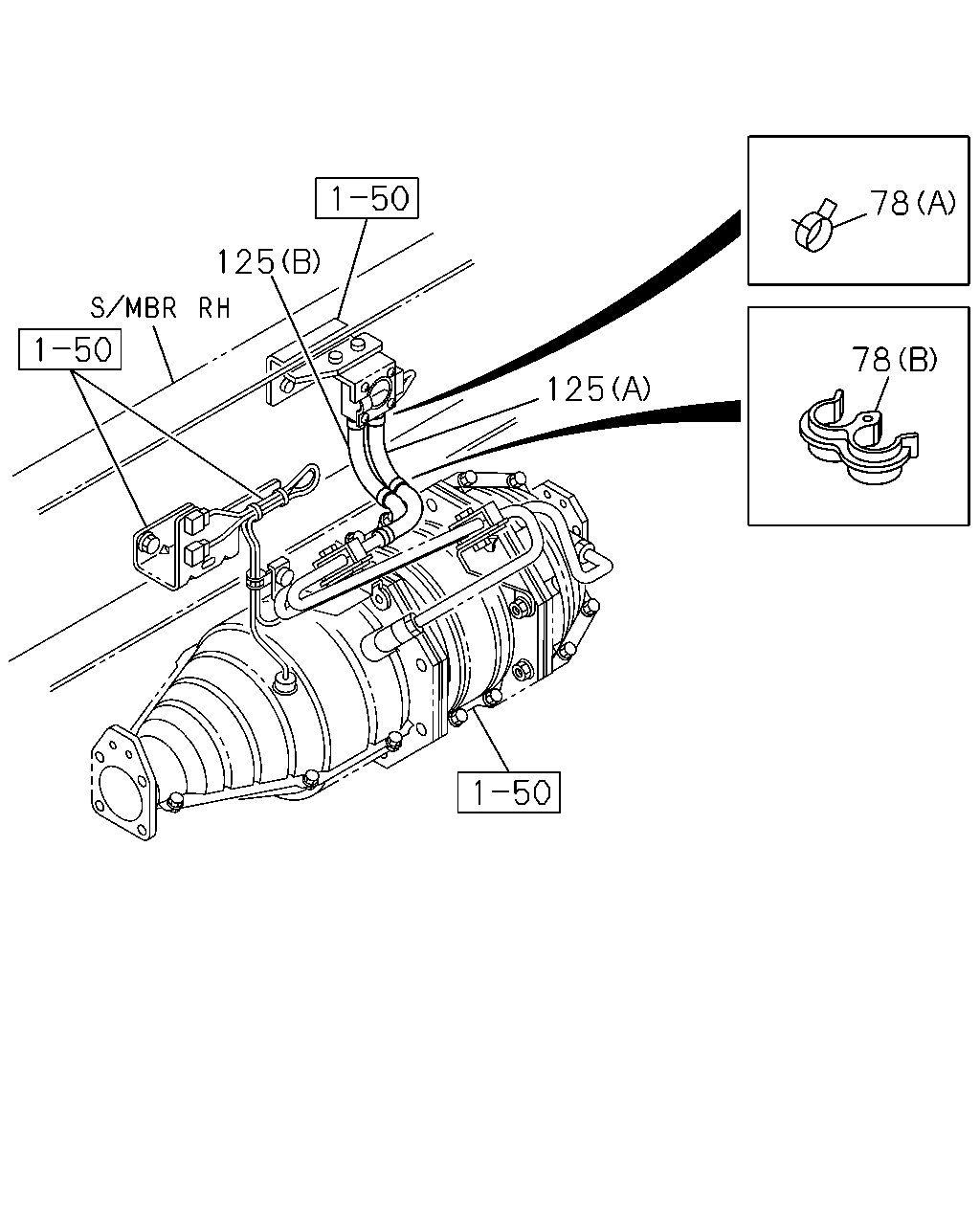

78 78 125 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1506-1507	●	●	●	●	●	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) 03.162 (A) ID=13	8-97329-627-0	04	1	1508-	●			●
78	03.636 CLIP; HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 03.162 (A) ID=13	8-97329-627-0	04	1	1508-		●
78	03.636 CLIP; HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 03.162 (A) ID=13	8-97329-627-0	04	1	1508-			●
78	03.636 CLIP; HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) ID=13	8-97329-627-0	04	1	1508-					●
78	03.636 CLIP; HOSE 4HK1-TCS ENG(RJS) 03.162 (A) ID=13	8-97329-627-0	04	1	1508-						●
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1506-1507	●			●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) 03.162 (B)	8-97173-119-0	01	1	1508-	●			●
125	03.630 HOSE; DPD (A)	8-98004-348-0	01	1	1506-	●			●
125	03.630 HOSE; DPD (B)	8-98004-349-0	01	1	1506-	●			●
125	03.630 HOSE; DPD 03.163 (B) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1506-		●	●		●	●
125	03.630 HOSE; DPD (A) L=170	8-98068-068-0	01	1	1506-		●	●		●	●

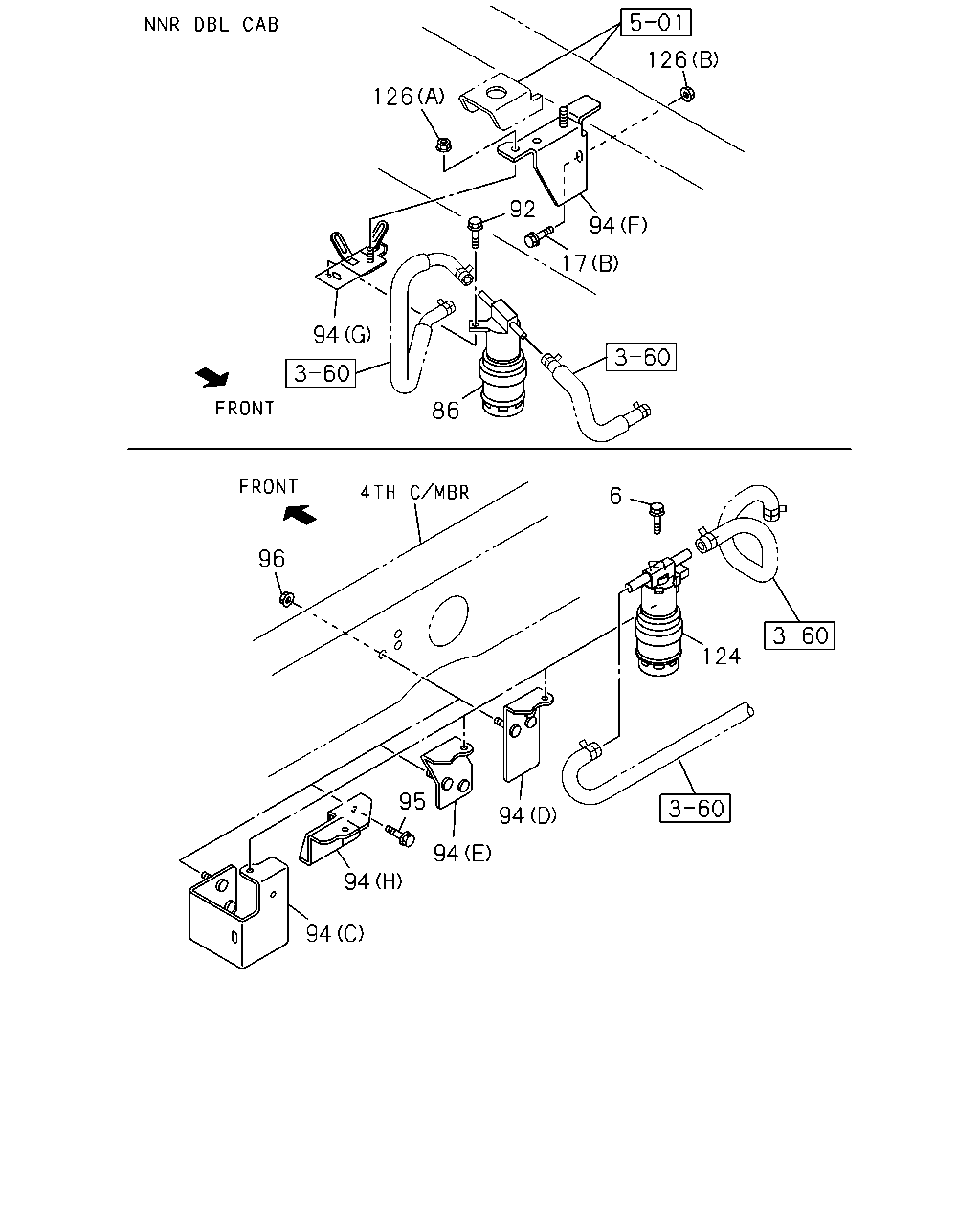

126 94 17 92 126 94 86 6 124 94 94 95 94 94 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	03.632 BOLT; EXH BRAKE UNIT FIX 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●	●	●	●	●
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1506-1507	●		●
17	03.634 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1506-1507		●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●
17	03.634 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-		●
17	03.634 BOLT; BRKT 4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-			●
17	03.634 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1506-				●
17	03.634 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1506-1507					●
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1506-1507						●
17	03.634 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1508-					●
17	03.634 BOLT; BRKT 4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1508-						●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1506-	●	●	●	●	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●	●	●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 2700MM(27W) (D)	8-97370-883-2	01	1	1506-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98092-656-0	01	1	1506-1507	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) (A)	8-98092-656-0	01	1	1508-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W) (E)	8-98032-122-0	01	1	1506-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (E)	8-98032-122-0	01	1	1506-				●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (H)	8-98125-497-0	01	1	1506-1507		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (H)	8-98125-497-0	01	1	1508-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (C)	8-98040-096-2	01	1	1506-1507		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (C)	8-98040-096-2	01	1	1506-1507		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (C)	8-98040-096-2	01	1	1506-1507			●			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (C)	8-98040-096-2	01	1	1506-1507					●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (C)	8-98040-096-2	01	1	1508-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (C)	8-98040-096-2	01	1	1508-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (C)	8-98040-096-2	01	1	1508-			●			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (C)	8-98040-096-2	01	1	1508-					●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (A)	8-98034-053-3	01	1	1506-1507		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98034-053-3	01	1	1506-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98034-053-3	01	1	1508-		●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (F)	8-97387-681-1	01	1	1506-				●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (G)	8-98089-211-0	01	1	1506-				●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (B)	8-98040-636-1	01	1	1506-1507					●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (B)	8-98040-636-1	01	1	1506-1507						●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (B)	8-98040-636-1	01	1	1508-					●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-1507		●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-		●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1507	●		●	●		●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1507		●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1507		●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1507					●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●			●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-		●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-			●			●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-					●
124	03.636 VALVE; MAG,DPD EXH THROTTLE	8-98043-344-0	01	1	1506-	●	●	●	●	●	●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507	●		●	●
126	03.634 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507		●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●	●
126	03.634 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-				●

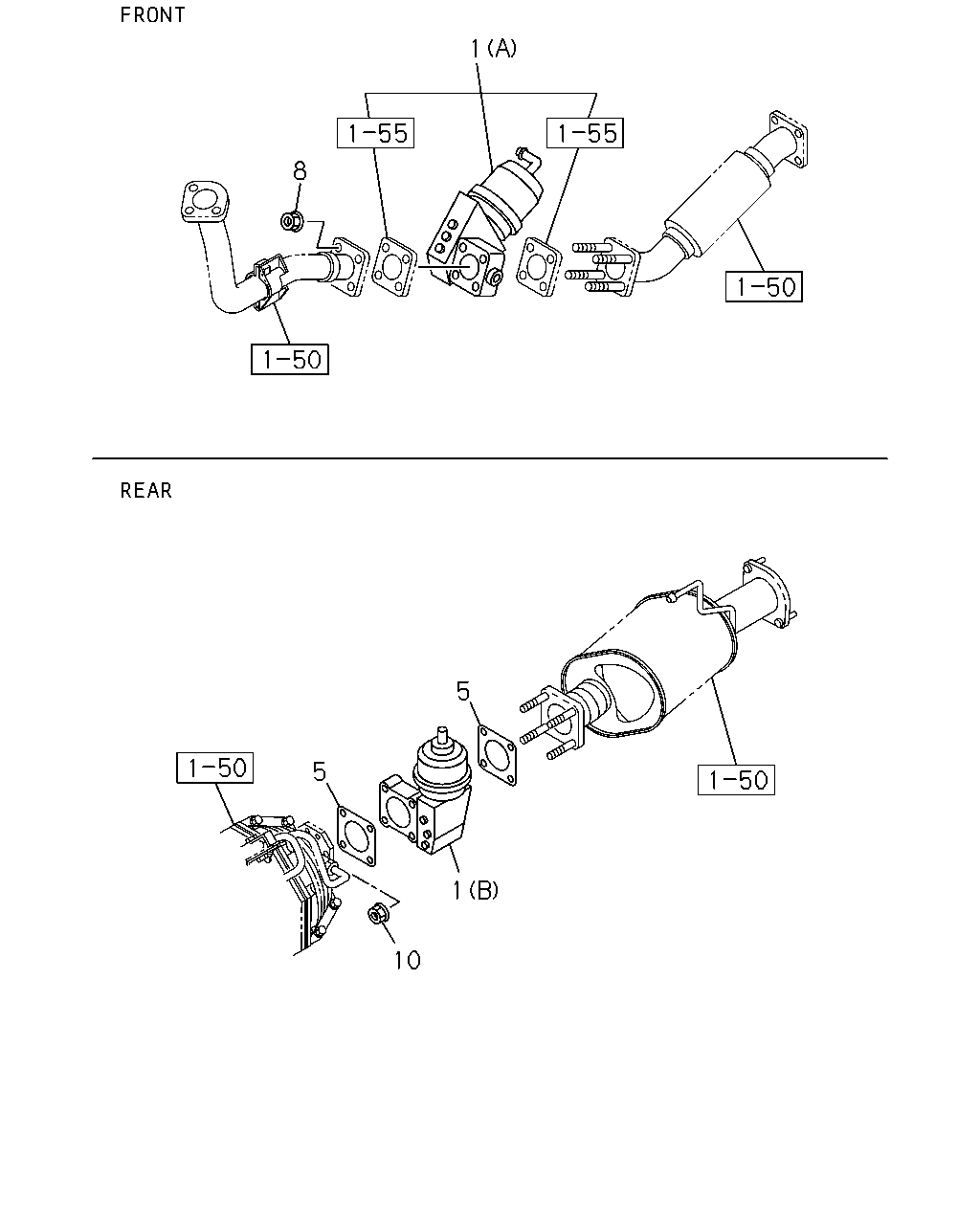

1 8 5 5 10 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.632 BRAKE UNIT; EXH (A)	8-98227-170-0	01	1	1506-	●	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-98258-268-0	01	1	1506-	●			●
1	03.632 BRAKE UNIT; EXH (B)	8-98258-269-0	01	1	1506-		●	●		●	●
5	03.634 GASKET; EXH BRAKE UNIT 03.611 ID=64	8-97373-108-0	02	1	1506-	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1506-1507	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1508-	●	●	●	●	●	●
10	03.634 NUT; BRKT,EXH BRAKE 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1506-	●	●	●	●	●	●

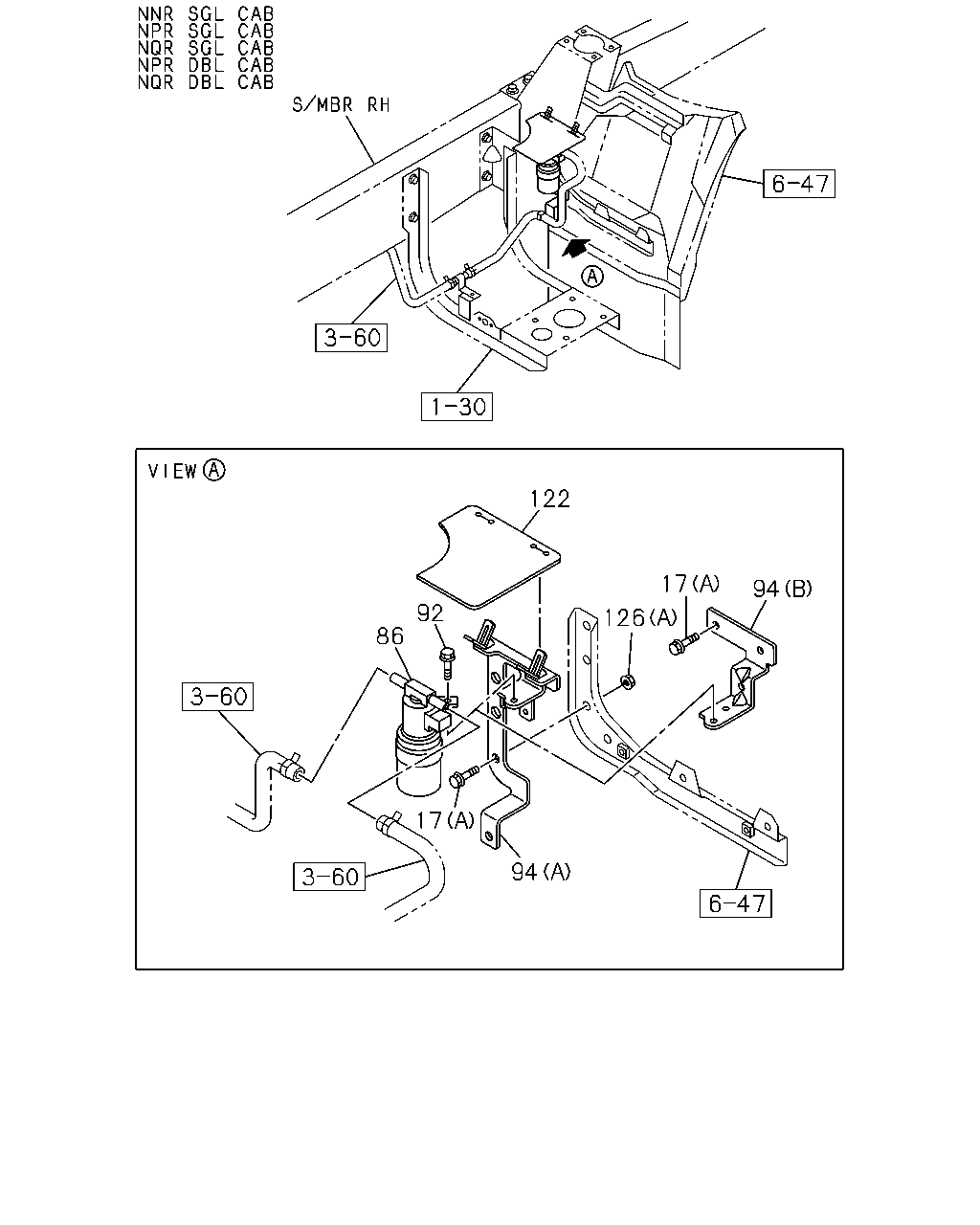

122 17 94 126 92 86 17 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1506-1507	●		●
17	03.634 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1506-1507		●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●
17	03.634 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-		●
17	03.634 BOLT; BRKT 4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-			●
17	03.634 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1506-				●
17	03.634 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1506-1507					●
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1506-1507						●
17	03.634 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1508-					●
17	03.634 BOLT; BRKT 4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1508-						●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1506-	●	●	●	●	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●	●	●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 2700MM(27W) (D)	8-97370-883-2	01	1	1506-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98092-656-0	01	1	1506-1507	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) (A)	8-98092-656-0	01	1	1508-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W) (E)	8-98032-122-0	01	1	1506-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (E)	8-98032-122-0	01	1	1506-				●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (H)	8-98125-497-0	01	1	1506-1507		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (H)	8-98125-497-0	01	1	1508-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (C)	8-98040-096-2	01	1	1506-1507		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (C)	8-98040-096-2	01	1	1506-1507		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (C)	8-98040-096-2	01	1	1506-1507			●			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (C)	8-98040-096-2	01	1	1506-1507					●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (C)	8-98040-096-2	01	1	1508-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (C)	8-98040-096-2	01	1	1508-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (C)	8-98040-096-2	01	1	1508-			●			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (C)	8-98040-096-2	01	1	1508-					●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (A)	8-98034-053-3	01	1	1506-1507		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98034-053-3	01	1	1506-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98034-053-3	01	1	1508-		●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (F)	8-97387-681-1	01	1	1506-				●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (G)	8-98089-211-0	01	1	1506-				●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (B)	8-98040-636-1	01	1	1506-1507					●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (B)	8-98040-636-1	01	1	1506-1507						●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (B)	8-98040-636-1	01	1	1508-					●	●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1506-1507	●		●
122	03.640 PROTECTOR; MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-98087-988-0	01	1	1506-1507		●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1508-	●	●	●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507	●		●	●
126	03.634 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507		●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●	●
126	03.634 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-				●
