Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#162799) — 869 parça

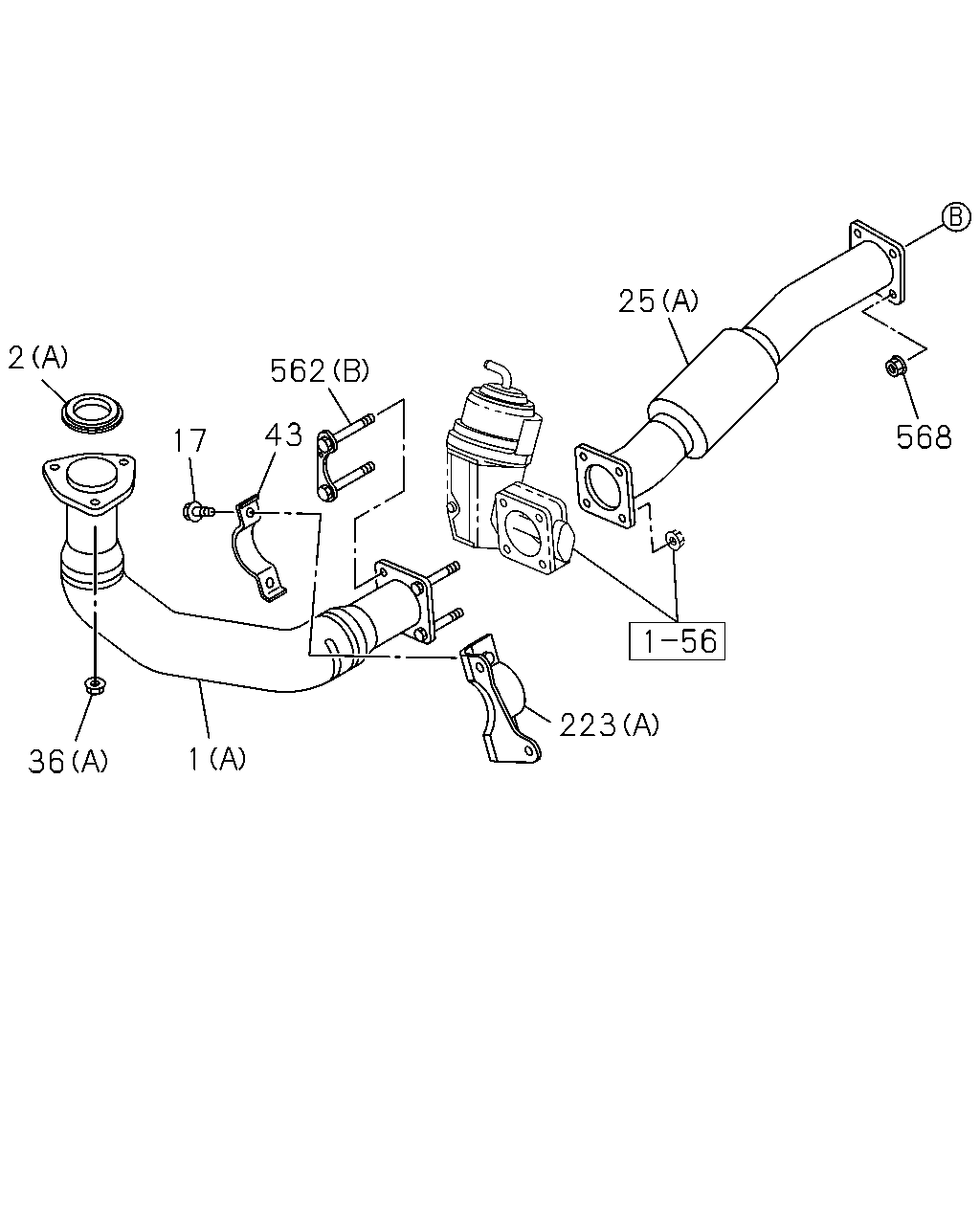

2 17 43 1 36 223 25 568 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.609 PIPE; EXH (B)	8-98026-060-0	01	1	1506-	●	●
1	03.609 PIPE; EXH (A)	8-98006-765-2	01	1	1506-			●	●	●	●
2	03.611 GASKET; PIPE TO MANIF (B)	8-97384-590-0	01	1	1506-	●	●
2	03.611 GASKET; PIPE TO MANIF (A)	8-97381-455-0	01	1	1506-			●	●	●	●
17	03.613 BOLT; EXH PIPE 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●	●	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER (B)	8-98026-062-2	01	1	1506-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER FRAME STRAIGHT TYPE<7KJ> (A)	8-98006-766-0	01	1	1506-			●		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER (A)	8-98006-766-0	01	1	1506-				●		●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1506-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1506-			●
36	03.613 NUT; EXH PIPE WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1506-				●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1506-					●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1506-	●	●	●	●	●	●
223	03.706 BRACKET; EXH PIPE 03.613 (B)	8-98026-063-0	01	1	1506-	●	●
223	03.706 BRACKET; EXH PIPE 03.613 (A)	8-98020-555-0	01	1	1506-			●	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (C)	8-97373-966-0	02	1	1506-	●	●
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1506-			●	●	●	●
562	03.690 PLATE; STUD,BOLT (B)	8-98030-175-0	01	1	1506-			●	●	●	●
568	03.704 NUT; DPD 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	04	1	1506-	●	●
568	03.704 NUT; DPD 02.042 M12 FLANGE	0-91180-112-0	04	1	1506-			●	●	●	●

532 385 532 172 143 385 118 115 117 113 352 579 115 352 81 115 577 376 118 115 117 113 578 337 576 44 560 562 556 376 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	03.701 SILENCER ASM; EXH (C)	8-98254-780-0	01	1	1506-	●	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2700MM(27W) (B)	8-98097-779-0	01	1	1506-			●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A)	8-98020-562-1	01	1	1506-			●
12	03.701 SILENCER ASM; EXH (A)	8-98020-562-1	01	1	1506-				●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE NOISE PACK FOR REGULATION VAR.2<7TF> 03.611 (B) ID=65	8-97148-757-1	01	1	1506-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (B) ID=65	8-97148-757-1	01	1	1506-		●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) ID=85.8	1-22116-043-0	01	1	1506-	●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=85.8	1-22116-043-0	01	1	1506-			●	●	●	●
44	03.613 BOLT; BRKT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1506-	●	●	●	●	●	●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1506-	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1506-		●
81	03.704 NUT; BRKT EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1506-	●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1506-			●	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1506-	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	03	1	1506-			●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1506-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1506-	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	03	1	1506-			●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	03	1	1506-			●	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1506-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	03	1	1506-			●	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1506-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	03	1	1506-			●	●	●	●
143	03.704 RUBBER; SUPPORT (D)	8-97080-694-0	01	1	1506-	●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-98034-767-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-98034-767-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1506-		●	●	●	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	1506-			●	●	●	●
143	03.704 RUBBER; SUPPORT (B)	8-94457-278-1	01	1	1506-			●	●	●	●
172	03.708 BOLT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-	●
172	03.708 BOLT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-		●
172	03.708 BOLT WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-				●
172	03.708 BOLT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-						●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1506-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-			●	●	●	●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●	●	●	●	●
376	03.708 BOLT; BRKT 03.690 (C)	8-98005-985-0	01	1	1506-	●	●
376	03.708 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1506-			●	●	●	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (F)	8-98001-889-1	01	1	1506-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (E)	8-97387-251-1	01	1	1506-	●
385	03.704 BRACKET; SILENCER MTG (E)	8-97387-251-1	01	1	1506-		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> (D)	8-98122-620-0	01	1	1506-			●
385	03.704 BRACKET; SILENCER MTG (A)	8-98006-776-1	01	1	1506-			●	●	●	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (C)	8-98006-774-0	01	1	1506-			●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (C)	8-98006-774-0	01	1	1506-				●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> (B)	8-98073-376-0	01	1	1506-			●
385	03.704 BRACKET; SILENCER MTG (B)	8-98073-376-0	01	1	1506-					●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 4400MM(44W) (G)	8-98073-377-0	01	1	1506-				●
385	03.704 BRACKET; SILENCER MTG (G)	8-98073-377-0	01	1	1506-						●
532	03.704 NUT WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-1507	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-1507			●		●
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-1507				●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-	●
532	03.704 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-			●
532	03.704 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-			●
532	03.704 NUT 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-				●
532	03.704 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-					●
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-		●
532	03.704 NUT WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-				●
532	03.704 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-						●
556	03.701 DPD ASM	8-98084-595-4	01	1	1506-	●	●
556	03.701 DPD ASM	8-98084-602-4	01	1	1506-			●	●	●	●
560	03.611 GASKET; DPD (C)	8-97331-947-0	02	1	1506-	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1506-	●	●
560	03.611 GASKET; DPD (B)	1-22116-040-0	01	1	1506-			●	●	●	●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	1506-			●	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (C)	8-97373-966-0	02	1	1506-	●	●
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1506-			●	●	●	●
562	03.690 PLATE; STUD,BOLT (B)	8-98030-175-0	01	1	1506-			●	●	●	●
576	03.706 BRACKET; DPD FRT TO FRAME (C)	8-97387-245-0	01	1	1506-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2700MM(27W) (A)	8-98122-616-0	01	1	1506-			●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B)	8-98006-770-0	01	1	1506-			●
576	03.706 BRACKET; DPD FRT TO FRAME (B)	8-98006-770-0	01	1	1506-				●	●	●
577	03.706 BRACKET; DPD RR TO FRAME (C)	8-97387-246-2	01	1	1506-	●	●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2700MM(27W) (A)	8-98124-656-0	01	1	1506-			●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B)	8-98048-292-1	01	1	1506-			●
577	03.706 BRACKET; DPD RR TO FRAME (B)	8-98048-292-1	01	1	1506-				●	●	●
578	03.706 BRACKET; DPD FRT (B)	8-97387-248-1	01	1	1506-	●	●
578	03.706 BRACKET; DPD FRT (A)	8-98048-296-0	01	1	1506-			●	●	●	●
579	03.704 BRACKET; DPD RR (C)	8-97387-249-1	01	1	1506-	●	●
579	03.704 BRACKET; DPD RR WHEEL BASE 2700MM(27W) (A)	8-98124-658-0	01	1	1506-			●
579	03.704 BRACKET; DPD RR WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B)	8-98048-300-1	01	1	1506-			●
579	03.704 BRACKET; DPD RR (B)	8-98048-300-1	01	1	1506-				●	●	●

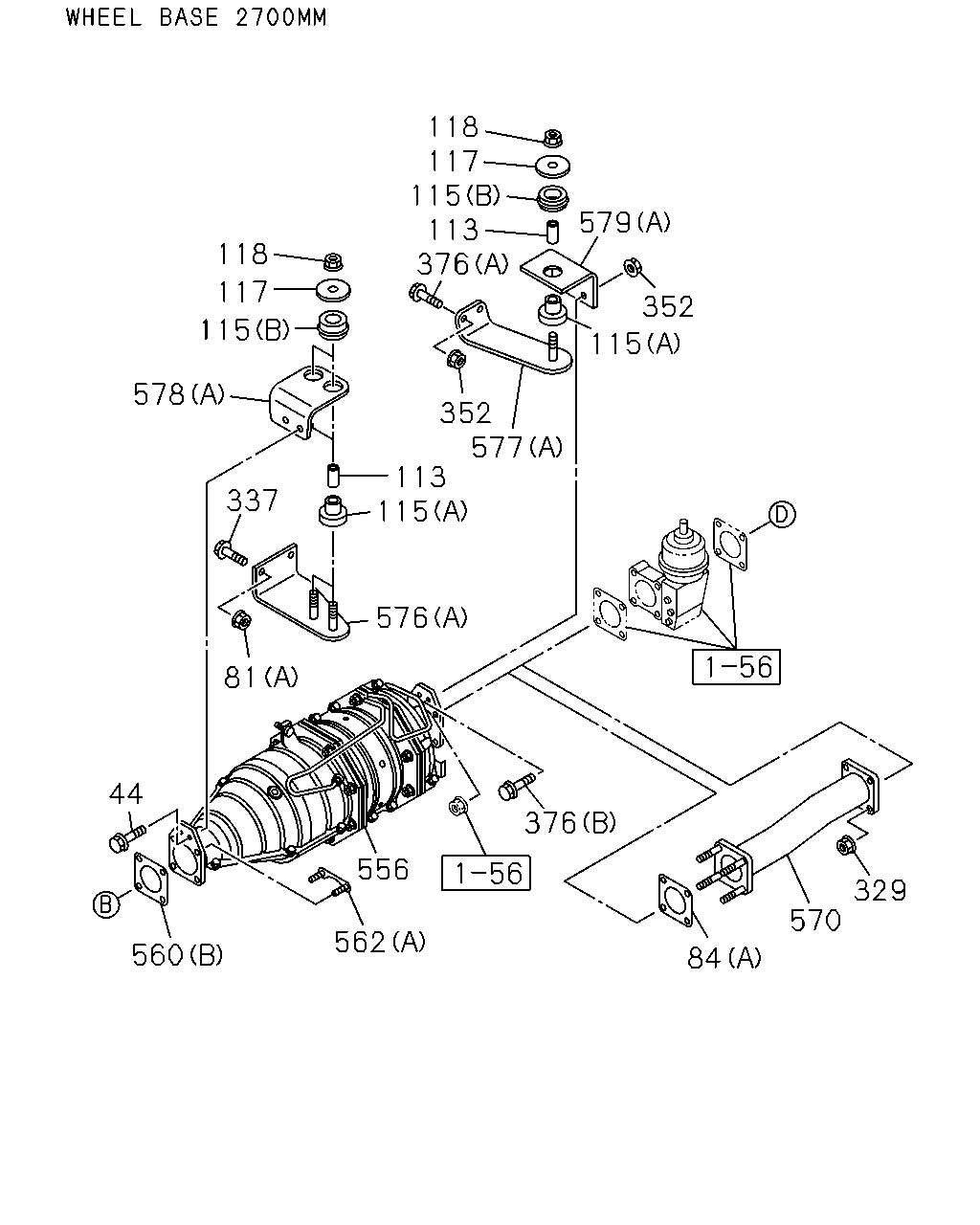

118 115 117 578 337 81 576 115 113 577 352 115 352 579 376 113 115 117 118 44 560 562 556 376 84 570 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
44	03.613 BOLT; BRKT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1506-	●	●	●	●	●	●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1506-	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1506-		●
81	03.704 NUT; BRKT EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1506-	●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1506-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (B) ID=65	8-97148-757-1	01	1	1506-	●
84	03.611 GASKET; EXH PIPE (B) ID=65	8-97148-757-1	01	1	1506-		●
84	03.611 GASKET; EXH PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-			●
84	03.611 GASKET; EXH PIPE WHEEL BASE 4400MM(44W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-				●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-					●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1506-	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	03	1	1506-			●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1506-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1506-	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	03	1	1506-			●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	03	1	1506-			●	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1506-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	03	1	1506-			●	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1506-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	03	1	1506-			●	●	●	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	04	1	1506-			●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1506-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-			●	●	●	●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●	●	●	●	●
376	03.708 BOLT; BRKT 03.690 (C)	8-98005-985-0	01	1	1506-	●	●
376	03.708 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1506-			●	●	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1506-	●	●
556	03.701 DPD ASM	8-98084-602-4	01	1	1506-			●	●	●	●
560	03.611 GASKET; DPD (C)	8-97331-947-0	02	1	1506-	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1506-	●	●
560	03.611 GASKET; DPD (B)	1-22116-040-0	01	1	1506-			●	●	●	●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	1506-			●	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (C)	8-97373-966-0	02	1	1506-	●	●
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1506-			●	●	●	●
562	03.690 PLATE; STUD,BOLT (B)	8-98030-175-0	01	1	1506-			●	●	●	●
570	03.704 ADAPTER; EXH PIPE	8-98073-373-0	01	1	1506-			●	●	●	●
576	03.706 BRACKET; DPD FRT TO FRAME (C)	8-97387-245-0	01	1	1506-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2700MM(27W) (A)	8-98122-616-0	01	1	1506-			●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B)	8-98006-770-0	01	1	1506-			●
576	03.706 BRACKET; DPD FRT TO FRAME (B)	8-98006-770-0	01	1	1506-				●	●	●
577	03.706 BRACKET; DPD RR TO FRAME (C)	8-97387-246-2	01	1	1506-	●	●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2700MM(27W) (A)	8-98124-656-0	01	1	1506-			●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B)	8-98048-292-1	01	1	1506-			●
577	03.706 BRACKET; DPD RR TO FRAME (B)	8-98048-292-1	01	1	1506-				●	●	●
578	03.706 BRACKET; DPD FRT (B)	8-97387-248-1	01	1	1506-	●	●
578	03.706 BRACKET; DPD FRT (A)	8-98048-296-0	01	1	1506-			●	●	●	●
579	03.704 BRACKET; DPD RR (C)	8-97387-249-1	01	1	1506-	●	●
579	03.704 BRACKET; DPD RR WHEEL BASE 2700MM(27W) (A)	8-98124-658-0	01	1	1506-			●
579	03.704 BRACKET; DPD RR WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B)	8-98048-300-1	01	1	1506-			●
579	03.704 BRACKET; DPD RR (B)	8-98048-300-1	01	1	1506-				●	●	●

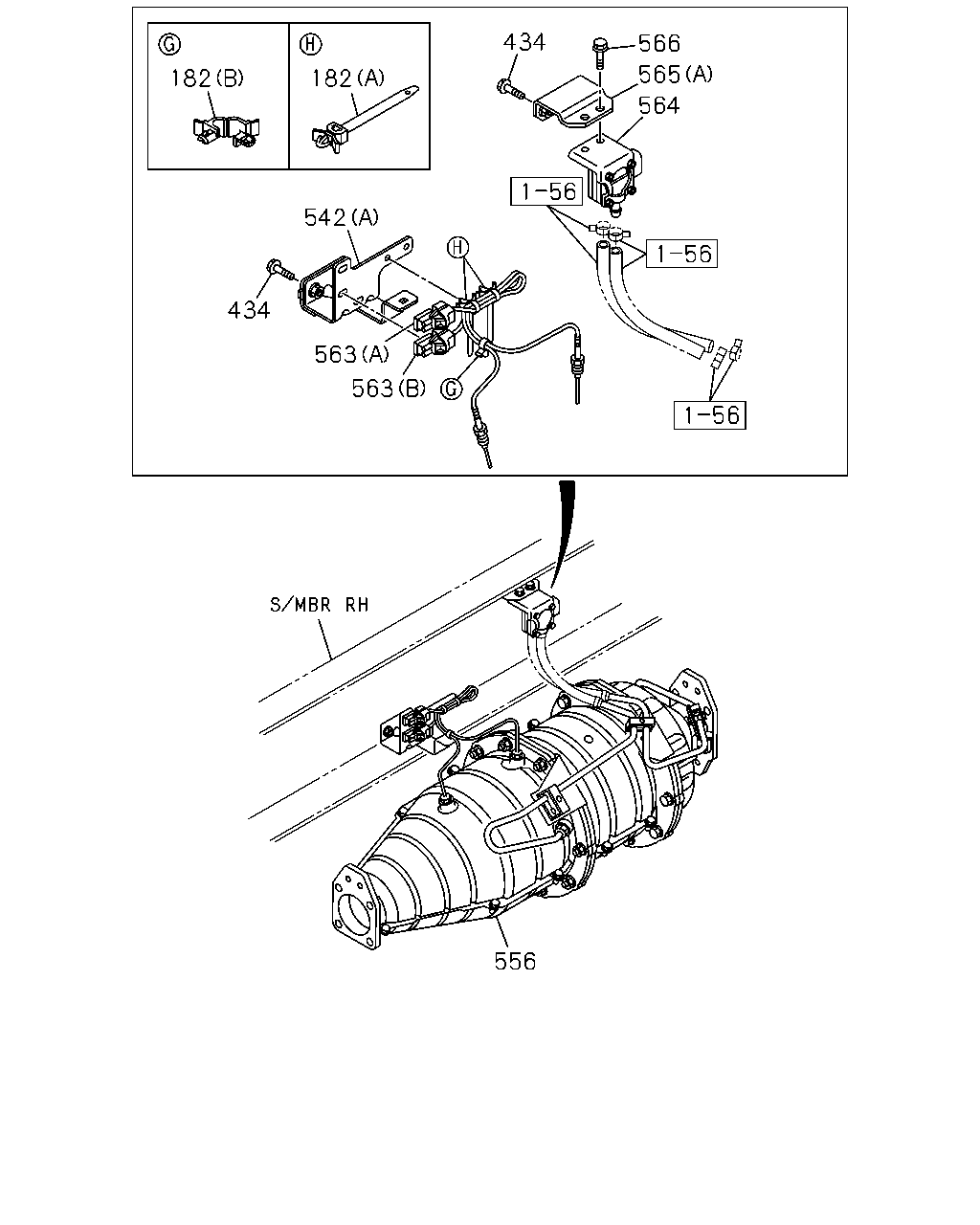

565 566 564 434 182 182 542 563 434 563 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

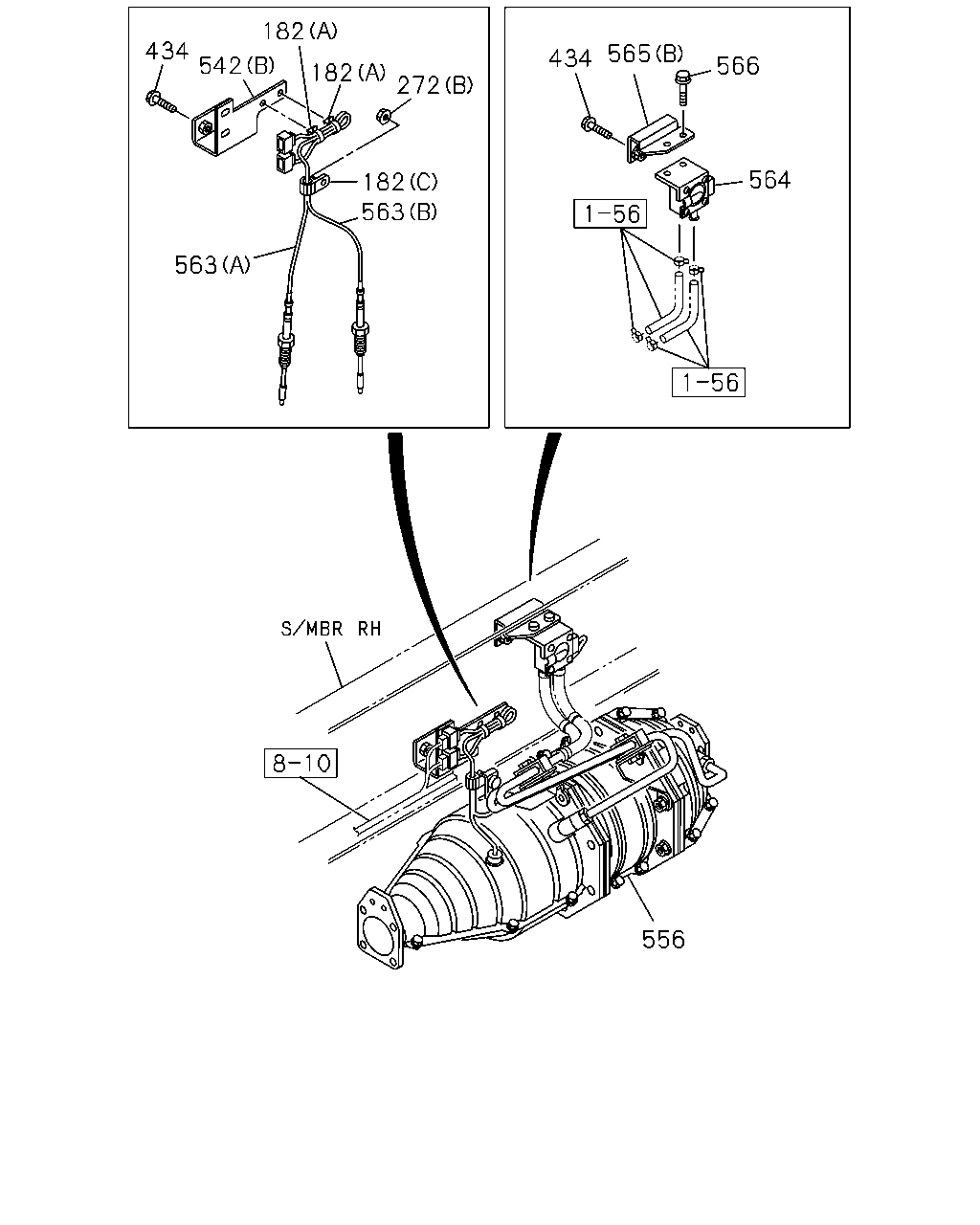

182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	02	1	1506-	●	●	●	●	●	●
182	03.682 CLIP; HARNESS (C) ID=7	8-98002-767-0	01	1	1506-	●	●
182	03.682 CLIP; HARNESS (B) ID=7 L=7.5	8-97369-561-0	01	1	1506-			●	●	●	●
434	03.613 BOLT; BRKT M/T MYY6S(RST),M/T MYY6E(Y5X) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-	●	●
434	03.613 BOLT; BRKT WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-			●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●	●	●	●	●
434	03.613 BOLT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-			●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-				●	●	●
542	03.704 BRACKET (B)	8-98004-026-1	01	1	1506-1507	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) (B)	8-98004-026-1	01	1	1508-	●	●
542	03.704 BRACKET (A)	8-98039-602-0	01	1	1506-			●	●	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1506-	●	●
556	03.701 DPD ASM	8-98084-602-4	01	1	1506-			●	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	1506-1507	●	●	●	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) (A)	8-98004-329-0	01	1	1508-	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A)	8-98004-329-0	01	1	1508-			●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (A)	8-98004-329-0	01	1	1508-				●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98004-329-0	01	1	1508-					●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCS ENG(RJS) (A)	8-98004-329-0	01	1	1508-						●
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	1506-1507	●	●	●	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) (B)	8-98004-330-0	01	1	1508-	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B)	8-98004-330-0	01	1	1508-			●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (B)	8-98004-330-0	01	1	1508-				●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98004-330-0	01	1	1508-					●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCS ENG(RJS) (B)	8-98004-330-0	01	1	1508-						●
564	01.150 SENSOR; PRESSURE,DPD	8-97359-985-2	01	1	1506-1507	●	●	●	●	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X)	8-97359-985-2	01	1	1508-	●	●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W)	8-97359-985-2	01	1	1508-			●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W)	8-97359-985-2	01	1	1508-				●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97359-985-2	01	1	1508-					●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCS ENG(RJS)	8-97359-985-2	01	1	1508-						●
565	03.706 BRACKET; SENSOR,PRESSURE (B)	8-98303-548-0	01	1	1506-1507	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) (B)	8-98303-548-0	01	1	1508-	●	●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 2700MM(27W) (A)	8-98058-423-0	01	1	1506-			●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A)	8-98029-347-0	01	1	1506-			●
565	03.706 BRACKET; SENSOR,PRESSURE (A)	8-98029-347-0	01	1	1506-				●	●	●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1506-1507	●	●	●	●	●	●
566	03.706 BOLT; SENSOR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1508-	●	●
566	03.706 BOLT; SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1508-			●
566	03.706 BOLT; SENSOR 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1508-				●
566	03.706 BOLT; SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1508-					●
566	03.706 BOLT; SENSOR 4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1508-						●

88 126 97 125 81 144 70 137 143 94 38 84 3 36 104 124 95 137 357 88 105 162 164 165 166 94 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

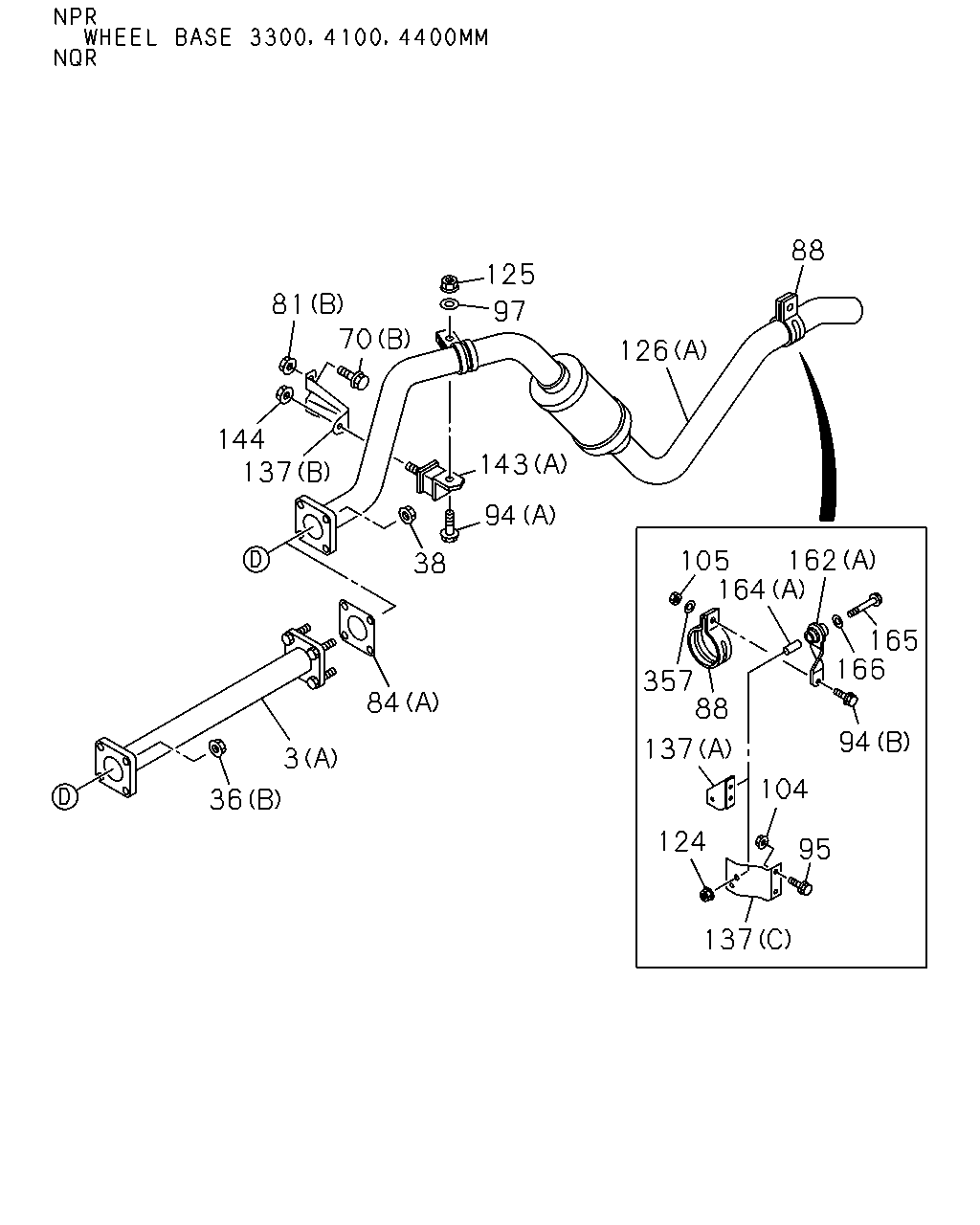

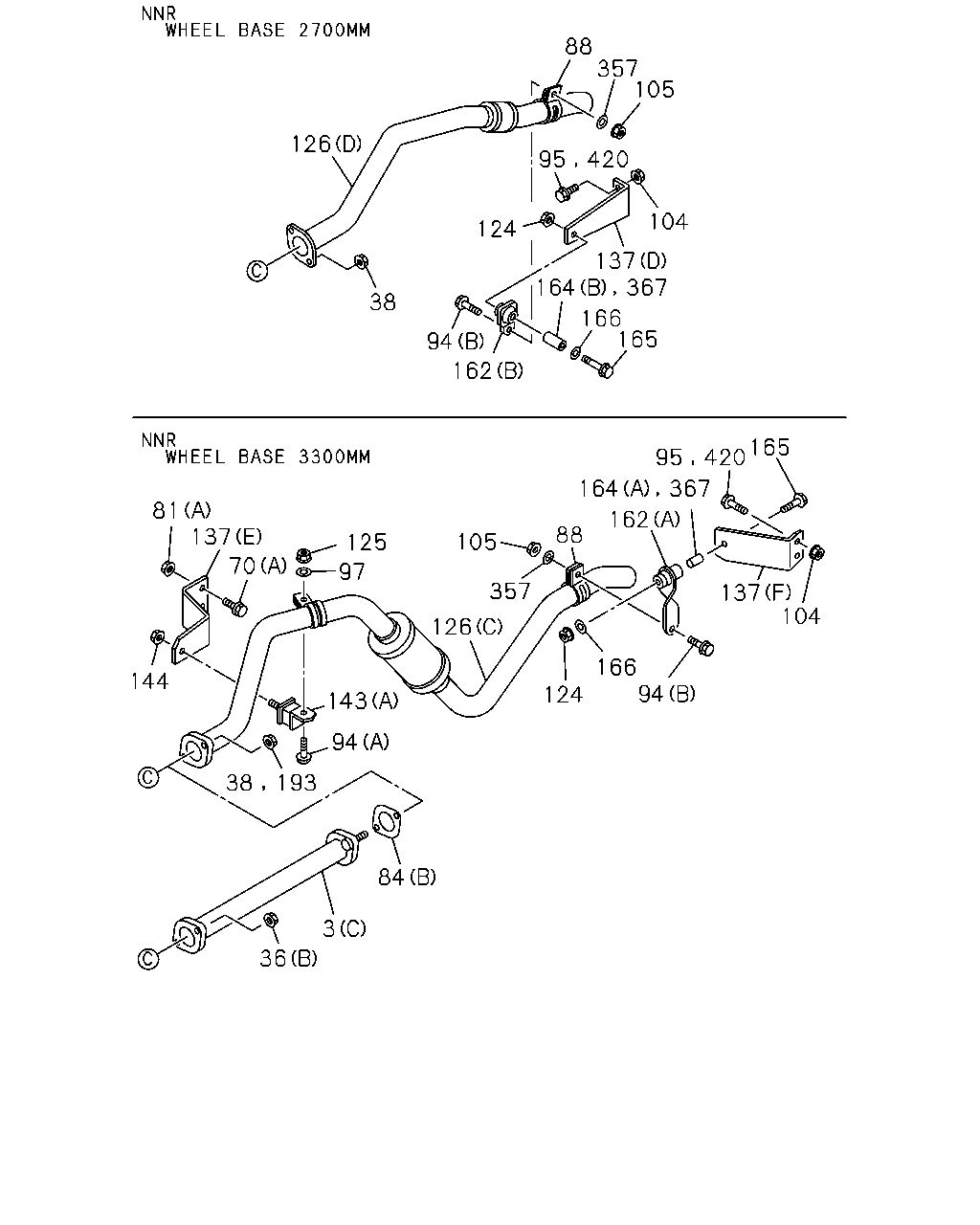

3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-98005-237-0	01	1	1506-	●
3	03.609 PIPE; EXH,CENTER (C)	8-98005-237-0	01	1	1506-		●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 2700MM(27W) (B)	8-98097-777-1	01	1	1506-			●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 4100MM(41W) (A)	8-98099-061-0	01	1	1506-			●
3	03.609 PIPE; EXH,CENTER (A)	8-98099-061-0	01	1	1506-					●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 4400MM(44W) (A)	8-98099-062-0	01	1	1506-				●
3	03.609 PIPE; EXH,CENTER (A)	8-98099-062-0	01	1	1506-						●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1506-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1506-			●
36	03.613 NUT; EXH PIPE WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1506-				●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1506-					●	●
38	00.002 NUT; SILENCER NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-		●
38	00.002 NUT; SILENCER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 M10 FLANGE	0-91180-110-0	04	1	1506-	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	04	1	1506-			●	●	●	●
70	03.706 BOLT; BRKT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
70	03.706 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1506-		●
70	03.706 BOLT; BRKT EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●
70	03.706 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-			●	●	●	●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1506-	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1506-		●
81	03.704 NUT; BRKT EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1506-	●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1506-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (B) ID=65	8-97148-757-1	01	1	1506-	●
84	03.611 GASKET; EXH PIPE (B) ID=65	8-97148-757-1	01	1	1506-		●
84	03.611 GASKET; EXH PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-			●
84	03.611 GASKET; EXH PIPE WHEEL BASE 4400MM(44W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-				●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-					●	●
88	03.708 CLAMP; EXH PIPE NOISE PACK FOR REGULATION VAR.2<7TF>	8-97373-158-0	01	1	1506-	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97373-158-0	01	1	1506-	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1506-		●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1506-		●
88	03.708 CLAMP; EXH PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98034-766-0	01	1	1506-	●
88	03.708 CLAMP; EXH PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98034-766-0	01	1	1506-	●
88	03.708 CLAMP; EXH PIPE	8-98034-766-0	01	1	1506-			●	●	●	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1506-	●	●	●	●	●	●
94	03.704 BOLT; CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1506-	●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1506-	●
94	03.704 BOLT; CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1506-	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1506-		●	●	●	●	●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-	●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-			●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-				●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
95	03.708 BOLT; BRKT WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-			●
95	03.708 BOLT; BRKT WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-				●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-		●			●	●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●
97	03.708 WASHER; PL,CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-		●	●	●	●	●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-	●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-			●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-				●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●
104	03.704 NUT; BRKT WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-			●
104	03.704 NUT; BRKT WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-				●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-		●			●	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1506-	●	●	●	●	●	●
105	03.704 NUT; CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.833 M10	0-91110-510-0	01	1	1506-	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●	●	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-			●	●	●	●
125	03.708 NUT; CLAMP WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 00.833 M10	0-91110-510-0	01	1	1506-	●
125	03.708 NUT; CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.833 M10	0-91110-510-0	01	1	1506-	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1506-		●	●	●	●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-98020-604-0	01	1	1506-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-98079-101-0	01	1	1506-	●
126	03.705 PIPE; EXH,RR (C)	8-98079-101-0	01	1	1506-		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98097-778-1	01	1	1506-			●
126	03.705 PIPE; EXH,RR WHEEL BASE 4100MM(41W) (A)	8-98099-064-0	01	1	1506-			●
126	03.705 PIPE; EXH,RR WHEEL BASE 4400MM(44W) (A)	8-98099-064-0	01	1	1506-				●
126	03.705 PIPE; EXH,RR (A)	8-98099-064-0	01	1	1506-					●	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (A)	8-98045-047-0	01	1	1506-			●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (A)	8-98045-047-0	01	1	1506-				●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97387-256-1	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (F)	8-98001-913-0	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE (F)	8-98001-913-0	01	1	1506-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (E)	8-98019-904-2	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE (E)	8-98019-904-2	01	1	1506-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (C)	8-97116-588-2	01	1	1506-			●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (C)	8-97116-588-2	01	1	1506-				●
137	03.706 BRACKET; TAIL PIPE 03.613 (B)	8-97096-651-0	01	1	1506-			●	●	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 4100MM(41W) (A)	8-97185-801-0	01	1	1506-			●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 4400MM(44W) (A)	8-97185-801-0	01	1	1506-				●
137	03.706 BRACKET; TAIL PIPE (A)	8-97185-801-0	01	1	1506-					●	●
143	03.704 RUBBER; SUPPORT (D)	8-97080-694-0	01	1	1506-	●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-98034-767-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-98034-767-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1506-		●	●	●	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	1506-			●	●	●	●
143	03.704 RUBBER; SUPPORT (B)	8-94457-278-1	01	1	1506-			●	●	●	●
144	03.613 NUT; MTG RUBBER WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●
144	03.613 NUT; MTG RUBBER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-		●	●	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> (B) L=115	8-98032-151-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) L=115	8-98034-765-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (A) L=115	8-98034-765-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) L=115	8-98034-765-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A) L=115	8-98034-765-0	01	1	1506-		●	●	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> (B) L=23	8-98006-011-0	01	1	1506-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (A) L=37.5	9-22151-217-0	01	1	1506-	●
164	03.706 COLLAR; DIST,TAIL PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) L=37.5	9-22151-217-0	01	1	1506-	●
164	03.706 COLLAR; DIST,TAIL PIPE (A) L=37.5	9-22151-217-0	01	1	1506-		●	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> M10X70 FLANGE	0-28051-070-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> M10X70 FLANGE	0-28051-070-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> M10X70 FLANGE	0-28051-070-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1506-		●	●	●	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1506-	●	●	●	●	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1506-	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●	●	●	●	●	●
357	03.708 WASHER; PL,CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●

556 467 589 467 589 580 589 467 560 559 580 558 589 560 589 589 534 547 547 534 272 561 547 582 272 272 582 547 561 557

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

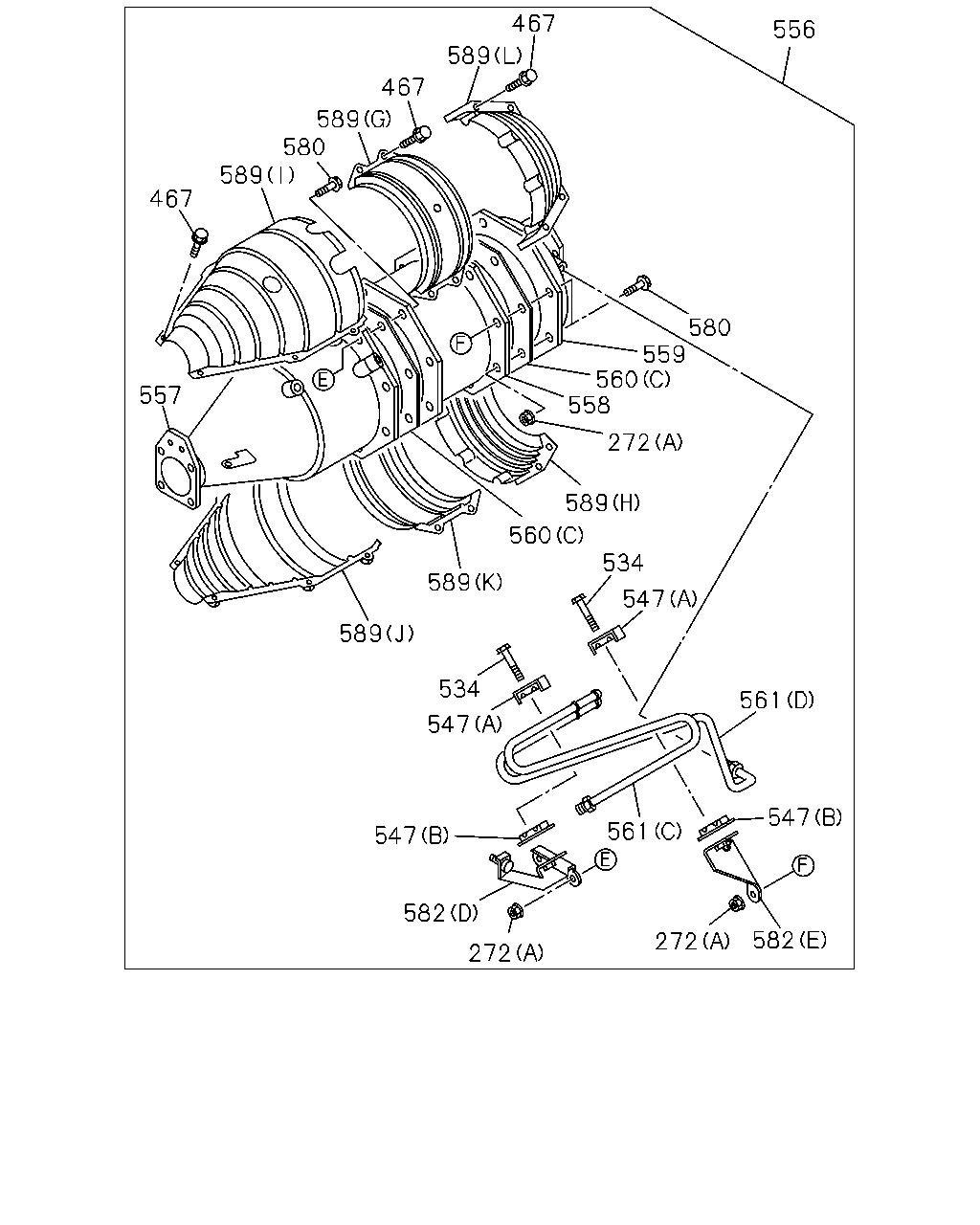

272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1506-	●	●
272	03.685 NUT; FLANGE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1506-	●	●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	20	1	1506-			●	●	●	●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	1506-	●	●	●	●	●	●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1506-	●	●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	03	1	1506-			●	●	●	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	02	1	1506-	●	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	02	1	1506-	●	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	03	1	1506-			●	●	●	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	03	1	1506-			●	●	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1506-	●	●
556	03.701 DPD ASM	8-98084-602-4	01	1	1506-			●	●	●	●
557	03.701 CATALYST ASM	8-98036-815-7	01	1	1506-	●	●
557	03.701 CATALYST ASM	8-97608-055-8	01	1	1506-			●	●	●	●
558	03.634 FILTER ASM	8-98032-908-2	01	1	1506-	●	●
558	03.634 FILTER ASM	8-97608-057-3	01	1	1506-			●	●	●	●
559	03.602 COVER; RR	8-98093-507-0	01	1	1506-	●	●
559	03.602 COVER; RR	8-97622-887-0	01	1	1506-			●	●	●	●
560	03.611 GASKET; DPD (C)	8-97331-947-0	02	1	1506-	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1506-	●	●
560	03.611 GASKET; DPD (B)	1-22116-040-0	01	1	1506-			●	●	●	●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	1506-			●	●	●	●
561	03.609 PIPE; DPD (C)	8-98084-600-0	01	1	1506-	●	●
561	03.609 PIPE; DPD (D)	8-98084-601-0	01	1	1506-	●	●
561	03.609 PIPE; DPD (A)	8-98084-603-0	01	1	1506-			●	●	●	●
561	03.609 PIPE; DPD (B)	8-98084-604-0	01	1	1506-			●	●	●	●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	1506-	●	●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	20	1	1506-			●	●	●	●
582	03.706 BRACKET; PIPE (D)	8-98032-919-0	01	1	1506-	●	●
582	03.706 BRACKET; PIPE (E)	8-98032-920-0	01	1	1506-	●	●
582	03.706 BRACKET; PIPE (A)	8-97611-083-0	01	1	1506-			●	●	●	●
582	03.706 BRACKET; PIPE (B)	8-97611-084-0	01	1	1506-			●	●	●	●
582	03.706 BRACKET; PIPE (C)	8-97611-085-0	01	1	1506-			●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (G)	8-97383-660-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (H)	8-97383-663-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (I)	8-98032-921-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (J)	8-98032-923-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (K)	8-98032-924-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (L)	8-98032-926-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (A)	8-97605-172-0	01	1	1506-			●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (B)	8-97611-086-0	01	1	1506-			●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97611-087-0	01	1	1506-			●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (D)	8-97611-088-0	01	1	1506-			●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (E)	8-97611-089-0	01	1	1506-			●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97613-390-0	01	1	1506-			●	●	●	●

566 565 434 564 182 182 542 434 272 182 563 563 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	02	1	1506-	●	●	●	●	●	●
182	03.682 CLIP; HARNESS (C) ID=7	8-98002-767-0	01	1	1506-	●	●
182	03.682 CLIP; HARNESS (B) ID=7 L=7.5	8-97369-561-0	01	1	1506-			●	●	●	●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1506-	●	●
272	03.685 NUT; FLANGE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1506-	●	●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	20	1	1506-			●	●	●	●
434	03.613 BOLT; BRKT M/T MYY6S(RST),M/T MYY6E(Y5X) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-	●	●
434	03.613 BOLT; BRKT WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-			●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●	●	●	●	●
434	03.613 BOLT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-			●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-				●	●	●
542	03.704 BRACKET (B)	8-98004-026-1	01	1	1506-1507	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) (B)	8-98004-026-1	01	1	1508-	●	●
542	03.704 BRACKET (A)	8-98039-602-0	01	1	1506-			●	●	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1506-	●	●
556	03.701 DPD ASM	8-98084-602-4	01	1	1506-			●	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	1506-1507	●	●	●	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) (A)	8-98004-329-0	01	1	1508-	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A)	8-98004-329-0	01	1	1508-			●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (A)	8-98004-329-0	01	1	1508-				●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98004-329-0	01	1	1508-					●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCS ENG(RJS) (A)	8-98004-329-0	01	1	1508-						●
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	1506-1507	●	●	●	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) (B)	8-98004-330-0	01	1	1508-	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B)	8-98004-330-0	01	1	1508-			●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (B)	8-98004-330-0	01	1	1508-				●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98004-330-0	01	1	1508-					●
563	01.150 SENSOR; TEMPERATURE,DPD 4HK1-TCS ENG(RJS) (B)	8-98004-330-0	01	1	1508-						●
564	01.150 SENSOR; PRESSURE,DPD	8-97359-985-2	01	1	1506-1507	●	●	●	●	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X)	8-97359-985-2	01	1	1508-	●	●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W)	8-97359-985-2	01	1	1508-			●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W)	8-97359-985-2	01	1	1508-				●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97359-985-2	01	1	1508-					●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCS ENG(RJS)	8-97359-985-2	01	1	1508-						●
565	03.706 BRACKET; SENSOR,PRESSURE (B)	8-98303-548-0	01	1	1506-1507	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) (B)	8-98303-548-0	01	1	1508-	●	●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 2700MM(27W) (A)	8-98058-423-0	01	1	1506-			●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A)	8-98029-347-0	01	1	1506-			●
565	03.706 BRACKET; SENSOR,PRESSURE (A)	8-98029-347-0	01	1	1506-				●	●	●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1506-1507	●	●	●	●	●	●
566	03.706 BOLT; SENSOR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST),M/T MYY6E(Y5X) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1508-	●	●
566	03.706 BOLT; SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1508-			●
566	03.706 BOLT; SENSOR 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1508-				●
566	03.706 BOLT; SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1508-					●
566	03.706 BOLT; SENSOR 4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1508-						●

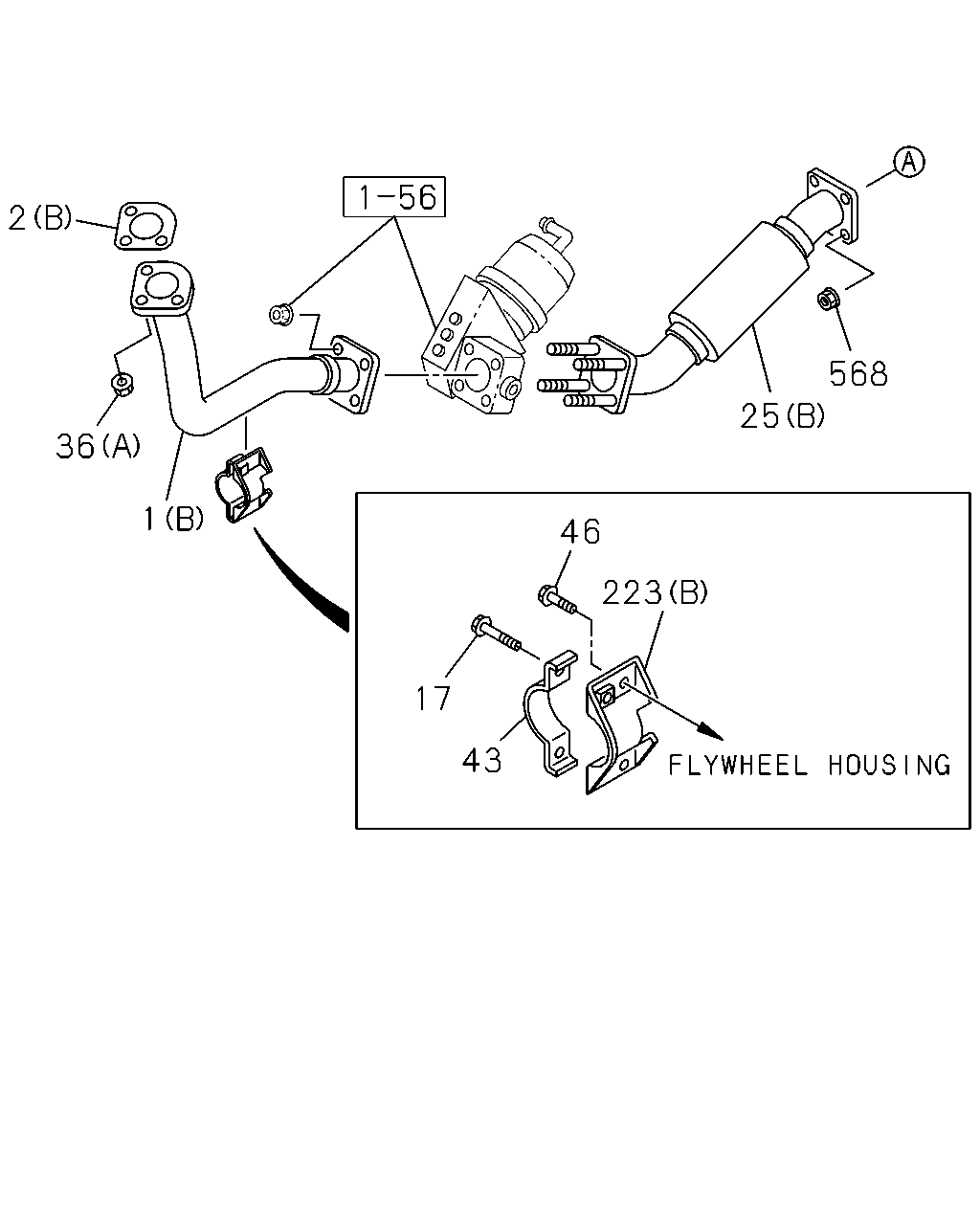

2 36 1 46 17 223 43 25 568

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.609 PIPE; EXH (B)	8-98026-060-0	01	1	1506-	●	●
1	03.609 PIPE; EXH (A)	8-98006-765-2	01	1	1506-			●	●	●	●
2	03.611 GASKET; PIPE TO MANIF (B)	8-97384-590-0	01	1	1506-	●	●
2	03.611 GASKET; PIPE TO MANIF (A)	8-97381-455-0	01	1	1506-			●	●	●	●
17	03.613 BOLT; EXH PIPE 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●	●	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER (B)	8-98026-062-2	01	1	1506-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER FRAME STRAIGHT TYPE<7KJ> (A)	8-98006-766-0	01	1	1506-			●		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER (A)	8-98006-766-0	01	1	1506-				●		●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1506-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1506-			●
36	03.613 NUT; EXH PIPE WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1506-				●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1506-					●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1506-	●	●	●	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 02.042 M10X25 FLANGE	0-28151-025-0	02	1	1506-	●	●
223	03.706 BRACKET; EXH PIPE 03.613 (B)	8-98026-063-0	01	1	1506-	●	●
223	03.706 BRACKET; EXH PIPE 03.613 (A)	8-98020-555-0	01	1	1506-			●	●	●	●
568	03.704 NUT; DPD 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	04	1	1506-	●	●
568	03.704 NUT; DPD 02.042 M12 FLANGE	0-91180-112-0	04	1	1506-			●	●	●	●

460 377 574 143 532 88 124 385 12 14 200 385 24 143 121 122 124 104 95 137 165 94 162 166 164 105 357 84 36 3 94 143 144 137 70 81 125 97 38 88 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-98005-237-0	01	1	1506-	●
3	03.609 PIPE; EXH,CENTER (C)	8-98005-237-0	01	1	1506-		●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 2700MM(27W) (B)	8-98097-777-1	01	1	1506-			●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 4100MM(41W) (A)	8-98099-061-0	01	1	1506-			●
3	03.609 PIPE; EXH,CENTER (A)	8-98099-061-0	01	1	1506-					●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 4400MM(44W) (A)	8-98099-062-0	01	1	1506-				●
3	03.609 PIPE; EXH,CENTER (A)	8-98099-062-0	01	1	1506-						●
12	03.701 SILENCER ASM; EXH (C)	8-98254-780-0	01	1	1506-	●	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2700MM(27W) (B)	8-98097-779-0	01	1	1506-			●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A)	8-98020-562-1	01	1	1506-			●
12	03.701 SILENCER ASM; EXH (A)	8-98020-562-1	01	1	1506-				●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE NOISE PACK FOR REGULATION VAR.2<7TF> 03.611 (B) ID=65	8-97148-757-1	01	1	1506-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (B) ID=65	8-97148-757-1	01	1	1506-		●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) ID=85.8	1-22116-043-0	01	1	1506-	●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=85.8	1-22116-043-0	01	1	1506-			●	●	●	●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	1506-			●	●	●	●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1506-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1506-			●
36	03.613 NUT; EXH PIPE WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1506-				●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1506-					●	●
38	00.002 NUT; SILENCER NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-		●
38	00.002 NUT; SILENCER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 M10 FLANGE	0-91180-110-0	04	1	1506-	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	04	1	1506-			●	●	●	●
70	03.706 BOLT; BRKT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
70	03.706 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1506-		●
70	03.706 BOLT; BRKT EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●
70	03.706 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-			●	●	●	●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1506-	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1506-		●
81	03.704 NUT; BRKT EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1506-	●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1506-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (B) ID=65	8-97148-757-1	01	1	1506-	●
84	03.611 GASKET; EXH PIPE (B) ID=65	8-97148-757-1	01	1	1506-		●
84	03.611 GASKET; EXH PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-			●
84	03.611 GASKET; EXH PIPE WHEEL BASE 4400MM(44W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-				●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-					●	●
88	03.708 CLAMP; EXH PIPE NOISE PACK FOR REGULATION VAR.2<7TF>	8-97373-158-0	01	1	1506-	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97373-158-0	01	1	1506-	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1506-		●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1506-		●
88	03.708 CLAMP; EXH PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98034-766-0	01	1	1506-	●
88	03.708 CLAMP; EXH PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98034-766-0	01	1	1506-	●
88	03.708 CLAMP; EXH PIPE	8-98034-766-0	01	1	1506-			●	●	●	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1506-	●	●	●	●	●	●
94	03.704 BOLT; CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1506-	●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1506-	●
94	03.704 BOLT; CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1506-	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1506-		●	●	●	●	●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-	●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-			●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-				●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
95	03.708 BOLT; BRKT WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-			●
95	03.708 BOLT; BRKT WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-				●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-		●			●	●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●
97	03.708 WASHER; PL,CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-		●	●	●	●	●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-	●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-			●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-				●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●
104	03.704 NUT; BRKT WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-			●
104	03.704 NUT; BRKT WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-				●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-		●			●	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1506-	●	●	●	●	●	●
105	03.704 NUT; CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.833 M10	0-91110-510-0	01	1	1506-	●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	1506-			●	●	●	●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	1506-			●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●	●	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-			●	●	●	●
125	03.708 NUT; CLAMP WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 00.833 M10	0-91110-510-0	01	1	1506-	●
125	03.708 NUT; CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.833 M10	0-91110-510-0	01	1	1506-	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1506-		●	●	●	●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-98020-604-0	01	1	1506-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-98079-101-0	01	1	1506-	●
126	03.705 PIPE; EXH,RR (C)	8-98079-101-0	01	1	1506-		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98097-778-1	01	1	1506-			●
126	03.705 PIPE; EXH,RR WHEEL BASE 4100MM(41W) (A)	8-98099-064-0	01	1	1506-			●
126	03.705 PIPE; EXH,RR WHEEL BASE 4400MM(44W) (A)	8-98099-064-0	01	1	1506-				●
126	03.705 PIPE; EXH,RR (A)	8-98099-064-0	01	1	1506-					●	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (A)	8-98045-047-0	01	1	1506-			●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (A)	8-98045-047-0	01	1	1506-				●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97387-256-1	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (F)	8-98001-913-0	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE (F)	8-98001-913-0	01	1	1506-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (E)	8-98019-904-2	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE (E)	8-98019-904-2	01	1	1506-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (C)	8-97116-588-2	01	1	1506-			●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (C)	8-97116-588-2	01	1	1506-				●
137	03.706 BRACKET; TAIL PIPE 03.613 (B)	8-97096-651-0	01	1	1506-			●	●	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 4100MM(41W) (A)	8-97185-801-0	01	1	1506-			●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 4400MM(44W) (A)	8-97185-801-0	01	1	1506-				●
137	03.706 BRACKET; TAIL PIPE (A)	8-97185-801-0	01	1	1506-					●	●
143	03.704 RUBBER; SUPPORT (D)	8-97080-694-0	01	1	1506-	●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-98034-767-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-98034-767-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1506-		●	●	●	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	1506-			●	●	●	●
143	03.704 RUBBER; SUPPORT (B)	8-94457-278-1	01	1	1506-			●	●	●	●
144	03.613 NUT; MTG RUBBER WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●
144	03.613 NUT; MTG RUBBER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-		●	●	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> (B) L=115	8-98032-151-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) L=115	8-98034-765-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (A) L=115	8-98034-765-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) L=115	8-98034-765-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A) L=115	8-98034-765-0	01	1	1506-		●	●	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> (B) L=23	8-98006-011-0	01	1	1506-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (A) L=37.5	9-22151-217-0	01	1	1506-	●
164	03.706 COLLAR; DIST,TAIL PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) L=37.5	9-22151-217-0	01	1	1506-	●
164	03.706 COLLAR; DIST,TAIL PIPE (A) L=37.5	9-22151-217-0	01	1	1506-		●	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> M10X70 FLANGE	0-28051-070-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> M10X70 FLANGE	0-28051-070-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> M10X70 FLANGE	0-28051-070-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1506-		●	●	●	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1506-	●	●	●	●	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1506-	●
200	03.704 BOLT; SUPPORT RUBBER 00.685 M10X40 FLANGE	0-28051-040-0	01	1	1506-			●	●	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●	●	●	●	●	●
357	03.708 WASHER; PL,CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●
377	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> 01.062 M8 FLANGE	0-91180-108-0	04	1	1506-			●
377	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-			●
377	03.704 NUT; BRKT WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-			●
377	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-					●
377	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-			●
377	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-				●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (F)	8-98001-889-1	01	1	1506-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (E)	8-97387-251-1	01	1	1506-	●
385	03.704 BRACKET; SILENCER MTG (E)	8-97387-251-1	01	1	1506-		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> (D)	8-98122-620-0	01	1	1506-			●
385	03.704 BRACKET; SILENCER MTG (A)	8-98006-776-1	01	1	1506-			●	●	●	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (C)	8-98006-774-0	01	1	1506-			●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (C)	8-98006-774-0	01	1	1506-				●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> (B)	8-98073-376-0	01	1	1506-			●
385	03.704 BRACKET; SILENCER MTG (B)	8-98073-376-0	01	1	1506-					●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 4400MM(44W) (G)	8-98073-377-0	01	1	1506-				●
385	03.704 BRACKET; SILENCER MTG (G)	8-98073-377-0	01	1	1506-						●
460	03.609 PLATE; EXH PIPE WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02>	8-98122-619-0	01	1	1506-			●
532	03.704 NUT WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-1507	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-1507			●		●
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-1507				●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-	●
532	03.704 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-			●
532	03.704 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-			●
532	03.704 NUT 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-				●
532	03.704 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-					●
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-		●
532	03.704 NUT WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-				●
532	03.704 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-						●
574	03.706 SPACER; DPD WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> (B)	8-98122-618-0	01	1	1506-			●
574	03.706 SPACER; DPD WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (A)	8-98044-774-0	01	1	1506-			●
574	03.706 SPACER; DPD WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> (A)	8-98044-774-0	01	1	1506-			●
574	03.706 SPACER; DPD (A)	8-98044-774-0	01	1	1506-					●
574	03.706 SPACER; DPD WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> (A)	8-98078-962-1	01	1	1506-			●
574	03.706 SPACER; DPD WHEEL BASE 3300MM(33W) (A)	8-98078-962-1	01	1	1506-				●

556 534 467 547 547 582 559 560 580 558 560 589 589 467 589 547 582 534 547 272 547 547 582 589 589 272 589 561 561 534 580 580 557

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1506-	●	●
272	03.685 NUT; FLANGE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1506-	●	●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	20	1	1506-			●	●	●	●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	1506-	●	●	●	●	●	●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1506-	●	●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	03	1	1506-			●	●	●	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	02	1	1506-	●	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	02	1	1506-	●	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	03	1	1506-			●	●	●	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	03	1	1506-			●	●	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1506-	●	●
556	03.701 DPD ASM	8-98084-602-4	01	1	1506-			●	●	●	●
557	03.701 CATALYST ASM	8-98036-815-7	01	1	1506-	●	●
557	03.701 CATALYST ASM	8-97608-055-8	01	1	1506-			●	●	●	●
558	03.634 FILTER ASM	8-98032-908-2	01	1	1506-	●	●
558	03.634 FILTER ASM	8-97608-057-3	01	1	1506-			●	●	●	●
559	03.602 COVER; RR	8-98093-507-0	01	1	1506-	●	●
559	03.602 COVER; RR	8-97622-887-0	01	1	1506-			●	●	●	●
560	03.611 GASKET; DPD (C)	8-97331-947-0	02	1	1506-	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1506-	●	●
560	03.611 GASKET; DPD (B)	1-22116-040-0	01	1	1506-			●	●	●	●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	1506-			●	●	●	●
561	03.609 PIPE; DPD (C)	8-98084-600-0	01	1	1506-	●	●
561	03.609 PIPE; DPD (D)	8-98084-601-0	01	1	1506-	●	●
561	03.609 PIPE; DPD (A)	8-98084-603-0	01	1	1506-			●	●	●	●
561	03.609 PIPE; DPD (B)	8-98084-604-0	01	1	1506-			●	●	●	●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	1506-	●	●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	20	1	1506-			●	●	●	●
582	03.706 BRACKET; PIPE (D)	8-98032-919-0	01	1	1506-	●	●
582	03.706 BRACKET; PIPE (E)	8-98032-920-0	01	1	1506-	●	●
582	03.706 BRACKET; PIPE (A)	8-97611-083-0	01	1	1506-			●	●	●	●
582	03.706 BRACKET; PIPE (B)	8-97611-084-0	01	1	1506-			●	●	●	●
582	03.706 BRACKET; PIPE (C)	8-97611-085-0	01	1	1506-			●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (G)	8-97383-660-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (H)	8-97383-663-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (I)	8-98032-921-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (J)	8-98032-923-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (K)	8-98032-924-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (L)	8-98032-926-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (A)	8-97605-172-0	01	1	1506-			●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (B)	8-97611-086-0	01	1	1506-			●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97611-087-0	01	1	1506-			●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (D)	8-97611-088-0	01	1	1506-			●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (E)	8-97611-089-0	01	1	1506-			●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97613-390-0	01	1	1506-			●	●	●	●

122 121 143 24 385 143 385 14 12 115 579 352 115 117 118 113 376 118 117 115 578 113 115 81 577 576 337 44 560 556 562 376 570 329 84 532 200 124 574 377 532 385 385 385 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	03.701 SILENCER ASM; EXH (C)	8-98254-780-0	01	1	1506-	●	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2700MM(27W) (B)	8-98097-779-0	01	1	1506-			●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A)	8-98020-562-1	01	1	1506-			●
12	03.701 SILENCER ASM; EXH (A)	8-98020-562-1	01	1	1506-				●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE NOISE PACK FOR REGULATION VAR.2<7TF> 03.611 (B) ID=65	8-97148-757-1	01	1	1506-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (B) ID=65	8-97148-757-1	01	1	1506-		●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) ID=85.8	1-22116-043-0	01	1	1506-	●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=85.8	1-22116-043-0	01	1	1506-			●	●	●	●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	1506-			●	●	●	●
44	03.613 BOLT; BRKT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1506-	●	●	●	●	●	●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1506-	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1506-		●
81	03.704 NUT; BRKT EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1506-	●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1506-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (B) ID=65	8-97148-757-1	01	1	1506-	●
84	03.611 GASKET; EXH PIPE (B) ID=65	8-97148-757-1	01	1	1506-		●
84	03.611 GASKET; EXH PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-			●
84	03.611 GASKET; EXH PIPE WHEEL BASE 4400MM(44W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-				●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-					●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1506-	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	03	1	1506-			●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1506-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1506-	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	03	1	1506-			●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	03	1	1506-			●	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1506-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	03	1	1506-			●	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1506-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	03	1	1506-			●	●	●	●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	1506-			●	●	●	●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	1506-			●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●	●	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-			●	●	●	●
143	03.704 RUBBER; SUPPORT (D)	8-97080-694-0	01	1	1506-	●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-98034-767-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-98034-767-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1506-		●	●	●	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	1506-			●	●	●	●
143	03.704 RUBBER; SUPPORT (B)	8-94457-278-1	01	1	1506-			●	●	●	●
172	03.708 BOLT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-	●
172	03.708 BOLT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-		●
172	03.708 BOLT WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-				●
172	03.708 BOLT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-						●
200	03.704 BOLT; SUPPORT RUBBER 00.685 M10X40 FLANGE	0-28051-040-0	01	1	1506-			●	●	●	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	04	1	1506-			●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1506-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-			●	●	●	●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●	●	●	●	●
376	03.708 BOLT; BRKT 03.690 (C)	8-98005-985-0	01	1	1506-	●	●
376	03.708 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1506-			●	●	●	●
377	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> 01.062 M8 FLANGE	0-91180-108-0	04	1	1506-			●
377	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-			●
377	03.704 NUT; BRKT WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-			●
377	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-					●
377	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-			●
377	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-				●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (F)	8-98001-889-1	01	1	1506-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (E)	8-97387-251-1	01	1	1506-	●
385	03.704 BRACKET; SILENCER MTG (E)	8-97387-251-1	01	1	1506-		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> (D)	8-98122-620-0	01	1	1506-			●
385	03.704 BRACKET; SILENCER MTG (A)	8-98006-776-1	01	1	1506-			●	●	●	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (C)	8-98006-774-0	01	1	1506-			●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (C)	8-98006-774-0	01	1	1506-				●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> (B)	8-98073-376-0	01	1	1506-			●
385	03.704 BRACKET; SILENCER MTG (B)	8-98073-376-0	01	1	1506-					●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 4400MM(44W) (G)	8-98073-377-0	01	1	1506-				●
385	03.704 BRACKET; SILENCER MTG (G)	8-98073-377-0	01	1	1506-						●
532	03.704 NUT WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-1507	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-1507			●		●
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-1507				●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-	●
532	03.704 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-			●
532	03.704 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-			●
532	03.704 NUT 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-				●
532	03.704 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-					●
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-		●
532	03.704 NUT WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-				●
532	03.704 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-						●
556	03.701 DPD ASM	8-98084-595-4	01	1	1506-	●	●
556	03.701 DPD ASM	8-98084-602-4	01	1	1506-			●	●	●	●
560	03.611 GASKET; DPD (C)	8-97331-947-0	02	1	1506-	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1506-	●	●
560	03.611 GASKET; DPD (B)	1-22116-040-0	01	1	1506-			●	●	●	●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	1506-			●	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (C)	8-97373-966-0	02	1	1506-	●	●
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1506-			●	●	●	●
562	03.690 PLATE; STUD,BOLT (B)	8-98030-175-0	01	1	1506-			●	●	●	●
570	03.704 ADAPTER; EXH PIPE	8-98073-373-0	01	1	1506-			●	●	●	●
574	03.706 SPACER; DPD WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> (B)	8-98122-618-0	01	1	1506-			●
574	03.706 SPACER; DPD WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (A)	8-98044-774-0	01	1	1506-			●
574	03.706 SPACER; DPD WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> (A)	8-98044-774-0	01	1	1506-			●
574	03.706 SPACER; DPD (A)	8-98044-774-0	01	1	1506-					●
574	03.706 SPACER; DPD WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> (A)	8-98078-962-1	01	1	1506-			●
574	03.706 SPACER; DPD WHEEL BASE 3300MM(33W) (A)	8-98078-962-1	01	1	1506-				●
576	03.706 BRACKET; DPD FRT TO FRAME (C)	8-97387-245-0	01	1	1506-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2700MM(27W) (A)	8-98122-616-0	01	1	1506-			●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B)	8-98006-770-0	01	1	1506-			●
576	03.706 BRACKET; DPD FRT TO FRAME (B)	8-98006-770-0	01	1	1506-				●	●	●
577	03.706 BRACKET; DPD RR TO FRAME (C)	8-97387-246-2	01	1	1506-	●	●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2700MM(27W) (A)	8-98124-656-0	01	1	1506-			●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B)	8-98048-292-1	01	1	1506-			●
577	03.706 BRACKET; DPD RR TO FRAME (B)	8-98048-292-1	01	1	1506-				●	●	●
578	03.706 BRACKET; DPD FRT (B)	8-97387-248-1	01	1	1506-	●	●
578	03.706 BRACKET; DPD FRT (A)	8-98048-296-0	01	1	1506-			●	●	●	●
579	03.704 BRACKET; DPD RR (C)	8-97387-249-1	01	1	1506-	●	●
579	03.704 BRACKET; DPD RR WHEEL BASE 2700MM(27W) (A)	8-98124-658-0	01	1	1506-			●
579	03.704 BRACKET; DPD RR WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B)	8-98048-300-1	01	1	1506-			●
579	03.704 BRACKET; DPD RR (B)	8-98048-300-1	01	1	1506-				●	●	●

104 105 357 88 420 95 124 126 367 137 164 165 166 162 94 38 137 165 420 367 164 95 162 104 94 166 124 357 105 126 125 97 70 137 81 144 143 94 193 38 84 3 36 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-98005-237-0	01	1	1506-	●
3	03.609 PIPE; EXH,CENTER (C)	8-98005-237-0	01	1	1506-		●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 2700MM(27W) (B)	8-98097-777-1	01	1	1506-			●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 4100MM(41W) (A)	8-98099-061-0	01	1	1506-			●
3	03.609 PIPE; EXH,CENTER (A)	8-98099-061-0	01	1	1506-					●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 4400MM(44W) (A)	8-98099-062-0	01	1	1506-				●
3	03.609 PIPE; EXH,CENTER (A)	8-98099-062-0	01	1	1506-						●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1506-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1506-			●
36	03.613 NUT; EXH PIPE WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1506-				●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1506-					●	●
38	00.002 NUT; SILENCER NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-		●
38	00.002 NUT; SILENCER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 M10 FLANGE	0-91180-110-0	04	1	1506-	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	04	1	1506-			●	●	●	●
70	03.706 BOLT; BRKT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
70	03.706 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1506-		●
70	03.706 BOLT; BRKT EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●
70	03.706 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-			●	●	●	●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1506-	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1506-		●
81	03.704 NUT; BRKT EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1506-	●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1506-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (B) ID=65	8-97148-757-1	01	1	1506-	●
84	03.611 GASKET; EXH PIPE (B) ID=65	8-97148-757-1	01	1	1506-		●
84	03.611 GASKET; EXH PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-			●
84	03.611 GASKET; EXH PIPE WHEEL BASE 4400MM(44W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-				●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1506-					●	●
88	03.708 CLAMP; EXH PIPE NOISE PACK FOR REGULATION VAR.2<7TF>	8-97373-158-0	01	1	1506-	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97373-158-0	01	1	1506-	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1506-		●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1506-		●
88	03.708 CLAMP; EXH PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98034-766-0	01	1	1506-	●
88	03.708 CLAMP; EXH PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98034-766-0	01	1	1506-	●
88	03.708 CLAMP; EXH PIPE	8-98034-766-0	01	1	1506-			●	●	●	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1506-	●	●	●	●	●	●
94	03.704 BOLT; CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1506-	●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1506-	●
94	03.704 BOLT; CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1506-	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1506-		●	●	●	●	●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-	●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-			●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-				●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
95	03.708 BOLT; BRKT WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-			●
95	03.708 BOLT; BRKT WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-				●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-		●			●	●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●
97	03.708 WASHER; PL,CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-		●	●	●	●	●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-	●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-			●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-				●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●
104	03.704 NUT; BRKT WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-			●
104	03.704 NUT; BRKT WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-				●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-		●			●	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1506-	●	●	●	●	●	●
105	03.704 NUT; CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.833 M10	0-91110-510-0	01	1	1506-	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●	●	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-			●	●	●	●
125	03.708 NUT; CLAMP WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 00.833 M10	0-91110-510-0	01	1	1506-	●
125	03.708 NUT; CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.833 M10	0-91110-510-0	01	1	1506-	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1506-		●	●	●	●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-98020-604-0	01	1	1506-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-98079-101-0	01	1	1506-	●
126	03.705 PIPE; EXH,RR (C)	8-98079-101-0	01	1	1506-		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98097-778-1	01	1	1506-			●
126	03.705 PIPE; EXH,RR WHEEL BASE 4100MM(41W) (A)	8-98099-064-0	01	1	1506-			●
126	03.705 PIPE; EXH,RR WHEEL BASE 4400MM(44W) (A)	8-98099-064-0	01	1	1506-				●
126	03.705 PIPE; EXH,RR (A)	8-98099-064-0	01	1	1506-					●	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (A)	8-98045-047-0	01	1	1506-			●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (A)	8-98045-047-0	01	1	1506-				●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97387-256-1	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (F)	8-98001-913-0	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE (F)	8-98001-913-0	01	1	1506-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (E)	8-98019-904-2	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE (E)	8-98019-904-2	01	1	1506-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (C)	8-97116-588-2	01	1	1506-			●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (C)	8-97116-588-2	01	1	1506-				●
137	03.706 BRACKET; TAIL PIPE 03.613 (B)	8-97096-651-0	01	1	1506-			●	●	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 4100MM(41W) (A)	8-97185-801-0	01	1	1506-			●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 4400MM(44W) (A)	8-97185-801-0	01	1	1506-				●
137	03.706 BRACKET; TAIL PIPE (A)	8-97185-801-0	01	1	1506-					●	●
143	03.704 RUBBER; SUPPORT (D)	8-97080-694-0	01	1	1506-	●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-98034-767-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-98034-767-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1506-		●	●	●	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	1506-			●	●	●	●
143	03.704 RUBBER; SUPPORT (B)	8-94457-278-1	01	1	1506-			●	●	●	●
144	03.613 NUT; MTG RUBBER WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●
144	03.613 NUT; MTG RUBBER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-		●	●	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> (B) L=115	8-98032-151-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) L=115	8-98034-765-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (A) L=115	8-98034-765-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) L=115	8-98034-765-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A) L=115	8-98034-765-0	01	1	1506-		●	●	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> (B) L=23	8-98006-011-0	01	1	1506-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> (A) L=37.5	9-22151-217-0	01	1	1506-	●
164	03.706 COLLAR; DIST,TAIL PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) L=37.5	9-22151-217-0	01	1	1506-	●
164	03.706 COLLAR; DIST,TAIL PIPE (A) L=37.5	9-22151-217-0	01	1	1506-		●	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2700MM(27W) NOISE PACK FOR REGULATION VAR.2<7TF> 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> M10X70 FLANGE	0-28051-070-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) NOISE PACK FOR REGULATION VAR.2<7TF> M10X70 FLANGE	0-28051-070-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> M10X70 FLANGE	0-28051-070-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1506-		●	●	●	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1506-	●	●	●	●	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1506-	●
193	03.704 NUT; BRKT,VERTICAL PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●	●	●	●	●	●
357	03.708 WASHER; PL,CLAMP EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.706 L=37.5	9-22151-217-0	01	1	1506-	●
420	03.704 BOLT; BRKT,VERTICAL PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
