Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#162797) — 432 parça

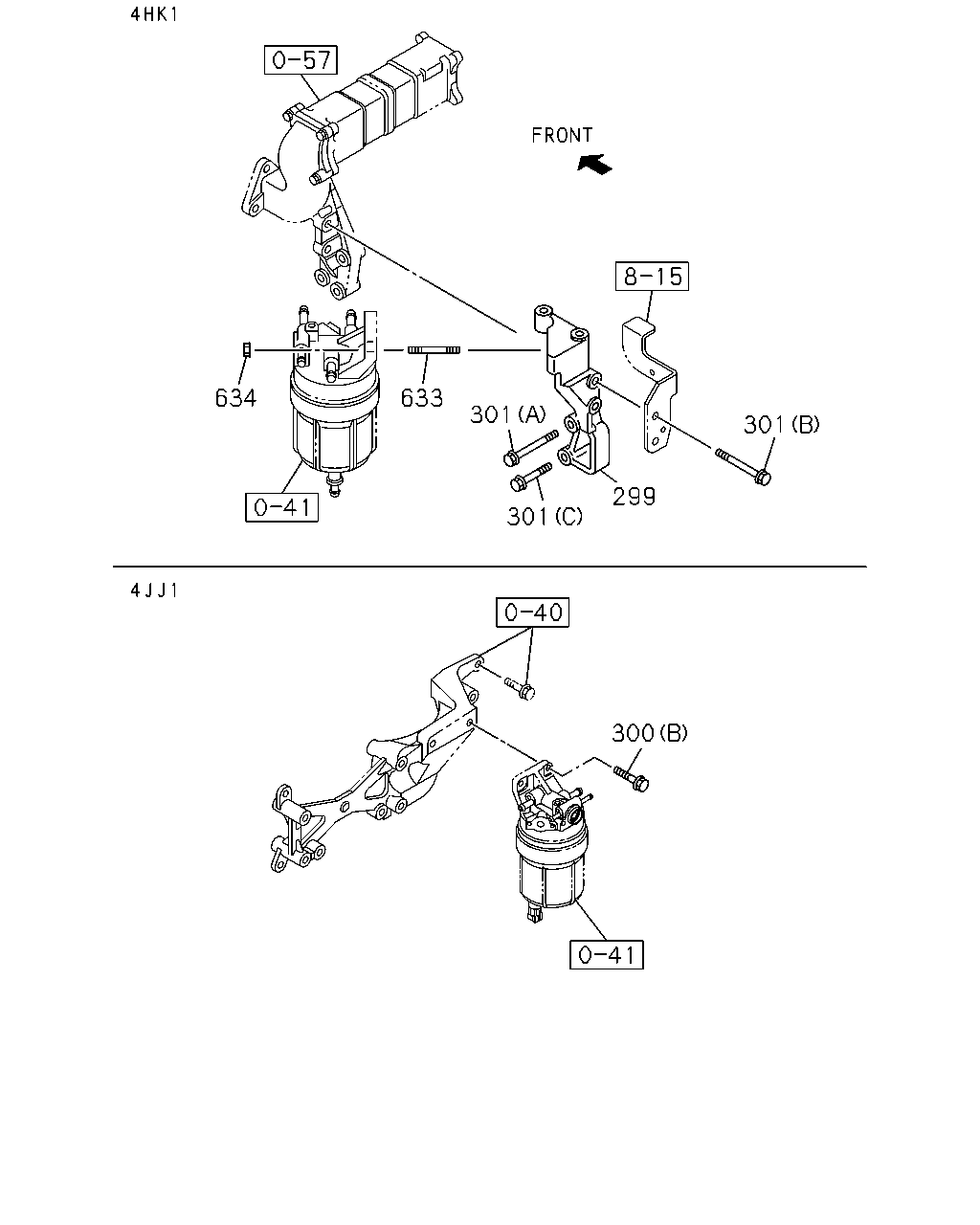

634 633 301 301 299 301 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
299	03.162 BRACKET; FUEL FILTER	8-98023-175-3	01	1	1506-	●	●	●	●
300	03.162 BOLT; BRKT TO BODY 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-					●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1506-1507					●	●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1506-1507	●	●	●	●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1506-1507	●		●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1506-1507	●		●
300	03.162 BOLT; BRKT TO BODY 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1508-					●	●
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1508-	●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.510 (A) M12X100 FLANGE	0-28151-200-0	01	1	1506-	●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.685 (B) M12X50 FLANGE	0-28151-250-0	01	1	1506-	●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 09.181 (C) M12X80	0-28151-280-0	01	1	1506-	●	●	●	●
633	03.162 STUD; BRKT TO SEDIMENTER 03.275 M8X25 L=37	0-41010-825-0	02	1	1506-	●	●	●	●
634	03.162 NUT; BRKT TO SEDIMENTER 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-	●	●	●	●

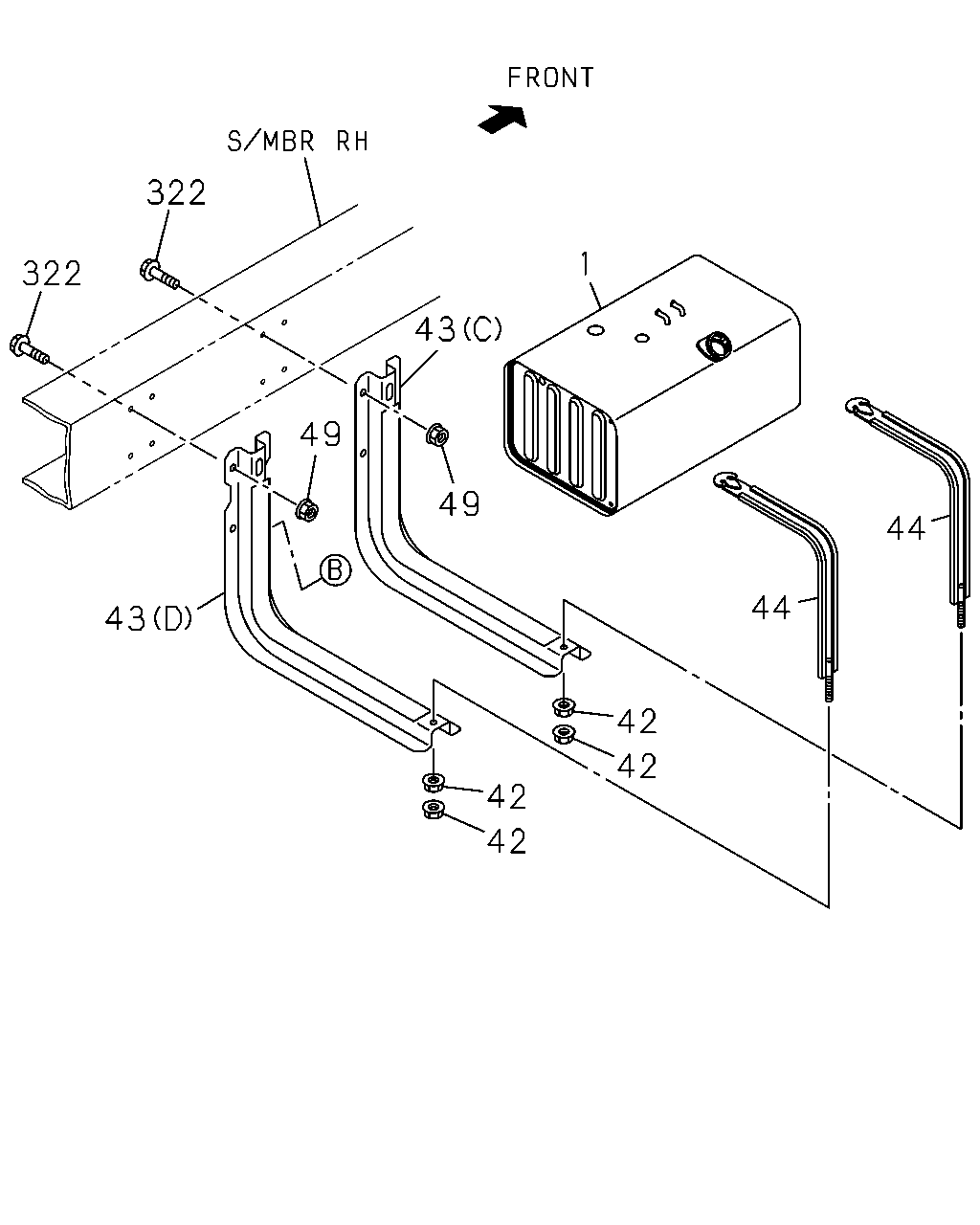

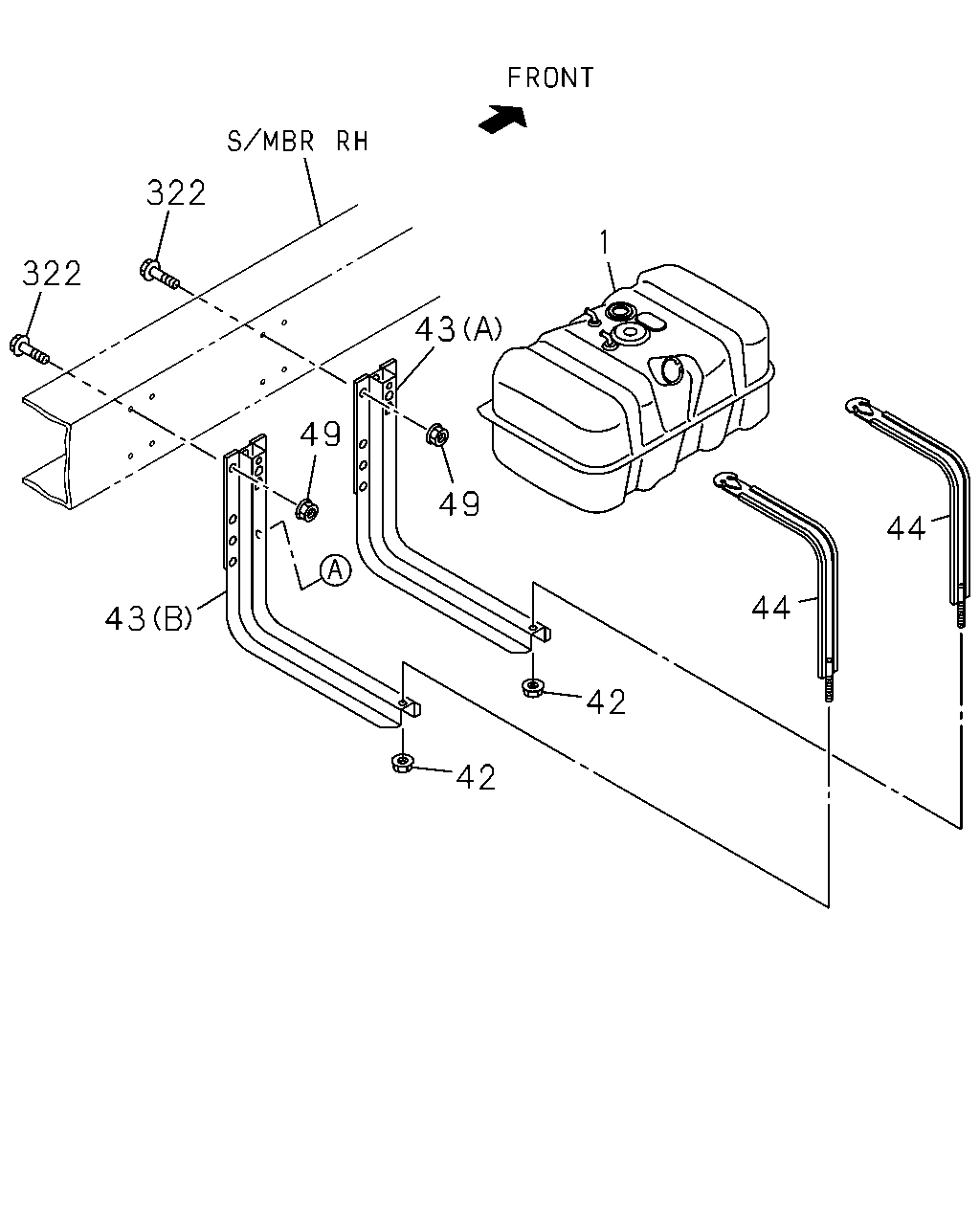

322 322 43 49 43 1 49 42 42 44 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL 756X482X376 100L	8-98153-048-2	01	1	1506-1507					●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98153-048-2	01	1	1506-1507	●
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) 756X482X376 100L	8-98153-048-2	01	1	1508-					●	●
1	03.001 TANK; FUEL 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 756X482X376 100L	8-98153-048-2	01	1	1508-	●
1	03.001 TANK; FUEL FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98051-031-4	01	1	1506-	●
1	03.001 TANK; FUEL 820X500X400 140L	8-98051-031-4	01	1	1506-		●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1506-					●	●
42	03.023 NUT; SUPPORT BELT FUEL TANK 100 LITTER<N02> M8 FLANGE	9-09130-408-0	02	1	1506-	●
42	03.023 NUT; SUPPORT BELT FUEL TANK 140 LITTER<N19> 00.833 M10	0-91110-510-0	04	1	1506-	●
42	03.023 NUT; SUPPORT BELT 00.833 M10	0-91110-510-0	04	1	1506-		●	●	●
43	03.015 BRACKET; FUEL TANK (A)	8-97384-060-5	01	1	1506-					●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> (A)	8-97384-060-5	01	1	1506-	●
43	03.015 BRACKET; FUEL TANK (B)	8-97384-062-6	01	1	1506-					●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> (B)	8-97384-062-6	01	1	1506-	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 140 LITTER<N19> (C)	8-98049-768-1	01	1	1506-	●
43	03.015 BRACKET; FUEL TANK (C)	8-98049-768-1	01	1	1506-		●	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 140 LITTER<N19> (D)	8-98127-229-0	01	1	1506-	●
43	03.015 BRACKET; FUEL TANK (D)	8-98127-229-0	01	1	1506-		●	●	●
44	03.023 BAND; FUEL TANK L=795	8-97384-080-2	02	1	1506-					●	●
44	03.023 BAND; FUEL TANK FUEL TANK 100 LITTER<N02> L=795	8-97384-080-2	02	1	1506-	●
44	03.023 BAND; FUEL TANK FUEL TANK 140 LITTER<N19> L=925	8-98049-769-1	02	1	1506-	●
44	03.023 BAND; FUEL TANK L=925	8-98049-769-1	02	1	1506-		●	●	●
49	03.023 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 04.085 M10 FLANGE	0-91180-210-0	08	1	1506-					●
49	03.023 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> 04.085 M10 FLANGE	0-91180-210-0	08	1	1506-	●	●
49	03.023 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	08	1	1506-	●	●
49	03.023 NUT; BRKT 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	08	1	1506-	●
49	03.023 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	08	1	1506-	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1506-			●	●		●
49	03.023 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	09	1	1506-					●
49	03.023 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	07	1	1506-	●
322	03.895 BOLT; BRKT FIX 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1506-		●	●	●	●	●
322	03.895 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1506-	●
322	03.895 BOLT; BRKT FIX 4HK1-TCS ENG(RJS) FUEL TANK 140 LITTER<N19> 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1506-	●

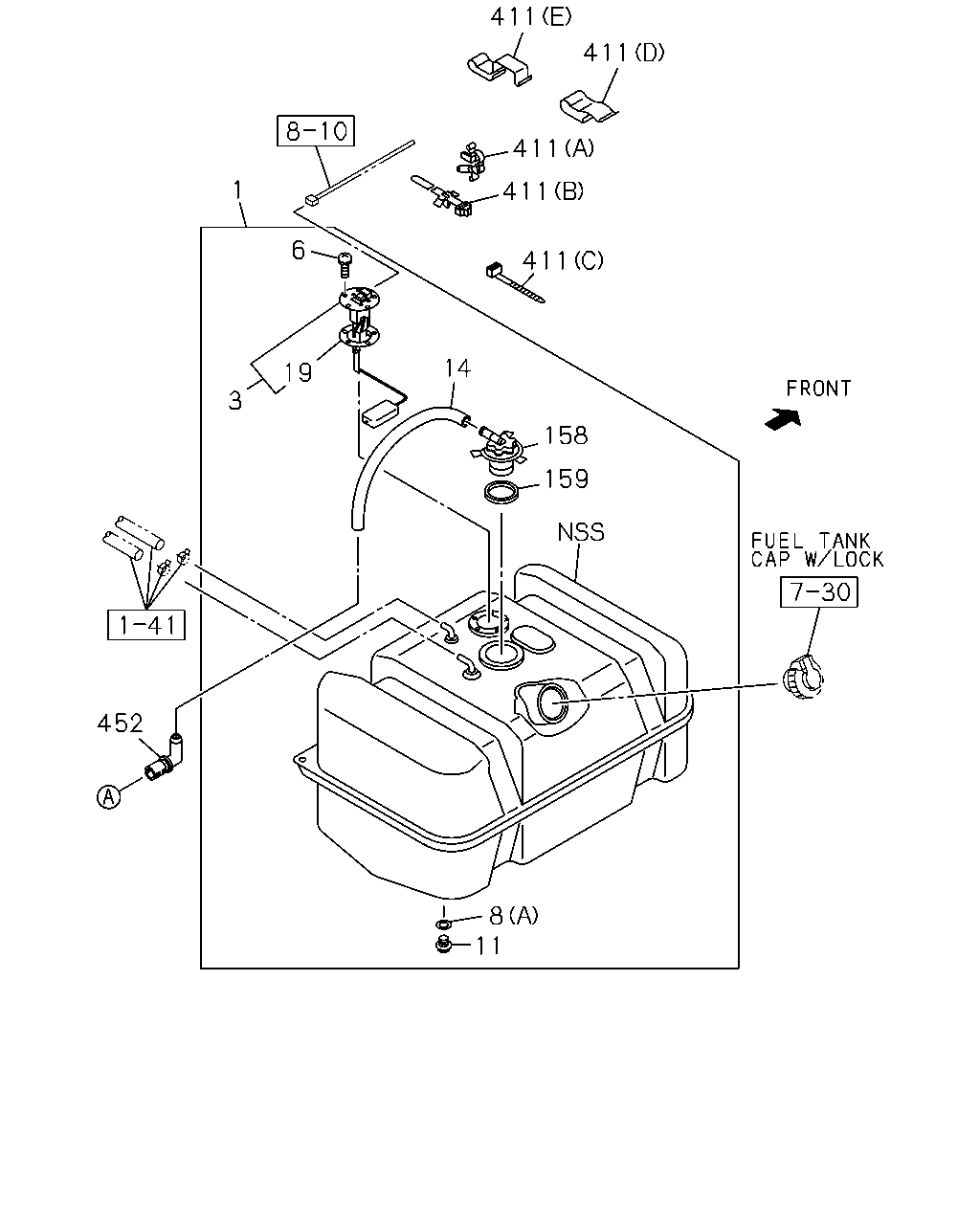

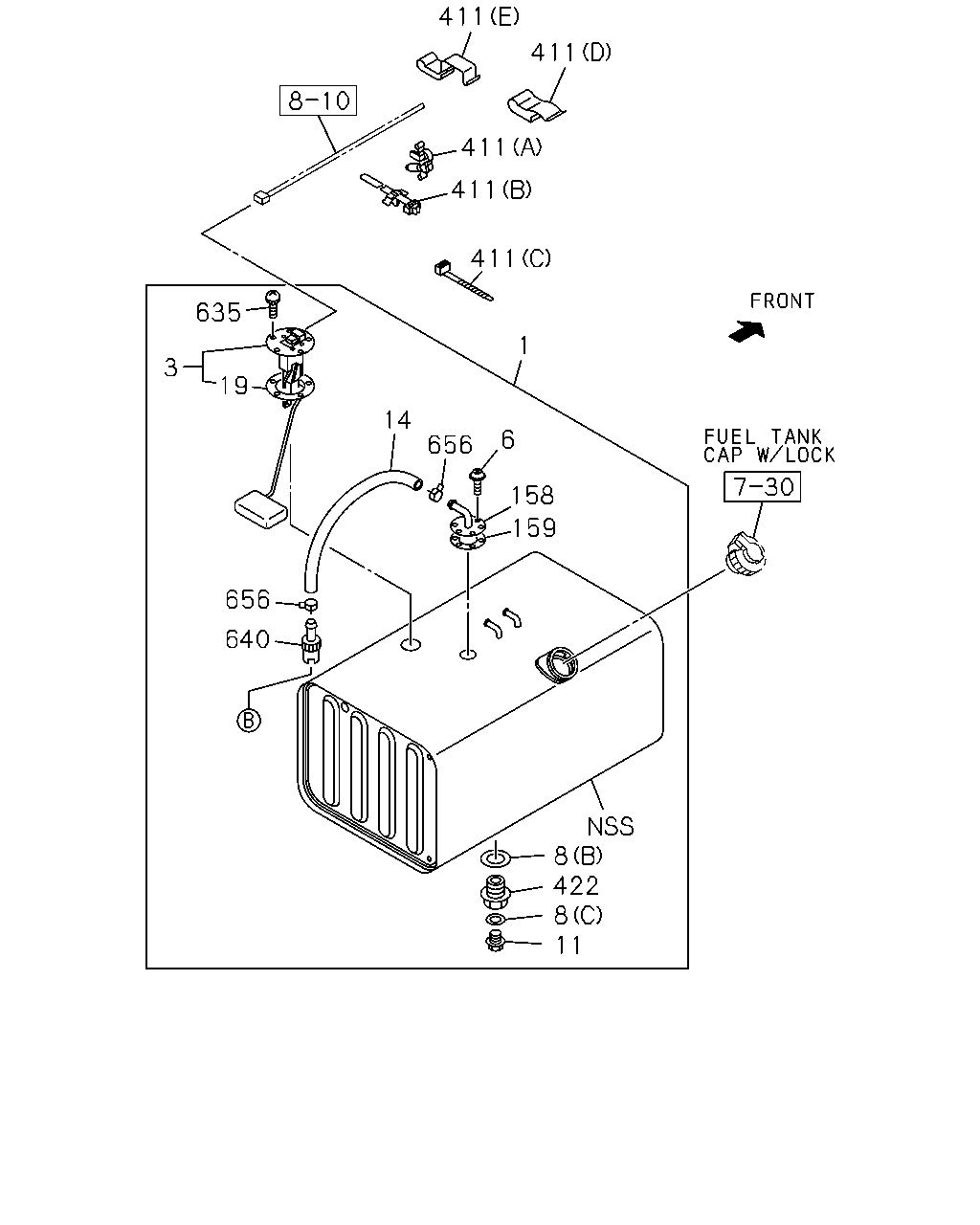

411 411 411 411 411 1 6 19 3 452 8 11 159 158 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL 756X482X376 100L	8-98153-048-2	01	1	1506-1507					●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98153-048-2	01	1	1506-1507	●
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) 756X482X376 100L	8-98153-048-2	01	1	1508-					●	●
1	03.001 TANK; FUEL 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 756X482X376 100L	8-98153-048-2	01	1	1508-	●
1	03.001 TANK; FUEL FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98051-031-4	01	1	1506-	●
1	03.001 TANK; FUEL 820X500X400 140L	8-98051-031-4	01	1	1506-		●	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98056-705-0	01	1	1506-1507					●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98056-705-0	01	1	1506-1507	●
3	03.107 UNIT; FUEL TANK,SUB 4JJ1-TCS ENG(LFB)	8-98056-705-0	01	1	1508-					●	●
3	03.107 UNIT; FUEL TANK,SUB 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ>	8-98056-705-0	01	1	1508-	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 140 LITTER<N19>	8-98065-304-0	01	1	1506-	●
3	03.107 UNIT; FUEL TANK,SUB	8-98065-304-0	01	1	1506-		●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	1506-	●	●	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	1506-1507					●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	1506-1507	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4JJ1-TCS ENG(LFB) 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	1508-					●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	1508-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 140 LITTER<N19> (B) ID=30	8-98067-041-0	01	1	1506-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK (B) ID=30	8-98067-041-0	01	1	1506-		●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0	9-09571-418-0	01	1	1506-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 06.673 (C) ID=18.2 OD=26.0	9-09571-418-0	01	1	1506-		●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	1506-1507					●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 100 LITTER<N02> 01.453 M14X14	9-09862-156-0	01	1	1506-1507	●
11	03.890 PLUG; DRAIN,FUEL TANK 4JJ1-TCS ENG(LFB) 01.453 M14X14	9-09862-156-0	01	1	1508-					●	●
11	03.890 PLUG; DRAIN,FUEL TANK 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 01.453 M14X14	9-09862-156-0	01	1	1508-	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 140 LITTER<N19> M18	8-98068-006-0	01	1	1506-	●
11	03.890 PLUG; DRAIN,FUEL TANK M18	8-98068-006-0	01	1	1506-		●	●	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1506-1507					●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 100 LITTER<N02> L=420	8-98157-809-0	01	1	1506-1507	●
14	03.163 HOSE; BREATHER,OUTLET 4JJ1-TCS ENG(LFB) L=420	8-98157-809-0	01	1	1508-					●	●
14	03.163 HOSE; BREATHER,OUTLET 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> L=420	8-98157-809-0	01	1	1508-	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 140 LITTER<N19> L=460	8-98082-184-1	01	1	1506-	●
14	03.163 HOSE; BREATHER,OUTLET L=460	8-98082-184-1	01	1	1506-		●	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1506-1507					●	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 100 LITTER<N02>	8-98051-797-0	01	1	1506-1507	●
19	03.112 GASKET; FUEL TANK UNIT 4JJ1-TCS ENG(LFB)	8-98051-797-0	01	1	1508-					●	●
19	03.112 GASKET; FUEL TANK UNIT 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ>	8-98051-797-0	01	1	1508-	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 140 LITTER<N19> ID=42 OD=71	5-83148-001-0	01	1	1506-	●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	1506-		●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1506-1507					●	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 100 LITTER<N02>	8-97179-645-0	01	1	1506-1507	●
158	03.164 VALVE; ROLL OVER & FLOAT 4JJ1-TCS ENG(LFB)	8-97179-645-0	01	1	1508-					●	●
158	03.164 VALVE; ROLL OVER & FLOAT 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ>	8-97179-645-0	01	1	1508-	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 140 LITTER<N19>	8-98095-223-0	01	1	1506-	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-98095-223-0	01	1	1506-		●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1506-1507					●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 100 LITTER<N02>	8-97326-488-0	01	1	1506-1507	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 4JJ1-TCS ENG(LFB)	8-97326-488-0	01	1	1508-					●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ>	8-97326-488-0	01	1	1508-	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 140 LITTER<N19> ID=45 OD=67	1-83149-003-0	01	1	1506-	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE ID=45 OD=67	1-83149-003-0	01	1	1506-		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	02	1	1506-					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	02	1	1506-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	02	1	1506-1507					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	02	1	1508-					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1508-	●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	1506-1507					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=170.3	1-09987-182-0	01	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	1508-					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=170.3	1-09987-182-0	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=170.3	1-09987-182-0	01	1	1508-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1506-1507	●	●	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1506-1507	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1506-1507				●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1506-1507			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1506-1507			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-1508					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-1508		●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-1508						●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-1508			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-			●	●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	02	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	02	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) T=4.5 & 9	8-97371-947-0	03	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) T=4.5 & 9	8-97371-947-0	02	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) T=4.5 & 9	8-97371-947-0	02	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (E) T=4.5 & 9	8-97371-947-0	02	1	1508-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) T=4.5 & 9	8-97371-947-0	04	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) T=4.5 & 9	8-97371-947-0	04	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) (E) T=4.5 & 9	8-97371-947-0	04	1	1506-1507		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) T=4.5 & 9	8-97371-947-0	04	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	04	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) (E) T=4.5 & 9	8-97371-947-0	04	1	1508-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (E) T=4.5 & 9	8-97371-947-0	02	1	1506-1507		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) T=4.5 & 9	8-97371-947-0	03	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	03	1	1506-1507		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) T=5.5	8-97371-951-0	03	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) T=5.5	8-97371-951-0	03	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	03	1	1508-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) T=4.5 & 9	8-97371-947-0	01	1	1506-1507			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) T=4.5 & 9	8-97371-947-0	01	1	1506-1507			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	1508-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507	●	●			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507	●				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507	●				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507						●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507			●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508		●		●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508						●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1508-		●	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1508-	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	1506-					●	●
452	03.028 BREATHER; FUEL TANK FUEL TANK 100 LITTER<N02>	8-97357-261-0	01	1	1506-	●

411 411 411 411 411 1 6 656 14 635 3 19 656 640 158 159 8 422 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL 756X482X376 100L	8-98153-048-2	01	1	1506-1507					●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98153-048-2	01	1	1506-1507	●
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) 756X482X376 100L	8-98153-048-2	01	1	1508-					●	●
1	03.001 TANK; FUEL 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 756X482X376 100L	8-98153-048-2	01	1	1508-	●
1	03.001 TANK; FUEL FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98051-031-4	01	1	1506-	●
1	03.001 TANK; FUEL 820X500X400 140L	8-98051-031-4	01	1	1506-		●	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98056-705-0	01	1	1506-1507					●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98056-705-0	01	1	1506-1507	●
3	03.107 UNIT; FUEL TANK,SUB 4JJ1-TCS ENG(LFB)	8-98056-705-0	01	1	1508-					●	●
3	03.107 UNIT; FUEL TANK,SUB 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ>	8-98056-705-0	01	1	1508-	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 140 LITTER<N19>	8-98065-304-0	01	1	1506-	●
3	03.107 UNIT; FUEL TANK,SUB	8-98065-304-0	01	1	1506-		●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	1506-	●	●	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	1506-1507					●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	1506-1507	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4JJ1-TCS ENG(LFB) 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	1508-					●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	1508-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 140 LITTER<N19> (B) ID=30	8-98067-041-0	01	1	1506-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK (B) ID=30	8-98067-041-0	01	1	1506-		●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0	9-09571-418-0	01	1	1506-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 06.673 (C) ID=18.2 OD=26.0	9-09571-418-0	01	1	1506-		●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	1506-1507					●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 100 LITTER<N02> 01.453 M14X14	9-09862-156-0	01	1	1506-1507	●
11	03.890 PLUG; DRAIN,FUEL TANK 4JJ1-TCS ENG(LFB) 01.453 M14X14	9-09862-156-0	01	1	1508-					●	●
11	03.890 PLUG; DRAIN,FUEL TANK 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 01.453 M14X14	9-09862-156-0	01	1	1508-	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 140 LITTER<N19> M18	8-98068-006-0	01	1	1506-	●
11	03.890 PLUG; DRAIN,FUEL TANK M18	8-98068-006-0	01	1	1506-		●	●	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1506-1507					●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 100 LITTER<N02> L=420	8-98157-809-0	01	1	1506-1507	●
14	03.163 HOSE; BREATHER,OUTLET 4JJ1-TCS ENG(LFB) L=420	8-98157-809-0	01	1	1508-					●	●
14	03.163 HOSE; BREATHER,OUTLET 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> L=420	8-98157-809-0	01	1	1508-	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 140 LITTER<N19> L=460	8-98082-184-1	01	1	1506-	●
14	03.163 HOSE; BREATHER,OUTLET L=460	8-98082-184-1	01	1	1506-		●	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1506-1507					●	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 100 LITTER<N02>	8-98051-797-0	01	1	1506-1507	●
19	03.112 GASKET; FUEL TANK UNIT 4JJ1-TCS ENG(LFB)	8-98051-797-0	01	1	1508-					●	●
19	03.112 GASKET; FUEL TANK UNIT 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ>	8-98051-797-0	01	1	1508-	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 140 LITTER<N19> ID=42 OD=71	5-83148-001-0	01	1	1506-	●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	1506-		●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1506-1507					●	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 100 LITTER<N02>	8-97179-645-0	01	1	1506-1507	●
158	03.164 VALVE; ROLL OVER & FLOAT 4JJ1-TCS ENG(LFB)	8-97179-645-0	01	1	1508-					●	●
158	03.164 VALVE; ROLL OVER & FLOAT 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ>	8-97179-645-0	01	1	1508-	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 140 LITTER<N19>	8-98095-223-0	01	1	1506-	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-98095-223-0	01	1	1506-		●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1506-1507					●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 100 LITTER<N02>	8-97326-488-0	01	1	1506-1507	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 4JJ1-TCS ENG(LFB)	8-97326-488-0	01	1	1508-					●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ>	8-97326-488-0	01	1	1508-	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 140 LITTER<N19> ID=45 OD=67	1-83149-003-0	01	1	1506-	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE ID=45 OD=67	1-83149-003-0	01	1	1506-		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	02	1	1506-					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	02	1	1506-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	02	1	1506-1507					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	02	1	1508-					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1508-	●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	1506-1507					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=170.3	1-09987-182-0	01	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	1508-					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=170.3	1-09987-182-0	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=170.3	1-09987-182-0	01	1	1508-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1506-1507	●	●	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1506-1507	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1506-1507				●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1506-1507			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1506-1507			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-1508					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-1508		●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-1508						●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-1508			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-			●	●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	02	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	02	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) T=4.5 & 9	8-97371-947-0	03	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) T=4.5 & 9	8-97371-947-0	02	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) T=4.5 & 9	8-97371-947-0	02	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (E) T=4.5 & 9	8-97371-947-0	02	1	1508-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) T=4.5 & 9	8-97371-947-0	04	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) T=4.5 & 9	8-97371-947-0	04	1	1506-1507	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) (E) T=4.5 & 9	8-97371-947-0	04	1	1506-1507		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) T=4.5 & 9	8-97371-947-0	04	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	04	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) (E) T=4.5 & 9	8-97371-947-0	04	1	1508-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (E) T=4.5 & 9	8-97371-947-0	02	1	1506-1507		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) T=4.5 & 9	8-97371-947-0	03	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	03	1	1506-1507		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) T=5.5	8-97371-951-0	03	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) T=5.5	8-97371-951-0	03	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	03	1	1508-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) T=4.5 & 9	8-97371-947-0	01	1	1506-1507			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) T=4.5 & 9	8-97371-947-0	01	1	1506-1507			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	1508-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507	●	●			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507	●				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507	●				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507						●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507			●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) L=140	5-09707-031-1	01	1	1506-1507			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508		●		●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508						●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1508-1508			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1508-		●	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (C) L=140	5-09707-031-1	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1508-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1508-	●
422	03.023 PLUG; FUEL TANK FUEL TANK 140 LITTER<N19> 03.890 M30	8-98067-038-0	01	1	1506-	●
422	03.023 PLUG; FUEL TANK 03.890 M30	8-98067-038-0	01	1	1506-		●	●	●
635	03.001 SCREW; ROLL OVER & FLOAT VALVE FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	1506-	●
635	03.001 SCREW; ROLL OVER & FLOAT VALVE 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	1506-		●	●	●
640	03.164 VENTILATOR; HOSE,BREATHER FUEL TANK 140 LITTER<N19>	8-98092-398-0	01	1	1506-	●
640	03.164 VENTILATOR; HOSE,BREATHER	8-98092-398-0	01	1	1506-		●	●	●
656	03.023 CLAMP; FUEL TANK FUEL TANK 140 LITTER<N19>	8-98304-416-0	02	1	1506-	●
656	03.023 CLAMP; FUEL TANK	8-98304-416-0	02	1	1506-		●	●	●

322 322 43 49 49 43 42 42 42 42 44 44 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL 756X482X376 100L	8-98153-048-2	01	1	1506-1507					●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98153-048-2	01	1	1506-1507	●
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) 756X482X376 100L	8-98153-048-2	01	1	1508-					●	●
1	03.001 TANK; FUEL 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 756X482X376 100L	8-98153-048-2	01	1	1508-	●
1	03.001 TANK; FUEL FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98051-031-4	01	1	1506-	●
1	03.001 TANK; FUEL 820X500X400 140L	8-98051-031-4	01	1	1506-		●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1506-					●	●
42	03.023 NUT; SUPPORT BELT FUEL TANK 100 LITTER<N02> M8 FLANGE	9-09130-408-0	02	1	1506-	●
42	03.023 NUT; SUPPORT BELT FUEL TANK 140 LITTER<N19> 00.833 M10	0-91110-510-0	04	1	1506-	●
42	03.023 NUT; SUPPORT BELT 00.833 M10	0-91110-510-0	04	1	1506-		●	●	●
43	03.015 BRACKET; FUEL TANK (A)	8-97384-060-5	01	1	1506-					●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> (A)	8-97384-060-5	01	1	1506-	●
43	03.015 BRACKET; FUEL TANK (B)	8-97384-062-6	01	1	1506-					●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> (B)	8-97384-062-6	01	1	1506-	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 140 LITTER<N19> (C)	8-98049-768-1	01	1	1506-	●
43	03.015 BRACKET; FUEL TANK (C)	8-98049-768-1	01	1	1506-		●	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 140 LITTER<N19> (D)	8-98127-229-0	01	1	1506-	●
43	03.015 BRACKET; FUEL TANK (D)	8-98127-229-0	01	1	1506-		●	●	●
44	03.023 BAND; FUEL TANK L=795	8-97384-080-2	02	1	1506-					●	●
44	03.023 BAND; FUEL TANK FUEL TANK 100 LITTER<N02> L=795	8-97384-080-2	02	1	1506-	●
44	03.023 BAND; FUEL TANK FUEL TANK 140 LITTER<N19> L=925	8-98049-769-1	02	1	1506-	●
44	03.023 BAND; FUEL TANK L=925	8-98049-769-1	02	1	1506-		●	●	●
49	03.023 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 04.085 M10 FLANGE	0-91180-210-0	08	1	1506-					●
49	03.023 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> 04.085 M10 FLANGE	0-91180-210-0	08	1	1506-	●	●
49	03.023 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	08	1	1506-	●	●
49	03.023 NUT; BRKT 4HK1-TCN ENG(RDQ) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	08	1	1506-	●
49	03.023 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	08	1	1506-	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1506-			●	●		●
49	03.023 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	09	1	1506-					●
49	03.023 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	07	1	1506-	●
322	03.895 BOLT; BRKT FIX 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1506-		●	●	●	●	●
322	03.895 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1506-	●
322	03.895 BOLT; BRKT FIX 4HK1-TCS ENG(RJS) FUEL TANK 140 LITTER<N19> 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1506-	●

302 303 485 485 300 485

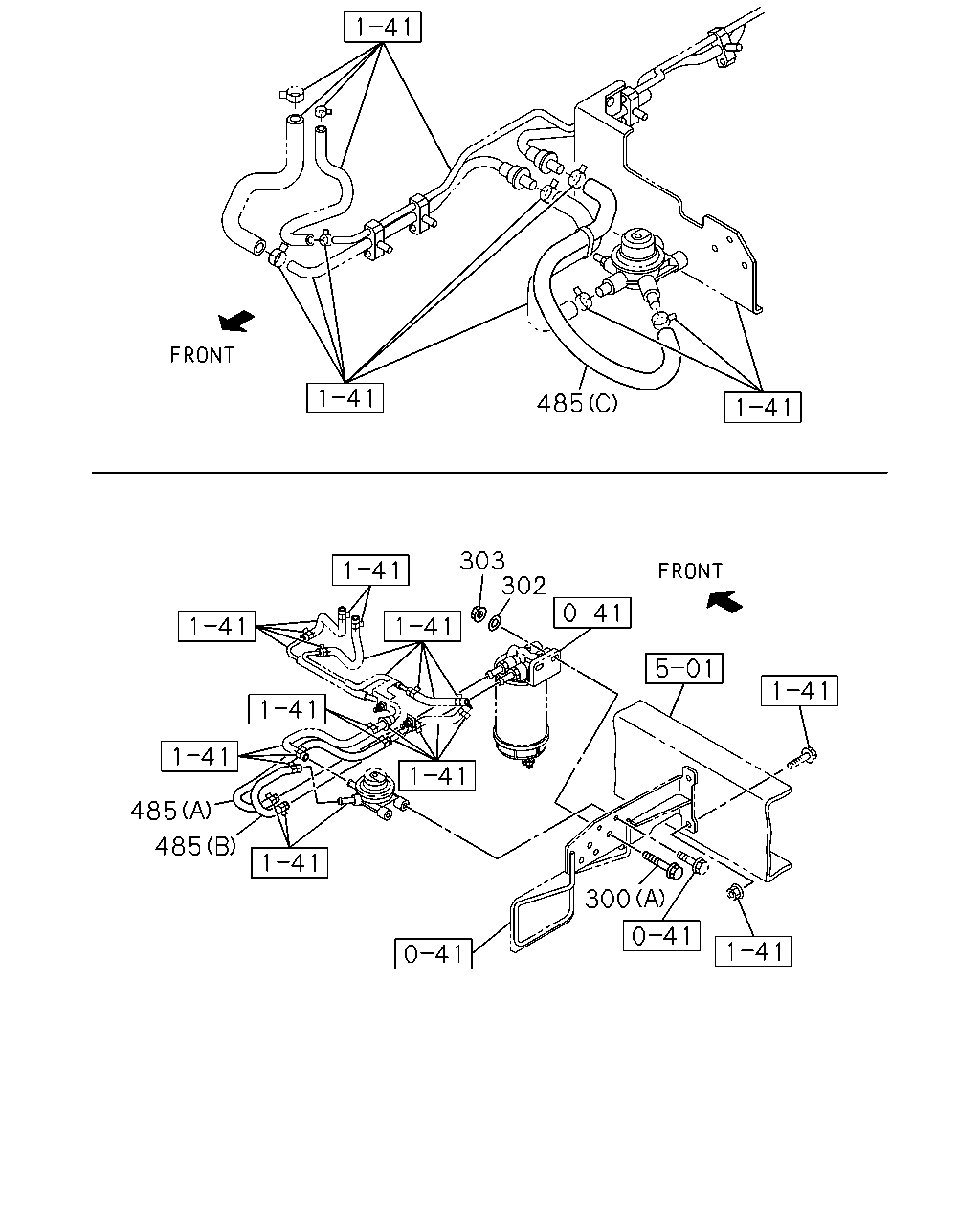

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
300	03.162 BOLT; BRKT TO BODY 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-					●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1506-1507					●	●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1506-1507	●	●	●	●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1506-1507	●		●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1506-1507	●		●
300	03.162 BOLT; BRKT TO BODY 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1508-					●	●
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1508-	●	●	●	●
302	03.162 WASHER; PL,SEDIMENTER 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1506-1507					●	●
302	03.162 WASHER; PL,SEDIMENTER 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1506-1507	●	●	●	●
302	03.162 WASHER; PL,SEDIMENTER 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1506-1507	●		●
302	03.162 WASHER; PL,SEDIMENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1506-1507	●		●
302	03.162 WASHER; PL,SEDIMENTER 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1508-					●	●
302	03.162 WASHER; PL,SEDIMENTER POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1508-	●	●	●	●
303	03.162 NUT; SEDIMENTER BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	1506-1507					●	●
303	03.162 NUT; SEDIMENTER BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	1506-1507	●	●	●	●
303	03.162 NUT; SEDIMENTER BRKT 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-110-0	02	1	1506-1507	●		●
303	03.162 NUT; SEDIMENTER BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE	0-91180-110-0	02	1	1506-1507	●		●
303	03.162 NUT; SEDIMENTER BRKT M10 FLANGE	0-91180-110-0	02	1	1508-					●	●
303	03.162 NUT; SEDIMENTER BRKT POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	1508-	●	●	●	●
485	03.163 HOSE; FUEL WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D)	8-98099-503-0	01	1	1508-1511	●
485	03.163 HOSE; FUEL WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (E)	8-98105-710-0	01	1	1508-1511	●
485	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (B)	8-98138-300-0	01	1	1506-1507	●
485	03.163 HOSE; FUEL M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (B)	8-98138-300-0	01	1	1506-1507	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98138-300-0	01	1	1506-1507		●		●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98138-300-0	01	1	1506-1507			●
485	03.163 HOSE; FUEL M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (B)	8-98138-300-0	01	1	1508-1511	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98138-300-0	01	1	1508-1511	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98138-300-0	01	1	1508-1511	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98138-300-0	01	1	1508-1511		●	●	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98138-300-0	01	1	1512-	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98138-300-0	01	1	1512-		●	●	●
485	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (A)	8-98139-112-1	01	1	1506-1507	●
485	03.163 HOSE; FUEL M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (A)	8-98139-112-1	01	1	1506-1507	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (A)	8-98139-112-1	01	1	1506-1507		●		●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98139-112-1	01	1	1506-1507			●
485	03.163 HOSE; FUEL M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (A)	8-98139-112-1	01	1	1508-1511	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98139-112-1	01	1	1508-1511	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98139-112-1	01	1	1508-1511	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (A)	8-98139-112-1	01	1	1508-1511		●	●	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98139-112-1	01	1	1512-	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (A)	8-98139-112-1	01	1	1512-		●	●	●
485	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1506-1507	●
485	03.163 HOSE; FUEL M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1506-1507	●
485	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1506-1507		●		●
485	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1506-1507			●
485	03.163 HOSE; FUEL M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1508-1511	●
485	03.163 HOSE; FUEL FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1508-1511	●
485	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1508-1511		●	●	●
485	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1512-	●
485	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1512-		●	●	●

485 485

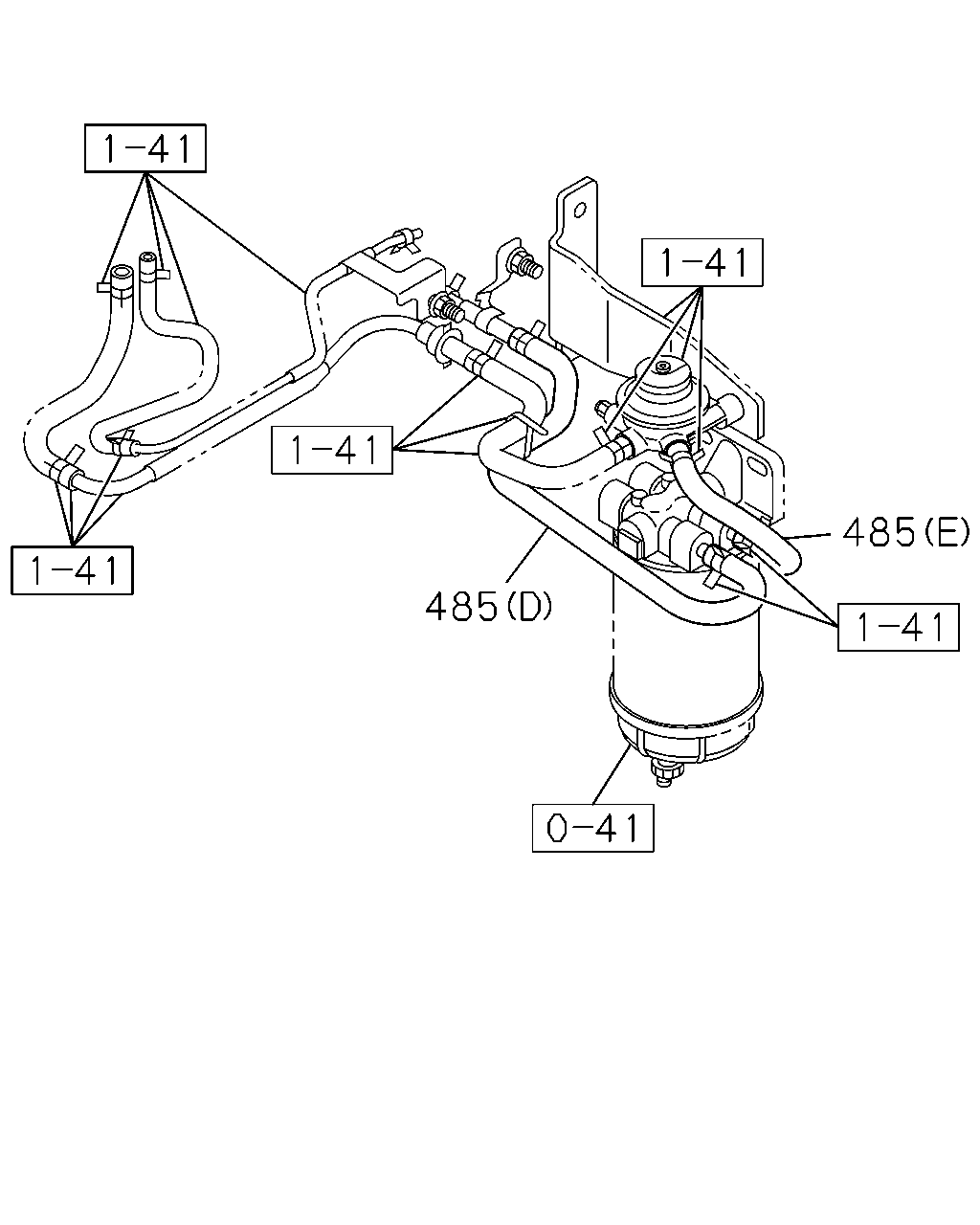

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
485	03.163 HOSE; FUEL WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D)	8-98099-503-0	01	1	1508-1511	●
485	03.163 HOSE; FUEL WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (E)	8-98105-710-0	01	1	1508-1511	●
485	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (B)	8-98138-300-0	01	1	1506-1507	●
485	03.163 HOSE; FUEL M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (B)	8-98138-300-0	01	1	1506-1507	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98138-300-0	01	1	1506-1507		●		●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98138-300-0	01	1	1506-1507			●
485	03.163 HOSE; FUEL M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (B)	8-98138-300-0	01	1	1508-1511	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98138-300-0	01	1	1508-1511	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98138-300-0	01	1	1508-1511	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98138-300-0	01	1	1508-1511		●	●	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98138-300-0	01	1	1512-	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98138-300-0	01	1	1512-		●	●	●
485	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (A)	8-98139-112-1	01	1	1506-1507	●
485	03.163 HOSE; FUEL M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (A)	8-98139-112-1	01	1	1506-1507	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (A)	8-98139-112-1	01	1	1506-1507		●		●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98139-112-1	01	1	1506-1507			●
485	03.163 HOSE; FUEL M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (A)	8-98139-112-1	01	1	1508-1511	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98139-112-1	01	1	1508-1511	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98139-112-1	01	1	1508-1511	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (A)	8-98139-112-1	01	1	1508-1511		●	●	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98139-112-1	01	1	1512-	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (A)	8-98139-112-1	01	1	1512-		●	●	●
485	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1506-1507	●
485	03.163 HOSE; FUEL M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1506-1507	●
485	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1506-1507		●		●
485	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1506-1507			●
485	03.163 HOSE; FUEL M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1508-1511	●
485	03.163 HOSE; FUEL FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1508-1511	●
485	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1508-1511		●	●	●
485	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1512-	●
485	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1512-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
