1-31 — AIR DUCT (#162795) — 490 parça

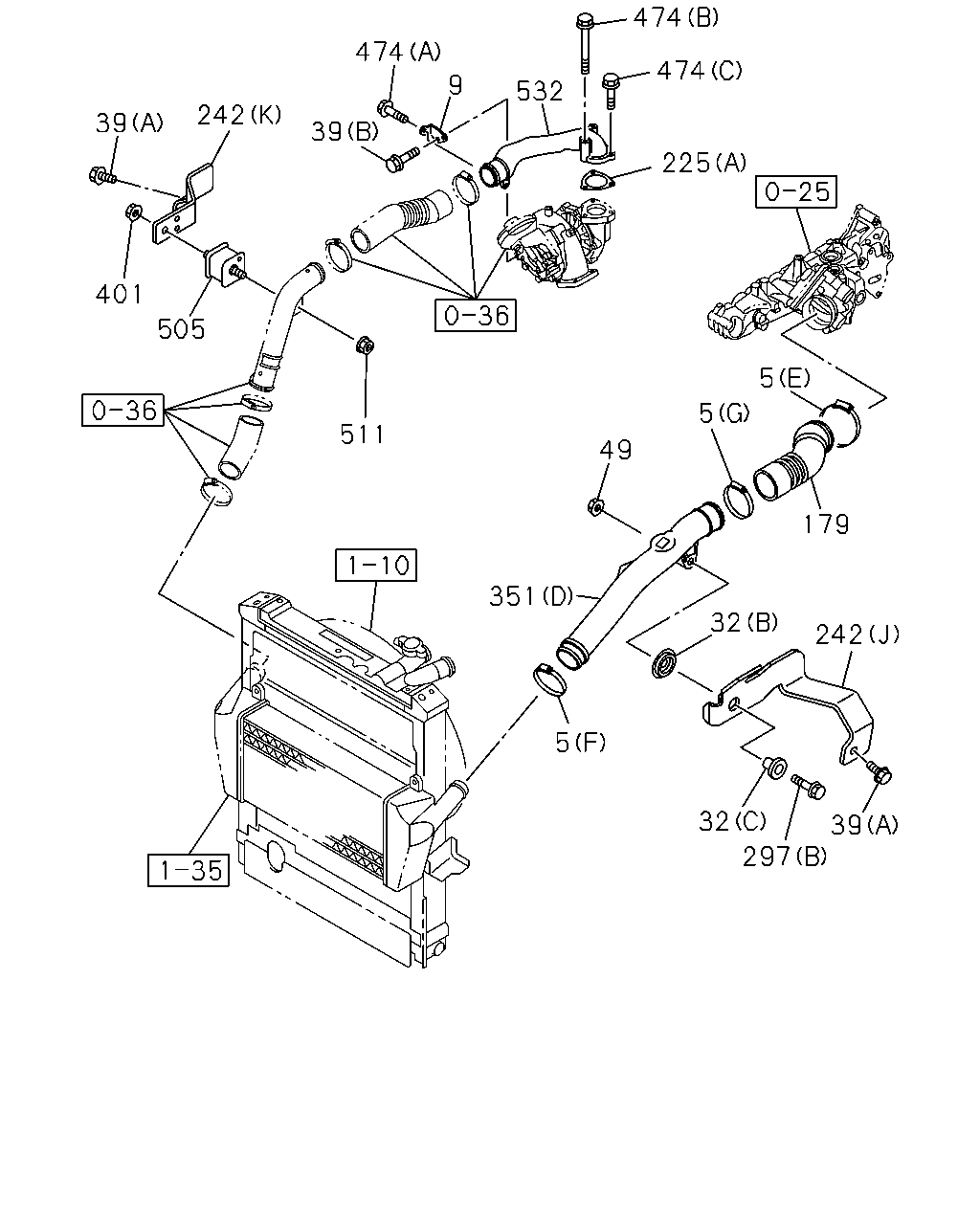

çizim 479361
474 39 242 39 401 511 505 532 9 474 474 225 5 49 5 179 32 351 5 242 32 297 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(F) ID=60-65 		8-98096-418-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1506- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=117 		9-09915-075-1 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 02 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=112 		9-09915-074-1 01 1 1506- ● ●
9 03.417 BRACKET; INT PIPE 8-98009-086-0 01 1 1506- ● ●
32 03.417 RUBBER; AIR DUCT MTG
01.277 (B) OD=32 		8-94395-766-0 01 1 1506- ● ●
32 03.417 RUBBER; AIR DUCT MTG
03.265 (C) OD=23 		8-97105-689-6 01 1 1506- ● ●
32 03.417 RUBBER; AIR DUCT MTG
(A) 		8-97081-886-0 01 1 1506- ● ● ● ●
39 03.417 BOLT; BRKT
03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 1506- ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ● ● ● ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ● ● ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ● ● ● ● ●
179 03.417 HOSE; AIR INT 8-98050-920-2 01 1 1506- ● ●
179 03.417 HOSE; AIR INT 8-98117-928-2 01 1 1506- ● ● ● ●
225 03.417 GASKET; AIR PIPE
03.270 (A) ID=47 		8-97202-328-1 01 1 1506- ● ●
225 03.417 GASKET; AIR PIPE
FRIGID ZONE(YL3) 01.097 (B) ID=43.7 		9-09561-344-0 01 1 1506- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98070-942-2 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(K) 		8-98070-943-0 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98032-142-1 01 1 1506- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(L) 		8-98032-143-1 01 1 1506- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98029-819-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98049-012-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 1506- ●
297 03.417 BOLT; DUCT
00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1506- ● ●
297 03.417 BOLT; DUCT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1506- ● ● ●
351 03.407 DUCT; AIR
03.417 (D) 		8-98051-032-1 01 1 1506- ● ●
351 03.407 DUCT; AIR
(A) 		8-98105-722-1 01 1 1506- ● ● ● ●
351 03.407 DUCT; AIR
(E) 		8-98021-486-1 01 1 1506- ●
351 03.407 DUCT; AIR
(F) 		8-98070-864-0 01 1 1506- ●
351 03.407 DUCT; AIR
AIR CLEANER DUST INDICATOR<YD1> EXC. MULTI INFORMATION DISPLAY<7NY> 03.417 (G) 		8-98021-485-1 01 1 1506- ● ●
351 03.407 DUCT; AIR
(B) 		8-98281-177-0 01 1 1506- ● ●
351 03.407 DUCT; AIR
EXC. AIR CLEANER DUST INDICATOR<YD1> (C) 		8-98070-862-1 01 1 1506- ● ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ● ● ● ● ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ● ● ●
474 03.417 BOLT; PIPE
(B) M6X70 FLANGE 		0-28050-670-0 02 1 1506- ● ●
474 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1506- ● ●
474 03.417 BOLT; PIPE
03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 1506- ● ●
505 03.406 RUBBER; MTG
03.417 		8-97081-886-0 01 1 1506- ● ● ● ● ● ●
511 03.417 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ● ● ● ● ●
532 03.417 PIPE; INTAKE 8-98237-771-1 01 1 1506- ● ●

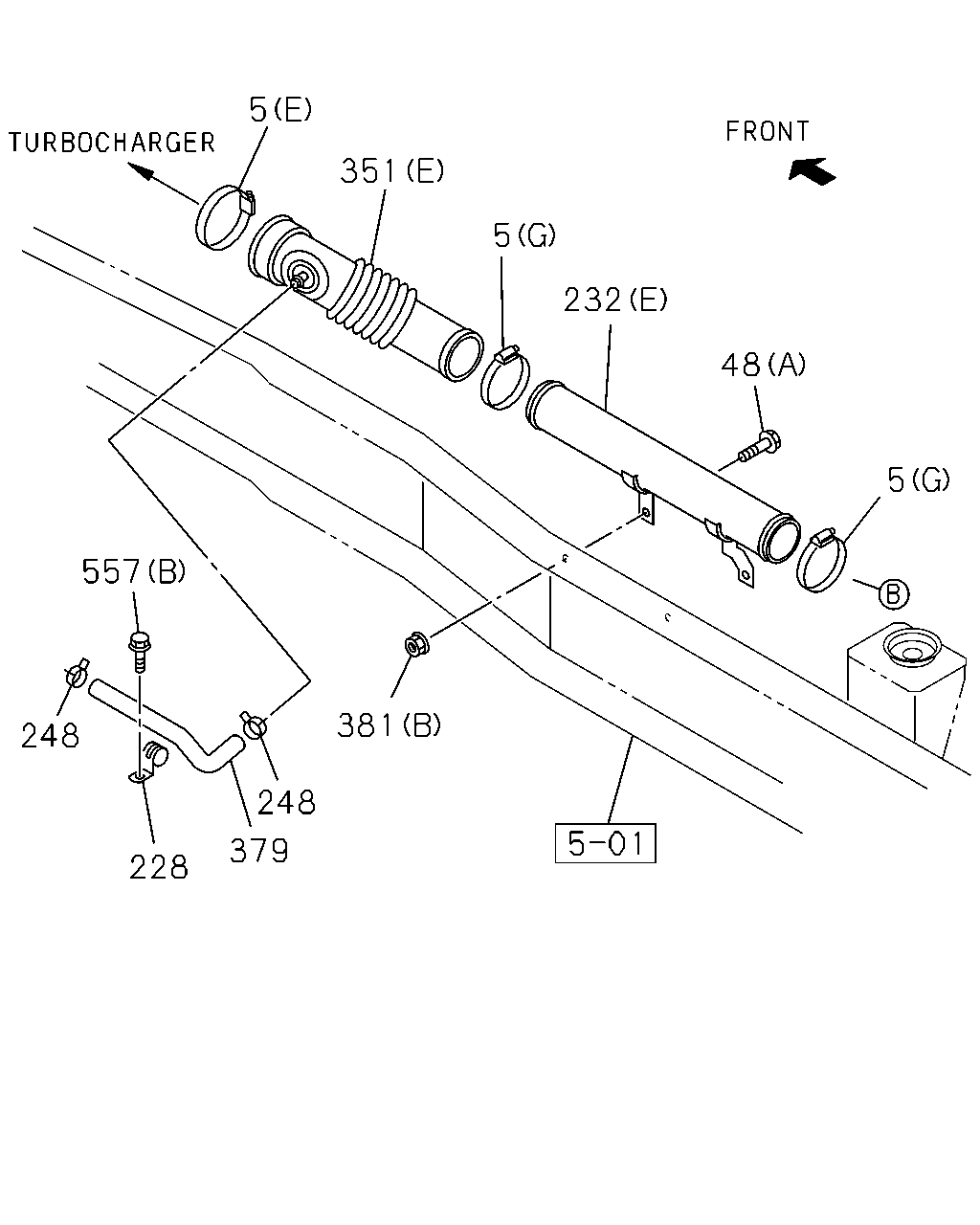

çizim 479362
232 48 5 5 351 5 381 248 379 228 248 557
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(F) ID=60-65 		8-98096-418-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1506- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=117 		9-09915-075-1 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 02 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=112 		9-09915-074-1 01 1 1506- ● ●
48 03.417 BOLT; AIR DUCT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 1506- ● ● ●
48 03.417 BOLT; AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1506- ● ●
228 03.278 CLIP; PCV HOSE
ID=24.5 H=29 L=25 		8-98120-913-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (D) 		8-98048-137-0 01 1 1506- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1506- ● ● ● ● ● ●
232 03.417 HOSE; CONN
AIR CLEANER DUST INDICATOR<YD1> EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98281-173-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
MULTI INFORMATION DISPLAY<7NY> EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-178-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-176-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
(E) 		8-98021-072-2 01 1 1506- ●
232 03.417 HOSE; CONN
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98063-793-3 01 1 1506- ● ●
232 03.417 HOSE; CONN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98094-582-2 01 1 1506- ● ●
248 03.417 CLIP; RUBBER HOSE
08.846 ID=21.7 		8-97203-074-0 02 1 1506- ● ●
351 03.407 DUCT; AIR
03.417 (D) 		8-98051-032-1 01 1 1506- ● ●
351 03.407 DUCT; AIR
(A) 		8-98105-722-1 01 1 1506- ● ● ● ●
351 03.407 DUCT; AIR
(E) 		8-98021-486-1 01 1 1506- ●
351 03.407 DUCT; AIR
(F) 		8-98070-864-0 01 1 1506- ●
351 03.407 DUCT; AIR
AIR CLEANER DUST INDICATOR<YD1> EXC. MULTI INFORMATION DISPLAY<7NY> 03.417 (G) 		8-98021-485-1 01 1 1506- ● ●
351 03.407 DUCT; AIR
(B) 		8-98281-177-0 01 1 1506- ● ●
351 03.407 DUCT; AIR
EXC. AIR CLEANER DUST INDICATOR<YD1> (C) 		8-98070-862-1 01 1 1506- ● ●
379 03.675 HOSE; RUBBER 8-98156-950-0 01 1 1506- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1506- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506- ● ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506- ●
381 03.417 NUT; BRKT,AIR DUCT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1506- ● ●
557 03.403 BOLT; HOSE CLIP
03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 1506- ● ●
557 03.403 BOLT; HOSE CLIP
00.386 (A) M6X20 FLANGE 		0-28050-620-0 03 1 1506- ● ● ● ●

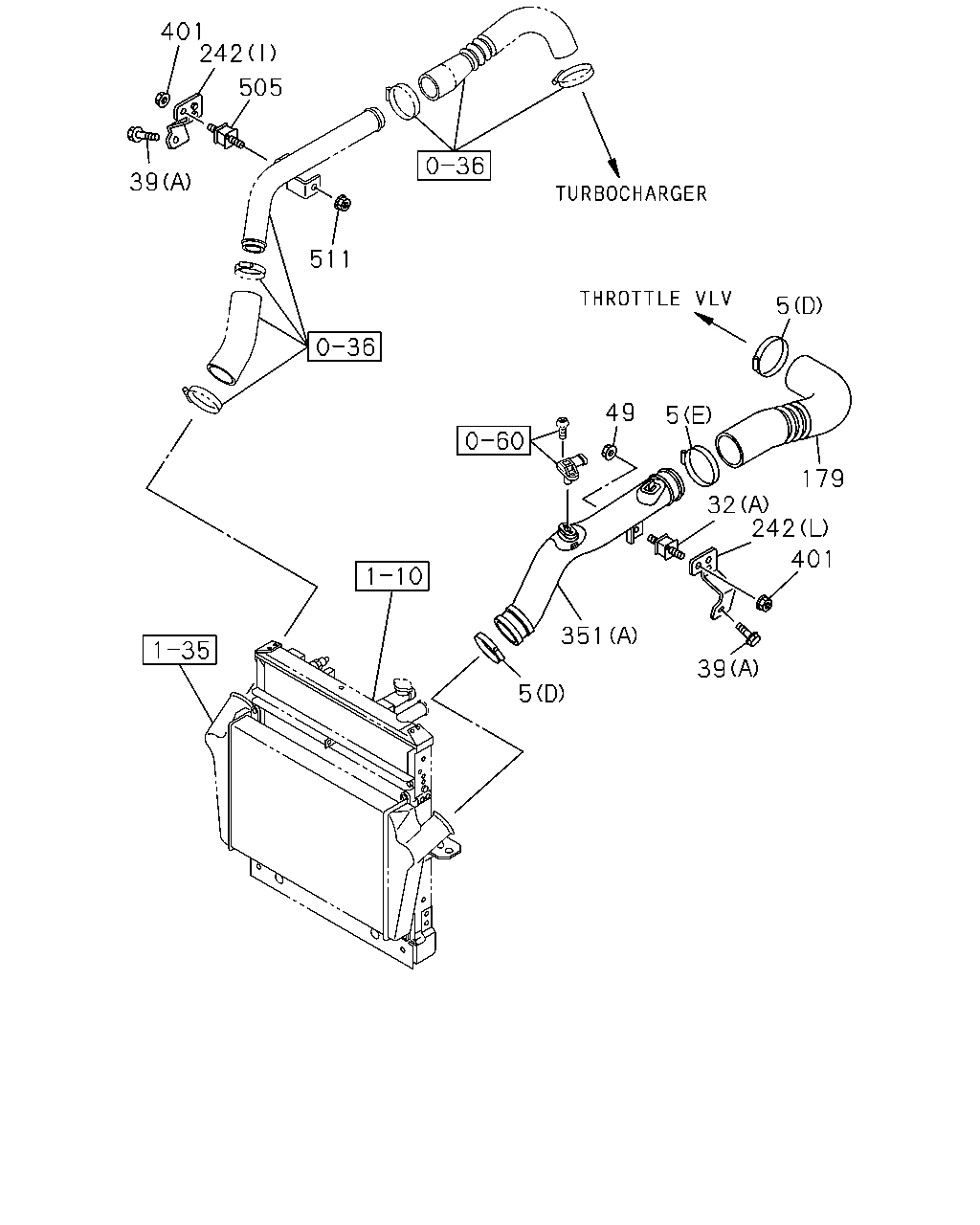

çizim 479661
401 39 505 242 511 49 351 5 39 401 179 32 242 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(F) ID=60-65 		8-98096-418-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1506- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=117 		9-09915-075-1 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 02 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=112 		9-09915-074-1 01 1 1506- ● ●
32 03.417 RUBBER; AIR DUCT MTG
01.277 (B) OD=32 		8-94395-766-0 01 1 1506- ● ●
32 03.417 RUBBER; AIR DUCT MTG
03.265 (C) OD=23 		8-97105-689-6 01 1 1506- ● ●
32 03.417 RUBBER; AIR DUCT MTG
(A) 		8-97081-886-0 01 1 1506- ● ● ● ●
39 03.417 BOLT; BRKT
03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 1506- ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ● ● ● ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ● ● ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ● ● ● ● ●
179 03.417 HOSE; AIR INT 8-98050-920-2 01 1 1506- ● ●
179 03.417 HOSE; AIR INT 8-98117-928-2 01 1 1506- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98070-942-2 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(K) 		8-98070-943-0 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98032-142-1 01 1 1506- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(L) 		8-98032-143-1 01 1 1506- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98029-819-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98049-012-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 1506- ●
351 03.407 DUCT; AIR
03.417 (D) 		8-98051-032-1 01 1 1506- ● ●
351 03.407 DUCT; AIR
(A) 		8-98105-722-1 01 1 1506- ● ● ● ●
351 03.407 DUCT; AIR
(E) 		8-98021-486-1 01 1 1506- ●
351 03.407 DUCT; AIR
(F) 		8-98070-864-0 01 1 1506- ●
351 03.407 DUCT; AIR
AIR CLEANER DUST INDICATOR<YD1> EXC. MULTI INFORMATION DISPLAY<7NY> 03.417 (G) 		8-98021-485-1 01 1 1506- ● ●
351 03.407 DUCT; AIR
(B) 		8-98281-177-0 01 1 1506- ● ●
351 03.407 DUCT; AIR
EXC. AIR CLEANER DUST INDICATOR<YD1> (C) 		8-98070-862-1 01 1 1506- ● ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ● ● ● ● ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ● ● ●
505 03.406 RUBBER; MTG
03.417 		8-97081-886-0 01 1 1506- ● ● ● ● ● ●
511 03.417 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ● ● ● ● ●

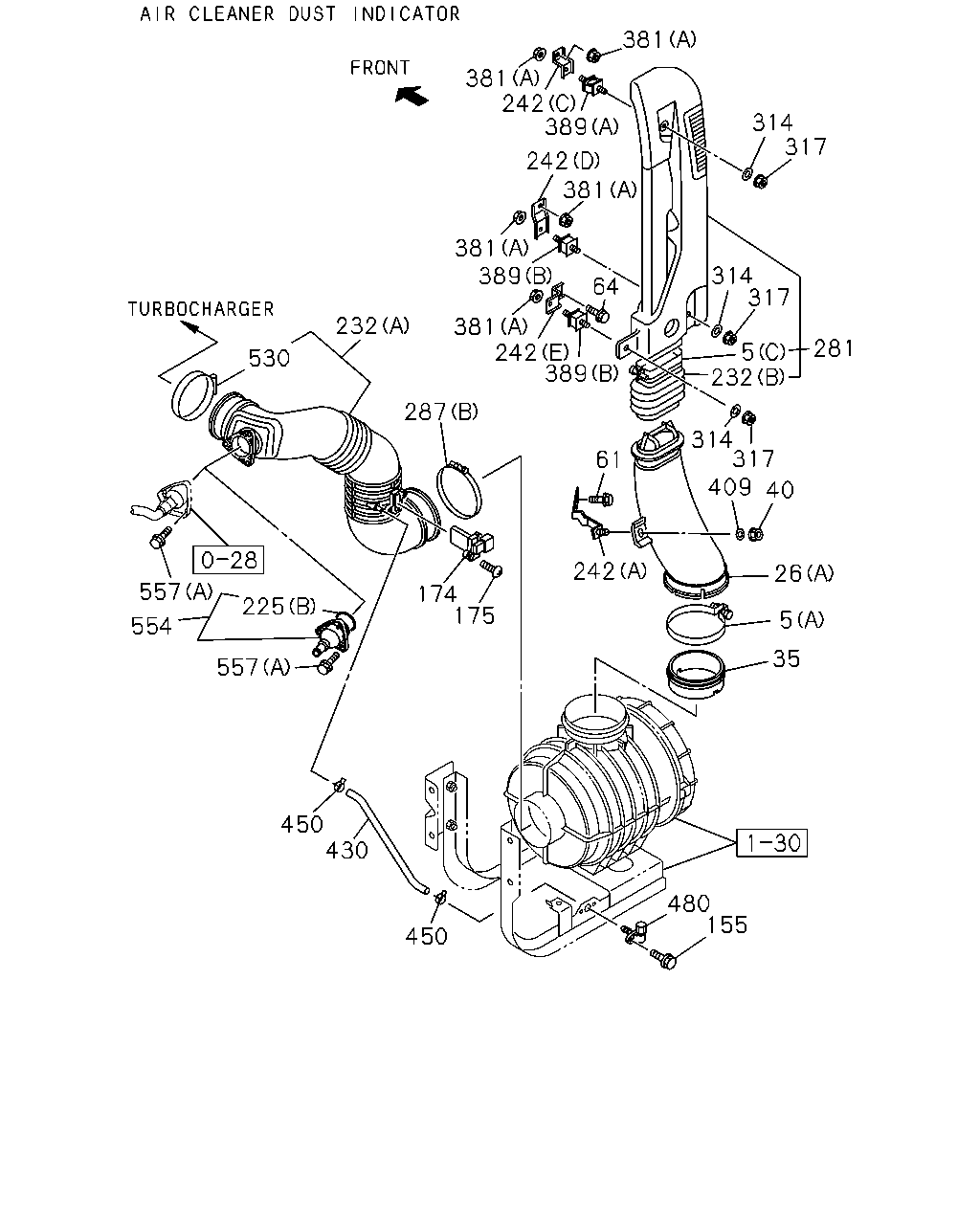

çizim 479701
314 232 5 281 317 409 242 26 5 35 480 155 450 430 450 557 557 554 225 530 232 287 174 175 61 389 389 381 381 389 381 381 242 242 64 242 381 314 314 317 317 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(F) ID=60-65 		8-98096-418-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1506- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=117 		9-09915-075-1 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 02 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=112 		9-09915-074-1 01 1 1506- ● ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1506- ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1506- ● ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1506- ● ● ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506- ● ● ● ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1506- ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1506- ● ● ●
155 03.417 BOLT; BRKT
AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1506- ● ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1506- ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1506- ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1506- ● ● ● ● ● ●
225 03.417 GASKET; AIR PIPE
03.270 (A) ID=47 		8-97202-328-1 01 1 1506- ● ●
225 03.417 GASKET; AIR PIPE
FRIGID ZONE(YL3) 01.097 (B) ID=43.7 		9-09561-344-0 01 1 1506- ● ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (D) 		8-98048-137-0 01 1 1506- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1506- ● ● ● ● ● ●
232 03.417 HOSE; CONN
AIR CLEANER DUST INDICATOR<YD1> EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98281-173-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
MULTI INFORMATION DISPLAY<7NY> EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-178-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-176-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
(E) 		8-98021-072-2 01 1 1506- ●
232 03.417 HOSE; CONN
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98063-793-3 01 1 1506- ● ●
232 03.417 HOSE; CONN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98094-582-2 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98070-942-2 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(K) 		8-98070-943-0 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98032-142-1 01 1 1506- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(L) 		8-98032-143-1 01 1 1506- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98029-819-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98049-012-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 1506- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1506- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1506- ● ● ●
287 03.417 CLIP; AIR DUCT
03.407 (C) ID=70-90 		8-98122-372-0 01 1 1506- ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=117 		9-09915-075-1 01 1 1506- ●
287 03.417 CLIP; AIR DUCT
03.407 (B) ID=112 		9-09915-074-1 01 1 1506- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1506- ● ● ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1506- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506- ● ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506- ●
381 03.417 NUT; BRKT,AIR DUCT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1506- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1506- ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1506- ● ● ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1506- ● ● ● ● ● ●
430 03.417 HOSE; INDICATOR
AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000 		0-04770-300-0 01 1 1506- ● ●
430 03.417 HOSE; INDICATOR
AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000 		0-04770-300-0 01 1 1506- ● ●
450 03.417 CLAMP; HOSE
AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12 		8-98150-358-0 02 1 1506- ● ● ● ●
480 03.417 ADAPTER
AIR CLEANER DUST INDICATOR<YD1> 		8-98013-425-0 01 1 1506- ● ● ● ●
530 03.407 CLAMP; AIR DUCT
ID=77-99 		1-09707-141-0 01 1 1506- ● ● ● ●
554 04.439 FLANGE; PIPE,PCV
FRIGID ZONE(YL3) 		8-98038-208-0 01 1 1506- ● ● ● ●
557 03.403 BOLT; HOSE CLIP
03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 1506- ● ●
557 03.403 BOLT; HOSE CLIP
00.386 (A) M6X20 FLANGE 		0-28050-620-0 03 1 1506- ● ● ● ●

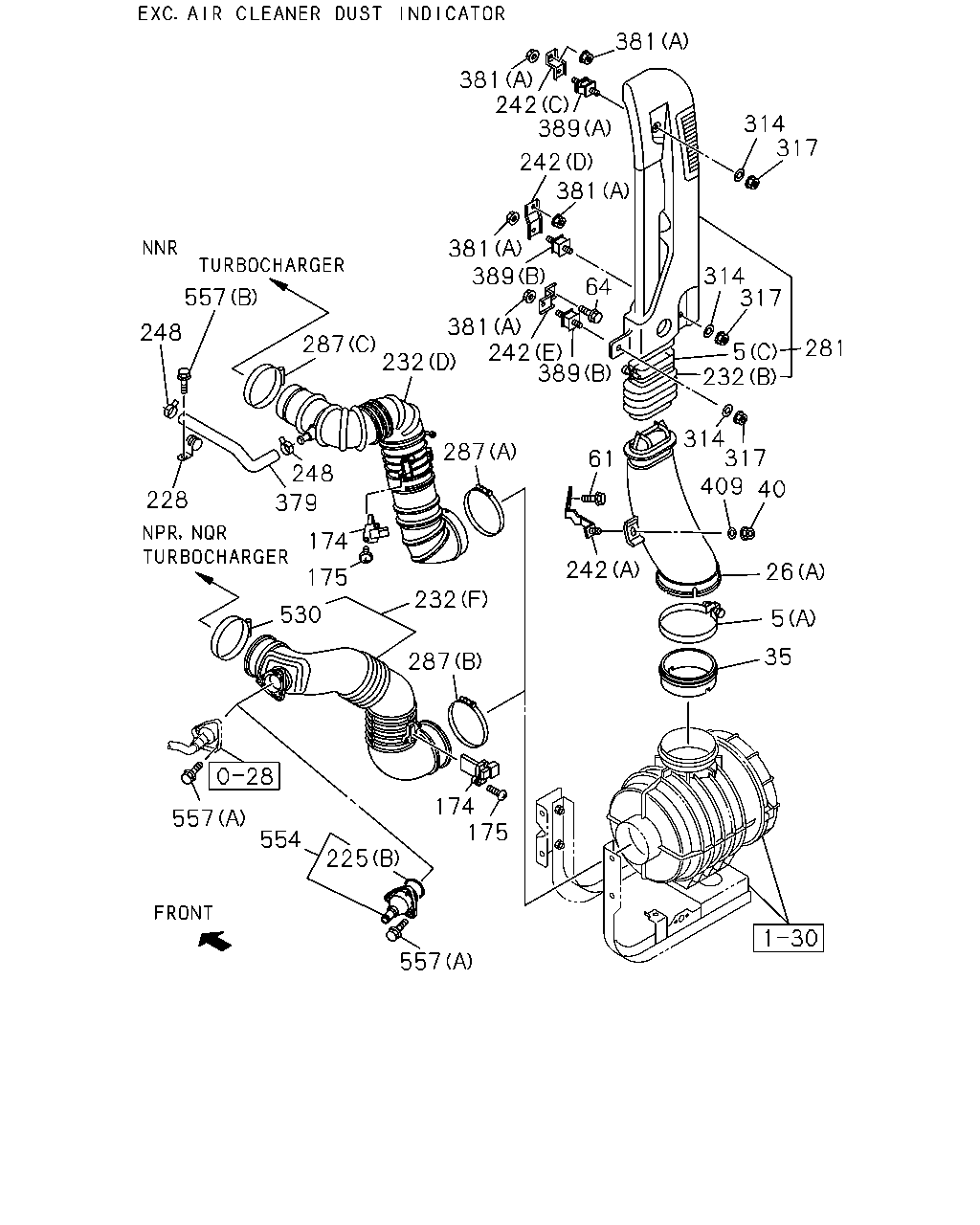

çizim 479812
409 26 5 35 242 61 389 242 381 232 287 248 557 248 228 379 530 174 175 232 287 557 554 225 174 175 314 40 317 281 5 232 314 314 381 242 381 381 242 389 381 64 317 317 557 287 389
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(F) ID=60-65 		8-98096-418-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1506- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=117 		9-09915-075-1 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 02 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=112 		9-09915-074-1 01 1 1506- ● ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1506- ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1506- ● ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1506- ● ● ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506- ● ● ● ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1506- ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1506- ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1506- ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1506- ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1506- ● ● ● ● ● ●
225 03.417 GASKET; AIR PIPE
03.270 (A) ID=47 		8-97202-328-1 01 1 1506- ● ●
225 03.417 GASKET; AIR PIPE
FRIGID ZONE(YL3) 01.097 (B) ID=43.7 		9-09561-344-0 01 1 1506- ● ● ● ●
228 03.278 CLIP; PCV HOSE
ID=24.5 H=29 L=25 		8-98120-913-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (D) 		8-98048-137-0 01 1 1506- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1506- ● ● ● ● ● ●
232 03.417 HOSE; CONN
AIR CLEANER DUST INDICATOR<YD1> EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98281-173-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
MULTI INFORMATION DISPLAY<7NY> EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-178-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-176-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
(E) 		8-98021-072-2 01 1 1506- ●
232 03.417 HOSE; CONN
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98063-793-3 01 1 1506- ● ●
232 03.417 HOSE; CONN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98094-582-2 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98070-942-2 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(K) 		8-98070-943-0 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98032-142-1 01 1 1506- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(L) 		8-98032-143-1 01 1 1506- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98029-819-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98049-012-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 1506- ●
248 03.417 CLIP; RUBBER HOSE
08.846 ID=21.7 		8-97203-074-0 02 1 1506- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1506- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1506- ● ● ●
287 03.417 CLIP; AIR DUCT
03.407 (C) ID=70-90 		8-98122-372-0 01 1 1506- ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=117 		9-09915-075-1 01 1 1506- ●
287 03.417 CLIP; AIR DUCT
03.407 (B) ID=112 		9-09915-074-1 01 1 1506- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1506- ● ● ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ● ● ● ● ●
379 03.675 HOSE; RUBBER 8-98156-950-0 01 1 1506- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1506- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506- ● ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506- ●
381 03.417 NUT; BRKT,AIR DUCT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1506- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1506- ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1506- ● ● ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1506- ● ● ● ● ● ●
530 03.407 CLAMP; AIR DUCT
ID=77-99 		1-09707-141-0 01 1 1506- ● ● ● ●
554 04.439 FLANGE; PIPE,PCV
FRIGID ZONE(YL3) 		8-98038-208-0 01 1 1506- ● ● ● ●
557 03.403 BOLT; HOSE CLIP
03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 1506- ● ●
557 03.403 BOLT; HOSE CLIP
00.386 (A) M6X20 FLANGE 		0-28050-620-0 03 1 1506- ● ● ● ●

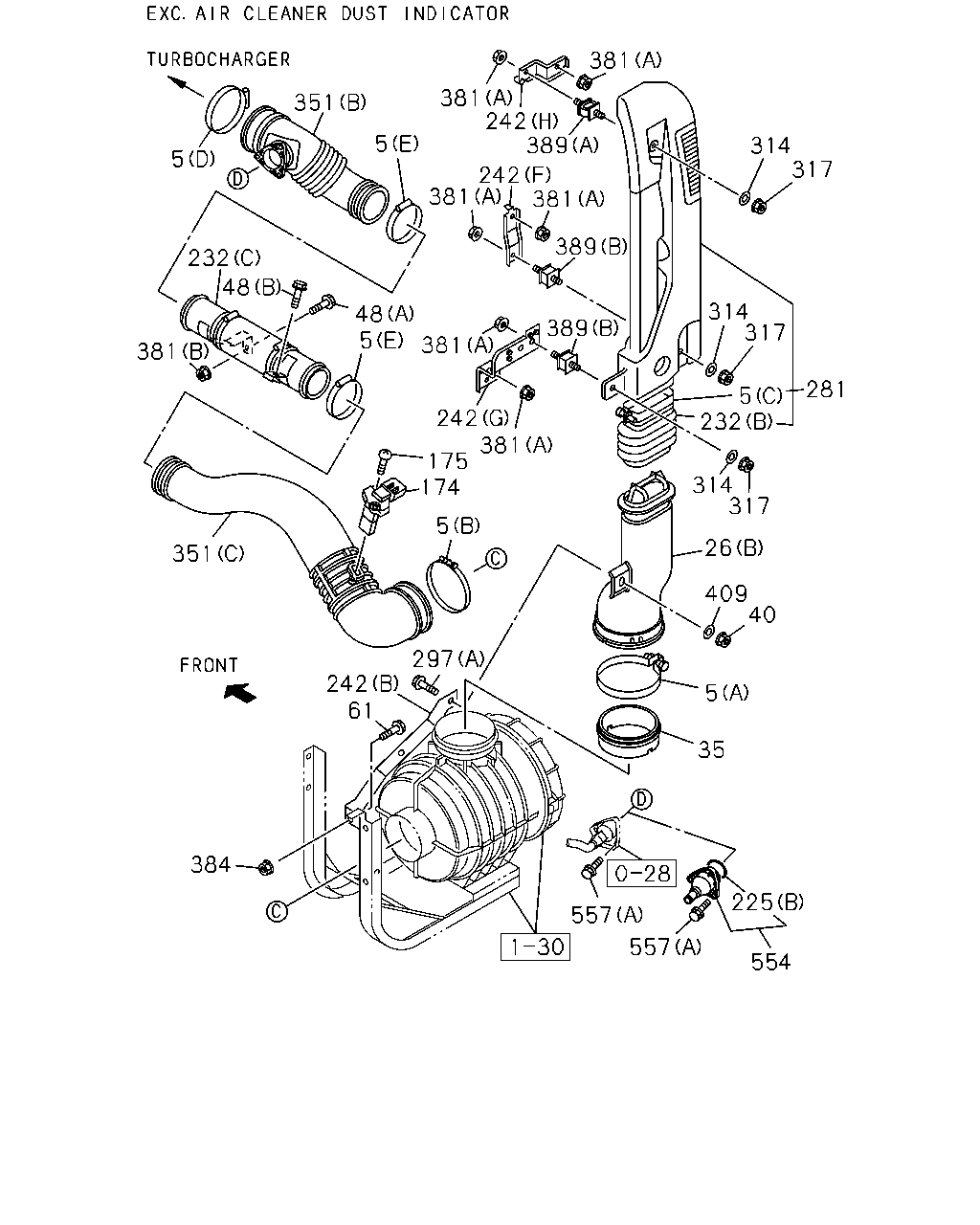

çizim 480004
381 381 351 5 5 232 381 48 48 381 242 242 381 389 389 389 314 314 317 317 281 232 5 314 317 26 409 40 5 35 557 557 554 61 242 297 384 351 174 175 5 242 381 381 5 225
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(F) ID=60-65 		8-98096-418-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1506- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=117 		9-09915-075-1 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 02 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=112 		9-09915-074-1 01 1 1506- ● ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1506- ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1506- ● ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1506- ● ● ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506- ● ● ● ● ● ●
48 03.417 BOLT; AIR DUCT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 1506- ● ● ●
48 03.417 BOLT; AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1506- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1506- ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1506- ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1506- ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1506- ● ● ● ● ● ●
225 03.417 GASKET; AIR PIPE
03.270 (A) ID=47 		8-97202-328-1 01 1 1506- ● ●
225 03.417 GASKET; AIR PIPE
FRIGID ZONE(YL3) 01.097 (B) ID=43.7 		9-09561-344-0 01 1 1506- ● ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (D) 		8-98048-137-0 01 1 1506- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1506- ● ● ● ● ● ●
232 03.417 HOSE; CONN
AIR CLEANER DUST INDICATOR<YD1> EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98281-173-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
MULTI INFORMATION DISPLAY<7NY> EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-178-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-176-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
(E) 		8-98021-072-2 01 1 1506- ●
232 03.417 HOSE; CONN
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98063-793-3 01 1 1506- ● ●
232 03.417 HOSE; CONN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98094-582-2 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98070-942-2 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(K) 		8-98070-943-0 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98032-142-1 01 1 1506- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(L) 		8-98032-143-1 01 1 1506- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98029-819-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98049-012-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 1506- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1506- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1506- ● ● ●
297 03.417 BOLT; DUCT
00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1506- ● ●
297 03.417 BOLT; DUCT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1506- ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1506- ● ● ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ● ● ● ● ●
351 03.407 DUCT; AIR
03.417 (D) 		8-98051-032-1 01 1 1506- ● ●
351 03.407 DUCT; AIR
(A) 		8-98105-722-1 01 1 1506- ● ● ● ●
351 03.407 DUCT; AIR
(E) 		8-98021-486-1 01 1 1506- ●
351 03.407 DUCT; AIR
(F) 		8-98070-864-0 01 1 1506- ●
351 03.407 DUCT; AIR
AIR CLEANER DUST INDICATOR<YD1> EXC. MULTI INFORMATION DISPLAY<7NY> 03.417 (G) 		8-98021-485-1 01 1 1506- ● ●
351 03.407 DUCT; AIR
(B) 		8-98281-177-0 01 1 1506- ● ●
351 03.407 DUCT; AIR
EXC. AIR CLEANER DUST INDICATOR<YD1> (C) 		8-98070-862-1 01 1 1506- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1506- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506- ● ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506- ●
381 03.417 NUT; BRKT,AIR DUCT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1506- ● ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1506- ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1506- ● ● ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1506- ● ● ● ● ● ●
554 04.439 FLANGE; PIPE,PCV
FRIGID ZONE(YL3) 		8-98038-208-0 01 1 1506- ● ● ● ●
557 03.403 BOLT; HOSE CLIP
03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 1506- ● ●
557 03.403 BOLT; HOSE CLIP
00.386 (A) M6X20 FLANGE 		0-28050-620-0 03 1 1506- ● ● ● ●

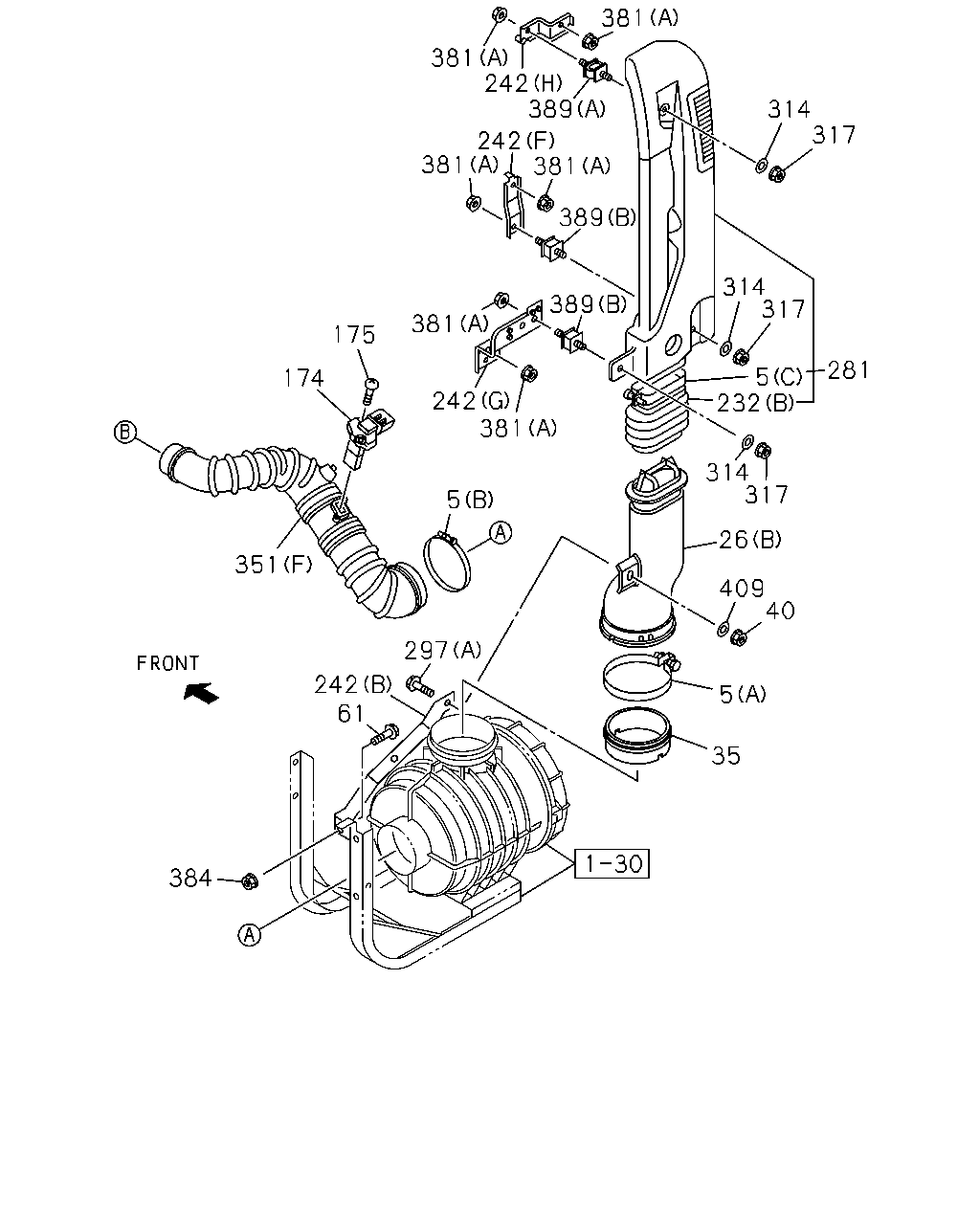

çizim 480142
314 317 314 317 281 5 232 314 26 317 409 40 5 35 297 242 61 5 381 242 175 174 381 351 384 389 389 381 242 242 381 381 381 389
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(F) ID=60-65 		8-98096-418-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1506- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=117 		9-09915-075-1 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 02 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=112 		9-09915-074-1 01 1 1506- ● ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1506- ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1506- ● ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1506- ● ● ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506- ● ● ● ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1506- ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1506- ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1506- ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1506- ● ● ● ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (D) 		8-98048-137-0 01 1 1506- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1506- ● ● ● ● ● ●
232 03.417 HOSE; CONN
AIR CLEANER DUST INDICATOR<YD1> EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98281-173-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
MULTI INFORMATION DISPLAY<7NY> EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-178-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-176-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
(E) 		8-98021-072-2 01 1 1506- ●
232 03.417 HOSE; CONN
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98063-793-3 01 1 1506- ● ●
232 03.417 HOSE; CONN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98094-582-2 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98070-942-2 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(K) 		8-98070-943-0 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98032-142-1 01 1 1506- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(L) 		8-98032-143-1 01 1 1506- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98029-819-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98049-012-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 1506- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1506- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1506- ● ● ●
297 03.417 BOLT; DUCT
00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1506- ● ●
297 03.417 BOLT; DUCT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1506- ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1506- ● ● ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ● ● ● ● ●
351 03.407 DUCT; AIR
03.417 (D) 		8-98051-032-1 01 1 1506- ● ●
351 03.407 DUCT; AIR
(A) 		8-98105-722-1 01 1 1506- ● ● ● ●
351 03.407 DUCT; AIR
(E) 		8-98021-486-1 01 1 1506- ●
351 03.407 DUCT; AIR
(F) 		8-98070-864-0 01 1 1506- ●
351 03.407 DUCT; AIR
AIR CLEANER DUST INDICATOR<YD1> EXC. MULTI INFORMATION DISPLAY<7NY> 03.417 (G) 		8-98021-485-1 01 1 1506- ● ●
351 03.407 DUCT; AIR
(B) 		8-98281-177-0 01 1 1506- ● ●
351 03.407 DUCT; AIR
EXC. AIR CLEANER DUST INDICATOR<YD1> (C) 		8-98070-862-1 01 1 1506- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1506- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506- ● ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506- ●
381 03.417 NUT; BRKT,AIR DUCT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1506- ● ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1506- ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1506- ● ● ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1506- ● ● ● ● ● ●

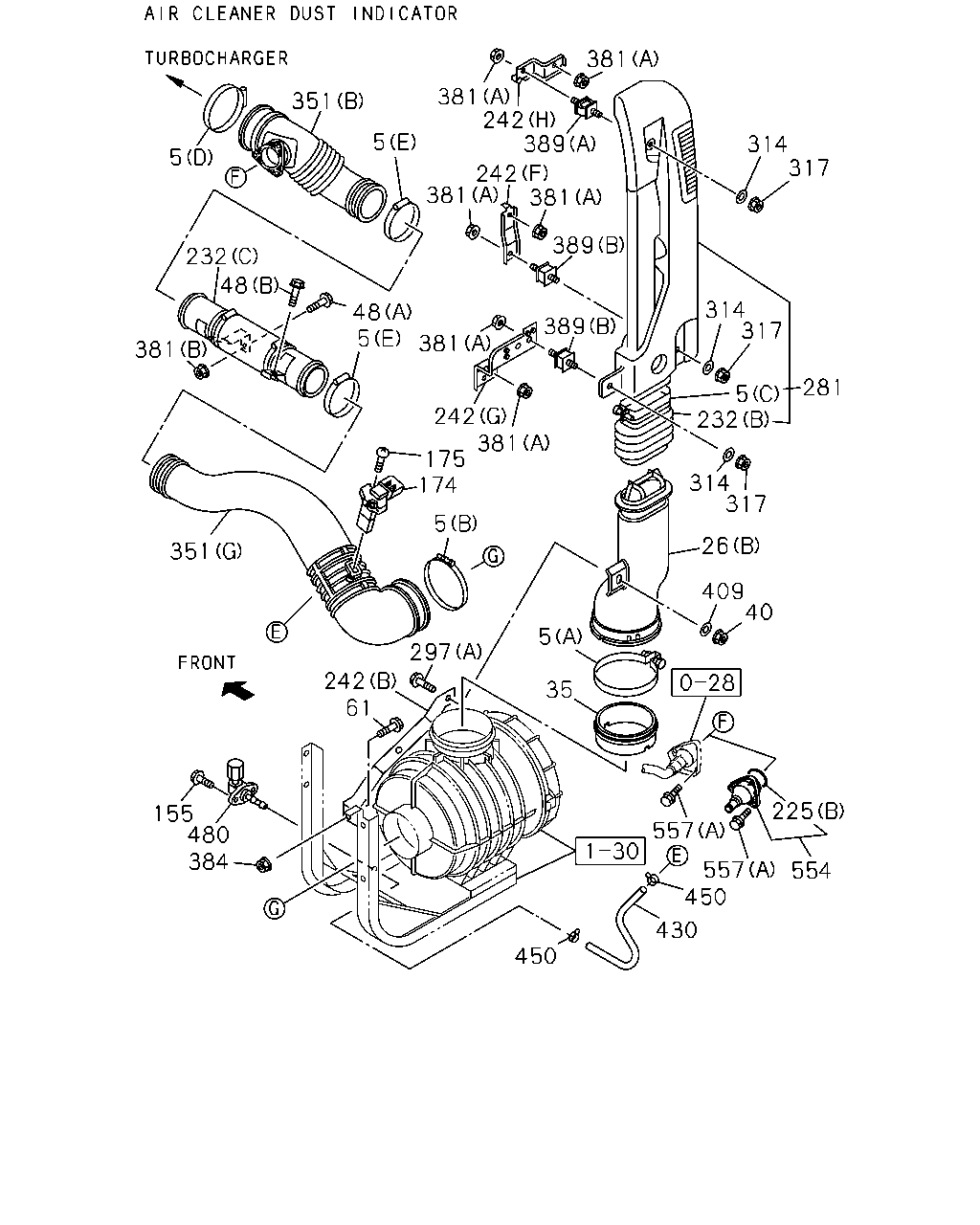

çizim 480161
314 317 381 381 351 5 5 381 381 389 389 242 242 314 317 281 232 5 314 317 26 409 40 5 35 557 557 554 225 450 430 450 480 384 155 351 242 61 297 5 174 175 242 381 389 48 5 381 48 232 381
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(F) ID=60-65 		8-98096-418-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(G) ID=58-79 		1-09707-136-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1506- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1506- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=117 		9-09915-075-1 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 02 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=112 		9-09915-074-1 01 1 1506- ● ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1506- ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1506- ● ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1506- ● ● ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506- ● ● ● ● ● ●
48 03.417 BOLT; AIR DUCT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 1506- ● ● ●
48 03.417 BOLT; AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1506- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1506- ● ● ●
155 03.417 BOLT; BRKT
AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1506- ● ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1506- ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1506- ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1506- ● ● ● ● ● ●
225 03.417 GASKET; AIR PIPE
03.270 (A) ID=47 		8-97202-328-1 01 1 1506- ● ●
225 03.417 GASKET; AIR PIPE
FRIGID ZONE(YL3) 01.097 (B) ID=43.7 		9-09561-344-0 01 1 1506- ● ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (D) 		8-98048-137-0 01 1 1506- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1506- ● ● ● ● ● ●
232 03.417 HOSE; CONN
AIR CLEANER DUST INDICATOR<YD1> EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98281-173-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
MULTI INFORMATION DISPLAY<7NY> EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-178-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-176-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
(E) 		8-98021-072-2 01 1 1506- ●
232 03.417 HOSE; CONN
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98063-793-3 01 1 1506- ● ●
232 03.417 HOSE; CONN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98094-582-2 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98070-942-2 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(K) 		8-98070-943-0 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98032-142-1 01 1 1506- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(L) 		8-98032-143-1 01 1 1506- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98029-819-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1506- ● ● ●
242 03.417 BRACKET; AIR DUCT
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98049-012-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 1506- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1506- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1506- ● ● ●
297 03.417 BOLT; DUCT
00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1506- ● ●
297 03.417 BOLT; DUCT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1506- ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1506- ● ● ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ● ● ● ● ●
351 03.407 DUCT; AIR
03.417 (D) 		8-98051-032-1 01 1 1506- ● ●
351 03.407 DUCT; AIR
(A) 		8-98105-722-1 01 1 1506- ● ● ● ●
351 03.407 DUCT; AIR
(E) 		8-98021-486-1 01 1 1506- ●
351 03.407 DUCT; AIR
(F) 		8-98070-864-0 01 1 1506- ●
351 03.407 DUCT; AIR
AIR CLEANER DUST INDICATOR<YD1> EXC. MULTI INFORMATION DISPLAY<7NY> 03.417 (G) 		8-98021-485-1 01 1 1506- ● ●
351 03.407 DUCT; AIR
(B) 		8-98281-177-0 01 1 1506- ● ●
351 03.407 DUCT; AIR
EXC. AIR CLEANER DUST INDICATOR<YD1> (C) 		8-98070-862-1 01 1 1506- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1506- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506- ● ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506- ●
381 03.417 NUT; BRKT,AIR DUCT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1506- ● ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1506- ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1506- ● ● ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1506- ● ● ● ● ● ●
430 03.417 HOSE; INDICATOR
AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000 		0-04770-300-0 01 1 1506- ● ●
430 03.417 HOSE; INDICATOR
AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000 		0-04770-300-0 01 1 1506- ● ●
450 03.417 CLAMP; HOSE
AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12 		8-98150-358-0 02 1 1506- ● ● ● ●
480 03.417 ADAPTER
AIR CLEANER DUST INDICATOR<YD1> 		8-98013-425-0 01 1 1506- ● ● ● ●
554 04.439 FLANGE; PIPE,PCV
FRIGID ZONE(YL3) 		8-98038-208-0 01 1 1506- ● ● ● ●
557 03.403 BOLT; HOSE CLIP
03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 1506- ● ●
557 03.403 BOLT; HOSE CLIP
00.386 (A) M6X20 FLANGE 		0-28050-620-0 03 1 1506- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
