0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#162786) — 232 parça

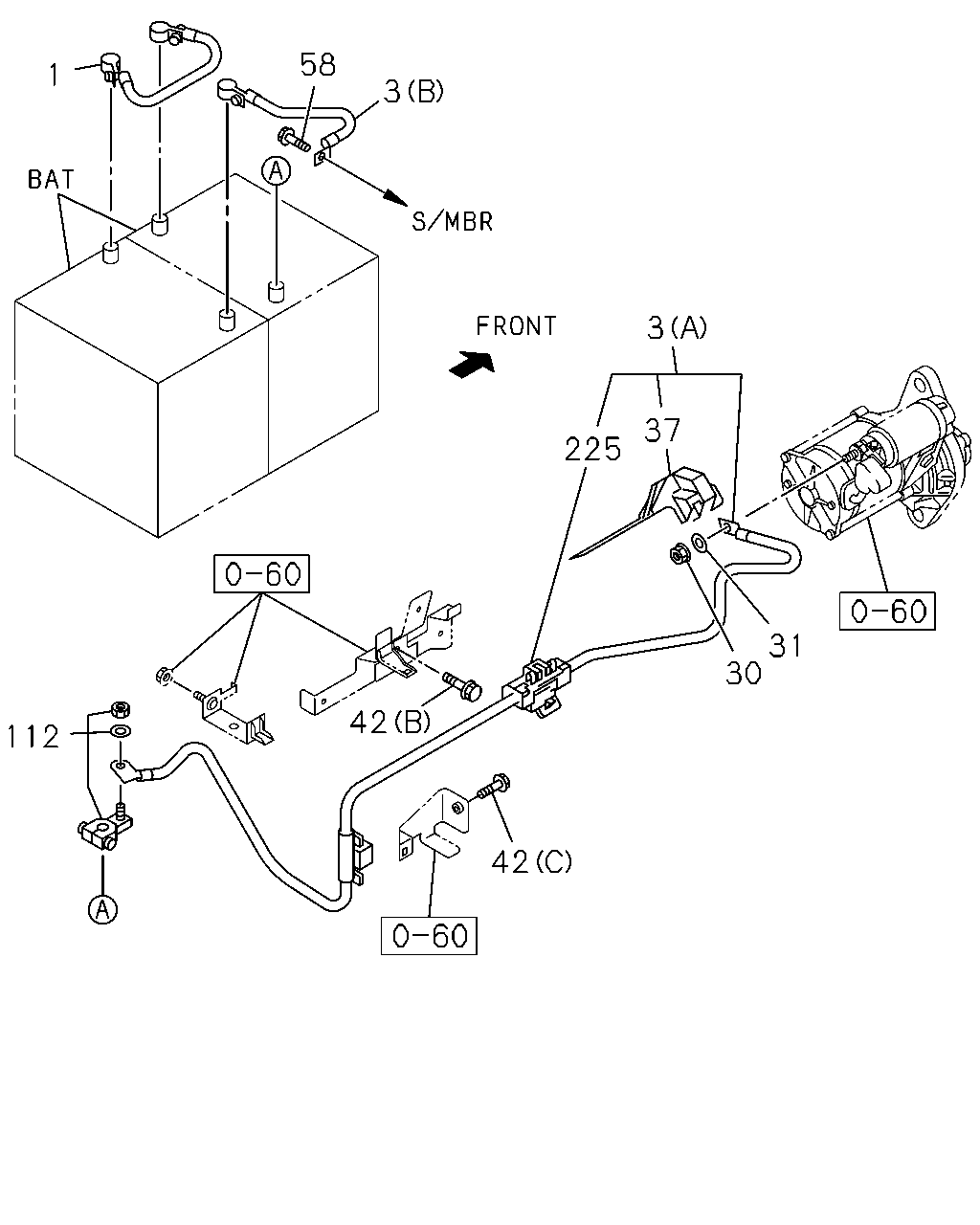

çizim 479280
30 31 225 37 3 3 58 1 112 42 42
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1506- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR SGL CAB(NP**SE) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98294-729-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR SGL CAB(NP**SE) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98293-917-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98294-747-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR DBL CAB(NP**WE) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98294-747-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98294-746-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR DBL CAB(NP**WE) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98294-746-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-730-0 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-730-0 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) BATTERY 80D26L<TM1> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-730-0 01 1 1508- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-723-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-723-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-731-0 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-731-0 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-731-0 01 1 1508- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=400 		8-98201-105-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=400 		8-98201-105-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=400 		8-98201-105-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=400 		8-98201-105-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=400 		8-98201-105-0 01 1 1508-1511 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1508-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=400 		8-98201-105-0 01 1 1512- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-725-0 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-725-0 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-725-0 01 1 1508-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-725-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-725-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-753-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-752-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98294-737-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98294-737-0 01 1 1508- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-738-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-738-0 01 1 1508- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-724-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-718-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-726-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-721-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MZZ6F(RSR) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-732-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR DBL CAB(NP**WS) M/T MZZ6F(RSR) BATTERY 80D26L<TM1> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98294-732-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MZZ6F(RSR) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-727-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR DBL CAB(NP**WS) M/T MZZ6F(RSR) BATTERY 80D26L<TM1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98294-727-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-736-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR DBL CAB(NP**WS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-736-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-734-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR DBL CAB(NP**WS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-734-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST),M/T MYY6E(Y5X) BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98294-739-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98294-739-0 01 1 1508- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=250 		8-98056-338-1 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=250 		8-98056-338-1 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=250 		8-98056-338-1 01 1 1508-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=250 		8-98056-338-1 01 1 1508-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=250 		8-98056-338-1 01 1 1512- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=250 		8-98056-338-1 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST),M/T MYY6E(Y5X) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-728-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST),M/T MYY6E(Y5X) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-722-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST),M/T MYY6E(Y5X) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-740-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-740-0 01 1 1508- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=450 		8-98072-275-1 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (D) L=450 		8-98072-275-1 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=450 		8-98072-275-1 01 1 1508- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (D) L=450 		8-98072-275-1 01 1 1508- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST),M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-735-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST),M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-733-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=200 		8-98056-337-1 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=200 		8-98056-337-1 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=200 		8-98056-337-1 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=200 		8-98056-337-1 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=200 		8-98056-337-1 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=200 		8-98056-337-1 01 1 1508-1508 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=200 		8-98056-337-1 01 1 1508-1508 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=200 		8-98056-337-1 01 1 1508-1508 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EURO5 SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=200 		8-98056-337-1 01 1 1508-1511 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=200 		8-98056-337-1 01 1 1508-1511 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=200 		8-98056-337-1 01 1 1508-1511 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=200 		8-98056-337-1 01 1 1512- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=200 		8-98056-337-1 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=200 		8-98056-337-1 01 1 1512- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1506- ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1506- ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1506- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1506-1507 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1506-1507 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1506-1507 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1506-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1508-1511 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1508-1511 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1508-1511 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1508-1511 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1512- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1512- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1512- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1512- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506-1507 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506-1507 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506-1507 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506-1507 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1508-1511 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1508-1511 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1506- ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1506- ● ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1506- ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1506- ● ● ●

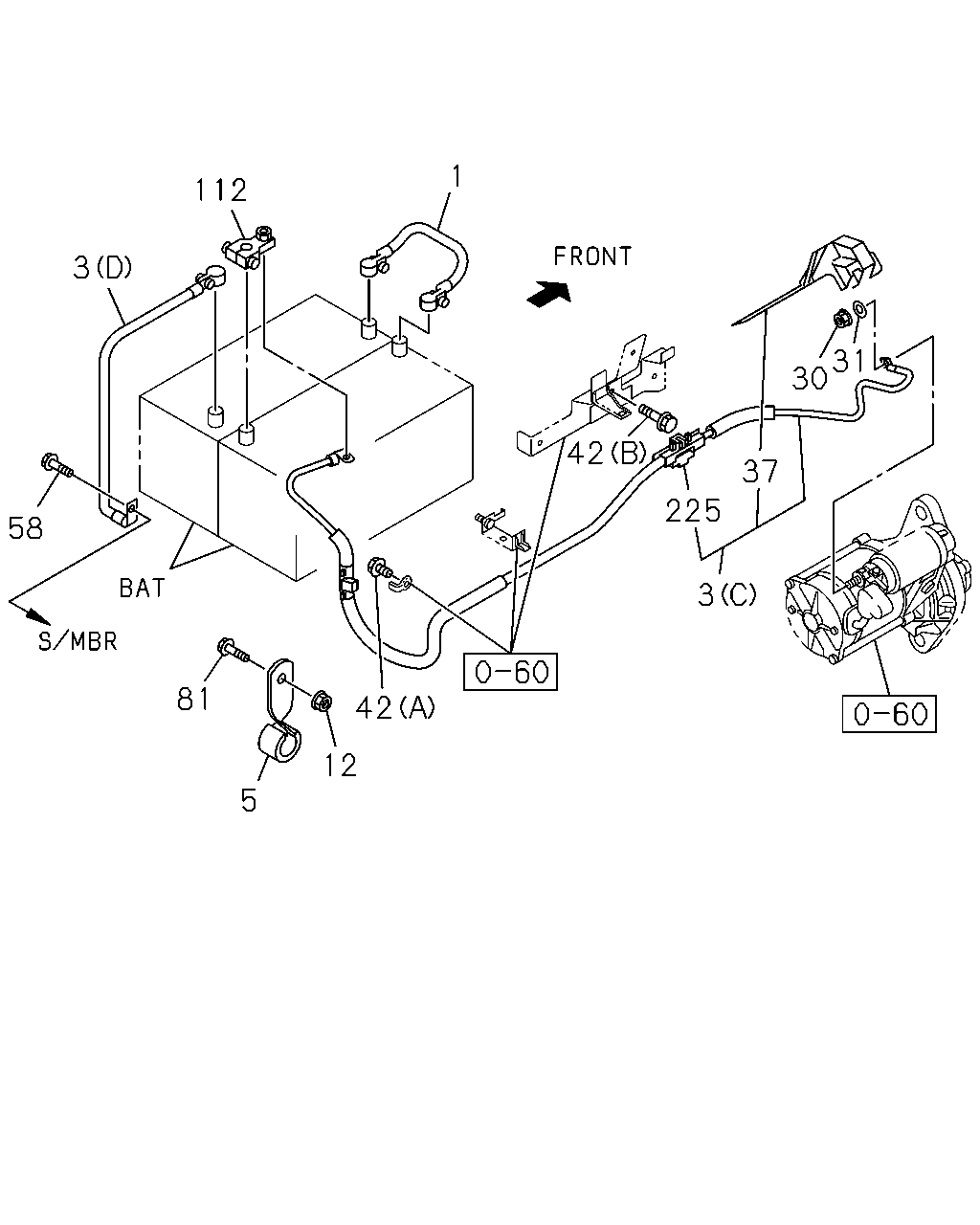

çizim 479286
3 225 37 30 31 1 112 3 58 81 5 42 12 42
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1506- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR SGL CAB(NP**SE) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98294-729-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR SGL CAB(NP**SE) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98293-917-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98294-747-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR DBL CAB(NP**WE) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98294-747-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98294-746-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR DBL CAB(NP**WE) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98294-746-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-730-0 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-730-0 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) BATTERY 80D26L<TM1> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-730-0 01 1 1508- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-723-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-723-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-731-0 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-731-0 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-731-0 01 1 1508- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=400 		8-98201-105-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=400 		8-98201-105-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=400 		8-98201-105-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=400 		8-98201-105-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=400 		8-98201-105-0 01 1 1508-1511 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1508-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=400 		8-98201-105-0 01 1 1512- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-725-0 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-725-0 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-725-0 01 1 1508-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-725-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-725-0 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-753-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-752-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98294-737-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98294-737-0 01 1 1508- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-738-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-738-0 01 1 1508- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-724-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-718-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-726-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-721-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MZZ6F(RSR) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-732-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR DBL CAB(NP**WS) M/T MZZ6F(RSR) BATTERY 80D26L<TM1> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98294-732-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MZZ6F(RSR) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-727-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR DBL CAB(NP**WS) M/T MZZ6F(RSR) BATTERY 80D26L<TM1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98294-727-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-736-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR DBL CAB(NP**WS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-736-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-734-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR DBL CAB(NP**WS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-734-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST),M/T MYY6E(Y5X) BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98294-739-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98294-739-0 01 1 1508- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=250 		8-98056-338-1 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=250 		8-98056-338-1 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=250 		8-98056-338-1 01 1 1508-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=250 		8-98056-338-1 01 1 1508-1511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=250 		8-98056-338-1 01 1 1512- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=250 		8-98056-338-1 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST),M/T MYY6E(Y5X) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-728-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST),M/T MYY6E(Y5X) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98294-722-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST),M/T MYY6E(Y5X) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-740-0 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-740-0 01 1 1508- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=450 		8-98072-275-1 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (D) L=450 		8-98072-275-1 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=450 		8-98072-275-1 01 1 1508- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (D) L=450 		8-98072-275-1 01 1 1508- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST),M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-735-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST),M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-733-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=200 		8-98056-337-1 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=200 		8-98056-337-1 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=200 		8-98056-337-1 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=200 		8-98056-337-1 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=200 		8-98056-337-1 01 1 1506-1507 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 1506-1507 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=200 		8-98056-337-1 01 1 1508-1508 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=200 		8-98056-337-1 01 1 1508-1508 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=200 		8-98056-337-1 01 1 1508-1508 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EURO5 SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=200 		8-98056-337-1 01 1 1508-1511 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=200 		8-98056-337-1 01 1 1508-1511 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=200 		8-98056-337-1 01 1 1508-1511 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) L=200 		8-98056-337-1 01 1 1512- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=200 		8-98056-337-1 01 1 1512- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=200 		8-98056-337-1 01 1 1512- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=19 L=58 		1-09700-733-1 01 1 1506-1507 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 1506-1507 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 1508-1511 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=19 L=58 		1-09700-733-1 01 1 1508-1511 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=19 L=58 		1-09700-733-1 01 1 1512- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 1512- ●
12 02.343 NUT; BATTERY CABLE CLIP
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1507 ● ●
12 02.343 NUT; BATTERY CABLE CLIP
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1507 ● ●
12 02.343 NUT; BATTERY CABLE CLIP
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508-1511 ● ● ●
12 02.343 NUT; BATTERY CABLE CLIP
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508-1511 ● ● ●
12 02.343 NUT; BATTERY CABLE CLIP
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1506- ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1506- ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1506- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1506-1507 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1506-1507 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1506-1507 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1506-1507 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1508-1511 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1508-1511 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1508-1511 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1508-1511 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1512- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1512- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1512- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1512- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506-1507 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506-1507 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506-1507 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506-1507 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1508-1511 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1508-1511 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1506- ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1506- ● ● ●
81 02.559 BOLT; BATTERY CABLE
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1507 ● ●
81 02.559 BOLT; BATTERY CABLE
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1507 ● ●
81 02.559 BOLT; BATTERY CABLE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508-1511 ● ● ●
81 02.559 BOLT; BATTERY CABLE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508-1511 ● ● ●
81 02.559 BOLT; BATTERY CABLE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1512- ● ●
81 02.559 BOLT; BATTERY CABLE
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1512- ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1506- ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1506- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
