◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51606 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#162785) — 277 parça

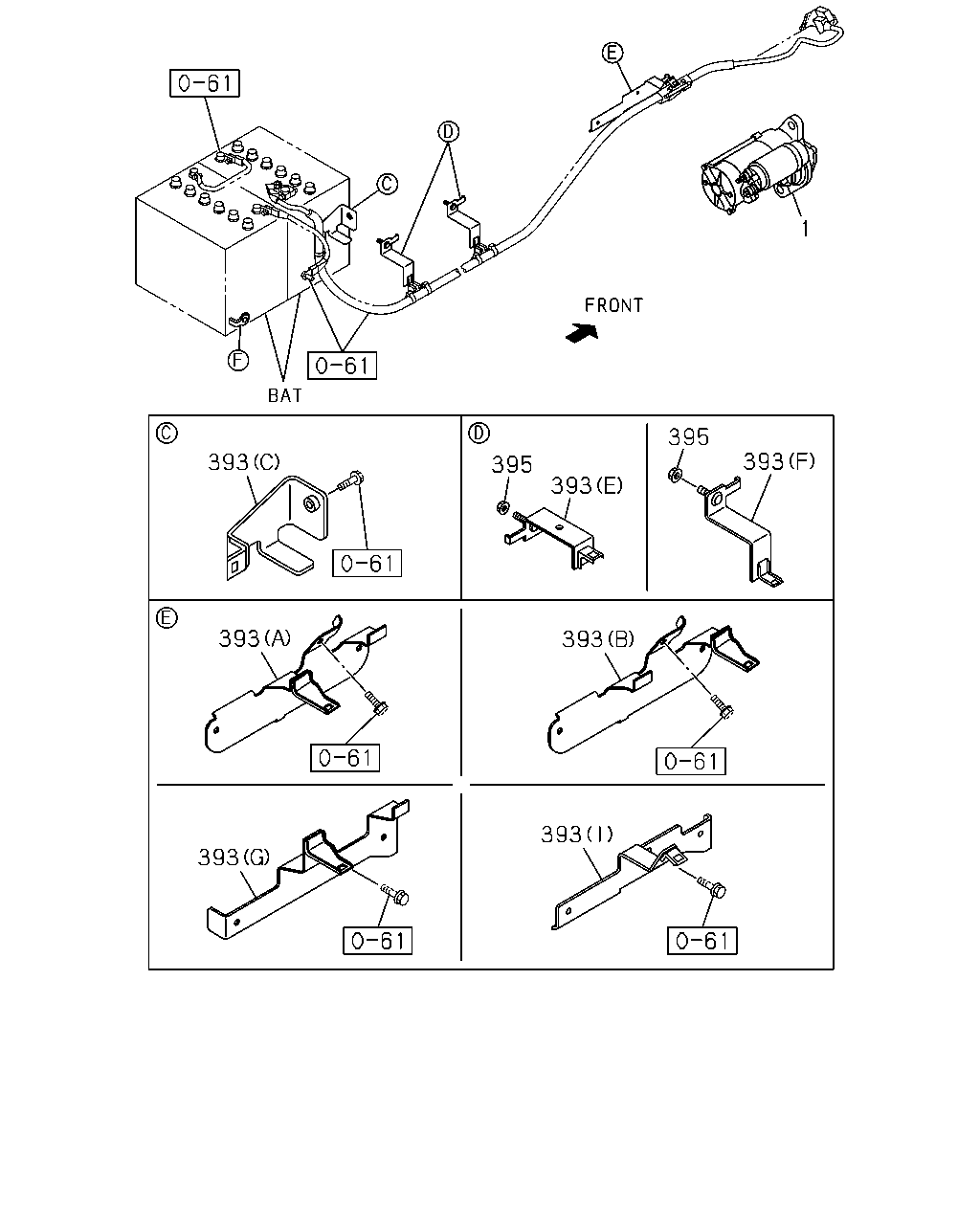

çizim 479005
393 393 393 393 393 393 393 395 1 395
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1506- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1506- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1506- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98123-872-0 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98123-872-0 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98123-872-0 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) (C) 		8-98123-872-0 01 1 1506-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98123-872-0 01 1 1508-1511 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98123-872-0 01 1 1508-1511 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98123-872-0 01 1 1508-1511 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) (C) 		8-98123-872-0 01 1 1508-1511 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98123-872-0 01 1 1512- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98123-872-0 01 1 1512- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98123-872-0 01 1 1512- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) (C) 		8-98123-872-0 01 1 1512- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98030-139-2 01 1 1506- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98030-138-2 01 1 1506- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) (F) 		8-98245-494-0 02 1 1506- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 (E) 		8-98018-251-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 02 1 1508-1511 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 (E) 		8-98018-251-1 02 1 1508-1511 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 1508-1511 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 02 1 1508-1511 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 02 1 1512- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 02 1 1512- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 (E) 		8-98018-251-1 02 1 1512- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 1512- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1506-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1506-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1506-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1506-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1506-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1508- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98018-894-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (D) 		8-98018-894-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98018-894-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98018-894-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) 		8-98018-894-1 01 1 1508-1511 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (D) 		8-98018-894-1 01 1 1508-1511 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98018-894-1 01 1 1512- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (D) 		8-98018-894-1 01 1 1512- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) 		8-98041-947-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) 		8-98041-947-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) 		8-98041-947-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) 		8-98041-947-1 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) 		8-98041-947-1 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) 		8-98041-947-1 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) 		8-98131-881-0 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) 		8-98131-881-0 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98131-881-0 01 1 1508- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 02 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 02 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 (E) 		8-98018-251-1 02 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 02 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 02 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 01 1 1508-1511 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 (E) 		8-98018-251-1 01 1 1508-1511 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 01 1 1508-1511 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 01 1 1512- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 (E) 		8-98018-251-1 01 1 1512- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) M/T MZZ6F(RSR) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508-1508 ● ●
395 02.343 NUT; BRKT FIX
FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508-1508 ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508-1508 ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ● ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ● ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ● ●
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1512- ● ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1512- ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1512- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1512- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508-1511 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508-1511 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508-1511 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ●

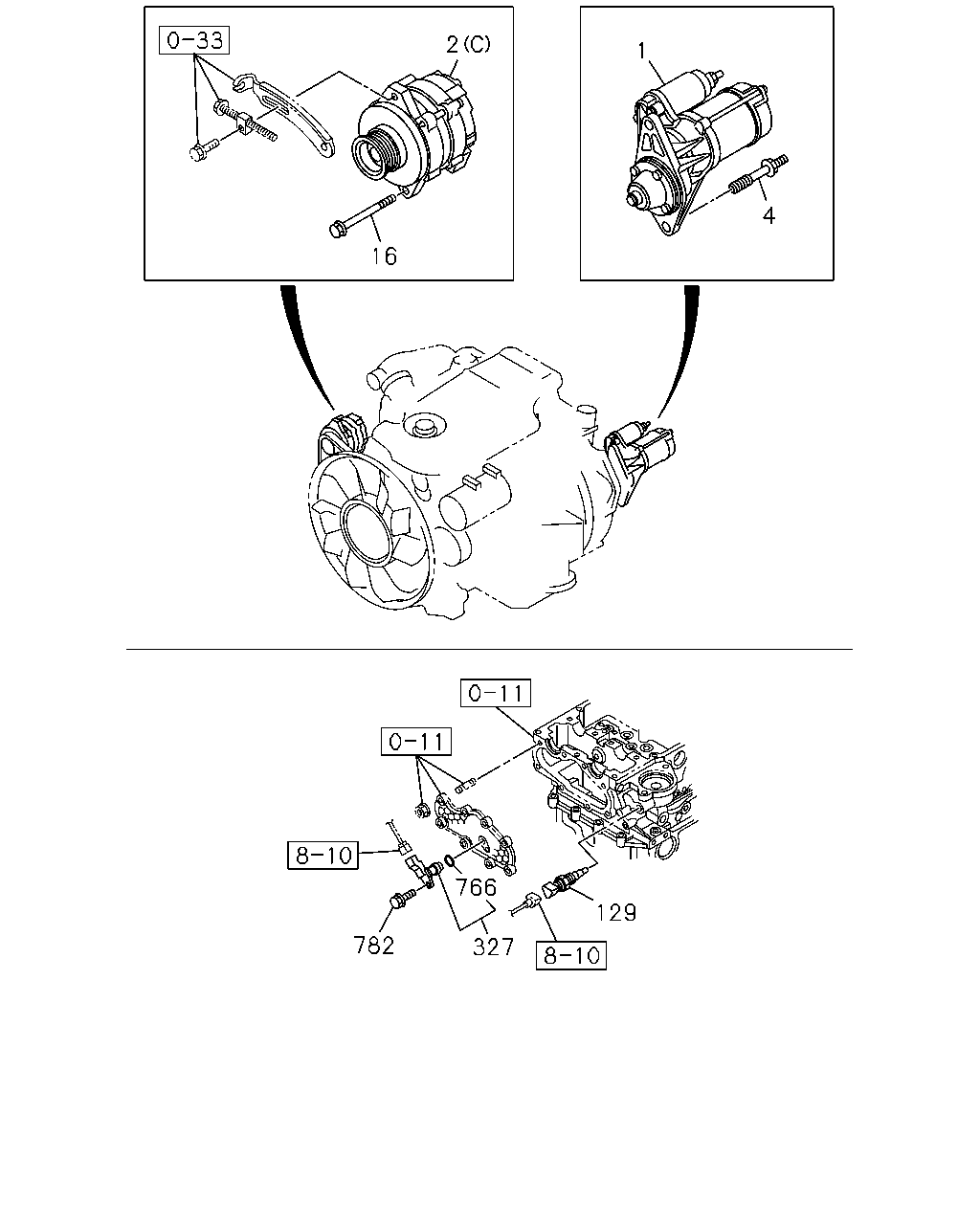

çizim 479252
16 2 1 4 129 766 327 782
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1506- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1506- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1506- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (C) 24V 90A 		8-98251-635-1 01 1 1506- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (C) 24V 50A 		8-98268-791-0 01 1 1506- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) 24V 90A 		8-98268-793-0 01 1 1506- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (A) 24V 50A 		8-98268-792-1 01 1 1506- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) HITACHI 24V 50A 		8-98075-026-0 01 1 1506- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) HITACHI 24V 80A 		8-98029-892-2 01 1 1506- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1506- ● ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1506- ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1506- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1506- ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1506- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1506- ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1506- ●

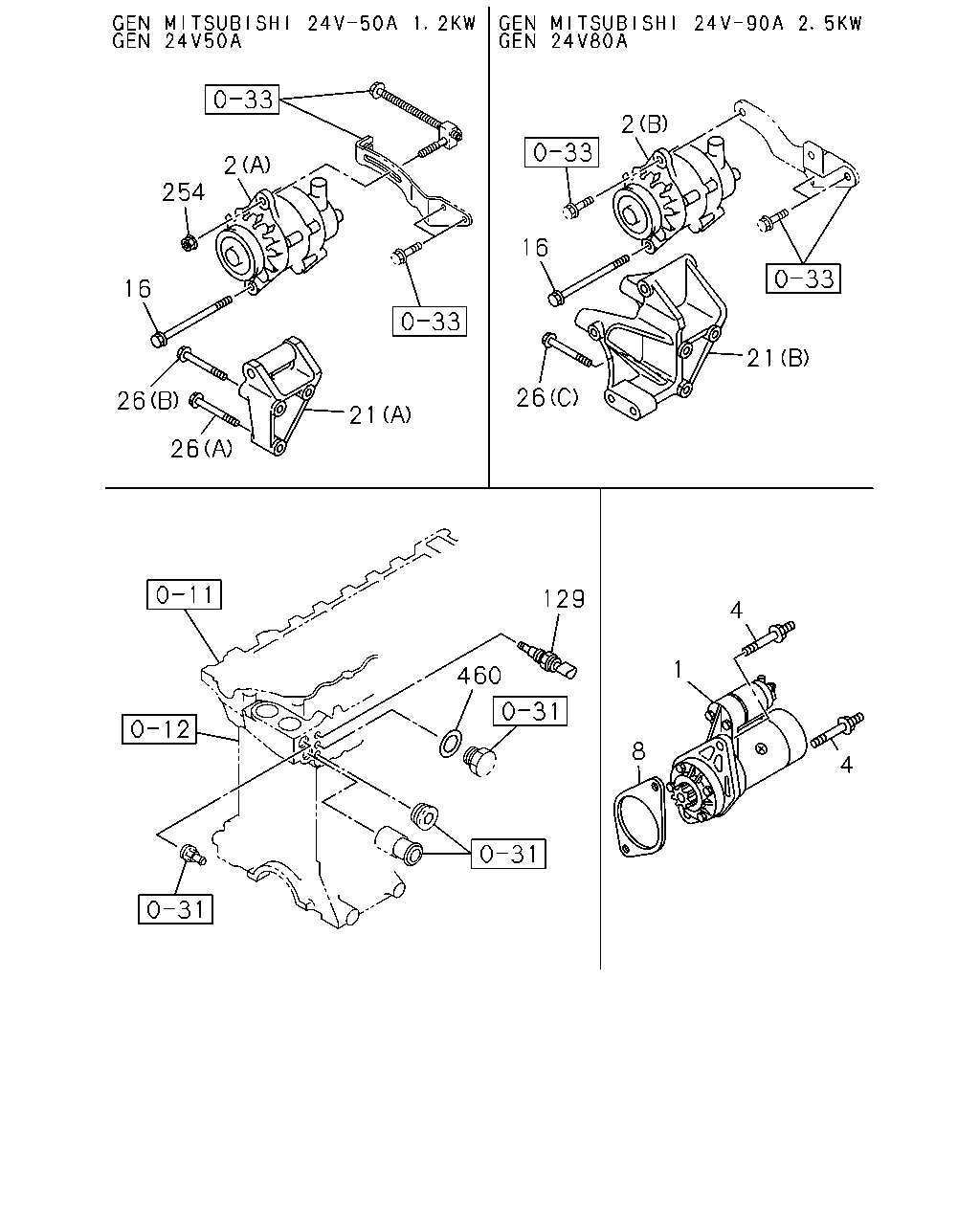

çizim 479271
2 254 16 26 26 21 2 21 16 26 129 460 8 1 4 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1506- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1506- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1506- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (C) 24V 90A 		8-98251-635-1 01 1 1506- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (C) 24V 50A 		8-98268-791-0 01 1 1506- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) 24V 90A 		8-98268-793-0 01 1 1506- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (A) 24V 50A 		8-98268-792-1 01 1 1506- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) HITACHI 24V 50A 		8-98075-026-0 01 1 1506- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) HITACHI 24V 80A 		8-98029-892-2 01 1 1506- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1506- ● ● ●
8 02.042 SPACER; STARTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97350-947-0 01 1 1506- ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1506- ● ● ●
21 02.277 BRACKET; GEN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR 24V80A(7YN) (B) 		8-98036-551-0 01 1 1506- ● ●
21 02.277 BRACKET; GEN
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ), GENERATOR 24V50A(6QN) (A) 		8-97075-884-2 01 1 1506- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR 24V80A(7YN) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 03 1 1506- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ), GENERATOR 24V50A(6QN) 02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 1506- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ), GENERATOR 24V50A(6QN) (B) M10X70 FLANGE 		0-28151-070-0 02 1 1506- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1506- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1506- ● ●
254 02.277 NUT; GEN BRKT
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ), GENERATOR 24V50A(6QN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 1506- ● ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 1506- ● ●
çizim 479660
10 46
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 1506- ● ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1506- ● ● ●
çizim 479756
393 395 393
BalonParca AdiParca NoAdetTipApplied Date A B C
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98123-872-0 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98123-872-0 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98123-872-0 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) (C) 		8-98123-872-0 01 1 1506-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98123-872-0 01 1 1508-1511 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98123-872-0 01 1 1508-1511 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98123-872-0 01 1 1508-1511 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) (C) 		8-98123-872-0 01 1 1508-1511 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98123-872-0 01 1 1512- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98123-872-0 01 1 1512- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98123-872-0 01 1 1512- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) (C) 		8-98123-872-0 01 1 1512- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98030-139-2 01 1 1506- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98030-138-2 01 1 1506- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) (F) 		8-98245-494-0 02 1 1506- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 (E) 		8-98018-251-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 02 1 1508-1511 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 (E) 		8-98018-251-1 02 1 1508-1511 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 1508-1511 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 02 1 1508-1511 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 02 1 1512- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 02 1 1512- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 (E) 		8-98018-251-1 02 1 1512- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 1512- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1506-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1506-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1506-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1506-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1506-1507 ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1508- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) 		8-98041-946-1 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98018-894-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (D) 		8-98018-894-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98018-894-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98018-894-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) 		8-98018-894-1 01 1 1508-1511 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (D) 		8-98018-894-1 01 1 1508-1511 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98018-894-1 01 1 1512- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (D) 		8-98018-894-1 01 1 1512- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) 		8-98041-947-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) 		8-98041-947-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) 		8-98041-947-1 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) 		8-98041-947-1 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) 		8-98041-947-1 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (H) 		8-98041-947-1 01 1 1508- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) 		8-98131-881-0 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) 		8-98131-881-0 01 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98131-881-0 01 1 1508- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 02 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 02 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 (E) 		8-98018-251-1 02 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 02 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 02 1 1506-1507 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 01 1 1508-1511 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 (E) 		8-98018-251-1 01 1 1508-1511 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 01 1 1508-1511 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.483 (E) 		8-98018-251-1 01 1 1512- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 (E) 		8-98018-251-1 01 1 1512- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) M/T MZZ6F(RSR) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508-1508 ● ●
395 02.343 NUT; BRKT FIX
FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508-1508 ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508-1508 ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ● ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ● ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ● ●
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 02 1 1508-1511 ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1512- ● ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1512- ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1512- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1512- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) M/T MYY6S(RST),M/T MYY6E(Y5X) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508-1511 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508-1511 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1508-1511 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) FUEL TANK 140 LITTER<N19> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ●

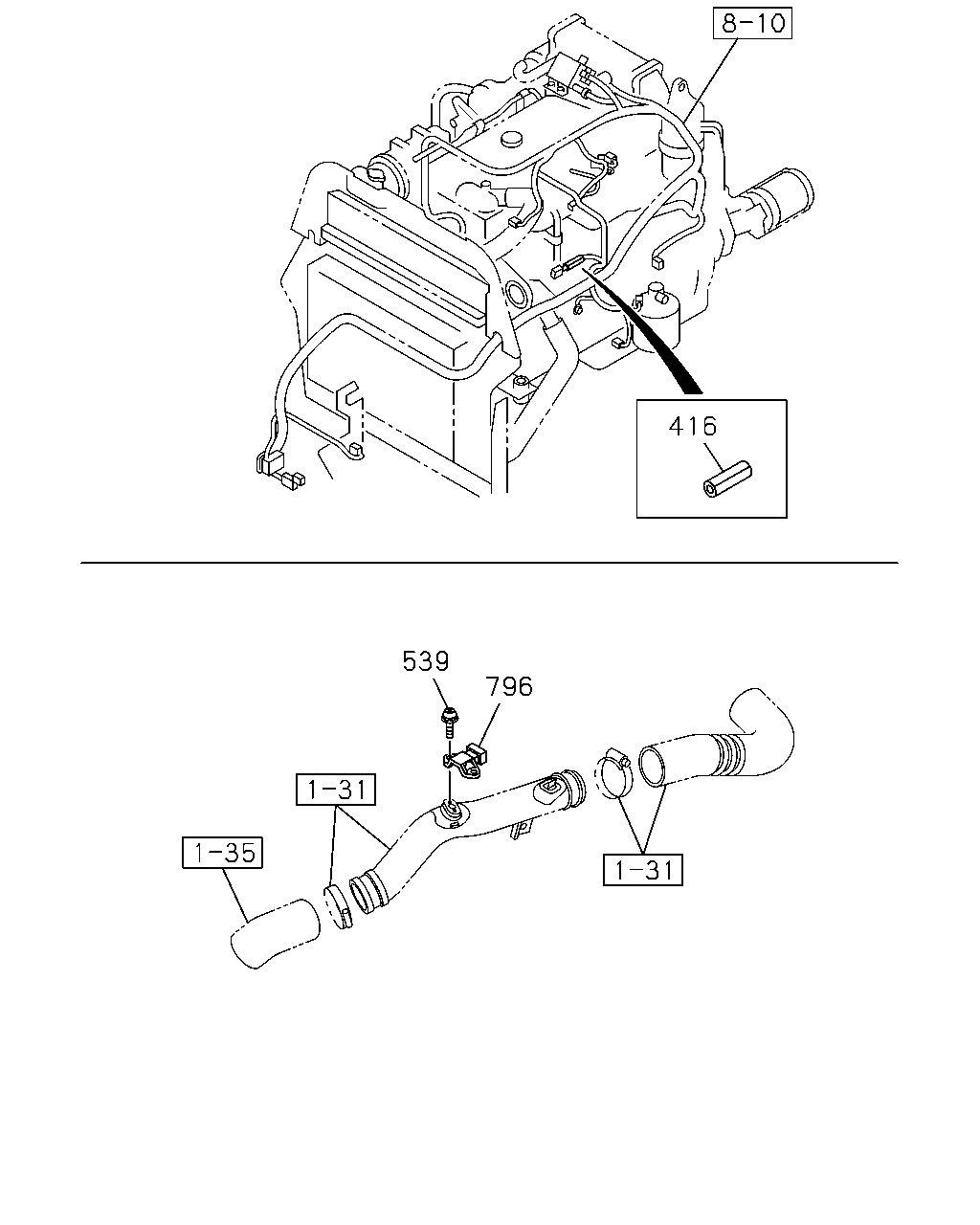

çizim 479813
416 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C
416 02.530 SLEEVE; RUBBER
04.342 ID=17 OD=21 L=40 		1-09337-012-0 01 1 1506- ● ●
416 02.530 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1506- ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1506- ● ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1506- ● ● ●

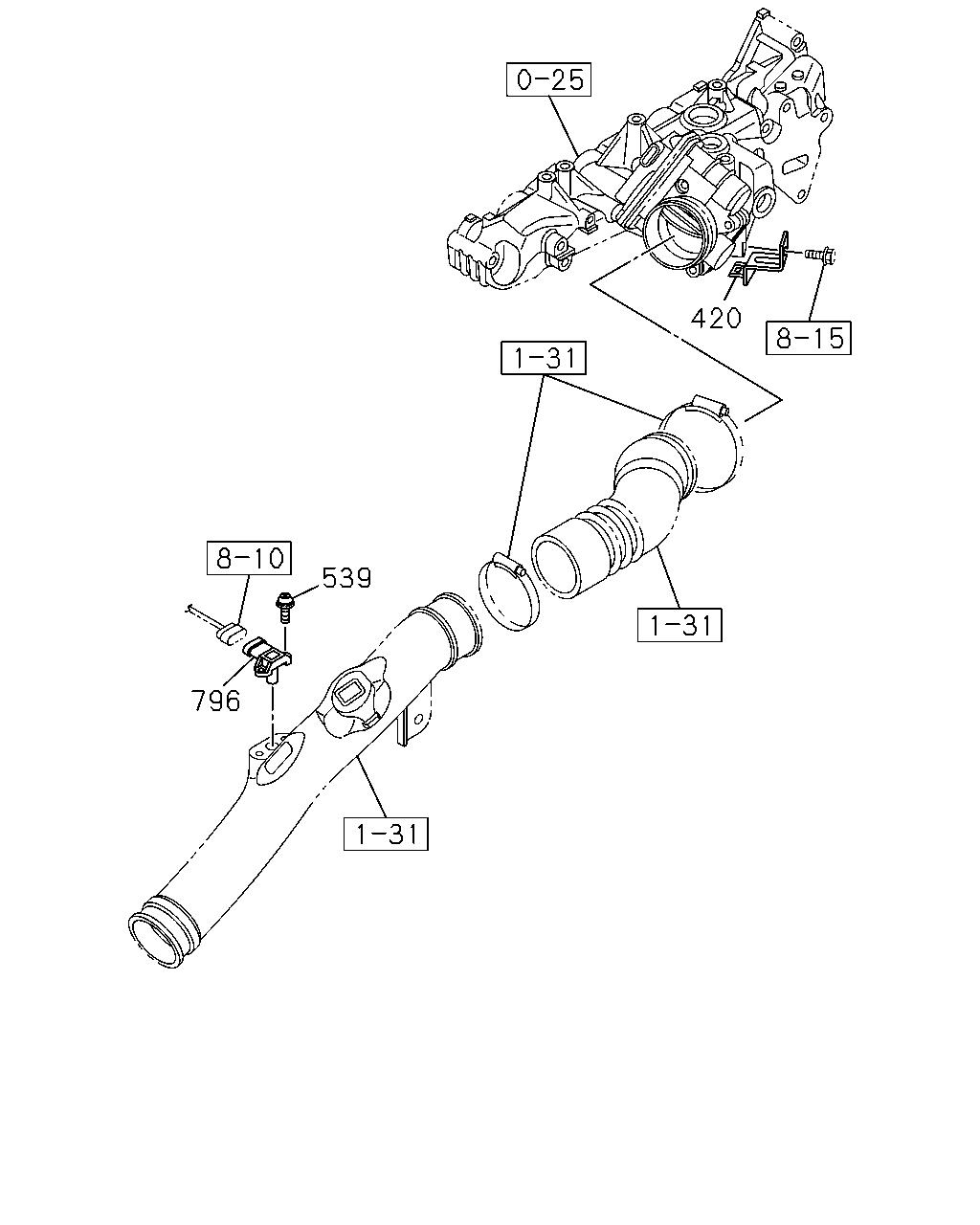

çizim 480107
539 796 420
BalonParca AdiParca NoAdetTipApplied Date A B C
420 02.183 BRACKET; HARNESS 8-98064-159-0 01 1 1506- ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1506- ● ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1506- ● ● ●

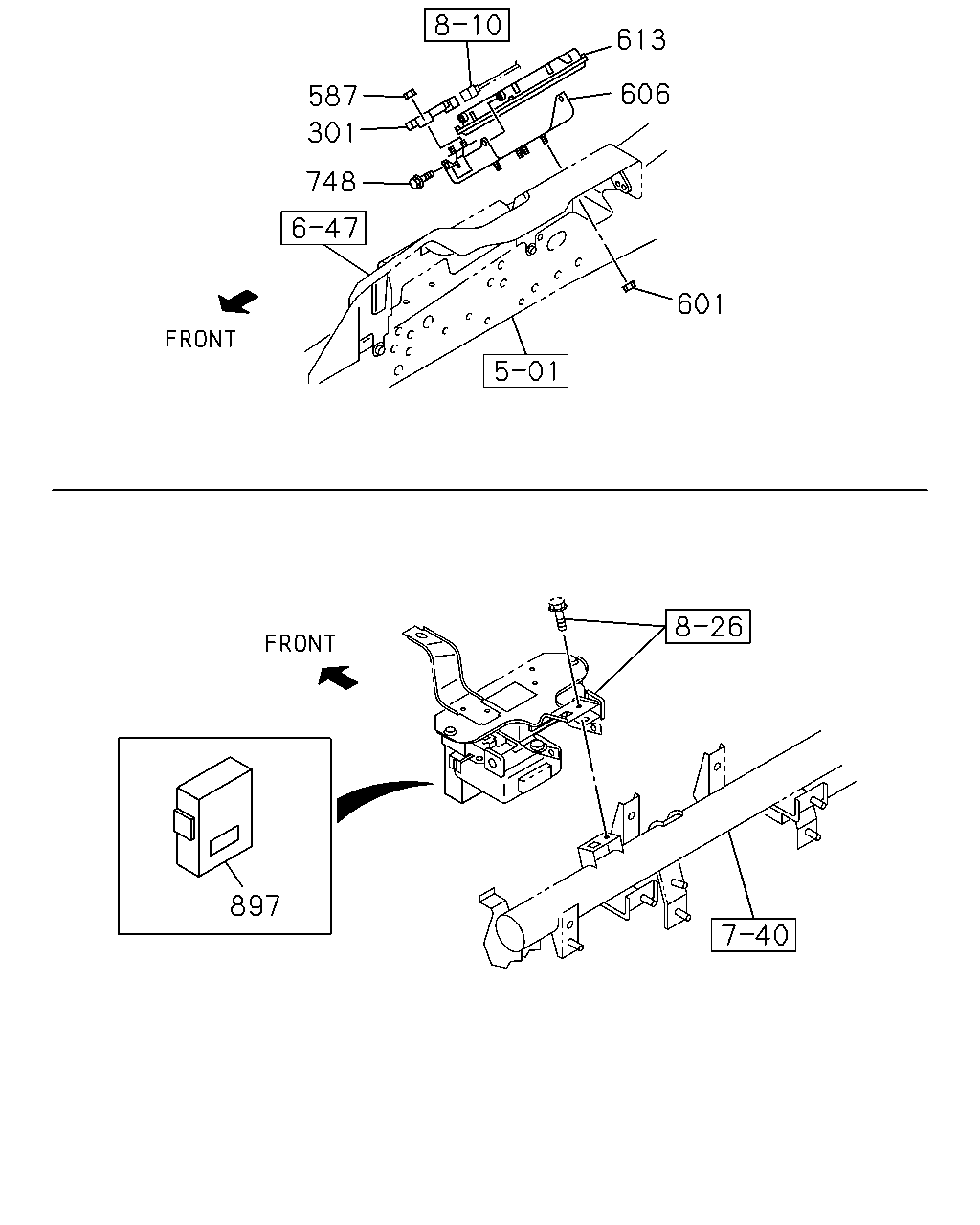

çizim 480151
613 606 601 748 301 587 897
BalonParca AdiParca NoAdetTipApplied Date A B C
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 1506- ● ● ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1506- ● ● ●
601 03.670 NUT; UNIT
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 1506- ● ● ●
606 03.680 BRACKET; CONT UNIT 8-98114-583-2 01 1 1506- ●
606 03.680 BRACKET; CONT UNIT 8-98145-011-2 01 1 1506- ● ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-815-1 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-816-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-765-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NPR5SN) NQR SGL CAB(NPR5SS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-746-1 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NPR5SN) NQR SGL CAB(NPR5SS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-747-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NPR5SN) NQR SGL CAB(NPR5SS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-728-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-812-1 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-813-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-762-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NPR5WN) NQR DBL CAB(NPR5WS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-744-1 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NPR5WN) NQR DBL CAB(NPR5WS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-745-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NPR5WN) NQR DBL CAB(NPR5WS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-727-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NNR SGL CAB(NP**SE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 41/9(HC6) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HILL HOLD ASSIST<SLD> 		8-98286-795-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NNR SGL CAB(NP**SE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 41/9(HC6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9>,HILL HOLD ASSIST<SLD> 		8-98286-795-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NNR SGL CAB(NP**SE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY<CX6>,HILL HOLD ASSIST<SLD> 		8-98288-418-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NNR SGL CAB(NP**SE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HILL HOLD ASSIST<SLD> 		8-98302-579-0 01 1 1506-1507 ●
613 03.670 CONTROL UNIT; ENG
NNR SGL CAB(NP**SE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL DISC BRAKE<JF9>,HILL HOLD ASSIST<SLD> 		8-98302-579-0 01 1 1506-1507 ●
613 03.670 CONTROL UNIT; ENG
NNR SGL CAB(NP**SE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 43/10(S7C) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HILL HOLD ASSIST<SLD> 		8-98302-579-0 01 1 1508- ●
613 03.670 CONTROL UNIT; ENG
NNR SGL CAB(NP**SE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 43/10(S7C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL DISC BRAKE<JF9>,HILL HOLD ASSIST<SLD> 		8-98302-579-0 01 1 1508- ●
613 03.670 CONTROL UNIT; ENG
NNR SGL CAB(NP**SE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL DISC BRAKE<JF9> HILL HOLD ASSIST<SLD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY<CX6> 		8-98286-793-0 01 1 1506-1507 ●
613 03.670 CONTROL UNIT; ENG
NNR SGL CAB(NP**SE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 43/10(S7C) 4 WHEEL DISC BRAKE<JF9> HILL HOLD ASSIST<SLD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY<CX6> 		8-98286-793-0 01 1 1508- ●
613 03.670 CONTROL UNIT; ENG
NNR DBL CAB(NP**WE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 41/9(HC6) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HILL HOLD ASSIST<SLD> 		8-98288-419-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NNR DBL CAB(NP**WE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 41/9(HC6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL DISC BRAKE<JF9>,HILL HOLD ASSIST<SLD> 		8-98288-419-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NNR DBL CAB(NP**WE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY<CX6>,HILL HOLD ASSIST<SLD> 		8-98286-796-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NNR DBL CAB(NP**WE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HILL HOLD ASSIST<SLD> 		8-98302-580-0 01 1 1506-1507 ●
613 03.670 CONTROL UNIT; ENG
NNR DBL CAB(NP**WE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL DISC BRAKE<JF9>,HILL HOLD ASSIST<SLD> 		8-98302-580-0 01 1 1506-1507 ●
613 03.670 CONTROL UNIT; ENG
NNR DBL CAB(NP**WE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 43/10(S7C) NEW ZEALAND COUNTRY<CX6> 4 WHEEL DISC BRAKE<JF9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HILL HOLD ASSIST<SLD> 		8-98302-580-0 01 1 1508- ●
613 03.670 CONTROL UNIT; ENG
NNR DBL CAB(NP**WE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 43/10(S7C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL DISC BRAKE<JF9>,HILL HOLD ASSIST<SLD> 		8-98302-580-0 01 1 1508- ●
613 03.670 CONTROL UNIT; ENG
NNR DBL CAB(NP**WE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL DISC BRAKE<JF9> HILL HOLD ASSIST<SLD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY<CX6> 		8-98286-794-0 01 1 1506-1507 ●
613 03.670 CONTROL UNIT; ENG
NNR DBL CAB(NP**WE) M/T MYY6S(RST),M/T MYY6E(Y5X) FINAL GEAR RATIO 43/10(S7C) 4 WHEEL DISC BRAKE<JF9> HILL HOLD ASSIST<SLD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY<CX6> 		8-98286-794-0 01 1 1508- ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 1506- ● ● ●
897 02.510 DRM
4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY<CX6> 		8-98312-616-1 01 1 1506- ● ● ●
897 02.510 DRM
NEW ZEALAND COUNTRY<CX6> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98082-814-7 01 1 1506- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
