0-11 — CYLINDER HEAD (#162762) — 101 parça

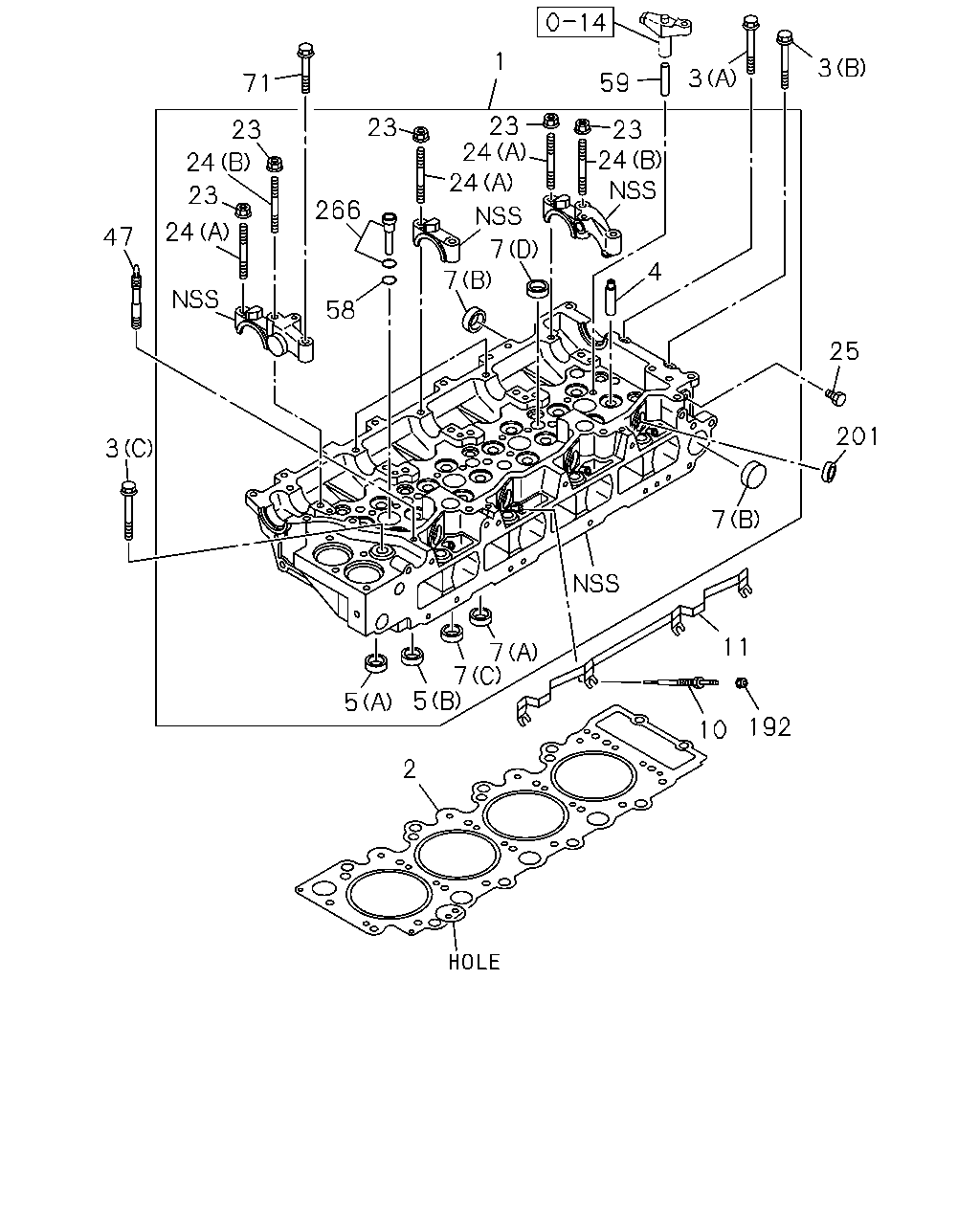

59 3 3 23 24 4 25 201 7 24 23 1 23 266 58 24 23 24 71 47 3 5 5 7 7 10 192 11 24 7 7 2 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.269 HEAD ASM; CYL	8-98223-080-2	01	1	1506-	●
1	00.269 HEAD ASM; CYL	8-98170-619-0	01	1	1506-		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE A T=1.14 1-NOTCH	8-98291-683-0	01	1	1506-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE B T=1.19 2-NOTCH	8-98291-684-0	01	1	1506-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE C T=1.24 3-NOTCH	8-98291-685-0	01	1	1506-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98055-540-0	01	1	1506-1506		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98288-501-0	01	1	1506-		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98055-541-0	01	1	1506-1506		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98288-502-0	01	1	1506-		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98055-542-0	01	1	1506-1506		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98288-503-0	01	1	1506-		●	●
3	00.293 BOLT; CYL HD TO BLOCK (D) M11X114 W/WASHER	8-98201-019-0	18	1	1506-	●
3	00.293 BOLT; CYL HD TO BLOCK (A) M10X73	8-94399-554-0	01	1	1506-		●	●
3	00.293 BOLT; CYL HD TO BLOCK (B) M10X43	8-94399-555-0	01	1	1506-		●	●
3	00.293 BOLT; CYL HD TO BLOCK (C) M14X115 W/FLANGE	8-98260-005-0	18	1	1506-		●	●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	16	1	1506-	●
4	00.283 GUIDE; VLV L=57	8-97376-719-2	16	1	1506-		●	●
5	00.253 SEAT; VLV INSERT (C) INLET ID=29 OD=35	8-97311-378-0	08	1	1506-	●
5	00.253 SEAT; VLV INSERT (D) EXHAUST ID=26 OD=32	8-97311-379-0	08	1	1506-	●
5	00.253 SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	08	1	1506-		●	●
5	00.253 SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	1506-		●	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (E) OD=32	1-09600-012-2	02	1	1506-	●
7	00.253 CUP; SEALING,CYL HEAD (F) OD=18	5-11219-008-0	13	1	1506-	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (G) OD=14	5-11219-011-0	07	1	1506-	●
7	00.253 CUP; SEALING,CYL HEAD 00.293 (D) OD=25	1-09600-016-0	04	1	1506-		●	●
7	00.253 CUP; SEALING,CYL HEAD (A) OD=16	5-11129-006-0	05	1	1506-		●	●
7	00.253 CUP; SEALING,CYL HEAD (B) OD=32	8-97096-821-0	05	1	1506-		●	●
7	00.253 CUP; SEALING,CYL HEAD (C) OD=20	9-11129-128-0	07	1	1506-		●	●
10	02.270 PLUG; GLOW NGK	8-94390-777-6	04	1	1506-	●	●	●
11	02.251 CONNECTOR; GLOW PLUG	8-98014-335-0	01	1	1506-	●
11	02.251 CONNECTOR; GLOW PLUG	8-97332-358-2	01	1	1506-		●	●
23	00.349 NUT; CAM BRKT 01.540 M8 FLANGE	0-91180-208-0	10	1	1506-		●	●
24	00.413 STUD; CM/SHF BRKT (B) M8X54 L=79	8-94322-512-2	02	1	1506-		●	●
24	00.413 STUD; CM/SHF BRKT (A) M8X41 L=66	8-94322-513-2	08	1	1506-		●	●
25	00.293 PLUG; CYL HD 00.309 M8X10	8-98003-416-0	01	1	1506-		●	●
47	00.413 STUD; CYL HD 01.073 M8X60 L=72	0-49140-860-0	02	1	1506-		●	●
58	00.289 GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4	8-97604-916-0	04	1	1506-		●	●
59	00.283 GUIDE; BRIDGE	8-97381-603-1	08	1	1506-		●	●
71	00.413 BOLT; CAM BRKT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	1506-		●	●
192	00.349 NUT; GLOW PLUG 02.559 M4 FLANGE	8-97368-853-0	04	1	1506-	●	●	●
201	03.306 GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30	1-09639-034-0	04	1	1506-		●	●
266	00.293 SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	04	1	1506-		●	●

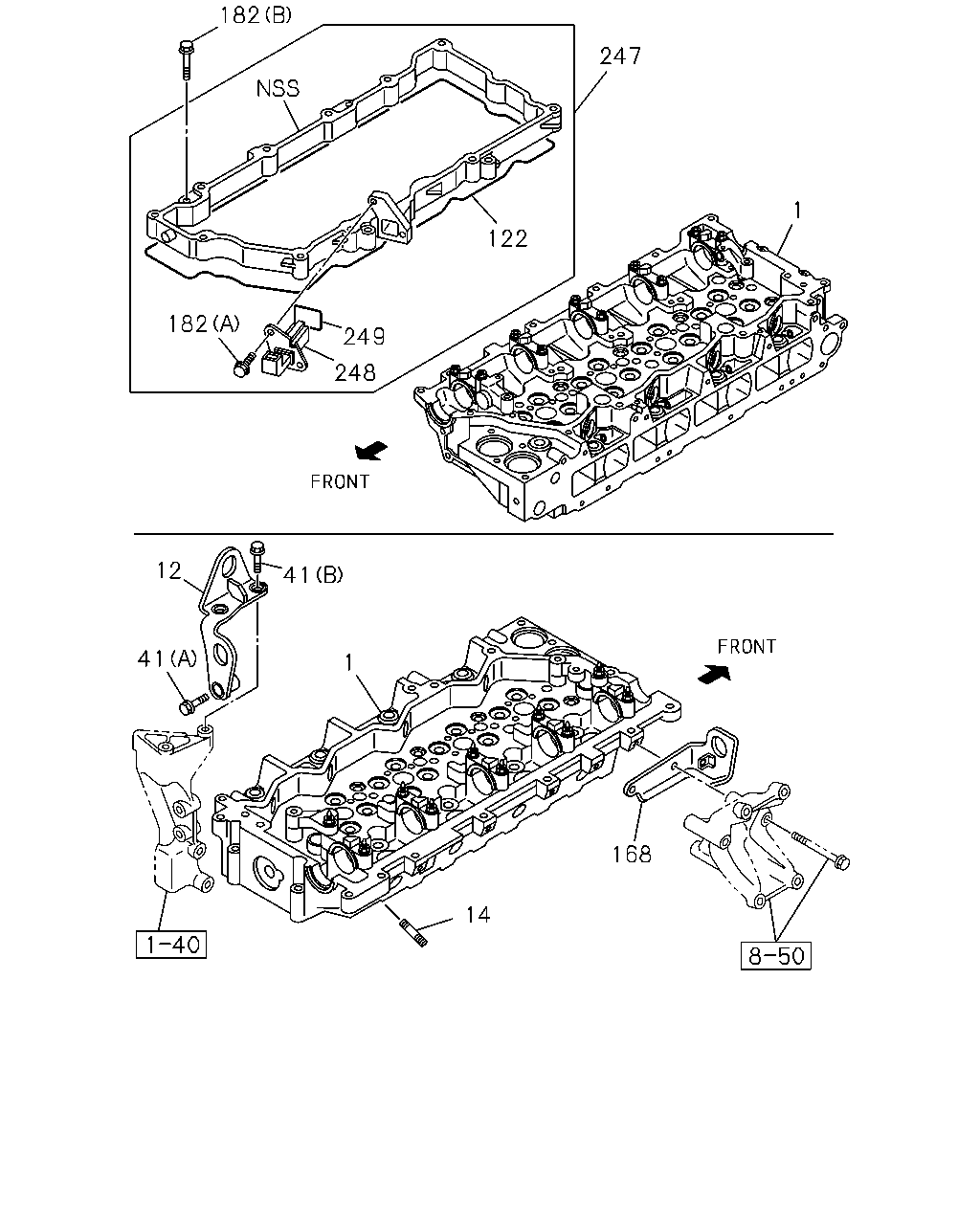

182 247 1 122 249 182 248 168 14 1 41 12 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.269 HEAD ASM; CYL	8-98223-080-2	01	1	1506-	●
1	00.269 HEAD ASM; CYL	8-98170-619-0	01	1	1506-		●	●
12	00.004 HANGER; ENG,RR	8-98074-691-1	01	1	1506-		●	●
14	03.275 STUD; EXH MANIF M10X60 L=75	8-94397-286-0	02	1	1506-		●	●
41	09.181 BOLT; ENG HANGER 03.162 (B) M12X20 FLANGE	0-28151-220-0	02	1	1506-		●	●
41	09.181 BOLT; ENG HANGER (A) M12X80	0-28151-280-0	01	1	1506-		●	●
122	00.206 GASKET; COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97331-360-1	01	1	1506-		●	●
168	00.004 HANGER; ENG,FRT	8-98032-250-1	01	1	1506-		●	●
182	00.206 BOLT; CASE 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1506-		●	●
182	00.206 BOLT; CASE 09.173 (B) M8X45 FLANGE	0-28050-845-0	04	1	1506-		●	●
247	00.269 CASE; CYL HEAD,C/H COVER	8-97331-362-1	01	1	1506-		●	●
248	02.251 CONNECTOR 01.150	8-94390-858-1	01	1	1506-		●	●
249	03.300 GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENGINE). 01.152	8-94391-310-0	01	1	1506-		●	●

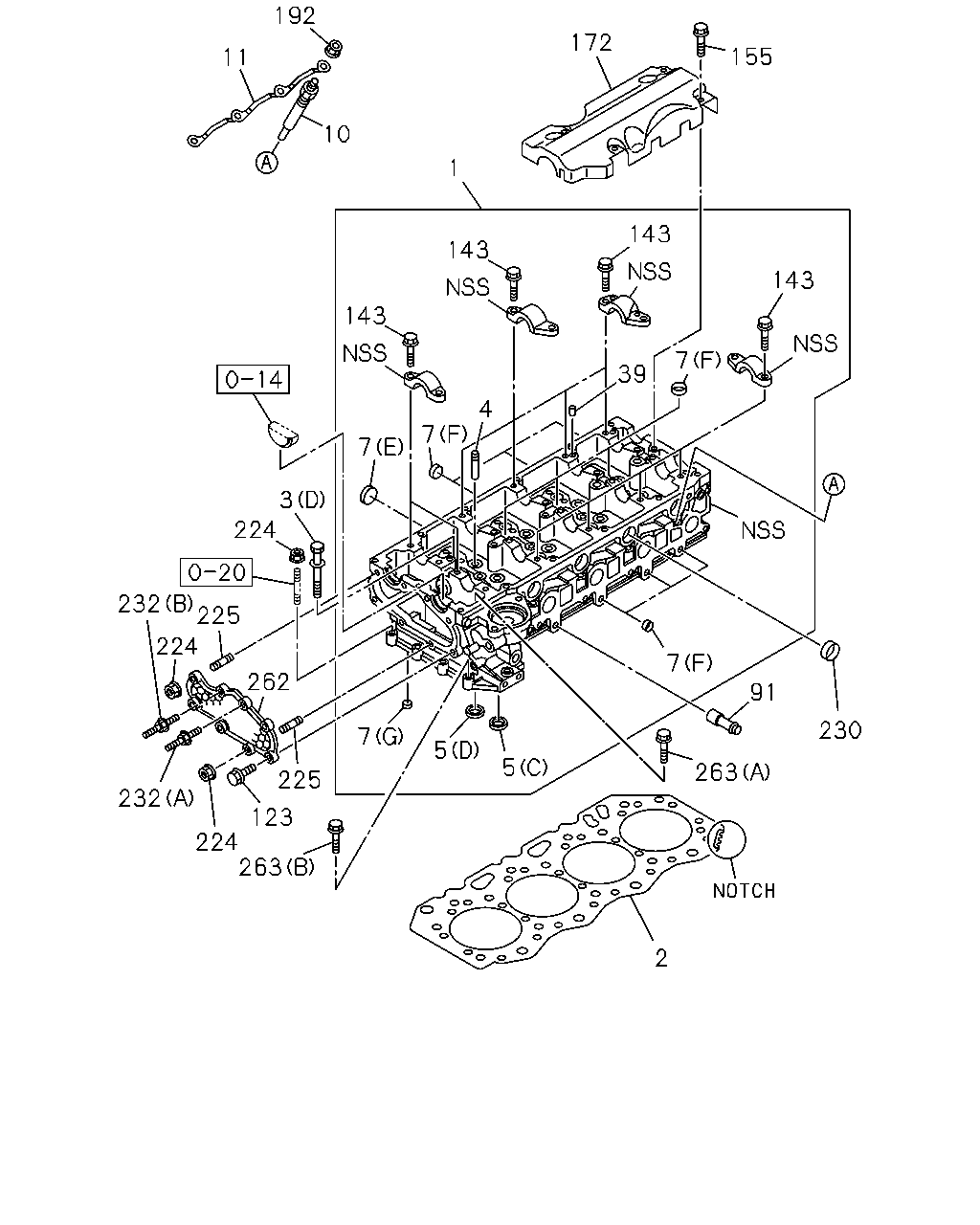

11 192 10 1 172 155 143 143 7 143 143 7 7 4 3 224 232 224 262 225 123 224 263 232 7 5 5 2 230 263 91 7 39 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.269 HEAD ASM; CYL	8-98223-080-2	01	1	1506-	●
1	00.269 HEAD ASM; CYL	8-98170-619-0	01	1	1506-		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE A T=1.14 1-NOTCH	8-98291-683-0	01	1	1506-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE B T=1.19 2-NOTCH	8-98291-684-0	01	1	1506-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE C T=1.24 3-NOTCH	8-98291-685-0	01	1	1506-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98055-540-0	01	1	1506-1506		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98288-501-0	01	1	1506-		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98055-541-0	01	1	1506-1506		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98288-502-0	01	1	1506-		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98055-542-0	01	1	1506-1506		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98288-503-0	01	1	1506-		●	●
3	00.293 BOLT; CYL HD TO BLOCK (D) M11X114 W/WASHER	8-98201-019-0	18	1	1506-	●
3	00.293 BOLT; CYL HD TO BLOCK (A) M10X73	8-94399-554-0	01	1	1506-		●	●
3	00.293 BOLT; CYL HD TO BLOCK (B) M10X43	8-94399-555-0	01	1	1506-		●	●
3	00.293 BOLT; CYL HD TO BLOCK (C) M14X115 W/FLANGE	8-98260-005-0	18	1	1506-		●	●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	16	1	1506-	●
4	00.283 GUIDE; VLV L=57	8-97376-719-2	16	1	1506-		●	●
5	00.253 SEAT; VLV INSERT (C) INLET ID=29 OD=35	8-97311-378-0	08	1	1506-	●
5	00.253 SEAT; VLV INSERT (D) EXHAUST ID=26 OD=32	8-97311-379-0	08	1	1506-	●
5	00.253 SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	08	1	1506-		●	●
5	00.253 SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	1506-		●	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (E) OD=32	1-09600-012-2	02	1	1506-	●
7	00.253 CUP; SEALING,CYL HEAD (F) OD=18	5-11219-008-0	13	1	1506-	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (G) OD=14	5-11219-011-0	07	1	1506-	●
7	00.253 CUP; SEALING,CYL HEAD 00.293 (D) OD=25	1-09600-016-0	04	1	1506-		●	●
7	00.253 CUP; SEALING,CYL HEAD (A) OD=16	5-11129-006-0	05	1	1506-		●	●
7	00.253 CUP; SEALING,CYL HEAD (B) OD=32	8-97096-821-0	05	1	1506-		●	●
7	00.253 CUP; SEALING,CYL HEAD (C) OD=20	9-11129-128-0	07	1	1506-		●	●
10	02.270 PLUG; GLOW NGK	8-94390-777-6	04	1	1506-	●	●	●
11	02.251 CONNECTOR; GLOW PLUG	8-98014-335-0	01	1	1506-	●
11	02.251 CONNECTOR; GLOW PLUG	8-97332-358-2	01	1	1506-		●	●
39	00.413 DOWEL; CAP,CM/SHF	8-97329-129-1	20	1	1506-	●
91	08.846 PIPE; HTR 01.251	8-94343-211-1	01	1	1506-	●
123	00.206 BOLT; COVER M8X20 FLANGE	8-97366-632-0	04	1	1506-	●
143	02.251 BOLT; FIX 00.685 M8X40 FLANGE	0-28650-840-0	20	1	1506-	●
155	00.349 BOLT; BAFFLE PLATE M6X10 HEX SOCKET	0-58330-610-0	04	1	1506-	●
172	00.207 PLATE; BAFFLE,CYL HD	8-98016-865-0	01	1	1506-	●
192	00.349 NUT; GLOW PLUG 02.559 M4 FLANGE	8-97368-853-0	04	1	1506-	●	●	●
224	00.349 NUT; COVER 01.540 M8 FLANGE	0-91180-208-0	04	1	1506-	●
225	00.349 STUD; COVER M8X15.5 L=33.5	8-98017-062-0	02	1	1506-	●
230	03.300 GASKET; SLEEVE,INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.306 OD=30	1-09639-034-0	04	1	1506-	●
232	00.413 STUD; CAM,CARRIER (B) M6X12 M8X17 L=37	8-97375-460-0	01	1	1506-	●
232	00.413 STUD; CAM,CARRIER (A) M8X15 M8X17 L=40	8-98166-373-0	01	1	1506-	●
262	00.206 COVER; CYL HEAD	8-97355-516-4	01	1	1506-	●
263	00.293 BOLT; CYL HD 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	1506-	●
263	00.293 BOLT; CYL HD 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1506-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
