9-01 — TOOLS (#162758) — 22 parça

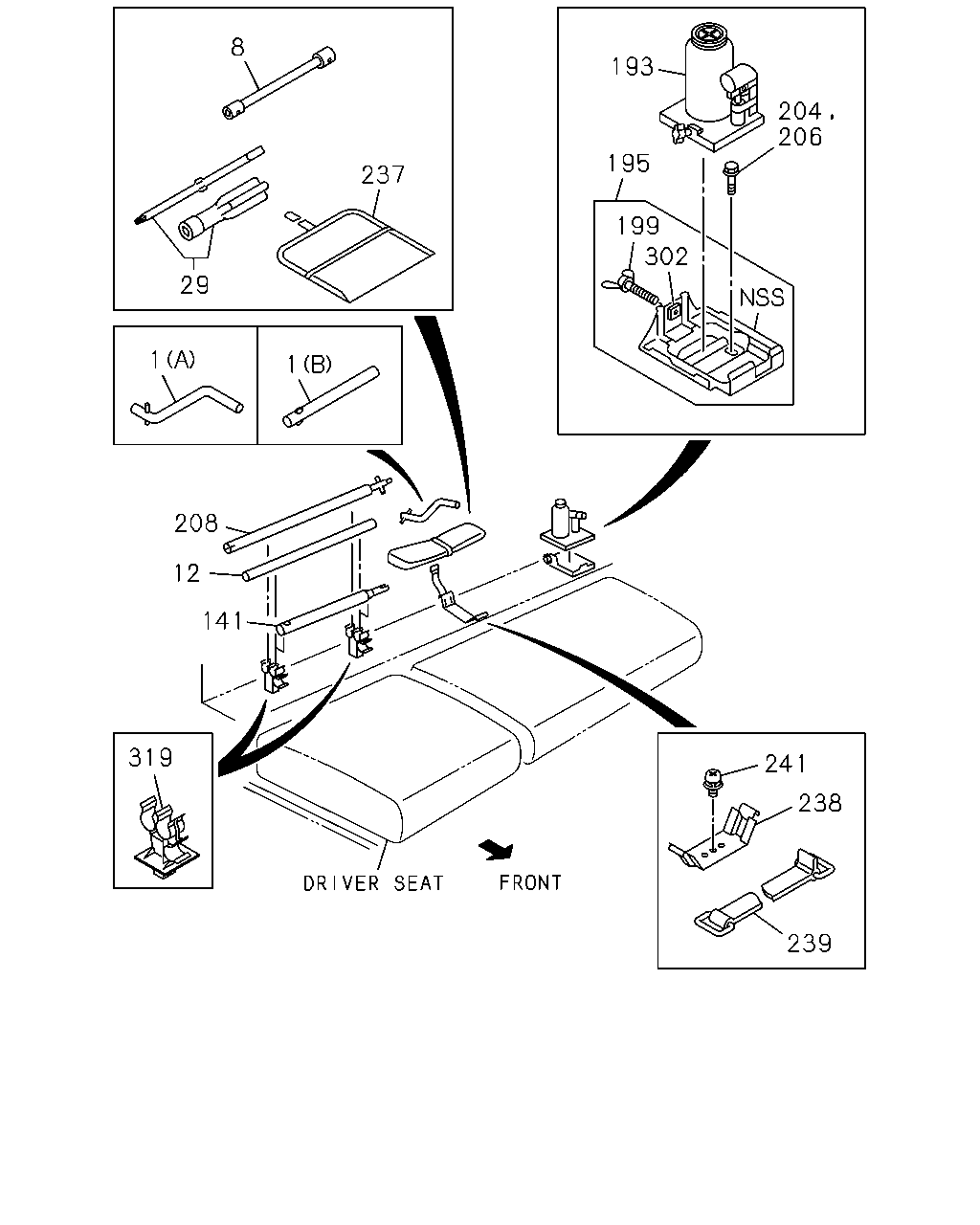

8 237 29 1 1 208 12 141 319 241 238 239 193 195 199 302 204 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97218-985-0	01	1	1506-	●
1	07.629 HANDLE; SPARE TIRE CARRIER (B) L=280	8-98181-251-0	01	1	1506-		●
8	08.821 WRENCH; WHEEL B=41X19 L=330	8-94386-490-1	01	1	1506-	●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1506-	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	1506-	●	●
141	08.821 HANDLE; WRENCH 08.820 L=580	8-98181-249-0	01	1	1506-		●
193	08.820 JACK ASM FRT INDEPENDENT SUSPENSION(FF0) 4TON	8-94438-020-3	01	1	1506-	●	●
195	08.820 BRACKET; JACK FRT INDEPENDENT SUSPENSION(FF0)	8-98034-916-0	01	1	1506-	●
195	08.820 BRACKET; JACK FRT INDEPENDENT SUSPENSION(FF0)	8-98165-970-0	01	1	1506-		●
199	08.820 BOLT; JACK FRT INDEPENDENT SUSPENSION(FF0) M8X50 WING	8-98005-537-0	01	1	1506-	●
199	08.820 BOLT; JACK FRT INDEPENDENT SUSPENSION(FF0) M8X50 WING	8-94279-136-0	01	1	1506-		●
204	08.820 BOLT; BRKT,JACK FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●
206	08.820 SCREW; OIL JACK BRKT 16.570 BOLT M6X16	0-38050-616-0	01	1	1506-		●
208	08.820 HANDLE; JACK L=642	8-98181-477-0	01	1	1506-	●
237	08.821 BAG; TOOL	8-97130-903-1	01	1	1506-	●	●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	1506-	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	1506-	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.570 M6X16	0-38050-616-0	01	1	1506-	●
302	08.820 NUT; JACK BRKT FRT INDEPENDENT SUSPENSION(FF0)	8-98021-556-0	01	1	1506-	●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	1506-	●	●

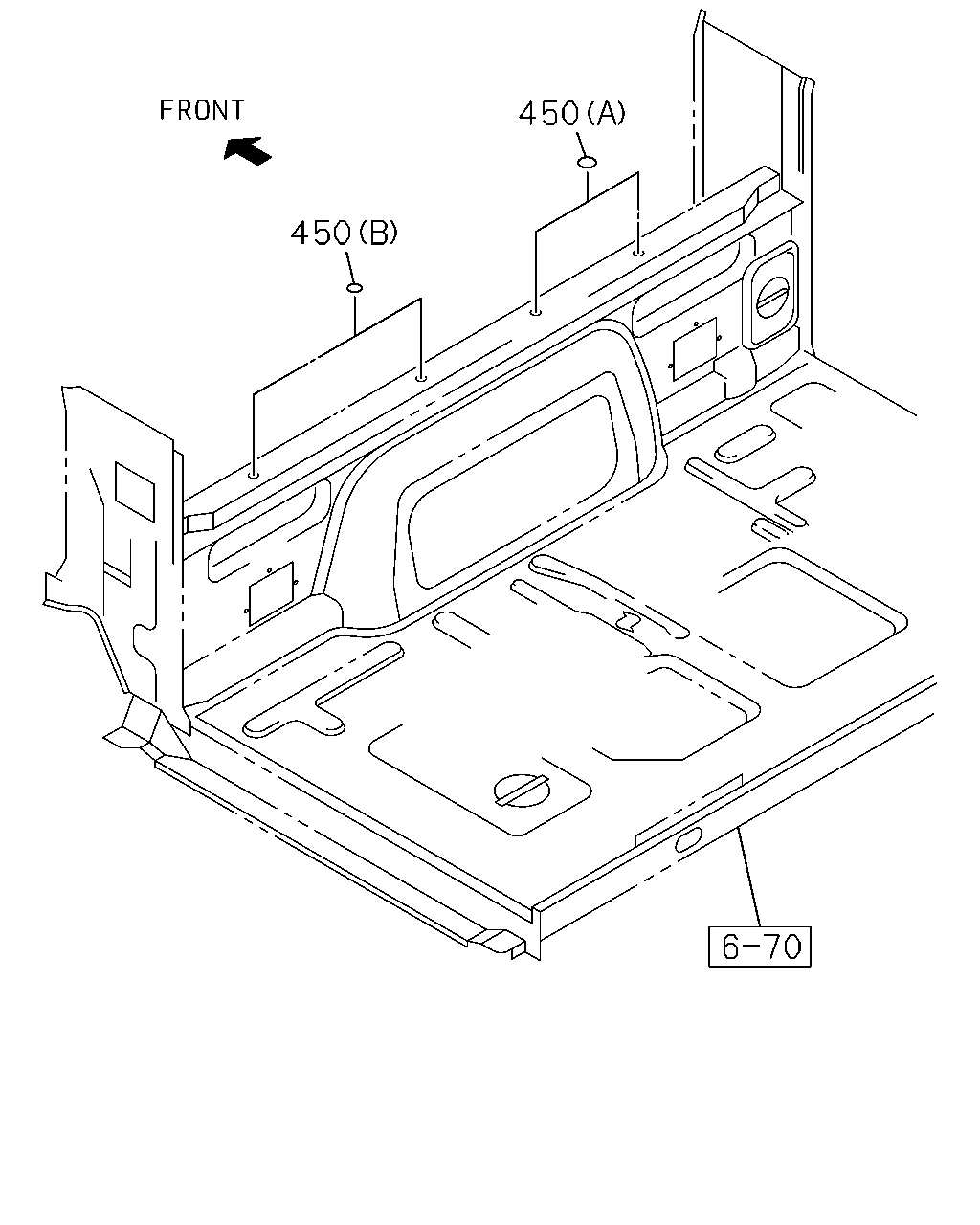

450 450

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	450	16.064 SEAL; HOLE 02.580 (A) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	1506-		●
	450	16.064 SEAL; HOLE 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	1506-		●
