Isuzu WW
▶
TRUCKS
▶
NLS
▶
51605 - NLS RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶

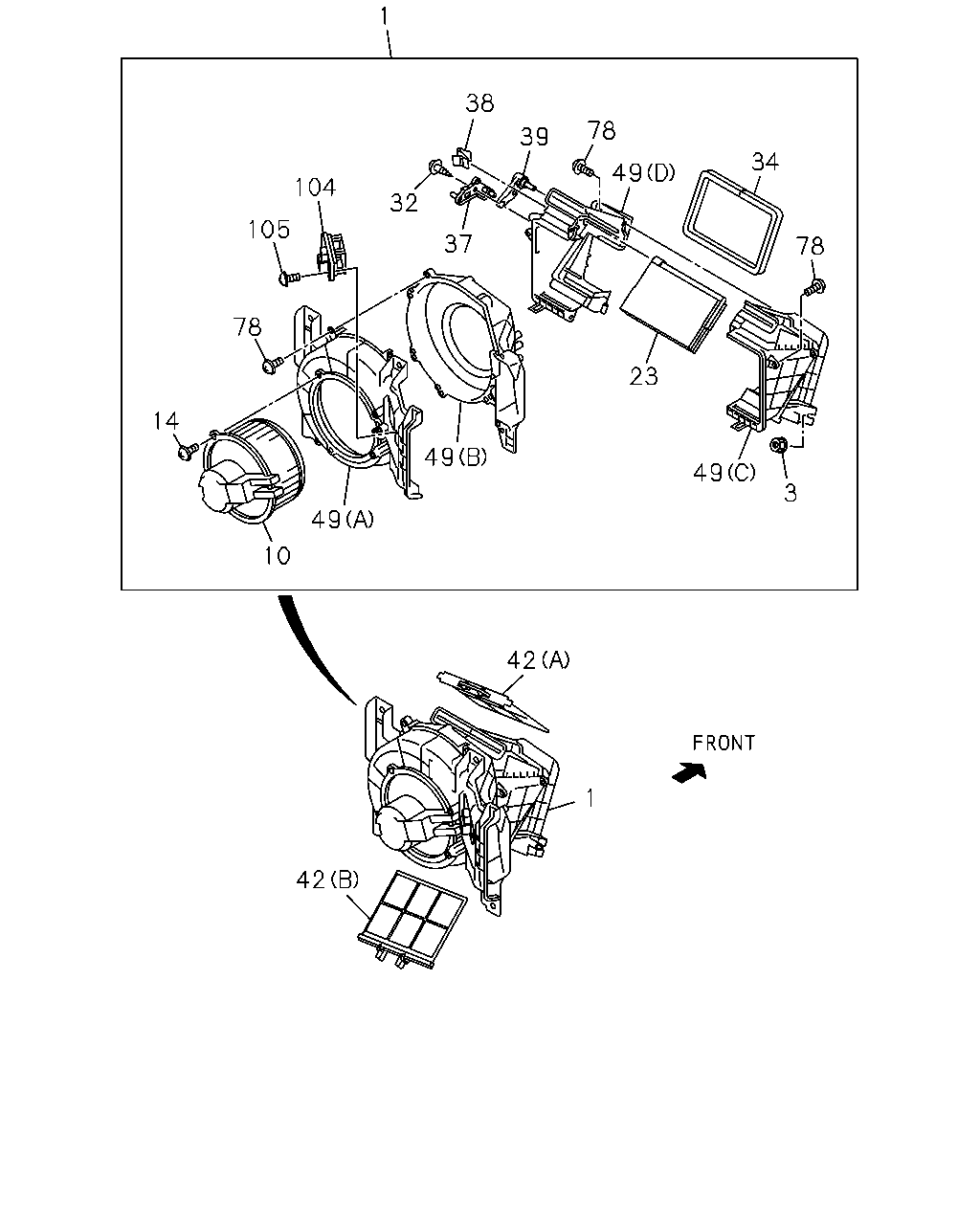

8-73 — BLOWER UNIT
(#162754) — 19 parça
Tümü
A - NMS5SE
B - NMS5WE
1
104
105
78
14
10
49
49
32
37
23
49
3
78
34
49
78
39
38
42
42
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
08.855 BLOWER ASM
8-98183-589-0
01
1
1506-
●
●
3
08.855 NUT; CASE
09.190 M6
1-83539-354-0
02
1
1506-
●
●
10
08.855 MOTOR ASM; FAN,BLOWER UNIT
8-98183-924-0
01
1
1506-
●
●
14
08.857 SCREW; COVER TO CASE
M5X16
8-98047-448-0
03
1
1506-
●
●
23
08.857 SHUTTER; BLOWER UNIT
8-98047-437-0
01
1
1506-
●
●
32
08.856 SCREW; LEVER
08.852 M4X16
8-98047-416-0
01
1
1506-
●
●
34
08.856 LINING; BLOWER UNIT
8-98047-430-0
01
1
1506-
●
●
37
09.786 LEVER; MODE LEVER
8-98047-436-0
01
1
1506-
●
●
38
09.787 CLIP; BLOWER UNIT
08.854
8-98047-417-0
01
1
1506-
●
●
39
09.786 LEVER; SHUTTER,BLOWER UNIT
8-98047-435-0
01
1
1506-
●
●
42
08.857 FILTER; BLOWER UNIT
(A)
8-97387-096-1
01
1
1506-
●
●
42
08.857 FILTER; BLOWER UNIT
(B)
8-98025-006-1
01
1
1506-
●
●
49
08.857 CASE; BLOWER UNIT
(A)
8-98047-440-0
01
1
1506-
●
●
49
08.857 CASE; BLOWER UNIT
(B)
8-98047-441-0
01
1
1506-
●
●
49
08.857 CASE; BLOWER UNIT
(C)
8-98047-442-0
01
1
1506-
●
●
49
08.857 CASE; BLOWER UNIT
(D)
8-98047-443-0
01
1
1506-
●
●
78
08.857 SCREW; CASE TO CASE
08.852 M4X16 TAPPING
8-97957-708-0
15
1
1506-
●
●
104
08.855 RESISTOR; BLOWER UNIT
8-98074-113-0
01
1
1506-
●
●
105
08.855 SCREW; RESISTOR
08.852 M4X16 TAPPING
8-97957-708-0
02
1
1506-
●
●
