8-65 — CONTROL LEVER; HEATER AND AIR CON (#162752) — 14 parça

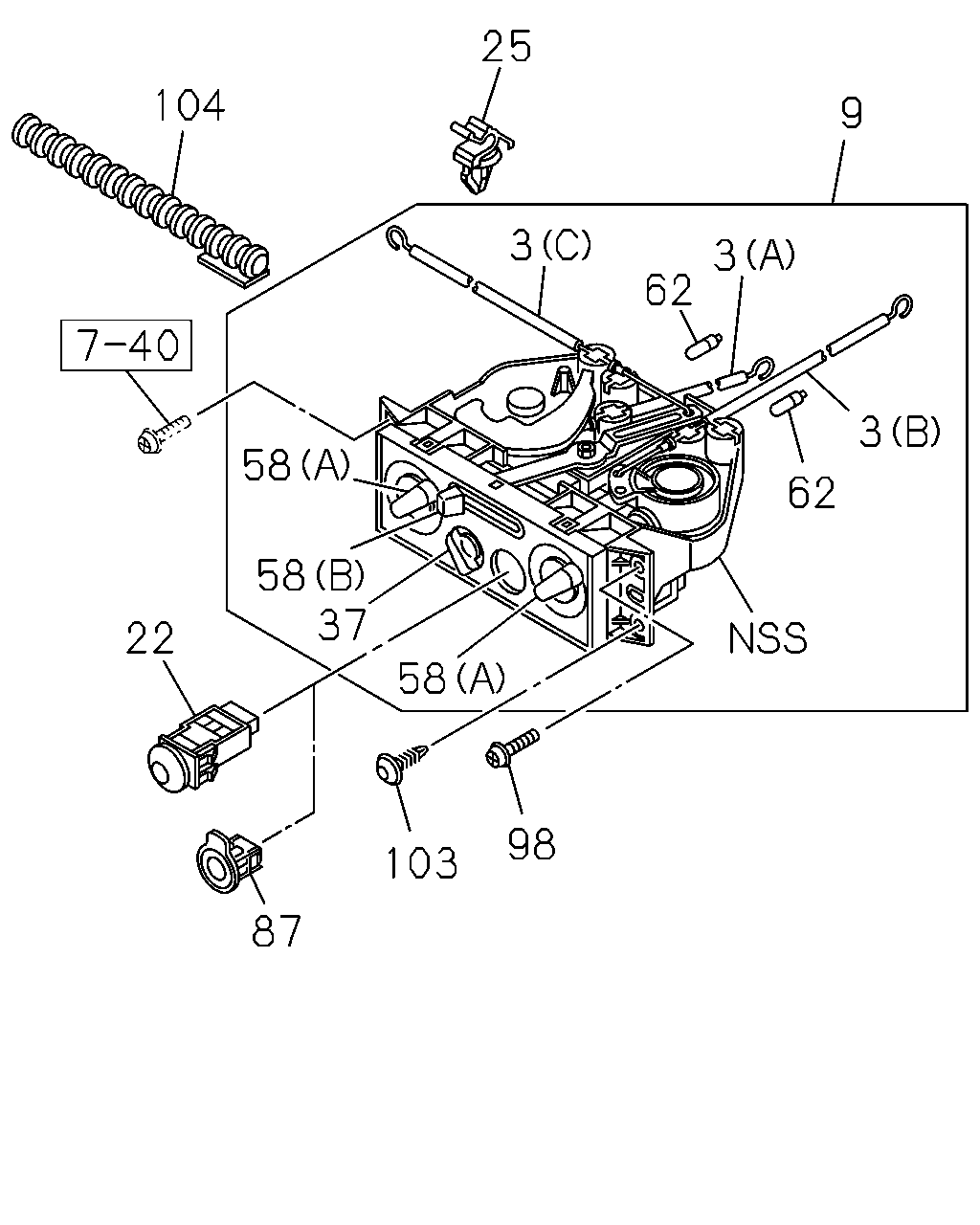

çizim 480980
104 25 9 3 3 62 3 62 58 58 58 37 98 103 87 22
BalonParca AdiParca NoAdetTipApplied Date A B
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-98039-250-0 01 1 1506- ● ●
3 09.787 CABLE; HTR CONT LVR
(B) MIX 		8-98039-251-0 01 1 1506- ● ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-98039-253-2 01 1 1506- ● ●
9 08.852 LEVER ASM; HTR & A/C CONT 8-98037-363-2 01 1 1506- ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-98021-982-0 01 1 1506- ● ●
25 08.854 CLIP; CABLE,CONT LEVER
09.647 ID=4.8 		8-94128-483-0 01 1 1506- ● ●
37 08.852 KNOB; SW,HTR CONT LVR 8-98037-368-0 01 1 1506- ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
(A) 		8-98037-369-0 02 1 1506- ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
(B) 		8-98037-370-0 01 1 1506- ● ●
62 08.991 BULB; HTR CONT LVR
24V 1.1W 		8-98037-371-0 02 1 1506- ● ●
87 08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 1506- ● ●
98 08.852 SCREW; CONT PANEL
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1506- ● ●
103 08.854 CLIP
16.742 DARK GRAY 		8-97098-326-0 01 1 1506- ● ●
104 08.852 GUIDE; CABLE 8-98048-216-0 01 1 1506- ● ●
