Isuzu WW
▶
TRUCKS
▶
NLS
▶
51605 - NLS RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#162744) — 23 parça
Tümü
A - NMS5SE
B - NMS5WE
◀
[826A] NO.1 (10 parça)
[826A] NO.2 (13 parça)
▶
67
68
67
446
305
69

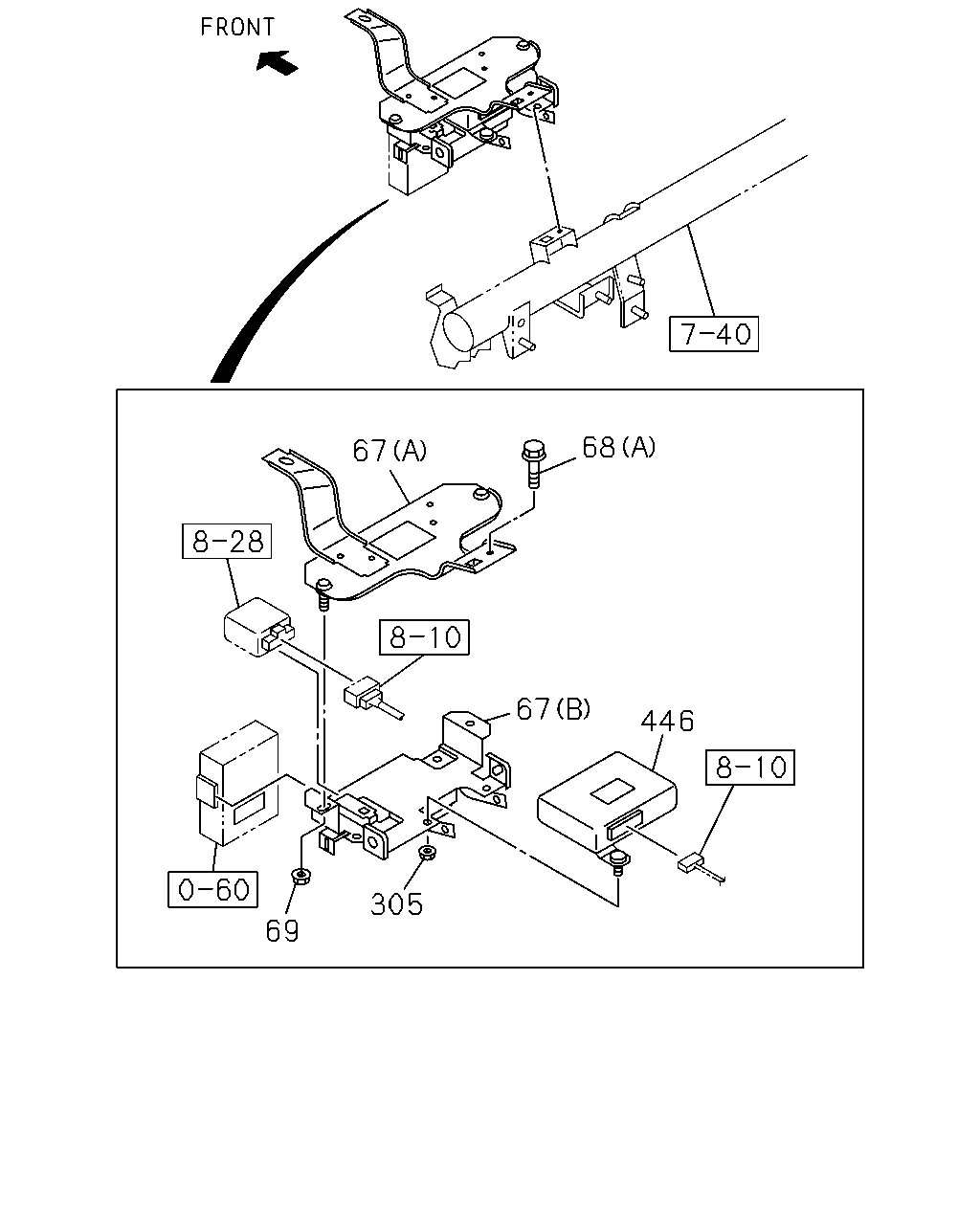

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
67
03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) (C)
8-98222-208-0
01
1
1506-
●
●
67
03.887 BRACKET; CONT UNIT
(A)
8-98022-170-1
01
1
1506-
●
●
67
03.887 BRACKET; CONT UNIT
(B)
8-98217-377-0
01
1
1506-
●
●
68
02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR
0-72180-520-0
04
1
1506-
●
●
68
02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE
0-28450-612-0
01
1
1506-
●
●
69
02.458 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
02
1
1506-
●
●
305
08.915 NUT; CONT UNIT
01.062 M6 FLANGE
0-91180-106-0
01
1
1506-
●
305
08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE
0-91180-106-0
01
1
1506-
●
305
08.915 NUT; CONT UNIT
01.062 M6 FLANGE
0-91180-106-0
02
1
1506-
●
●
446
02.510 CONTROL UNIT; HSA
8-98046-563-1
01
1
1506-
●
●
1
221
744
448
21
700
68
67

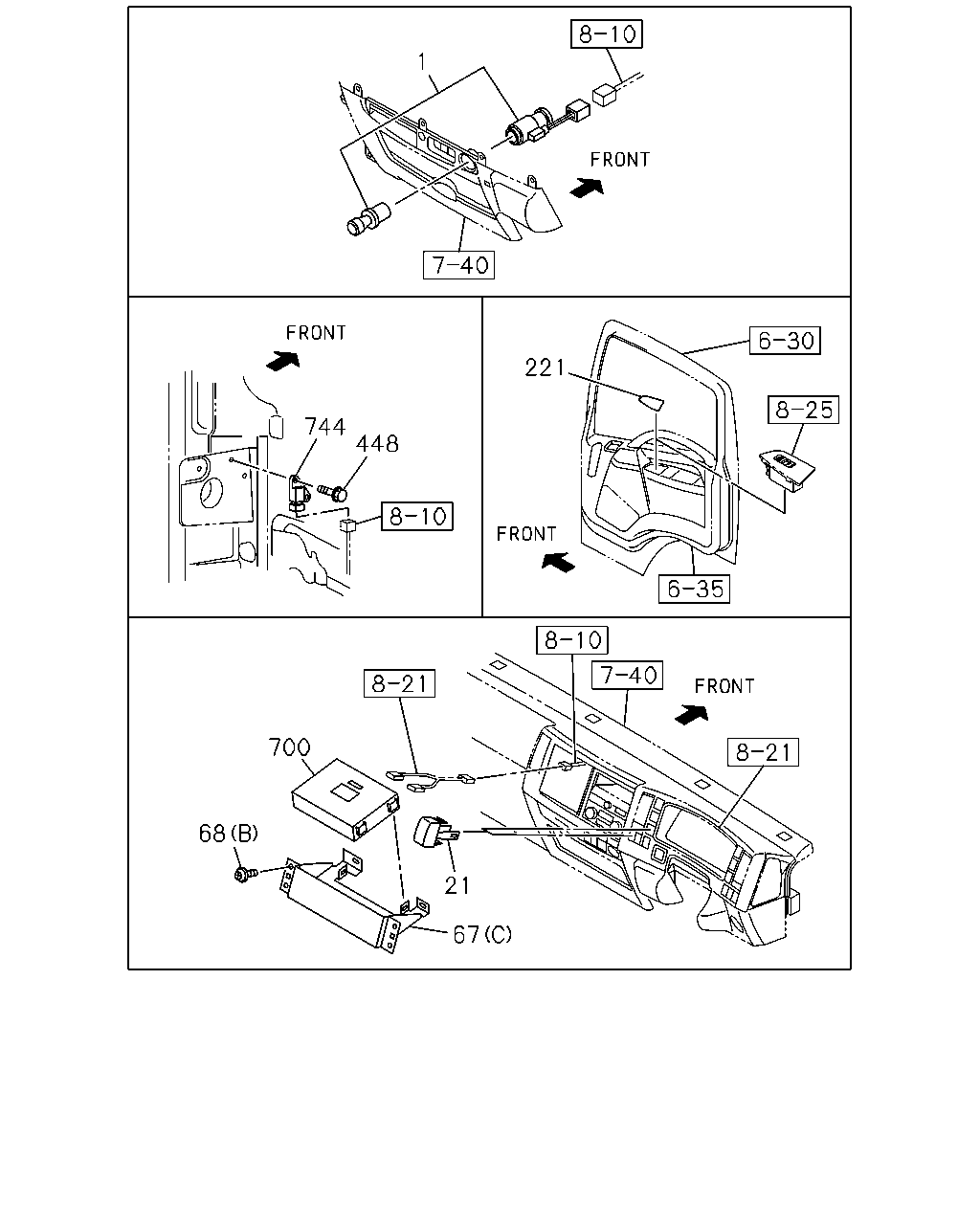

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
09.709 LIGHTER; CIGAR
8-98142-962-0
01
1
1506-
●
●
21
09.744 COVER; HOLE
16.081
8-98025-954-1
01
1
1506-
●
●
21
09.744 COVER; HOLE
16.081
8-98025-954-1
02
1
1506-
●
●
67
03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) (C)
8-98222-208-0
01
1
1506-
●
●
67
03.887 BRACKET; CONT UNIT
(A)
8-98022-170-1
01
1
1506-
●
●
67
03.887 BRACKET; CONT UNIT
(B)
8-98217-377-0
01
1
1506-
●
●
68
02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR
0-72180-520-0
04
1
1506-
●
●
68
02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE
0-28450-612-0
01
1
1506-
●
●
221
16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31>
8-98029-915-2
01
1
1506-
●
221
16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31>
8-98029-916-2
01
1
1506-
●
448
02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 M6X18 W/PL WASHER
8-97105-796-1
02
1
1506-
●
●
700
02.510 CONTROL UNIT; CAN CONVERTER
CAN INTERFACE FMS STD(8PG)
8-98221-364-1
01
1
1506-
●
●
744
03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5>
8-98190-212-0
01
1
1506-
●
●
