Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#162741) — 157 parça

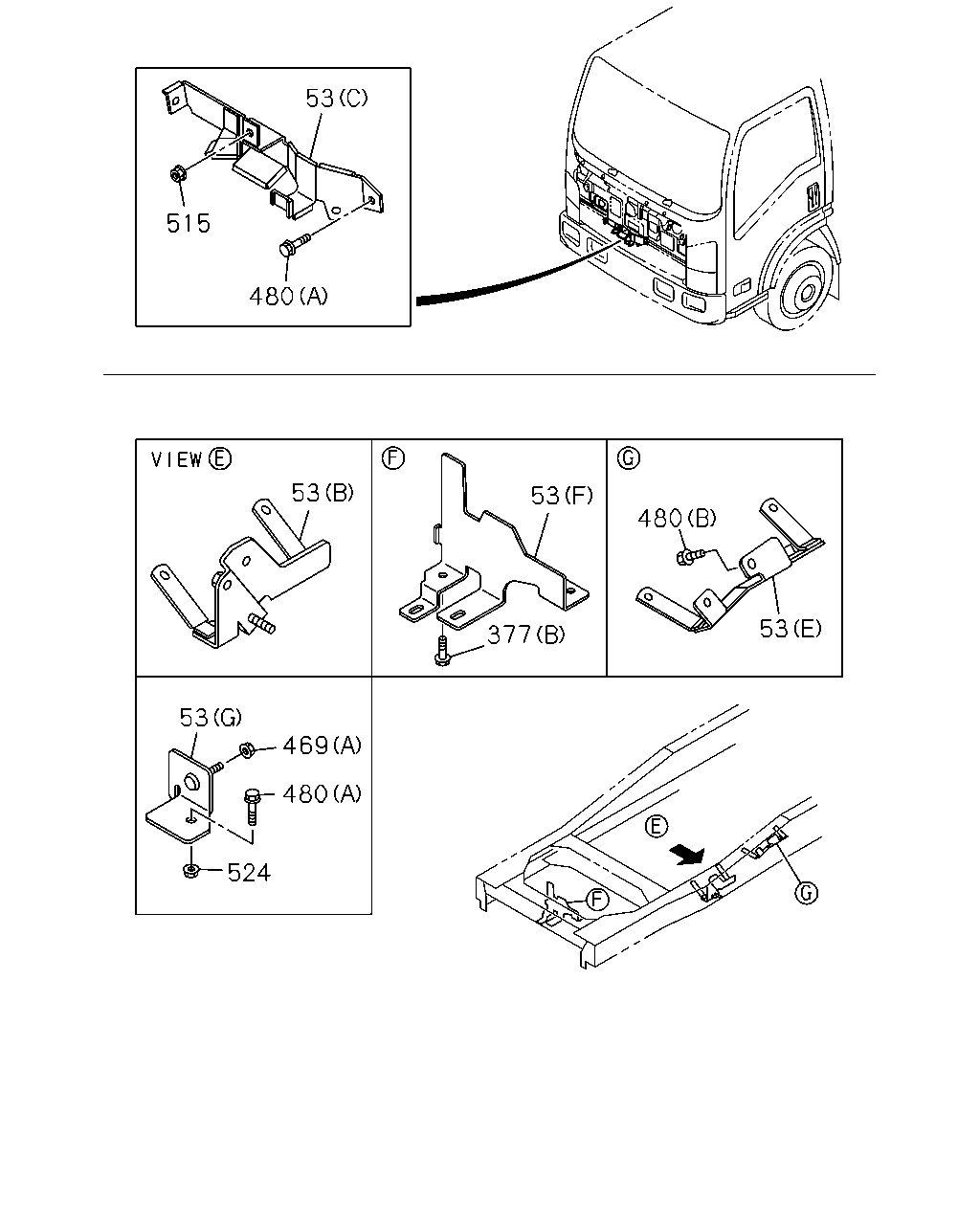

53 515 480 53 53 469 480 524 377 53 480 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS (C)	8-98039-984-2	01	1	1506-	●	●
53	02.483 BRACKET; HARNESS (F)	8-98110-548-0	01	1	1506-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98122-564-0	01	1	1506-	●	●
53	02.483 BRACKET; HARNESS (E)	8-98033-918-2	01	1	1506-1506	●	●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	1506-	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D)	8-98039-277-2	02	1	1506-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1506-	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1506-	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1506-	●	●
469	02.559 NUT; PROTECTOR 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1506-	●	●
469	02.559 NUT; PROTECTOR 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1506-	●	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1506-	●	●
480	02.483 BOLT; BRKT 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1506-1506	●	●
515	02.559 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-	●	●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●	●

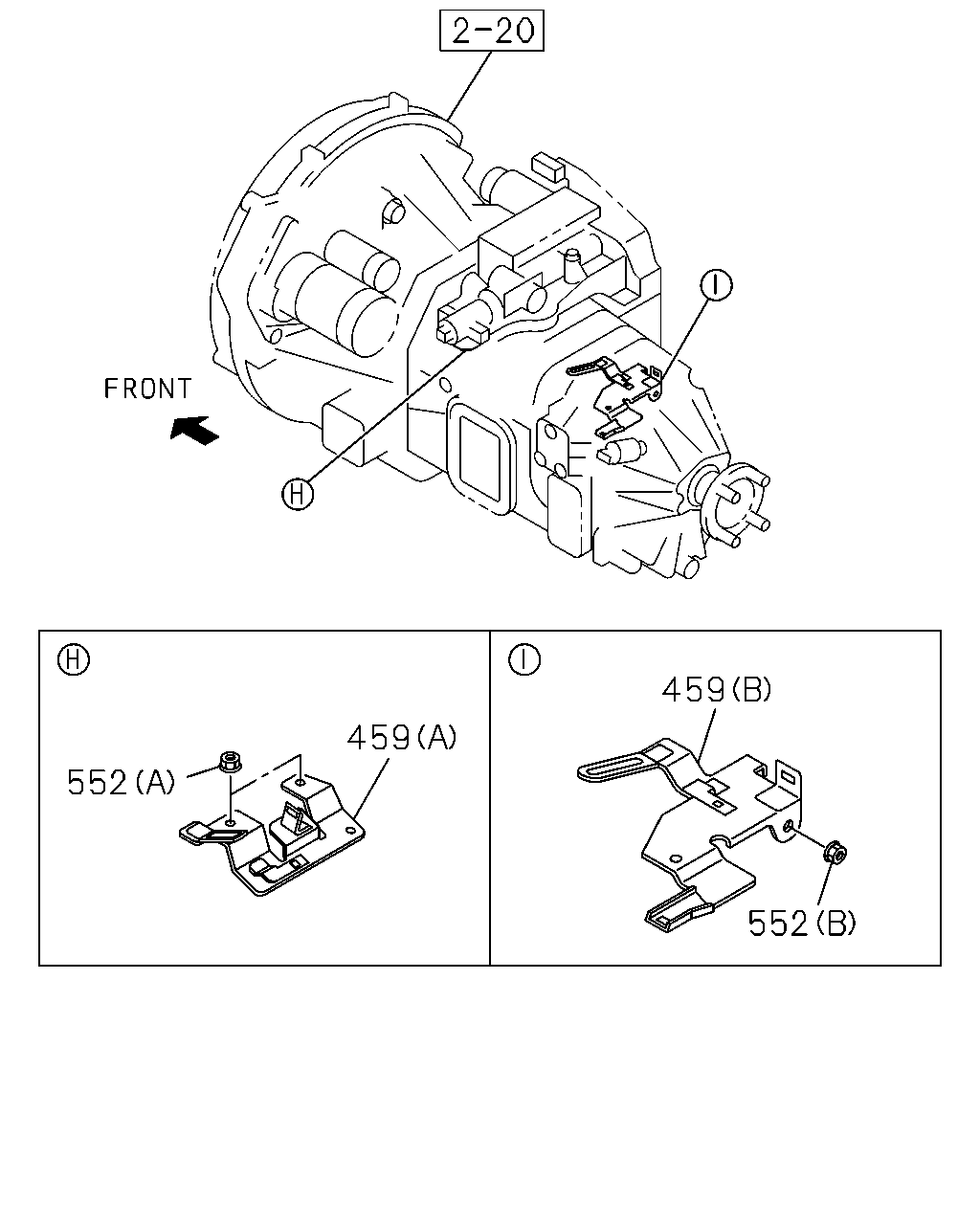

552 459 459 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	1506-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98196-974-0	01	1	1506-	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-	●	●

16 16 16 16 48 16 22 16 504

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1506-	●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1506-	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	01	1	1506-	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1506-		●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31>, CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	01	1	1506-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	01	1	1506-		●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT&REAR DOOR<A31>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1506-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1506-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	01	1	1506-		●
16	02.559 CLIP; HARNESS MANUAL TILT CAB<RWZ> (J) ID=7-10	8-94472-578-0	01	1	1506-	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1506-	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	07	1	1506-		●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31>, CORNERING LAMP<T87> (A) L=155	8-97173-307-0	07	1	1506-		●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	07	1	1506-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> CORNERING LAMP<T87> (A) L=155	8-97173-307-0	07	1	1506-		●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT&REAR DOOR<A31>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	07	1	1506-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	07	1	1506-		●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	07	1	1506-		●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	01	1	1506-	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV> (C)	8-98052-679-0	01	1	1506-		●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31>, CORNERING LAMP<T87> (C)	8-98052-679-0	01	1	1506-		●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	01	1	1506-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> CORNERING LAMP<T87> (C)	8-98052-679-0	01	1	1506-		●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT&REAR DOOR<A31>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C)	8-98052-679-0	01	1	1506-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C)	8-98052-679-0	01	1	1506-		●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C)	8-98052-679-0	01	1	1506-		●
16	02.559 CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1506-	●	●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1506-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-94449-165-0	02	1	1506-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-97063-335-0	02	1	1506-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (F) L=40.6	8-97229-357-0	02	1	1506-		●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1506-	●	●
48	02.559 CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	02	1	1506-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	08	1	1506-	●
48	02.559 CLIP; FRAME HARNESS (D) T=4.5 & 9	8-97371-947-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS (B) ID=20	8-94241-972-0	01	1	1506-	●	●
48	02.559 CLIP; FRAME HARNESS (B) ID=20	8-94241-972-0	01	1	1506-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	09	1	1506-		●
48	02.559 CLIP; FRAME HARNESS (C) T=5.5	8-97371-951-0	01	1	1506-		●
504	02.559 PROTECTOR; HARNESS	8-98208-886-0	01	1	1506-	●	●

139 53 53 139 7 313 575

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR	8-98043-070-1	01	1	1506-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98039-984-2	01	1	1506-	●	●
53	02.483 BRACKET; HARNESS (F)	8-98110-548-0	01	1	1506-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98122-564-0	01	1	1506-	●	●
53	02.483 BRACKET; HARNESS (E)	8-98033-918-2	01	1	1506-1506	●	●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	1506-	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D)	8-98039-277-2	02	1	1506-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1506-	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1506-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1506-	●	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	1506-	●	●

313 480 481 38 516 139 139 529 480 480 377 377 386 386 24 469 515 577 294 469 524 552 519 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1506-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1506-	●	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1506-	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1506-	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1506-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1506-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	02	1	1506-	●	●
469	02.559 NUT; PROTECTOR 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1506-	●	●
469	02.559 NUT; PROTECTOR 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1506-	●	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1506-	●	●
480	02.483 BOLT; BRKT 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1506-1506	●	●
481	13.090 BOLT; CABLE HARNESS 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1506-	●	●
515	02.559 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-	●	●
516	02.559 BOLT; HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-	●	●
519	02.559 NUT; EARTH CABLE 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●	●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1506-	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-	●	●

22 22 16 22 22 22 48 48 16 48 22 48 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1506-	●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1506-	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	01	1	1506-	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1506-		●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31>, CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	01	1	1506-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	01	1	1506-		●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT&REAR DOOR<A31>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1506-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1506-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	01	1	1506-		●
16	02.559 CLIP; HARNESS MANUAL TILT CAB<RWZ> (J) ID=7-10	8-94472-578-0	01	1	1506-	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1506-	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	07	1	1506-		●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31>, CORNERING LAMP<T87> (A) L=155	8-97173-307-0	07	1	1506-		●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	07	1	1506-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> CORNERING LAMP<T87> (A) L=155	8-97173-307-0	07	1	1506-		●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT&REAR DOOR<A31>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	07	1	1506-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	07	1	1506-		●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	07	1	1506-		●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	01	1	1506-	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV> (C)	8-98052-679-0	01	1	1506-		●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31>, CORNERING LAMP<T87> (C)	8-98052-679-0	01	1	1506-		●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	01	1	1506-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> CORNERING LAMP<T87> (C)	8-98052-679-0	01	1	1506-		●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT&REAR DOOR<A31>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C)	8-98052-679-0	01	1	1506-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C)	8-98052-679-0	01	1	1506-		●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C)	8-98052-679-0	01	1	1506-		●
16	02.559 CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1506-	●	●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1506-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-94449-165-0	02	1	1506-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-97063-335-0	02	1	1506-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (F) L=40.6	8-97229-357-0	02	1	1506-		●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1506-	●	●
48	02.559 CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	02	1	1506-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	08	1	1506-	●
48	02.559 CLIP; FRAME HARNESS (D) T=4.5 & 9	8-97371-947-0	01	1	1506-	●
48	02.559 CLIP; FRAME HARNESS (B) ID=20	8-94241-972-0	01	1	1506-	●	●
48	02.559 CLIP; FRAME HARNESS (B) ID=20	8-94241-972-0	01	1	1506-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	09	1	1506-		●
48	02.559 CLIP; FRAME HARNESS (C) T=5.5	8-97371-951-0	01	1	1506-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
