◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51605 - NLS RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#162740) — 113 parça

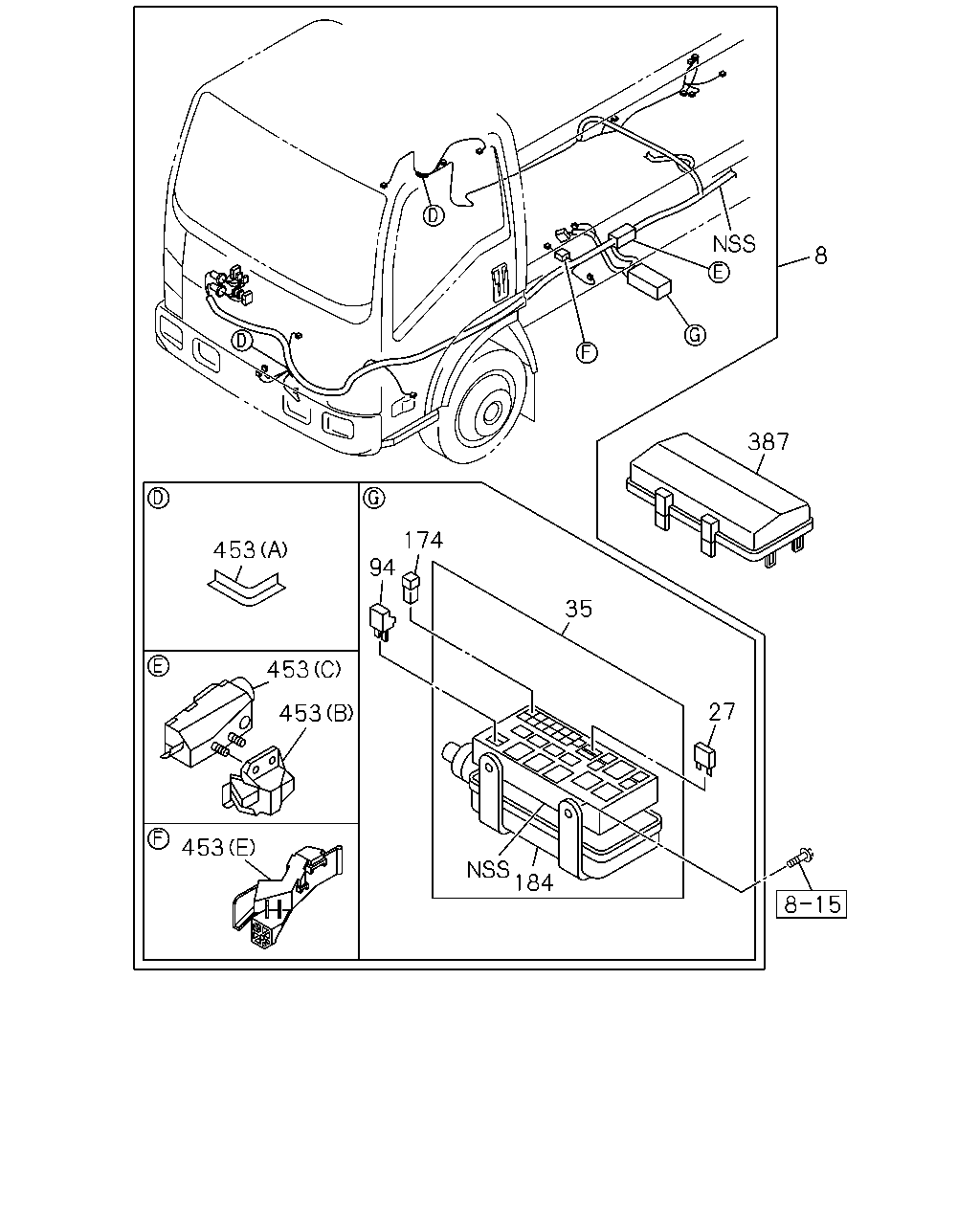

çizim 479835
8 387 35 27 174 453 94 453 453 453 184
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT 8-98295-902-1 01 1 1506- ●
8 02.480 HARNESS; FRAME,FRT 8-98295-903-1 01 1 1506- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 04 1 1506- ● ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1506- ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 1506- ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 1506- ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1506- ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 02 1 1506- ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 04 1 1506- ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1506- ● ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-98036-785-0 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-98034-039-1 01 1 1506- ● ●

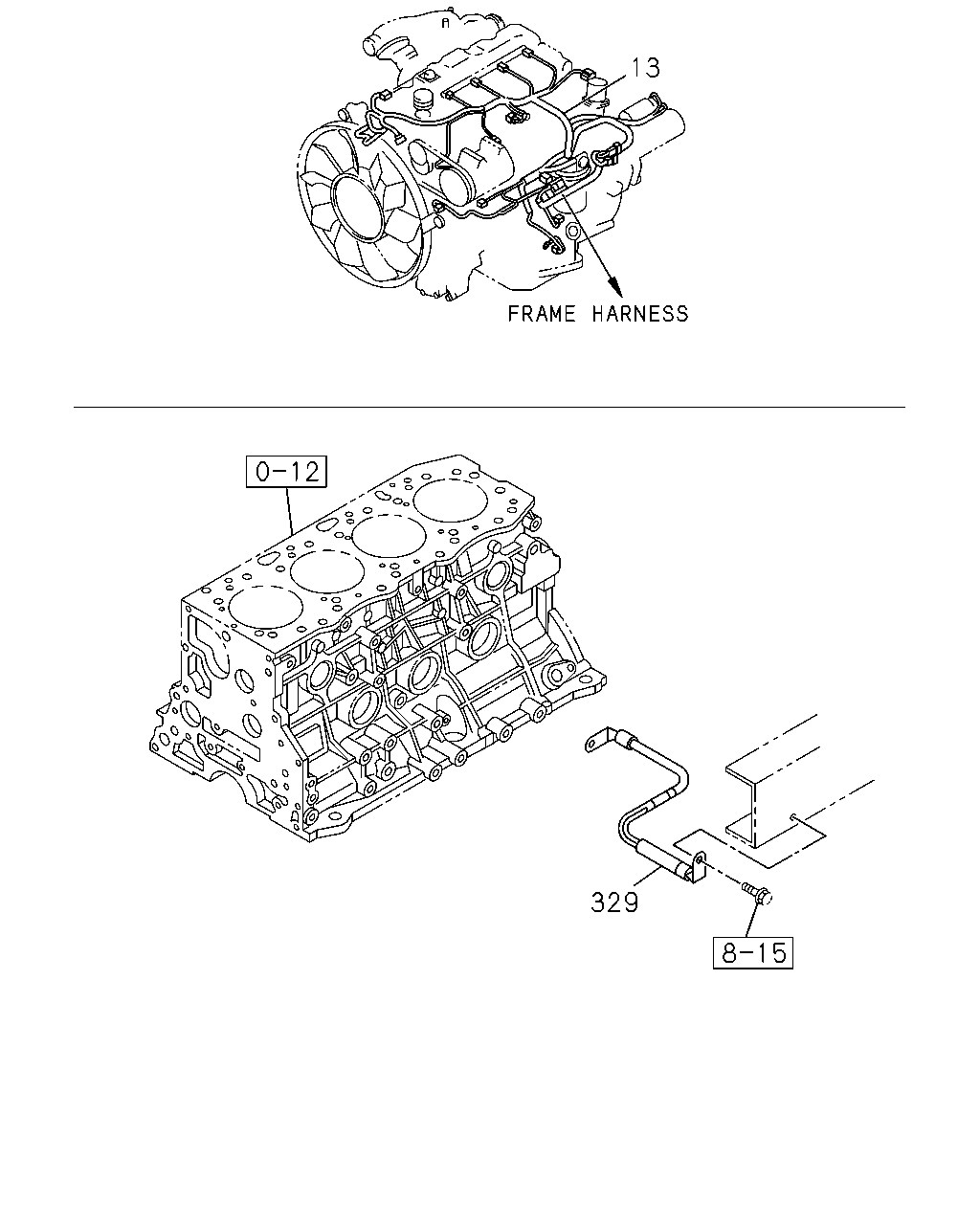

çizim 479909
13 329
BalonParca AdiParca NoAdetTipApplied Date A B
13 02.525 HARNESS; ENG 8-98244-736-0 01 1 1506- ● ●
329 02.480 CABLE; ENG TO FRAME 8-98033-951-1 01 1 1506- ● ●
çizim 479993
441
BalonParca AdiParca NoAdetTipApplied Date A B
441 02.480 HARNESS; CABLE,SPEED SENSOR 8-97308-220-4 01 1 1506- ● ●

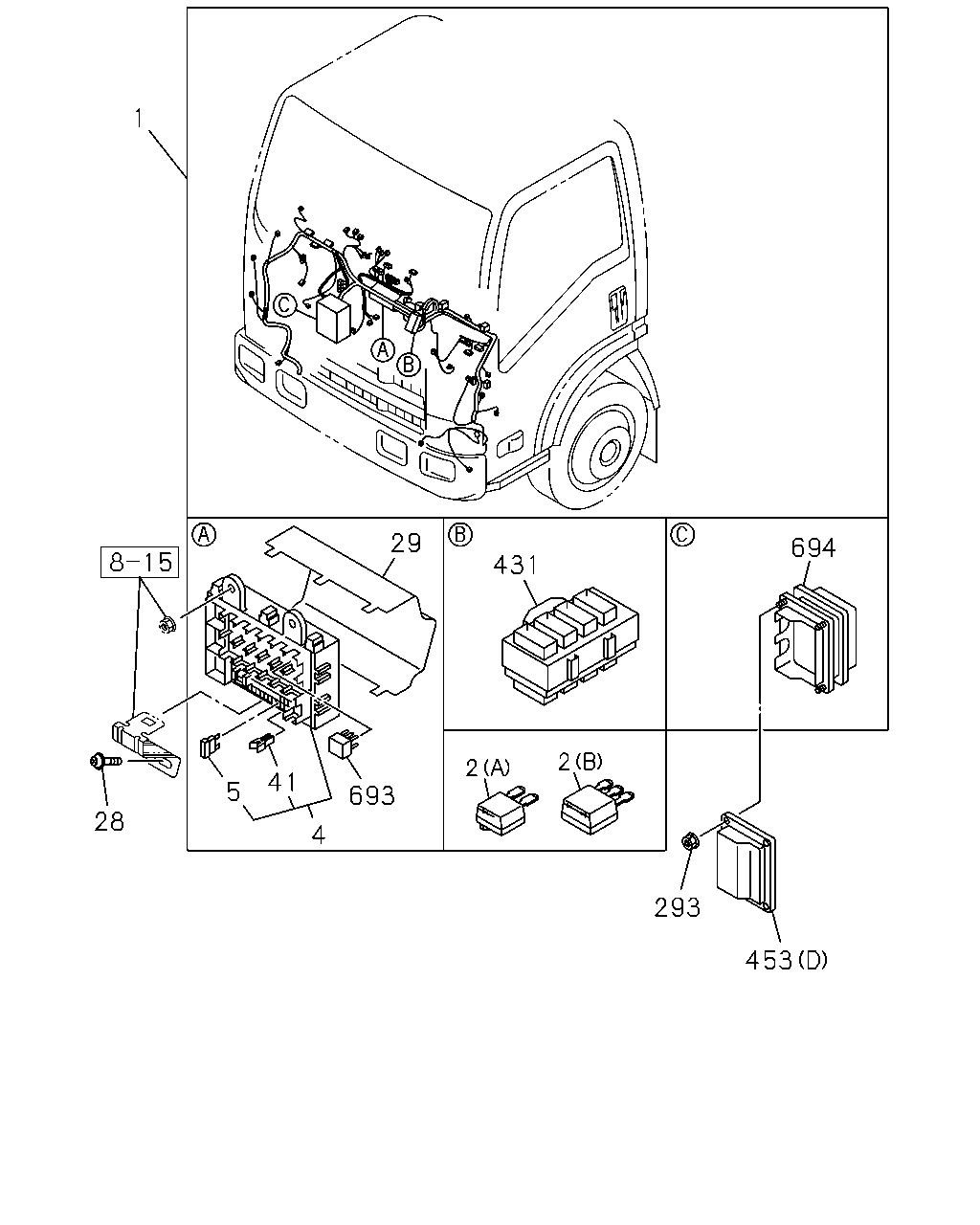

çizim 480476
694 431 29 28 5 41 4 693 2 2 293 453 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB 8-98285-880-2 01 1 1506- ●
1 02.480 HARNESS; CAB 8-98285-881-2 01 1 1506- ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 05 1 1506- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 02 1 1506- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1506- ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1506- ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1506- ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1506- ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1506- ● ●
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 1506- ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1506- ● ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1506- ● ●
431 02.530 CONNECTOR; JOINT 8-98046-205-0 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-98036-785-0 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-98034-039-1 01 1 1506- ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1506- ● ●
694 02.483 BOX ASM; CONNECTOR 8-98057-772-0 01 1 1506- ● ●

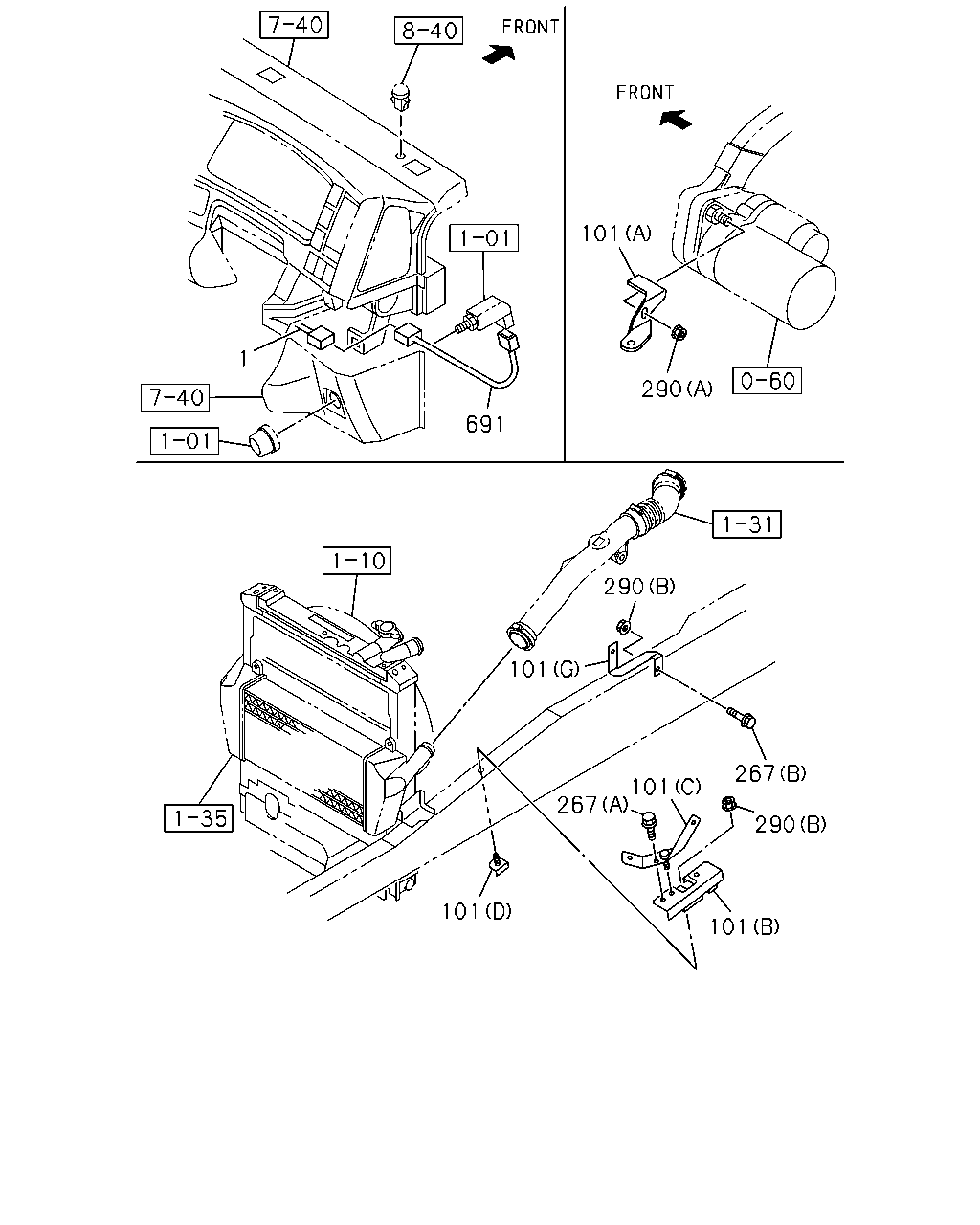

çizim 480479
1 691 101 290 101 267 267 290 101 101 101 290
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB 8-98285-880-2 01 1 1506- ●
1 02.480 HARNESS; CAB 8-98285-881-2 01 1 1506- ●
101 02.483 BRACKET; HARNESS CONNECTOR
(E) 		8-98039-957-0 01 1 1506- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(F) 		8-98243-659-0 01 1 1506- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98078-070-1 01 1 1506- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(C) 		8-98078-071-1 01 1 1506- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98093-465-1 01 1 1506- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(G) 		8-98106-295-0 01 1 1506- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
02.183 (A) 		8-98030-725-1 01 1 1506- ● ●
267 02.483 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1506- ● ●
267 02.483 BOLT; BRKT
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1506- ● ●
267 02.483 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1506- ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1506- ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1506- ● ●
290 02.483 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1506- ● ●
691 02.480 HARNESS; IDLE CONT 8-98049-014-2 01 1 1506- ● ●

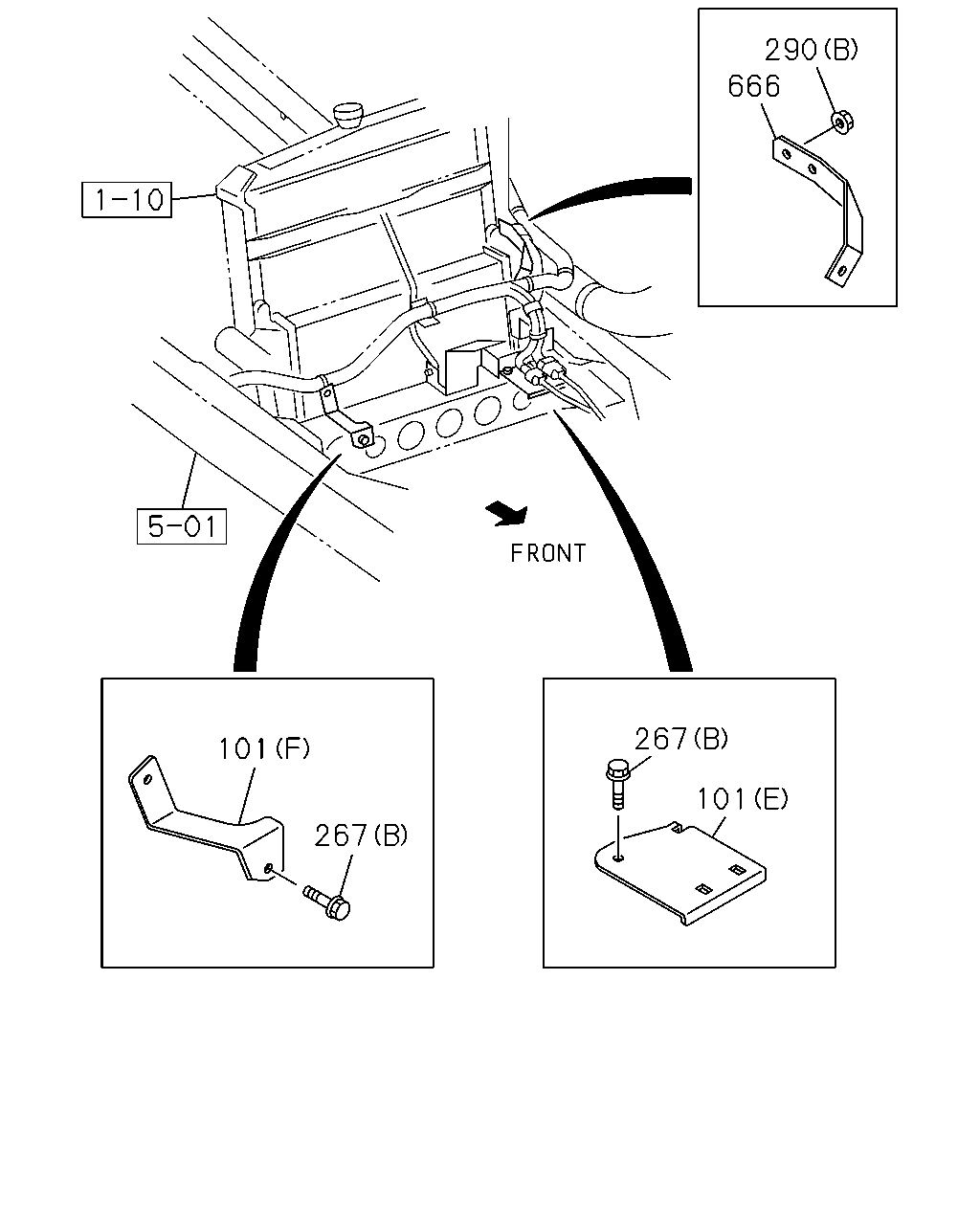

çizim 480505
290 666 267 101 267 101
BalonParca AdiParca NoAdetTipApplied Date A B
101 02.483 BRACKET; HARNESS CONNECTOR
(E) 		8-98039-957-0 01 1 1506- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(F) 		8-98243-659-0 01 1 1506- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98078-070-1 01 1 1506- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(C) 		8-98078-071-1 01 1 1506- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98093-465-1 01 1 1506- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(G) 		8-98106-295-0 01 1 1506- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
02.183 (A) 		8-98030-725-1 01 1 1506- ● ●
267 02.483 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1506- ● ●
267 02.483 BOLT; BRKT
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1506- ● ●
267 02.483 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1506- ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1506- ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1506- ● ●
290 02.483 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1506- ● ●
666 02.483 BRACKET; CLIP 8-98179-532-0 01 1 1506- ● ●

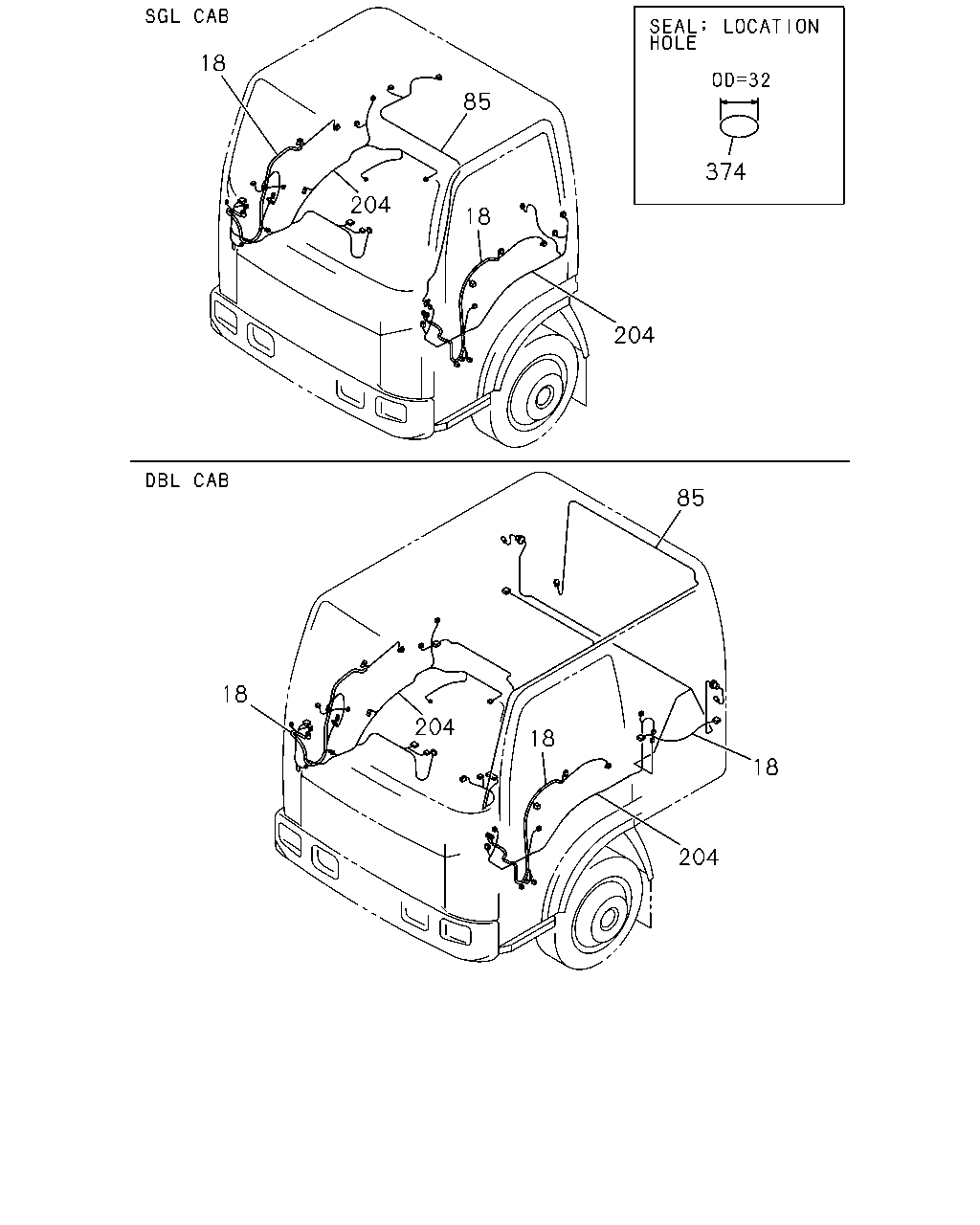

çizim 480535
18 85 204 18 204 374 85 18 204 18 204 18
BalonParca AdiParca NoAdetTipApplied Date A B
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> FRONT 		8-98077-590-2 01 1 1506- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> FRONT 		8-98077-590-2 01 1 1506- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> FRONT 		8-98286-563-0 01 1 1506- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> FRONT 		8-98286-563-0 01 1 1506- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> FRONT 		8-98071-078-2 01 1 1506- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> FRONT 		8-98071-078-2 01 1 1506- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> FRONT 		8-98286-568-0 01 1 1506- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> FRONT 		8-98286-568-0 01 1 1506- ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98046-746-5 01 1 1506- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98046-746-5 01 1 1506- ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98286-562-0 01 1 1506- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98286-562-0 01 1 1506- ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-076-2 01 1 1506- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV> FRONT 		8-98071-076-2 01 1 1506- ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98286-565-0 01 1 1506- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV> FRONT 		8-98286-565-0 01 1 1506- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REAR 		8-98202-555-0 02 1 1506- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31>, CORNERING LAMP<T87> FRONT 		8-98071-077-2 01 1 1506- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31>, CORNERING LAMP<T87> FRONT 		8-98286-567-0 01 1 1506- ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT&REAR DOOR<A31>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRRO R - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98046-744-2 01 1 1506- ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT&REAR DOOR<A31>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRRO R - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98286-561-0 01 1 1506- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HE ATED<7SV> FRONT 		8-98071-075-2 01 1 1506- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HE ATED<7SV> FRONT 		8-98286-564-0 01 1 1506- ●
85 06.495 HARNESS; ROOM LAMP 8-98049-964-3 01 1 1506- ●
85 06.495 HARNESS; ROOM LAMP 8-98033-823-4 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98240-901-0 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> MANUAL TILT CAB<RWZ> 		8-98257-335-0 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> EXC. MANUAL TILT CAB<RWZ> 		8-98287-850-0 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98047-164-4 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, MANUAL TILT CAB<RWZ> 		8-98070-807-3 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> 		8-98240-906-0 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98257-329-0 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-810-3 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, POWER WINDOW FRT&REAR DOOR<A31> 		8-98070-809-3 01 1 1506- ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=24.5 T=7.5 		8-97224-683-0 01 1 1506- ●

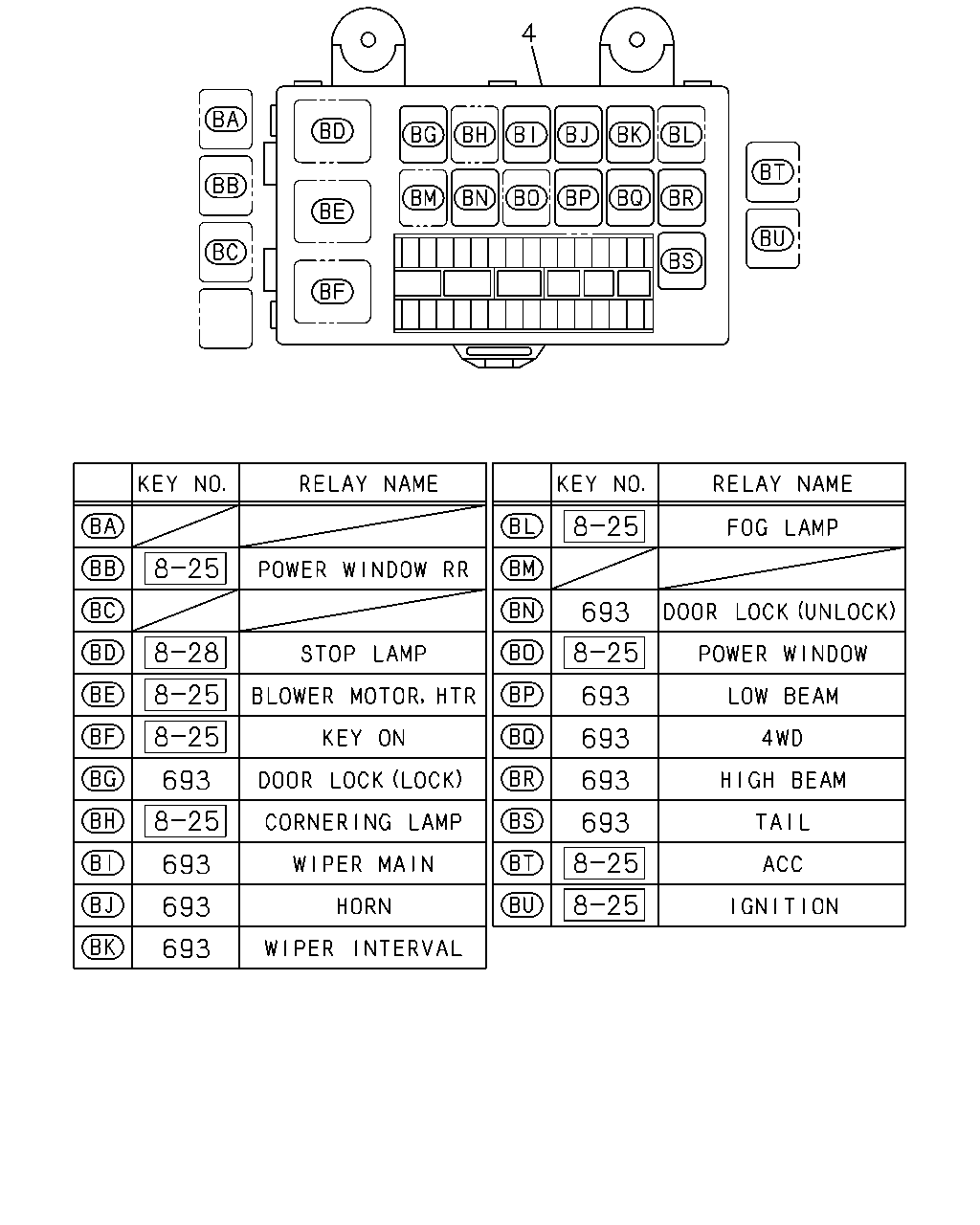

çizim 480586
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1506- ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1506- ● ●

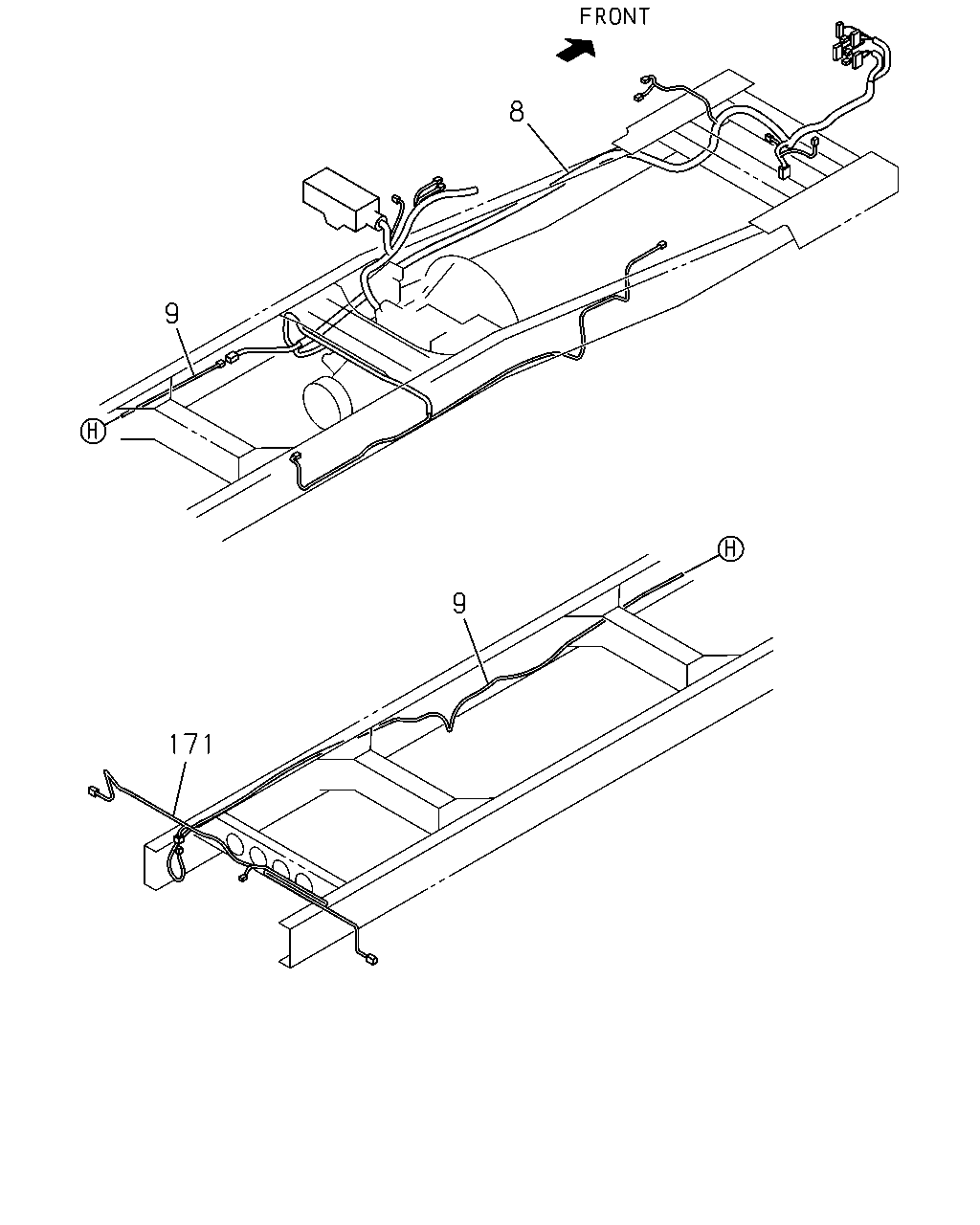

çizim 480756
8 9 9 171
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT 8-98295-902-1 01 1 1506- ●
8 02.480 HARNESS; FRAME,FRT 8-98295-903-1 01 1 1506- ●
9 02.480 HARNESS; FRAME,RR 8-98048-419-1 01 1 1506- ●
9 02.480 HARNESS; FRAME,RR 8-98048-424-1 01 1 1506- ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-027-0 01 1 1506- ● ●
