◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51605 - NLS RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#162734) — 37 parça

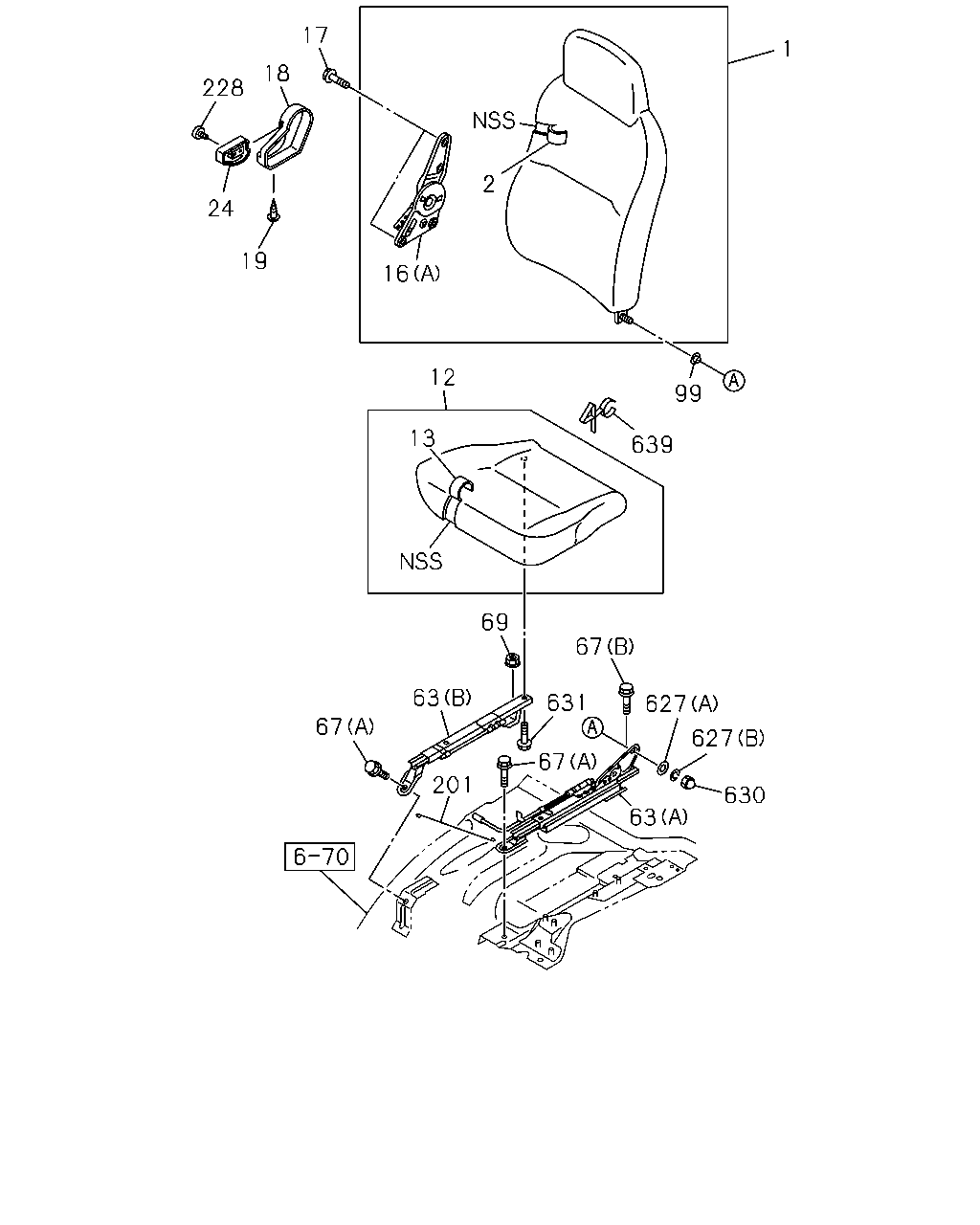

çizim 480582
1 2 16 17 18 228 24 19 12 13 639 99 69 67 631 67 63 627 627 630 201 63 67
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97465-003-0 01 1 1506- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97465-005-0 01 1 1506- ● ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97465-010-1 01 1 1506- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97465-016-1 01 1 1506- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB 		8-97859-273-3 01 1 1506- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1506- ● ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 1506- ● ●
18 16.682 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1506- ● ●
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 1506- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1506- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(A) INNER 		8-97382-800-2 01 1 1506- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(B) OUTER 		8-97382-801-1 01 1 1506- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 1506- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 1506- ● ●
69 16.682 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 1506- ● ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 1506- ● ●
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 1506- ● ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 1506- ● ●
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1506- ● ●
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1506- ● ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 1506- ● ●
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 1506- ● ●
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 1506- ● ●
639 16.679 CLIP; SEAT 8-98097-693-0 01 1 1506- ● ●

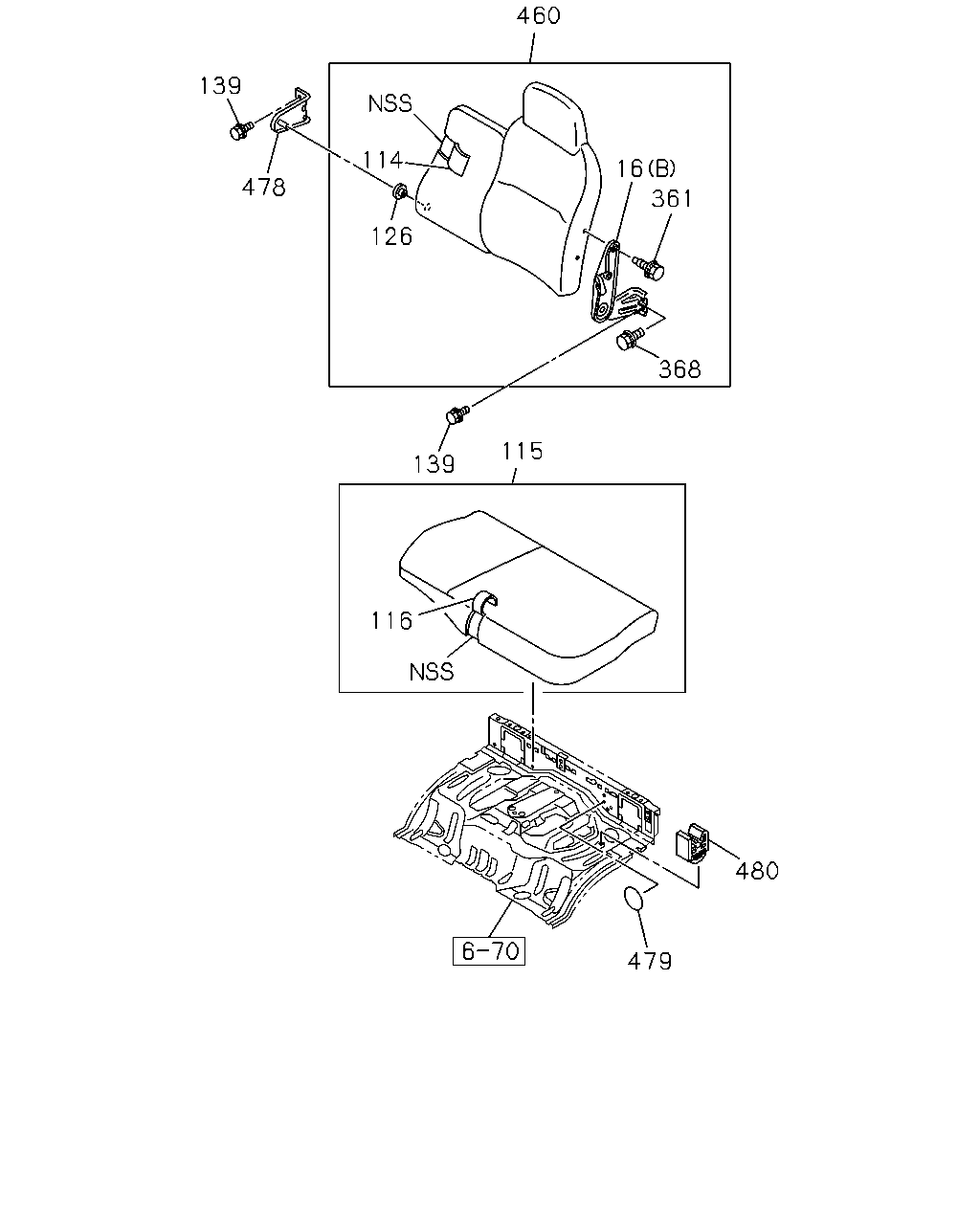

çizim 480687
460 114 126 478 139 16 361 368 115 139 116 480 479
BalonParca AdiParca NoAdetTipApplied Date A B
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB 		8-97859-273-3 01 1 1506- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1506- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97427-885-0 01 1 1506- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97427-897-1 01 1 1506- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97427-906-1 01 1 1506- ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 01 1 1506- ● ●
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 03 1 1506- ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 1506- ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 1506- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
DARK GRAY 		8-97427-881-0 01 1 1506- ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-186-0 01 1 1506- ● ●
479 16.716 PLUG; HINGE
16.165 OD=25 BLACK 		1-76798-019-0 02 1 1506- ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 1506- ● ●
