7-43 — SUN VISOR AND ASSIST GRIP (#162733) — 58 parça

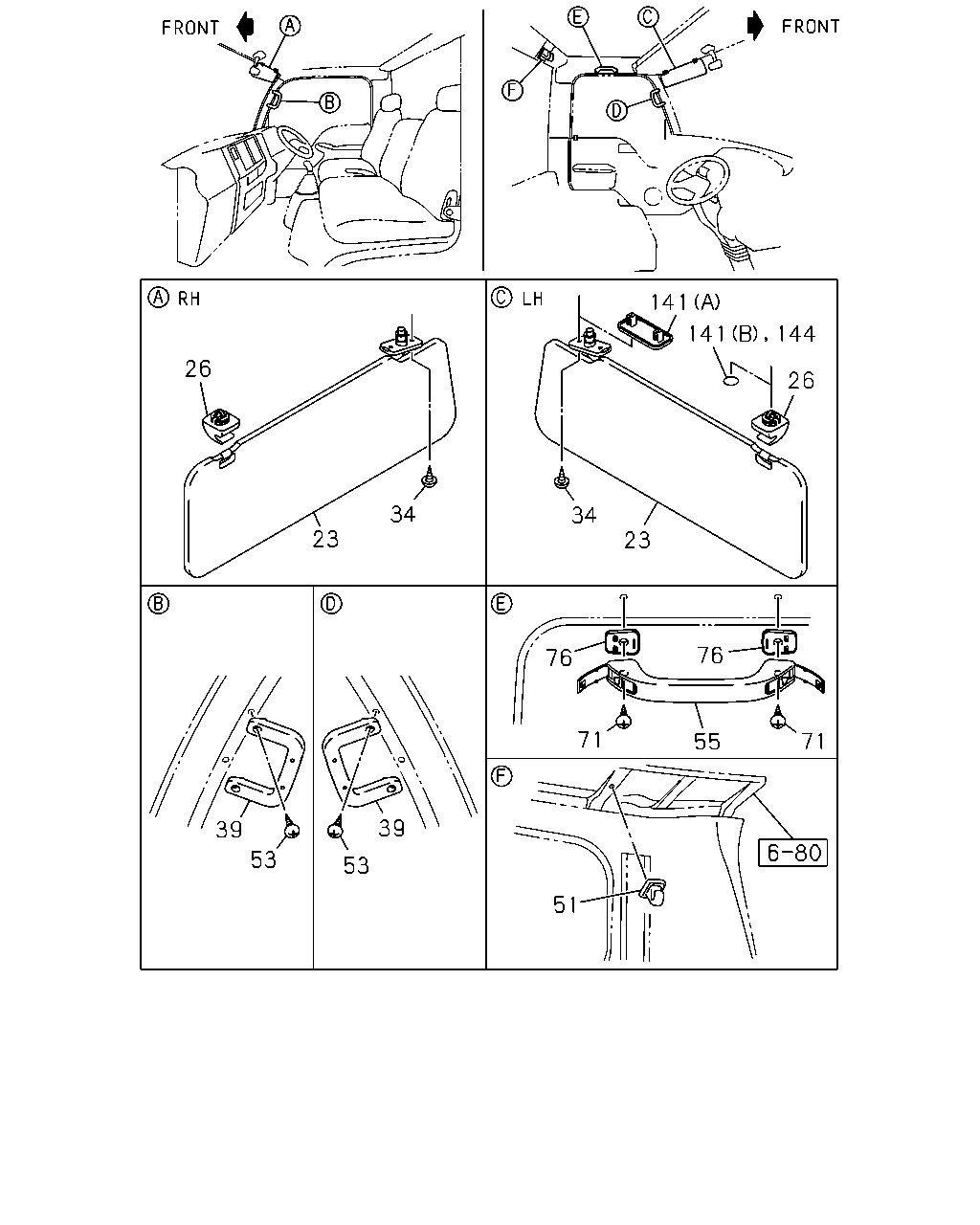

141 34 76 23 76 26 71 55 71 144 141 34 23 39 53 53 26 51 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-197-3	01	1	1506-	●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-196-1	01	1	1506-	●	●
23	16.070 SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97413-093-1	01	1	1506-	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-171-0	01	1	1506-	●	●
26	16.070 HOLDER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-171-0	01	1	1506-	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-200-0	01	1	1506-	●	●
26	16.070 HOLDER; SUN VISOR EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-200-0	01	1	1506-	●	●
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M6X26	8-98033-674-0	04	1	1506-	●	●
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> M6X26	8-98033-674-0	02	1	1506-	●	●
34	16.070 SCREW; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26	8-98033-674-0	02	1	1506-	●	●
39	16.450 HANDLE; ASSIST,A-POST DARK GRAY	8-97405-249-2	02	1	1506-	●	●
51	16.570 HOOK; COAT HANGER DARK GRAY	8-97405-302-1	01	1	1506-	●
53	16.450 SCREW; ASSIST HANDLE M6X28	8-98004-344-0	04	1	1506-	●	●
55	16.450 GRIP; ASSIST,CAB SIDE UPR DARK GRAY	8-97405-285-2	01	1	1506-	●
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97405-285-2	01	1	1506-		●
71	16.450 SCREW M6X28	8-98004-344-0	02	1	1506-	●
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X28	8-98004-344-0	02	1	1506-		●
76	16.742 SPACER; ASSIST GRIP DARK GRAY	8-97405-286-0	02	1	1506-	●
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1506-	●	●
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1506-	●	●
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1506-		●
141	16.070 COVER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1506-		●
141	16.070 COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1506-		●
144	16.070 SEAL; LOCATION HOLE BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),B ODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GRE EN(989),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1506-		●
144	16.070 SEAL; LOCATION HOLE BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),B ODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GRE EN(989),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1506-		●
144	16.070 SEAL; LOCATION HOLE BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),B ODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GRE EN(989),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1506-		●
144	16.070 SEAL; LOCATION HOLE BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	01	1	1506-		●
144	16.070 SEAL; LOCATION HOLE BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1506-		●
144	16.070 SEAL; LOCATION HOLE BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1506-		●

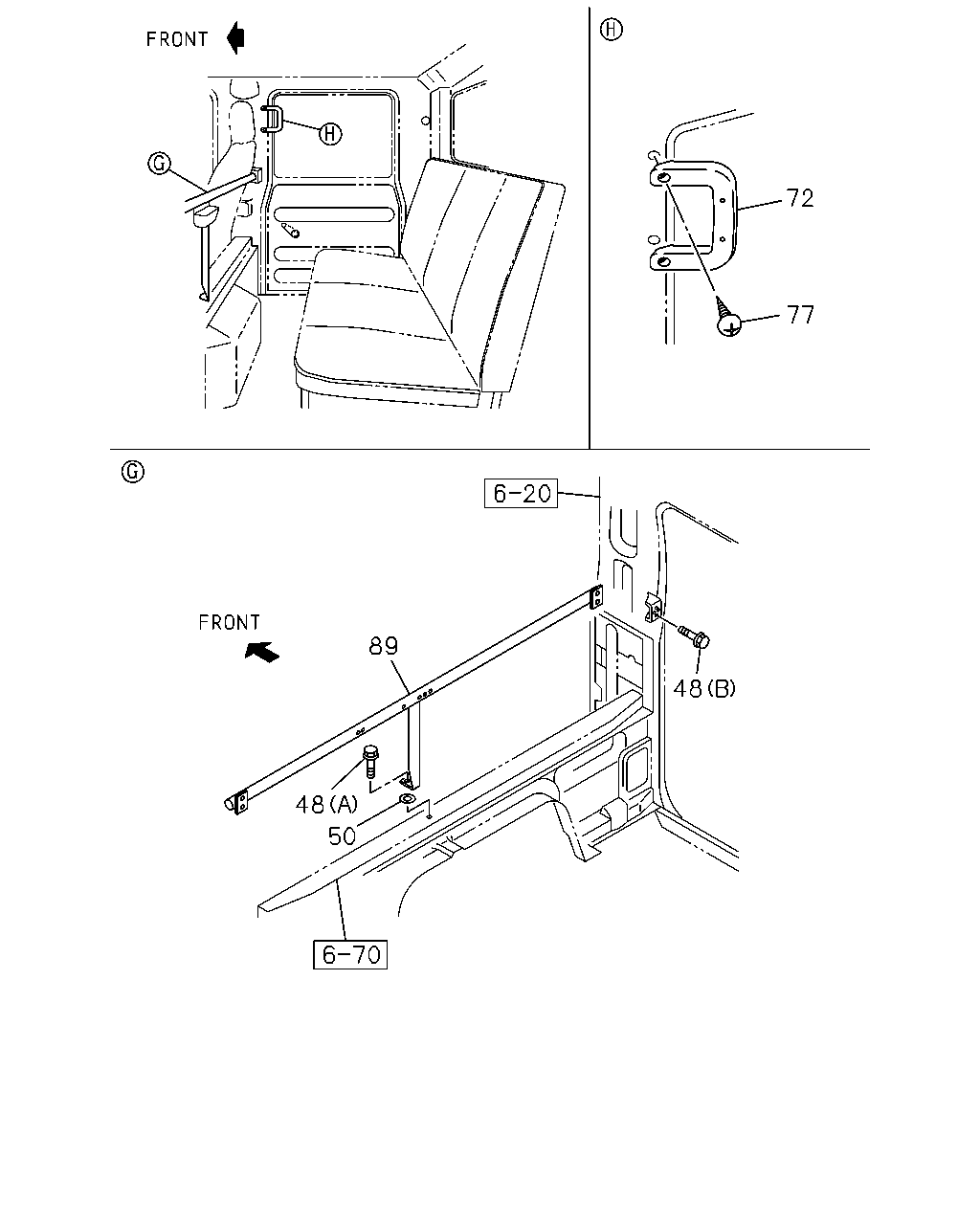

72 77 48 48 89 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
48	16.450 BOLT; ASSIST GRIP 03.671 (B) M6X10 FLANGE	0-28050-610-0	04	1	1506-	●
48	16.450 BOLT; ASSIST GRIP 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	1506-	●
50	16.450 WASHER; PL,ASSIST GRIP 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1506-	●
72	16.450 GRIP; ASSIST,CAB ENTRY,BACK DARK GRAY	8-97405-249-2	02	1	1506-	●
77	16.450 SCREW; ASSIST GRIP M6X28	8-98004-344-0	04	1	1506-	●
89	16.560 HANDLE; ASSIST	8-97583-742-4	01	1	1506-	●

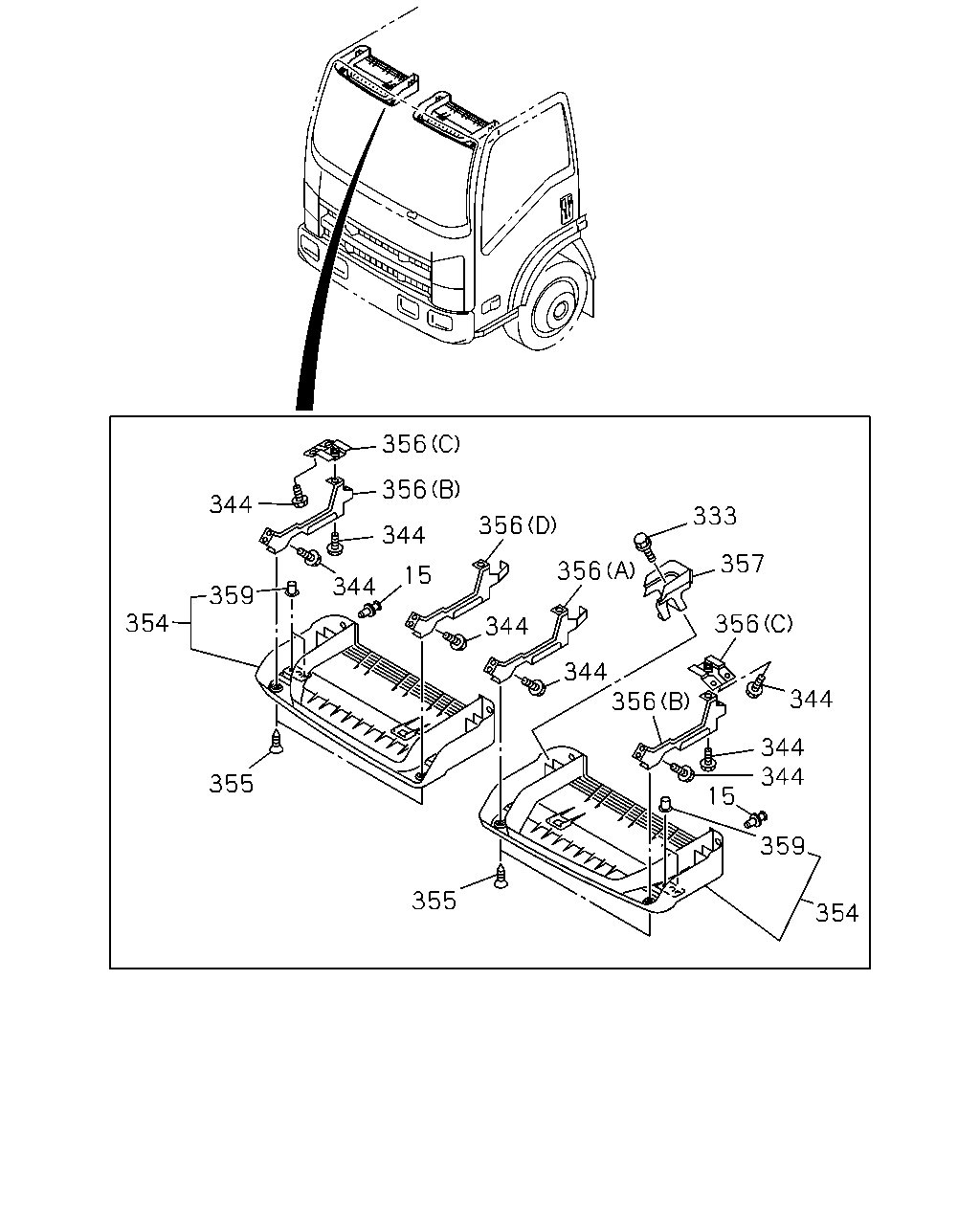

344 359 354 355 355 354 359 15 344 344 344 356 357 333 356 344 344 356 356 356 344 344 356 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	16.742 FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-299-0	02	1	1506-	●	●
15	16.742 FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-299-0	02	1	1506-	●	●
333	16.742 SCREW; COVER HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	1506-		●
344	16.450 BOLT; BRKT,FRT HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	1506-	●	●
344	16.450 BOLT; BRKT,FRT HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	1506-	●	●
354	16.120 TRAY; HEADER ROOF HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97408-060-2	01	1	1506-	●
354	16.120 TRAY; HEADER ROOF HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97408-061-2	01	1	1506-	●
354	16.120 TRAY; HEADER ROOF HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97408-064-2	01	1	1506-		●
354	16.120 TRAY; HEADER ROOF HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97408-065-2	01	1	1506-		●
355	16.742 SCREW; TRAY HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1506-	●	●
355	16.742 SCREW; TRAY HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1506-	●	●
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (D)	8-98036-022-4	01	1	1506-	●
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (A)	8-98036-023-4	01	1	1506-	●
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (C)	8-97386-874-1	01	1	1506-	●	●
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (C)	8-97386-874-1	01	1	1506-	●	●
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (B)	8-97585-576-4	01	1	1506-	●	●
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (B)	8-97585-576-4	01	1	1506-	●	●
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (D)	8-98021-845-2	01	1	1506-		●
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (A)	8-98036-364-2	01	1	1506-		●
357	16.742 COVER; HEADER TRAY HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-220-1	01	1	1506-		●
357	16.742 COVER; HEADER TRAY HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-221-1	01	1	1506-		●
359	16.070 HOLDER; HEADER TRAY HEADER TRAY DRIVER & PASSENGER<8LY>	8-98041-754-0	02	1	1506-	●	●
359	16.070 HOLDER; HEADER TRAY HEADER TRAY DRIVER & PASSENGER<8LY>	8-98041-754-0	02	1	1506-	●	●
