◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51605 - NLS RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#162723) — 34 parça

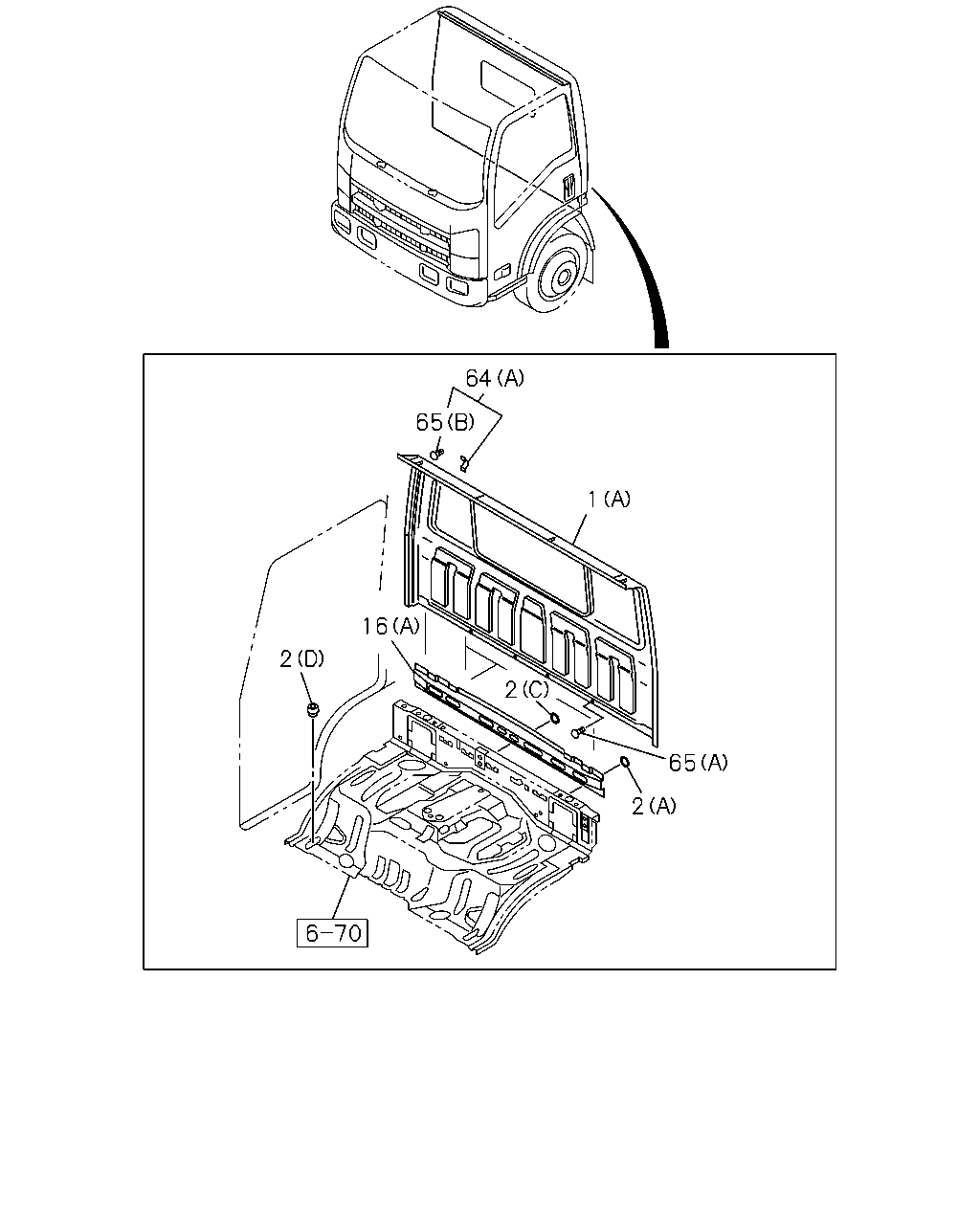

çizim 480439
64 65 1 65 2 2 16 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.587 PANEL; BACK OUTER
(A) 		8-97584-300-3 01 1 1506- ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-731-4 01 1 1506- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1506- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1506- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 1506- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 1506- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 1506- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 1506- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-607-3 01 1 1506- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-97410-667-0 01 1 1506- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-98006-213-0 01 1 1506- ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 1506- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1506- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1506- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 1506- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 1506- ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 03 1 1506- ●

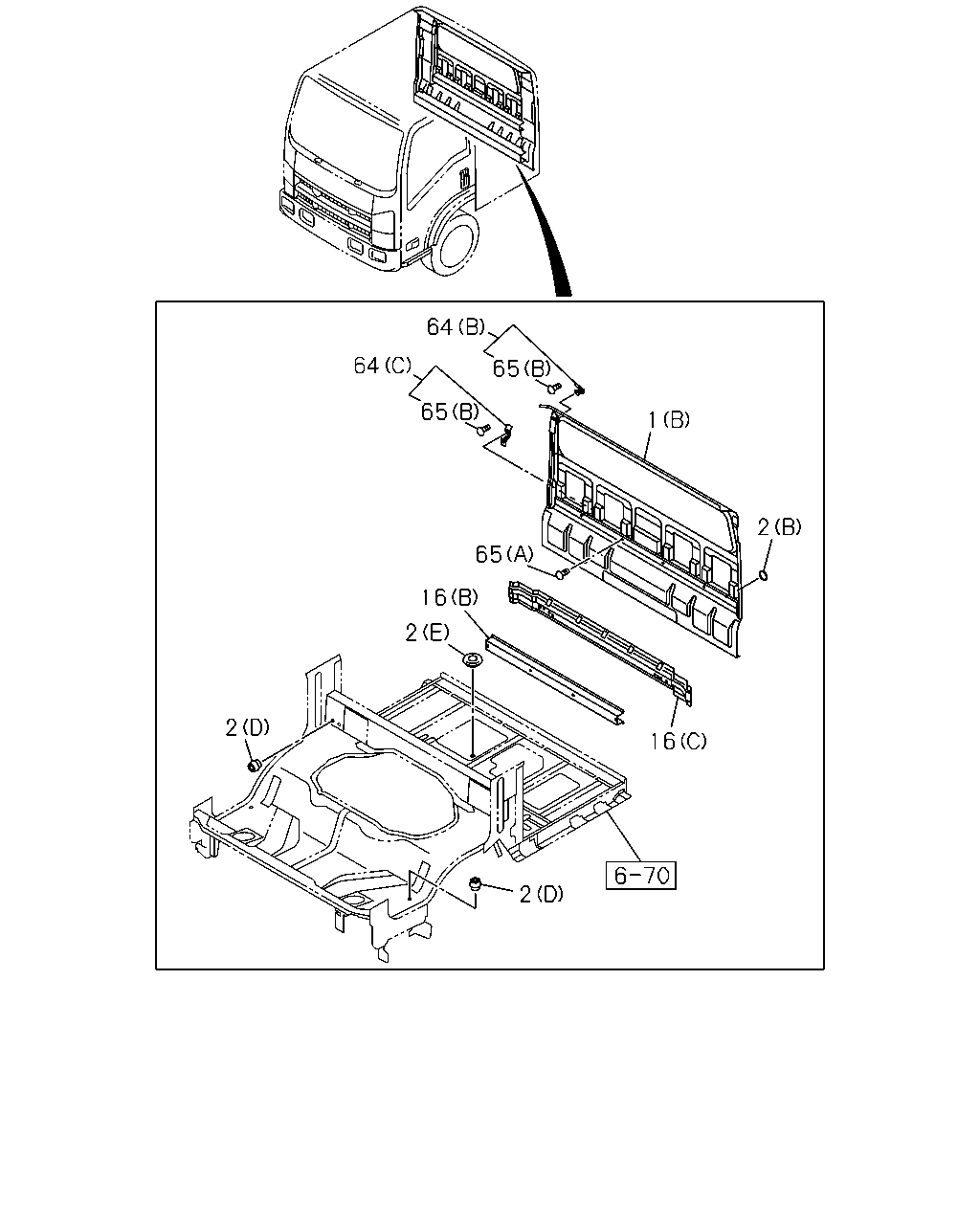

çizim 480467
2 1 65 64 64 65 65 16 16 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.587 PANEL; BACK OUTER
(A) 		8-97584-300-3 01 1 1506- ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-731-4 01 1 1506- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1506- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1506- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 1506- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 1506- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 1506- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 1506- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-607-3 01 1 1506- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-97410-667-0 01 1 1506- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-98006-213-0 01 1 1506- ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 1506- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1506- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1506- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 1506- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 1506- ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 03 1 1506- ●
