6-70 — FLOOR PANEL (#162719) — 137 parça

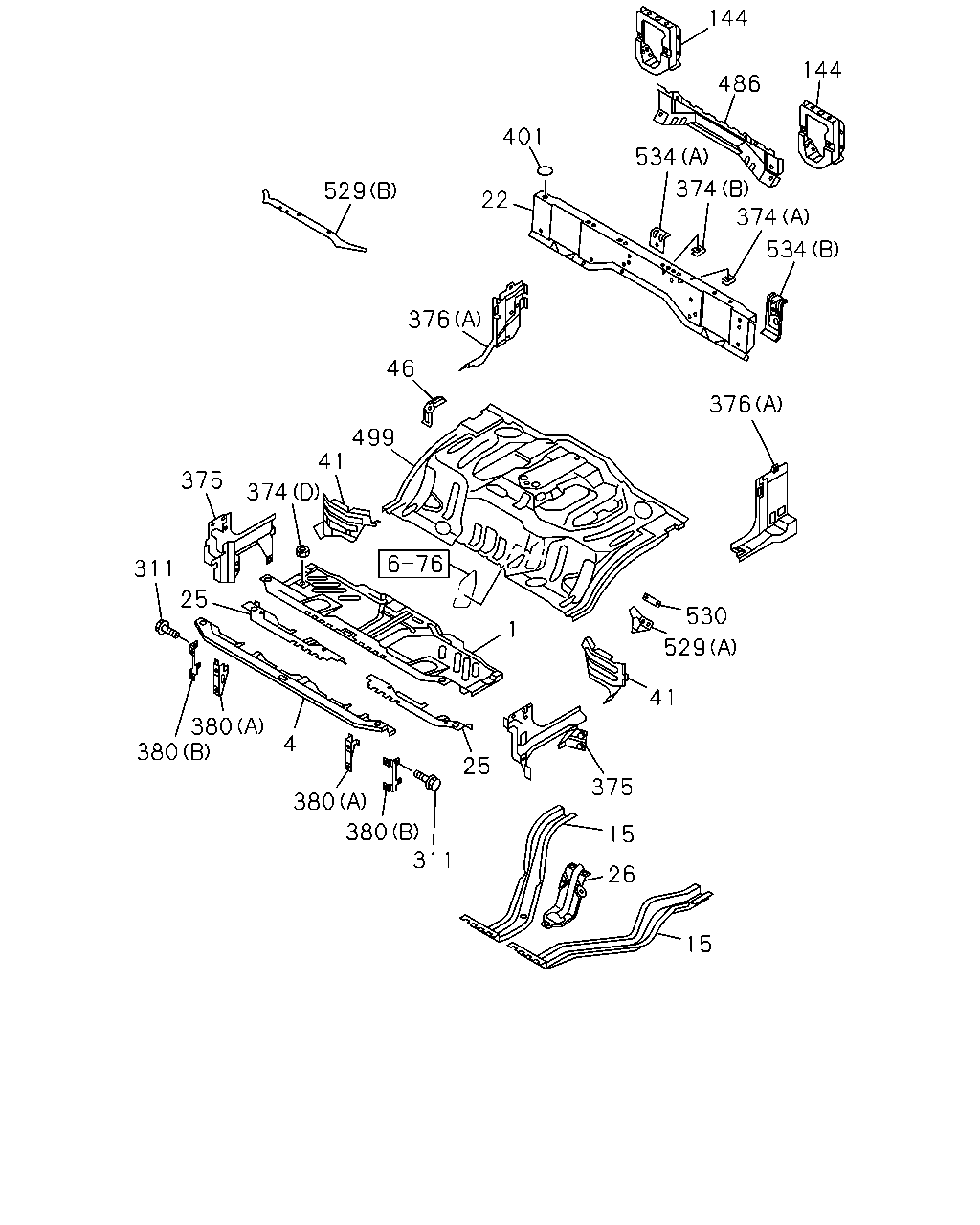

529 530 41 375 15 26 15 311 380 380 380 380 25 311 375 374 41 499 46 376 529 22 401 534 374 374 534 376 486 144 144 25 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.545 PANEL; FLOOR MANUAL TILT CAB<RWZ>	8-97583-910-5	01	1	1506-	●
1	16.545 PANEL; FLOOR	8-97583-910-5	01	1	1506-		●
4	16.545 FRAME; FLOOR,FRT MANUAL TILT CAB<RWZ>	8-98059-496-0	01	1	1506-	●
4	16.545 FRAME; FLOOR,FRT	8-98059-496-0	01	1	1506-		●
15	16.545 FRAME; UNDER MANUAL TILT CAB<RWZ>	8-98061-277-1	01	1	1506-	●
15	16.545 FRAME; UNDER	8-98061-277-1	01	1	1506-		●
15	16.545 FRAME; UNDER MANUAL TILT CAB<RWZ>	8-98061-278-1	01	1	1506-	●
15	16.545 FRAME; UNDER	8-98061-278-1	01	1	1506-		●
22	16.545 FRAME; FLOOR REAR MANUAL TILT CAB<RWZ>	8-97589-306-4	01	1	1506-	●
22	16.545 FRAME; FLOOR REAR	8-97589-306-4	01	1	1506-		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ>	8-97588-030-1	01	1	1506-	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97588-030-1	01	1	1506-		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ>	8-97588-031-1	01	1	1506-	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97588-031-1	01	1	1506-		●
26	16.545 PANEL; GEAR CONT REINF MANUAL TILT CAB<RWZ>	8-97589-382-1	01	1	1506-	●
26	16.545 PANEL; GEAR CONT REINF	8-97589-382-1	01	1	1506-		●
41	16.545 SUPPORT; STEP,RR MANUAL TILT CAB<RWZ>	8-97583-935-2	01	1	1506-	●
41	16.545 SUPPORT; STEP,RR	8-97583-935-2	01	1	1506-		●
41	16.545 SUPPORT; STEP,RR MANUAL TILT CAB<RWZ>	8-97583-936-2	01	1	1506-	●
41	16.545 SUPPORT; STEP,RR	8-97583-936-2	01	1	1506-		●
46	16.545 BRACKET; FRT SEAT,RR OUTER MANUAL TILT CAB<RWZ>	8-97583-834-0	01	1	1506-	●
46	16.545 BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	1506-		●
144	16.545 BRACKET; MTG,RR MANUAL TILT CAB<RWZ>	8-97589-544-3	02	1	1506-	●
144	16.545 BRACKET; MTG,RR	8-98112-244-2	02	1	1506-		●
311	16.545 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	1506-	●	●
374	16.545 NUT; FLOOR MANUAL TILT CAB<RWZ> (B) M6	1-09984-110-0	02	1	1506-	●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	1506-		●
374	16.545 NUT; FLOOR MANUAL TILT CAB<RWZ> (A) M8	1-09984-111-0	04	1	1506-	●
374	16.545 NUT; FLOOR (A) M8	1-09984-111-0	04	1	1506-		●
374	16.545 NUT; FLOOR 09.786 (C) M6 POP NUT	8-98013-752-0	01	1	1506-		●
374	16.545 NUT; FLOOR (D) M8	9-09114-068-0	04	1	1506-	●	●
375	16.545 CLOSING; PILLAR MANUAL TILT CAB<RWZ>	8-97583-882-3	01	1	1506-	●
375	16.545 CLOSING; PILLAR	8-97583-882-3	01	1	1506-		●
375	16.545 CLOSING; PILLAR MANUAL TILT CAB<RWZ>	8-97583-883-2	01	1	1506-	●
375	16.545 CLOSING; PILLAR	8-97583-883-2	01	1	1506-		●
376	16.545 CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> (A)	8-97583-888-2	01	1	1506-	●
376	16.545 CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> (A)	8-97584-618-2	01	1	1506-	●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98024-544-7	01	1	1506-		●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98024-545-6	01	1	1506-		●
380	16.545 BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> (A)	8-97589-384-4	01	1	1506-	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	1506-		●
380	16.545 BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> (A)	8-97589-385-3	01	1	1506-	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	1506-		●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	1506-	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	1506-	●	●
401	16.545 GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	1506-	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR MANUAL TILT CAB<RWZ>	8-98030-611-2	01	1	1506-	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR	8-98030-611-2	01	1	1506-		●
499	16.545 PANEL; FLOOR,RR MANUAL TILT CAB<RWZ>	8-97584-630-1	01	1	1506-	●
499	16.545 PANEL; FLOOR,RR	8-97584-630-1	01	1	1506-		●
529	16.545 RETAINER; FLOOR PANEL MANUAL TILT CAB<RWZ> (B)	8-97589-307-1	01	1	1506-	●
529	16.545 RETAINER; FLOOR PANEL (B)	8-97589-307-1	01	1	1506-		●
529	16.545 RETAINER; FLOOR PANEL MANUAL TILT CAB<RWZ> (A)	8-98030-358-0	01	1	1506-	●
529	16.545 RETAINER; FLOOR PANEL (A)	8-98030-358-0	01	1	1506-		●
530	16.565 BRACKET; COVER MANUAL TILT CAB<RWZ>	8-97589-255-0	01	1	1506-	●
530	16.565 BRACKET; COVER	8-97589-255-0	01	1	1506-		●
534	16.545 REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> (B)	8-98007-678-2	01	1	1506-	●
534	16.545 REINFORCEMENT; SEAT BACK (B)	8-98007-678-2	01	1	1506-		●
534	16.545 REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> (A)	8-98019-181-2	01	1	1506-	●
534	16.545 REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	1506-		●

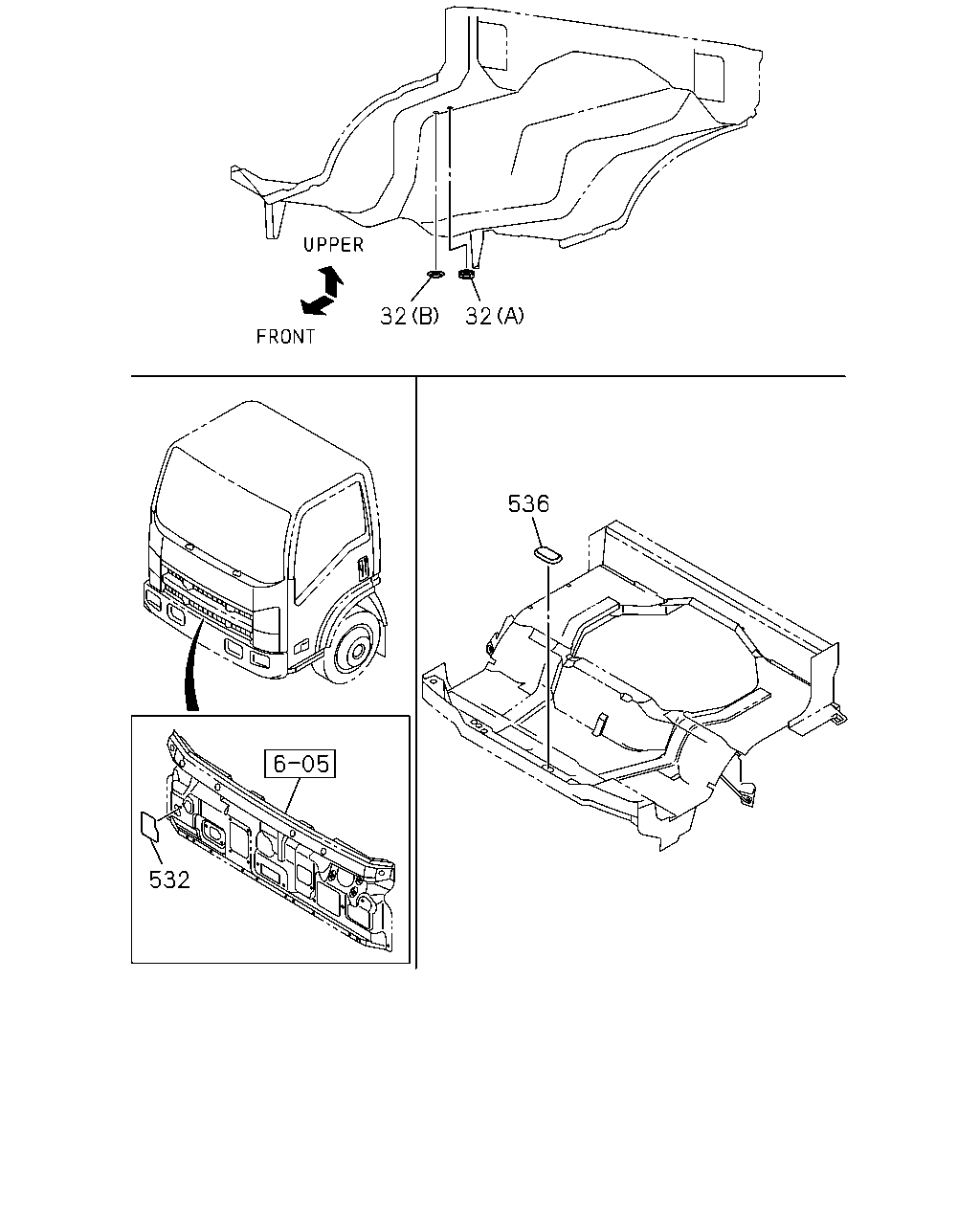

536 32 32 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO (A) OD=15.0	8-94279-040-0	02	1	1506-	●	●
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO (B) OD=12.1	8-97898-423-0	02	1	1506-	●	●
532	16.520 SEAL; CABLE FRT INDEPENDENT SUSPENSION(FF0) EXC. PTO MANUAL CONTROL(6WC),PTO T/M SIDEDIRECT PUMP(8KZ)	8-98042-432-1	01	1	1506-1507	●	●
532	16.520 SEAL; CABLE FRT INDEPENDENT SUSPENSION(FF0) EXC. PTO MANUAL CONTROL(6WC)	8-98042-432-1	01	1	1508-	●	●
536	16.549 PLUG; CABLE,PTO 04.008	8-98029-219-1	01	1	1506-	●	●

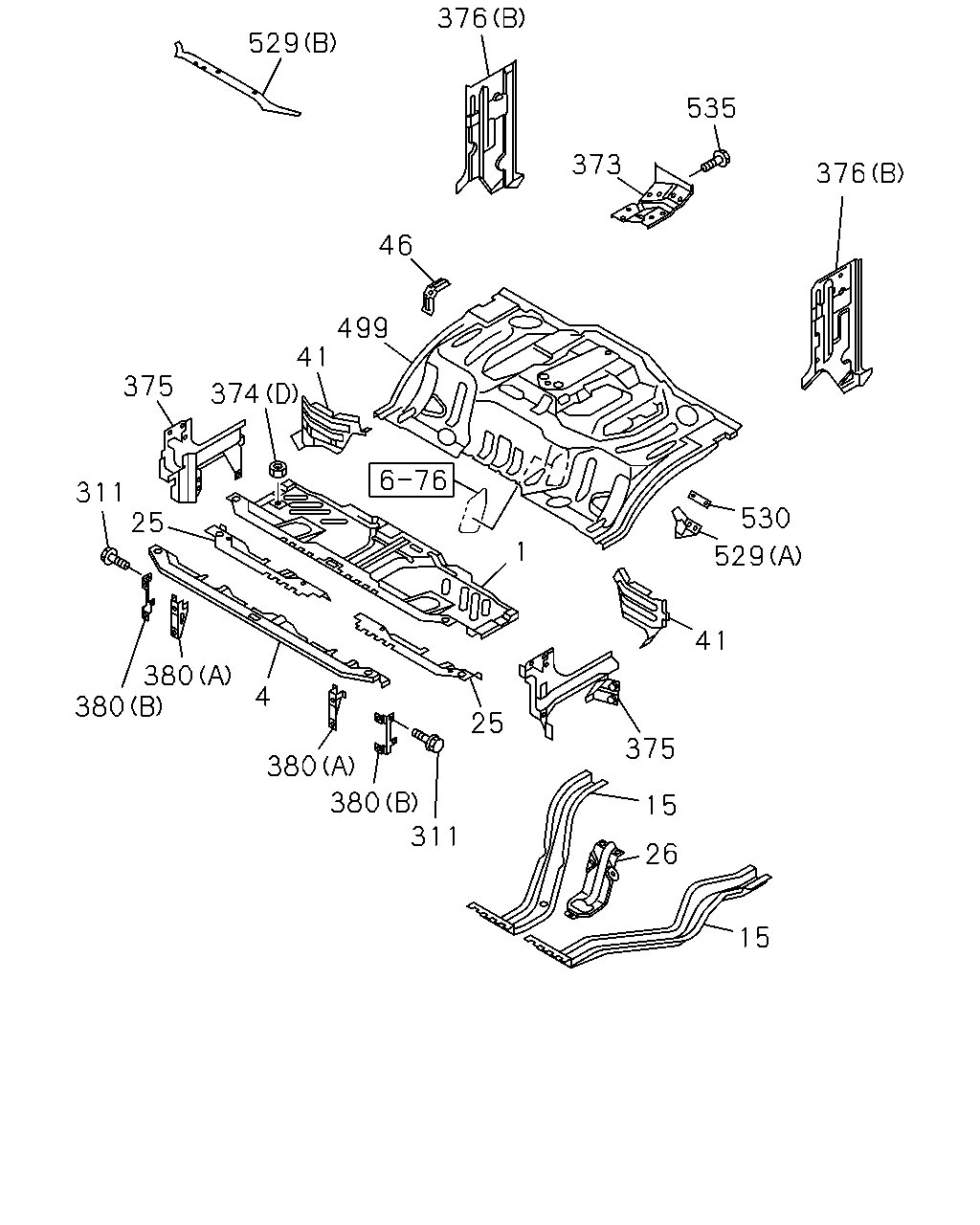

529 530 41 375 15 26 15 311 25 1 380 380 380 380 25 311 375 374 41 499 46 376 529 373 535 376 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.545 PANEL; FLOOR MANUAL TILT CAB<RWZ>	8-97583-910-5	01	1	1506-	●
1	16.545 PANEL; FLOOR	8-97583-910-5	01	1	1506-		●
4	16.545 FRAME; FLOOR,FRT MANUAL TILT CAB<RWZ>	8-98059-496-0	01	1	1506-	●
4	16.545 FRAME; FLOOR,FRT	8-98059-496-0	01	1	1506-		●
15	16.545 FRAME; UNDER MANUAL TILT CAB<RWZ>	8-98061-277-1	01	1	1506-	●
15	16.545 FRAME; UNDER	8-98061-277-1	01	1	1506-		●
15	16.545 FRAME; UNDER MANUAL TILT CAB<RWZ>	8-98061-278-1	01	1	1506-	●
15	16.545 FRAME; UNDER	8-98061-278-1	01	1	1506-		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ>	8-97588-030-1	01	1	1506-	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97588-030-1	01	1	1506-		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ>	8-97588-031-1	01	1	1506-	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97588-031-1	01	1	1506-		●
26	16.545 PANEL; GEAR CONT REINF MANUAL TILT CAB<RWZ>	8-97589-382-1	01	1	1506-	●
26	16.545 PANEL; GEAR CONT REINF	8-97589-382-1	01	1	1506-		●
41	16.545 SUPPORT; STEP,RR MANUAL TILT CAB<RWZ>	8-97583-935-2	01	1	1506-	●
41	16.545 SUPPORT; STEP,RR	8-97583-935-2	01	1	1506-		●
41	16.545 SUPPORT; STEP,RR MANUAL TILT CAB<RWZ>	8-97583-936-2	01	1	1506-	●
41	16.545 SUPPORT; STEP,RR	8-97583-936-2	01	1	1506-		●
46	16.545 BRACKET; FRT SEAT,RR OUTER MANUAL TILT CAB<RWZ>	8-97583-834-0	01	1	1506-	●
46	16.545 BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	1506-		●
311	16.545 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	1506-	●	●
373	16.545 REINFORCEMENT; SEAT BELT 16.714	8-98015-215-2	01	1	1506-		●
374	16.545 NUT; FLOOR MANUAL TILT CAB<RWZ> (B) M6	1-09984-110-0	02	1	1506-	●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	1506-		●
374	16.545 NUT; FLOOR MANUAL TILT CAB<RWZ> (A) M8	1-09984-111-0	04	1	1506-	●
374	16.545 NUT; FLOOR (A) M8	1-09984-111-0	04	1	1506-		●
374	16.545 NUT; FLOOR 09.786 (C) M6 POP NUT	8-98013-752-0	01	1	1506-		●
374	16.545 NUT; FLOOR (D) M8	9-09114-068-0	04	1	1506-	●	●
375	16.545 CLOSING; PILLAR MANUAL TILT CAB<RWZ>	8-97583-882-3	01	1	1506-	●
375	16.545 CLOSING; PILLAR	8-97583-882-3	01	1	1506-		●
375	16.545 CLOSING; PILLAR MANUAL TILT CAB<RWZ>	8-97583-883-2	01	1	1506-	●
375	16.545 CLOSING; PILLAR	8-97583-883-2	01	1	1506-		●
376	16.545 CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> (A)	8-97583-888-2	01	1	1506-	●
376	16.545 CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> (A)	8-97584-618-2	01	1	1506-	●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98024-544-7	01	1	1506-		●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98024-545-6	01	1	1506-		●
380	16.545 BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> (A)	8-97589-384-4	01	1	1506-	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	1506-		●
380	16.545 BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> (A)	8-97589-385-3	01	1	1506-	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	1506-		●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	1506-	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	1506-	●	●
499	16.545 PANEL; FLOOR,RR MANUAL TILT CAB<RWZ>	8-97584-630-1	01	1	1506-	●
499	16.545 PANEL; FLOOR,RR	8-97584-630-1	01	1	1506-		●
529	16.545 RETAINER; FLOOR PANEL MANUAL TILT CAB<RWZ> (B)	8-97589-307-1	01	1	1506-	●
529	16.545 RETAINER; FLOOR PANEL (B)	8-97589-307-1	01	1	1506-		●
529	16.545 RETAINER; FLOOR PANEL MANUAL TILT CAB<RWZ> (A)	8-98030-358-0	01	1	1506-	●
529	16.545 RETAINER; FLOOR PANEL (A)	8-98030-358-0	01	1	1506-		●
530	16.565 BRACKET; COVER MANUAL TILT CAB<RWZ>	8-97589-255-0	01	1	1506-	●
530	16.565 BRACKET; COVER	8-97589-255-0	01	1	1506-		●
535	16.549 BOLT; REINFORCEMENT 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1506-		●

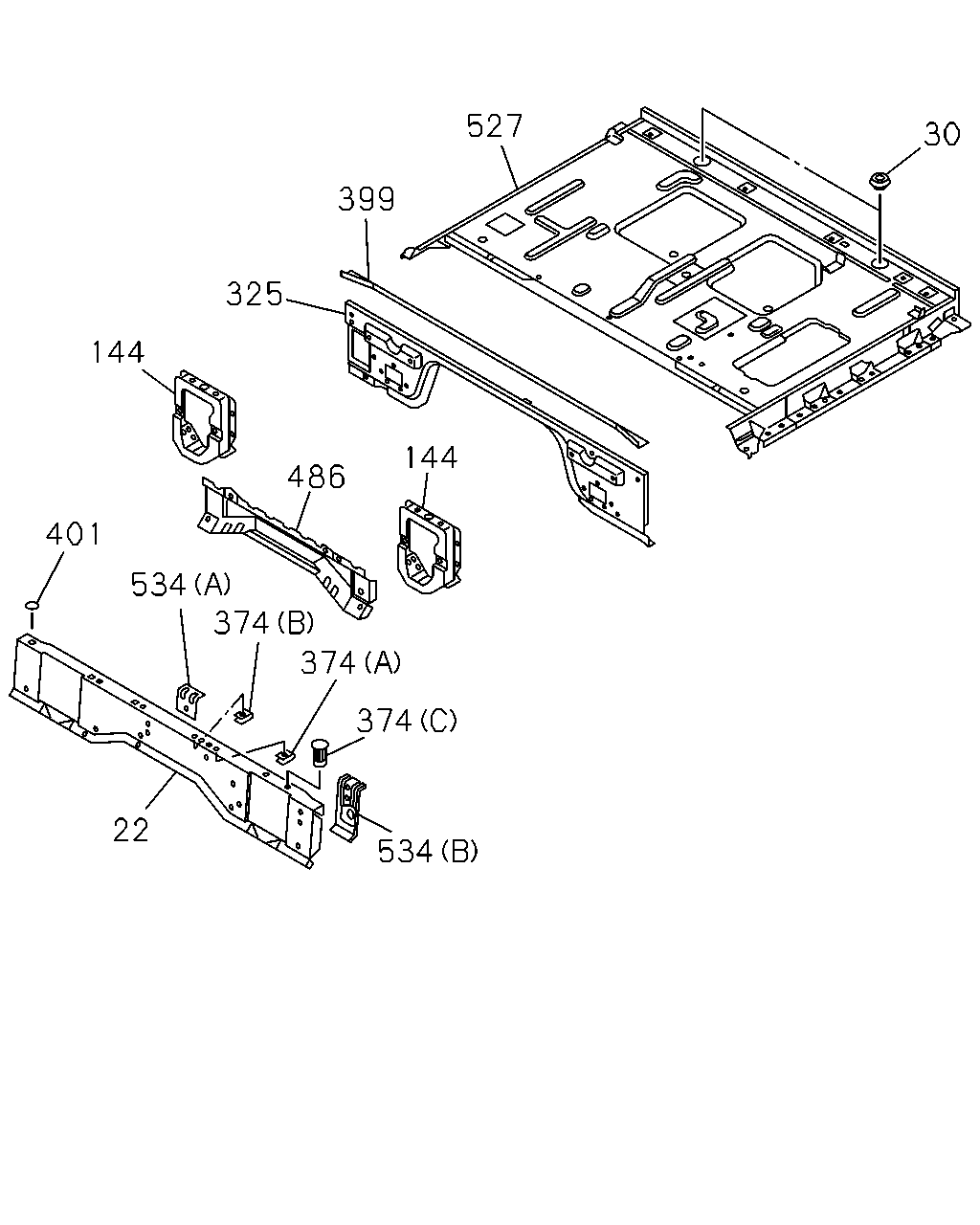

399 527 30 325 486 144 374 374 534 22 374 534 401 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	16.545 FRAME; FLOOR REAR MANUAL TILT CAB<RWZ>	8-97589-306-4	01	1	1506-	●
22	16.545 FRAME; FLOOR REAR	8-97589-306-4	01	1	1506-		●
30	16.547 GROMMET; CAB MTG RAIL OD=74	8-94279-731-0	02	1	1506-		●
144	16.545 BRACKET; MTG,RR MANUAL TILT CAB<RWZ>	8-97589-544-3	02	1	1506-	●
144	16.545 BRACKET; MTG,RR	8-98112-244-2	02	1	1506-		●
325	16.545 REINFORCEMENT ASM; RR MTG	8-97588-942-2	01	1	1506-		●
374	16.545 NUT; FLOOR MANUAL TILT CAB<RWZ> (B) M6	1-09984-110-0	02	1	1506-	●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	1506-		●
374	16.545 NUT; FLOOR MANUAL TILT CAB<RWZ> (A) M8	1-09984-111-0	04	1	1506-	●
374	16.545 NUT; FLOOR (A) M8	1-09984-111-0	04	1	1506-		●
374	16.545 NUT; FLOOR 09.786 (C) M6 POP NUT	8-98013-752-0	01	1	1506-		●
374	16.545 NUT; FLOOR (D) M8	9-09114-068-0	04	1	1506-	●	●
399	16.545 PANEL; EXTENSION,RR MTG RAIL	8-97588-952-1	01	1	1506-		●
401	16.545 GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	1506-	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR MANUAL TILT CAB<RWZ>	8-98030-611-2	01	1	1506-	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR	8-98030-611-2	01	1	1506-		●
527	16.545 FLOOR; RR	8-98153-122-0	01	1	1506-		●
534	16.545 REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> (B)	8-98007-678-2	01	1	1506-	●
534	16.545 REINFORCEMENT; SEAT BACK (B)	8-98007-678-2	01	1	1506-		●
534	16.545 REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> (A)	8-98019-181-2	01	1	1506-	●
534	16.545 REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	1506-		●
