Isuzu WW
▶
TRUCKS
▶
NLS
▶
51605 - NLS RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶
6-66 — HEAD LINING AND TRIM
(#162718) — 38 parça
Tümü
A - NMS5SE
B - NMS5WE
◀

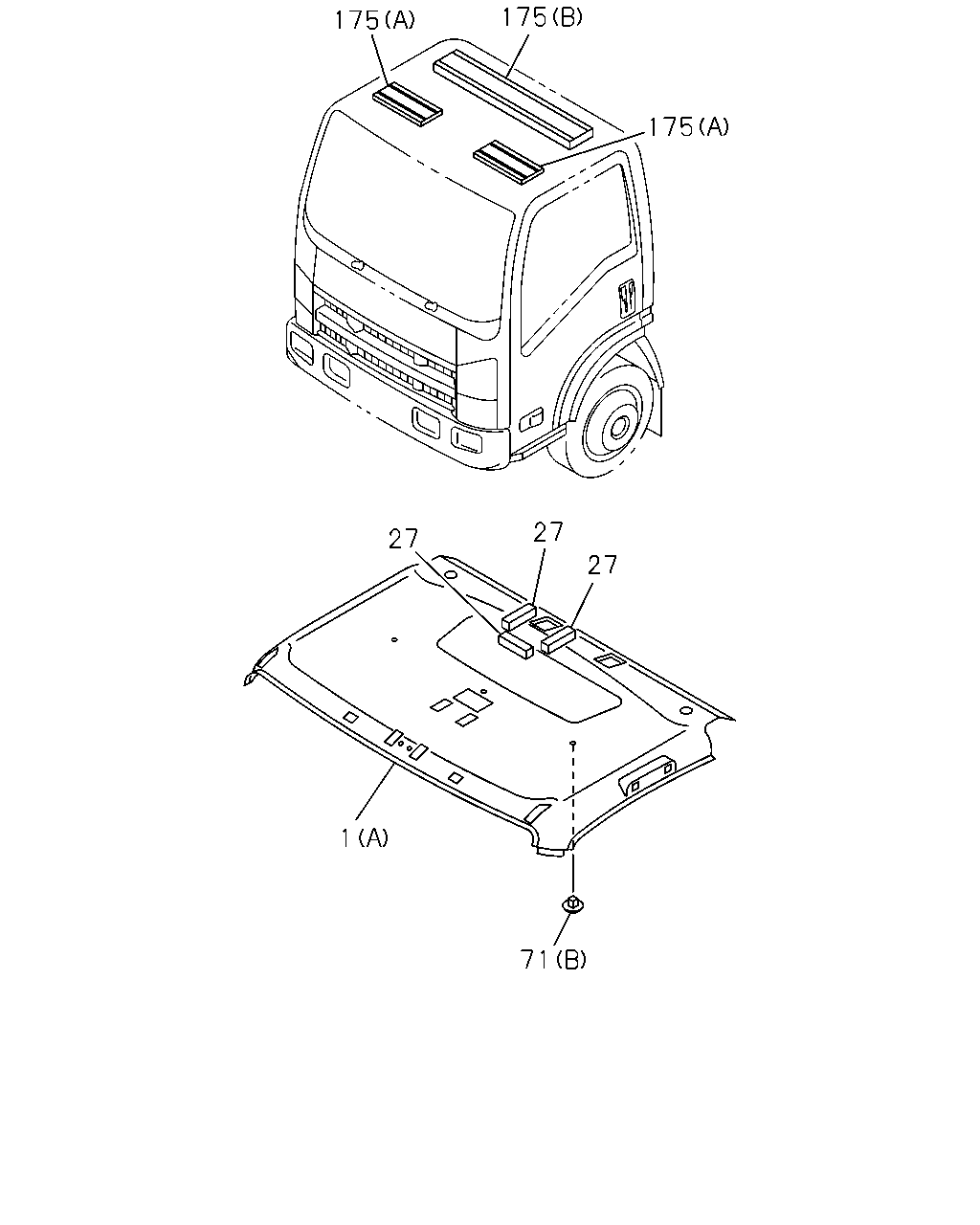

[666A] SGL CAB (12 parça)

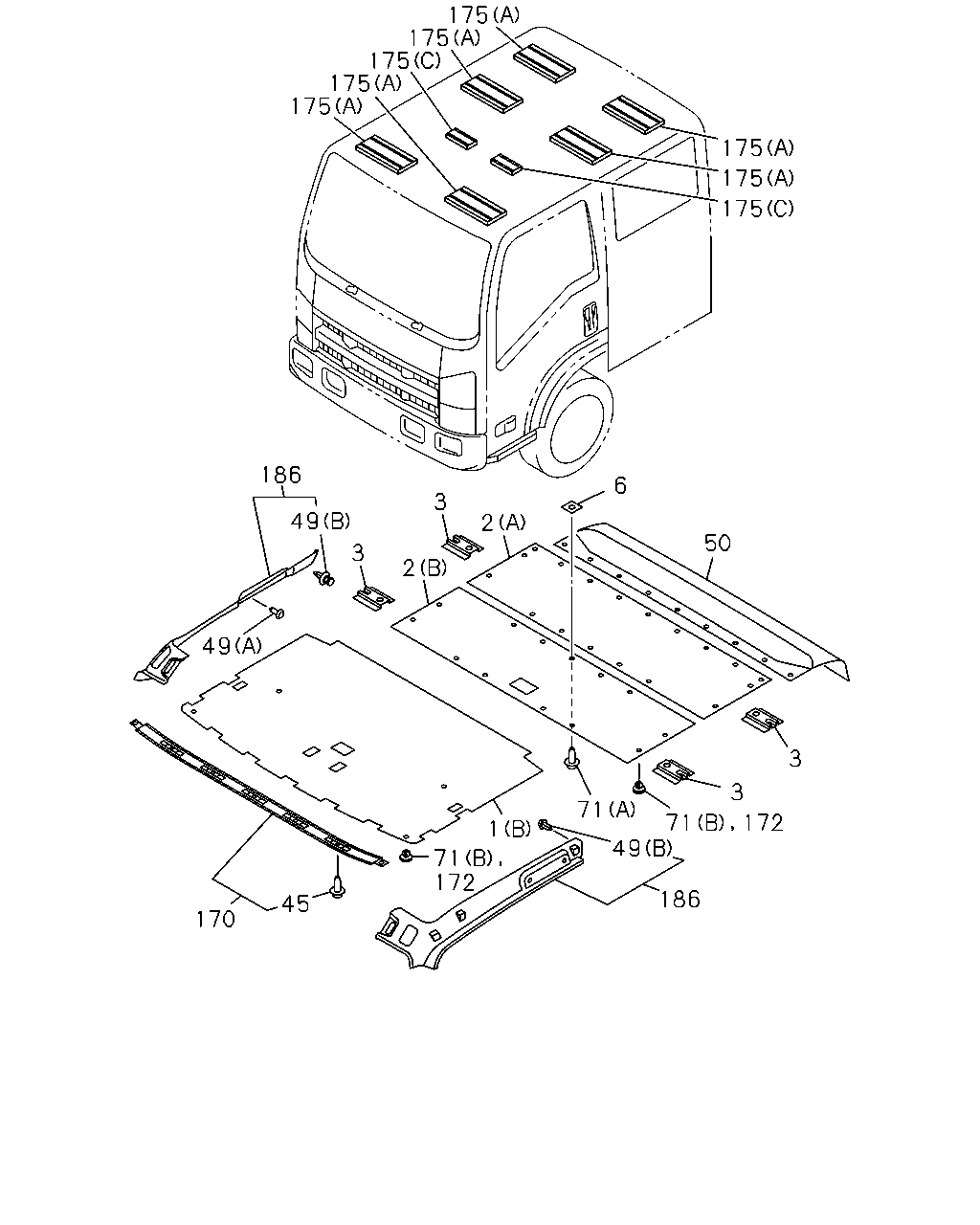

[666A] DBL CAB (26 parça)
▶
175
175
175
27
27
27
1
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY
8-97425-044-0
01
1
1506-
●
1
16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY
8-97406-291-4
01
1
1506-
●
1
16.742 LINING; HD
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY
8-97406-289-3
01
1
1506-
●
27
16.165 INSULATION; ROOF
8-98046-638-2
03
1
1506-
●
71
16.742 FASTENER; HD LINING
(B) D=8.7X16.5 DARK GRAY
8-97405-282-0
02
1
1506-
●
71
16.742 FASTENER; HD LINING
(B) D=11.6X13.6 DARK GRAY
8-97405-301-2
03
1
1506-
●
71
16.742 FASTENER; HD LINING
(B) D=8.7X16.5 DARK GRAY
8-97405-282-0
34
1
1506-
●
71
16.742 FASTENER; HD LINING
(A) DARK GRAY
8-97411-797-0
01
1
1506-
●
175
16.742 CUSHION; HEAD LINING
(B)
8-98051-799-2
01
1
1506-
●
175
16.742 CUSHION; HEAD LINING
(A)
8-98082-685-1
02
1
1506-
●
●
175
16.742 CUSHION; HEAD LINING
(C)
8-98053-866-2
02
1
1506-
●
175
16.742 CUSHION; HEAD LINING
(A)
8-98082-685-1
04
1
1506-
●
175
175
175
175
175
175
175
175
6
2
3
186
3
49
49
170
71
172
1
71
71
49
172
3
3
50
186
45
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY
8-97425-044-0
01
1
1506-
●
1
16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY
8-97406-291-4
01
1
1506-
●
1
16.742 LINING; HD
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY
8-97406-289-3
01
1
1506-
●
2
16.742 LINING; HD,ROOF RR
(A) DARK GRAY
8-97406-292-2
01
1
1506-
●
2
16.742 LINING; HD,ROOF RR
(B) DARK GRAY
8-97407-331-3
01
1
1506-
●
3
16.575 COVER; TRIM,ROOF SIDE
DARK GRAY
8-97407-365-0
04
1
1506-
●
6
16.742 SPACER; HD LINING
1 SET=20 PIECE
8-98100-429-0
01
1
1506-
●
45
16.742 CLIP; FINISHER
8-98035-592-1
03
1
1506-
●
49
16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY
8-97407-768-0
02
1
1506-
●
49
16.742 CLIP; TRIM COVER
16.578 (B)
8-98059-610-0
02
1
1506-
●
49
16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY
8-97407-768-0
04
1
1506-
●
50
16.742 TRIM; ROOF BACK
DARK GRAY
8-97406-295-2
01
1
1506-
●
71
16.742 FASTENER; HD LINING
(B) D=8.7X16.5 DARK GRAY
8-97405-282-0
02
1
1506-
●
71
16.742 FASTENER; HD LINING
(B) D=11.6X13.6 DARK GRAY
8-97405-301-2
03
1
1506-
●
71
16.742 FASTENER; HD LINING
(B) D=8.7X16.5 DARK GRAY
8-97405-282-0
34
1
1506-
●
71
16.742 FASTENER; HD LINING
(A) DARK GRAY
8-97411-797-0
01
1
1506-
●
170
16.742 FINISHER; HEAD LINING
DARK GRAY
8-97406-296-4
01
1
1506-
●
172
16.742 RETAINER; HEAD LINING
DARK GRAY
8-97405-282-0
19
1
1506-
●
175
16.742 CUSHION; HEAD LINING
(B)
8-98051-799-2
01
1
1506-
●
175
16.742 CUSHION; HEAD LINING
(A)
8-98082-685-1
02
1
1506-
●
●
175
16.742 CUSHION; HEAD LINING
(C)
8-98053-866-2
02
1
1506-
●
175
16.742 CUSHION; HEAD LINING
(A)
8-98082-685-1
04
1
1506-
●
186
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-250-3
01
1
1506-
●
186
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-252-3
01
1
1506-
●
186
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-251-3
01
1
1506-
●
186
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-263-3
01
1
1506-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
