6-60 — ROOF PANEL (#162717) — 22 parça

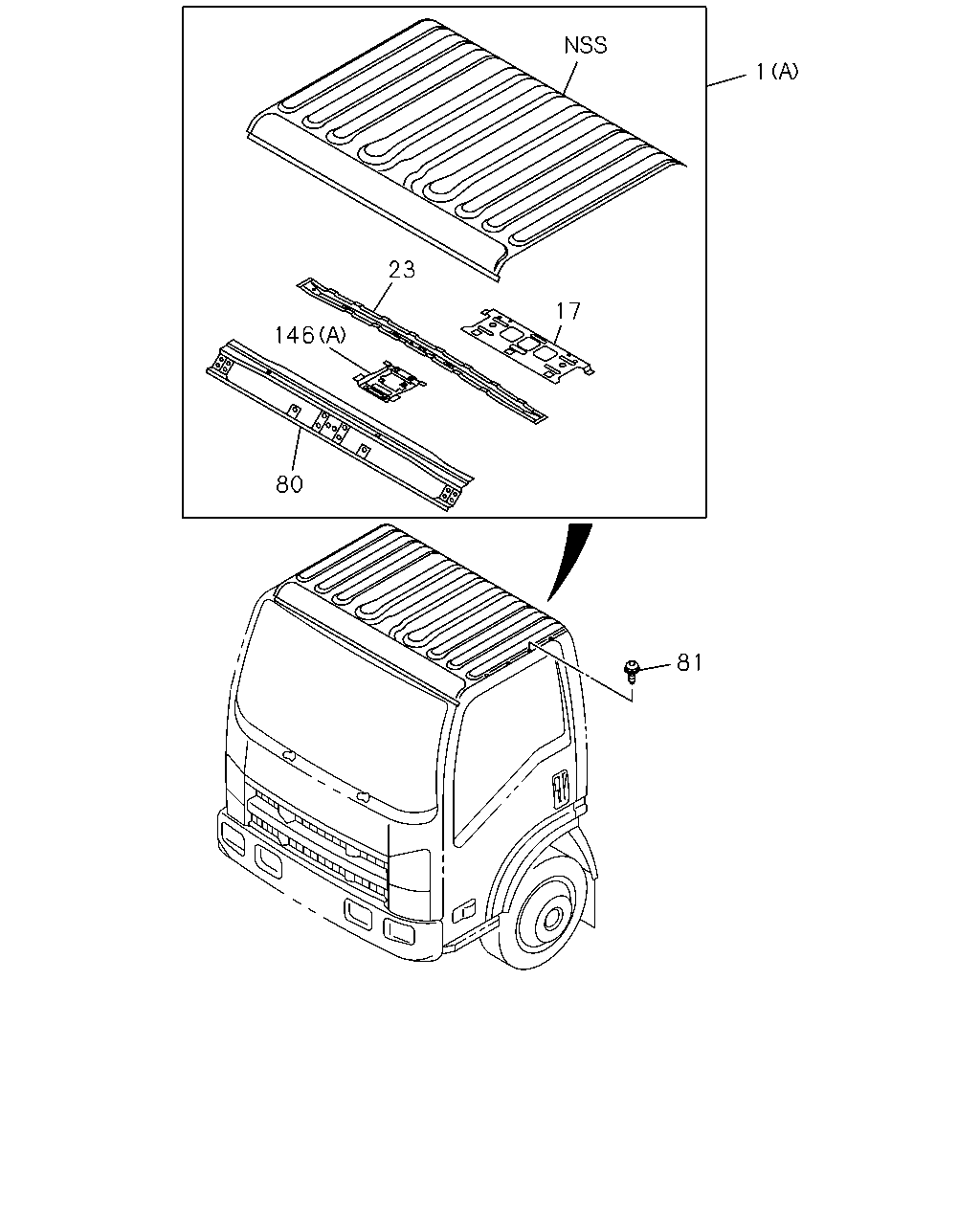

çizim 479789
23 146 17 80 81 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.585 PANEL; ROOF
(A) 		8-98287-344-0 01 1 1506- ●
1 16.585 PANEL; ROOF
(B) 		8-98287-017-0 01 1 1506- ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1506- ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER 8-97587-639-2 02 1 1506- ●
23 16.570 REINFORCEMENT; ROOF PANEL,FRT 8-98287-358-0 01 1 1506- ●
23 16.570 REINFORCEMENT; ROOF PANEL,FRT 8-98009-723-1 01 1 1506- ●
80 16.585 PANEL; HEADER,ROOF 8-98287-352-0 01 1 1506- ● ●
81 16.585 BOLT; ROOF
SCREW M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1506- ● ●
146 16.570 REINFORCEMENT; ROOM LAMP
(A) 		8-98009-289-4 01 1 1506- ● ●
146 16.570 REINFORCEMENT; ROOM LAMP
(B) 		8-98075-827-0 01 1 1506- ●

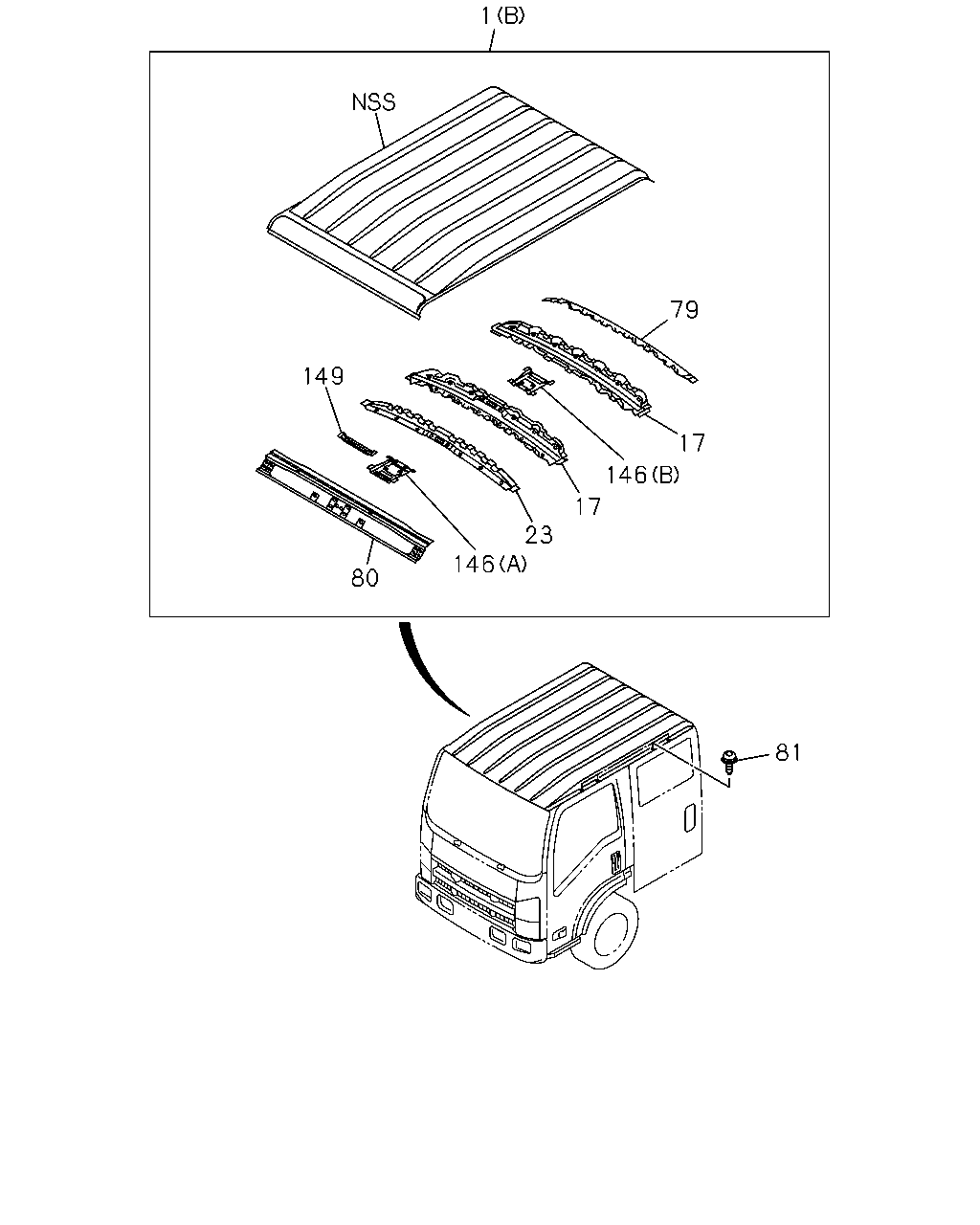

çizim 480411
1 79 17 146 17 23 146 80 149 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.585 PANEL; ROOF
(A) 		8-98287-344-0 01 1 1506- ●
1 16.585 PANEL; ROOF
(B) 		8-98287-017-0 01 1 1506- ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1506- ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER 8-97587-639-2 02 1 1506- ●
23 16.570 REINFORCEMENT; ROOF PANEL,FRT 8-98287-358-0 01 1 1506- ●
23 16.570 REINFORCEMENT; ROOF PANEL,FRT 8-98009-723-1 01 1 1506- ●
79 16.570 REINFORCEMENT; ROOF PANEL,RR 8-98054-646-1 01 1 1506- ●
80 16.585 PANEL; HEADER,ROOF 8-98287-352-0 01 1 1506- ● ●
81 16.585 BOLT; ROOF
SCREW M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1506- ● ●
146 16.570 REINFORCEMENT; ROOM LAMP
(A) 		8-98009-289-4 01 1 1506- ● ●
146 16.570 REINFORCEMENT; ROOM LAMP
(B) 		8-98075-827-0 01 1 1506- ●
149 16.585 SUPPORT; REINFORCEMENT 8-98009-110-0 01 1 1506- ●
