◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51605 - NLS RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#162702) — 96 parça

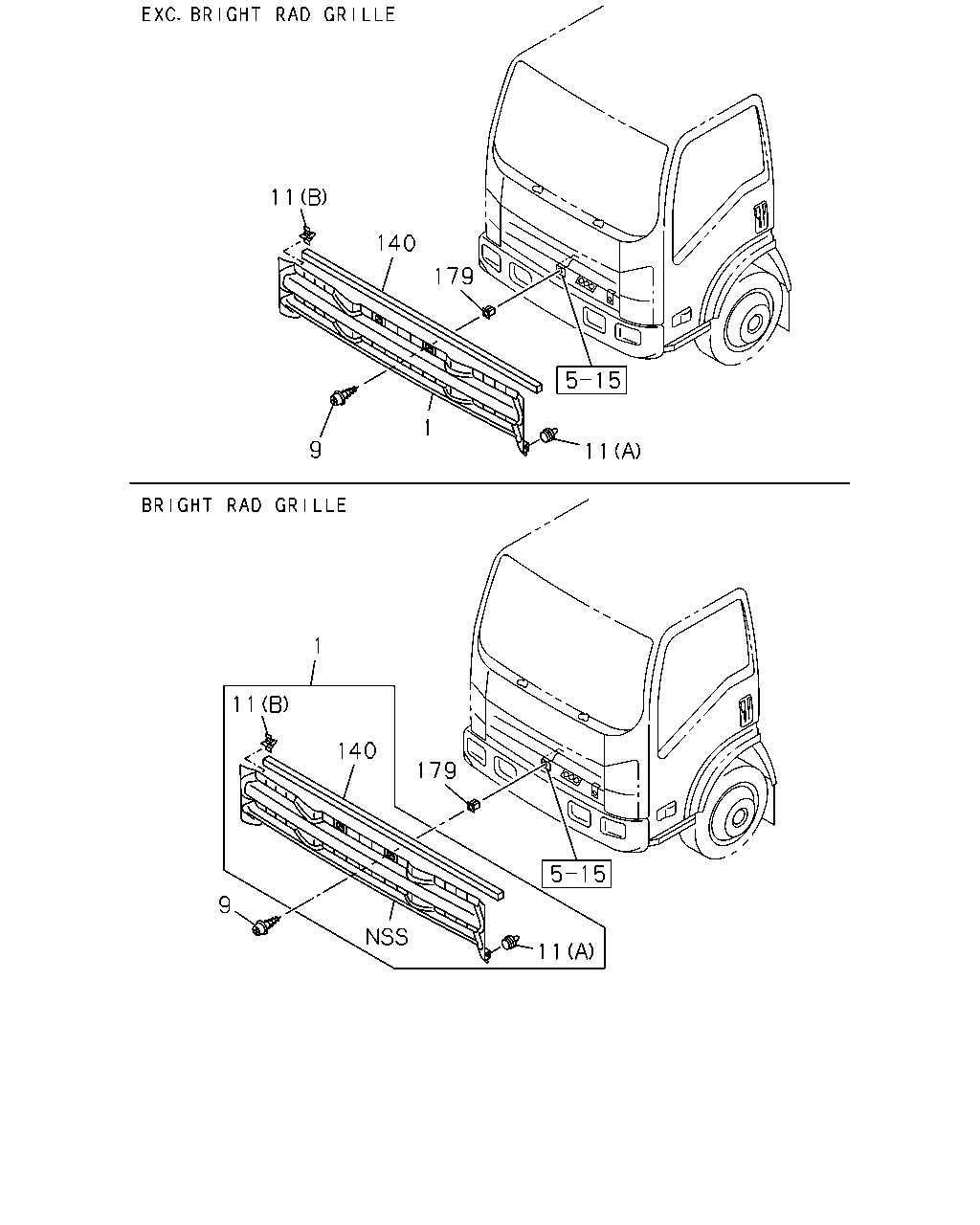

çizim 480669
11 140 179 11 1 9 1 11 140 179 9 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> PLATED 		8-98241-068-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> RADIATOR GRILLE NON PAINT<7LB> 		8-98244-640-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. FACE LIFT MODEL<TX7> PLATED 		8-98025-455-4 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR EBONY BLACK(508) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLACK 		8-97465-869-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR EBONY BLACK(508) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLACK 		8-97417-567-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR AL GRAY(517) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GRAY 		8-97429-395-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GRAY 		8-97412-257-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR WHITE(534) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97429-394-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR WHITE(534) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97412-266-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR BRIGHT YELLOW(538) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97465-872-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TELEMAGENTA(539) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> PINK 		8-97465-870-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TOLL GREEN(543) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97429-384-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TOLL GREEN(543) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97423-735-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97465-871-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97411-629-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97429-386-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-258-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR GERANIUM RED(681) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97429-381-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97409-645-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR DARK BLUE(695) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97429-385-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-259-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> EXC. FACE LIFT MODEL<TX7> 		8-98025-465-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97429-372-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-291-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97429-393-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97412-260-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK GREEN 		8-97429-388-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK GREEN 		8-97412-261-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97429-391-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97412-262-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97429-390-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97412-263-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97429-387-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-264-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> ORANGE 		8-97429-392-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK YELLOW 		8-97412-265-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97429-389-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97412-267-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97429-374-1 01 1 1506- ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-290-3 01 1 1506- ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97429-373-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-289-3 01 1 1506- ● ●
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 1506- ● ●
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1506- ● ●
11 01.269 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 1506- ● ●
140 01.266 SEAL; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> 		8-98054-279-0 01 1 1506- ● ●
179 01.269 RETAINER; GRILLE,RAD
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1506- ● ●

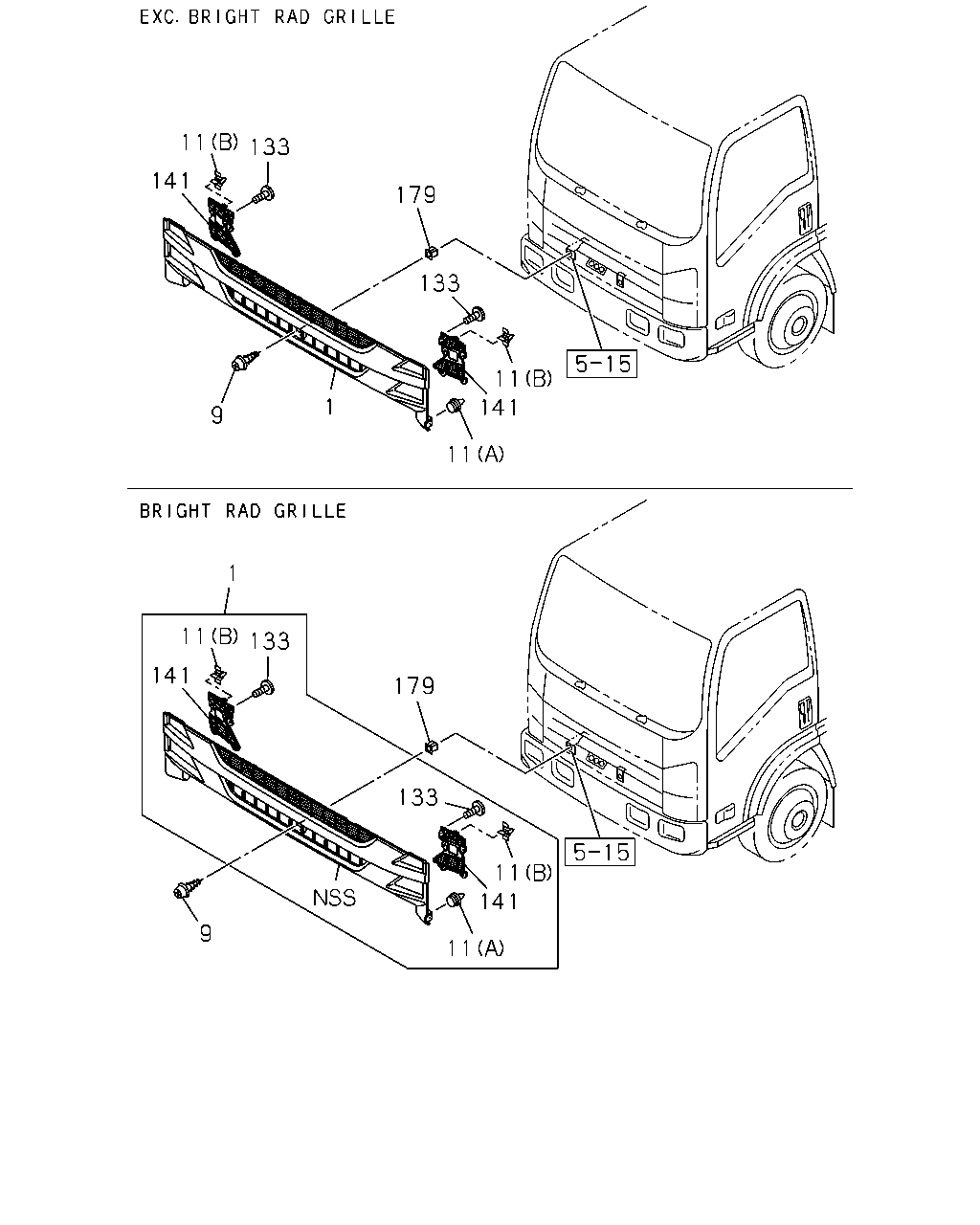

çizim 480798
11 141 11 1 9 133 11 141 179 133 179 133 1 11 141 9 11 133 141 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> PLATED 		8-98241-068-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> RADIATOR GRILLE NON PAINT<7LB> 		8-98244-640-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. FACE LIFT MODEL<TX7> PLATED 		8-98025-455-4 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR EBONY BLACK(508) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLACK 		8-97465-869-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR EBONY BLACK(508) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLACK 		8-97417-567-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR AL GRAY(517) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GRAY 		8-97429-395-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GRAY 		8-97412-257-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR WHITE(534) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97429-394-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR WHITE(534) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97412-266-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR BRIGHT YELLOW(538) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97465-872-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TELEMAGENTA(539) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> PINK 		8-97465-870-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TOLL GREEN(543) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97429-384-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TOLL GREEN(543) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97423-735-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97465-871-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97411-629-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97429-386-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-258-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR GERANIUM RED(681) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97429-381-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97409-645-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR DARK BLUE(695) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97429-385-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-259-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> EXC. FACE LIFT MODEL<TX7> 		8-98025-465-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97429-372-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-291-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97429-393-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97412-260-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK GREEN 		8-97429-388-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK GREEN 		8-97412-261-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97429-391-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97412-262-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97429-390-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97412-263-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97429-387-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-264-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> ORANGE 		8-97429-392-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK YELLOW 		8-97412-265-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97429-389-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97412-267-3 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97429-374-1 01 1 1506- ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-290-3 01 1 1506- ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97429-373-1 01 1 1506- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-289-3 01 1 1506- ● ●
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 1506- ● ●
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1506- ● ●
11 01.269 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 1506- ● ●
133 01.269 SCREW; COVER
FACE LIFT MODEL<TX7> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 10 1 1506- ● ●
141 01.266 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> 		8-98244-643-0 01 1 1506- ● ●
141 01.266 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> 		8-98244-644-0 01 1 1506- ● ●
179 01.269 RETAINER; GRILLE,RAD
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1506- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
