◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51605 - NLS RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#162701) — 17 parça

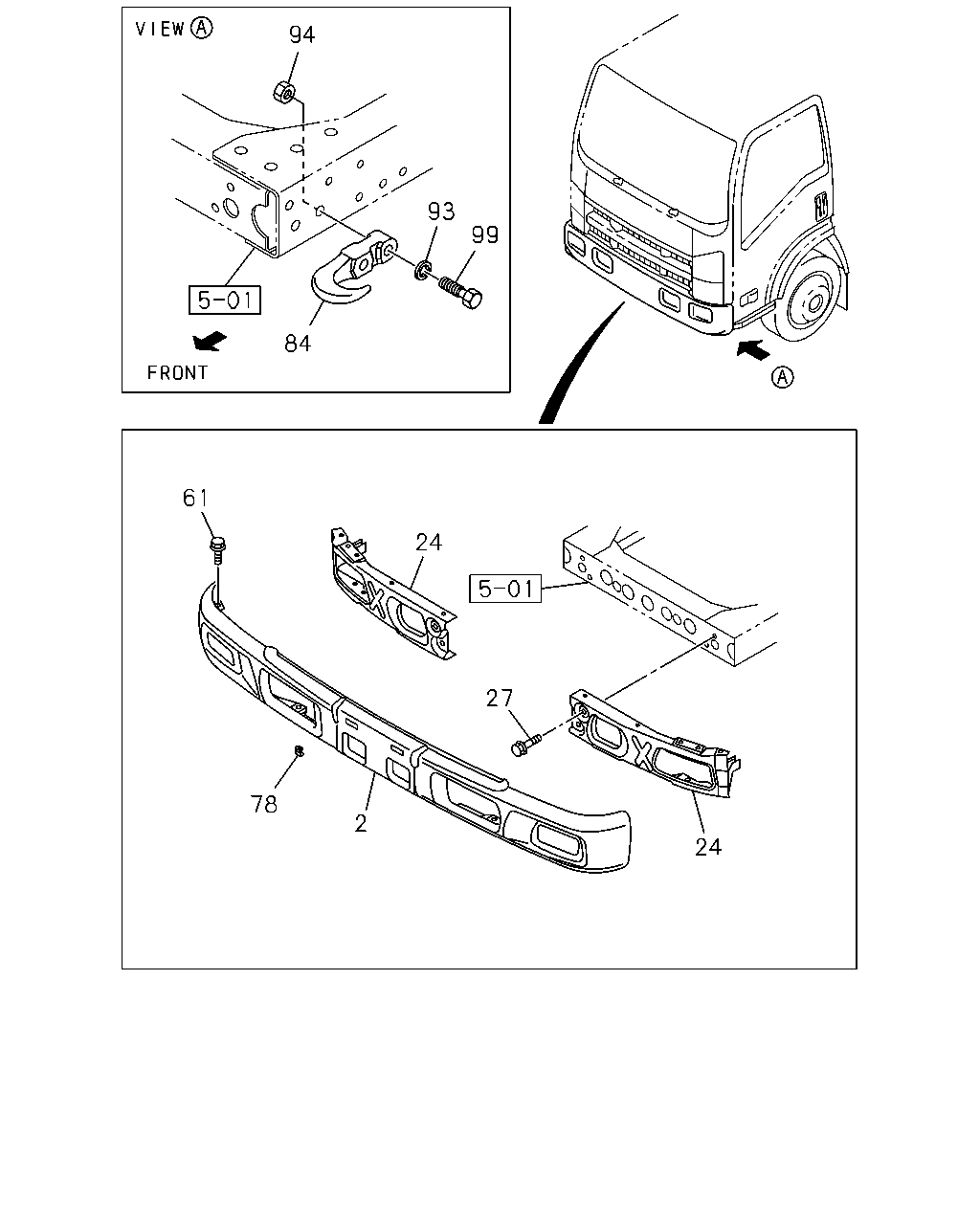

çizim 480822
61 78 2 27 24 24 94 84 93 99
BalonParca AdiParca NoAdetTipApplied Date A B
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> FRONT BUMPER PAINTED<VB5> PRIMER 		8-98055-077-2 01 1 1506- ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> FRONT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97406-813-4 01 1 1506- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97406-814-4 01 1 1506- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRONT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97406-815-4 01 1 1506- ● ●
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER PAINTED<VB5> EXC. FOG LAMP<T96> PRIMER 		8-98055-078-2 01 1 1506- ● ●
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97406-819-4 01 1 1506- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRONT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97406-820-4 01 1 1506- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) EXC. FRONT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97406-821-4 01 1 1506- ● ●
24 07.869 BAR; FRT BUMPER 8-98025-211-4 01 1 1506- ● ●
24 07.869 BAR; FRT BUMPER 8-98025-212-4 01 1 1506- ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
M10X30 W/TORQUES 		8-98092-250-0 04 1 1506- ● ●
61 07.832 BOLT; BACK BAR
08.143 M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 1506- ● ●
78 07.874 NUT; SPIRE
M6 		8-98029-416-0 02 1 1506- ● ●
84 07.068 HOOK 8-97387-665-0 01 1 1506- ● ●
93 07.068 WASHER; LK,HOOK
06.174 ID=14.2 		0-91510-814-0 02 1 1506- ● ●
94 07.068 NUT; HOOK
07.833 M14 		0-91110-514-0 01 1 1506- ● ●
99 07.039 BOLT; HOOK
M14X55 		8-97301-262-0 02 1 1506- ● ●
