Isuzu WW
▶
BUSES
▶
LV
▶
11209 - LV434(RHD) EURO3/5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

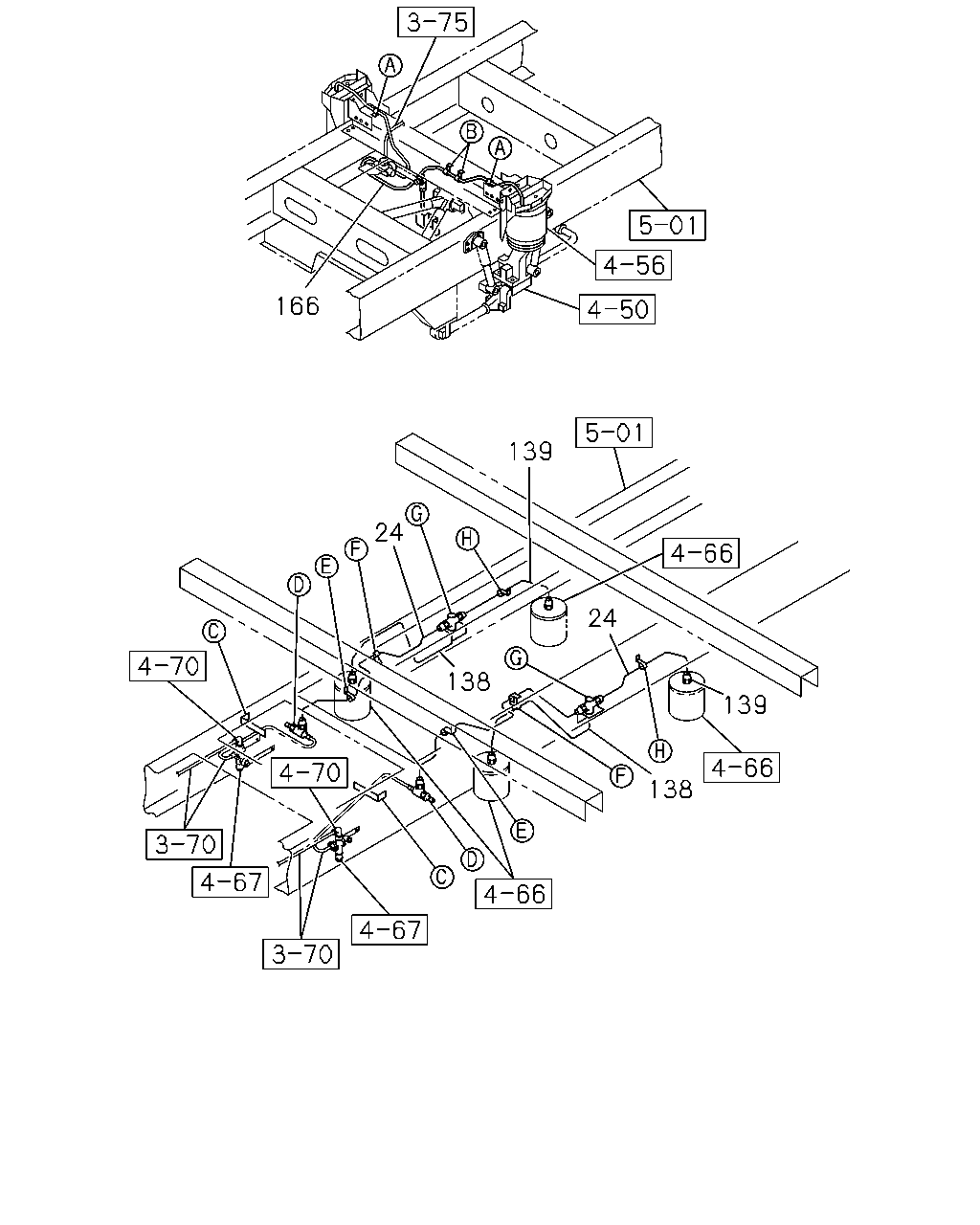

4-71 - AIR SUSPENSION PIPING
▶
4-71 — AIR SUSPENSION PIPING
(#16270) — 28 parça
◀

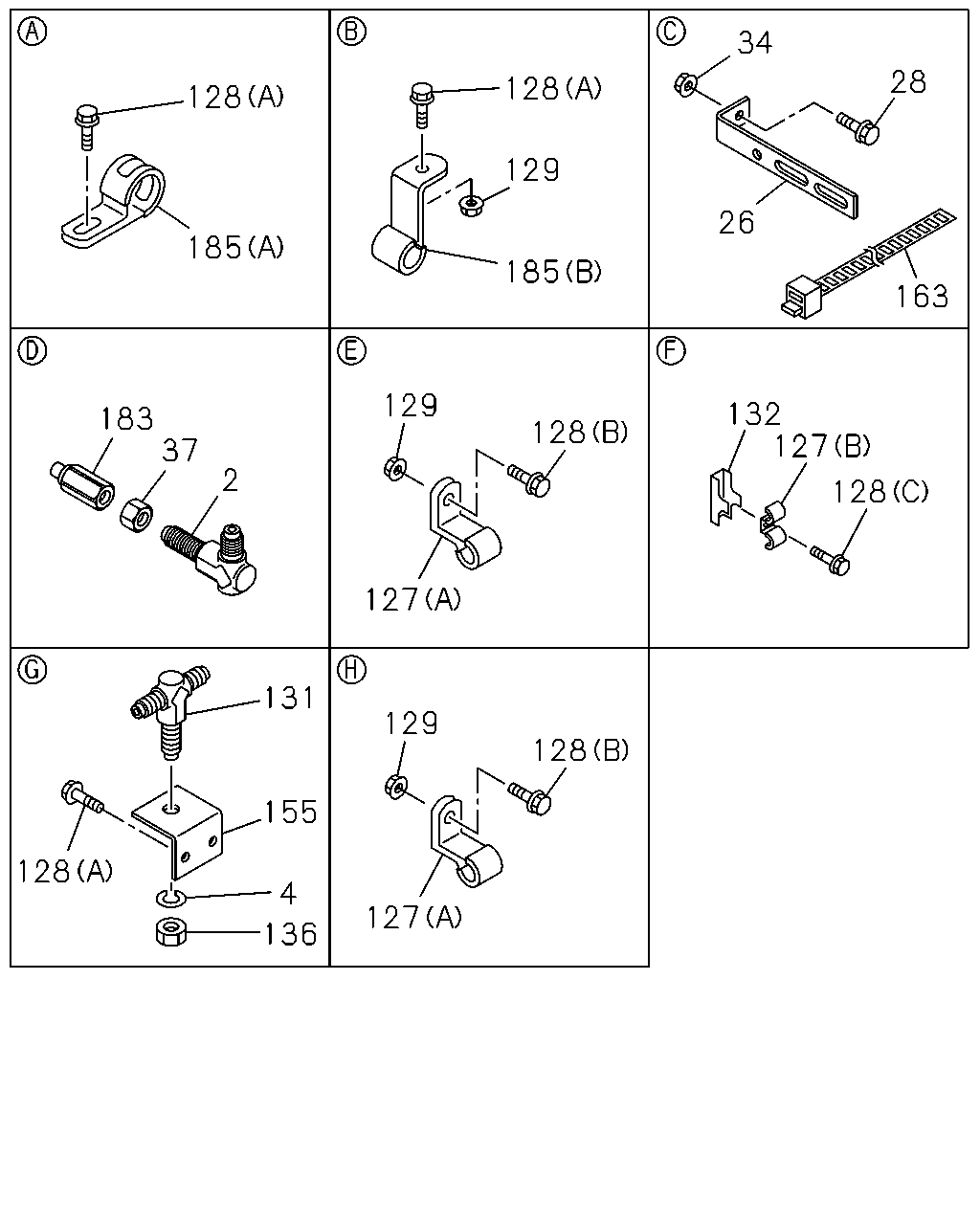

[471A] FIXING PARTS (21 parça)
[471A] PIPING (7 parça)
▶
34
28
128
128
129
26
185
185
163
129
132
127
183
37
128
2
128
127
131
129
128
155
128
4
127
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
UNION; AIR PIPE
M12 ELBOW
0-92125-206-0
02
1
0907-
4
WASHER; LK,UNION
ID=12.2
0-91510-512-0
02
1
0907-
26
BRACKET; CLIP
L=150 H=30
1-47477-629-2
02
1
0907-
28
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0907-1003
28
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
02
1
1004-
34
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0907-
37
NUT; UNION
M12
9-09840-280-0
02
1
0907-
127
CLIP; AIR PIPE FIX
(A) ID=6 H=20 L=20
1-09700-603-0
04
1
0907-
127
CLIP; AIR PIPE FIX
(B) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
02
1
0907-
128
BOLT; CLIP FIX
(A) M8X25 FLANGE
0-28650-825-0
10
1
0907-
128
BOLT; CLIP FIX
(B) M8X30 FLANGE
0-28650-830-0
04
1
0907-
128
BOLT; CLIP FIX
(C) M8X40 FLANGE
0-28650-840-0
02
1
0907-
129
NUT; CLIP FIX
M8 FLANGE
0-91180-108-0
07
1
0907-
131
UNION; AIR PIPE
M12 3WAY
0-92138-606-0
02
1
0907-
132
BRACKET; CLIP
1-47475-427-1
02
1
0907-
136
NUT; UNION FIX
M12
9-09840-280-0
02
1
0907-
155
BRACKET; UNION
1-47478-954-0
02
1
0907-
163
CLIP; BAND
L=250
1-09707-126-0
03
1
0907-
183
ADAPTER
DIN8 & M12 STRAIGHT
1-09660-873-0
02
1
0907-
185
CLIP; NYLON TUBE
(A) ID=14.5 L=20
1-09701-012-0
01
1
0907-
185
CLIP; NYLON TUBE
(B) D=18 H=30
1-09701-028-0
05
1
0907-
166
139
24
24
138
139
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
PIPE ASM; AIR UNION TO UNION
L=1089 SERVICED BY L=1100
1-47428-815-0
01
1
0907-
24
PIPE ASM; AIR UNION TO UNION
L=1128 SERVICED BY L=1200
1-47428-816-0
01
1
0907-
138
PIPE ASM; AIR UNION TO AIR SPR
L=577 SERVICED BY L=600
1-47428-809-0
01
1
0907-
138
PIPE ASM; AIR UNION TO AIR SPR
L=565 SERVICED BY L=600
1-47428-809-0
01
1
0907-
139
PIPE ASM; AIR UNION TO AIR SPR
1-49122-563-0
01
1
0907-
139
PIPE ASM; AIR UNION TO AIR SPR
1-49122-564-0
01
1
0907-
166
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
0907-
