◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#1627) — 119 parça

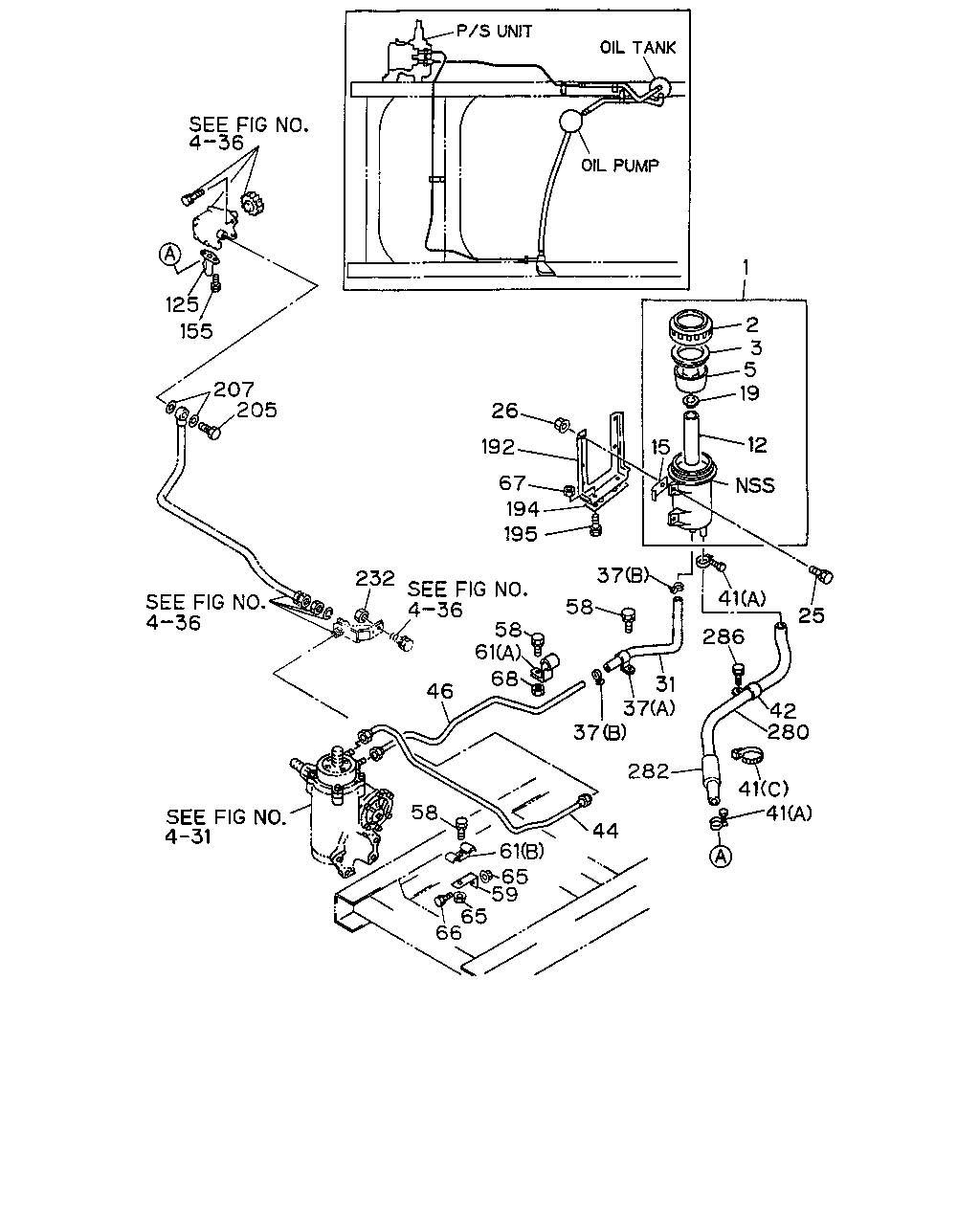

çizim 28352
1 3 2 19 5 12 15 25 41 286 42 280 41 41 282 31 37 37 44 61 65 59 65 66 58 46 68 61 58 58 232 37 195 194 67 192 26 205 207 155 125
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 TANK ASM; OIL,P/S 1-21210-152-6 01 1 9207- ● ● ● ●
1 TANK ASM; OIL,P/S 1-21210-178-1 01 1 9207- ●
2 CAP; OIL TANK,P/S 1-21241-004-3 01 1 9207- ● ● ● ●
2 CAP; OIL TANK,P/S 1-21241-008-0 01 1 9207- ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 9207- ● ● ● ●
3 GASKET; OIL TANK,P/S 1-09630-096-0 01 1 9207- ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 9207- ● ● ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-004-1 01 1 9207- ● ● ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-008-0 01 1 9207- ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 04 1 9207- ● ● ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 9207- ● ● ● ●
25 BOLT; OIL TANK BRKT
M8X20 FLANGE 		0-28080-820-0 04 1 9207- ● ● ● ● ●
26 NUT; OIL TANK TO BRKT
M8 		9-09110-408-0 04 1 9207- ● ● ● ● ●
31 HOSE; P/S OIL TANK,INL 1-21112-312-1 01 1 9207- ● ● ● ●
31 HOSE; P/S OIL TANK,INL 1-09360-451-0 01 1 9207- ●
37 CLIP; HOSE,P/S
(A) 		1-09700-380-0 01 1 9207- ● ●
37 CLIP; HOSE,P/S
(B) ID=26 		1-09704-082-0 02 1 9207- ● ● ● ● ●
37 CLIP; HOSE,P/S
(A) 		1-09701-004-0 01 1 9207- ● ●
41 CLIP; HOSE,P/S
(C) L=250 		5-09707-030-1 02 1 9207- ● ●
41 CLIP; HOSE,P/S
(A) ID=32 		1-09704-085-0 02 1 9207- ● ● ● ● ●
41 CLIP; HOSE,P/S
(B) L=180 		9-09915-404-0 02 1 9207- ●
42 CLIP; HOSE,P/S 1-09700-823-1 01 1 9207-9306 ● ● ● ●
42 CLIP; HOSE,P/S 1-09701-076-1 01 1 9307- ● ● ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21113-209-0 01 1 9207-9212 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21114-554-0 01 1 9301- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21113-211-0 01 1 9207-9212 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21114-556-0 01 1 9301-9309 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21114-952-1 01 1 9310- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21112-706-0 01 1 9207-9212 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21114-552-0 01 1 9301- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=3395 		1-21112-415-0 01 1 9207- ● ● ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=1427 		1-21112-707-0 01 1 9207- ●
58 BOLT; CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9207- ● ●
58 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9207- ● ● ● ● ●
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 9207- ● ● ● ● ●
61 CLIP; OIL PIPE
(A) 		1-09700-606-0 01 1 9207- ● ●
61 CLIP; OIL PIPE
(B) 		1-09700-658-0 01 1 9207- ● ● ● ● ●
61 CLIP; OIL PIPE
(A) 		5-09700-076-0 01 1 9207- ● ●
65 NUT; BRKT
M8 		9-09110-408-0 01 1 9207- ● ● ● ● ●
65 NUT; BRKT
M8 		9-09110-408-0 01 1 9207- ● ● ● ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28080-820-0 01 1 9207- ● ● ● ● ●
67 NUT; BRKT
M12 		9-99110-512-0 02 1 9207-9408 ● ● ● ●
67 NUT; BRKT
M12 		9-99110-512-0 02 1 9409- ● ● ● ● ●
68 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 01 1 9207- ● ● ● ● ●
125 CONNECTOR; P/S PUMP 1-21122-025-1 01 1 9207- ● ● ● ●
125 CONNECTOR; P/S PUMP 1-21122-005-1 01 1 9207- ●
155 BOLT; CONNECTOR
M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9207- ● ● ● ● ●
192 BRACKET; P/S OIL TANK 1-21119-092-1 01 1 9207- ● ●
192 BRACKET; P/S OIL TANK 1-21119-099-0 01 1 9207- ● ●
192 BRACKET; P/S OIL TANK 1-21119-102-0 01 1 9207- ●
194 COLLAR; DIST,BRKT 1-21219-088-0 01 1 9207- ●
194 COLLAR; DIST,BRKT
WHEEL BASE 3800MM(38W) 		1-21219-088-0 01 1 9207- ●
195 BOLT; BRKT
M12X45 W/LK WASHER 		0-50041-245-0 02 1 9207- ● ●
195 BOLT; BRKT
M12X30 W/LK WASHER 		0-50041-230-0 02 1 9207- ● ● ●
205 BOLT; EYE,FLEX HOSE,P/S
M18X36 		1-09675-059-0 01 1 9207-9310 ● ● ● ● ●
205 BOLT; EYE,FLEX HOSE,P/S
M18X36 		1-09675-205-0 01 1 9311- ● ● ● ● ●
207 GASKET; FLEX HOSE,P/S PUMP
ID=18 		9-09571-418-0 02 1 9207- ● ● ● ● ●
232 NUT; BRKT
M8 		9-09110-408-0 02 1 9207- ● ● ● ●
280 HOSE; P/S OIL PUMP,INL 1-21112-311-0 01 1 9207- ● ● ● ●
280 HOSE; P/S OIL PUMP,INL 0-09818-670-0 01 1 9207- ●
282 SLEEVE; RUBBER,PIPE
ID=29 OD=39 L=100 		1-09337-022-0 01 1 9207- ● ●
286 BOLT; CLIP,P/S HOSE
M8X20 FLANGE 		0-28080-820-0 01 1 9207- ● ● ● ●

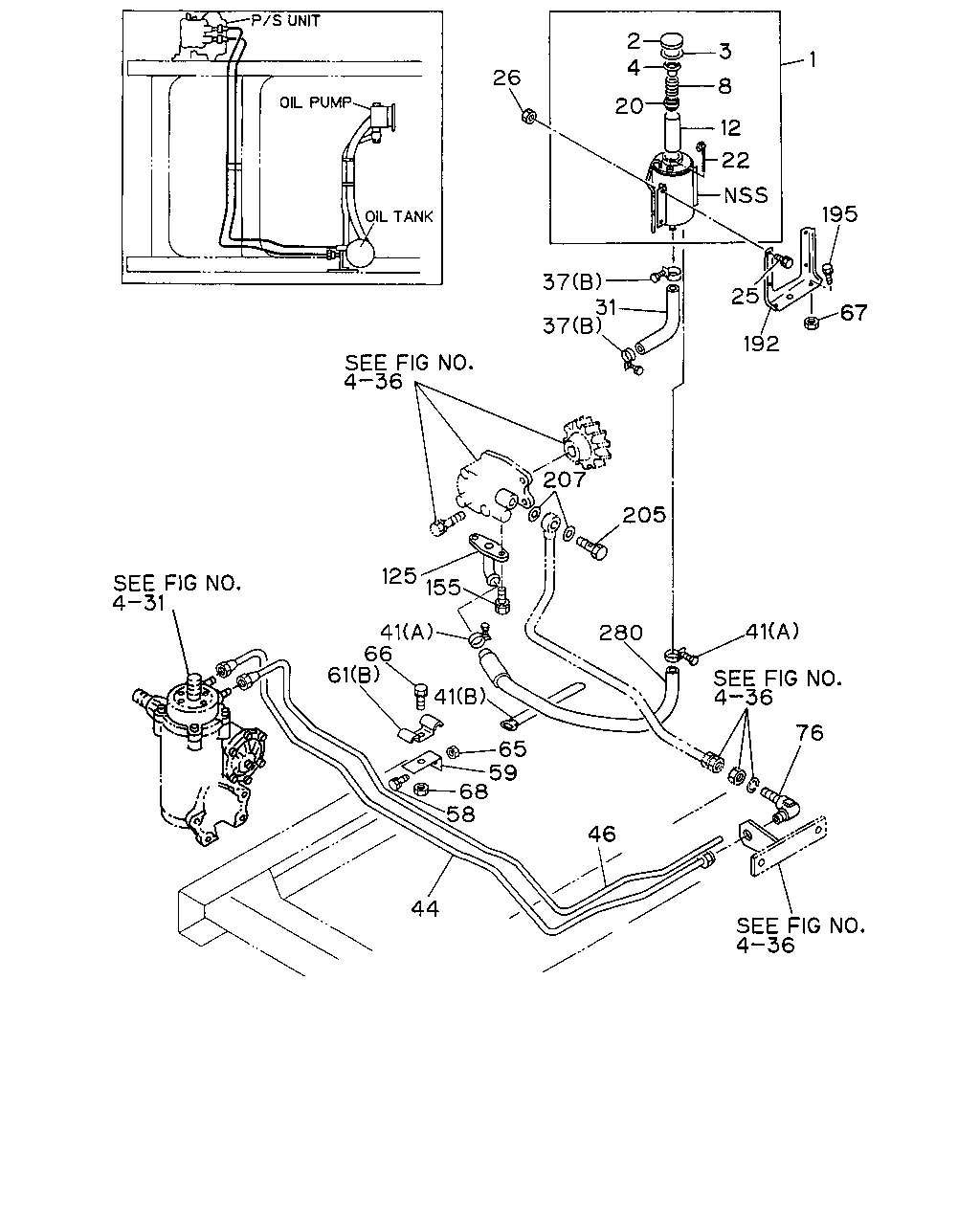

çizim 93858
26 2 20 4 3 1 8 12 22 67 195 25 192 37 31 37 205 207 280 41 76 46 44 58 68 59 65 41 61 66 125 41 155
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 TANK ASM; OIL,P/S 1-21210-152-6 01 1 9207- ● ● ● ●
1 TANK ASM; OIL,P/S 1-21210-178-1 01 1 9207- ●
2 CAP; OIL TANK,P/S 1-21241-004-3 01 1 9207- ● ● ● ●
2 CAP; OIL TANK,P/S 1-21241-008-0 01 1 9207- ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 9207- ● ● ● ●
3 GASKET; OIL TANK,P/S 1-09630-096-0 01 1 9207- ●
4 FILTER; OIL TANK,P/S 1-21231-004-0 01 1 9207- ●
8 SPRING; OIL TANK,P/S 1-09580-397-1 01 1 9207- ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-004-1 01 1 9207- ● ● ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-008-0 01 1 9207- ●
20 HOLDER; FILTER,OIL TANK,P/S 1-21239-003-0 01 1 9207- ●
22 GAUGE; OIL TANK,P/S 1-21249-008-1 01 1 9207- ●
25 BOLT; OIL TANK BRKT
M8X20 FLANGE 		0-28080-820-0 04 1 9207- ● ● ● ● ●
26 NUT; OIL TANK TO BRKT
M8 		9-09110-408-0 04 1 9207- ● ● ● ● ●
31 HOSE; P/S OIL TANK,INL 1-21112-312-1 01 1 9207- ● ● ● ●
31 HOSE; P/S OIL TANK,INL 1-09360-451-0 01 1 9207- ●
37 CLIP; HOSE,P/S
(A) 		1-09700-380-0 01 1 9207- ● ●
37 CLIP; HOSE,P/S
(B) ID=26 		1-09704-082-0 02 1 9207- ● ● ● ● ●
37 CLIP; HOSE,P/S
(A) 		1-09701-004-0 01 1 9207- ● ●
41 CLIP; HOSE,P/S
(C) L=250 		5-09707-030-1 02 1 9207- ● ●
41 CLIP; HOSE,P/S
(A) ID=32 		1-09704-085-0 02 1 9207- ● ● ● ● ●
41 CLIP; HOSE,P/S
(B) L=180 		9-09915-404-0 02 1 9207- ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21113-209-0 01 1 9207-9212 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21114-554-0 01 1 9301- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21113-211-0 01 1 9207-9212 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21114-556-0 01 1 9301-9309 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21114-952-1 01 1 9310- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21112-706-0 01 1 9207-9212 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21114-552-0 01 1 9301- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=3395 		1-21112-415-0 01 1 9207- ● ● ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=1427 		1-21112-707-0 01 1 9207- ●
58 BOLT; CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9207- ● ●
58 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9207- ● ● ● ● ●
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 9207- ● ● ● ● ●
61 CLIP; OIL PIPE
(A) 		1-09700-606-0 01 1 9207- ● ●
61 CLIP; OIL PIPE
(B) 		1-09700-658-0 01 1 9207- ● ● ● ● ●
61 CLIP; OIL PIPE
(A) 		5-09700-076-0 01 1 9207- ● ●
65 NUT; BRKT
M8 		9-09110-408-0 01 1 9207- ● ● ● ● ●
65 NUT; BRKT
M8 		9-09110-408-0 01 1 9207- ● ● ● ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28080-820-0 01 1 9207- ● ● ● ● ●
67 NUT; BRKT
M12 		9-99110-512-0 02 1 9207-9408 ● ● ● ●
67 NUT; BRKT
M12 		9-99110-512-0 02 1 9409- ● ● ● ● ●
68 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 01 1 9207- ● ● ● ● ●
76 UNION; OIL PIPE 1-09664-020-1 01 1 9207- ●
125 CONNECTOR; P/S PUMP 1-21122-025-1 01 1 9207- ● ● ● ●
125 CONNECTOR; P/S PUMP 1-21122-005-1 01 1 9207- ●
155 BOLT; CONNECTOR
M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9207- ● ● ● ● ●
192 BRACKET; P/S OIL TANK 1-21119-092-1 01 1 9207- ● ●
192 BRACKET; P/S OIL TANK 1-21119-099-0 01 1 9207- ● ●
192 BRACKET; P/S OIL TANK 1-21119-102-0 01 1 9207- ●
195 BOLT; BRKT
M12X45 W/LK WASHER 		0-50041-245-0 02 1 9207- ● ●
195 BOLT; BRKT
M12X30 W/LK WASHER 		0-50041-230-0 02 1 9207- ● ● ●
205 BOLT; EYE,FLEX HOSE,P/S
M18X36 		1-09675-059-0 01 1 9207-9310 ● ● ● ● ●
205 BOLT; EYE,FLEX HOSE,P/S
M18X36 		1-09675-205-0 01 1 9311- ● ● ● ● ●
207 GASKET; FLEX HOSE,P/S PUMP
ID=18 		9-09571-418-0 02 1 9207- ● ● ● ● ●
280 HOSE; P/S OIL PUMP,INL 1-21112-311-0 01 1 9207- ● ● ● ●
280 HOSE; P/S OIL PUMP,INL 0-09818-670-0 01 1 9207- ●
