5-10 — CAB MOUNTING; FRAME SIDE (#162697) — 65 parça

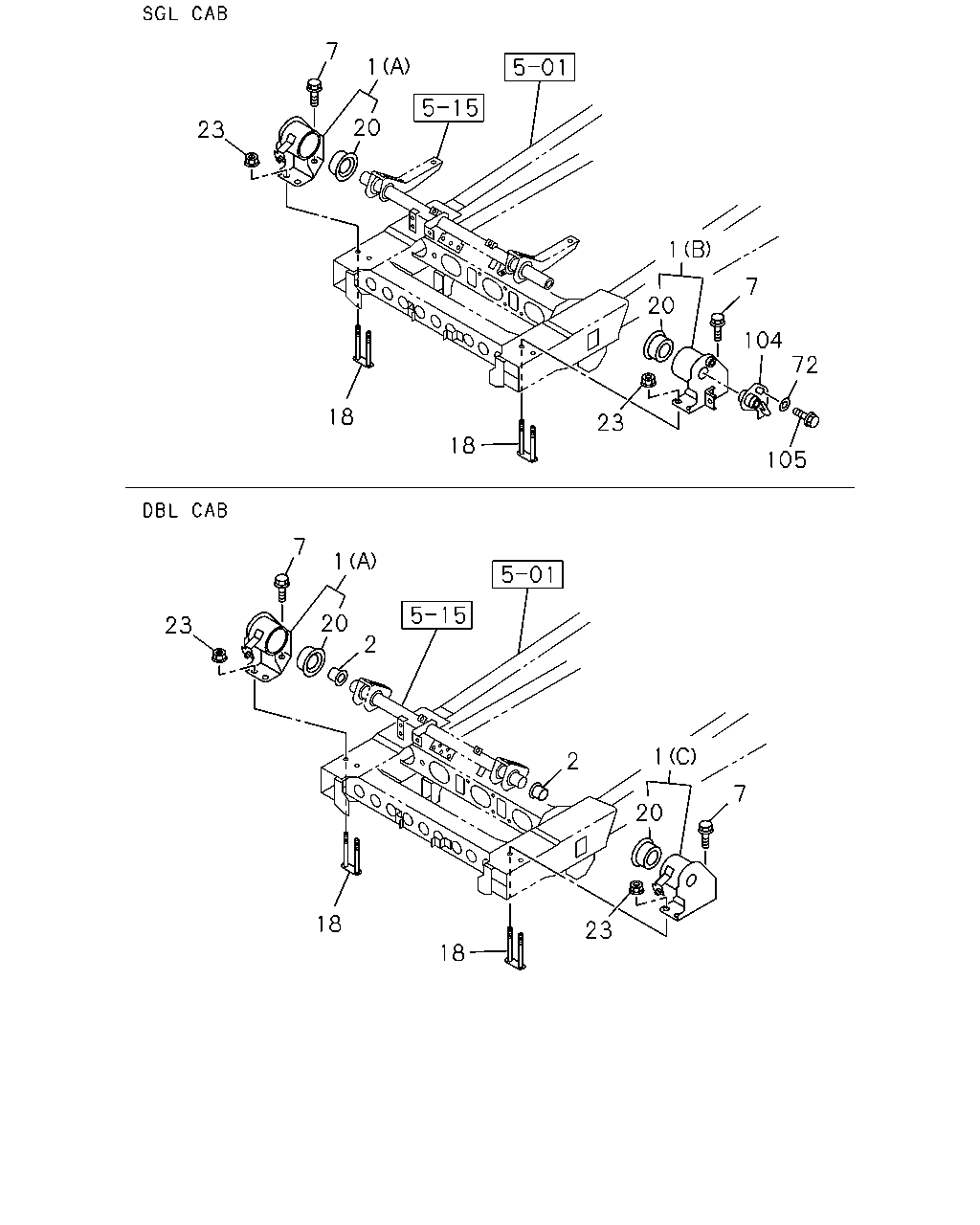

7 1 20 2 23 18 18 2 20 7 1 23 18 18 23 105 72 104 7 20 1 20 7 23 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.003 BRACKET; CAB MTG 16.545 (B)	8-98021-410-5	01	1	1506-	●
1	09.003 BRACKET; CAB MTG 16.545 (A)	8-98021-407-6	01	1	1506-	●	●
1	09.003 BRACKET; CAB MTG (C)	8-98021-408-5	01	1	1506-		●
2	09.009 BUSHING; TORSION BAR	8-97061-514-0	02	1	1506-		●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> M14X40 FLANGE	0-28661-440-0	02	1	1506-	●
7	09.003 BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	1506-		●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ>	8-98030-768-1	02	1	1506-	●
18	09.003 PLATE; MTG BRKT FIX	8-98030-768-1	02	1	1506-		●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-98007-037-1	01	1	1506-	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-98007-037-1	01	1	1506-	●
20	09.003 RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	1506-		●
20	09.003 RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	1506-		●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> M14	8-98039-989-0	04	1	1506-	●
23	09.003 NUT; MTG BRKT M14	8-98039-989-0	04	1	1506-		●
72	09.003 WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	1506-	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97383-788-1	01	1	1506-	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28661-435-0	01	1	1506-	●

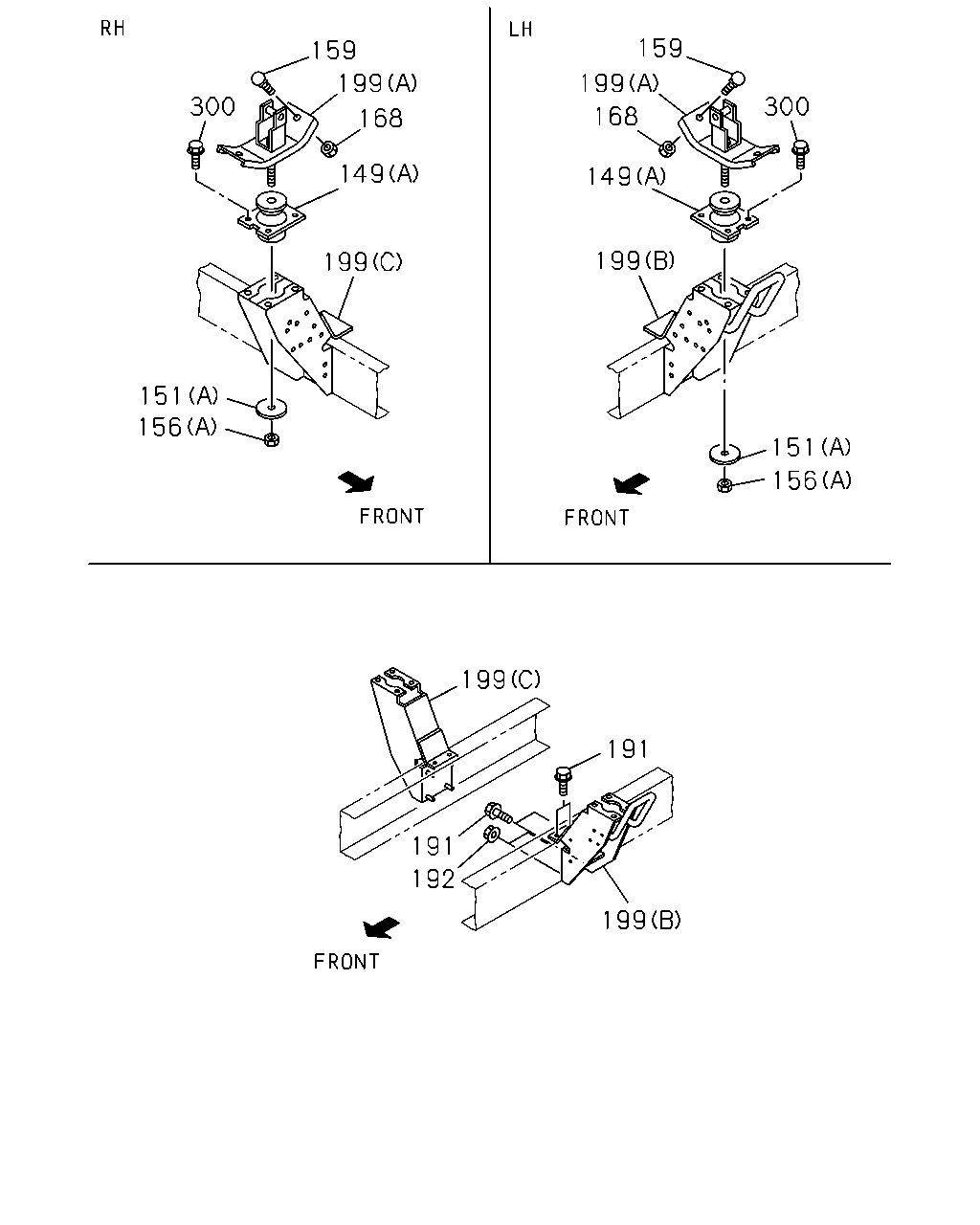

159 199 168 300 149 199 151 156 159 199 168 149 199 300 151 156 199 191 191 192 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=35	8-97256-684-0	02	1	1506-		●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=26.5	8-97256-686-0	02	1	1506-		●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	1506-	●
149	09.023 RUBBER; MTG,CAB,UPR RR (B) H=94	8-98038-868-0	02	1	1506-		●
151	09.011 WASHER; CAB MTG,RR UPR 09.003 (C) ID=15 OD=36	0-91614-714-0	02	1	1506-		●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	1506-		●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1506-	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.5 OD=58	8-97359-040-1	02	1	1506-		●
156	07.529 NUT; CAB MTG RR 07.833 (C) M14	0-91110-514-0	04	1	1506-		●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	1506-	●
156	07.529 NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	1506-		●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	1506-	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1506-	●
191	09.003 BOLT; BRKT FIX MANUAL TILT CAB<RWZ> M12X35 FLANGE	0-28651-235-0	08	1	1506-	●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	1506-		●
192	09.003 NUT; BRKT FIX MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1506-	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	04	1	1506-		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98021-568-2	01	1	1506-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98021-569-2	01	1	1506-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	1506-	●
199	09.003 BRACKET; CAB RR MTG (D)	8-98001-443-4	01	1	1506-		●
199	09.003 BRACKET; CAB RR MTG (D)	8-98001-443-4	01	1	1506-		●
300	09.003 BOLT; MTG RUBBER MANUAL TILT CAB<RWZ> 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1506-	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1506-		●

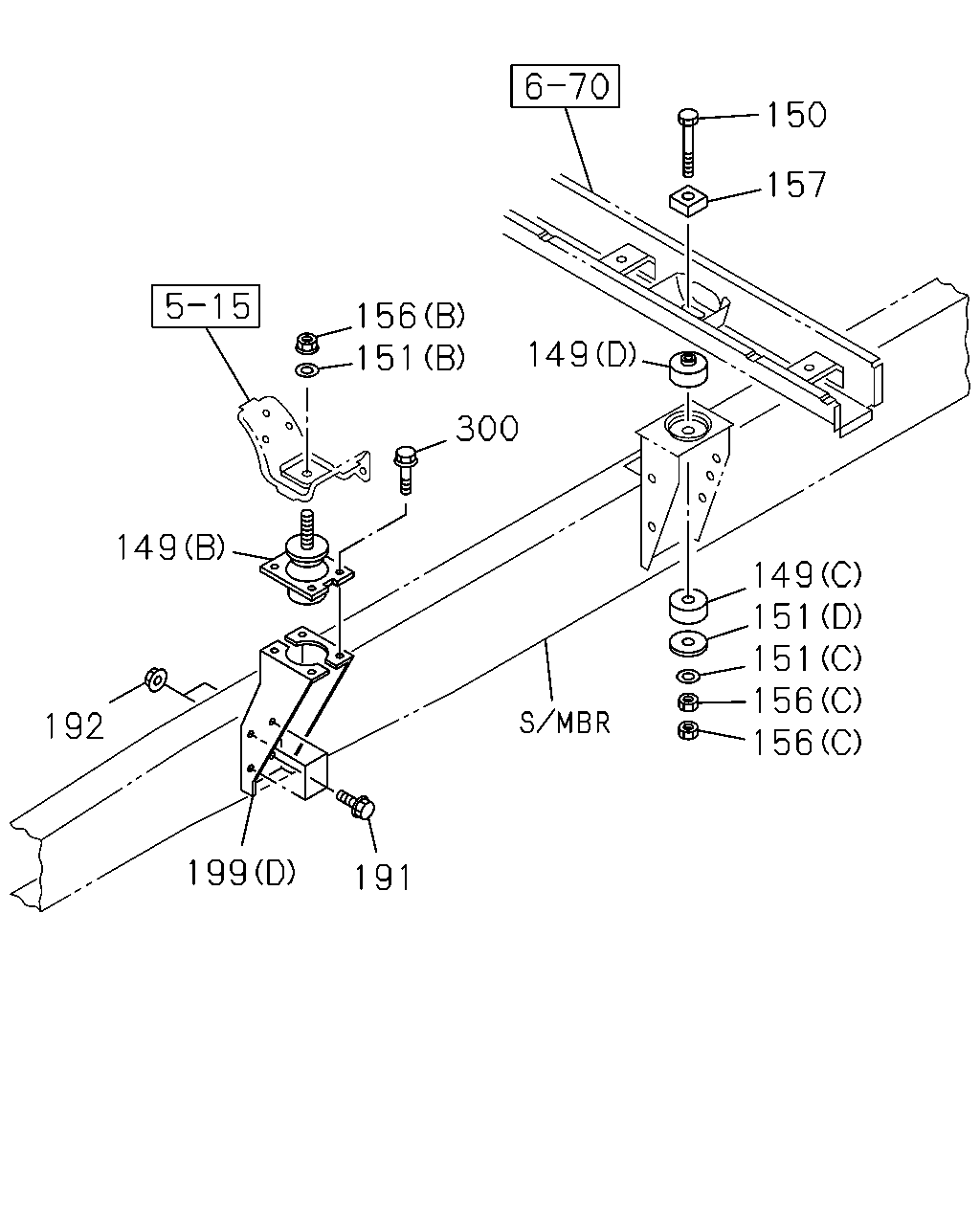

150 157 149 151 151 156 156 156 151 149 300 149 192 199 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=35	8-97256-684-0	02	1	1506-		●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=26.5	8-97256-686-0	02	1	1506-		●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	1506-	●
149	09.023 RUBBER; MTG,CAB,UPR RR (B) H=94	8-98038-868-0	02	1	1506-		●
150	09.011 BOLT; CAB MTG RR M14X110	8-97365-192-0	02	1	1506-		●
151	09.011 WASHER; CAB MTG,RR UPR 09.003 (C) ID=15 OD=36	0-91614-714-0	02	1	1506-		●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	1506-		●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1506-	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.5 OD=58	8-97359-040-1	02	1	1506-		●
156	07.529 NUT; CAB MTG RR 07.833 (C) M14	0-91110-514-0	04	1	1506-		●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	1506-	●
156	07.529 NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	1506-		●
157	09.023 RUBBER; MTG,CAB,TOP RR	8-97256-685-0	02	1	1506-		●
191	09.003 BOLT; BRKT FIX MANUAL TILT CAB<RWZ> M12X35 FLANGE	0-28651-235-0	08	1	1506-	●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	1506-		●
192	09.003 NUT; BRKT FIX MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1506-	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	04	1	1506-		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98021-568-2	01	1	1506-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98021-569-2	01	1	1506-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	1506-	●
199	09.003 BRACKET; CAB RR MTG (D)	8-98001-443-4	01	1	1506-		●
199	09.003 BRACKET; CAB RR MTG (D)	8-98001-443-4	01	1	1506-		●
300	09.003 BOLT; MTG RUBBER MANUAL TILT CAB<RWZ> 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1506-	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1506-		●
