Isuzu WW
▶
TRUCKS
▶
NLS
▶
51605 - NLS RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶
4-60 — REAR SUSPENSION
(#162691) — 18 parça
Tümü
A - NMS5SE
B - NMS5WE
◀

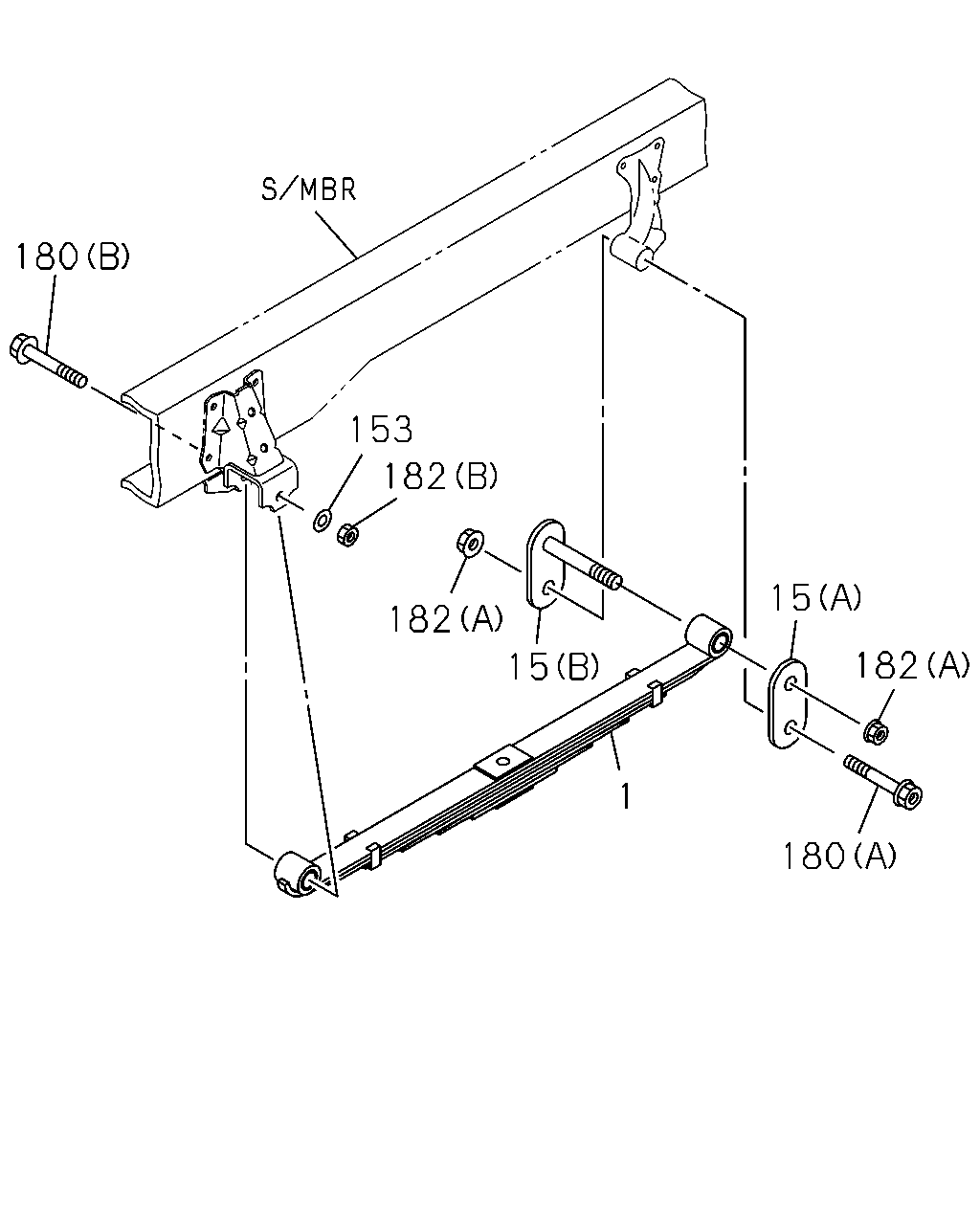

[460A] NO.1 (9 parça)
[460A] NO.2 (9 parça)
▶
180
153
182
15
15
182
180
1
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 2-LEAF
8-98033-692-1
02
1
1506-
●
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF
8-98032-763-0
02
1
1506-
●
15
07.523 SHACKLE; RR SPR
(A)
8-94118-511-3
02
1
1506-
●
●
15
07.523 SHACKLE; RR SPR
(B)
8-97360-011-0
02
1
1506-
●
●
153
07.529 WASHER; PL,SPRING PIN
ID=19
8-97360-119-0
02
1
1506-
●
●
180
07.529 PIN; RR SPR
07.427 (B) M16X122 FLANGE
8-97360-110-0
02
1
1506-
●
●
180
07.529 PIN; RR SPR
(A) M18X130 FLANGE
8-97360-112-0
02
1
1506-
●
●
182
07.529 NUT; PIN,RR SPR
(B) M18
0-91110-518-0
02
1
1506-
●
●
182
07.529 NUT; PIN,RR SPR
07.427 (A) M16 FLANGE
8-97360-125-0
04
1
1506-
●
●
227
230
225
4
502
1
6
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 2-LEAF
8-98033-692-1
02
1
1506-
●
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF
8-98032-763-0
02
1
1506-
●
4
07.516 U-BOLT; RR SPR
L=245
8-94127-921-3
04
1
1506-
●
●
5
07.529 NUT; U-BOLT,RR SPR
07.417 M16
8-97360-121-0
08
1
1506-
●
●
6
07.516 WASHER; PL,U-BOLT
ID=16.4
8-97360-118-0
08
1
1506-
●
●
225
07.535 RUBBER; CUSHION,RR SPR
8-98025-096-1
02
1
1506-
●
●
227
07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE
0-91180-112-0
02
1
1506-
●
●
230
07.518 SPACER; CUSHION RUBBER
8-97136-852-0
02
1
1506-
●
●
502
07.506 CLAMP; RR LEAF SPR
07.518 L=130 T=4.5
8-94119-069-2
02
1
1506-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
