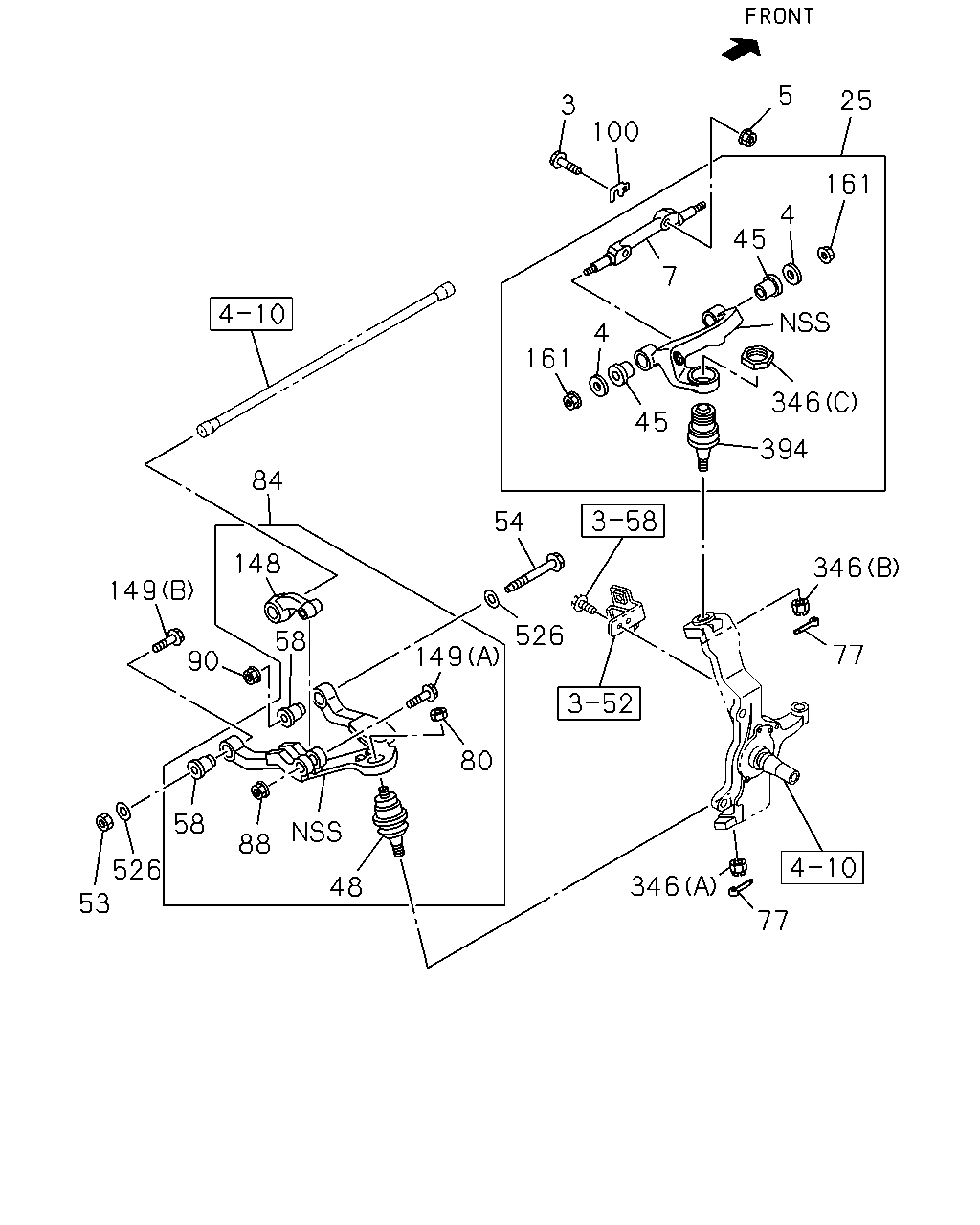

4-50 — FRONT SUSPENSION (#162690) — 55 parça

3 25 161 45 100 7 4 161 45 394 346 4 5 84 148 149 90 149 54 526 346 77 346 77 48 88 80 58 526 53 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	06.164 BOLT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) 06.178 M16X70 FLANGE	0-28861-670-0	04	1	1506-	●
3	06.164 BOLT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) M16X70	8-97378-658-0	04	1	1506-		●
4	06.164 WASHER; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0)	8-98021-786-0	04	1	1506-	●	●
5	06.164 NUT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) M16 FLANGE	0-91180-216-0	04	1	1506-	●	●
7	06.174 PIN; FULCRUM,UPR LINK FRT INDEPENDENT SUSPENSION(FF0)	8-98021-654-0	02	1	1506-	●	●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98033-252-0	01	1	1506-	●	●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98033-253-0	01	1	1506-	●	●
45	06.164 BUSHING; UPR LINK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97188-369-0	04	1	1506-	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM FRT INDEPENDENT SUSPENSION(FF0)	8-97087-653-0	02	1	1506-	●	●
53	06.174 NUT; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 07.529 M18	0-91110-518-0	02	1	1506-	●	●
54	06.174 PIN; FULCRUM,LWR LINK FRT INDEPENDENT SUSPENSION(FF0)	8-98033-251-0	02	1	1506-	●	●
58	06.170 BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(FF0)	8-97240-314-0	04	1	1506-	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) 05.812 OD=3.7 L=30	0-81124-030-0	04	1	1506-	●	●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0)	8-98029-422-0	02	1	1506-	●	●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98001-292-2	01	1	1506-1508	●	●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98322-937-0	01	1	1509-	●	●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98001-293-2	01	1	1506-1508	●	●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98322-938-0	01	1	1509-	●	●
88	06.174 NUT; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 05.816 M12 FLANGE	0-91180-212-0	02	1	1506-	●	●
90	06.170 NUT; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 07.529 M18	0-91110-518-0	02	1	1506-	●	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=1.2	8-98029-250-0	AR	1	1506-	●	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=2.3	8-98029-251-0	AR	1	1506-	●	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=4.5	8-98029-252-0	AR	1	1506-	●	●
148	06.170 ARM; LWR LINK FRT INDEPENDENT SUSPENSION(FF0)	8-98134-779-0	01	1	1506-	●	●
148	06.170 ARM; LWR LINK FRT INDEPENDENT SUSPENSION(FF0)	8-98134-780-0	01	1	1506-	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM FRT INDEPENDENT SUSPENSION(FF0) (A) M12X80 FLANGE	0-28061-280-0	02	1	1506-	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM FRT INDEPENDENT SUSPENSION(FF0) 06.174 (B)	8-98033-251-0	02	1	1506-	●	●
161	06.178 NUT ASM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) 06.164 M16 FLANGE	0-91180-216-0	04	1	1506-	●	●
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) 06.861 (A) M22	0-91111-522-0	02	1	1506-	●	●
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) (B) M18 SLOTTED	8-97245-632-0	02	1	1506-	●	●
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) (C) M52	8-98158-133-0	02	1	1506-	●	●
394	06.714 END ASM; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-97327-369-5	02	1	1506-	●	●
526	06.172 WASHER; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) ID=18.2	0-91510-818-0	04	1	1506-	●	●

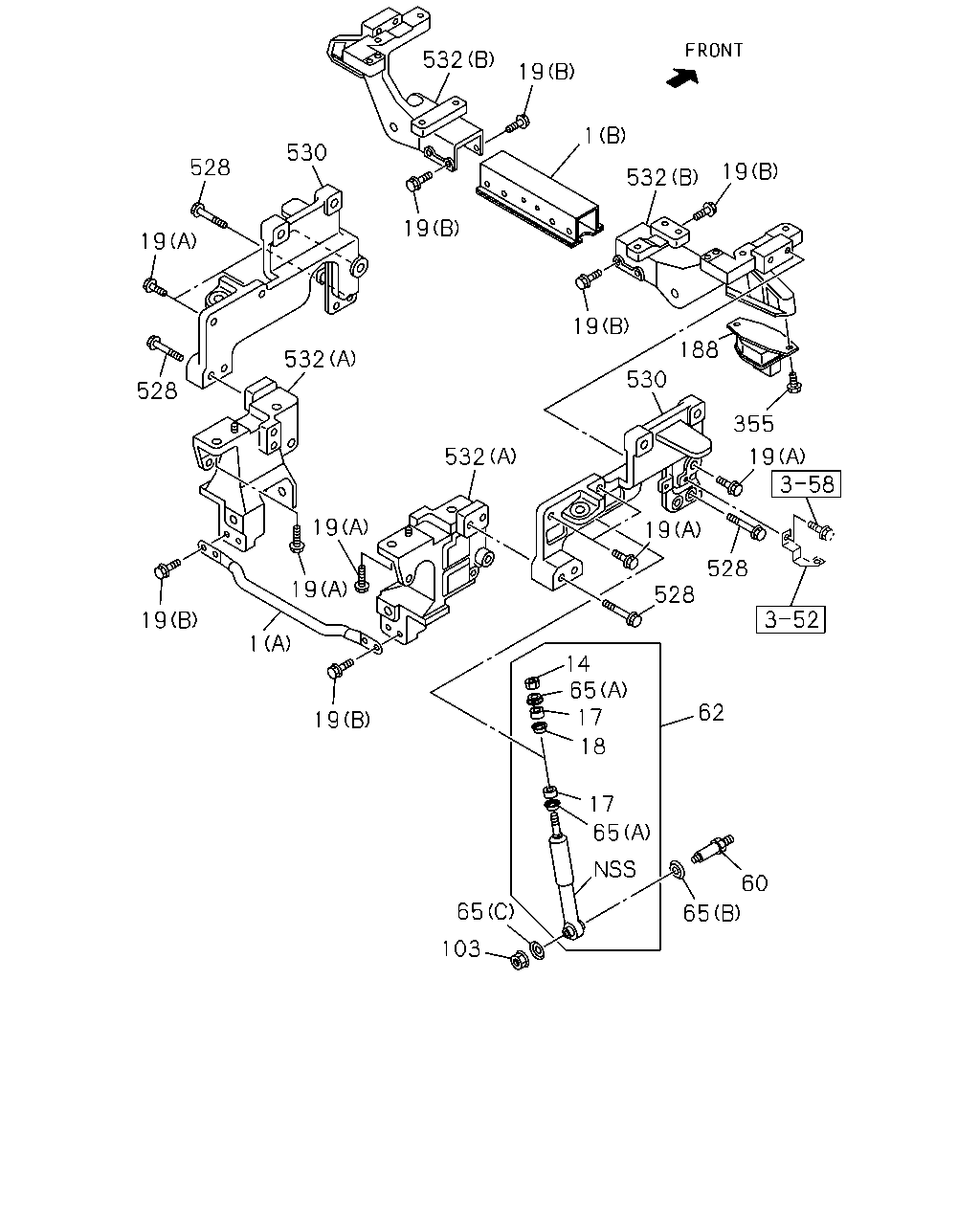

528 530 19 532 19 532 19 1 19 14 65 17 18 17 65 60 62 528 19 528 19 355 188 19 532 19 1 19 532 530 65 103 65 19 528 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.010 MEMBER; CROSS,FRT SUSP FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98001-299-2	01	1	1506-	●	●
1	07.010 MEMBER; CROSS,FRT SUSP FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98009-501-1	01	1	1506-	●	●
14	07.389 NUT; S/ABS,UPR FRT INDEPENDENT SUSPENSION(FF0) M10 T=8	9-09640-020-0	02	1	1506-	●	●
17	07.388 BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(FF0) TOKICO	9-51631-603-0	04	1	1506-	●	●
18	07.347 WASHER; CENTERING,S/ABS FRT INDEPENDENT SUSPENSION(FF0) TOKICO	8-94412-791-0	02	1	1506-	●	●
19	07.425 BOLT; FRT SUSP TO C/MBR FRT INDEPENDENT SUSPENSION(FF0) 00.724 (A) M12X45 FLANGE	0-28061-245-0	14	1	1506-	●	●
19	07.425 BOLT; FRT SUSP TO C/MBR FRT INDEPENDENT SUSPENSION(FF0) 00.004 (B) M12X35 FLANGE	0-28661-235-0	12	1	1506-	●	●
60	07.347 BOLT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0)	8-98003-210-0	02	1	1506-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98001-526-1	02	1	1506-	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (B) ID=21 OD=40	0-91614-620-0	02	1	1506-	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (C) ID=15	8-97360-056-0	02	1	1506-	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (A) OD=40	9-51631-614-0	04	1	1506-	●	●
103	07.347 NUT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 07.833 M14	0-91110-514-0	02	1	1506-	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR FRT INDEPENDENT SUSPENSION(FF0)	8-97230-008-0	02	1	1506-	●	●
355	07.436 BOLT; CUSHION RUBBER FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1506-	●	●
528	06.172 BOLT; UPR CONT ARM FRT INDEPENDENT SUSPENSION(FF0) 00.004 M12X35 FLANGE	0-28661-235-0	08	1	1506-	●	●
530	06.172 BRACKET; UPR CONT ARM FRT INDEPENDENT SUSPENSION(FF0)	8-98010-557-1	01	1	1506-	●	●
530	06.172 BRACKET; UPR CONT ARM FRT INDEPENDENT SUSPENSION(FF0)	8-98010-558-1	01	1	1506-	●	●
532	06.172 BRACKET; FRT SUSP FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98001-307-1	01	1	1506-	●	●
532	06.172 BRACKET; FRT SUSP FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98001-308-1	01	1	1506-	●	●
532	06.172 BRACKET; FRT SUSP FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98009-502-2	01	1	1506-	●	●
532	06.172 BRACKET; FRT SUSP FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98009-503-2	01	1	1506-	●	●
