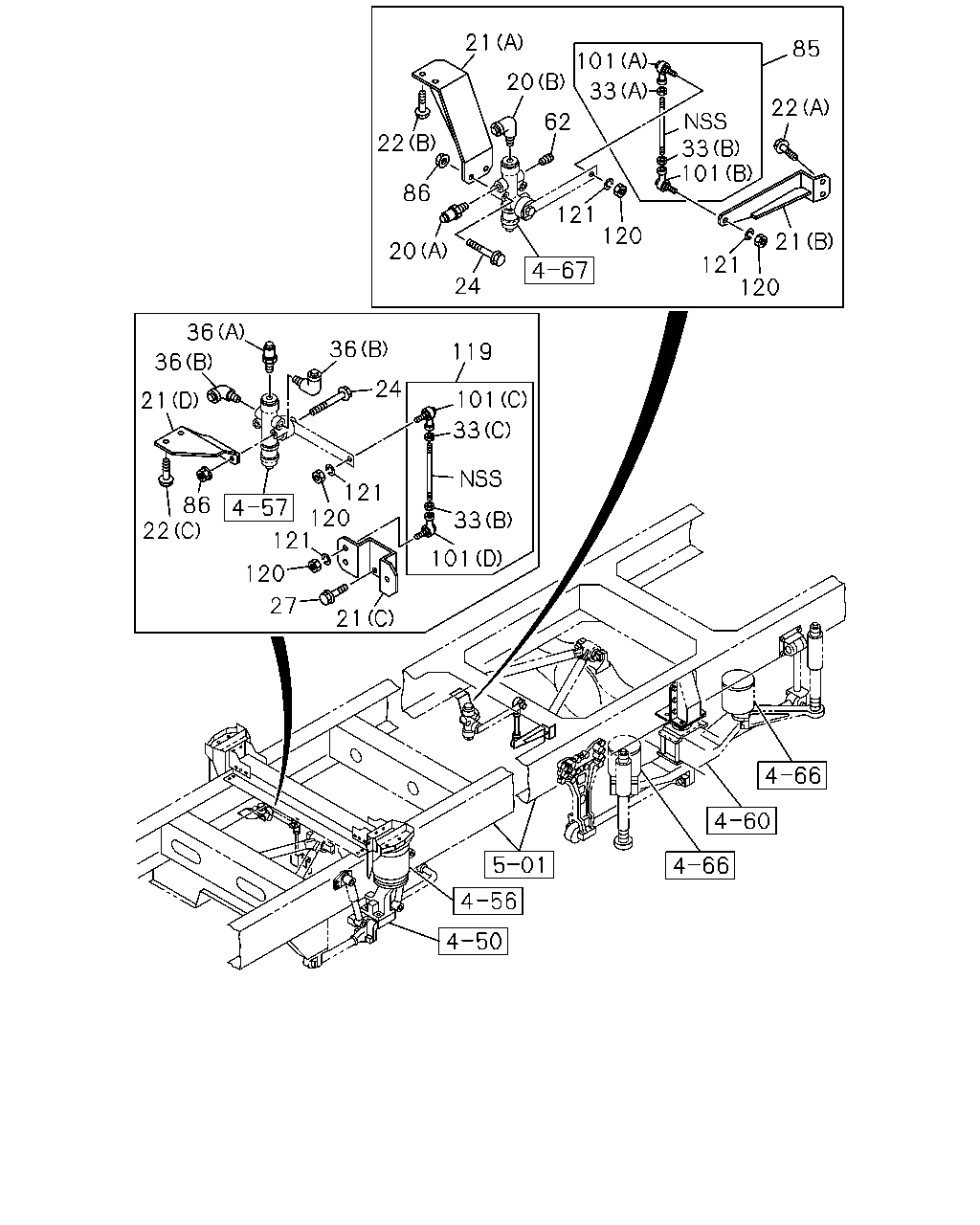

4-70 — AIR SUSPENSION VALVE AND CONTROL
(#16269) — 30 parça
21
22
86
20
24
20
62
101
33
85
22
33
101
21
121
120
119
101
33
33
101
121
120
121
120
27
21
22
86
21
36
36
36
121
120
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
CONNECTOR; LEVELING VLV
(B) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
0907-
20
CONNECTOR; LEVELING VLV
(A) DIN8 R1/4 STRAIGHT
1-09660-963-0
02
1
0907-
21
BRACKET; LEVELING VLV
(B)
1-52171-187-1
01
1
0907-
21
BRACKET; LEVELING VLV
(B)
1-52171-188-1
01
1
0907-
21
BRACKET; LEVELING VLV
(D)
1-52171-253-1
01
1
0907-
21
BRACKET; LEVELING VLV
(C)
1-52171-315-0
01
1
0907-
21
BRACKET; LEVELING VLV
(A)
1-52171-316-0
01
1
0907-0909
21
BRACKET; LEVELING VLV
(A)
1-52171-186-0
01
1
0910-
21
BRACKET; LEVELING VLV
(A)
1-52171-317-0
01
1
0907-0909
21
BRACKET; LEVELING VLV
(A)
1-52171-210-0
01
1
0910-
22
BOLT; BRKT
(A) M8X20 FLANGE
0-28660-820-0
04
1
0907-
22
BOLT; BRKT
(B) M12X30 FLANGE
0-28661-230-0
04
1
0907-
22
BOLT; BRKT
(C) M12X35 FLANGE
0-28661-235-0
02
1
0907-
24
BOLT; LEVELING VLV
M8X45 FLANGE
0-28060-845-0
06
1
0907-
27
BOLT; BRKT
M8X25 FLANGE
0-28660-825-0
02
1
0907-
33
NUT
(A) M10
0-91111-510-0
02
1
0907-
33
NUT
(C) M10
9-09111-410-0
01
1
0907-
33
NUT
(B) M10 LH THREAD
9-09840-167-0
03
1
0907-
36
CONNECTOR; PIPE,LEVELING VALVE
(B) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
0907-
36
CONNECTOR; PIPE,LEVELING VALVE
(A) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0907-
62
PLUG; VLV
PT1/4
9-99204-513-0
02
1
0907-
85
ROD; LEVELING VLV
1-52137-046-0
02
1
0907-
86
NUT; LEVELING VLV
M8 FLANGE
0-91180-108-0
06
1
0907-
101
JOINT ASM; BALL
(A) RH THREAD
1-09760-119-1
02
1
0907-
101
JOINT ASM; BALL
(C) RH THREAD MINEBEA
8-94151-324-0
01
1
0907-
101
JOINT ASM; BALL
(D) LH THREAD MINEBEA
8-94151-325-0
01
1
0907-
101
JOINT ASM; BALL
(B) LH THREAD
8-94178-868-1
02
1
0907-
119
ROD; LEVERING VLV
1-52137-044-2
01
1
0907-
120
NUT; ROD
M8
0-91110-508-0
06
1
0907-
121
WASHER; LK,ROD
ID=8.2
0-91510-508-0
06
1
0907-
