11209 - LV434(RHD) EURO3/5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-67 - REAR LEVELING VALVE
▶

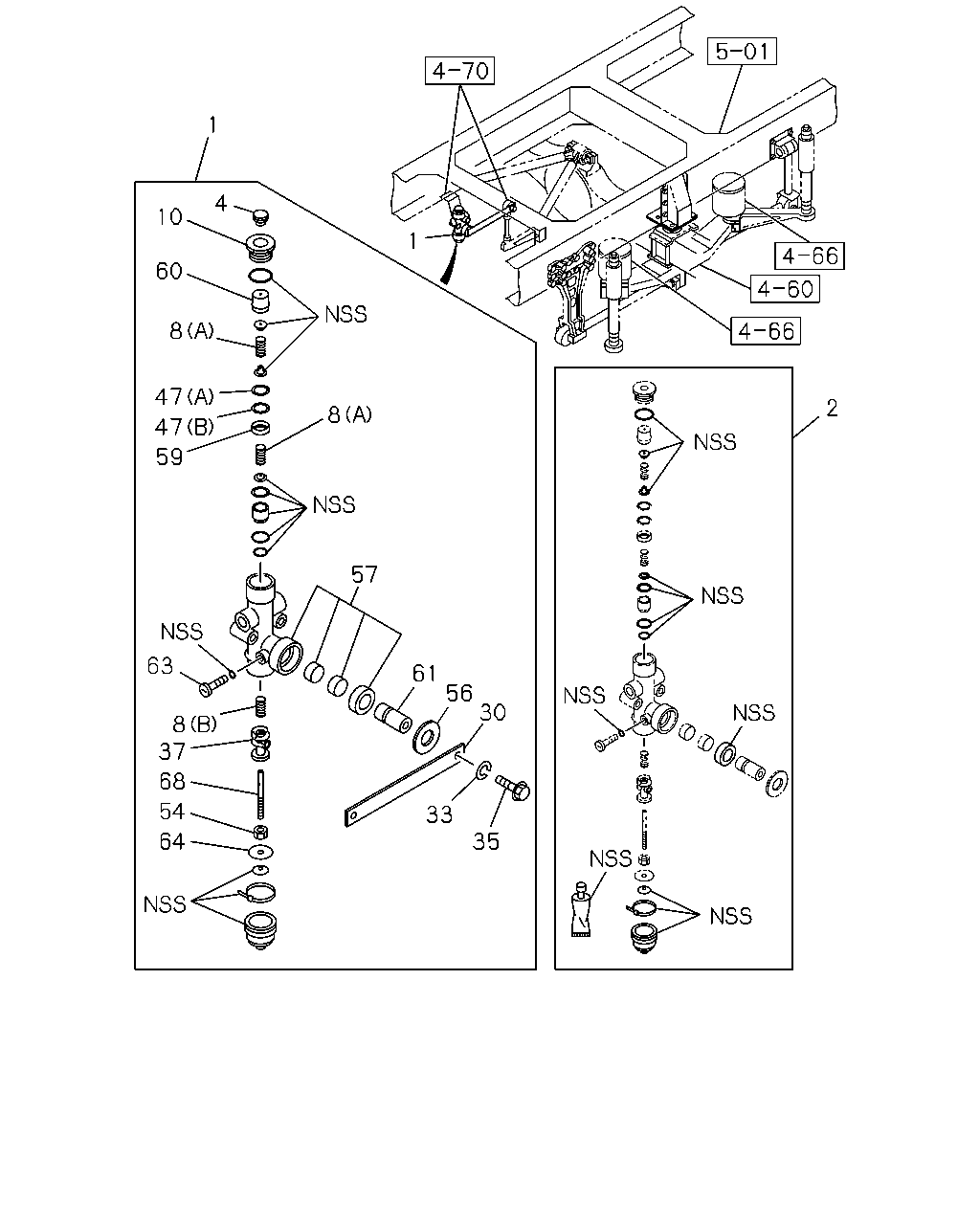

4-67 — REAR LEVELING VALVE
(#16268) — 22 parça
1
4
10
1
60
8
47
2
8
47
59
57
63
61
56
30
8
37
68
54
33
64
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LEVELING
1-52130-107-1
01
1
0907-
1
VALVE ASM; LEVELING
1-52130-108-1
01
1
0907-
2
REPAIR KIT; LEVELING VALVE
1-85573-009-0
02
1
0907-
4
FILTER; AIR,LEVELING VALVE
1-53457-081-0
02
1
0907-
8
SPRING; LEVELING VALVE
(A)
1-52139-053-0
04
1
0907-
8
SPRING; LEVELING VALVE
(B)
1-52139-057-0
02
1
0907-
10
PLUG; BODY
1-52139-055-0
02
1
0907-
30
LEVER; LEVELING VALVE
1-52137-047-0
02
1
0907-
33
WASHER; LK
1-52139-061-0
02
1
0907-
35
BOLT; LOCK,LEVER
1-52139-060-0
02
1
0907-
37
PISTON; LEVELING VLV
1-52135-011-0
02
1
0907-
47
SHIM; LEVELING VLV
(A) T=0.2
1-52139-067-0
AR
1
0907-
47
SHIM; LEVELING VLV
(B) T=0.1
1-52139-068-0
AR
1
0907-
54
NUT; LEVELING VLV
1-52139-058-0
02
1
0907-
56
WASHER; LEVELING VLV
1-52139-059-0
02
1
0907-
57
BODY ASM; LEVELING VALVE
1-52139-046-0
02
1
0907-
59
SPACER; LEVELING VALVE
1-52139-050-0
02
1
0907-
60
SEAT; VALVE,LEVELING VALVE
1-52132-003-0
02
1
0907-
61
SHAFT; LEVELING VALVE
1-52135-009-0
02
1
0907-
63
BOLT; STOPPER,LEVELING VALVE
1-52139-069-0
02
1
0907-
64
PLATE; LEVELING VALVE
1-52139-091-0
02
1
0907-
68
SPOOL; LEVELING VALVE
1-52139-092-0
02
1
0907-
