4-12 — FRONT DRIVE SHAFT (#162677) — 57 parça

3 1 4 4 5 19 2 219 19 23 26 19 24 22 20 37 18 49 48 17 9 17 10 30 36 35 28 35 28 28 36 30 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

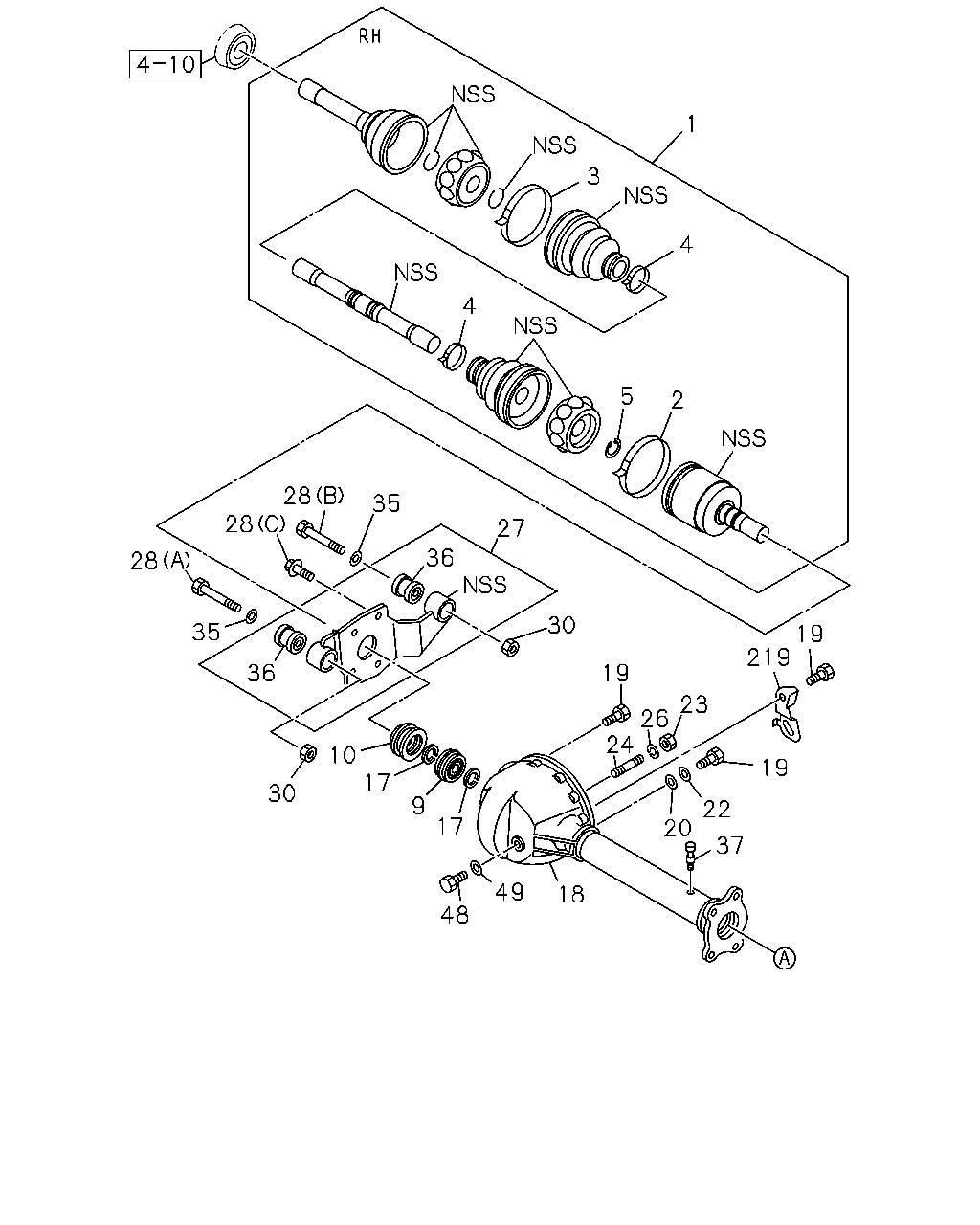

1	06.055 SHAFT ASM; FRT DRIVE FRT INDEPENDENT SUSPENSION(FF0)	8-97218-681-2	01	1	1506-	●	●
1	06.055 SHAFT ASM; FRT DRIVE FRT INDEPENDENT SUSPENSION(FF0)	8-97218-682-2	01	1	1506-	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT FRT INDEPENDENT SUSPENSION(FF0)	8-94313-084-0	02	1	1506-	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT FRT INDEPENDENT SUSPENSION(FF0)	8-94313-082-0	02	1	1506-	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT FRT INDEPENDENT SUSPENSION(FF0)	8-94313-094-0	04	1	1506-	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT FRT INDEPENDENT SUSPENSION(FF0) ID=26.9	9-09180-029-0	02	1	1506-	●	●
9	06.056 BEARING; AXLE SHAFT,INNER FRT INDEPENDENT SUSPENSION(FF0)	8-94407-724-0	02	1	1506-	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER FRT INDEPENDENT SUSPENSION(FF0)	8-97373-555-0	02	1	1506-	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS FRT INDEPENDENT SUSPENSION(FF0) 04.416 ID=27.9	9-09180-030-0	04	1	1506-	●	●
18	06.008 CASE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-97218-708-1	01	1	1506-	●	●
19	06.156 BOLT; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) M8X25 W/LK WASHER	8-98022-410-0	05	1	1506-	●	●
19	06.156 BOLT; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) M8X30 W/LK WASHER	8-98022-411-0	02	1	1506-	●	●
19	06.156 BOLT; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) M8X90 W/LK WASHER	8-98022-412-0	02	1	1506-	●	●
19	06.156 BOLT; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) M8X40 W/LK WASHER	8-98030-089-0	02	1	1506-	●	●
20	06.156 GASKET; AXLE CASE FRT INDEPENDENT SUSPENSION(FF0) 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1506-	●	●
22	06.056 WASHER; PL,AXLE CASE FRT INDEPENDENT SUSPENSION(FF0) ID=8.4 OD=16	0-91614-508-0	01	1	1506-	●	●
23	06.056 NUT; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 02.334 M8	0-91110-508-0	02	1	1506-	●	●
24	06.056 STUD; CASE,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 03.275 M8X25 L=37	0-41010-825-0	02	1	1506-	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 02.559 ID=8.2	0-91510-808-0	02	1	1506-	●	●
27	06.056 BRACKET; AXLE CASE FRT INDEPENDENT SUSPENSION(FF0)	8-98002-128-0	01	1	1506-	●	●
27	06.056 BRACKET; AXLE CASE FRT INDEPENDENT SUSPENSION(FF0)	8-98002-129-0	01	1	1506-	●	●
28	06.056 BOLT; BRKT TO AXLE CASE FRT INDEPENDENT SUSPENSION(FF0) (A)	0-29261-400-0	02	1	1506-	●	●
28	06.056 BOLT; BRKT TO AXLE CASE FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-667-0	02	1	1506-	●	●
28	06.056 BOLT; BRKT TO AXLE CASE FRT INDEPENDENT SUSPENSION(FF0) (C) M12X25 FLANGE	8-98033-645-0	08	1	1506-	●	●
30	06.008 NUT; FRT AXLE MTG FRT INDEPENDENT SUSPENSION(FF0) 06.174 M14 FLANGE	8-97360-124-0	04	1	1506-	●	●
35	06.008 WASHER; FRT AXLE MTG FRT INDEPENDENT SUSPENSION(FF0)	8-98029-949-0	04	1	1506-	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG FRT INDEPENDENT SUSPENSION(FF0)	8-94368-734-0	04	1	1506-	●	●
37	06.008 BREATHER; FRT AXLE CASE FRT INDEPENDENT SUSPENSION(FF0)	8-94311-349-0	01	1	1506-	●	●
48	05.400 PLUG; DRAIN,AXLE CASE FRT INDEPENDENT SUSPENSION(FF0) M20X10.5	8-98009-333-0	01	1	1506-	●	●
49	05.400 GASKET; DRAIN PLUG FRT INDEPENDENT SUSPENSION(FF0) ID=20 OD=30	8-94462-734-0	01	1	1506-	●	●
219	06.008 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0)	8-98041-200-0	01	1	1506-	●	●

17 17 9 30 10 30 36 27 36 28 28 35 2 4 1 5 3 4 35 28 2 4 5 13 4 4 3 2 5 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

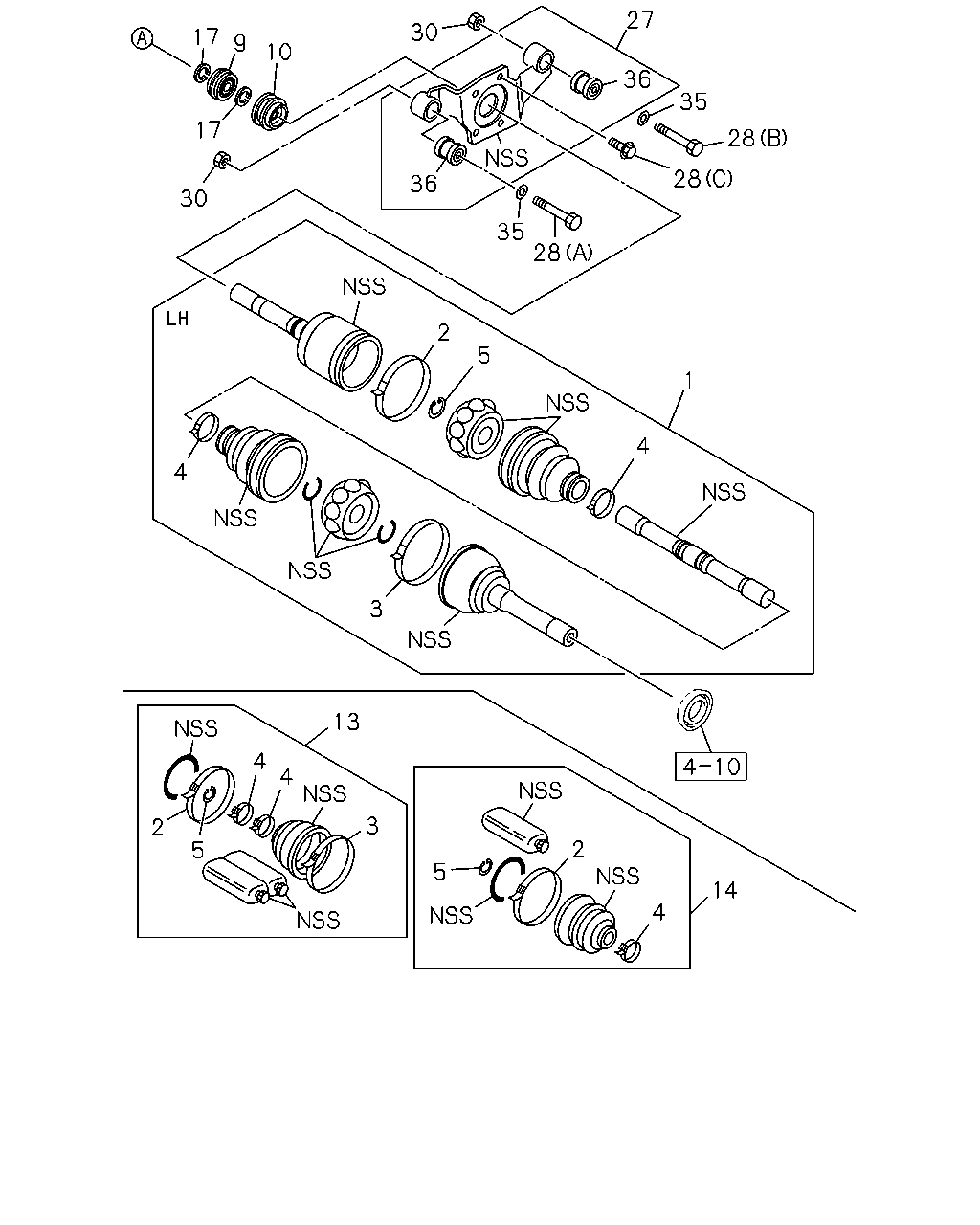

1	06.055 SHAFT ASM; FRT DRIVE FRT INDEPENDENT SUSPENSION(FF0)	8-97218-681-2	01	1	1506-	●	●
1	06.055 SHAFT ASM; FRT DRIVE FRT INDEPENDENT SUSPENSION(FF0)	8-97218-682-2	01	1	1506-	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT FRT INDEPENDENT SUSPENSION(FF0)	8-94313-084-0	02	1	1506-	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT FRT INDEPENDENT SUSPENSION(FF0)	8-94313-082-0	02	1	1506-	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT FRT INDEPENDENT SUSPENSION(FF0)	8-94313-094-0	04	1	1506-	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT FRT INDEPENDENT SUSPENSION(FF0) ID=26.9	9-09180-029-0	02	1	1506-	●	●
9	06.056 BEARING; AXLE SHAFT,INNER FRT INDEPENDENT SUSPENSION(FF0)	8-94407-724-0	02	1	1506-	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER FRT INDEPENDENT SUSPENSION(FF0)	8-97373-555-0	02	1	1506-	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF FRT INDEPENDENT SUSPENSION(FF0)	8-98271-589-0	02	1	1506-	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF FRT INDEPENDENT SUSPENSION(FF0)	8-98271-588-0	02	1	1506-	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS FRT INDEPENDENT SUSPENSION(FF0) 04.416 ID=27.9	9-09180-030-0	04	1	1506-	●	●
27	06.056 BRACKET; AXLE CASE FRT INDEPENDENT SUSPENSION(FF0)	8-98002-128-0	01	1	1506-	●	●
27	06.056 BRACKET; AXLE CASE FRT INDEPENDENT SUSPENSION(FF0)	8-98002-129-0	01	1	1506-	●	●
28	06.056 BOLT; BRKT TO AXLE CASE FRT INDEPENDENT SUSPENSION(FF0) (A)	0-29261-400-0	02	1	1506-	●	●
28	06.056 BOLT; BRKT TO AXLE CASE FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-667-0	02	1	1506-	●	●
28	06.056 BOLT; BRKT TO AXLE CASE FRT INDEPENDENT SUSPENSION(FF0) (C) M12X25 FLANGE	8-98033-645-0	08	1	1506-	●	●
30	06.008 NUT; FRT AXLE MTG FRT INDEPENDENT SUSPENSION(FF0) 06.174 M14 FLANGE	8-97360-124-0	04	1	1506-	●	●
35	06.008 WASHER; FRT AXLE MTG FRT INDEPENDENT SUSPENSION(FF0)	8-98029-949-0	04	1	1506-	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG FRT INDEPENDENT SUSPENSION(FF0)	8-94368-734-0	04	1	1506-	●	●

3 4 11 4 5 2 2 2 5 4 12 4 3 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

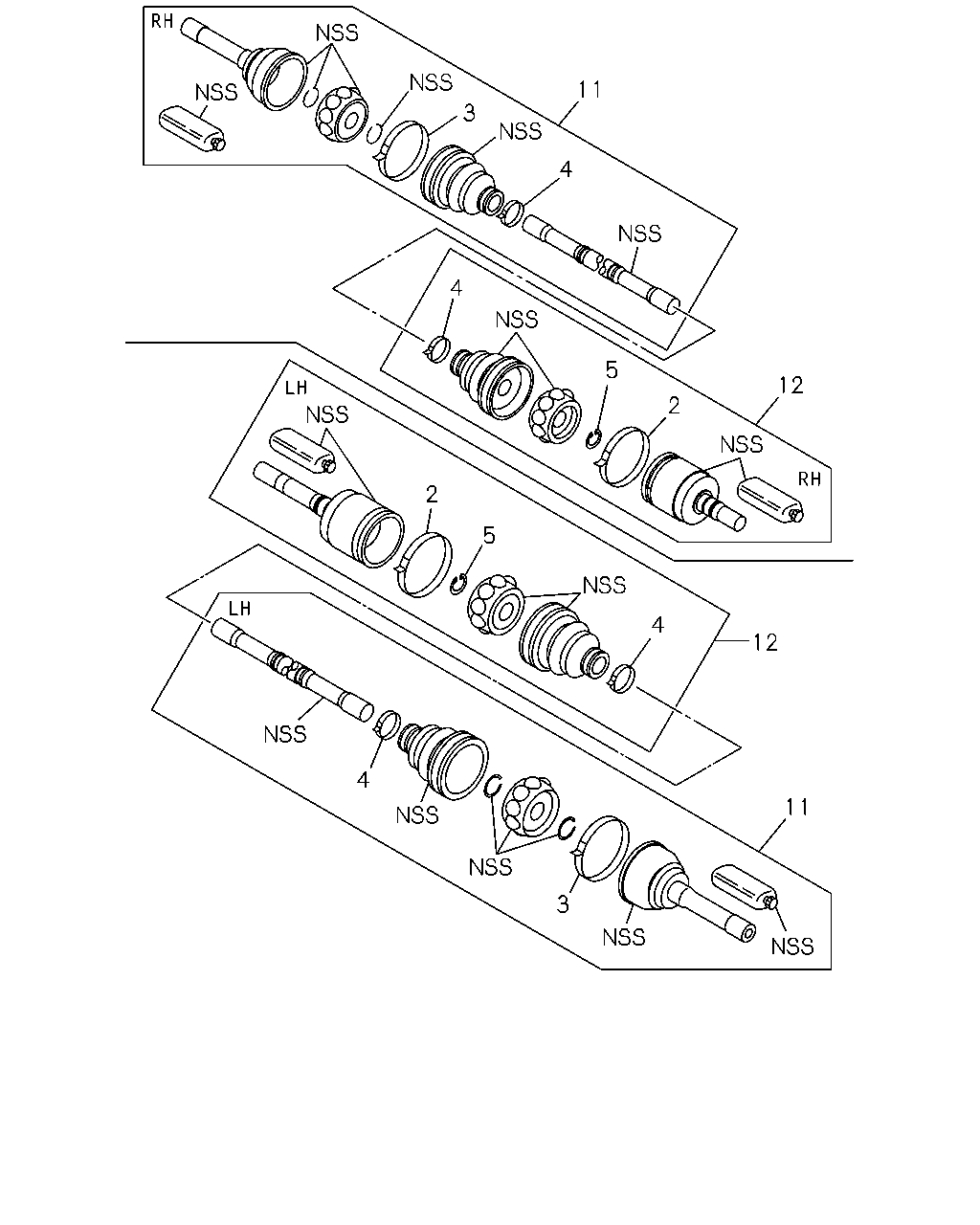

2	06.061 BAND; "A",FRT DRIVE SHAFT FRT INDEPENDENT SUSPENSION(FF0)	8-94313-084-0	02	1	1506-	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT FRT INDEPENDENT SUSPENSION(FF0)	8-94313-082-0	02	1	1506-	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT FRT INDEPENDENT SUSPENSION(FF0)	8-94313-094-0	04	1	1506-	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT FRT INDEPENDENT SUSPENSION(FF0) ID=26.9	9-09180-029-0	02	1	1506-	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA FRT INDEPENDENT SUSPENSION(FF0)	8-98271-592-0	02	1	1506-	●	●
12	06.060 JOINT ASM FRT INDEPENDENT SUSPENSION(FF0)	8-98271-590-0	01	1	1506-	●	●
12	06.060 JOINT ASM FRT INDEPENDENT SUSPENSION(FF0)	8-98271-591-0	01	1	1506-	●	●
