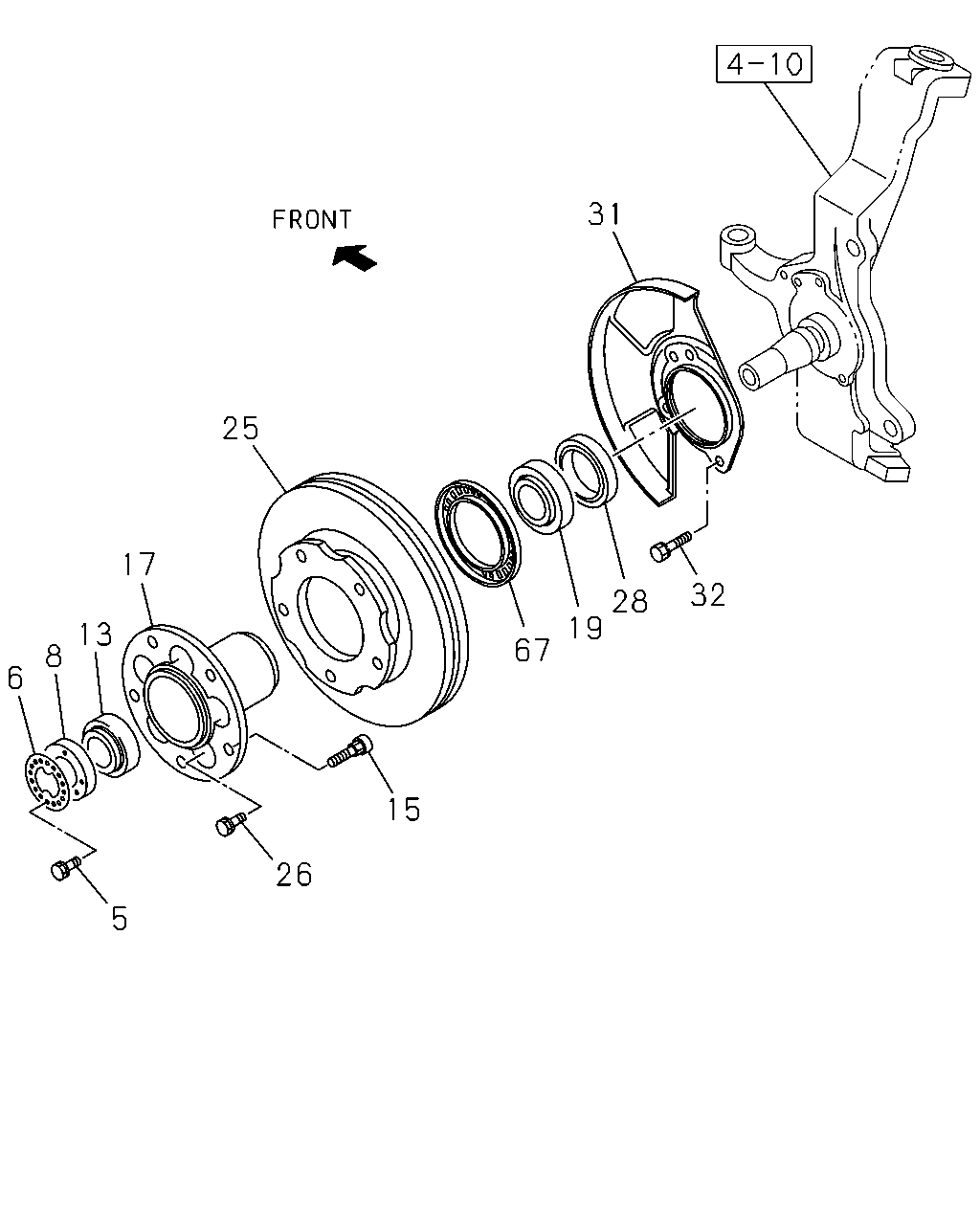

4-11 — FRONT HUB AND DRUM OR ROTOR (#162676) — 16 parça

31 32 28 19 67 15 26 5 6 17 13 8 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	06.321 BOLT; LK WASHER FRT INDEPENDENT SUSPENSION(FF0) M6X10	8-98030-649-0	04	1	1506-	●	●
6	05.812 WASHER; LK,FRT HUB FRT INDEPENDENT SUSPENSION(FF0)	8-94368-742-0	02	1	1506-	●	●
8	05.812 NUT; ADJ,FRT HUB FRT INDEPENDENT SUSPENSION(FF0)	8-94368-741-1	02	1	1506-	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 06.311 NSK	8-94336-289-0	02	1	1506-	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) NTN	8-98008-156-1	02	1	1506-	●	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) M18X46 RH THREAD	8-98028-532-1	05	1	1506-	●	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) M18X46 LH THREAD	8-98028-533-1	05	1	1506-	●	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-98049-165-0	02	1	1506-	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-98008-153-0	02	1	1506-	●	●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98248-894-0	02	1	1506-	●	●
26	05.812 BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(FF0)	8-98021-781-0	10	1	1506-	●	●
28	06.326 SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(FF0)	8-97211-082-0	02	1	1506-	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0)	8-98001-346-0	01	1	1506-	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0)	8-98001-347-0	01	1	1506-	●	●
32	04.665 BOLT; DUST COVER TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) M8X10 W/LK WASHER	8-98029-928-0	06	1	1506-	●	●
67	05.811 ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(FF0)	8-97387-157-1	02	1	1506-	●	●
