Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#162673) — 208 parça

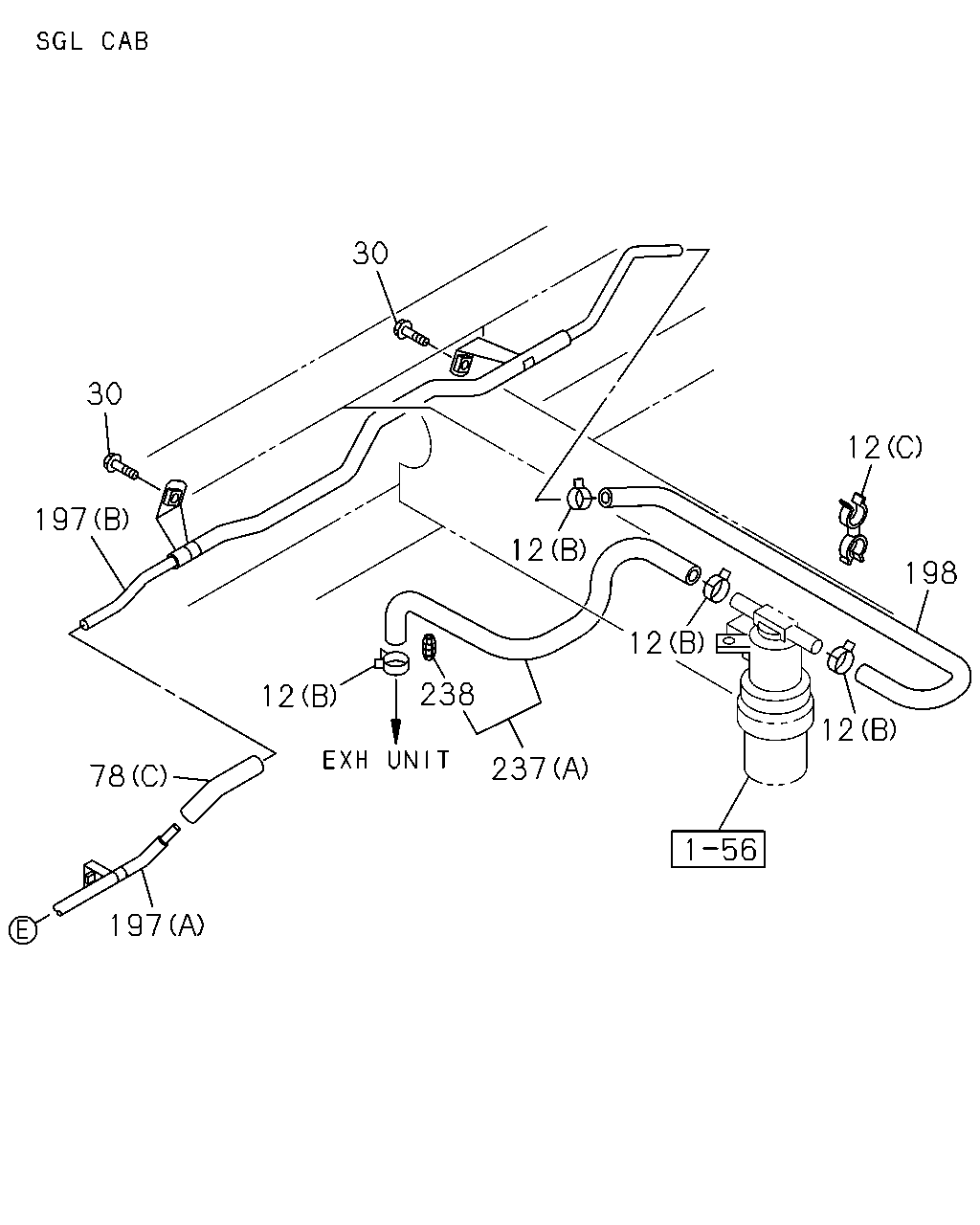

30 30 197 12 78 197 237 238 12 12 12 198 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	1506-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	1506-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1506-	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	08	1	1506-	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	06	1	1506-		●
30	04.686 BOLT; CLIP,VAC PIPE 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1506-	●
30	04.686 BOLT; CLIP,VAC PIPE 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1506-		●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98039-728-1	01	1	1506-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98039-728-1	01	1	1506-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1506-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98139-198-0	01	1	1506-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (E) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	1506-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (D)	8-98173-662-0	01	1	1506-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV (B)	8-98258-154-0	01	1	1506-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV (A)	8-97389-631-1	01	1	1506-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV (B) L=1027	8-98173-622-0	01	1	1506-		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV	8-98041-640-0	01	1	1506-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV	8-97373-197-0	01	1	1506-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (A)	8-98036-102-0	01	1	1506-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 03.630 (B) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	1506-		●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	1506-	●	●

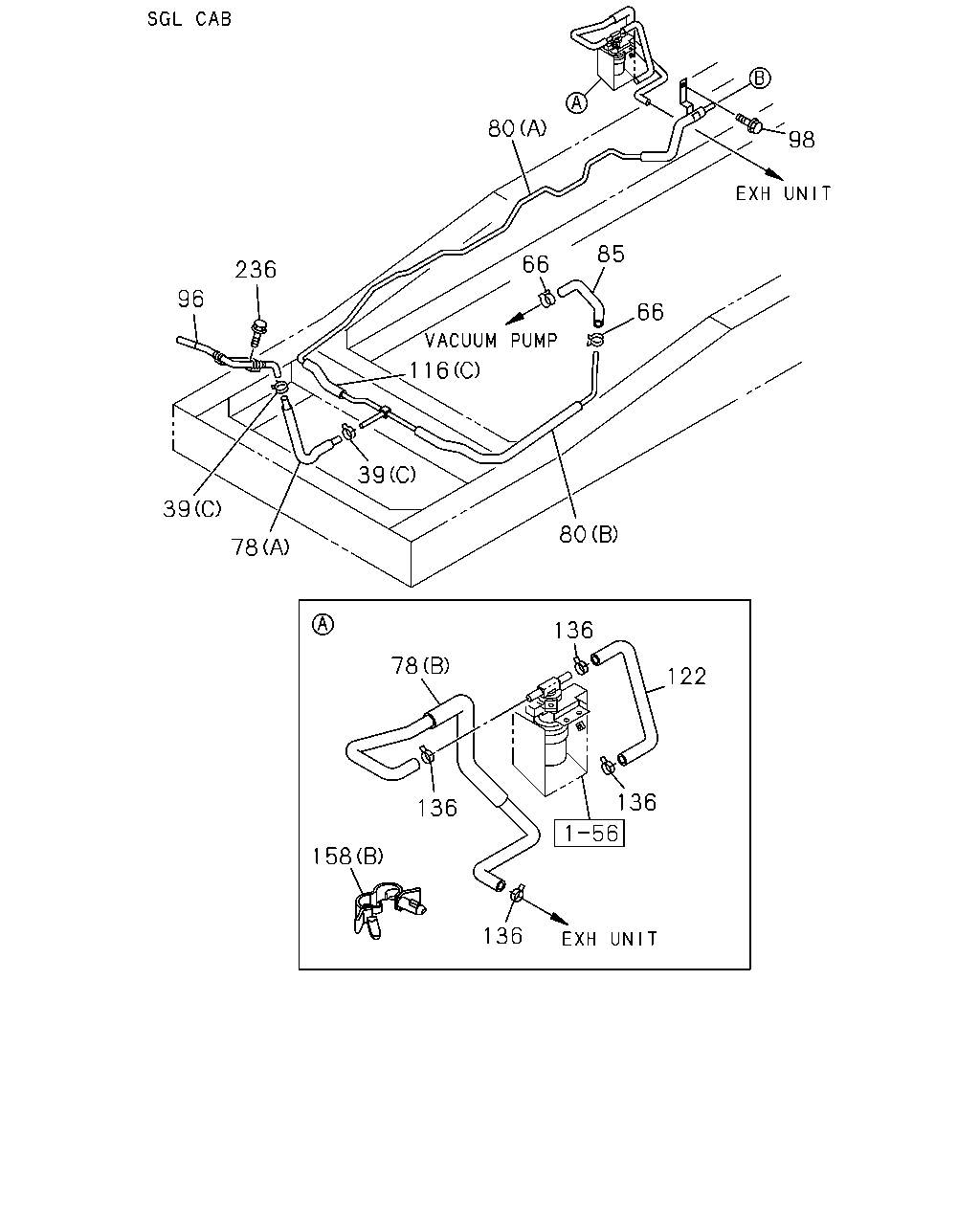

80 98 85 66 66 80 39 236 96 39 78 78 136 122 136 136 158 136 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) ID=16	8-98008-098-0	02	1	1506-	●	●
39	04.681 CLIP; HOSE,VAC FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) ID=16	8-98008-098-0	02	1	1506-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1506-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	1506-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 ID=16	8-98008-098-0	02	1	1506-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC FRT INDEPENDENT SUSPENSION(FF0) 03.162 ID=16	8-98008-098-0	02	1	1506-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98039-728-1	01	1	1506-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98039-728-1	01	1	1506-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1506-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98139-198-0	01	1	1506-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (E) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	1506-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (D)	8-98173-662-0	01	1	1506-		●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98042-655-2	01	1	1506-	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98042-655-2	01	1	1506-	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98181-901-0	01	1	1506-	●	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98181-901-0	01	1	1506-	●	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98146-875-1	01	1	1506-		●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98146-875-1	01	1	1506-		●
85	04.931 HOSE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98075-177-0	01	1	1506-	●	●
85	04.931 HOSE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0)	8-98075-177-0	01	1	1506-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-736-1	01	1	1506-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP FRT INDEPENDENT SUSPENSION(FF0)	8-98039-736-1	01	1	1506-	●	●
98	04.931 BOLT; VAC PIPE FIX AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-	●
98	04.931 BOLT; VAC PIPE FIX FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-	●
116	04.931 HOSE; VAC,M/VAC AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98033-137-1	01	1	1506-	●	●
116	04.931 HOSE; VAC,M/VAC FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98033-137-1	01	1	1506-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-689-3	01	1	1506-	●	●
116	04.931 HOSE; VAC,M/VAC (A)	8-98115-385-1	01	1	1506-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98076-068-1	01	1	1506-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98064-717-1	01	1	1506-		●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	04	1	1506-	●	●
158	04.681 CLIP; HOSE (B) ID=18-24 L=14.5	1-09709-298-0	01	1	1506-	●
158	04.681 CLIP; HOSE (A) ID=8.3 & 8.3	8-94426-175-0	01	1	1506-	●	●
158	04.681 CLIP; HOSE 02.559 (C) ID=28 H=45 L=30	1-09700-707-0	01	1	1506-		●
236	04.930 BOLT; PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1506-	●	●
236	04.930 BOLT; PIPE FRT INDEPENDENT SUSPENSION(FF0) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1506-	●	●

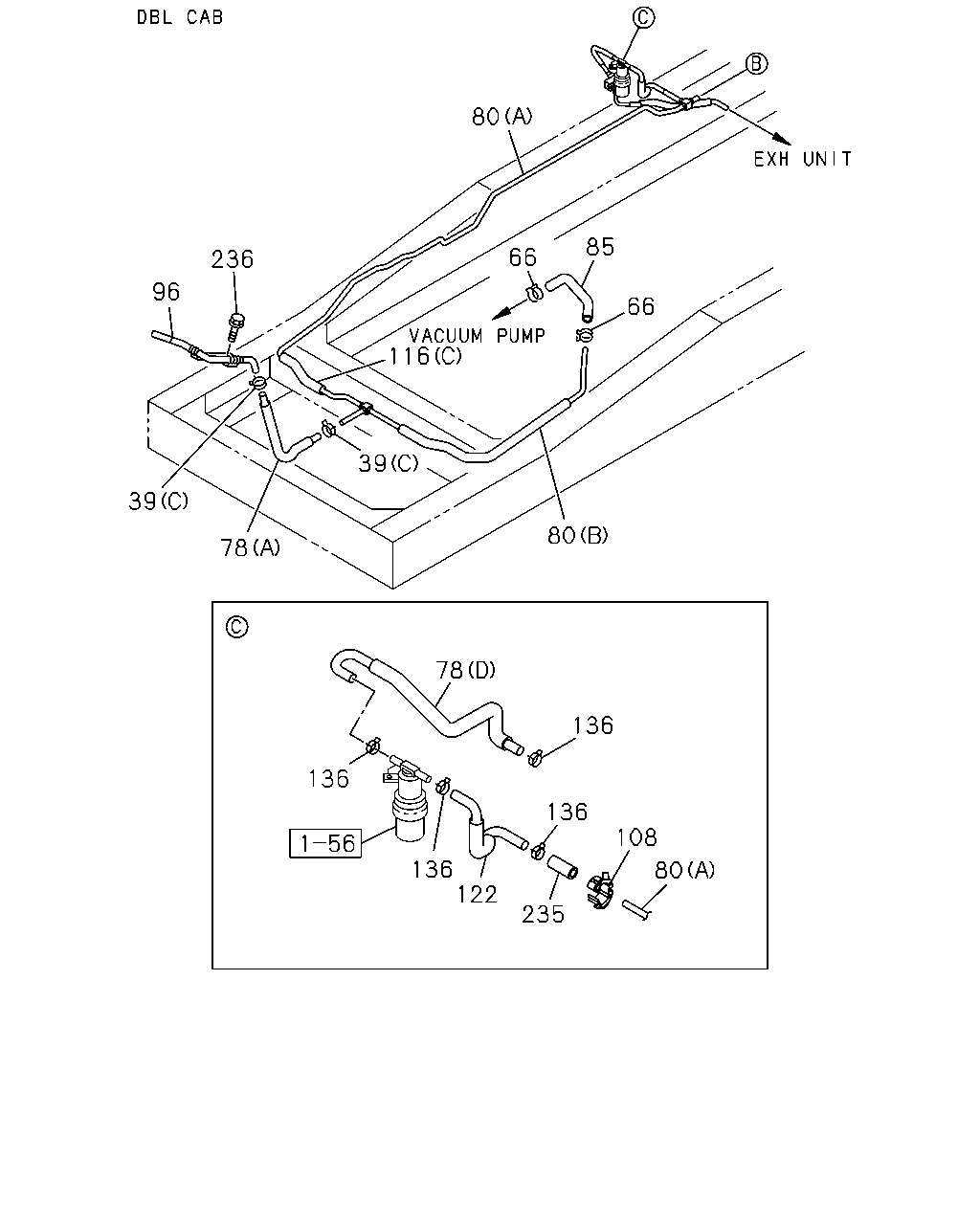

80 85 66 66 80 39 236 96 39 78 78 136 136 136 136 122 235 108 80 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) ID=16	8-98008-098-0	02	1	1506-	●	●
39	04.681 CLIP; HOSE,VAC FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) ID=16	8-98008-098-0	02	1	1506-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1506-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	1506-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 ID=16	8-98008-098-0	02	1	1506-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC FRT INDEPENDENT SUSPENSION(FF0) 03.162 ID=16	8-98008-098-0	02	1	1506-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98039-728-1	01	1	1506-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98039-728-1	01	1	1506-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1506-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98139-198-0	01	1	1506-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (E) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	1506-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (D)	8-98173-662-0	01	1	1506-		●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98042-655-2	01	1	1506-	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98042-655-2	01	1	1506-	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98181-901-0	01	1	1506-	●	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98181-901-0	01	1	1506-	●	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98146-875-1	01	1	1506-		●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98146-875-1	01	1	1506-		●
85	04.931 HOSE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98075-177-0	01	1	1506-	●	●
85	04.931 HOSE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0)	8-98075-177-0	01	1	1506-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-736-1	01	1	1506-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP FRT INDEPENDENT SUSPENSION(FF0)	8-98039-736-1	01	1	1506-	●	●
108	04.931 GROMMET; PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 ID=17	8-94128-319-2	01	1	1506-		●
108	04.931 GROMMET; PIPE FRT INDEPENDENT SUSPENSION(FF0) 02.343 ID=17	8-94128-319-2	01	1	1506-		●
116	04.931 HOSE; VAC,M/VAC AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98033-137-1	01	1	1506-	●	●
116	04.931 HOSE; VAC,M/VAC FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98033-137-1	01	1	1506-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-689-3	01	1	1506-	●	●
116	04.931 HOSE; VAC,M/VAC (A)	8-98115-385-1	01	1	1506-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98076-068-1	01	1	1506-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98064-717-1	01	1	1506-		●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	04	1	1506-	●	●
235	04.931 RUBBER; SUPPORT,PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1506-		●
235	04.931 RUBBER; SUPPORT,PIPE FRT INDEPENDENT SUSPENSION(FF0) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1506-		●
236	04.930 BOLT; PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1506-	●	●
236	04.930 BOLT; PIPE FRT INDEPENDENT SUSPENSION(FF0) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1506-	●	●

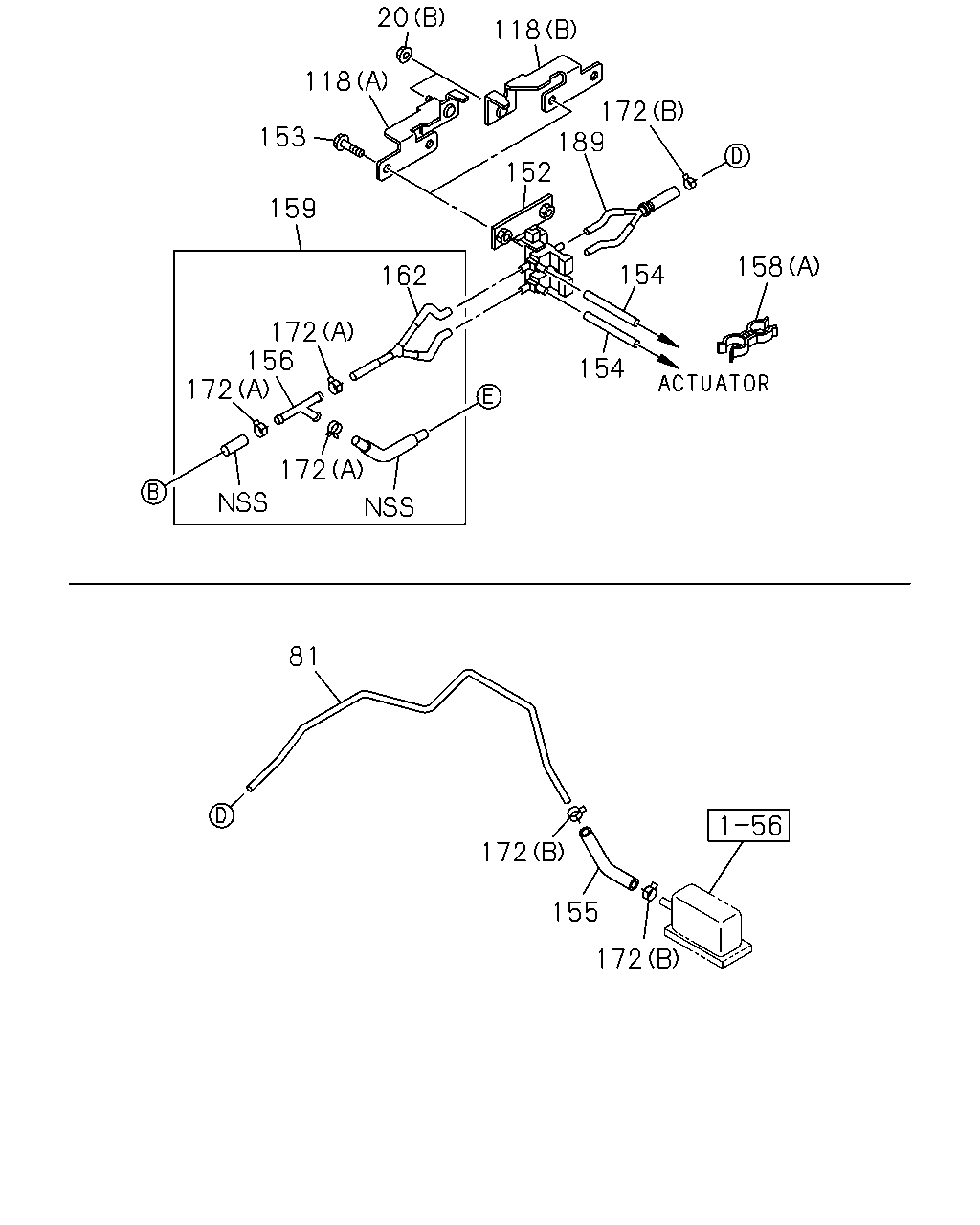

20 118 118 153 159 152 189 172 154 158 154 162 172 156 172 172 81 172 155 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	04.686 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-	●	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1506-	●	●
81	04.930 PIPE; VAC,VSV	8-98001-363-1	01	1	1506-	●
81	04.930 PIPE; VAC,VSV L=840	8-98173-621-2	01	1	1506-		●
118	04.930 BRACKET; VSV (A)	8-98107-986-0	01	1	1506-	●
118	04.930 BRACKET; VSV (B)	8-98154-334-0	01	1	1506-		●
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO 09.755	8-98256-404-0	01	1	1506-	●	●
153	04.686 BOLT; VSV 00.029 M10X25 FLANGE	0-28651-025-0	02	1	1506-	●	●
154	04.931 HOSE; VSV TO ACTUATOR 08.962 L=270 SERVICED BY L=3000	0-04840-300-0	02	1	1506-	●	●
155	04.931 HOSE; VAC,AIR FILTER	8-98021-558-0	01	1	1506-	●
155	04.931 HOSE; VAC,AIR FILTER 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	01	1	1506-		●
156	04.931 JOINT; 3 WAY L=430	8-94467-387-0	01	1	1506-	●	●
158	04.681 CLIP; HOSE (B) ID=18-24 L=14.5	1-09709-298-0	01	1	1506-	●
158	04.681 CLIP; HOSE (A) ID=8.3 & 8.3	8-94426-175-0	01	1	1506-	●	●
158	04.681 CLIP; HOSE 02.559 (C) ID=28 H=45 L=30	1-09700-707-0	01	1	1506-		●
159	04.931 HOSE ASM; VAC	8-97370-921-0	01	1	1506-	●	●
162	04.931 HOSE; VAC	8-94481-279-1	01	1	1506-	●	●
172	04.930 CLIP; VAC HOSE (A) ID=14.5	8-94167-480-0	03	1	1506-	●	●
172	04.930 CLIP; VAC HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1506-	●	●
189	04.930 CONNECTOR 04.931	8-94481-279-1	01	1	1506-	●	●

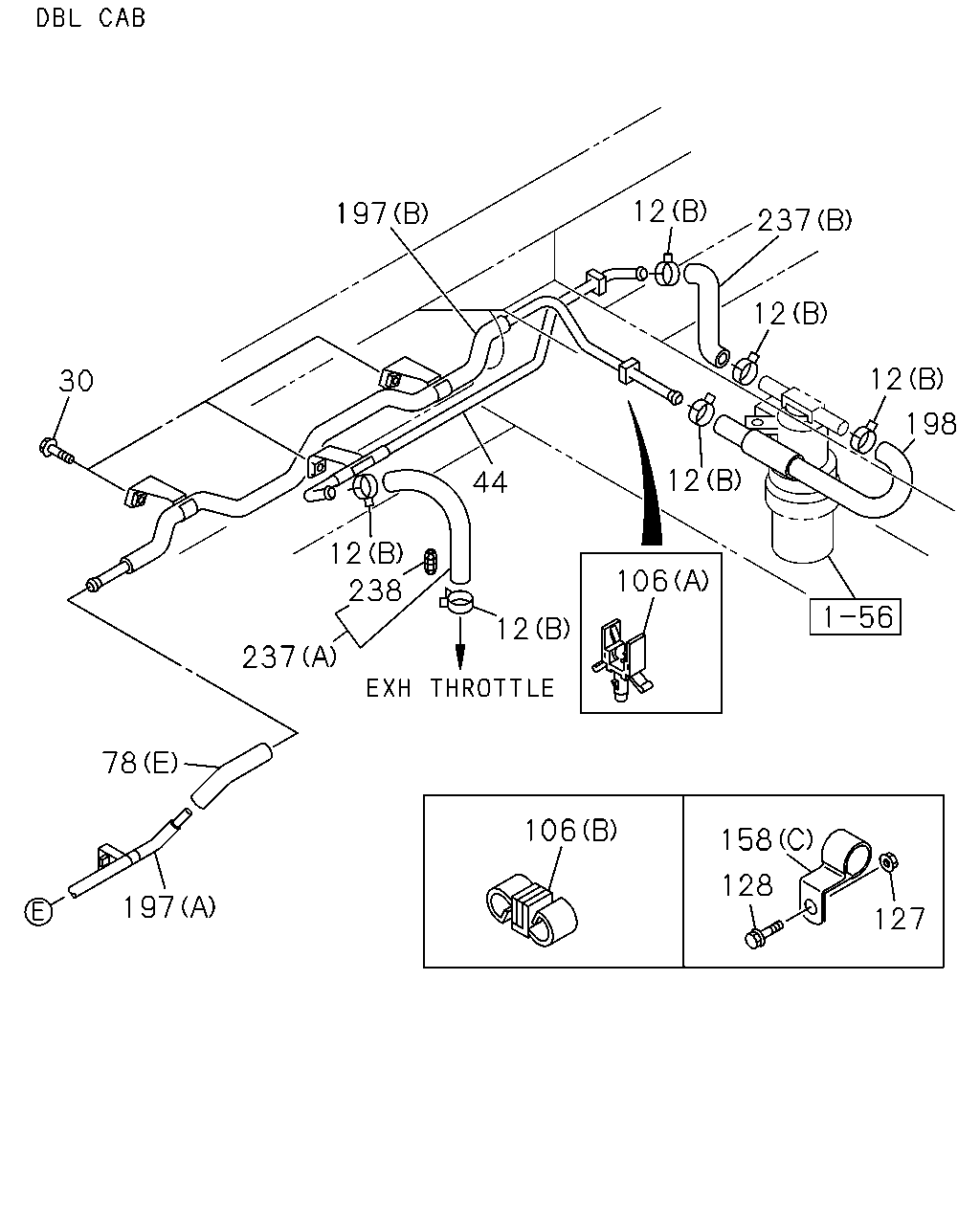

197 12 237 12 12 198 12 44 30 12 237 238 12 78 197 106 158 128 127 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	1506-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	1506-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1506-	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	08	1	1506-	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	06	1	1506-		●
30	04.686 BOLT; CLIP,VAC PIPE 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1506-	●
30	04.686 BOLT; CLIP,VAC PIPE 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1506-		●
44	04.930 PIPE; VAC,MAG VLV L=399	8-98173-628-0	01	1	1506-		●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98039-728-1	01	1	1506-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98039-728-1	01	1	1506-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1506-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98139-198-0	01	1	1506-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (E) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	1506-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (D)	8-98173-662-0	01	1	1506-		●
106	04.930 CLIP; PIPE 03.483 (B) ID=10 & 12	1-09709-278-1	01	1	1506-		●
106	04.930 CLIP; PIPE (A) ID=10 H=40	8-94462-219-0	01	1	1506-		●
127	04.930 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-		●
128	04.930 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-		●
158	04.681 CLIP; HOSE (B) ID=18-24 L=14.5	1-09709-298-0	01	1	1506-	●
158	04.681 CLIP; HOSE (A) ID=8.3 & 8.3	8-94426-175-0	01	1	1506-	●	●
158	04.681 CLIP; HOSE 02.559 (C) ID=28 H=45 L=30	1-09700-707-0	01	1	1506-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV (B)	8-98258-154-0	01	1	1506-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV (A)	8-97389-631-1	01	1	1506-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV (B) L=1027	8-98173-622-0	01	1	1506-		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV	8-98041-640-0	01	1	1506-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV	8-97373-197-0	01	1	1506-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (A)	8-98036-102-0	01	1	1506-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 03.630 (B) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	1506-		●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	1506-	●	●

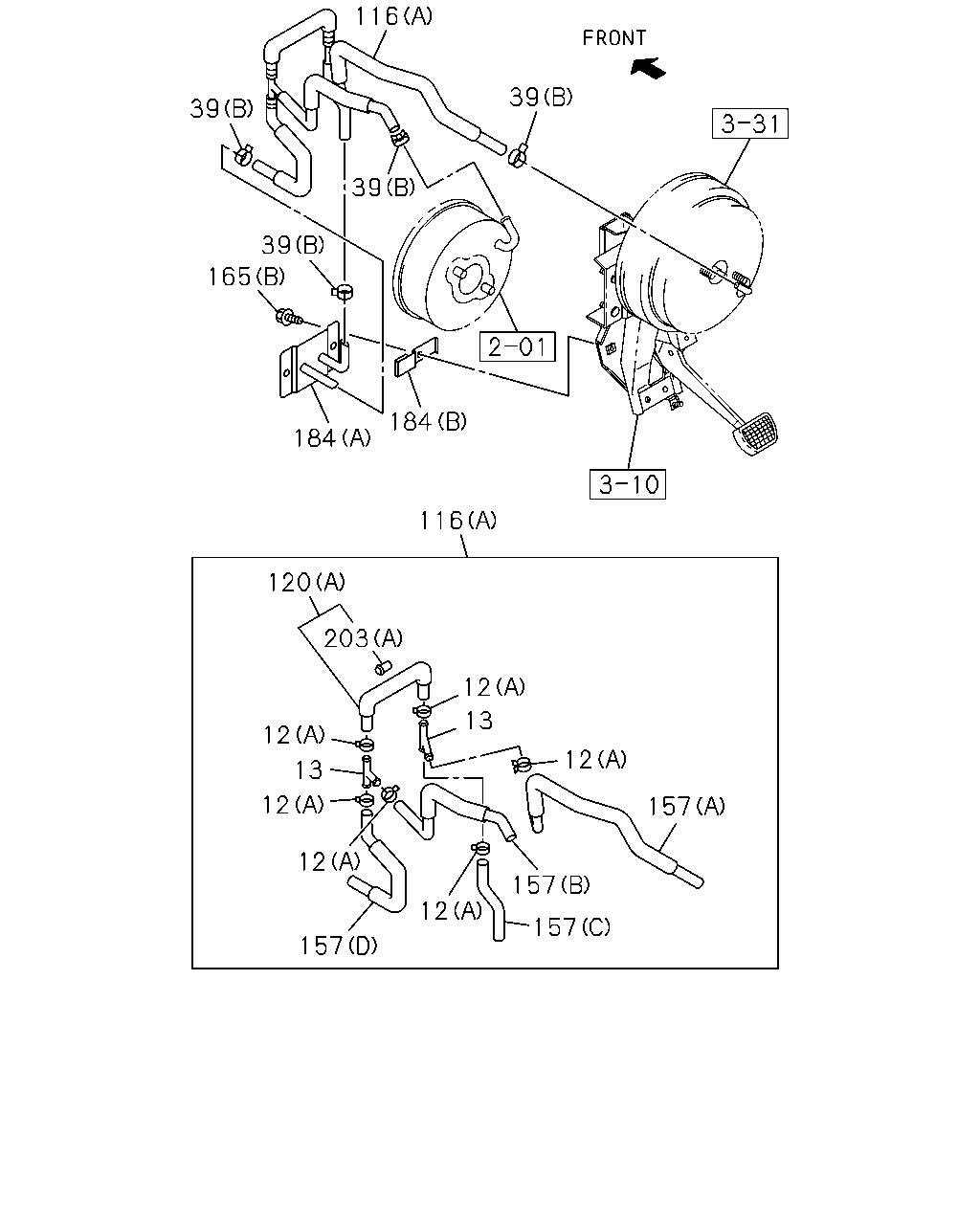

116 39 39 165 184 184 39 39 116 120 203 12 13 12 12 157 12 157 157 12 157 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	1506-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	1506-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1506-	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	08	1	1506-	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	06	1	1506-		●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	1506-	●	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	02	1	1506-	●	●
39	04.681 CLIP; HOSE,VAC AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) ID=16	8-98008-098-0	02	1	1506-	●	●
39	04.681 CLIP; HOSE,VAC FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) ID=16	8-98008-098-0	02	1	1506-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1506-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	1506-	●	●
116	04.931 HOSE; VAC,M/VAC AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98033-137-1	01	1	1506-	●	●
116	04.931 HOSE; VAC,M/VAC FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98033-137-1	01	1	1506-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-689-3	01	1	1506-	●	●
116	04.931 HOSE; VAC,M/VAC (A)	8-98115-385-1	01	1	1506-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (B)	8-97389-695-2	01	1	1506-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-98027-352-3	01	1	1506-	●	●
157	04.931 HOSE; JOINT (E)	8-98017-168-3	01	1	1506-	●	●
157	04.931 HOSE; JOINT (B)	8-98027-351-3	01	1	1506-	●	●
157	04.931 HOSE; JOINT (C)	8-98027-353-3	01	1	1506-	●	●
157	04.931 HOSE; JOINT (D)	8-98027-354-2	01	1	1506-	●	●
157	04.931 HOSE; JOINT (A)	8-98125-532-1	01	1	1506-	●	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1506-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1506-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-98255-535-0	01	1	1506-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98255-548-0	01	1	1506-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (C)	8-98017-628-1	01	1	1506-	●	●
203	04.690 VALVE; CHECK (B)	8-94104-021-0	01	1	1506-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1506-	●	●

202 165 234 173 12 12 163 173 234 96 184 20 116 157 12 120 203 13 12 234 234 39 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	1506-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	1506-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1506-	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	08	1	1506-	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	06	1	1506-		●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	1506-	●	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	02	1	1506-	●	●
20	04.686 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-	●	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1506-	●	●
39	04.681 CLIP; HOSE,VAC AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) ID=16	8-98008-098-0	02	1	1506-	●	●
39	04.681 CLIP; HOSE,VAC FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) ID=16	8-98008-098-0	02	1	1506-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1506-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	1506-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-736-1	01	1	1506-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP FRT INDEPENDENT SUSPENSION(FF0)	8-98039-736-1	01	1	1506-	●	●
116	04.931 HOSE; VAC,M/VAC AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98033-137-1	01	1	1506-	●	●
116	04.931 HOSE; VAC,M/VAC FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98033-137-1	01	1	1506-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-689-3	01	1	1506-	●	●
116	04.931 HOSE; VAC,M/VAC (A)	8-98115-385-1	01	1	1506-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (B)	8-97389-695-2	01	1	1506-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-98027-352-3	01	1	1506-	●	●
157	04.931 HOSE; JOINT (E)	8-98017-168-3	01	1	1506-	●	●
157	04.931 HOSE; JOINT (B)	8-98027-351-3	01	1	1506-	●	●
157	04.931 HOSE; JOINT (C)	8-98027-353-3	01	1	1506-	●	●
157	04.931 HOSE; JOINT (D)	8-98027-354-2	01	1	1506-	●	●
157	04.931 HOSE; JOINT (A)	8-98125-532-1	01	1	1506-	●	●
163	04.681 JOINT; VAC HOSE 03.163	8-97353-668-0	01	1	1506-	●	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1506-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1506-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE (A)	8-98121-940-0	01	1	1506-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE (B)	8-98121-941-0	01	1	1506-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-98255-535-0	01	1	1506-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98255-548-0	01	1	1506-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (C)	8-98017-628-1	01	1	1506-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1506-	●	●
203	04.690 VALVE; CHECK (B)	8-94104-021-0	01	1	1506-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1506-	●	●
234	04.685 CLAMP; PIPE 04.930 ID=16	8-94238-568-0	04	1	1506-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
