3-58 — FIXING PARTS; OIL PIPING (#162672) — 47 parça

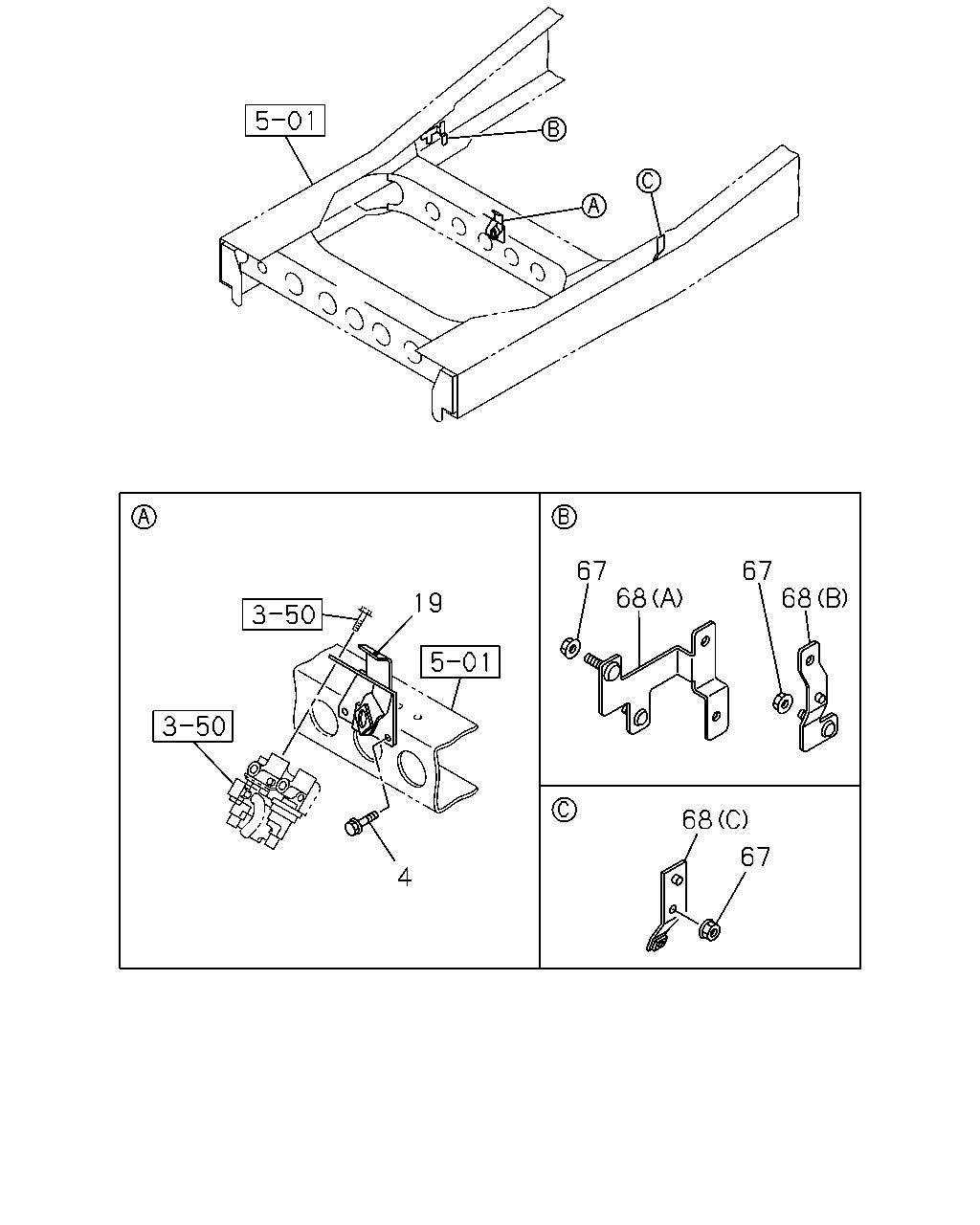

19 4 68 67 68 67 67 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	04.686 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-1507	●	●
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-	●	●
19	04.686 BRACKET; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0)	8-98162-759-0	01	1	1506-1507	●	●
19	04.686 BRACKET; OIL PIPE	8-98162-759-0	01	1	1508-	●	●
67	04.686 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-1507	●	●
67	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1508-	●	●
67	04.686 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●	●
67	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
68	04.686 BRACKET; CLIP FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98039-558-2	01	1	1506-1507	●	●
68	04.686 BRACKET; CLIP (A)	8-98039-558-2	01	1	1508-	●	●
68	04.686 BRACKET; CLIP FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98042-700-0	01	1	1506-1507	●	●
68	04.686 BRACKET; CLIP (B)	8-98042-700-0	01	1	1508-	●	●
68	04.686 BRACKET; CLIP FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98054-308-1	01	1	1506-1507	●	●
68	04.686 BRACKET; CLIP (C)	8-98054-308-1	01	1	1508-	●	●

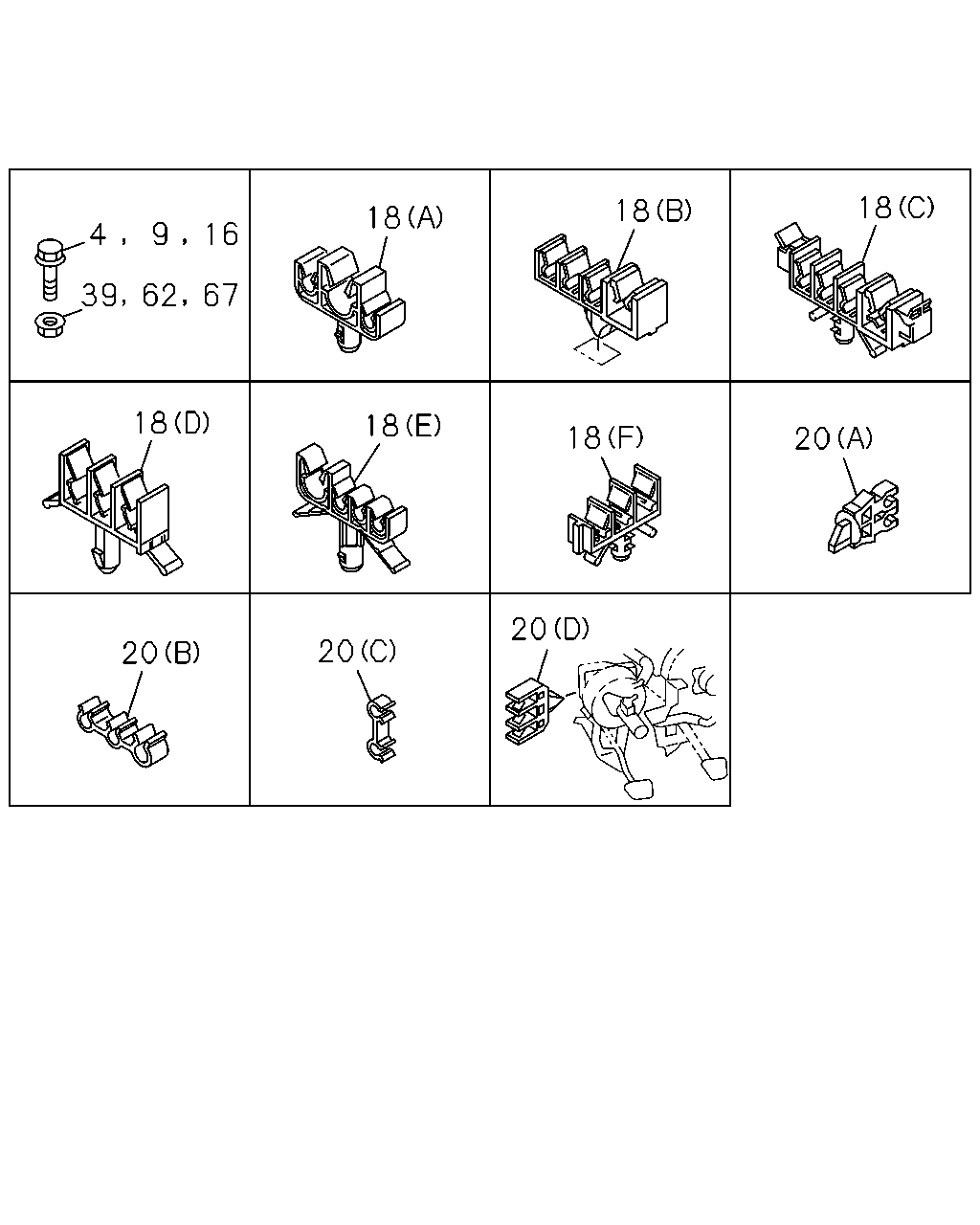

4 9 16 39 62 67 18 18 18 20 20 20 18 18 18 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	04.686 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-1507	●	●
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-	●	●
9	04.686 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	02	1	1506-	●	●
16	04.686 BOLT; BRKT TO FRAME FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1506-	●	●
16	04.686 BOLT; BRKT TO FRAME FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1506-	●	●
18	04.686 CLIP; BRK PIPE FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10 & 4.76X3	8-97326-158-1	02	1	1506-1507	●	●
18	04.686 CLIP; BRK PIPE (C) ID=10 & 4.76X3	8-97326-158-1	02	1	1506-1507	●
18	04.686 CLIP; BRK PIPE (C) ID=10 & 4.76X3	8-97326-158-1	02	1	1508-	●	●
18	04.686 CLIP; BRK PIPE (C) ID=10 & 4.76X3	8-97326-158-1	02	1	1508-	●
18	04.686 CLIP; BRK PIPE FRT INDEPENDENT SUSPENSION(FF0) (D) ID=6.5 & 4.8X2	8-94131-710-2	01	1	1506-1507	●	●
18	04.686 CLIP; BRK PIPE (D) ID=6.5 & 4.8X2	8-94131-710-2	01	1	1508-	●	●
18	04.686 CLIP; BRK PIPE FRT INDEPENDENT SUSPENSION(FF0) 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	1506-1507	●	●
18	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	1508-	●	●
18	04.686 CLIP; BRK PIPE FRT INDEPENDENT SUSPENSION(FF0) (B) ID=10 & 4.76X3	8-97168-819-0	01	1	1506-1507	●	●
18	04.686 CLIP; BRK PIPE (B) ID=10 & 4.76X3	8-97168-819-0	01	1	1508-	●	●
18	04.686 CLIP; BRK PIPE FRT INDEPENDENT SUSPENSION(FF0) (B) ID=10 & 4.76X3	8-97168-819-0	06	1	1506-1507	●	●
18	04.686 CLIP; BRK PIPE (B) ID=10 & 4.76X3	8-97168-819-0	06	1	1508-	●	●
18	04.686 CLIP; BRK PIPE FRT INDEPENDENT SUSPENSION(FF0) (A) ID=12 & 6.35 & 4.76	8-97305-169-1	01	1	1506-1507	●	●
18	04.686 CLIP; BRK PIPE (A) ID=12 & 6.35 & 4.76	8-97305-169-1	01	1	1508-	●	●
18	04.686 CLIP; BRK PIPE (B) ID=10 & 4.76X3	8-97168-819-0	02	1	1506-	●	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-820-0	03	1	1506-	●	●
18	04.686 CLIP; BRK PIPE (C) ID=10 & 4.76X3	8-97326-158-1	04	1	1506-		●
20	04.686 CLIP; BRK PIPE 04.685 (A)	8-94128-307-0	01	1	1506-	●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	1506-	●	●
20	04.686 CLIP; BRK PIPE (D) ID=6.35 & 4.76X2	8-94250-923-2	01	1	1506-	●	●
20	04.686 CLIP; BRK PIPE (C)	8-94338-104-0	01	1	1506-	●	●
39	04.686 NUT; BRKT FIX 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●	●
62	04.686 NUT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●
62	04.686 NUT FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●
67	04.686 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-1507	●	●
67	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1508-	●	●
67	04.686 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●	●
67	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
