◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51605 - NLS RHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#162670) — 29 parça

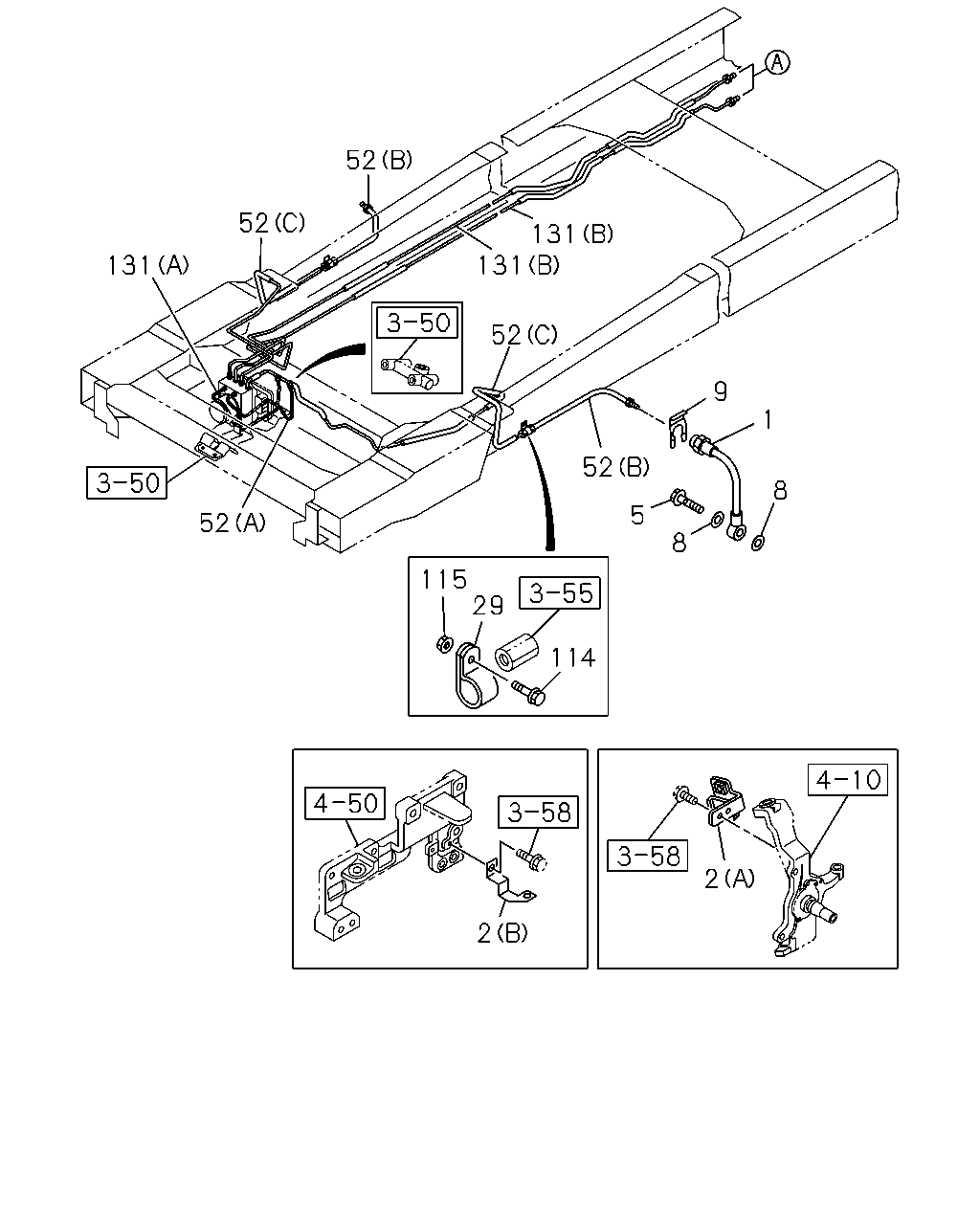

çizim 479596
52 52 131 52 131 131 52 52 9 5 1 8 8 115 29 114 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-98033-731-1 02 1 1506-1507 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98033-731-1 02 1 1508- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98008-253-1 01 1 1506- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98008-254-1 01 1 1506- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98021-613-2 01 1 1506- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98021-614-2 01 1 1506- ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) M10X22 		8-98014-005-0 02 1 1506- ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1506- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97360-054-0 04 1 1506-1507 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 04 1 1508- ● ●
29 04.686 CLIP; UNION
FRT INDEPENDENT SUSPENSION(FF0) ID=16 L=20 		0-95235-532-0 02 1 1506-1507 ● ●
29 04.686 CLIP; UNION
ID=16 L=20 		0-95235-532-0 02 1 1508- ● ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT 		8-98021-150-0 01 1 1506- ● ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT 		8-98021-151-1 01 1 1506- ● ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98110-853-0 01 1 1506- ● ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) 4WAY TO HU,FRONT 		8-98254-349-0 01 1 1506- ● ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH L=1449 		8-98286-216-0 01 1 1506- ● ●
114 04.685 BOLT; CLIP
FRT INDEPENDENT SUSPENSION(FF0) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 1506-1507 ● ●
114 04.685 BOLT; CLIP
03.162 M6X20 FLANGE 		0-28650-620-0 01 1 1508- ● ●
115 04.680 NUT; CLIP
FRT INDEPENDENT SUSPENSION(FF0) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1506-1507 ● ●
115 04.680 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1508- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98110-921-2 01 1 1506- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98110-927-0 01 1 1506- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRT INDEPENDENT SUSPENSION(FF0) (A) 4WAY TO HU,REAR 		8-98254-348-0 01 1 1506- ● ●

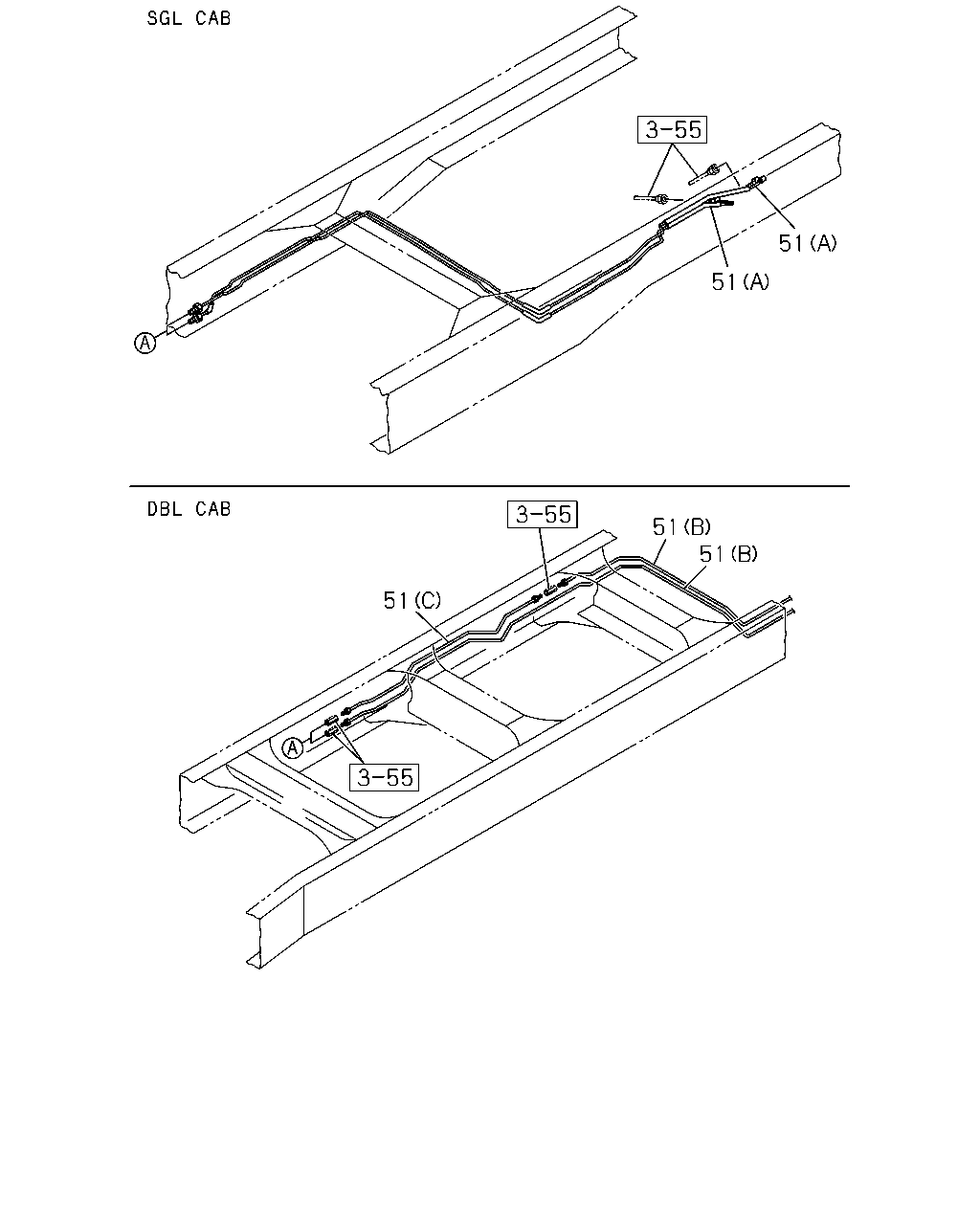

çizim 479800
51 51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-516-1 01 1 1506- ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-529-1 01 1 1506- ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1506- ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1506- ●
51 04.685 PIPE; BRK
(C) 2WAY TO 2WAY 		8-98061-507-0 01 1 1506- ●
